HashMap底层结构剖析（JDK1.8）

作为一个开发者，查看源码是一件非常值得去做的事情，因为只有去查看源码我们才会了解底层的实现，才有看到设计者优秀的设计思路和理念，当以后自己再设计某些东西时，可以借鉴参考思路。（例如：JDK的集合、Spring、Mybatis等）

1、HashMap的概述
  HashMap是我们常用的一个集合之一，底层是由数组+单向链表实现的，与HashTable不同之处是线程不安全、允许null 作为key和value，在多线程的情况下会发生死链（链表进入环状，进入死链的场景），所以在高并发的场景下，我们可以采ConcurrentHashMap 来兼顾性能和安全（PS：它是jdk1.5时引入的，基于分段锁技术，来兼顾性能和安全）

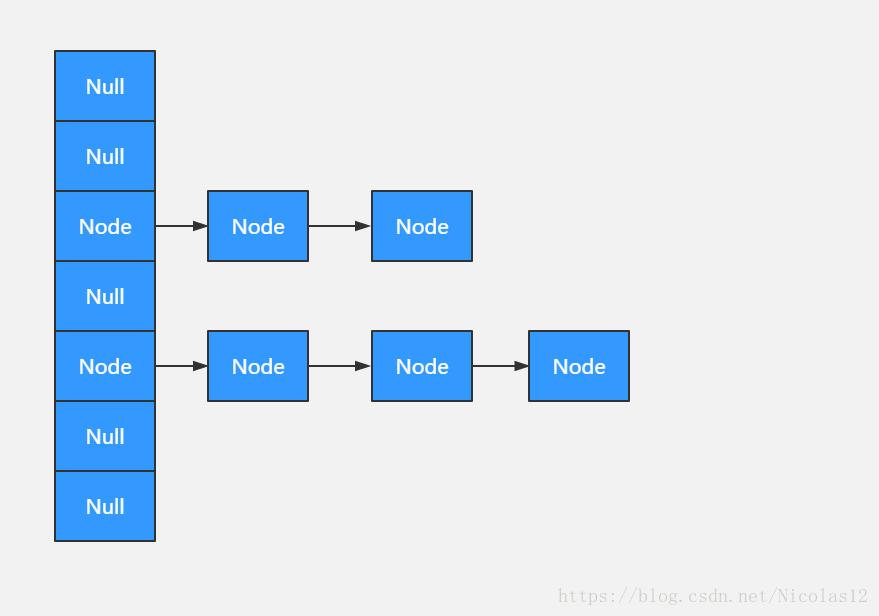

2、HashMap的结构

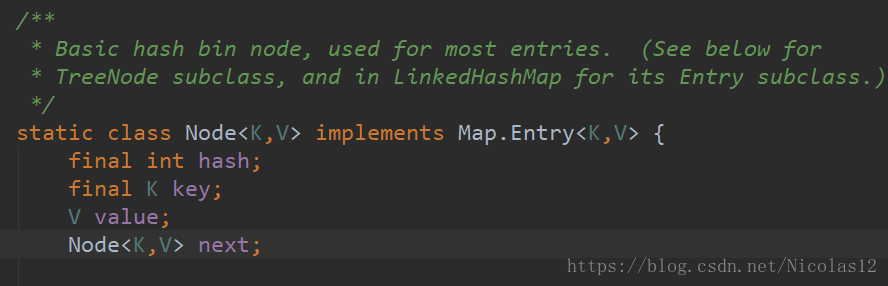

jdk1.8之前 每个key和value 叫做Entry， 1.8后改为了Node

HashMap数组每一个元素的初始值都是Null，默认大小为16，最大为2的30次方

/**
     * The default initial capacity - MUST be a power of two.
     */
    static final int DEFAULT_INITIAL_CAPACITY = 1 << 4; // aka 16

    /**
     * The maximum capacity, used if a higher value is implicitly specified
     * by either of the constructors with arguments.
     * MUST be a power of two <= 1<<30.
     */
    static final int MAXIMUM_CAPACITY = 1 << 30;

当我们调用put(“apple”,12)时，它会调用哈希算法生成一个index放入数组的某个位置

 /**
     * Associates the specified value with the specified key in this map.
     * If the map previously contained a mapping for the key, the old
     * value is replaced.
     *
     * @param key key with which the specified value is to be associated
     * @param value value to be associated with the specified key
     * @return the previous value associated with <tt>key</tt>, or
     *         <tt>null</tt> if there was no mapping for <tt>key</tt>.
     *         (A <tt>null</tt> return can also indicate that the map
     *         previously associated <tt>null</tt> with <tt>key</tt>.)
     */
    public V put(K key, V value) {
        return putVal(hash(key), key, value, false, true);
    }

我们知道HashMap的默认大小是16，那数组的下标就是0-15，我们很容易想到 index=hash(key)%15 ，但是底层为了提高运算效率，采用的是位运算

if ((p = tab[i = (n - 1) & hash]) == null)
            tab[i] = newNode(hash, key, value, null);

当生成index相同时，那会在那个地方向后插入一个链表

if ((p = tab[i = (n - 1) & hash]) == null)
            tab[i] = newNode(hash, key, value, null);
        else {
            Node<K,V> e; K k;
            if (p.hash == hash &&
                ((k = p.key) == key || (key != null && key.equals(k))))
                e = p;

在上面声明HashMap初始化大小时，一段注释 The default initial capacity - MUST be a power of two. 有没有会产生一个这样的一个疑问？为啥默认长度是16 或者是2的幂？那我们先来看下index的生成过程，从前面我们知道 index = HashCode（Key） & （Length - 1）
下面我们以值为“book”的Key来演示整个过程：
  1.计算book的hashcode，结果为十进制的3029737，二进制的101110001110101110 1001。
  2.HashMap长度是默认的16，计算Length-1的结果为十进制的15，二进制的1111
  3.把以上两个结果做与运算，101110001110101110 1001 & 1111 = 1001，十进制是9，所以 index=9
从上述的结果 可以说，Hash算法最终得到的index结果，完全取决于Key的Hashcode值的最后几位

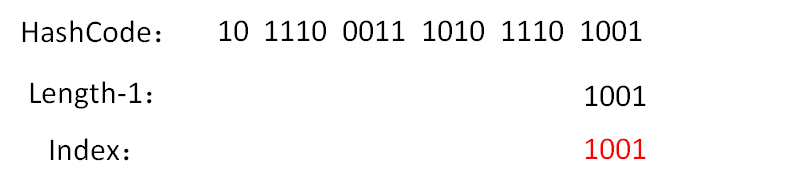

假设HashMap的长度是10，重复刚才的运算步骤：

再来一个新的HashCode，来看看结果：

还来一个新的HashCode试试，看看结果

上面的三个HashCode倒数第二第三位从0变成了1，但是运算的结果都是1001。也就是说，当HashMap长度为10的时候，有些index结果的出现几率会更大，而有些index结果永远不会出现（比如0111）！
这样将会导致某些链表越来越长，从而使得链表的缺点暴露越来越明显，查询起来越来越慢，也不符合hash算法均匀分布的原则
反观长度16或者其他2的幂，Length-1的值是所有二进制位全为1，这种情况下，index的结果等同于HashCode后几位的值。
为了HashCode尽量均匀系统为HashCode进行了异或运算

/**
     * Computes key.hashCode() and spreads (XORs) higher bits of hash
     * to lower.  Because the table uses power-of-two masking, sets of
     * hashes that vary only in bits above the current mask will
     * always collide. (Among known examples are sets of Float keys
     * holding consecutive whole numbers in small tables.)  So we
     * apply a transform that spreads the impact of higher bits
     * downward. There is a tradeoff between speed, utility, and
     * quality of bit-spreading. Because many common sets of hashes
     * are already reasonably distributed (so don't benefit from
     * spreading), and because we use trees to handle large sets of
     * collisions in bins, we just XOR some shifted bits in the
     * cheapest possible way to reduce systematic lossage, as well as
     * to incorporate impact of the highest bits that would otherwise
     * never be used in index calculations because of table bounds.
     */
    static final int hash(Object key) {
        int h;
        return (key == null) ? 0 : (h = key.hashCode()) ^ (h >>> 16);
    }

到这有人就会想到，那HashMap的数组啥时候扩大呢？它有着一个自己的扩容因子0.75，也就是说当数组用完12个时，就会自动扩容

   /**
     * The load factor used when none specified in constructor.
     */
    static final float DEFAULT_LOAD_FACTOR = 0.75f;

当我们调用put方法时，第一个就是判断大小，是否该扩容了，在resize()方法中进行扩容，把原来数组上数据复制到新的数组中重新分布

/**
     * The table, initialized on first use, and resized as
     * necessary. When allocated, length is always a power of two.
     * (We also tolerate length zero in some operations to allow
     * bootstrapping mechanics that are currently not needed.)
     */
transient Node<K,V>[] table;

public V put(K key, V value) {
        return putVal(hash(key), key, value, false, true);
    }
    /**
     * Implements Map.put and related methods
     *
     * @param hash hash for key
     * @param key the key
     * @param value the value to put
     * @param onlyIfAbsent if true, don't change existing value
     * @param evict if false, the table is in creation mode.
     * @return previous value, or null if none
     */
    final V putVal(int hash, K key, V value, boolean onlyIfAbsent,
                   boolean evict) {
        Node<K,V>[] tab; Node<K,V> p; int n, i;
        if ((tab = table) == null || (n = tab.length) == 0)
            n = (tab = resize()).length;

JDK1.8后 HashMap中增加了两个阀值，当单个链表中的元素达到8个时，会改用红黑树结构来存储数据，当树结构的节点小于6时，又会转成链表结构

/**
     * The bin count threshold for using a tree rather than list for a
     * bin.  Bins are converted to trees when adding an element to a
     * bin with at least this many nodes. The value must be greater
     * than 2 and should be at least 8 to mesh with assumptions in
     * tree removal about conversion back to plain bins upon
     * shrinkage.
     */
    static final int TREEIFY_THRESHOLD = 8;

    /**
     * The bin count threshold for untreeifying a (split) bin during a
     * resize operation. Should be less than TREEIFY_THRESHOLD, and at
     * most 6 to mesh with shrinkage detection under removal.
     */
    static final int UNTREEIFY_THRESHOLD = 6;
