波形图添加极限值

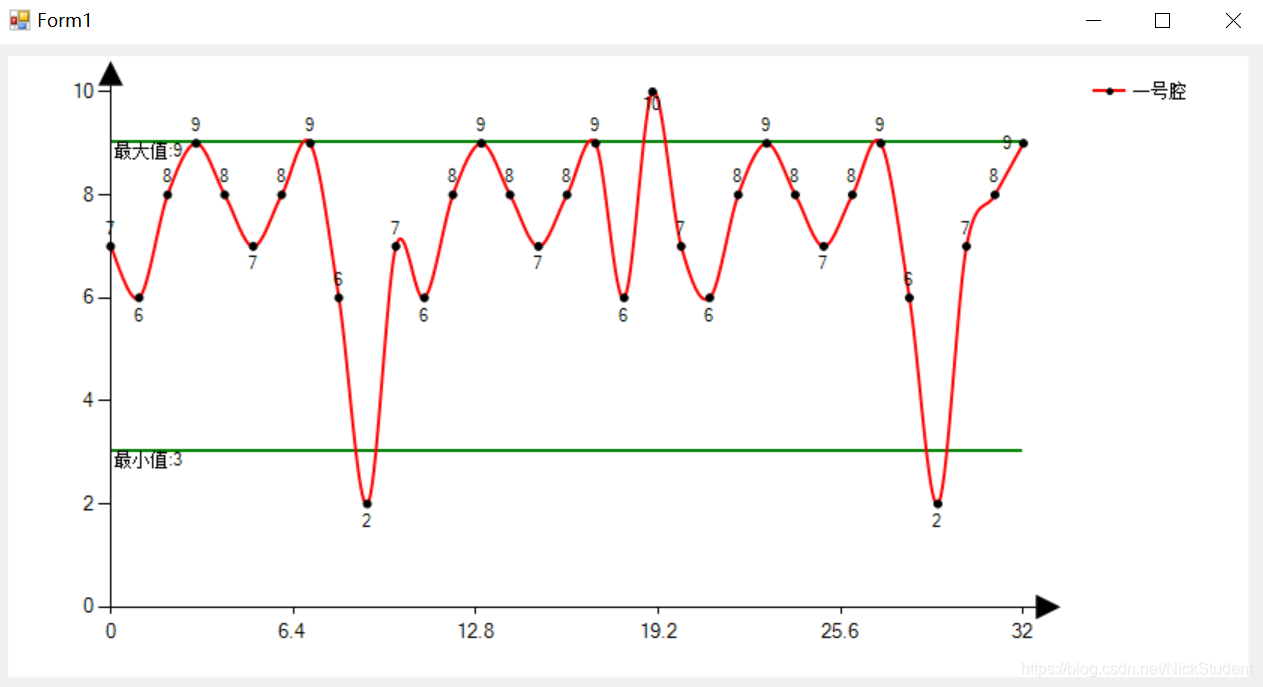

使用Chart控件制作波形图，并添加上下极限值。



using System;
using System.Collections.Generic;
using System.ComponentModel;
using System.Data;
using System.Drawing;
using System.Linq;
using System.Text;
using System.Windows.Forms;
using System.Windows.Forms.DataVisualization.Charting;

namespace Test2
{
    public partial class Form1 : Form
    {
        public Form1()
        {
            InitializeComponent();
            InitChart();
        }
        //初始化图表控件
        public void InitChart()
        {
            //绘制图表显示范围
            ChartArea myChartArea = chart1.ChartAreas[0];
            myChartArea.AxisX.Minimum = 0;
            myChartArea.AxisX.Maximum = 32;
            myChartArea.AxisY.Minimum = 0;
            myChartArea.AxisY.Maximum = 10;

            //设置极限值
            StripLine stripLineMax = new StripLi
