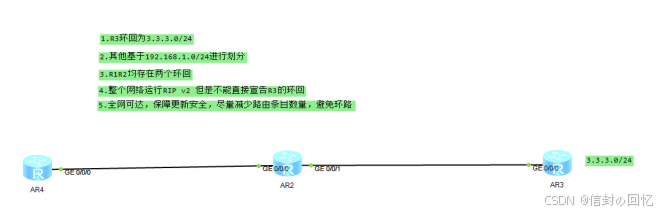

动态路由作业

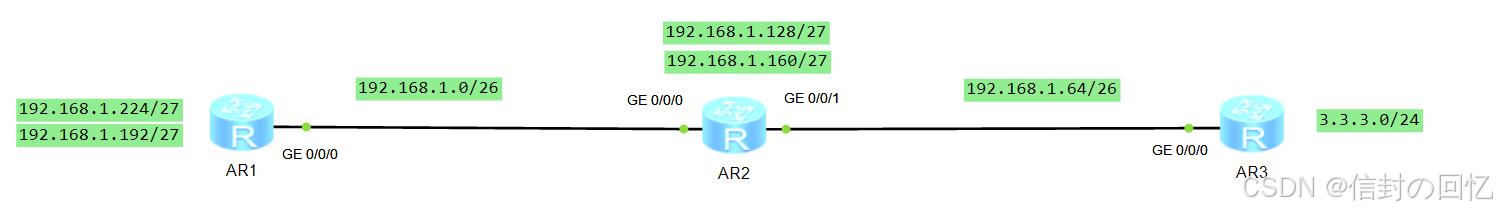

一、合理分配网段

二、配置物理接口、虚拟接口地址

AR1：

[R1]interface g 0/0/0
[R1-GigabitEthernet0/0/0]ip address 192.168.1.1 26
[R1-GigabitEthernet0/0/0]q
[R1]interface l
[R1]interface LoopBack 0
[R1-LoopBack0]ip address 192.168.1.193 27
[R1-LoopBack0]q
[R1]interface LoopBack 1
[R1-LoopBack1]ip address 192.168.1.225 27
[R1-LoopBack1]q

AR2:

[R2]interface g 0/0/0
[R2-GigabitEthernet0/0/0]ip address 192.168.1.2 26
[R2-GigabitEthernet0/0/0]q
[R2]interface g 0/0/1
[R2-GigabitEthernet0/0/1]ip address 192.168.1.65 26
[R2-GigabitEthernet0/0/1]q
[R2]interface l
[R2]interface LoopBack 0
[R2-LoopBack0]ip address 192.168.1.129 27
[R2-LoopBack0]q
[R2]interface LoopBack 1
[R2-LoopBack1]ip address 192.168.1.161 27
[R2-LoopBack1]q

AR3：

[R3]interface g 0/0/0
[R3-GigabitEthernet0/0/0]ip address 192.168.1.66 26
[R3-GigabitEthernet0/0/0]q
[R3]interface LoopBack 0
[R3-LoopBack0]ip address 3.3.3.1 24
[R3-LoopBack0]q

三、RIP配置

AR1：

[R1] rip 1
[R1-rip-1]version 2
[R1-rip-1]undo summary
[R1-rip-1]network 192.168.1.0

AR2：

[R2] rip 1
[R2-rip-1]version 2
[R2-rip-1]undo summary
[R2-rip-1]network 192.168.1.0

AR3：

[R3]rip 1
[R3-rip-1]version 2
[R3-rip-1]undo summary
[R3-rip-1]network 192.168.1.0
[R3-rip-1]default-route originate

四、手工汇总与手工认证

AR1：

[R1-GigabitEthernet0/0/0]rip summary-address 192.168.1.192 255.255.255.192
[R1-GigabitEthernet0/0/0]rip authentication-mode md5 usual cipher 123456
[R1-GigabitEthernet0/0/0]q

AR2：

[R2-GigabitEthernet0/0/0]rip summary-address 192.168.1.128 255.255.255.192
[R2-GigabitEthernet0/0/0]rip authentication-mode md5 usual cipher 123456
[R2-GigabitEthernet0/0/0]q

[R2-GigabitEthernet0/0/1]rip summary-address 192.168.1.128 255.255.255.192
[R2-GigabitEthernet0/0/1]rip authentication-mode md5 usual cipher 888888
[R2-GigabitEthernet0/0/1]q

AR3:

[R3-GigabitEthernet0/0/0]rip summary-address 3.3.3.0 255.255.255.0
[R3-GigabitEthernet0/0/0]rip authentication-mode md5 usual cipher 888888
[R3-GigabitEthernet0/0/0]q

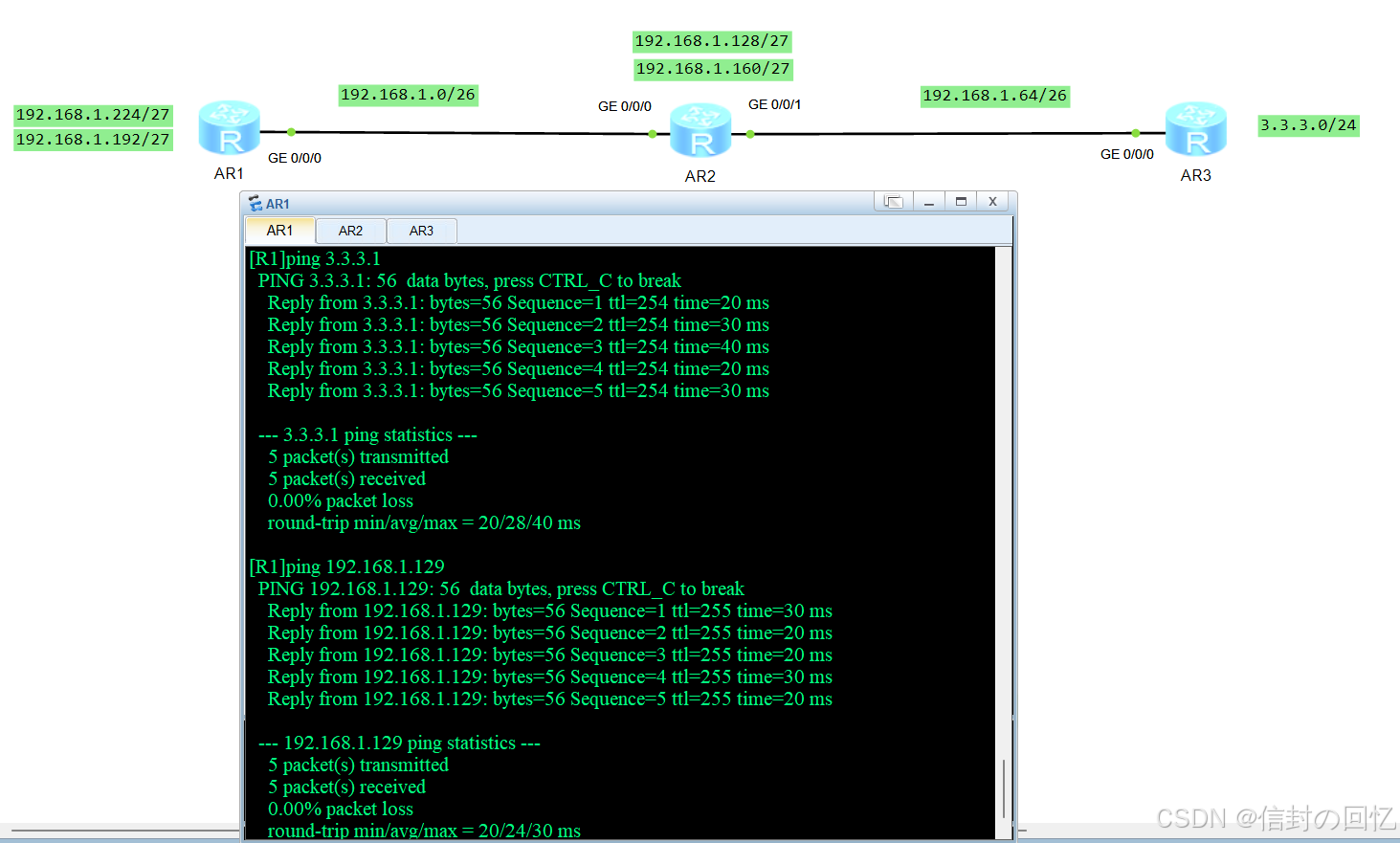

五、ping测试
