关于angular HttpClient转码问题补充

基于angular httpclient转码遇到的'+'不转译的问题我们虽然已经解决了，但是我们还不知道原因。我们自己去调用encodeURLComponent方法的时候 + 是被编码成%2B的，带着疑惑我们去看angular的源码




// client.ts

 get(url: string, options: {
    headers?: HttpHeaders|{[header: string]: string | string[]},
    context?: HttpContext,
    observe?: 'body'|'events'|'response',
    params?: HttpParams|
          {[param: string]: string | number | boolean | ReadonlyArray<string|number|boolean>},
    reportProgress?: boolean,
    responseType?: 'arraybuffer'|'blob'|'json'|'text',
    withCredentials?: boolean,
  } = {}): Observable<any> {
    return this.request<any>('GET', url, options as any);
  }


request(first: string|HttpRequest<any>, url?: string, options: {
    body?: any,
    headers?: HttpHeaders|{[header: string]: string | string[]},
    context?: HttpContext,
    observe?: 'body'|'events'|'response',
    params?: HttpParams|
          {[param: string]: string | number | boolean | ReadonlyArray<string|number|boolean>},
    reportProgress?: boolean,
    responseType?: 'arraybuffer'|'blob'|'json'|'text',
    withCredentials?: boolean,
  } = {}): Observable<any> {
    let req: HttpRequest<any>;
    // First, check whether the primary argument is an instance of `HttpRequest`.
    if (first instanceof HttpRequest) {
      // It is. The other arguments must be undefined (per the signatures) and can be
      // ignored.
      req = first;
    } else {
      // It's a string, so it represents a URL. Construct a request based on it,
      // and incorporate the remaining arguments (assuming `GET` unless a method is
      // provided.

      // Figure out the headers.
      let headers: HttpHeaders|undefined = undefined;
      if (options.headers instanceof HttpHeaders) {
        headers = options.headers;
      } else {
        headers = new HttpHeaders(options.headers);
      }

      // Sort out parameters.
      let params: HttpParams|undefined = undefined;
      if (!!options.params) {
        if (options.params instanceof HttpParams) {
          params = options.params;
        } else {
          params = new HttpParams({fromObject: options.params} as HttpParamsOptions);
        }
      }

      // Construct the request.
      req = new HttpRequest(first, url!, (options.body !== undefined ? options.body : null), {
        headers,
        context: options.context,
        params,
        reportProgress: options.reportProgress,
        // By default, JSON is assumed to be returned for all calls.
        responseType: options.responseType || 'json',
        withCredentials: options.withCredentials,
      });
    }

截取了片段的angular请求封装代码，我们看到params会被构造成一个HttpParams的实例，我们找到HttpParams类

//params.ts


export class HttpParams {
  private map: Map<string, string[]>|null;
  private encoder: HttpParameterCodec;
  private updates: Update[]|null = null;
  private cloneFrom: HttpParams|null = null;

  constructor(options: HttpParamsOptions = {} as HttpParamsOptions) {
    this.encoder = options.encoder || new HttpUrlEncodingCodec();
    if (!!options.fromString) {
      if (!!options.fromObject) {
        throw new Error(`Cannot specify both fromString and fromObject.`);
      }
      this.map = paramParser(options.fromString, this.encoder);
    } else if (!!options.fromObject) {
      this.map = new Map<string, string[]>();
      Object.keys(options.fromObject).forEach(key => {
        const value = (options.fromObject as any)[key];
        // convert the values to strings
        const values = Array.isArray(value) ? value.map(valueToString) : [valueToString(value)];
        this.map!.set(key, values);
      });
    } else {
      this.map = null;
    }
  }
}

参数生成后接着实例化请求，我们看到请求是个HttpRequest实例，我们继续往下走，找到HttpRequest类

export class HttpRequest<T> {

    constructor(
      method: string, readonly url: string, third?: T|{
        headers?: HttpHeaders,
        context?: HttpContext,
        reportProgress?: boolean,
        params?: HttpParams,
        responseType?: 'arraybuffer'|'blob'|'json'|'text',
        withCredentials?: boolean,
      }|null,
      fourth?: {
        headers?: HttpHeaders,
        context?: HttpContext,
        reportProgress?: boolean,
        params?: HttpParams,
        responseType?: 'arraybuffer'|'blob'|'json'|'text',
        withCredentials?: boolean,
      }) {
    this.method = method.toUpperCase();
    // Next, need to figure out which argument holds the HttpRequestInit
    // options, if any.
    let options: HttpRequestInit|undefined;

    // Check whether a body argument is expected. The only valid way to omit
    // the body argument is to use a known no-body method like GET.
    if (mightHaveBody(this.method) || !!fourth) {
      // Body is the third argument, options are the fourth.
      this.body = (third !== undefined) ? third as T : null;
      options = fourth;
    } else {
      // No body required, options are the third argument. The body stays null.
      options = third as HttpRequestInit;
    }

    // If options have been passed, interpret them.
    if (options) {
      // Normalize reportProgress and withCredentials.
      this.reportProgress = !!options.reportProgress;
      this.withCredentials = !!options.withCredentials;

      // Override default response type of 'json' if one is provided.
      if (!!options.responseType) {
        this.responseType = options.responseType;
      }

      // Override headers if they're provided.
      if (!!options.headers) {
        this.headers = options.headers;
      }

      if (!!options.context) {
        this.context = options.context;
      }

      if (!!options.params) {
        this.params = options.params;
      }
    }

    // If no headers have been passed in, construct a new HttpHeaders instance.
    if (!this.headers) {
      this.headers = new HttpHeaders();
    }

    // If no context have been passed in, construct a new HttpContext instance.
    if (!this.context) {
      this.context = new HttpContext();
    }

    // If no parameters have been passed in, construct a new HttpUrlEncodedParams instance.
    if (!this.params) {
      this.params = new HttpParams();
      this.urlWithParams = url;
    } else {
      // Encode the parameters to a string in preparation for inclusion in the URL.
      const params = this.params.toString();
      if (params.length === 0) {
        // No parameters, the visible URL is just the URL given at creation time.
        this.urlWithParams = url;
      } else {
        // Does the URL already have query parameters? Look for '?'.
        const qIdx = url.indexOf('?');
        // There are 3 cases to handle:
        // 1) No existing parameters -> append '?' followed by params.
        // 2) '?' exists and is followed by existing query string ->
        //    append '&' followed by params.
        // 3) '?' exists at the end of the url -> append params directly.
        // This basically amounts to determining the character, if any, with
        // which to join the URL and parameters.
        const sep: string = qIdx === -1 ? '?' : (qIdx < url.length - 1 ? '&' : '');
        this.urlWithParams = url + sep + params;
      }
    }
  }
}

老样子摘取片段

我们看到有

const params = this.params.toString();

if (params.length === 0) {

this.urlWithParams = url;

} else {

this.urlWithParams = url + sep + params;

}

这个片段 ，上面我们已经知道了params是个HttpParams类，我们找到他的toString方法

toString(): string {
    this.init();
    return this.keys()
        .map(key => {
          const eKey = this.encoder.encodeKey(key);
          // `a: ['1']` produces `'a=1'`
          // `b: []` produces `''`
          // `c: ['1', '2']` produces `'c=1&c=2'`
          return this.map!.get(key)!.map(value => eKey + '=' + this.encoder.encodeValue(value))
              .join('&');
        })
        // filter out empty values because `b: []` produces `''`
        // which results in `a=1&&c=1&c=2` instead of `a=1&c=1&c=2` if we don't
        .filter(param => param !== '')
        .join('&');
  }

export class HttpUrlEncodingCodec implements HttpParameterCodec {
  /**
   * Encodes a key name for a URL parameter or query-string.
   * @param key The key name.
   * @returns The encoded key name.
   */
  encodeKey(key: string): string {
    return standardEncoding(key);
  }

  /**
   * Encodes the value of a URL parameter or query-string.
   * @param value The value.
   * @returns The encoded value.
   */
  encodeValue(value: string): string {
    return standardEncoding(value);
  }

  /**
   * Decodes an encoded URL parameter or query-string key.
   * @param key The encoded key name.
   * @returns The decoded key name.
   */
  decodeKey(key: string): string {
    return decodeURIComponent(key);
  }

  /**
   * Decodes an encoded URL parameter or query-string value.
   * @param value The encoded value.
   * @returns The decoded value.
   */
  decodeValue(value: string) {
    return decodeURIComponent(value);
  }
}

const STANDARD_ENCODING_REGEX = /%(\d[a-f0-9])/gi;
const STANDARD_ENCODING_REPLACEMENTS: {[x: string]: string} = {
  '40': '@',
  '3A': ':',
  '24': '$',
  '2C': ',',
  '3B': ';',
  '3D': '=',
  '3F': '?',
  '2F': '/',
};

function standardEncoding(v: string): string {
  return encodeURIComponent(v).replace(
      STANDARD_ENCODING_REGEX, (s, t) => STANDARD_ENCODING_REPLACEMENTS[t] ?? s);
}

可以看到 toString方法是对字符串做了处理的，调用encoder的encodeValue方法对值进行转码，这个转码我们可以看到是有限制的，一些特殊字符不参与转码。

可是这边也没有说到'+'是不会被转码的，为什么项目中的'+'没有被转码。

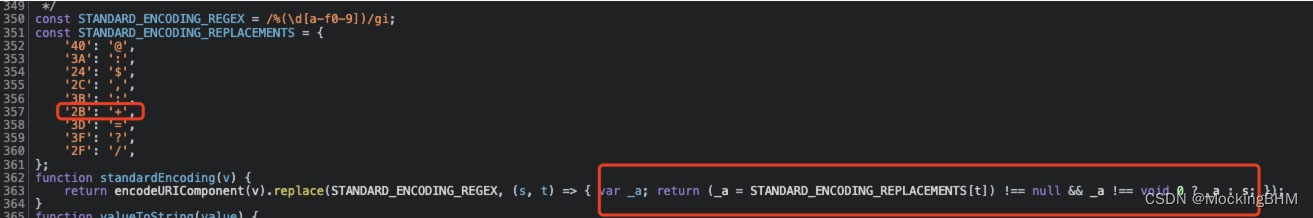

直接说结论：版本问题，开头提到过这个是最新版本的angular，但是在两年之前的版本，+是被特殊处理的，如下图



所以我们在项目不升级版本的情况下，要处理这个问题就要仿造他的改动进行改动，基于前面文章的基础，我们把自定义类改造成这样

class CustomHttpUrlEncodingCodec implements HttpParameterCodec {
    encodeKey(key: string): string {
      return standardEncoding(key);
    }

    encodeValue(value: string): string {
      return standardEncoding(value);
    }

    decodeKey(key: string): string {
      return decodeURIComponent(key);
    }

    decodeValue(value: string): string {
      return decodeURIComponent(value);
    }
  }
  const STANDARD_ENCODING_REGEX = /%(\d[a-f0-9])/gi;
  const STANDARD_ENCODING_REPLACEMENTS: {[x: string]: string} = {
  '40': '@',
  '3A': ':',
  '24': '$',
  '2C': ',',
  '3B': ';',
  '3D': '=',
  '3F': '?',
  '2F': '/',
};

function standardEncoding(v: string): string {
  return encodeURIComponent(v).replace(
      STANDARD_ENCODING_REGEX, (s, t) => STANDARD_ENCODING_REPLACEMENTS[t] ?? s);
}
