前言

本系列文章旨在分析android应用打开摄像头并显示预览的流程。

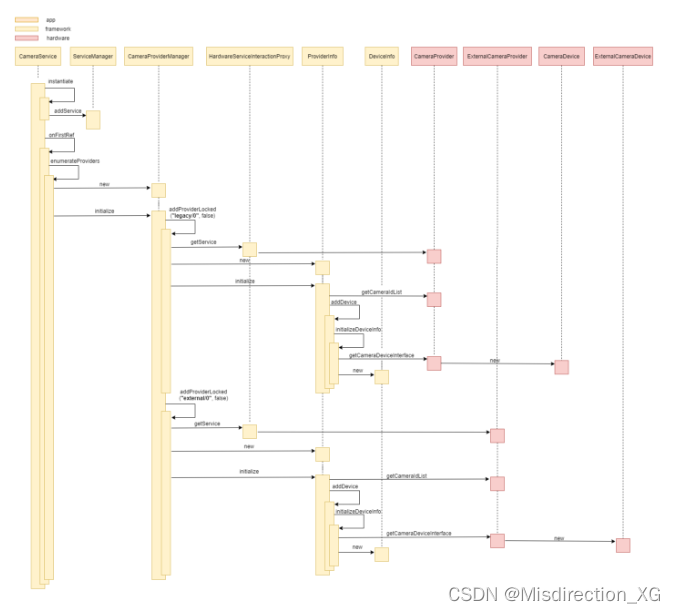

文章将通过源码分析，总结和时序图的方式，帮助理解Camera2框架。
本篇文章将分析framework层camera相关模块的初始化，为后续分析打下基础。

1 相关源码分析

frameworks\av\camera\cameraserver\main_cameraserver.cpp

int main(int argc __unused, char** argv __unused)
{
    hardware::configureRpcThreadpool(3, /*willjoin*/ false);
    sp<ProcessState> proc(ProcessState::self());
    sp<IServiceManager> sm = defaultServiceManager();
    ALOGI("ServiceManager: %p", sm.get());
    // 通过service manager注册CameraService
    CameraService::instantiate();
    ProcessState::self()->startThreadPool();
    IPCThreadState::self()->joinThreadPool();
}

调用了CameraService::instantiate(), 其最终调用service maneger的addService;

1.1 CameraService初始化

frameworks/av/services/camera/libcameraservice/CameraService.cpp
当CameraService派生自RefBase，当其第一次被引用时，有如下的调用：

void CameraService::onFirstRef() {
    ALOGI("CameraService process starting");
    BnCameraService::onFirstRef();
    ................
    // 从hal层的CameraProvider/ExternalCameraProvider获得摄像头设备
    res = enumerateProviders();
    ................
}

enumerateProviders将通过hal服务CameraProvider/ExternalCameraProvider获取摄像头设备信息;

status_t CameraService::enumerateProviders() {
    status_t res;
    std::vector<std::string> deviceIds;
    {
        Mutex::Autolock l(mServiceLock);
        if (nullptr == mCameraProviderManager.get()) {
            // 初始化CameraProviderManager
            mCameraProviderManager = new CameraProviderManager();
            res = mCameraProviderManager->initialize(this);
        }
        ................
        ................
        deviceIds = mCameraProviderManager->getCameraDeviceIds();
    }

    for (auto& cameraId : deviceIds) {
        String8 id8 = String8(cameraId.c_str());
        onDeviceStatusChanged(id8, CameraDeviceStatus::PRESENT);
    }
    return OK;
}

enumerateProvider将初始化CameraProviderManager，CameraProviderManager将通过hal服务来获取摄像头的信息。

1.2 CameraProviderManager

1.2.1 类结构

frameworks/av/services/camera/libcameraservice/common/CameraProviderManager.h
CameraProviderManager用于管理android设备上的camera provider，它会枚举出camera provider以及这些provider提供的摄像头设备，并提供方法去访问它们。

class CameraProviderManager : virtual public hidl::manager::V1_0::IServiceNotification {
public:
    ................
    ................
    struct HardwareServiceInteractionProxy : public ServiceInteractionProxy {
        virtual bool registerForNotifications(const std::string &serviceName, const sp<hidl::manager::V1_0::IServiceNotification> &notification) override {
            return hardware::camera::provider::V2_4::ICameraProvider::registerForNotifications(serviceName, notification);
        }
        virtual sp<hardware::camera::provider::V2_4::ICameraProvider> getService(const std::string &serviceName) override {
            return hardware::camera::provider::V2_4::ICameraProvider::getService(serviceName);
        }
    };
    ................
    status_t initialize(wp<StatusListener> listener,
            ServiceInteractionProxy *proxy = &sHardwareServiceInteractionProxy);
    ................
private:
    ................
    static HardwareServiceInteractionProxy sHardwareServiceInteractionProxy;
    ................
}

initialize方法的第二个参数是一个默认值，它是内部的静态对象，它能从获取对应的hal层服务。

1.2.2 CameraProviderManager::initialize

/frameworks/av/services/camera/libcameraservice/common/CameraProviderManager.cpp)
在cpp中，定义了如下两个静态变量：

namespace {
// Hardcoded name for the passthrough HAL implementation, since it can't be discovered via the service manager
const std::string kLegacyProviderName("legacy/0");
const std::string kExternalProviderName("external/0");
}

上述定义了传统camera provider和外部camera provider的服务名；

status_t CameraProviderManager::initialize( wp<CameraProviderManager::StatusListener> listener,
        ServiceInteractionProxy* proxy)
{
    std::lock_guard<std::mutex> lock(mInterfaceMutex);
    mListener = listener;
    // 传入的是默认值
    mServiceProxy = proxy;
    // Registering will trigger notifications for all already-known providers
    bool success = mServiceProxy->registerForNotifications(
                   /* instance name, empty means no filter */ "",
                   this);
    .................
    // 获取不同的camera provider：legacy和external
    addProviderLocked(kLegacyProviderName, /*expected*/ false);
    addProviderLocked(kExternalProviderName, /*expected*/ false);
    return OK;
}

initialize中主要通过两个addProviderLocked方法，获得CameraProvider和ExternalCameraProvider服务的代理，封装为ProviderInfo，初始化ProviderInfo，最后将ProviderInfo添加到链表中管理。

1.2.3 CameraProviderManager::addProviderLocked

根据服务名称获取provider，并初始化

status_t CameraProviderManager::addProviderLocked(const std::string& newProvider, bool expected) {
    ................
    sp<provider::V2_4::ICameraProvider> interface;
    // mServiceProxy即initalize()传入的第二个默认参数
    // 若是legacy，hal层服务实现为CameraProvider
    // 若是external，hal层服务实现为ExternalCameraProvider
    interface = mServiceProxy->getService(newProvider);
    ................
    sp<ProviderInfo> providerInfo =
            new ProviderInfo(newProvider, interface, this);

    // ProviderInfo初始化
    status_t res = providerInfo->initialize();

    // 将其添加到链表中
    mProviders.push_back(providerInfo);
    return OK;
}

若传入的是“legacy/0”，则获取hal层的CameraProvider;
若传入的是"external/0"，则获取hal层的ExternalCameraProvider。
并将它们的代理封装为ProviderInfo，再初始化。

1.3 CameraProviderManager::ProviderInfo

1.3.1 ProviderInfo::initialize

ProviderInfo定义在CameraProviderManager.h中，它的初始化如下：

status_t CameraProviderManager::ProviderInfo::initialize() {
    ................
    std::vector<std::string> devices;
    // 通过CameraProvider获取摄像头设备信息
    hardware::Return<void> ret = mInterface->getCameraIdList(
        [&status, &devices]
        (Status idStatus,const hardware::hidl_vec<hardware::hidl_string>& cameraDeviceNames)
        {
            status = idStatus;
            if (status == Status::OK) {
                for (size_t i = 0; i < cameraDeviceNames.size(); i++) {
                    devices.push_back(cameraDeviceNames[i]);
                }
            }
        });
     ................
     sp<StatusListener> listener = mManager->getStatusListener();
     // 根据获取到的摄像头设备信息，调用addDevice
     for (auto& device : devices) {
         std::string id;
         status_t res = addDevice(device,hardware::camera::common::V1_0::CameraDeviceStatus::PRESENT, &id);
         ................
     }
     mInitialized = true;
     return OK;
}

ProviderInfo的initialize主要是从hal获取摄像头设备的信息；
然后调用addDevice；

1.3.2 ProviderInfo::addDevice

status_t CameraProviderManager::ProviderInfo::addDevice(const std::string& name, CameraDeviceStatus initialStatus, /*out*/ std::string* parsedId) {
    uint16_t major, minor;
    std::string type, id;
    status_t res = parseDeviceName(name, &major, &minor, &type, &id);
    ................
    std::unique_ptr<DeviceInfo> deviceInfo;
    switch (major) {
        ................
        case 3:
            deviceInfo = initializeDeviceInfo<DeviceInfo3>(name, mProviderTagid, id, minor);
            break;
        default:
            return BAD_VALUE;
    }
    ................
    deviceInfo->mStatus = initialStatus;
    ................
    // 缓存DeviceInfo对象
    mDevices.push_back(std::move(deviceInfo));
    ................
    return OK;
}

addDevice主要是根据传入的name来解析device的信息；
调用initalizeDeviceInfo创建DeviceInfo对象；
最后将DeviceInfo缓存；

1.3.3 ProviderInfo::initializeDeviceInfo

template<class DeviceInfoT>
std::unique_ptr<CameraProviderManager::ProviderInfo::DeviceInfo>
CameraProviderManager::ProviderInfo::initializeDeviceInfo(
        const std::string &name, const metadata_vendor_id_t tagId,
        const std::string &id, uint16_t minorVersion) const {
    Status status;
    // 传入的模板类是DeviceInfo3
    // 获取到hal层CameraDevice的接口
    auto cameraInterface = getDeviceInterface<typename DeviceInfoT::InterfaceT>(name);
    ................
    CameraResourceCost resourceCost;
    // 获取camera冲突/负载相关信息
    cameraInterface->getResourceCost([&status, &resourceCost]
            (Status s, CameraResourceCost cost)
            {
                status = s;
                resourceCost = cost;
            });
    ................
    return std::unique_ptr<DeviceInfo>
           (new DeviceInfoT(name, tagId, id, minorVersion, resourceCost,cameraInterface));
}

其中getDeviceInterface如下：

template<>
sp<device::V3_2::ICameraDevice>
CameraProviderManager::ProviderInfo::getDeviceInterface
        <device::V3_2::ICameraDevice>(const std::string &name) const
{
    Status status;
    sp<device::V3_2::ICameraDevice> cameraInterface;
    hardware::Return<void> ret;
    // mInterface是CameraProvider/ExternalCameraProvider
    ret = mInterface->getCameraDeviceInterface_V3_x
              (name, [&status, &cameraInterface]
                    (Status s, sp<device::V3_2::ICameraDevice> interface)
                    {
                        status = s;
                        cameraInterface = interface;
                    }
              );
    // 若是legacy，实现是CameraDevice
    // 若是external，实现是ExternalCameraDevice
    return cameraInterface;
}

综上initializeDeviceInfo的实际为：通过name解析device相关信息；
获得hal层CameraDevice/ExternalCameraDevice的代理；
封装DeviceInfo对象。

1.4 hal相关方法

1.4.1 CameraProvider获取device

/hardware/interfaces/camera/provider/2.4/default/CameraProvider.cpp)
在1.3.3中，远程接口调用了方法getCameraDeviceInterface_V3_x，其在CameraProvider中的实现为：

Return<void> CameraProvider::getCameraDeviceInterface_V3_x( const hidl_string& cameraDeviceName,
        getCameraDeviceInterface_V3_x_cb _hidl_cb)
{
    std::string cameraId, deviceVersion;
    ................
    std::string deviceName(cameraDeviceName.c_str());
    ssize_t index = mCameraDeviceNames.indexOf(std::make_pair(cameraId, deviceName));
    ................
    sp<android::hardware::camera::device::V3_2::ICameraDevice> device;
    ................
    switch (mPreferredHal3MinorVersion) {
        case 2: {
            sp<android::hardware::camera::device::V3_2::implementation::CameraDevice> deviceImpl =
                    new android::hardware::camera::device::V3_2::implementation::CameraDevice(mModule, cameraId, mCameraDeviceNames);
            ................
            device = deviceImpl;
            break;
        }
        case 3: {
            sp<android::hardware::camera::device::V3_2::implementation::CameraDevice> deviceImpl =
                    new android::hardware::camera::device::V3_3::implementation::CameraDevice(mModule, cameraId, mCameraDeviceNames);
            ................
            device = deviceImpl;
            break;
        }
        default:
            device = nullptr;
            _hidl_cb(Status::INTERNAL_ERROR, nullptr);
            return Void();
    }
    _hidl_cb (Status::OK, device);
    return Void();
}

可以看到，构造了CameraDevice对象，并将其通过hidl的回调反馈给framework。
ExternalCameraProvider构造ExternalCameraDevice流程与上述相似，就不再阐述。
上述代码中，用于构造CameraDevice的mModule又是什么？

1.4.2 CameraProvider初始化

/hardware/interfaces/camera/provider/2.4/default/CameraProvider.h
先看下CameraProvider的声明，其内部包含一个mModule对象：

struct CameraProvider : public ICameraProvider, public camera_module_callbacks_t {
    CameraProvider();
    ~CameraProvider();
    ................
private:
    Mutex mCbLock;
    sp<ICameraProviderCallback> mCallbacks = nullptr;

    sp<CameraModule> mModule;
    ................
}

在其initialize方法调用时，通过hw_get_module获取了camera_module_t，从而完成了一系列初始化；
hw_get_module通过id找到硬件模块的动态链接库地址，然后通过load打开动态链接库，并获得硬件模块结构体的地址，最终通过它与硬件模块交互；

bool CameraProvider::initialize() {
    camera_module_t *rawModule;
    int err = hw_get_module(CAMERA_HARDWARE_MODULE_ID, (const hw_module_t **)&rawModule);

    mModule = new CameraModule(rawModule);
    err = mModule->init();
    ................
    err = mModule->setCallbacks(this);
    ................
    mPreferredHal3MinorVersion =
            property_get_int32("ro.vendor.camera.wrapper.hal3TrebleMinorVersion", 3);
    switch(mPreferredHal3MinorVersion) {
        case 2:
        case 3:
            // OK
            break;
        default:
            mPreferredHal3MinorVersion = 3;
    }
    mNumberOfLegacyCameras = mModule->getNumberOfCameras();
    for (int i = 0; i < mNumberOfLegacyCameras; i++) {
        struct camera_info info;
        auto rc = mModule->getCameraInfo(i, &info);
        ................
        char cameraId[kMaxCameraIdLen];
        snprintf(cameraId, sizeof(cameraId), "%d", i);
        std::string cameraIdStr(cameraId);
        mCameraStatusMap[cameraIdStr] = CAMERA_DEVICE_STATUS_PRESENT;
        addDeviceNames(i);
    }
    return false; // mInitFailed
}

1.5 小结

① CameraService被添加到Service Manager中；
② CameraManagerProvider被构造，并初始化；
③ CameraManagerProvider初始化时获得hal层CameraProvider或ExternalCameraProvider服务代理，并将其封装为ProviderInfo；
④ ProviderInfo初始化；
⑤ ProviderInfo初始化时，通过CameraProvider或ExternalCameraProvider获取摄像头名称信息，解析名称，并由名称通过CameraProvider/ExternalCameraProvider获得对应的CameraDevice/ExteralCameraDevice；最终封装为DeviceInfo，并由ProviderInfo管理。

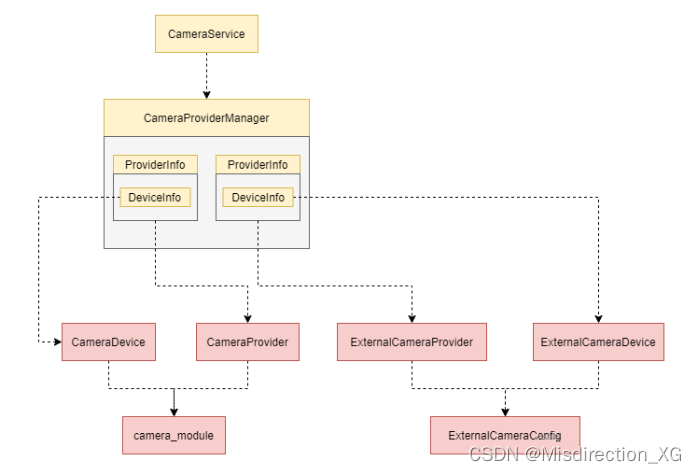

上述模块依赖关系如下所示：
