本次主要是任务：训练模型正确识别肺炎X光图片，0=正常，1=肺炎。

那么代码走起！！！

导包

# 导包
import numpy as np
import pandas as pd
import matplotlib.pyplot as plt
from glob import glob
from keras.models import *
from keras.layers import *
from keras.preprocessing.image import *
from keras.utils import *
from keras.optimizers import *
from keras.applications import *
from keras.applications import  imagenet_utils
from keras.callbacks import EarlyStopping,ReduceLROnPlateau,ModelCheckpoint,LearningRateScheduler
from efficientnet.keras import EfficientNetB3

EDA探索数据

# EDA探索数据
import matplotlib.pyplot as plt
import seaborn as sns
import os

train_dir_path = "./xray_dataset/train"
train_normal_path = os.path.join(train_dir_path,"NORMAL")
train_pneumonia_path = os.path.join(train_dir_path,"PNEUMONIA")
train_normal_length = len(os.listdir(train_normal_path))
train_pneumonia_length = len(os.listdir(train_pneumonia_path))

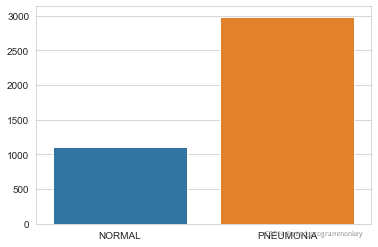

sns.set_style("whitegrid")
sns.barplot(x = ["NORMAL","PNEUMONIA"],y = np.array([train_normal_length,train_pneumonia_length]))

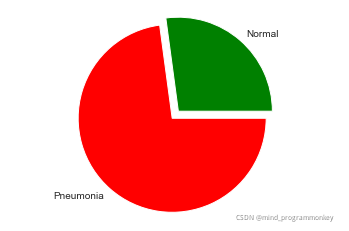

labels = "Normal","Pneumonia"
sizes = [train_normal_length,train_pneumonia_length]
colors = ["green","red"]
explode = (0.1,0)

plt.pie(sizes,labels=labels,colors=colors,explode=explode)
plt.axis("equal")
plt.show()

读取数据

img_rows,img_cols = 224,224
batch_size= 2

# ImageDataGenerator读取数据
from keras.preprocessing.image import ImageDataGenerator
import os


train_path = "C:\\Users\\LvChaoZhang\\00contest\\09 ai研习社胸腔X光肺炎检测\\xray_dataset\\train"


# train_datagen = ImageDataGenerator(rescale = 1./255,
#                                                               shear_range = 0.2,
#                                                               zoom_range = 0.2,
#                                                               horizontal_flip = True,
#                                                               vertical_flip=True,
#                                                               validation_split=0.2,
#                                                               fill_mode="nearest")
train_datagen = ImageDataGenerator(rescale = 1./255,
                                                              validation_split=0.2)

train_set = train_datagen.flow_from_directory(train_path,
                                                                            target_size=(img_rows,img_cols),
                                                                            batch_size=batch_size,
                                                                            color_mode="rgb",
                                                                            class_mode="binary",
                                                                            shuffle=True,
                                                                            seed=2019,
                                                                            subset="training")
val_set = train_datagen.flow_from_directory(train_path,
                                                                      target_size=(img_rows,img_cols),
                                                                      batch_size=batch_size,
                                                                      class_mode="binary",
                                                                      color_mode="rgb",
                                                                      shuffle=False,
                                                                      subset="validation")

Found 3280 images belonging to 2 classes.
Found 819 images belonging to 2 classes.

train_set.class_indices

{'NORMAL': 0, 'PNEUMONIA': 1}

模型

# 初始模型
model = Sequential()

model.add(Conv2D(32,(3,3),input_shape=(img_rows,img_cols,3),activation='relu'))
model.add(Conv2D(32,(3,3),activation='relu'))

model.add(MaxPooling2D(pool_size=(2,2)))
model.add(Dropout(0.2))

model.add(Conv2D(64,(3,3),activation='relu'))
model.add(Conv2D(64,(3,3),activation='relu'))

model.add(MaxPooling2D(pool_size=(2,2)))
model.add(Dropout(0.2))

model.add(Conv2D(128,(3,3),activation='relu'))
model.add(Conv2D(128,(3,3),activation='relu'))

model.add(MaxPooling2D(pool_size=(2,2)))
model.add(Dropout(0.2))

model.add(Flatten())
# model.add(Dense(units=256,activation='relu'))
# model.add(Dropout(0.2))
model.add(Dense(units=256,activation='relu'))
model.add(Dropout(0.2))
model.add(Dense(units=1,activation='sigmoid'))

# 模型 VGG161.0
base_model = VGG16(weights="imagenet",include_top=False,input_shape=(img_rows,img_cols,3))
for layer in base_model.layers:
    layer.trainable=False
x = base_model.output
x = GlobalAveragePooling2D()(x)
x = Dense(128,activation="relu")(x)
x = Dropout(0.5)(x)
out = Dense(1,activation="sigmoid")(x)
model = Model(base_model.input,out)

# 模型4.0

model = Sequential()

scale = 32

# convolution 1
model.add(Conv2D(scale,(3,3),input_shape=(img_rows,img_cols,3)))
model.add(LeakyReLU(alpha=0.1))
# convolution 2
model.add(Conv2D(2*scale,(3,3)))
model.add(LeakyReLU(alpha=0.1))
model.add(MaxPooling2D(pool_size=(2,2)))
model.add(Dropout(0.1))

# convolution 3
model.add(Conv2D(3*scale,(3,3)))
model.add(LeakyReLU(alpha=0.1))
# convolution 4
model.add(Conv2D(4*scale,(3,3)))
model.add(LeakyReLU(alpha=0.1))
model.add(MaxPooling2D(pool_size=(2,2)))
model.add(Dropout(0.1))

# convolution 5
model.add(Conv2D(5*scale,(3,3)))
model.add(LeakyReLU(alpha=0.1))
# convolution 6
model.add(Conv2D(3*scale,(3,3)))
model.add(MaxPooling2D(pool_size=(2,2)))
model.add(Dropout(0.1))

# convolution 7
model.add(Conv2D(6*scale,(3,3)))
model.add(LeakyReLU(alpha=0.1))
model.add(MaxPooling2D(pool_size=(2,2)))
model.add(Dropout(0.1))

# convolution 8
model.add(Conv2D(7*scale,(3,3)))
model.add(LeakyReLU(alpha=0.1))
model.add(MaxPooling2D(pool_size=(2,2)))
model.add(Dropout(0.1))

# flatten layer
model.add(Flatten())

# first dense layer
model.add(Dense(units=15*scale))
model.add(LeakyReLU(alpha=0.1))
model.add(Dropout(0.5))

# second dense layer
model.add(Dense(units=15*scale))
model.add(LeakyReLU(alpha=0.1))
model.add(Dropout(0.5))

# third dense layer
model.add(Dense(units=15*scale))
model.add(LeakyReLU(alpha=0.1))
model.add(Dropout(0.5))

# output layer
model.add(Dense(1,activation="sigmoid"))

# 试验模型Efficientnet
base_model = EfficientNetB3(weights="imagenet",include_top=False,input_shape=(img_rows,img_cols,3))
for layer in base_model.layers:
    layer.trainable=True
x = base_model.output
x = GlobalAveragePooling2D()(x)
x = Dense(10,activation="relu")(x)
x = Dropout(0.5)(x)
out = Dense(1,activation="sigmoid")(x)
model = Model(base_model.input,out)

模型编译

# 模型编译
import keras.backend as K

# focal loss
def focal_loss(alpha=0.25,gamma=2.0):
    def focal_crossentropy(y_true, y_pred):
        bce = K.binary_crossentropy(y_true, y_pred)

        y_pred = K.clip(y_pred, K.epsilon(), 1.- K.epsilon())
        p_t = (y_true*y_pred) + ((1-y_true)*(1-y_pred))

        alpha_factor = 1
        modulating_factor = 1

        alpha_factor = y_true*alpha + ((1-alpha)*(1-y_true))
        modulating_factor = K.pow((1-p_t), gamma)

        # compute the final loss and return
        return K.mean(alpha_factor*modulating_factor*bce, axis=-1)
    return focal_crossentropy

model.compile(loss=focal_loss(),metrics=["accuracy"],optimizer=Adam(lr=0.0001))

# Implement Learning rate decay
checkpoint = ModelCheckpoint("chest_xray_cnn3.h5",
                             monitor="val_loss",
                             mode="min",
                             save_best_only = True,
                             verbose=1)

earlystop = EarlyStopping(monitor = 'val_loss',
                          min_delta = 0,
                          patience = 5,
                          verbose = 1,
                          restore_best_weights = True)

reduce_lr = ReduceLROnPlateau(monitor = 'val_loss',
                              factor = 0.2,
                              patience = 3,
                              verbose = 1)
                              #min_delta = 0.00001)


callbacks = [earlystop, checkpoint, reduce_lr]

# 训练
history = model.fit_generator(train_set,
                                 steps_per_epoch=3280//batch_size,
                                 epochs = 25,
                                 validation_data=val_set,
                                 validation_steps=819 //batch_size,
                                 shuffle=True,
                                 callbacks=callbacks,
                                 class_weight={0:1.84307554 ,1:0.68613994})

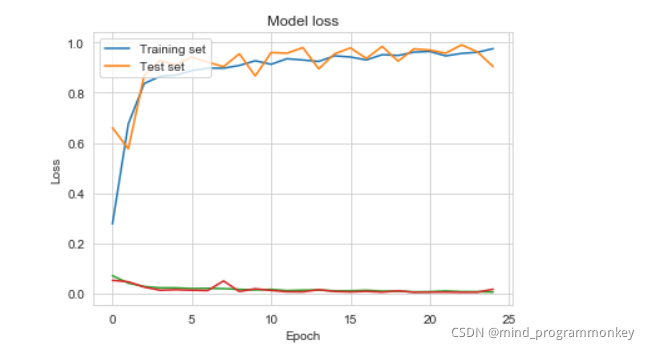

# 训练曲线
import numpy as np
import matplotlib.pyplot as plt
%matplotlib inline

#Accuracy
plt.plot(history.history["acc"])
plt.plot(history.history["val_acc"])
plt.title("Model Accuracy")
plt.xlabel("Epoch")
plt.ylabel("Accuracy")
plt.legend(["Training Set","Validation Set"],loc="upper left")

# Loss
plt.plot(history.history["loss"])
plt.plot(history.history["val_loss"])
plt.title("Model loss")
plt.xlabel("Epoch")
plt.ylabel("Loss")
plt.legend(["Training set","Test set"],loc="upper left")

plt.show()

预测

import cv2
import numpy as np
import pandas as pd

# 定义读取图片函数
def  get_img(file_path,img_rows,img_cols):
    img = cv2.imread(file_path)
    img = cv2.resize(img,(img_rows,img_cols),interpolation=cv2.INTER_CUBIC)
#     if img.shape[2] == 1:
#         img = np.dstack([img,img,img])
    img = cv2.cvtColor(img,cv2.COLOR_BGR2RGB)
    img = img.astype(np.float32)/255.
    return img

# 定义加载测试集的函数
def load_test_data(test_path,img_rows,img_cols):
    x_test_id = []
    x_test = []

    img_names = os.listdir(test_path)
    img_names.sort(key=lambda x:int(x[:-4]))
    for img_name in img_names:
        feature = get_img(os.path.join(test_path,img_name),img_rows,img_cols)
        id = img_name

        x_test_id.append(id)
        x_test.append(feature)

    #对x_test进行转换
    x_test = np.array(x_test)

    return x_test,x_test_id

#test_dir_path = "./xray_dataset/test/"
test_dir_path = "D:\\01\\05CT\\ct\\test\\"

x_test,x_id = load_test_data(test_dir_path,img_rows,img_cols)

model.load_weights("chest_xray_cnn1.h5")

y_pred = model.predict(x_test)

y_pred[:10]

for i in range(len(x_test)):
    if y_pred[i]>0.5:
        y_pred[i]=1;
    else:
        y_pred[i]=0;

id = np.arange(len(x_test))

df = pd.DataFrame({"id":id,"predict":y_pred[:,0]})

df.to_csv("submit1.csv",index=None,header=None)

小结

那么本次到此结束！下次见瓷！
