【图像检测】基于Combined Separability Filter实现鼻孔和瞳孔检测matla

【图像检测】基于Combined Separability Filter实现​

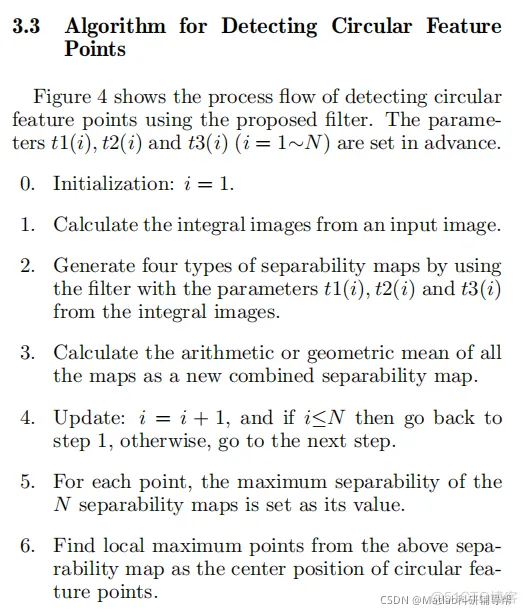

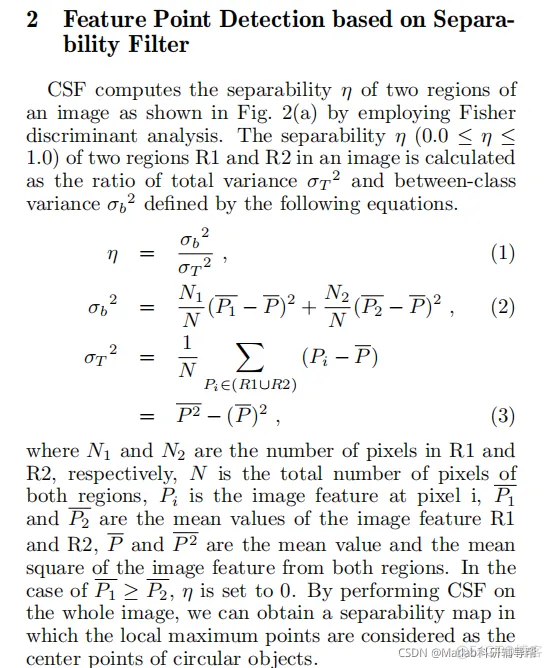

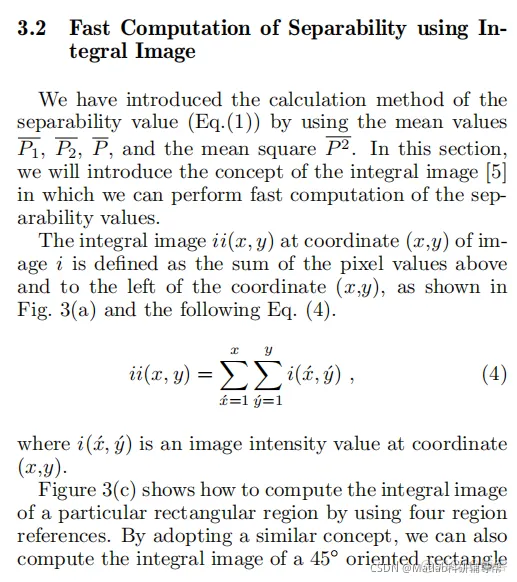

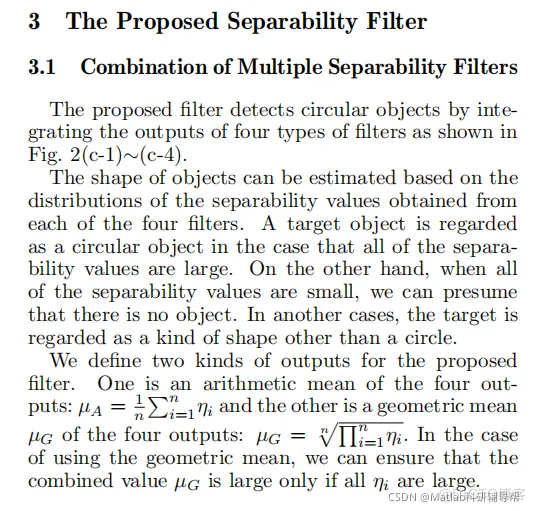

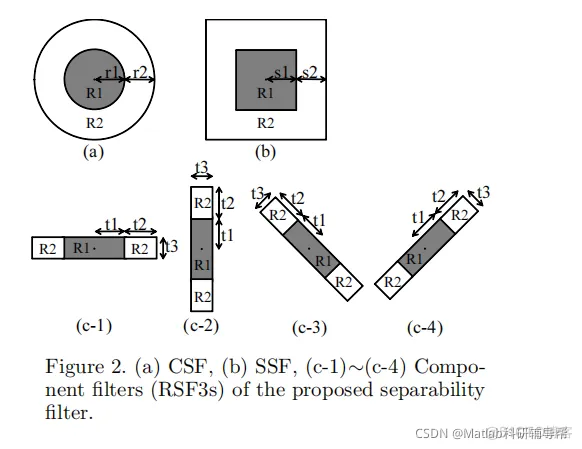

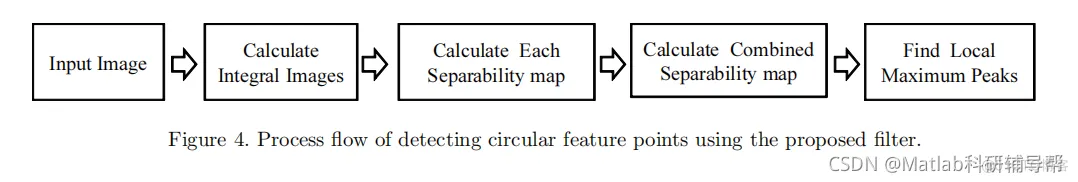

一、Combined Separability Filter

​

​

​

​

​



​

二、部分代码

登录后复制

clear;

X = imread('testimages/sample1.png'); % sample1.png is a gray-scale CG generated face image

[H, W] = size(X);
S1 = cat(3,X,X,X); % used for displaying final result (Geometric mean)
S2 = cat(3,X,X,X); % used for displaying final result (Arithmetic mean)
X = double(X); % convert data type to double
I1 = cvtIntegralImage(X);       % calculate integral image
P1 = cvtIntegralImage(X.^2);    % calculate integral image of squared pixel value
I2 = cvtIntegralImage45(X);     % calculate 45 degrees integral image
P2 = cvtIntegralImage45(X.^2);  % calculate 45 degrees integral image of squared pixel value

nR = 3; % filter size parameter
nTH = 0.55; % threshold for finding local peaks

P = zeros(H,W,4);  % variable to store separability map
P(:,:,1:2) = cvtCombSimpRectFilter(I1,P1,nR);   % apply vertical and horizontal rectangular filters
P(:,:,3:4) = cvtCombSimpRectFilter45(I2,P2,nR); % apply diagonal left and right filters
P(P<0) = 0;
finalMap1 = prod(P(:,:,:),3).^(1/4.0);
finalMap2 = mean(P(:,:,:),3);

figure(10);clf;

for i=1:6
    subplot(2,4,i);
    if (i < 5)
        imagesc(P(:,:,i));
        axis equal tight;
        title(['separability map #' num2str(i)]);
    elseif (i==5)
        imagesc(finalMap1);
        axis equal tight;
        title('Geometric mean');
    elseif (i==6)
        imagesc(finalMap2);
        axis equal tight;
        title('Arithmetic mean');
    end
end

% find local peaks (Geometric mean)
PL1 = cvtFindLocalPeakX(finalMap1,1,nTH);
% draw circle and cross at each local peak with radius of the filter (nR)
for H=1:size(PL1,2)
    S1 = cvtDrawCircle(S1, PL1(2,H),PL1(1,H),nR,[255,0,0],20);
    S1 = cvtDrawCross(S1,PL1(2,H),PL1(1,H),nR,[255,255,255]);
end
subplot(2,4,7);
image(S1); % display original
title({['Local peaks > ' num2str(nTH)]; 'Geometric mean'});
axis equal tight;

% find local peaks (Arithmetic mean)
PL2 = cvtFindLocalPeakX(finalMap2,1,nTH);
% draw circle and cross at each local peak with radius of the filter (nR)
for H=1:size(PL2,2)
    S2 = cvtDrawCircle(S2, PL2(2,H),PL2(1,H),nR,[255,0,0],20);
    S2 = cvtDrawCross(S2,PL2(2,H),PL2(1,H),nR,[255,255,255]);
end
subplot(2,4,8);
image(S2); % display original with marks for the local peak
axis equal tight;
title({['Local peaks > ' num2str(nTH)]; 'Arithmetic mean'});

• 1.
• 2.
• 3.
• 4.
• 5.
• 6.
• 7.
• 8.
• 9.
• 10.
• 11.
• 12.
• 13.
• 14.
• 15.
• 16.
• 17.
• 18.
• 19.
• 20.
• 21.
• 22.
• 23.
• 24.
• 25.
• 26.
• 27.
• 28.
• 29.
• 30.
• 31.
• 32.
• 33.
• 34.
• 35.
• 36.
• 37.
• 38.
• 39.
• 40.
• 41.
• 42.
• 43.
• 44.
• 45.
• 46.
• 47.
• 48.
• 49.
• 50.
• 51.
• 52.
• 53.
• 54.
• 55.
• 56.
• 57.
• 58.
• 59.
• 60.
• 61.
• 62.
• 63.
• 64.
• 65.
• 66.
• 67.

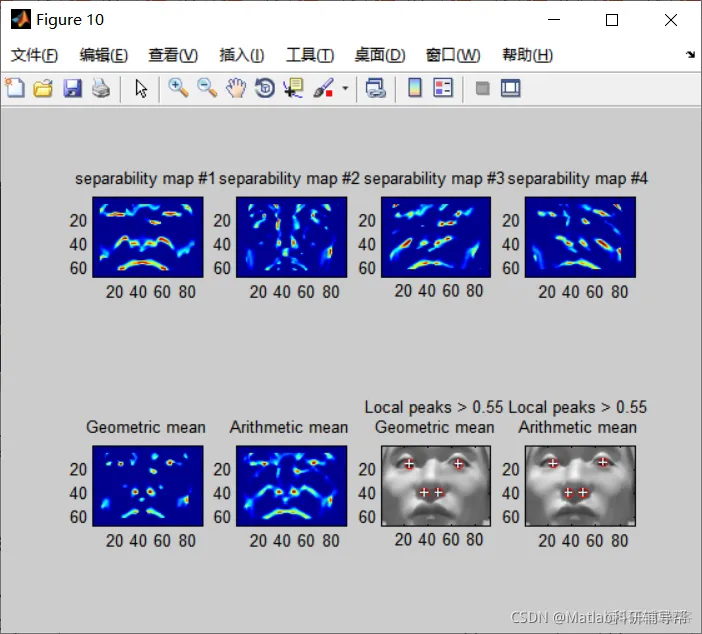

三、仿真结果

​

四、参考文献

 [1] Y. Ohkawa, C. H. Suryanto, K. Fukui,  "Fast Combined Separability Filter for Detecting Circular Objects", The twelfth IAPR conference on Machine Vision Applications (MVA) pp.99-103, 2011.

 [2] K. Fukui, O. Yamaguchi,  "Facial feature point extraction method based on combination of shape extraction  and pattern matching", Systems and Computers in Japan 29 (6), pp.49-58, 1998.

​



​鼻孔和瞳孔检测matlab源码
