适合初学者的入门级springmvc和mybatis的一个例子

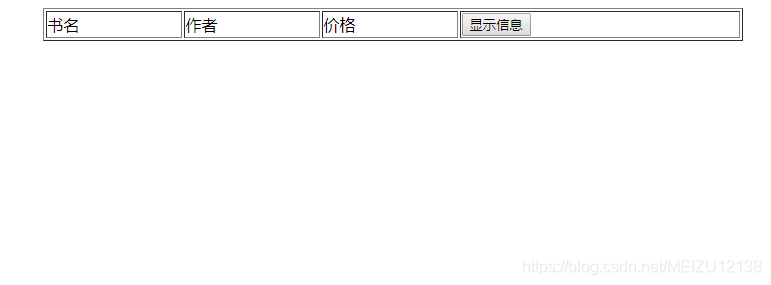

功能：在页面点击“显示信息”，然后将书籍的信息显示出来，如下图

加群一起探讨java，QQ群号：591193911

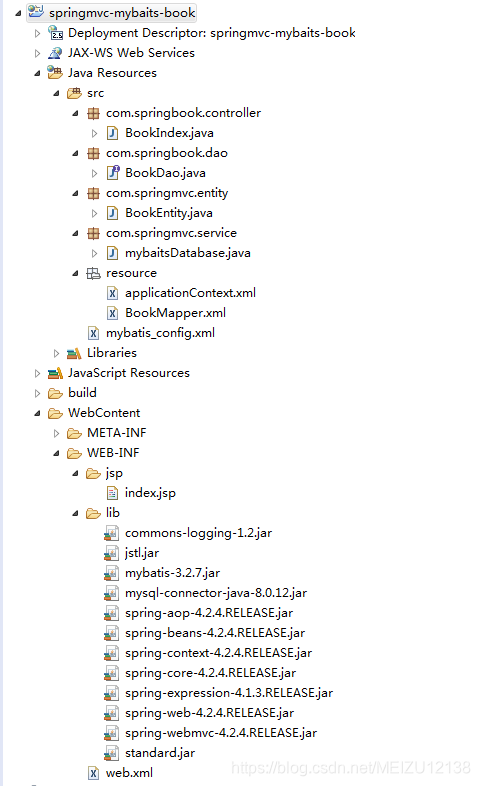

下面是我的例子的项目结构图

web.xml

<?xml version="1.0" encoding="UTF-8"?>
<web-app xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xmlns="http://java.sun.com/xml/ns/javaee"
	xsi:schemaLocation="http://java.sun.com/xml/ns/javaee http://java.sun.com/xml/ns/javaee/web-app_2_5.xsd"
	id="WebApp_ID" version="2.5">
	<display-name>springmvc-mybaits-book</display-name>

	<!-- 配置springMVC的核心控制器 -->
	<servlet>
		<servlet-name>dispatcherServlet</servlet-name>
		<servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
		<init-param>
			<param-name>contextConfigLocation</param-name>
			<param-value>classpath:resource/applicationContext.xml</param-value>
		</init-param>
		<load-on-startup>1</load-on-startup>
	</servlet>

	<servlet-mapping>
		<servlet-name>dispatcherServlet</servlet-name>
		<url-pattern>/</url-pattern>
	</servlet-mapping>

	<!-- 配置编码为utf-8，防止出现乱码 -->
	<filter>
		<filter-name>charsetEncoding</filter-name>
		<filter-class>org.springframework.web.filter.CharacterEncodingFilter</filter-class>
		<init-param>
			<param-name>encoding</param-name>
			<param-value>UTF-8</param-value>
		</init-param>
		<init-param>
			<param-name>forceEncoding</param-name>
			<param-value>true</param-value>
		</init-param>
	</filter>
	<filter-mapping>
		<filter-name>charsetEncoding</filter-name>
		<url-pattern>/*</url-pattern>
	</filter-mapping>
</web-app>

BookIndex.java

package com.springbook.controller;

import java.util.ArrayList;

import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.servlet.ModelAndView;

import com.springmvc.entity.BookEntity;
import com.springmvc.service.mybaitsDatabase;

/**
 *
 * @author Administrator
 * @return 将数据集合设置给index页面
 */
@Controller
public class BookIndex {
	@RequestMapping(value = "/hello")

	public ModelAndView getDeptAll() {
		ArrayList<BookEntity> booklist = new mybaitsDatabase().getlist();
		// 创建ModelAndView对象
		ModelAndView modelAndView = new ModelAndView();
		// 进行对对象 赋值 键值对的形式
		modelAndView.addObject("booklist", booklist);
		// 进行写入要跳转的视图名index.jsp
		modelAndView.setViewName("index");
		return modelAndView;

	}

}

BookDao.java

package com.springbook.dao;

import java.util.List;

import com.springmvc.entity.BookEntity;;

public interface BookDao {
	/**
	 * 获取单条数据
	 *
	 * @param id
	 * @return
	 */
	public BookEntity get(String title);

	/**
	 * 获取单条数据
	 *
	 * @param entity
	 * @return
	 */
	public BookEntity get(BookEntity entity);

	/**
	 * 查询数据列表
	 *
	 * @param entity
	 * @return
	 */
	public List<BookEntity> findList(BookEntity entity);

	/**
	 * 查询数据列表
	 *
	 * @param entity
	 * @return
	 */
	public List<BookEntity> findAllList(BookEntity entity);

	/**
	 * 查询数据列表
	 *
	 * @see public List<UserEntity> findAllList(UserEntity entity)
	 * @return
	 */
	// @Deprecated(弃用的注解)
	public List<BookEntity> findAllList();

	/**
	 * 插入数据
	 *
	 * @param entity
	 * @return
	 */
	public int insert(BookEntity entity);

	/**
	 * 更新数据
	 *
	 * @param entity
	 * @return
	 */
	public int update(BookEntity entity);

	/**
	 * 删除数据
	 *
	 * @see public int delete(T entity)
	 * @return
	 */

	public int delete(String title);

	/**
	 * 删除数据
	 *
	 * @return
	 */
	public int delete(BookEntity entity);

}

BookEntity.java

package com.springmvc.entity;

import java.util.UUID;

public class BookEntity {
	private String title;   //书籍的标题
	private String author;  //书籍的作者
	private String price;   //书籍的价格
	public String getTitle() {
		return title;
	}
	public void setTitle(String title) {
		this.title = title;
	}
	public String getAuthor() {
		return author;
	}
	public void setAuthor(String author) {
		this.author = author;
	}
	public String getPrice() {
		return price;
	}
	public void setPrice(String price) {
		this.price = price;
	}
	/**
	 * 插入之前执行方法，需要手动调用	 */
	public void preInsert(){
		// 不限制ID为UUID，调用setIsNewRecord()使用自定义ID
		setTitle(uuid());
	}

	/**
	 * 封装JDK自带的UUID, 通过Random数字生成, 中间用-分割.
	 */
	public static String uuid() {
		return UUID.randomUUID().toString().replaceAll("-", "");
	}
}

mybaitsDatabase.java

package com.springmvc.service;

import java.io.Reader;
import java.util.ArrayList;
import java.util.List;

import org.apache.ibatis.io.Resources;
import org.apache.ibatis.session.SqlSession;
import org.apache.ibatis.session.SqlSessionFactory;
import org.apache.ibatis.session.SqlSessionFactoryBuilder;

import com.springbook.dao.BookDao;
import com.springmvc.entity.BookEntity;

public class mybaitsDatabase {
	private static BookDao userDao;

	private static Reader reader;

	private static SqlSessionFactory sessionFactory;

	private static SqlSession session = null;

	/**
	 *
	 * @return 数据库查询出来的的数据，供其他类调用数据
	 */
	public ArrayList<BookEntity> getlist() {
		Initialize("mybatis_config.xml");
		List<BookEntity> bookList = userDao.findAllList();
		return (ArrayList<BookEntity>) bookList;
	}

	private static void Initialize(String configFile) {
		try {
			reader = Resources.getResourceAsReader(configFile);

			sessionFactory = new SqlSessionFactoryBuilder().build(reader);

			session = sessionFactory.openSession();

			userDao = session.getMapper(BookDao.class);

		} catch (Exception e) {
			e.printStackTrace();
		}
	}
}

applicationContext.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:p="http://www.springframework.org/schema/p"
	xmlns:context="http://www.springframework.org/schema/context"
	xmlns:mvc="http://www.springframework.org/schema/mvc" xmlns:task="http://www.springframework.org/schema/task"
	xsi:schemaLocation="
        http://www.springframework.org/schema/beans
        http://www.springframework.org/schema/beans/spring-beans-4.2.xsd
        http://www.springframework.org/schema/context
        http://www.springframework.org/schema/context/spring-context-4.2.xsd
        http://www.springframework.org/schema/mvc
        http://www.springframework.org/schema/mvc/spring-mvc-4.2.xsd
        http://www.springframework.org/schema/task
        http://www.springframework.org/schema/task/spring-task-4.2.xsd">
	<bean
		class="org.springframework.web.servlet.handler.BeanNameUrlHandlerMapping" />
	<bean
		class="org.springframework.web.servlet.mvc.SimpleControllerHandlerAdapter" />
	<!-- 配置扫描 -->
	<context:component-scan base-package="com.springbook.controller">
		<context:include-filter type="annotation"
			expression="org.springframework.stereotype.Controller" />
	</context:component-scan>
	<!-- 配置根视图 -->
	<mvc:view-controller path="/" view-name="index" />

	<!-- 激活基于注解的配置 @RequestMapping, @ExceptionHandler,数据绑定 ,@NumberFormat ,
		@DateTimeFormat ,@Controller ,@Valid ,@RequestBody ,@ResponseBody等 -->
	<mvc:annotation-driven />

	<!-- 静态资源配置 -->
	<!-- <mvc:resources location="/assets/" mapping="/assets/**"></mvc:resources> -->

	<!-- 视图层配置 -->
	<bean
		class="org.springframework.web.servlet.view.InternalResourceViewResolver">
		<property name="prefix" value="/WEB-INF/jsp/" />
		<property name="suffix" value=".jsp" />
	</bean>

</beans>

BookMapper.xml

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="com.springbook.dao.BookDao">

	<sql id="userColumns">
		a.title AS "title",
		a.author AS "author",
		a.price AS "price"
	</sql>

	<sql id="userJoins">
	</sql>

	<select id="get" resultType="Book">
		SELECT
		<include refid="userColumns" />
		FROM book a
		<include refid="userJoins" />
		WHERE a.title = #{title}
	</select>

	<select id="findList" resultType="Book">
		SELECT
		<include refid="userColumns" />
		FROM book a
		<include refid="userJoins" />
		<where>
			a.del_flag = #{DEL_FLAG_NORMAL}
		</where>
	</select>

	<select id="findAllList" resultType="Book">
		SELECT
		<include refid="userColumns" />
		FROM book a
		<include refid="userJoins" />
	</select>

	<insert id="insert">
		INSERT INTO book(
		title,
		author,
		price
		) VALUES (
		#{title},
		#{author},
		#{price}
		)
	</insert>

	<update id="update">
		UPDATE book SET
		author = #{author},
		age = #{price}
		WHERE title = #{title}
	</update>

	<update id="delete">
		DELETE FROM book
		WHERE title = #{title}
	</update>

</mapper>

mybatis_config.xml(注意写好你的url)，我的mysql版本较高，驱动加了cj

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE configuration
        PUBLIC "-//mybatis.org//DTD Config 3.0//EN"
        "http://mybatis.org/dtd/mybatis-3-config.dtd">
<configuration>
	<settings>
		<!-- changes from the defaults -->
		<setting name="lazyLoadingEnabled" value="false" />
	</settings>
	<typeAliases>
		<!-- 这里给实体类取别名，方便在mapper配置文件中使用 -->
		<typeAlias alias="Book" type="com.springmvc.entity.BookEntity" />
	</typeAliases>
	<environments default="development">
		<environment id="development">
			<transactionManager type="JDBC" />
			<dataSource type="POOLED">
				<property name="driver" value="com.mysql.cj.jdbc.Driver" />
				<property name="url" value="jdbc:mysql://192.168.1.3:3306/debook?useSSL=false&amp;useUnicode=true&amp;characterEncoding=UTF8&amp;useJDBCCompliantTimezoneShift=true&amp;useLegacyDatetimeCode=false&amp;serverTimezone=UTC" />
				<property name="username" value="root" />
				<property name="password" value="123456" />
			</dataSource>
		</environment>
	</environments>
	<!-- 这里添加的是执行CRUD操作的接口对应的配置文件(xml文件) -->
	<mappers>
		<mapper resource="resource/BookMapper.xml" />
	</mappers>
</configuration>

index.jsp

<%@ page language="java" contentType="text/html; charset=utf-8"
	pageEncoding="utf-8"%>
<%@ taglib uri="http://java.sun.com/jsp/jstl/core" prefix="c"%>
<!DOCTYPE html PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN" "http://www.w3.org/TR/html4/loose.dtd">
<html>
<head>
<style type="text/css">
</style>
<meta http-equiv="Content-Type" content="text/html; charset=utf-8">
<title>首页</title>
</head>
<body>
	<center>
		<form action="hello" method="post">
			<table border="1" width="700px">
				<tr>
					<td>书名</td>
					<td>作者</td>
					<td>价格</td>
					<td><input type="submit" value="显示信息"></td>
				</tr>
				<c:forEach var="book" items="${booklist }">
					<tr>
						<td>${book.title }</td>
						<td>${book.author }</td>
						<td>${book.price }</td>
					</tr>
				</c:forEach>
			</table>
		</form>
	</center>
</body>
</html>

mysql数据sql

CREATE TABLE `book` (
  `title` varchar(50) NOT NULL,
  `author` varchar(50) DEFAULT NULL,
  `price` varchar(80) DEFAULT NULL
) ENGINE=InnoDB DEFAULT CHARSET=utf8;

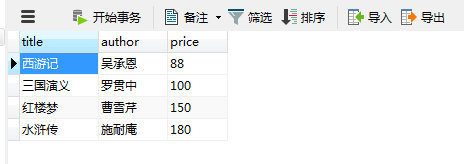

我的表添加的数据

运行项目后自动默认打开index.jsp，如果不自动打开，可以输入http://localhost:8080/springmvc-mybatis-book

注意：我的项目名的mybatis拼错了

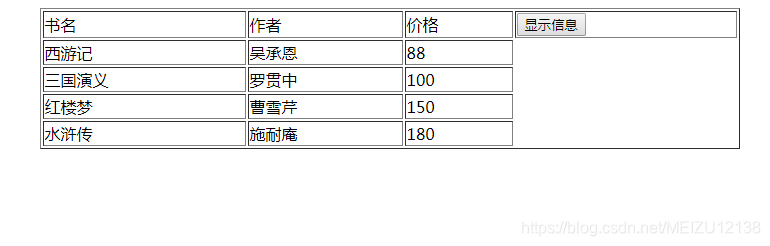

点击“显示信息后的结构图”

源码下载：源码                    提取码：adfg
