voting_clf.score(X_val, y_val)

AdaBoost

07_Ensemble Learning and Random Forests_Bagging_Out-of-Bag_Random Forests_Extra-Trees极端随机树_Boosting_Linli522362242的专栏-优快云博客

Gradient Boosting梯度提升

Another very popular Boosting algorithm is Gradient Boosting. Just like AdaBoost, Gradient Boosting works by sequentially adding predictors to an ensemble, each one correcting its predecessor. However, instead of tweaking the instance weights at every iteration j( note: update all sample-weights) like AdaBoost does( 𝜀 = 𝒘 ∙ (𝒚̂ ≠ 𝒚), 1 is assigned if the prediction on that sample is incorrect and 0 is assigned otherwise; then , then and element-wise multiplication by the cross symbol ( × ) and using the updated weights for next iteration or next weak learner: = train(𝑿, 𝒚, 𝒘) .), this method tries to fit the new predictor to the residual errors made by the previous predictor(e.g. classifiers).

Gradient Boosting algorithm

Gradient boosting is one of the competition-winning algorithms that work on the principle of boosting weak learners iteratively by shifting focus towards problematic observations that were difficult to predict in previous iterations and performing an ensemble of weak learners, typically decision trees. It builds the model in a stage-wise fashion as other boosting methods do, but it generalizes them by allowing optimization of an arbitrary differentiable loss function.

Let's start understanding Gradient Boosting with a simple example, as GB challenges many data scientists in terms of understanding the working principle:

1. Initially, we fit the model on observations producing 75% accuracy and the remaining unexplained variance is captured in the error term:
2. Then we will fit another model on the error term to pull the extra explanatory component and add it to the original model, which should improve the overall accuracy:

similar to
3. Now, the model is providing 80% accuracy and the equation looks as follows:
4. We continue this method one more time to fit a model on the error2 component to extract a further explanatory component:
5. Now, model accuracy is further improved to 85% and the final model equation looks as follows:
6. Here, if we use weighted average (higher importance given to better models that
predict results with greater accuracy than others) rather than simple addition, it
will improve the results further. In fact, this is what the gradient boosting
algorithm does!

After incorporating weights, the name of the error changed from error3 to error4, as both errors may not be exactly the same. If we find better weights, we will probably get an accuracy of 90% instead of simple addition, where we have only got 85%.

Gradient boosting involves three elements:

Loss function to be optimized: Loss function depends on the type of problem being solved. In the case of
- regression problems, mean squared error is used, and in
- classification problems, the logarithmic loss will be used. In boosting, at each stage, unexplained loss from prior iterations will be optimized rather than starting from scratch.
Weak learner to make predictions: Decision trees are used as a weak learner in gradient boosting.
Additive model to add weak learners to minimize the loss function: Trees are added one at a time and existing trees in the model are not changed. The gradient descent procedure is used to minimize the loss when adding trees.

The algorithm for Gradient boosting consists of the following steps:

输出是强学习器f(x) 梯度提升树(GBDT)原理小结 - 刘建平Pinard - 博客园

1. Initialize model with a constant value(使损失函数极小化的常数值):
a constant functionOR
each sample from index i = 1, 2, …, N

Initializes the constant optimal constant model, which is just a single terminal node that will be utilized as a starting point to tune it further in the next steps

######
The first step is creating an initial constant value prediction .
is the loss function and suppose our loss function is squared loss in our regression case.OR
$\large argmin$ means we are searching for the value that minimizes .
Let’s compute the valueγ by using our actual loss function. To findγ that minimizes , we are taking a derivative of  with respect toγ.

And we are findingγ that makes  .
(the mean of y)
It turned out that the valueγ that minimizes  is the mean of y. So we used y mean for our initial prediction  in the last section. $\large f_0(x) = \dot{\gamma} = \bar{y}$
(The γ value obtained by different model' loss functions are different)

######
step 2. For Iteration m = 1 to M（从区域/树1 到区域/树M，逐渐产生disjoin regions）:
$\large M$ denotes the number of trees we are creating and
the small represents the index of each tree.
- a) For each sample from index i = 1, 2, …, N
  compute: 计算负梯度OR
  calculates the (so-called pseudo-residuals伪残差)residuals/errors by comparing actual outcome with predicted results
  计算损失函数的负梯度在当前模型的值，将它作为残差的估计，
  followed by (2b and 2c) in which the next decision tree will be fitted on error terms to bring in more explanatory power to the model
  (==>),
  ##########################
  We are calculating residuals by taking a derivative of the loss function with respect to the previous prediction $\large f_{m-1}$ (OR $\large F_{m-1}$ ) and multiplying it by −1. As you can see in the subscript index, is computed for each single sample i. Some of you might be wondering why we are calling this residuals. This value is actually negative gradient that gives us guidance on the directions (+/−) and the magnitude in which the loss function can be minimized. You will see why we are calling it residuals shortly. By the way, this technique where you use a gradient to minimize the loss on your model is very similar to gradient descent technique which is typically used to optimize neural networks. (In fact, they are slightly different from each other. If you are interested, please look at this article Gradient boosting performs gradient descent detailing that topic.)
  Let’s compute the residuals here. $\large f_{m-1}$ (OR $\large F_{m-1}$ ) in the equation means the prediction from the previous step. In this first iteration, it is $\large f_0$ (OR $\large F_0$ ). We are solving the equation for residuals .
  We can take 2 out of it as it is just a constant. That leaves us $\large r_{im} = y_i - F_{m-1}$ . You might now see why we call it residuals. This also gives us interesting insight that the negative gradient that provides us the direction and the magnitude to which the loss is minimized is actually just residuals.
  实际应用过程中使用一个回归树 $F_m$ 直接对数据进行拟合产生residual $r_{im}$
  In the actual application, a regression tree $F_m$ is used to directly fit the data to generate residual $r_{im}$

  To minimize these residuals $\large r_{im}$ , we are building a regression tree model with as its feature and the residuals $\large r_{im} = y_i - F_{m-1}$ as its target. The reasoning behind that is if we can find some patterns between x and $\large r_{im}$ by building the additional weak model, we can reduce the residuals by utilizing it.
  ##########################
- b) Fit a regression tree with features $\large x$ to against residuals $\large r_{im}$ and then create terminal regions $\large \mathbf{R_{jm}}$ for j = 1, 2, …, , 其中为回归区域/树m的叶子节点的个数。
  $\large j$ represents a terminal node (i.e. leave index : start from 1) in the tree,
  $\large m$ denotes the tree index, and
  capital $\large J$ means the total number of leaves.
  residual tree with features x and terminal nodes

  To simplify the demonstration, we are building very simple trees each of that only has 1 split and 2 terminal nodes which is called “stump”. Please note that gradient boosting trees usually have a little deeper trees(>=1) such as ones with 8 to 32 terminal nodes.
  ==> $\large J_m = 2$
- c) for j = 1, 2, …, , compute

  OR
  $\large f_{m-1}$ (OR $\large F_{m-1}$ ) in the equation means the prediction from the previous step

  We are searching for $\large \gamma_{jm}$ that minimizes the loss function on each terminal node j (叶子区域j). $\large \sum_{x_i \euro R_{jm} }^{}$ means we are aggregating the loss on all the sample $\large x_i s$ that belong to the terminal node $\large \mathbf{R_{jm}}$ . Let’s plugin the loss function into the equation.
  Then, we are finding that makes the derivative of Σ(*) equals zero.Please note that $\large n_j$ means the number of samples in the terminal node j. This means the optimal (or $\large \gamma$ ) that minimizes the loss function is the average of the residuals $\large r_{im}$ in the terminal node $\large \mathbf{R_{jm}}$ . In other words, $\large \gamma_{jm}$ is the regular prediction values of regression trees that are the average of the target values (in our case, residuals) in each terminal node.==> $\gamma_{jm} = ( \gamma_{1m}=6.0, \gamma_{2m}=-5.9 )$
- d) Update the model 更新强学习器:

  https://en.wikipedia.org/wiki/Gradient_boosting

  add the extra component to the model at last iteration

  ######

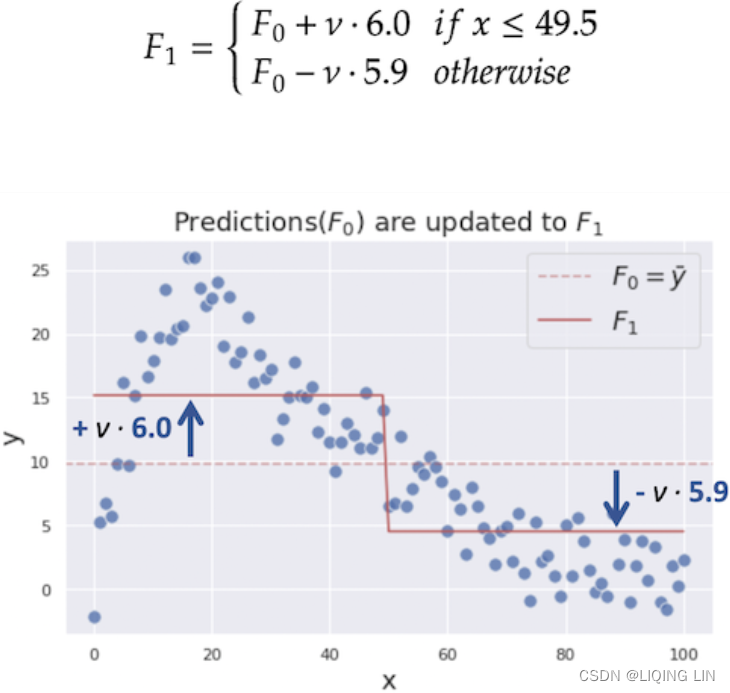

  In the final step, we are updating the prediction of the combined model $\large F_m$ . $\large \gamma_{jm} 1 (x\euro R_{jm})$ means that we pick the value $\large \gamma_{jm}$ if a given x falls in a terminal node $\large \mathbf{R_{jm}}$ . As all the terminal nodes are exclusive由于所有终端节点都是互斥的, any given single x falls into only a single terminal node and corresponding $\large \gamma_{jm}$ is added to the previous prediction $\large F_{m-1}$ and it makes updated prediction F𝑚.

  In fact, gradient boosting algorithm does not simply add to $\large F_{m-1}$ as it makes the model overfit to the training data. Instead, is scaled down by learning rate $\large v$ which ranges between 0 and 1, and then added to $\large F_{m-1}$ .

  $\large v$ is learning rate ranging between 0 and 1 which controls the degree of contribution of the additional tree prediction to the combined prediction F𝑚. A smaller learning rate $\large v$ reduces the effect of the additional tree prediction, but it basically also reduces the chance of the model overfitting to the training data.

  In this example, we use a relatively big learning rate $v = 0.9$ to make the optimization process easier to understand, but it is usually supposed to be a much smaller value such as 0.1.
  ######
  repeat step2(a-d)
Output:
Now we have gone through the whole steps. To get the best model performance, we want to iterate step2 M times, which means adding M trees to the combined model. In reality, you might often want to add more than 100 trees to get the best model performance.

ensemble all weak learners to create a strong learner.（类似于AdaBoost (Adaptive Boosting适应性提升)）https://towardsdatascience.com/all-you-need-to-know-about-gradient-boosting-algorithm-part-1-regression-2520a34a502

Gradient boosting is a machine learning technique for regression and classification problems, which produces a prediction model in the form of an ensemble of weak prediction models, typically decision trees. (Wikipedia definition)

The objective of any supervised learning algorithm is to define a loss function and minimize it. Let’s see how maths work out for Gradient Boosting algorithm. Say we have mean squared error (MSE) as loss defined as:

We want our predictions, such that our loss function (MSE) is minimum. By using gradient descent( Note, we usually use gradient descent to update each sample feature coefficents or feature weights then , But here is different, after we got the predicted value, we use gradient descent method to adjust the learning rate (also called step size) according to the following formula for making all predicted values $\large y_i^{p}$ are sufficiently close to actual values $\large y_i$ 集成学习之Boosting —— Gradient Boosting原理 - massquantity - 博客园
) and updating our predictions based on a learning rate $\large a$ , we can find the values where MSE is minimum.

Note: the residual errors made by the previous predictor(e.g. classifiers)
So, we are basically updating the predictions such that the sum of our residuals is close to 0 (or minimum) and predicted values are sufficiently close to actual values.

Let's go through a simple regression example using Decision Trees as the base predictors (of course Gradient Boosting also works great with regression tasks). This is called Gradient Tree Boosting, or Gradient Boosted Regression Trees (GBRT).

First, let's fit a DecisionTreeRegressor to the training set (for example, a noisy quadratic training set):

np.random.seed(42)
X = np.random.rand(100,1) - 0.5
y = 3*X[:,0]**2 + 0.05*np.random.randn(100)

==>searching for the optimal value that minimizes ==> plugin the optimal into the $\large F_m(x)$ to get the constant optimal constant model $\large F_0(x)$ , which is just a single terminal node that will be utilized as a starting point to tune it further in the next steps

step 2. For Iteration m = 1 to M（从区域/树1 到区域/树M，逐渐产生disjoin regions）:
$\large M$ denotes the number of trees we are creating and
the small $\large m$ represents the index of each tree.

a) For each sample from index i = 1, 2, …, N
计算负梯度

实际应用过程中可以使用一个回归树直接对数据进行拟合产生 $F_0(x)=F_m(x) + r_{im}$ OR
In the actual application, a regression tree is used to directly fit the data to generate $F_0(x)=F_m(x) + r_{im}$ OR , note residual $r_{im}$

from sklearn.tree import DecisionTreeRegressor

tree_reg1 = DecisionTreeRegressor(max_depth=2, random_state=42)
tree_reg1.fit(X,y)

Now train a second DecisionTreeRegressor on the residual errors $\large r_{im} = y_i - F_{m-1}$ made by the first predictor(m=1):

b) Fit a regression tree with features $\large x$ to against residuals $\large r_{im} = y_i - F_{m-1}$ and then create terminal regions $\large \mathbf{R_{jm}}$ for j = 1, 2, …, , 其中为回归区域/树m的叶子节点的个数。
$\large j$ represents a terminal node (i.e. leave index : start from 1) in the tree,
$\large m$ denotes the tree index, and
capital $\large J$ means the total number of leaves.

c) for j = 1, 2, …, , compute

y2 = y-tree_reg1.predict(X) #residual errors
tree_reg2 = DecisionTreeRegressor(max_depth=2, random_state=42)
tree_reg2.fit(X,y2) #y-tree_reg1.predict(X)

d) Update the model :
Then we train a third regressor on the residual errors made by the second predictor(m=2):

step 2. For Iteration m = 2 to M（从区域/树2 到区域/树M，逐渐产生disjoin regions）:
$\large M$ denotes the number of trees we are creating and
the small $\large m$ represents the index of each tree.

a) For each sample from index i = 1, 2, …, N
计算负梯度

b) Fit a regression tree with features $\large x$ to against residuals $\large r_{im} = y_i - F_{m-1}$ and then create terminal regions $\large \mathbf{R_{jm}}$ for j = 1, 2, …, , 其中为回归区域/树m的叶子节点的个数。
$\large j$ represents a terminal node (i.e. leave index : start from 1) in the tree,
$\large m$ denotes the tree index, and
capital $\large J$ means the total number of leaves.

c) for j = 1, 2, …, , compute

y3 = y2-tree_reg2.predict(X)
tree_reg3 = DecisionTreeRegressor(max_depth=2, random_state=42)
tree_reg3.fit(X,y3)

d) Update the model :

Now we have an ensemble containing three trees(Update the model in the all step 2-d). It can make predictions on a new instance simply by adding up the predictions of all the trees:

Here, if we use weighted average (higher importance given to better models that
predict results with greater accuracy than others) rather than simple addition, it
will improve the results further. In fact, this is what the gradient boosting
algorithm does!

X_new = np.array([[0.8]])

y_pred = sum( tree.predict(X_new) for tree in (tree_reg1, tree_reg2, tree_reg3) )
y_pred

def plot_predictions(regressors, X,y, axes, label=None, style="r-", data_style="b.", data_label=None):
    x1 = np.linspace(axes[0], axes[1], 500)
    y_pred = sum( regressor.predict( x1.reshape(-1,1) ) for regressor in regressors )
    plt.plot( X[:,0], y, data_style, label=data_label )      # plotting data points
    plt.plot( x1, y_pred, style, linewidth=2, label=label )  # plotting decision boundaries
    if label or data_label:
        plt.legend( loc="upper center", fontsize=16 )
    plt.axis(axes)

plt.figure( figsize=(13,13) )

plt.subplot(321)
plot_predictions( [tree_reg1], X,y, axes=[ -0.5,0.5, -0.1,0.8 ], label="$h_1(x_1)$", style="g-",
                 data_label="Training set")
plt.ylabel( "$y$", fontsize=16, rotation=0 )#IndexError: string index out of range: plt.ylabel("$y_$", fontsize=16, rotation=0)
plt.title( "Residuals and tree predictions", fontsize=16 )

plt.subplot(322)
plot_predictions( [tree_reg1], X,y, axes=[ -0.5,0.5, -0.1,0.8 ], label="$h(x_1)=h_1(x_1)$",
                 data_label="Training set")
plt.ylabel("y^ ", fontsize=16, rotation=0)
plt.title("Ensemble predictions", fontsize=16)


plt.subplot(323)
plot_predictions( [tree_reg2], X,y2, axes=[ -0.5,0.5, -0.5,0.5 ], label="$h_2(x_1)$", style="g-",
                 data_label="Residuals", data_style="k+") #y2 = y-tree_reg1.predict(X) #residual errors
plt.ylabel("$y-h_1(x_1)$", fontsize=16, rotation=0)

plt.subplot(324)
plot_predictions( [tree_reg1,tree_reg2], X,y, axes=[ -0.5,0.5, -0.1,0.8 ], label="$h(x_1)=h_1(x_1)+h_2(x_1)$")
plt.ylabel("y^ ", fontsize=16, rotation=0)


plt.subplot(325)
plot_predictions( [tree_reg3], X,y3, axes=[-0.5,0.5, -0.5,0.5], label="$h_3(x_1)$", style="g-",
                 data_label="$y-h_1(x_1)-h_2(x_1)$", data_style="k+") #y3 = y-tree_reg2.predict(X)
plt.ylabel("$y-h_1(x_1)-h_2(x_1)$", fontsize=16)
plt.xlabel("$x_1$", fontsize=16)

plt.subplot(326)
plot_predictions( [tree_reg1, tree_reg2, tree_reg3], X,y, axes=[-0.5,0.5, -0.1,0.8],
                 label="$h(x_1)=h_1(x_1)+h_2(x_1)+h_3(x_1)$" )
plt.xlabel("$x_1$", fontsize=16)
plt.ylabel("y^", fontsize=16, rotation=0)

plt.subplots_adjust(left=0.1, right=0.9, wspace=0.25)
plt.show()

Figure 7-9. Gradient Boosting

Figure 7-9 represents the predictions of these three trees in the left column, and the ensemble's predictions in the right column. In the first row, the ensemble has just one tree, so its predictions are exactly the same as the first tree's predictions. In the second row, a new tree is trained on the residual errors of the first tree. On the right you can see that the ensemble's predictions are equal to the sum of the predictions of the first two trees. Similarly, in the third row another tree is trained on the residual errors of the second tree. You can see that the ensemble's predictions gradually get better as trees are added to the ensemble.

A simpler way to train GBRT ensembles is to use Scikit-Learn’s GradientBoostingRegressor class. Much like the RandomForestRegressor class, it has hyperparameters to control the growth of Decision Trees (e.g., max_depth, min_samples_leaf, and so on), as well as hyperparameters to control the ensemble training, such as the number of trees (n_estimators). The following code creates the same ensemble as the previous one:

from sklearn.ensemble import GradientBoostingRegressor
                                                            ###
gbrt = GradientBoostingRegressor( max_depth=2, n_estimators=3, learning_rate=0.1, random_state=42 )
gbrt.fit( X,y )

                                                                 ###
gbrt_slow = GradientBoostingRegressor( max_depth=2, n_estimators=200, learning_rate=0.1, random_state=42 )
gbrt_slow.fit( X,y )

fix, axes = plt.subplots( ncols=2, figsize=(10,4), sharey=True )

plt.sca( axes[0] )
plot_predictions( [gbrt], X,y, axes=[ -0.5,0.5, -0.1,0.8 ], label="Ensemble predictions" )
plt.title( "learning_rate={}, n_estimators={}".format( gbrt.learning_rate, gbrt.n_estimators ), fontsize=14 )
plt.xlabel( "$x_1$", fontsize=16 )
plt.ylabel( "$y$", fontsize=16, rotation=0 )

plt.sca( axes[1] )
plot_predictions( [gbrt_slow], X,y, axes=[ -0.5,0.5, -0.1,0.8 ], label="Ensemble predictions" )
plt.title( "learning_rate={}, n_estimators={}".format( gbrt_slow.learning_rate, gbrt_slow.n_estimators ), fontsize=14)
plt.xlabel( "$x_1$", fontsize=16 )

plt.show()

Figure 7-10. GBRT ensembles with not enough predictors (left) and too many (right)

The learning_rate hyperparameter scales the contribution of each tree. If you set it to a low value, such as 0.1, you will need more trees in the ensemble to fit the training set, but the predictions will usually generalize better. This is a regularization technique called shrinkage收缩. Figure 7-10 shows two GBRT ensembles trained with a low learning rate: the one on the left does not have enough trees to fit the training set, while the one on the right has too many trees and overfits the training set.

In order to find the optimal number of trees, you can use early stopping (see 04_TrainingModels_02_regularization_L2_cost_Ridge_Lasso_Elastic Net_Early Stopping_Linli522362242的专栏-优快云博客). A simple way to implement this is to use the staged_predict() method: it returns an iterator over the predictions made by the ensemble at each stage of training
(with one tree, two trees, etc.). The following code trains a GBRT ensemble with 120 trees, then measures the validation error at each stage of training to find the optimal number of trees, and finally trains another GBRT ensemble using the optimal number of trees:

import numpy as np
from sklearn.model_selection import train_test_split
from sklearn.metrics import mean_squared_error

X_train, X_val, y_train, y_val = train_test_split( X,y, random_state=49 )

gbrt = GradientBoostingRegressor( max_depth=2, n_estimators=120, random_state=42 )
gbrt.fit( X_train, y_train )

errors = [ mean_squared_error(y_val, y_pred) for y_pred in gbrt.staged_predict(X_val) ]
best_n_estimators = np.argmin(errors) + 1# best_n_estimators=index+1=55+1

gbrt_best = GradientBoostingRegressor( max_depth=2, n_estimators=best_n_estimators, random_state=42 )
gbrt_best.fit( X_train, y_train )

min_error = np.min(errors)
min_error

def plot_predictions(regressors, X,y, axes, label=None, style="r-", data_style="b.", data_label=None):
    x1 = np.linspace(axes[0], axes[1], 500)
    y_pred = sum( regressor.predict( x1.reshape(-1,1) ) for regressor in regressors )
    plt.plot( X[:,0], y, data_style, label=data_label )      # plotting data points
    plt.plot( x1, y_pred, style, linewidth=2, label=label )  # plotting decision boundaries
    if label or data_label:
        plt.legend( loc="upper center", fontsize=16 )
    plt.axis(axes)

plt.figure( figsize=(10,4) )

plt.subplot(121)
plt.plot( errors, "b.-" ) #plotting error curve
plt.plot( [best_n_estimators, best_n_estimators], [0,min_error], "k--" ) # vertical
plt.plot( [0,120], [min_error, min_error], "k--" ) # tangent line        #horizontal
plt.plot( best_n_estimators, min_error, "ko" ) #minimum error point
plt.axis([ 0,120, 0,0.01 ])
plt.xlabel("Number of trees")
plt.ylabel("Error", fontsize=16)
plt.title("Valication error", fontsize=14)

plt.subplot(122)
plot_predictions( [gbrt_best], X,y, axes=[ -0.5,0.5, -0.1,0.8 ] )
plt.title( "Best model (%d trees)" % best_n_estimators, fontsize=14 )
plt.ylabel( "$y$", fontsize=16, rotation=0 )
plt.xlabel( "$x_1$", fontsize=16)

plt.show()

Figure 7-11. Tuning the number of trees using early stopping

The validation errors are represented on the left of Figure 7-11, and the best model's predictions are represented on the right.

It is also possible to implement early stopping by actually stopping training early (instead of training a large number of trees first and then looking back to find the optimal number). You can do so by setting warm_start=True, which makes Scikit-Learn keep existing trees when the fit() method is called, allowing incremental training允许增量训练. The following code stops training when the validation error does not improve for five iterations in a row:

gbrt = GradientBoostingRegressor( max_depth=2, warm_start=True, random_state=42 )

min_val_error = float( "inf" )
error_going_up = 0
for n_estimators in range(1,120):
    gbrt.n_estimators = n_estimators
    gbrt.fit(X_train, y_train)
    y_pred = gbrt.predict( X_val )
    val_error = mean_squared_error(y_val, y_pred)
    if val_error < min_val_error:
        min_val_error=val_error
        error_going_up = 0
    else:
        error_going_up +=1
        if error_going_up == 5:
            break # early stopping

print(gbrt.n_estimators)

print("Minimum validation MSE:", min_val_error)

The GradientBoostingRegressor class also supports a subsample hyperparameter, which specifies the fraction of training instances to be used for training each tree. For example, if subsample=0.25, then each tree is trained on 25% of the training instances, selected randomly. As you can probably guess by now, this trades a higher bias for a lower variance. It also speeds up training considerably. This technique is called Stochastic Gradient Boosting.

######################################
NOTE
It is possible to use Gradient Boosting with other cost functions. This is controlled by the loss hyperparameter (see Scikit-
Learn's documentation for more details).
######################################

Using XGBoost

import xgboost

AttributeError: module 'pandas.core.computation' has no attribute 'expressions'

Python Package Introduction — xgboost 1.5.0-dev documentation

try:
    import xgboost
except ImportError as ex:
    print( "Error: the xgboost library is not installed." )
    xgboost = None

if xgboost is not None: #not shown in the book
    xgb_reg = xgboost.XGBRegressor(random_state=42)
    xgb_reg.fit(X_train, y_train)
    y_pred = xgb_reg.predict(X_val)
    val_error = mean_squared_error(y_val, y_pred) #Not shown
    print("Validation MSE:", val_error)           #Not shown

if xgboost is not None: #not shown in the book
    xgb_reg.fit( X_train, y_train,
                eval_set=[ (X_val, y_val)], early_stopping_rounds=2
               )
    y_pred = xgb_reg.predict( X_val )
    val_error = mean_squared_error( y_val, y_pred ) # Not shown
    print( "Validation MSE:", val_error)  #Not shown

%timeit xgboost.XGBRegressor().fit(X_train, y_train) if xgboost is not None else None

%timeit xgboost.XGBRegressor().fit(X_train, y_train)

Stacking

The last Ensemble method we will discuss in this chapter is called stacking (short for stacked generalization).
http://machine-learning.martinsewell.com/ensembles/stacking/Wolpert1992.pdf It is based on a simple idea: instead of using trivial不重要的 functions (such as hard voting) to aggregate the predictions of all predictors in an ensemble, why don't we train a model to perform this aggregation? Figure 7-12 shows such an ensemble performing a regression task on a new instance. Each of the bottom three predictors predicts a different value (3.1, 2.7, and 2.9), and then the final predictor (called a blender, or a meta learner) takes these predictions as inputs and makes the final prediction (3.0).

Figure 7-12. Aggregating predictions using a blending predictor
#######################

To train the (only one)blender, a common approach is to use a hold-out set.(Alternatively, it is possible to use out-of-fold predictions. In some contexts this is called stacking, while using a hold-out set is called blending混合. However, for many people these terms are synonymous) Let's see how it works. First, the training set is split in two subsets. The first subset(Subset 1) is used to train(this is a fit process) the predictors in the first layer (see Figure 7-13).

Figure 7-13. Training the first layer Figure 7-14. Training the blender in second layer
Next, the first layer predictors are used to make predictions on the second (held-out) set((Subset 2)) (see Figure 7-14). This ensures that the predictions are“clean,” since the predictors never saw these instances during training.

Now for each instance in the hold-out set(Subset 2) there are three predicted values(In other words, we use the held-out set and estimators of the first layer to make predictions). We can create a new training set using these predicted values as input features (which makes this new training set/Blending train set three-dimensional), and keeping the target values(Actual ys in held-out set or in (Subset 2)). The blender is trained on this blending training set, so it learns to predict the target value(Actual ys in held-out set or in (Subset 2)) given the first layer's predictions(we use an new instance and estimators of the first layer to make predictions).

the example is in the end of question 9 Stacking Ensemble
#######################

It is actually possible to train several different blenders this way (e.g., one using Linear Regression, another using Random Forest Regression, and so on): we get a whole layer of blenders. The trick is to split the training set into three subsets: the first one is used to train the first layer(to train the predictors),

the second one is used to create the training set to train the second layer (using predictions made by the predictors of the first layer; In other words, we use the second one training set and estimators of the first layer to make predictions, then use the new training set /Blending train set created by the predictions to train blenders),

and the third one is used to create the training set to train the third layer ( we use the third one training set and estimators of the first layer to make predictions, then use these predictions and blenders (or estimators) in second layer to make predictions; finally use these predcitions to create a new training set again) ###(using the new training set or predictions made by the predictors or blenders of the second layer to train the predictor in 3rd layer)### . Once this is done, we can make a prediction for a new instance by going through each layer sequentially, as shown in Figure 7-15.

Figure 7-15. Predictions in a multilayer stacking ensemble

Unfortunately, Scikit-Learn does not support stacking directly, but it is not too hard to roll out your own implementation (see the following exercises). Alternatively, you can use an open source implementation such as brew (available at https://github.com/viisar/brew).

Exercises

1. If you have trained five different models on the exact same training data, and they all achieve 95% precision, is there any chance that you can combine these models to get better results? If so, how? If not, why?

If you have trained five different models and they all achieve 95% precision, you can try combining them into a voting ensemble, which will often give you even better results. It works better if the models are very different (e.g., an SVM classifier, a Decision Tree classifier, a Logistic Regression classifier, and so on). It is even better if they are trained on different training instances (that’s the whole point of bagging and pasting ensembles), but if not it will still work as long as the models are very different.

2. What is the difference between hard and soft voting classifiers?

Figure 7-2. Hard voting classifier predictions

A hard voting classifier just counts the votes of each classifier in the ensemble and picks the class that gets the most votes. A soft voting classifier computes the average estimated class probability for each class and picks the class with the highest probability. This gives high-confidence votes more weight and often performs better, but it works only if every classifier is able to estimate class probabilities(e.g., for the SVM classifiers in Scikit-Learn you must set probability=True).

3. Is it possible to speed up training of a bagging ensemble by distributing it across multiple servers? What about pasting ensembles, boosting ensembles, random forests, or stacking ensembles?

Figure 7-4. Pasting/bagging training set sampling and training AdaBoost sequential training with instance weight updates

It is quite possible to speed up training of a bagging ensemble by distributing it across multiple servers, since each predictor in the ensemble is independent of the others. The same goes for pasting(boostrap=False) ensembles and Random Forests(is an ensemble of Decision Trees, generally trained via the bagging method (or sometimes pasting) max_samples=1.0, #The number of samples to draw from X to train each base estimator. #max_samples * X.shape[0]), for the same reason. However, each predictor in a boosting ensemble is built based on the previous predictor, so training is necessarily sequential, and you will not gain anything by distributing training across multiple servers. Regarding stacking ensembles, all the predictors in a given layer are independent of each other, so they can be trained in parallel on multiple servers. However, the predictors in one layer can only be trained after the predictors in the previous layer have all been trained.

Figure 7-13. Training the first layer Figure 7-14. Training the blender in second layer

4. What is the benefit of out-of-bag evaluation?

With out-of-bag evaluation, each predictor in a bagging ensemble is evaluated using instances that it was not trained on (they were held out). This makes it possible to have a fairly unbiased evaluation of the ensemble without the need for an
additional validation set. Thus, you have more instances available for training, and your ensemble can perform slightly better.

5. What makes Extra-Trees(Extremely Randomized Trees ensemble) more random than regular Random Forests? How can this extra randomness help? Are Extra-Trees slower or faster than regular Random Forests?

When you are growing a tree in a Random Forest, only a random subset of the features is considered for splitting at each node. This is true as well for Extra-Trees, but they go one step further: rather than searching for the best possible
thresholds, like regular Decision Trees do, they use random thresholds for each feature. This extra randomness acts like a form of regularization: if a Random Forest overfits the training data, Extra-Trees might perform better. Moreover, since Extra-Trees don’t search for the best possible thresholds, they are much faster to train than Random Forests. However, they are neither faster nor slower than Random Forests when making predictions.

6. If your AdaBoost ensemble underfits the training data, what hyperparameters should you tweak and how?

If your AdaBoost ensemble underfits the training data, you can try increasing the number of estimators or reducing the regularization hyperparameters of the base estimator(svm_clf = SVC( kernel="rbf", C=0.05, gamma="scale", random_state=42 )). You may also try slightly increasing the learning rate.
Figure 7-8. Decision boundaries of consecutive predictors

Figure 7-8 shows the decision boundaries of five consecutive predictors on the moons dataset (in this example, each predictor is a highly regularized SVM classifier with an RBF kernel (This is just for illustrative purposes. SVMs are generally not good base predictors for AdaBoost, because they are slow and tend to be unstable with AdaBoost.)) The first classifier gets many instances wrong, so their weights get boosted. The second classifier therefore does a better job on these instances, and so on. The plot on the right represents the same sequence of predictors except that the learning rate is halved (i.e., the misclassified instance weights are boosted half as much at every iteration误分类实例权重每次迭代上升一半). As you can see, this sequential learning technique has some similarities with Gradient Descent, except that instead of tweaking a single predictor’s parameters to minimize a cost function, AdaBoost adds predictors to the ensemble, gradually making it better.

for example your base estimator

svm_clf = SVC( kernel="rbf", C=0.05, gamma="scale", random_state=42 )#'rbf': Gaussian Radial Basis Function高斯辐射基函数

https://blog.youkuaiyun.com/Linli522362242/article/details/104280075

minimize

The width of the street is controlled by a hyperparameter ϵ(Epsilon , n: the index of instances)
The C parameter trades off correct classification of training examples against maximization of the decision function’s margin. For larger values of C, a smaller margin will be accepted if the decision function is better at classifying all training points correctly. A lower C will encourage a larger margin, therefore a simpler decision function, at the cost of training accuracy. In other words``C`` behaves as a regularization parameter(inversely)

where the parameter C > 0 controls the trade-off between the slack variable penalty and the margin. Because any point that is misclassified has ξn > 1, it follows that is an upper bound on the number of misclassified points. The parameter C is therefore analogous相似的 to a regularization coefficient because it controls the trade-off between minimizing training errors and controlling model complexity. In the limit C → ∞, we will recover the earlier support vector machine for separable data

Gaussian RBF

Increasing gamma(γ) makes the bell-shape curve narrower (see the left plot of Figure 5-8 ), and as a result each instance’s range of influence is smaller: the decision boundary ends up being more irregular, wiggling扭动 around individual instances. Conversely, a small gamma(γ) value makes the bell-shaped curve wider, so instances have a larger range of influence, and the decision boundary ends up smoother. So γ acts like a regularization hyperparameter: if your model is overfitting, you should reduce it, and if it is underfitting, you should increase it (similar to the C hyperparameter).

7. If your Gradient Boosting ensemble overfits the training set, should you increase or decrease the learning rate?

If your Gradient Boosting ensemble overfits the training set, you should try decreasing the learning rate. You could also use early stopping to find the right number of predictors (you probably have too many).

gbrt = GradientBoostingRegressor( max_depth=2, n_estimators=200, learning_rate=0.03, random_state=42 )
gbrt.fit( X,y )

                                                                 ###
gbrt_slow = GradientBoostingRegressor( max_depth=2, n_estimators=200, learning_rate=0.1, random_state=42 )
gbrt_slow.fit( X,y )

8. Load the MNIST data (introduced in 03_Classification_import name fetch_mldata_cross_val_plot_digits_ML_Project Checklist_confusion matr_Linli522362242的专栏-优快云博客), and split it into a training set, a validation set, and a test set (e.g., use 40,000 instances for training, 10,000 for validation, and 10,000 for testing).

from sklearn.datasets import fetch_openml
mnist = fetch_openml("mnist_784")
mnist.keys()

mnist.data.shape

set(mnist.target)

from sklearn.model_selection import train_test_split

X_train_val, X_test, y_train_val, y_test = train_test_split(
    mnist.data, mnist.target, test_size=10000, random_state=42
)

X_train, X_val, y_train, y_val = train_test_split(
    X_train_val, y_train_val, test_size=10000, random_state=42
)

Then train various classifiers, such as a Random Forest classifier, an Extra-Trees classifier, and an SVM.

###################################
Why OvA or one-versus-the-rest?

03_Classification_import name fetch_mldata_cross_val_plot_digits_ML_Project Checklist_confusion matr_Linli522362242的专栏-优快云博客

Multiclass Classification
Whereas binary classifiers distinguish between two classes, multiclass classifiers (also called multinomial classifiers) can distinguish between more than two classes.

Some algorithms (such as Random Forest classifiers or naive Bayes classifiers) are capable of handling multiple classes directly. Others (such as Support Vector Machine classifiers or Linear classifiers) are strictly binary classifiers. However, there are various strategies that you can use to perform multiclass classification using multiple binary classifiers.

For example, one way to create a system that can classify the digit images into 10 classes (from 0 to 9) is to train 10 binary classifiers, one for each digit (a 0-detector, a 1-detector, a 2-detector, and so on). Then when you want to classify an image, you get the decision score from each classifier for that image and you select the class whose classifier outputs the highest score. This is called the one-versus-all (OvA) strategy (also called one-versus-the-rest).

Another strategy is to train a binary classifier for every pair of digits: one to distinguish 0s and 1s, another to distinguish 0s and 2s, another for 1s and 2s, and so on. This is called the one-versus-one (OvO) strategy. If there are N classes, you need to train N × (N – 1) / 2 classifiers. For the MNIST problem, this means training 45 binary classifiers! When you want to classify an image, you have to run the image through all 45 classifiers and see which class wins the most duels竞争. The main advantage of OvO is that each classifier only needs to be trained on the part of the training set for the two classes that it must distinguish.
###################################
Why linear SVM?

05_Support Vector Machines_03拉格朗日Lagrangian function先最大化maximize后最小化minimize_QP solver(soft-margin)_Linli522362242的专栏-优快云博客
5. Should you use the primal or the dual form of the SVM problem to train a model on a training set with millions of instances and hundreds of features?
This question applies only to linear SVMs since kernelized can only use the dual form. The computational complexity of the primal form of the SVM problem is proportional to the number of training instances m, while the computational complexity of the dual form is proportional to a number between and . So if there are millions of instances(here, this exercise just has 70000 instances), you should definitely use the primal form, because the dual form will be much too slow.

Equation 5-13. Linear SVM classifier cost function

The first sum in the cost function will push the model to have a small weight vector w, leading to a larger margin. The second sum computes the total of all margin violations. An instance’s margin violation is equal to 0 if it is located off the street and on the correct side, or else it is proportional成比例的 to the distance to the correct side of the street. Minimizing this term ensures that the model makes the margin violations as small and as few as possible.
###################################
Why Extra-Trees?

A forest of such extremely random trees is simply called an Extremely Randomized Trees ensemble 极端随机树(or Extra-Trees for short). Once again, this trades more bias for a lower variance. It also makes Extra-Trees much faster to train than regular Random Forests since finding the best possible threshold for each feature at every node is one of the most time-consuming tasks of growing a tree.

When you are growing a tree in a Random Forest, only a random subset of the features is considered for splitting at each node. This is true as well for Extra-Trees, but they go one step further: rather than searching for the best possible thresholds, like regular Decision Trees do, they use random thresholds for each feature. This extra randomness acts like a form of regularization: if a Random Forest overfits the training data, Extra-Trees might perform better. Moreover, since Extra-Trees don’t search for the best possible thresholds, they are much faster to train than Random Forests. However, they are neither faster nor slower than Random Forests when making predictions.

###################################
Then train various classifiers, such as a Random Forest classifier, an Extra-Trees classifier, and an SVM.

from sklearn.ensemble import RandomForestClassifier, ExtraTreesClassifier
from sklearn.svm import LinearSVC
from sklearn.neural_network import MLPClassifier

random_forest_clf = RandomForestClassifier(n_estimators=10, random_state=42)
extra_trees_clf = ExtraTreesClassifier(n_estimators=10, random_state=42)
svm_clf = LinearSVC(random_state=42)
mlp_clf = MLPClassifier(random_state=42)


estimators = [ random_forest_clf, extra_trees_clf, svm_clf, mlp_clf ]
for estimator in estimators:
    print( "Training the", estimator)
    estimator.fit(X_train, y_train)

[estimator.score(X_val, y_val) for estimator in estimators]

####################

from sklearn.ensemble import RandomForestClassifier, ExtraTreesClassifier
from sklearn.svm import LinearSVC
from sklearn.neural_network import MLPClassifier
                                          #################
random_forest_clf = RandomForestClassifier(n_estimators=100, random_state=42)
extra_trees_clf = ExtraTreesClassifier(n_estimators=100, random_state=42)
svm_clf = LinearSVC(random_state=42)
mlp_clf = MLPClassifier(random_state=42)

estimators = [ random_forest_clf, extra_trees_clf, svm_clf, mlp_clf ]
for estimator in estimators:
    print( "Training the", estimator)
    estimator.fit(X_train, y_train)

[estimator.score(X_val, y_val) for estimator in estimators]

###########
Both RandomForestClassifier and ExtraTreesClassifier with n_estimators=100 are better than if they just have 10 estimators. ( VS )

The linear SVM is far outperformed by the other classifiers. However, let's keep it for now since it may improve the voting classifier's performance.

A very simple way to create an even better classifier is to aggregate the predictions of each classifier and predict the class that gets the most votes. This majority-vote classifier is called a hard voting classifier (see Figure 7-2).

Figure 7-2. Hard voting classifier predictions

Next, try to combine them into an ensemble that outperforms them all on the validation set, using a soft or hard voting classifier. Once you have found one, try it on the test set. How much better does it perform compared to the individual classifiers?

from sklearn.ensemble import VotingClassifier

named_estimators =[
    ("random_forest_clf", random_forest_clf),
    ("extra_trees_clf", extra_trees_clf),
    ("svm_clf", svm_clf),
    ("mpl_clf", mlp_clf),
]

voting_clf = VotingClassifier(named_estimators)
voting_clf.fit(X_train,y_train)

voting_clf.score(X_val, y_val)

[estimator.score(X_train, y_train) for estimator in voting_clf.estimators_]

note: some people may get the result of which is same with [estimator.score(X_val, y_val) for estimator in estimators] before combining

Let's remove the SVM to see if performance improves. It is possible to remove an estimator by setting it to None using set_params() like this:

voting_clf.set_params(svm_clf=None)

This updated the list of estimators:

voting_clf.estimators

However, it did not update the list of trained estimators:

voting_clf.estimators_

So we can either fit the VotingClassifier again, or just remove the SVM from the list of trained estimators:

del voting_clf.estimators_[2]

Now let's evaluate the VotingClassifier again:

voting_clf.score(X_val, y_val)

A bit better! The SVM was hurting performance. Now let's try using a soft voting classifier. We do not actually need to retrain the classifier, we can just set voting to "soft" and ensure that all classifiers can estimate class probabilities:

voting_clf.voting = "soft"
voting_clf.score(X_val, y_val)

Nope, hard voting wins in this case.

voting_clf.voting = "hard"
voting_clf.score(X_test, y_test)

[estimator.score(X_test, y_test) for estimator in estimators if estimator is not svm_clf]

The voting classifier only very slightly reduced the error rate of the best model (0.9691) in this case.

Figure 7-13. Training the first layer Figure 7-14. Training the blender in second layer

estimators

9. Stacking Ensemble

9. Run the individual classifiers from the previous exercise to make predictions on the validation set, and create a new training set with the resulting predictions: each training instance is a vector containing the set of predictions from all your classifiers for an image, and the target is the image's class.

Train a classifier on this new training set.

#to get predictions by using previous(first layer's) estimators and second layer's training set(X_val)

X_val_predictions = np.empty( (len(X_val), len(estimators) ), dtype=np.float32 )

for index, estimator in enumerate( estimators ):
    X_val_predictions[:,index] = estimator.predict(X_val)

X_val_predictions

# use previous predictions to create a blending train set then to train blender

rnd_forest_blender = RandomForestClassifier(n_estimators=200, oob_score=True, random_state=42)
rnd_forest_blender.fit(X_val_predictions, y_val)

rnd_forest_blender.oob_score_

You could fine-tune this blender or try other types of blenders (e.g., an MLPClassifier), then select the best one using cross-validation, as always.

Congratulations, you have just trained a blender, and together with the classifiers they form a stacking ensemble! Now let’s evaluate the ensemble on the test set. For each image in the test set, make predictions with all your classifiers, then feed the predictions to the blender to get the ensemble’s predictions. How does it compare to the voting classifier you trained earlier?

#to get an new predictions by using first layer's estimators and the test set

X_test_predictions = np.empty( (len(X_test), len(estimators)), dtype=np.float32 )

for index, estimator in enumerate(estimators):
    X_test_predictions[:, index] = estimator.predict(X_test)

# to make final predictions by using an new training dataset( from previous predctions) and blender in second layer

y_pred = rnd_forest_blender.predict( X_test_predictions )

from sklearn.metrics import accuracy_score

accuracy_score(y_test, y_pred)

This stacking ensemble does not perform as well as the voting classifier we trained earlier, it's not quite as good as the best individual classifier.
