spring中load-time-weaver静态aop处理，基于aspectJ的静态aop处理

前面我们已经探讨过基于spring的动态aop处理 spring动态aop处理 spring同时也遵循了aop的标准，提供了静态aop的处理方式。
spring的配置增加如下配置开启静态aop：

 <context:load-time-weaver/>

可以看到，这里对应的schema是context，我们在spring-context模块下META-IUNF/spring.handlers中发现内容如下：

http\://www.springframework.org/schema/context=org.springframework.context.config.ContextNamespaceHandler
http\://www.springframework.org/schema/jee=org.springframework.ejb.config.JeeNamespaceHandler
http\://www.springframework.org/schema/lang=org.springframework.scripting.config.LangNamespaceHandler
http\://www.springframework.org/schema/task=org.springframework.scheduling.config.TaskNamespaceHandler
http\://www.springframework.org/schema/cache=org.springframework.cache.config.CacheNamespaceHandler

其中context对应处理类为：org.springframework.context.config.ContextNamespaceHandler：

public class ContextNamespaceHandler extends NamespaceHandlerSupport {

	@Override
	public void init() {
		registerBeanDefinitionParser("property-placeholder", new PropertyPlaceholderBeanDefinitionParser());
		registerBeanDefinitionParser("property-override", new PropertyOverrideBeanDefinitionParser());
		registerBeanDefinitionParser("annotation-config", new AnnotationConfigBeanDefinitionParser());
		registerBeanDefinitionParser("component-scan", new ComponentScanBeanDefinitionParser());
		registerBeanDefinitionParser("load-time-weaver", new LoadTimeWeaverBeanDefinitionParser());
		registerBeanDefinitionParser("spring-configured", new SpringConfiguredBeanDefinitionParser());
		registerBeanDefinitionParser("mbean-export", new MBeanExportBeanDefinitionParser());
		registerBeanDefinitionParser("mbean-server", new MBeanServerBeanDefinitionParser());
	}

}

load-time-weaver解析类为： LoadTimeWeaverBeanDefinitionParser.解析逻辑主要集中在doParse方法中：

protected String getBeanClassName(Element element) {
		if (element.hasAttribute(WEAVER_CLASS_ATTRIBUTE)) {
			return element.getAttribute(WEAVER_CLASS_ATTRIBUTE);
		}
		return DEFAULT_LOAD_TIME_WEAVER_CLASS_NAME;
	}

	@Override
	protected String resolveId(Element element, AbstractBeanDefinition definition, ParserContext parserContext) {
		return ConfigurableApplicationContext.LOAD_TIME_WEAVER_BEAN_NAME;
	}
	protected void doParse(Element element, ParserContext parserContext, BeanDefinitionBuilder builder) {
		builder.setRole(BeanDefinition.ROLE_INFRASTRUCTURE);

		if (isAspectJWeavingEnabled(element.getAttribute(ASPECTJ_WEAVING_ATTRIBUTE), parserContext)) {
			if (!parserContext.getRegistry().containsBeanDefinition(ASPECTJ_WEAVING_ENABLER_BEAN_NAME)) {
				RootBeanDefinition def = new RootBeanDefinition(ASPECTJ_WEAVING_ENABLER_CLASS_NAME);
				parserContext.registerBeanComponent(
						new BeanComponentDefinition(def, ASPECTJ_WEAVING_ENABLER_BEAN_NAME));
			}

			if (isBeanConfigurerAspectEnabled(parserContext.getReaderContext().getBeanClassLoader())) {
				new SpringConfiguredBeanDefinitionParser().parse(element, parserContext);
			}
		}
	}
	protected boolean isAspectJWeavingEnabled(String value, ParserContext parserContext) {
		if ("on".equals(value)) {
			return true;
		}
		else if ("off".equals(value)) {
			return false;
		}
		else {
			// Determine default...
			ClassLoader cl = parserContext.getReaderContext().getBeanClassLoader();
			return (cl != null && cl.getResource(AspectJWeavingEnabler.ASPECTJ_AOP_XML_RESOURCE) != null);
		}
	}

判断是否启用AspectJ的逻辑是：

1. 如果配置aspectj-weaving=on则表示开启
2. 如果配置aspectj-weaving=off则表示不开启，关闭
3. 其他情况，判断当前环境下是否存在META-INF/aop.xml,如果存在，表示开启AspectJ

如果确认需要开启AspectJ，则会向IOC容器中，注册org.springframework.context.weaving.AspectJWeavingEnabler和

org.springframework.context.weaving.DefaultContextLoadTimeWeaver

这里DefaultContextLoadTimeWeaver是默认实现，如果在 \<context:load-time-weaver weaver-class="xxxx.xxx"/> 配置了weaver-class这里会注册该类

这两个对应名称为：
ASPECTJ_WEAVING_ENABLER_BEAN_NAME =
“org.springframework.context.config.internalAspectJWeavingEnabler” -> AspectJWeavingEnabler

上面这几步，完成了AspectJ的相关准备工作，但是并没有进行织入，前面我们在研究spring容器启动过程分析的时候，有一步是进行AspectJ的织入。
spring容器启动过程分析

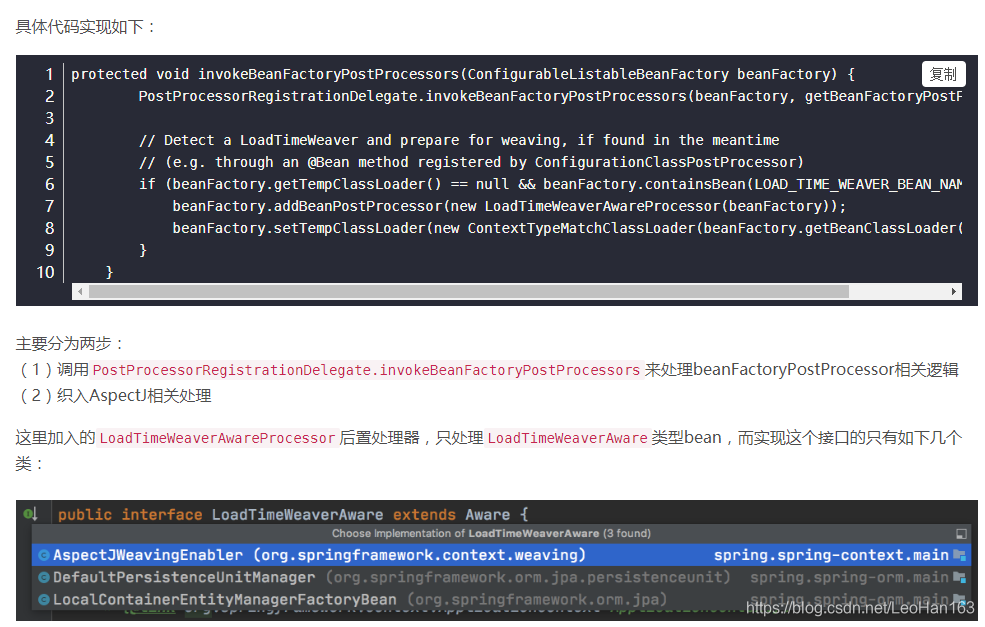

在AbstactApplicationContext.invokeBeanFactoryPostProcessors时候，会加入LoadTimeWeaverAwareProcessor

	protected void invokeBeanFactoryPostProcessors(ConfigurableListableBeanFactory beanFactory) {
		PostProcessorRegistrationDelegate.invokeBeanFactoryPostProcessors(beanFactory, getBeanFactoryPostProcessors());

		// Detect a LoadTimeWeaver and prepare for weaving, if found in the meantime
		// (e.g. through an @Bean method registered by ConfigurationClassPostProcessor)
		if (beanFactory.getTempClassLoader() == null && beanFactory.containsBean(LOAD_TIME_WEAVER_BEAN_NAME)) {
			beanFactory.addBeanPostProcessor(new LoadTimeWeaverAwareProcessor(beanFactory));
			beanFactory.setTempClassLoader(new ContextTypeMatchClassLoader(beanFactory.getBeanClassLoader()));
		}
	}

LoadTimeWeaverAwareProcessor.postProcessBeforeInitialization逻辑：

public Object postProcessBeforeInitialization(Object bean, String beanName) throws BeansException {
		if (bean instanceof LoadTimeWeaverAware) {
			LoadTimeWeaver ltw = this.loadTimeWeaver;
			if (ltw == null) {
				Assert.state(this.beanFactory != null,
						"BeanFactory required if no LoadTimeWeaver explicitly specified");
				ltw = this.beanFactory.getBean(
						ConfigurableApplicationContext.LOAD_TIME_WEAVER_BEAN_NAME, LoadTimeWeaver.class);
			}
			((LoadTimeWeaverAware) bean).setLoadTimeWeaver(ltw);
		}
		return bean;
	}

这里首先会判断当前处理bean是否是LoadTimeWeaverAware，整个spirng中只有前面提到的AspectJWeavingEnabler实现了该接口。
而此时this.loadTimeWeaver并没有实例化，直接通过getBean获取，此时获取的就是之前说过的DefaultContextLoadTimeWeaver(或者手动指定）。
DefaultContextLoadTimeWeaver实现了BeanClassLoaderAware接口，在其setBeanClassLoader逻辑：

// DefaultContextLoadTimeWeaver.java
public void setBeanClassLoader(ClassLoader classLoader) {
		LoadTimeWeaver serverSpecificLoadTimeWeaver = createServerSpecificLoadTimeWeaver(classLoader);
		if (serverSpecificLoadTimeWeaver != null) {
			if (logger.isDebugEnabled()) {
				logger.debug("Determined server-specific load-time weaver: " +
						serverSpecificLoadTimeWeaver.getClass().getName());
			}
			this.loadTimeWeaver = serverSpecificLoadTimeWeaver;
		}
		else if (InstrumentationLoadTimeWeaver.isInstrumentationAvailable()) {
			logger.debug("Found Spring's JVM agent for instrumentation");
			this.loadTimeWeaver = new InstrumentationLoadTimeWeaver(classLoader);
		}
		else {
			try {
				this.loadTimeWeaver = new ReflectiveLoadTimeWeaver(classLoader);
				if (logger.isDebugEnabled()) {
					logger.debug("Using reflective load-time weaver for class loader: " +
							this.loadTimeWeaver.getInstrumentableClassLoader().getClass().getName());
				}
			}
			catch (IllegalStateException ex) {
				throw new IllegalStateException(ex.getMessage() + " Specify a custom LoadTimeWeaver or start your " +
						"Java virtual machine with Spring's agent: -javaagent:org.springframework.instrument.jar");
			}
		}
	}

其中：

else if (InstrumentationLoadTimeWeaver.isInstrumentationAvailable()) {
logger.debug(“Found Spring’s JVM agent for instrumentation”);
this.loadTimeWeaver = new InstrumentationLoadTimeWeaver(classLoader);
}

经过上述处理后，

AspectJWeavingEnabler.loadTimeWeaver = DefaultContextLoadTimeWeaver

DefaultContextLoadTimeWeaver.loadTimeWeaver = InstrumentationLoadTimeWeaver

AspectJWeavingEnabler同时实现了BeanFactoryPostProcessor，其postProcessBeanFactory实现如下：

// AspectJWeavingEnabler.java
public void postProcessBeanFactory(ConfigurableListableBeanFactory beanFactory) throws BeansException {
		enableAspectJWeaving(this.loadTimeWeaver, this.beanClassLoader);
	}


	/**
	 * Enable AspectJ weaving with the given {@link LoadTimeWeaver}.
	 * @param weaverToUse the LoadTimeWeaver to apply to (or {@code null} for a default weaver)
	 * @param beanClassLoader the class loader to create a default weaver for (if necessary)
	 */
	public static void enableAspectJWeaving(
			@Nullable LoadTimeWeaver weaverToUse, @Nullable ClassLoader beanClassLoader) {

		if (weaverToUse == null) {
			if (InstrumentationLoadTimeWeaver.isInstrumentationAvailable()) {
				weaverToUse = new InstrumentationLoadTimeWeaver(beanClassLoader);
			}
			else {
				throw new IllegalStateException("No LoadTimeWeaver available");
			}
		}
		weaverToUse.addTransformer(
				new AspectJClassBypassingClassFileTransformer(new ClassPreProcessorAgentAdapter()));
	}


	/**
	 * ClassFileTransformer decorator that suppresses processing of AspectJ
	 * classes in order to avoid potential LinkageErrors.
	 * @see org.springframework.context.annotation.LoadTimeWeavingConfiguration
	 */
	private static class AspectJClassBypassingClassFileTransformer implements ClassFileTransformer {

		private final ClassFileTransformer delegate;

		public AspectJClassBypassingClassFileTransformer(ClassFileTransformer delegate) {
			this.delegate = delegate;
		}

		@Override
		public byte[] transform(ClassLoader loader, String className, Class<?> classBeingRedefined,
				ProtectionDomain protectionDomain, byte[] classfileBuffer) throws IllegalClassFormatException {

			if (className.startsWith("org.aspectj") || className.startsWith("org/aspectj")) {
				return classfileBuffer;
			}
			// 委托给AspectJ继续处理
			return this.delegate.transform(loader, className, classBeingRedefined, protectionDomain, classfileBuffer);
		}
	}
