org.hibernate.MappingException: entity class not found: src.main.java.Design.Entity.Student.hbm.xml

使用eclipse和Hibernate逆向工程生成实体类后,在JUnit测试中遇到找不到实体类的问题。错误在于实体类路径设置错误和ORM映射文件路径未正确配置。解决方法包括:1) 不要在Student.hbm.xml的class name中包含src.main.java,只需指定包名和类名;2) 在hibernate.cfg.xml中确保添加了实体类的ORM映射文件路径。

摘要生成于 C知道 ,由 DeepSeek-R1 满血版支持, 前往体验 >

使用eclipse通过hibernate逆向工程生成实体类后,用junit测试,发现一直报实体类生成文件找不到的解决方案:

org.hibernate.MappingNotFoundException: resource: src/main/java/Design/Entity/Student.hbm.xml not found
	at org.hibernate.cfg.Configuration.addResource(Configuration.java:610)
	at org.hibernate.cfg.Configuration.parseMappingElement(Configuration.java:1635)
	at org.hibernate.cfg.Configuration.parseSessionFactory(Configuration.java:1603)
	at org.hibernate.cfg.Configuration.doConfigure(Configuration.java:1582)
	at org.hibernate.cfg.Configuration.doConfigure(Configuration.java:1556)
	at org.hibernate.cfg.Configuration.configure(Configuration.java:1476)
	at org.hibernate.cfg.Configuration.configure(Configuration.java:1462)
	at hibernateTest.ConnectTest.testQery(ConnectTest.java:21)
	at sun.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
	at sun.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:62)
	at sun.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43)
	at java.lang.reflect.Method.invoke(Method.java:498)
	at junit.framework.TestCase.runTest(TestCase.java:154)
	at junit.framework.TestCase.runBare(TestCase.java:127)
	at junit.framework.TestResult$1.protect(TestResult.java:106)
	at junit.framework.TestResult.runProtected(TestResult.java:124)
	at junit.framework.TestResult.run(TestResult.java:109)
	at junit.framework.TestCase.run(TestCase.java:118)
	at junit.framework.TestSuite.runTest(TestSuite.java:208)
	at junit.framework.TestSuite.run(TestSuite.java:203)
	at org.eclipse.jdt.internal.junit.runner.junit3.JUnit3TestReference.run(JUnit3TestReference.java:131)
	at org.eclipse.jdt.internal.junit.runner.TestExecution.run(TestExecution.java:38)
	at org.eclipse.jdt.internal.junit.runner.RemoteTestRunner.runTests(RemoteTestRunner.java:459)
	at org.eclipse.jdt.internal.junit.runner.RemoteTestRunner.runTests(RemoteTestRunner.java:675)
	at org.eclipse.jdt.internal.junit.runner.RemoteTestRunner.run(RemoteTestRunner.java:382)
	at org.eclipse.jdt.internal.junit.runner.RemoteTestRunner.main(RemoteTestRunner.java:192)



错误示范:
逆向生成

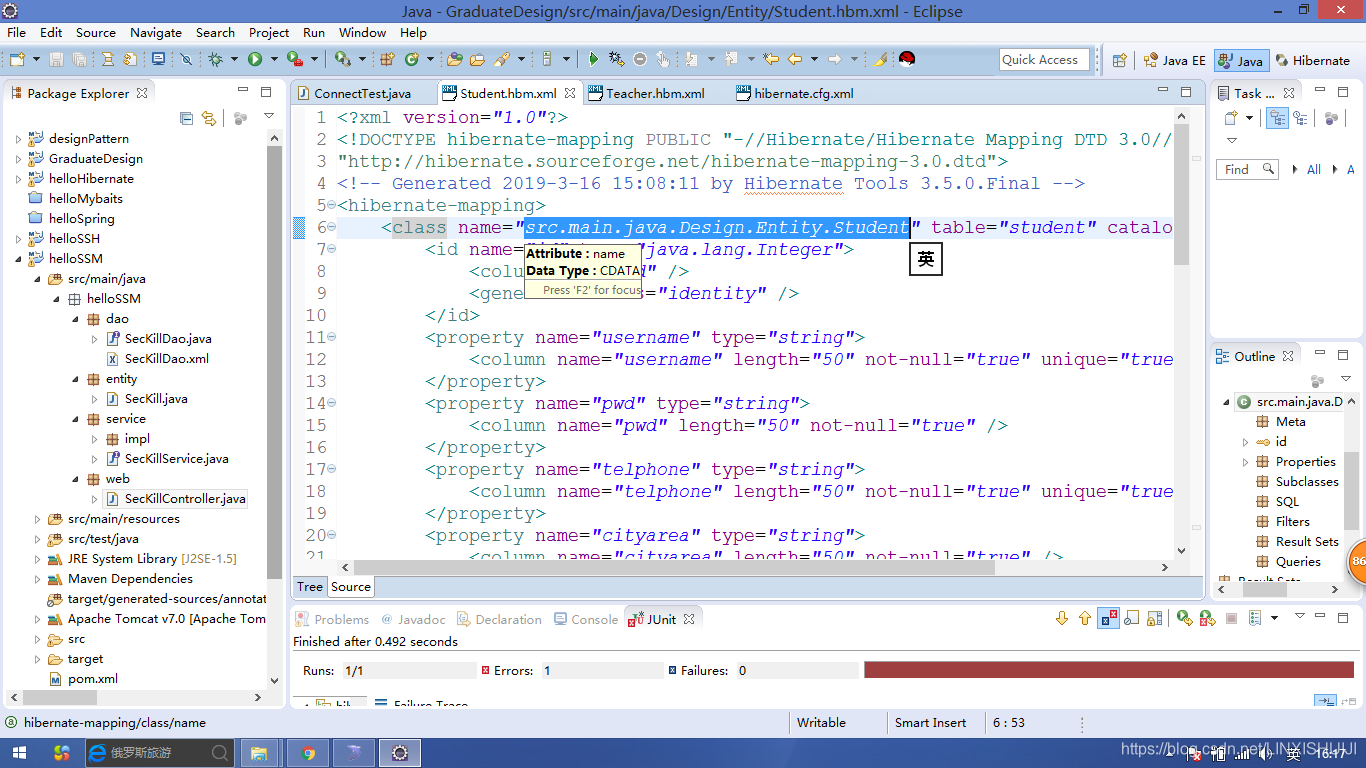

1、逆向生成实体类时会自动src.mian.java 这是建maven项目后自动生成的,而我们无需将它添加到Student.hbm.xml文件的class 的name中,写成Design.Entity.Student就好了,否则会报错。

正确示范:
在这里插入图片描述

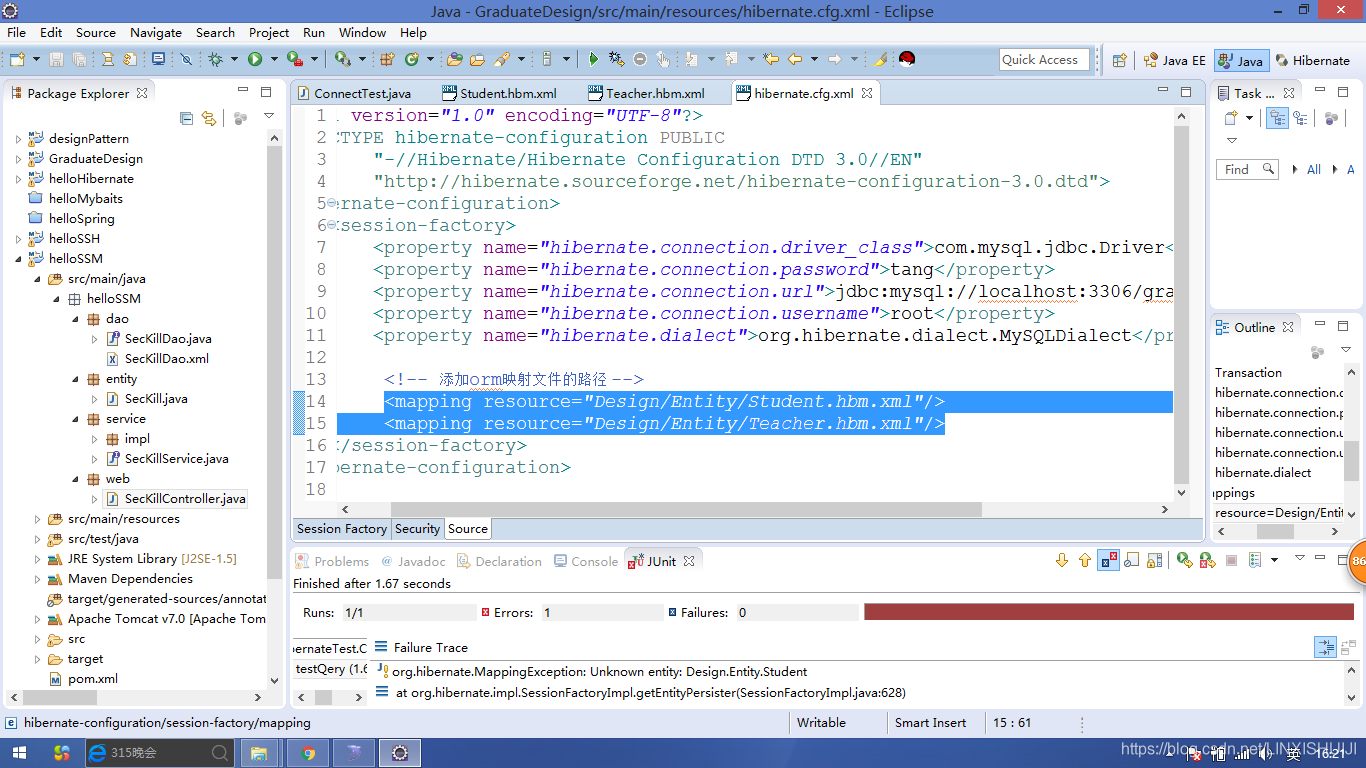

正确示范:
在这里插入图片描述
2、在hibernate.cfg.xml中要添加orm映射文件路径,与实体类.hbm.xml中的name一直就好了。

大功告成。。。。。。
