pyside6/pyqt6/pyside/pyqt 构建QGraphicsItem拖拽设置形状的矩形框

pyside6/pyqt6/pyside/pyqt 鼠标调整矩形框尺寸大小

目录

1.需求

2.实际效果

3.实际代码

---

1.需求

        [1] 采用pyside6（pyqt同样）的QGraphicsView、QGraphicsScene、QGraphicsItem实现ROI矩形框的绘制，类似labelimg等深度学习CV标注工具的矩形框标注功能；

        [2] 由于pyside6中QGraphicsRectItem只支持设置几个属性即可简单实现矩形框选中、平移、删除，但是不直接支持拖拽设置尺寸，因此继承这个类，重写部分函数，以实现句柄拖拽矩形框尺寸形状。

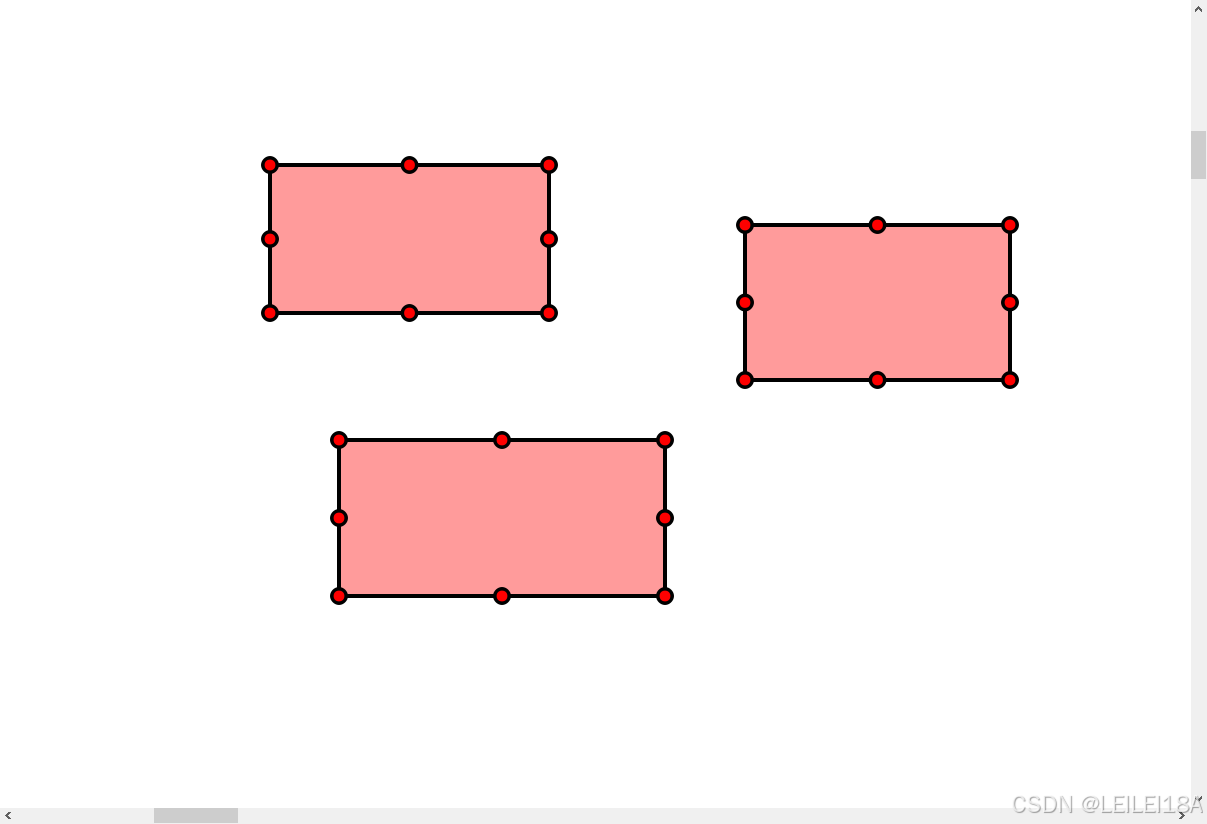

2.实际效果

3.实际代码

        代码摘自https://stackoverflow.com/questions/34429632/resize-a-qgraphicsitem-with-the-mouse

import sys

from PySide6.QtCore import Qt, QRectF, QPointF
from PySide6.QtGui import QBrush, QPainterPath, QPainter, QColor, QPen, QPixmap
from PySide6.QtWidgets import QGraphicsRectItem, QApplication, QGraphicsView, QGraphicsScene, QGraphicsItem


class GraphicsRectItem(QGraphicsRectItem):

    handleTopLeft = 1
    handleTopMiddle = 2
    handleTopRight = 3
    handleMiddleLeft = 4
    handleMiddleRight = 5
    handleBottomLeft = 6
    handleBottomMiddle = 7
    handleBottomRight = 8

    handleSize = +8.0
    handleSpace = -4.0

    handleCursors = {
        handleTopLeft: Qt.SizeFDiagCursor,
        handleTopMiddle: Qt.SizeVerCursor,
        handleTopRight: Qt.SizeBDiagCursor,
        handleMiddleLeft: Qt.SizeHorCursor,
        handleMiddleRight: Qt.SizeHorCursor,
        handleBottomLeft: Qt.SizeBDiagCursor,
        handleBottomMiddle: Qt.SizeVerCursor,
        handleBottomRight: Qt.SizeFDiagCursor,
    }

    def __init__(self, *args):
        """
        Initialize the shape.
        """
        super().__init__(*args)
        self.handles = {}
        self.handleSelected = None
        self.mousePressPos = None
        self.mousePressRect = None
        self.setAcceptHoverEvents(True)
        self.setFlag(QGraphicsItem.ItemIsMovable, True)
        self.setFlag(QGraphicsItem.ItemIsSelectable, True)
        self.setFlag(QGraphicsItem.ItemSendsGeometryChanges, True)
        self.setFlag(QGraphicsItem.ItemIsFocusable, True)
        self.updateHandlesPos()

    def handleAt(self, point):
        """
        Returns the resize handle below the given point.
        """
        for k, v, in self.handles.items():
            if v.contains(point):
                return k
        return None

    def hoverMoveEvent(self, moveEvent):
        """
        Executed when the mouse moves over the shape (NOT PRESSED).
        """
        if self.isSelected():
            handle = self.handleAt(moveEvent.pos())
            cursor = Qt.ArrowCursor if handle is None else self.handleCursors[handle]
            self.setCursor(cursor)
        super().hoverMoveEvent(moveEvent)

    def hoverLeaveEvent(self, moveEvent):
        """
        Executed when the mouse leaves the shape (NOT PRESSED).
        """
        self.setCursor(Qt.ArrowCursor)
        super().hoverLeaveEvent(moveEvent)

    def mousePressEvent(self, mouseEvent):
        """
        Executed when the mouse is pressed on the item.
        """
        self.handleSelected = self.handleAt(mouseEvent.pos())
        if self.handleSelected:
            self.mousePressPos = mouseEvent.pos()
            self.mousePressRect = self.boundingRect()
        super().mousePressEvent(mouseEvent)

    def mouseMoveEvent(self, mouseEvent):
        """
        Executed when the mouse is being moved over the item while being pressed.
        """
        if self.handleSelected is not None:
            self.interactiveResize(mouseEvent.pos())
        else:
            super().mouseMoveEvent(mouseEvent)

    def mouseReleaseEvent(self, mouseEvent):
        """
        Executed when the mouse is released from the item.
        """
        super().mouseReleaseEvent(mouseEvent)
        self.handleSelected = None
        self.mousePressPos = None
        self.mousePressRect = None
        self.update()

    def boundingRect(self):
        """
        Returns the bounding rect of the shape (including the resize handles).
        """
        o = self.handleSize + self.handleSpace
        return self.rect().adjusted(-o, -o, o, o)

    def updateHandlesPos(self):
        """
        Update current resize handles according to the shape size and position.
        """
        s = self.handleSize
        b = self.boundingRect()
        self.handles[self.handleTopLeft] = QRectF(b.left(), b.top(), s, s)
        self.handles[self.handleTopMiddle] = QRectF(b.center().x() - s / 2, b.top(), s, s)
        self.handles[self.handleTopRight] = QRectF(b.right() - s, b.top(), s, s)
        self.handles[self.handleMiddleLeft] = QRectF(b.left(), b.center().y() - s / 2, s, s)
        self.handles[self.handleMiddleRight] = QRectF(b.right() - s, b.center().y() - s / 2, s, s)
        self.handles[self.handleBottomLeft] = QRectF(b.left(), b.bottom() - s, s, s)
        self.handles[self.handleBottomMiddle] = QRectF(b.center().x() - s / 2, b.bottom() - s, s, s)
        self.handles[self.handleBottomRight] = QRectF(b.right() - s, b.bottom() - s, s, s)

    def interactiveResize(self, mousePos):
        """
        Perform shape interactive resize.
        """
        offset = self.handleSize + self.handleSpace
        boundingRect = self.boundingRect()
        rect = self.rect()
        diff = QPointF(0, 0)

        self.prepareGeometryChange()

        if self.handleSelected == self.handleTopLeft:

            fromX = self.mousePressRect.left()
            fromY = self.mousePressRect.top()
            toX = fromX + mousePos.x() - self.mousePressPos.x()
            toY = fromY + mousePos.y() - self.mousePressPos.y()
            diff.setX(toX - fromX)
            diff.setY(toY - fromY)
            boundingRect.setLeft(toX)
            boundingRect.setTop(toY)
            rect.setLeft(boundingRect.left() + offset)
            rect.setTop(boundingRect.top() + offset)
            self.setRect(rect)

        elif self.handleSelected == self.handleTopMiddle:

            fromY = self.mousePressRect.top()
            toY = fromY + mousePos.y() - self.mousePressPos.y()
            diff.setY(toY - fromY)
            boundingRect.setTop(toY)
            rect.setTop(boundingRect.top() + offset)
            self.setRect(rect)

        elif self.handleSelected == self.handleTopRight:

            fromX = self.mousePressRect.right()
            fromY = self.mousePressRect.top()
            toX = fromX + mousePos.x() - self.mousePressPos.x()
            toY = fromY + mousePos.y() - self.mousePressPos.y()
            diff.setX(toX - fromX)
            diff.setY(toY - fromY)
            boundingRect.setRight(toX)
            boundingRect.setTop(toY)
            rect.setRight(boundingRect.right() - offset)
            rect.setTop(boundingRect.top() + offset)
            self.setRect(rect)

        elif self.handleSelected == self.handleMiddleLeft:

            fromX = self.mousePressRect.left()
            toX = fromX + mousePos.x() - self.mousePressPos.x()
            diff.setX(toX - fromX)
            boundingRect.setLeft(toX)
            rect.setLeft(boundingRect.left() + offset)
            self.setRect(rect)

        elif self.handleSelected == self.handleMiddleRight:
            print("MR")
            fromX = self.mousePressRect.right()
            toX = fromX + mousePos.x() - self.mousePressPos.x()
            diff.setX(toX - fromX)
            boundingRect.setRight(toX)
            rect.setRight(boundingRect.right() - offset)
            self.setRect(rect)

        elif self.handleSelected == self.handleBottomLeft:

            fromX = self.mousePressRect.left()
            fromY = self.mousePressRect.bottom()
            toX = fromX + mousePos.x() - self.mousePressPos.x()
            toY = fromY + mousePos.y() - self.mousePressPos.y()
            diff.setX(toX - fromX)
            diff.setY(toY - fromY)
            boundingRect.setLeft(toX)
            boundingRect.setBottom(toY)
            rect.setLeft(boundingRect.left() + offset)
            rect.setBottom(boundingRect.bottom() - offset)
            self.setRect(rect)

        elif self.handleSelected == self.handleBottomMiddle:

            fromY = self.mousePressRect.bottom()
            toY = fromY + mousePos.y() - self.mousePressPos.y()
            diff.setY(toY - fromY)
            boundingRect.setBottom(toY)
            rect.setBottom(boundingRect.bottom() - offset)
            self.setRect(rect)

        elif self.handleSelected == self.handleBottomRight:

            fromX = self.mousePressRect.right()
            fromY = self.mousePressRect.bottom()
            toX = fromX + mousePos.x() - self.mousePressPos.x()
            toY = fromY + mousePos.y() - self.mousePressPos.y()
            diff.setX(toX - fromX)
            diff.setY(toY - fromY)
            boundingRect.setRight(toX)
            boundingRect.setBottom(toY)
            rect.setRight(boundingRect.right() - offset)
            rect.setBottom(boundingRect.bottom() - offset)
            self.setRect(rect)

        self.updateHandlesPos()

    def shape(self):
        """
        Returns the shape of this item as a QPainterPath in local coordinates.
        """
        path = QPainterPath()
        path.addRect(self.rect())
        if self.isSelected():
            for shape in self.handles.values():
                path.addEllipse(shape)
        return path

    def paint(self, painter, option, widget=None):
        """
        Paint the node in the graphic view.
        """
        painter.setBrush(QBrush(QColor(255, 0, 0, 100)))
        painter.setPen(QPen(QColor(0, 0, 0), 1.0, Qt.SolidLine))
        painter.drawRect(self.rect())

        painter.setRenderHint(QPainter.Antialiasing)
        painter.setBrush(QBrush(QColor(255, 0, 0, 255)))
        painter.setPen(QPen(QColor(0, 0, 0, 255), 1.0, Qt.SolidLine, Qt.RoundCap, Qt.RoundJoin))
        for handle, rect in self.handles.items():
            if self.handleSelected is None or handle == self.handleSelected:
                painter.drawEllipse(rect)


def main():

    app = QApplication(sys.argv)

    grview = QGraphicsView()
    scene = QGraphicsScene()

    item = GraphicsRectItem(0, 0, 300, 150)
    scene.addItem(item)

    grview.fitInView(scene.sceneRect(), Qt.KeepAspectRatio)
    grview.show()
    sys.exit(app.exec_())


if __name__ == '__main__':
    main()
