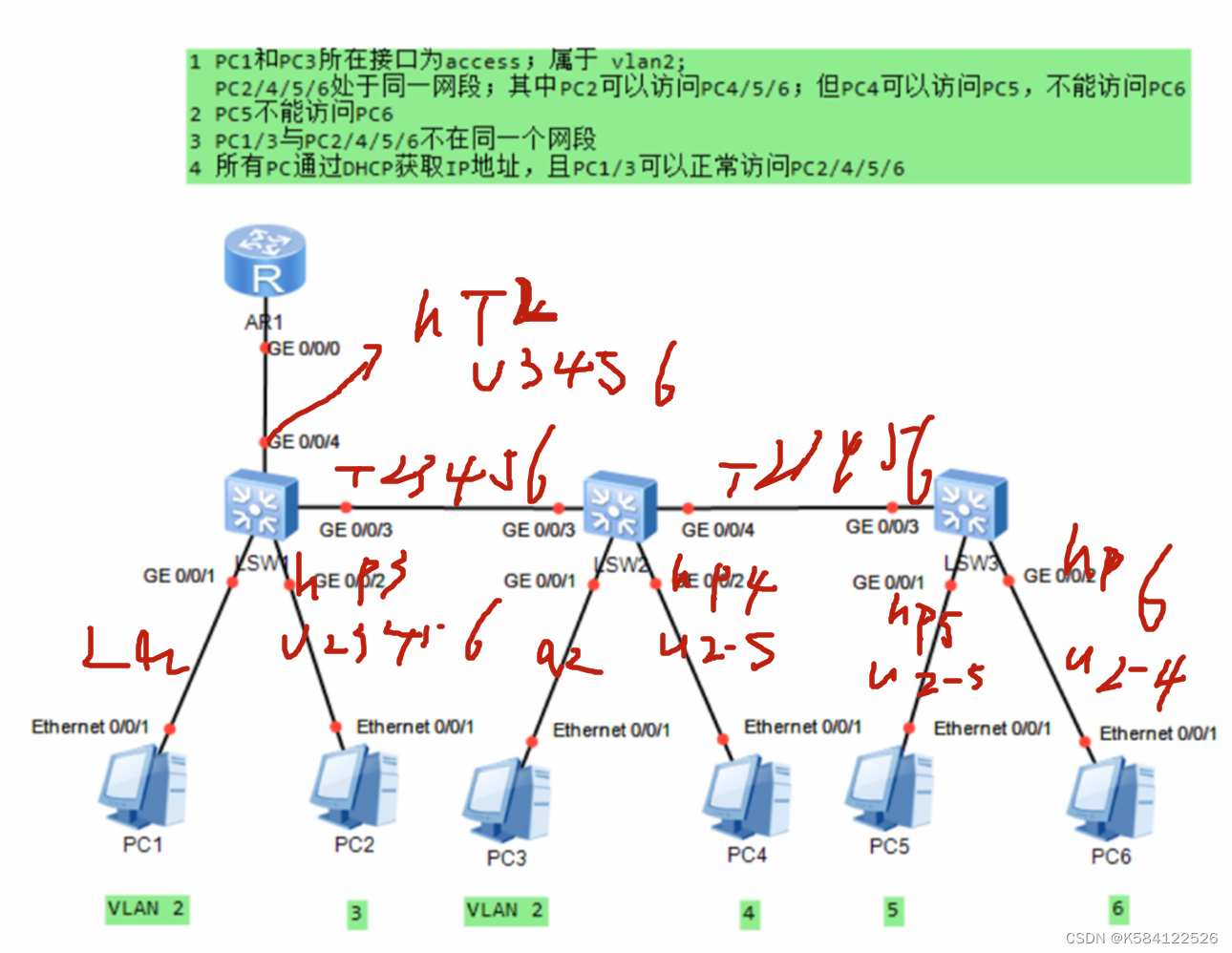

VLAN的综合实验

第一步、配置VLAN

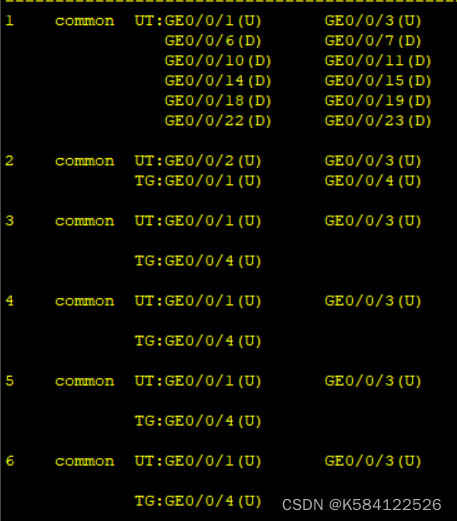

 SW1

interface GigabitEthernet0/0/2
 port link-type access
 port default vlan 2
interface GigabitEthernet0/0/3
 port hybrid pvid vlan 3
 port hybrid untagged vlan 2 to 6
interface GigabitEthernet0/0/4
 port link-type trunk
 port trunk allow-pass vlan 2 to 6
interface GigabitEthernet0/0/1
 port hybrid tagged vlan 2
 port hybrid untagged vlan 3 to 6

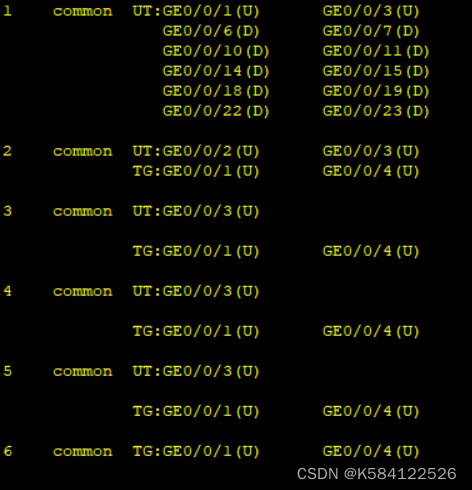

SW2

interface GigabitEthernet0/0/1
 port link-type trunk
 port trunk allow-pass vlan 2 to 6
interface GigabitEthernet0/0/2
 port link-type access
 port default vlan 2
interface GigabitEthernet0/0/3
 port hybrid pvid vlan 4
 port hybrid untagged vlan 2 to 5

interface GigabitEthernet0/0/4
 port link-type trunk
 port trunk allow-pass vlan 2 to 6

SW3

interface GigabitEthernet0/0/1
 port link-type trunk
 port trunk allow-pass vlan 2 to 6
interface GigabitEthernet0/0/2
 port hybrid pvid vlan 5
 port hybrid untagged vlan 2 to 5
interface GigabitEthernet0/0/3
 port hybrid pvid vlan 6
 port hybrid untagged vlan 2 to 3 6


 R1

interface GigabitEthernet0/0/0.1
 dot1q termination vid 2
 ip address 192.168.1.1 255.255.255.0
 arp broadcast enable

第二步、创建池塘

aa

 ip pool aa
 gateway-list 192.168.1.1
 network 192.168.1.0 mask 255.255.255.0

bb

ip pool bb
 gateway-list 192.168.2.1
 network 192.168.2.0 mask 255.255.255.0

开启

dhcp select globa

第三步、验证

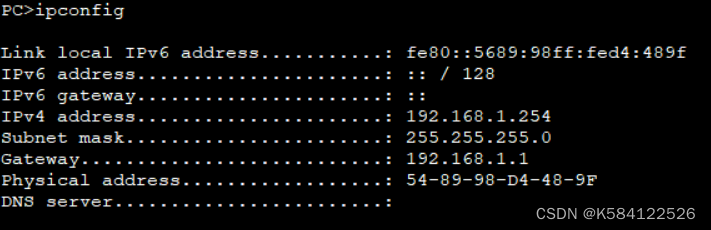

PC1（192.168.1.0 网段获取的地址）

 PC4（192.168.2.0 网段获取的地址）

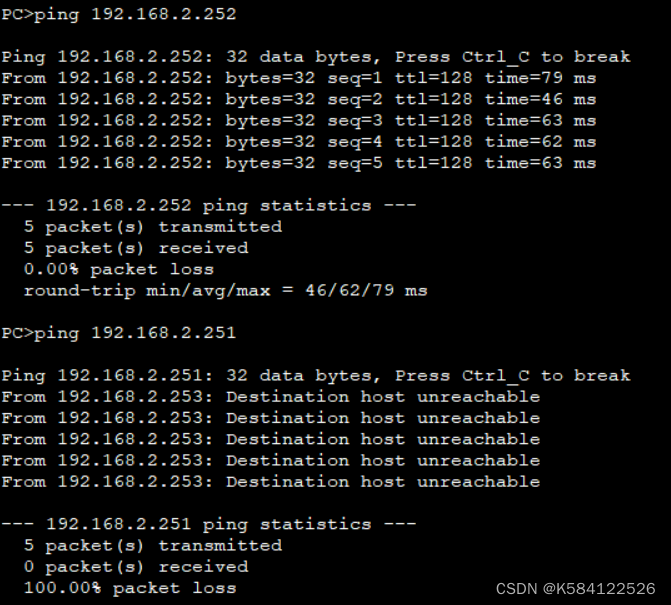

PC4可以访问PC5，不能访问PC6

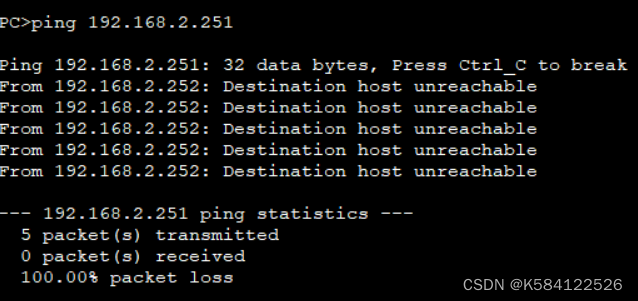

PC5不能访问PC6
