Springboot整合Activiti7遇到的各种问题（排坑指南）

废话不多说，遇到下面的错误可以尝试改一下，说不定就可以跑起来了，

首先附上可以运行的pom依赖

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <groupId>com.xiaohua</groupId>
    <artifactId>activiti7_springboot</artifactId>
    <version>1.0-SNAPSHOT</version>

    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>2.7.1</version>
        <relativePath/>
    </parent>

    <properties>
        <maven.compiler.source>11</maven.compiler.source>
        <maven.compiler.target>11</maven.compiler.target>
    </properties>


    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-jdbc</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-security</artifactId>
        </dependency>

        <dependency>
            <groupId>org.activiti</groupId>
            <artifactId>activiti-spring-boot-starter</artifactId>
            <version>7.4.0</version>
        </dependency>

        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
            <version>8.0.30</version>
        </dependency>
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-data-jpa</artifactId>
            <version>RELEASE</version>
            <scope>compile</scope>
        </dependency>
    </dependencies>

    <repositories>
        <repository>
            <id>activiti-releases</id>
            <url>https://artifacts.alfresco.com/nexus/content/repositories/activiti-releases</url>
        </repository>
    </repositories>

</project>

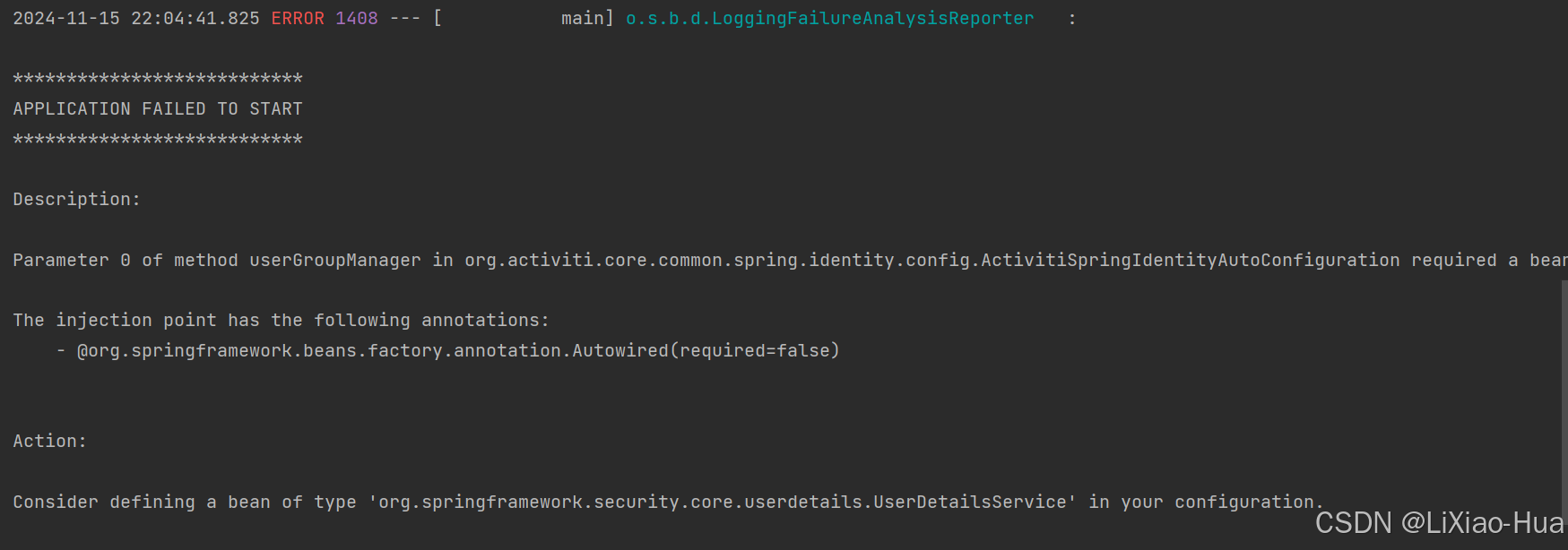

问题一：缺少SpringSecurity

报错信息：Consider defining a bean of type 'org.springframework.security.core.userdetails.UserDetailsService' in your configuration.

问题一解决方案

增加SpringSecurity依赖

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-security</artifactId>
        </dependency>

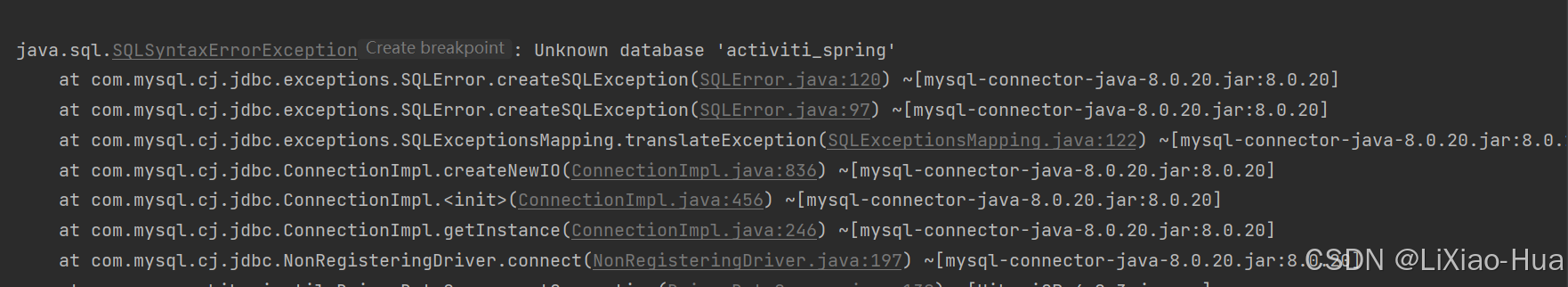

问题二：数据库填写错误

报错信息：Unknown database 'activiti_spring'

问题二解决方案

核实正确的连接地址

url: jdbc:mysql://localhost:3306/activiti_sb?useUnicode=true&characterEncoding=utf8&serverTimezone=GMT

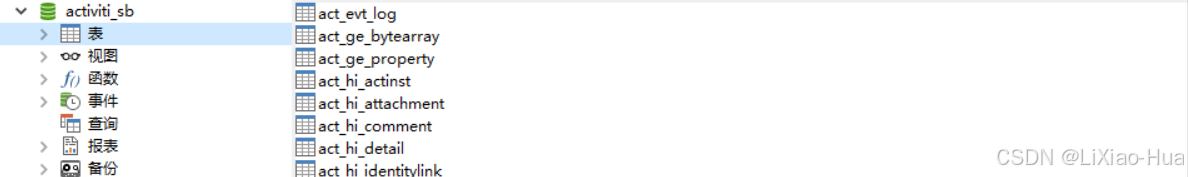

问题三：无法创建25张表

### Error querying database. Cause: java.sql.SQLSyntaxErrorException: Table 'activiti_sb.act_ge_property' doesn't exist ### The error may exist in org/activiti/db/mapping/entity/Property.xml ### The error may involve org.activiti.engine.impl.persistence.entity.PropertyEntityImpl.selectProperty-Inline

问题三解决方案

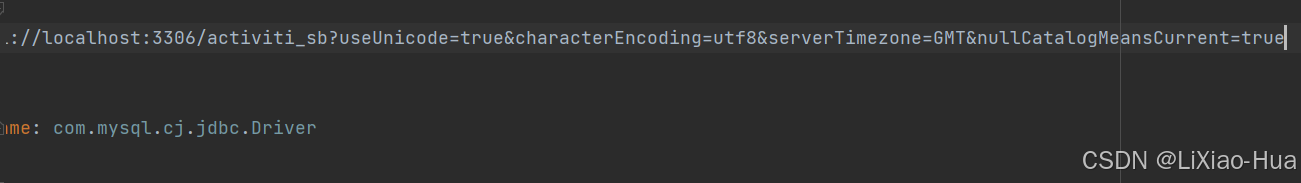

以上都无误之后，在配置文件中的 database url中加入&nullCatalogMeansCurrent=true

spring:
  datasource:
    url: jdbc:mysql://localhost:3306/activiti_sb?useUnicode=true&characterEncoding=utf8&serverTimezone=GMT&nullCatalogMeansCurrent=true
    username: root
    password: root
    driver-class-name: com.mysql.cj.jdbc.Driver

目前先总结这么多问题

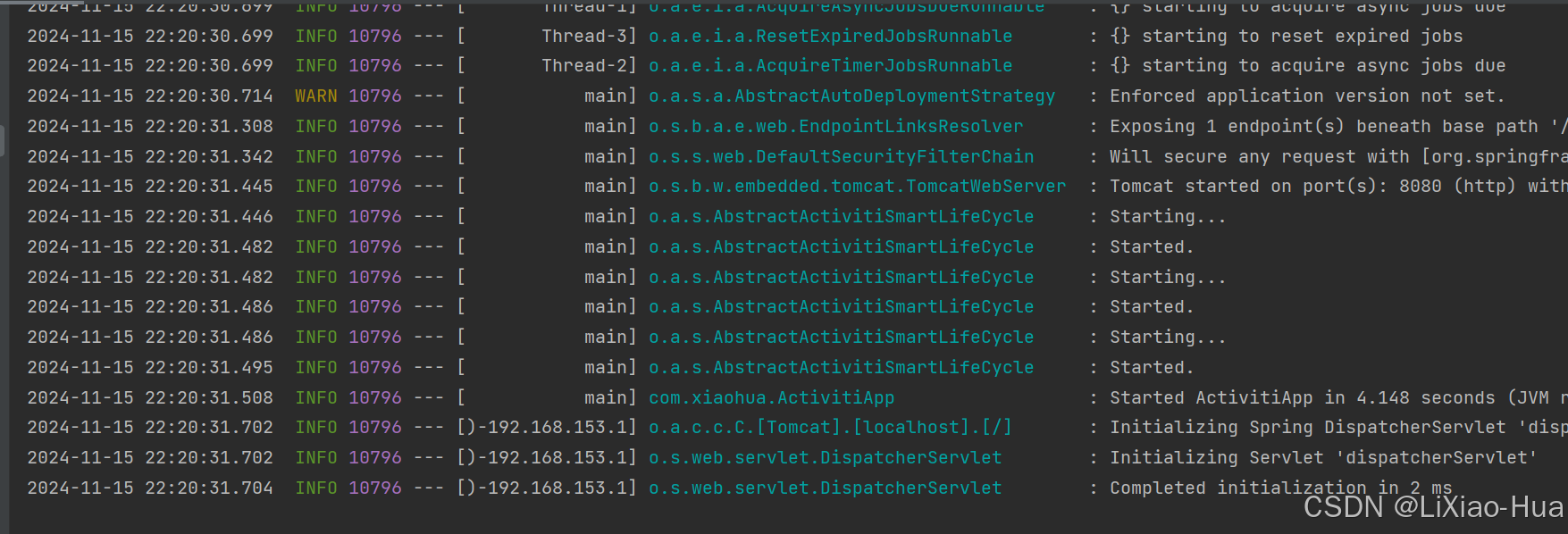

启动一下

启动成功！
