python+opencv图像处理——图像梯度——scharr算子

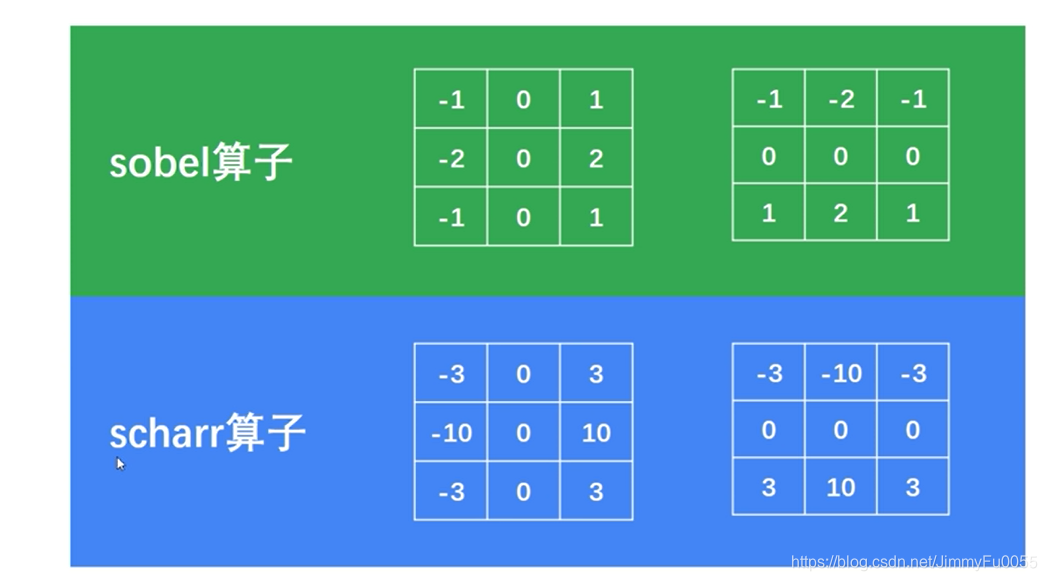

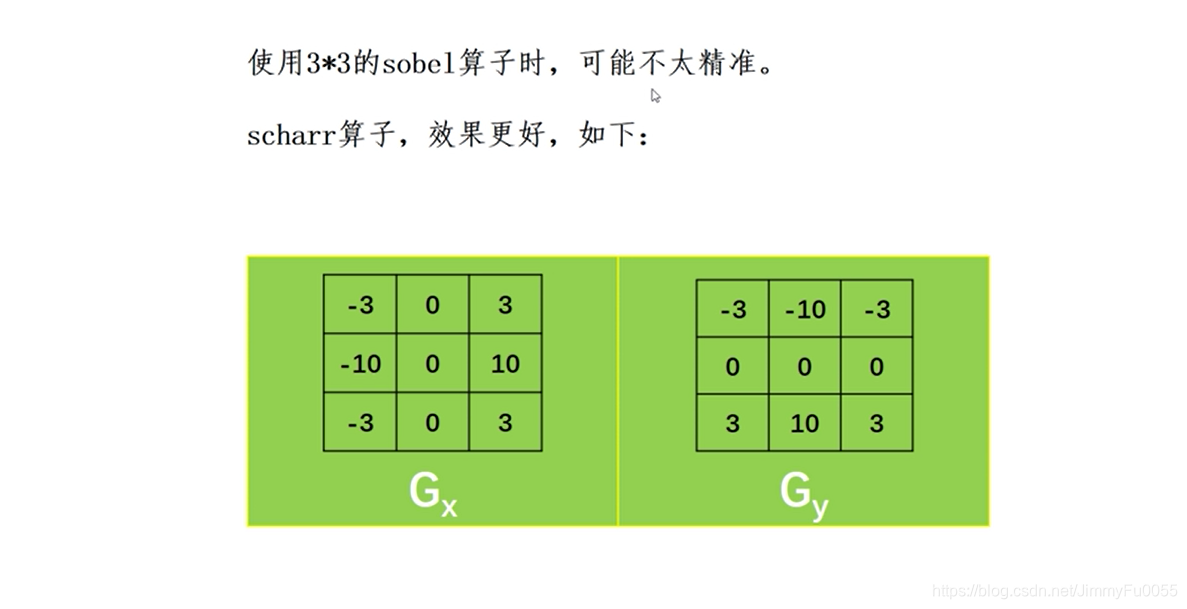

sobel算子不怎么用，一般scharr算子运用的比较多

import cv2
import sys
import numpy as np

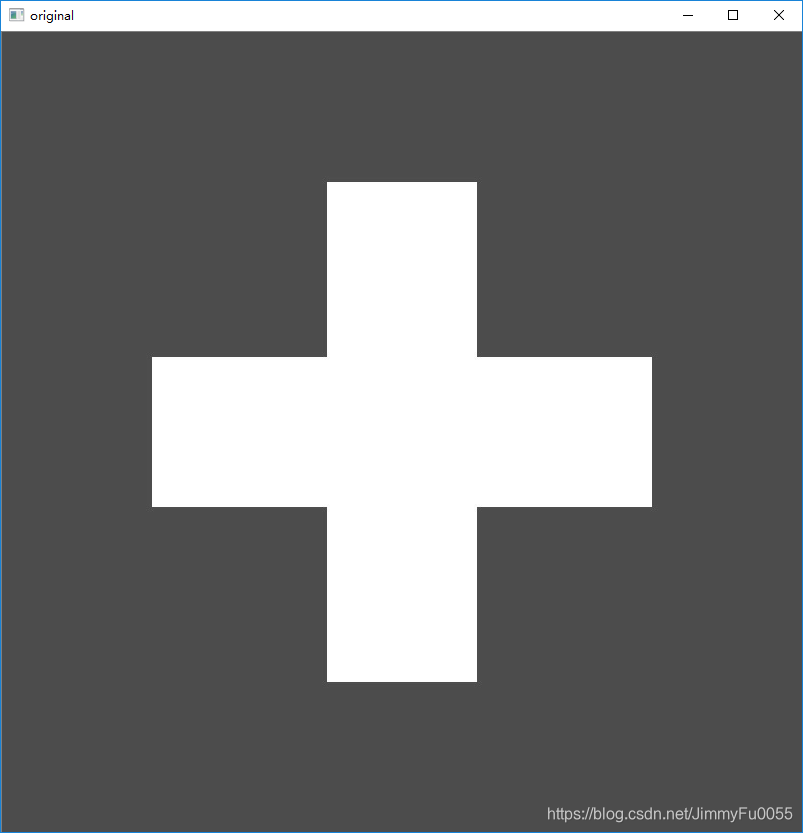

o=cv2.imread("C:\\Users\\fujingming\\Pictures\\rs.jpg",cv2.IMREAD_GRAYSCALE)

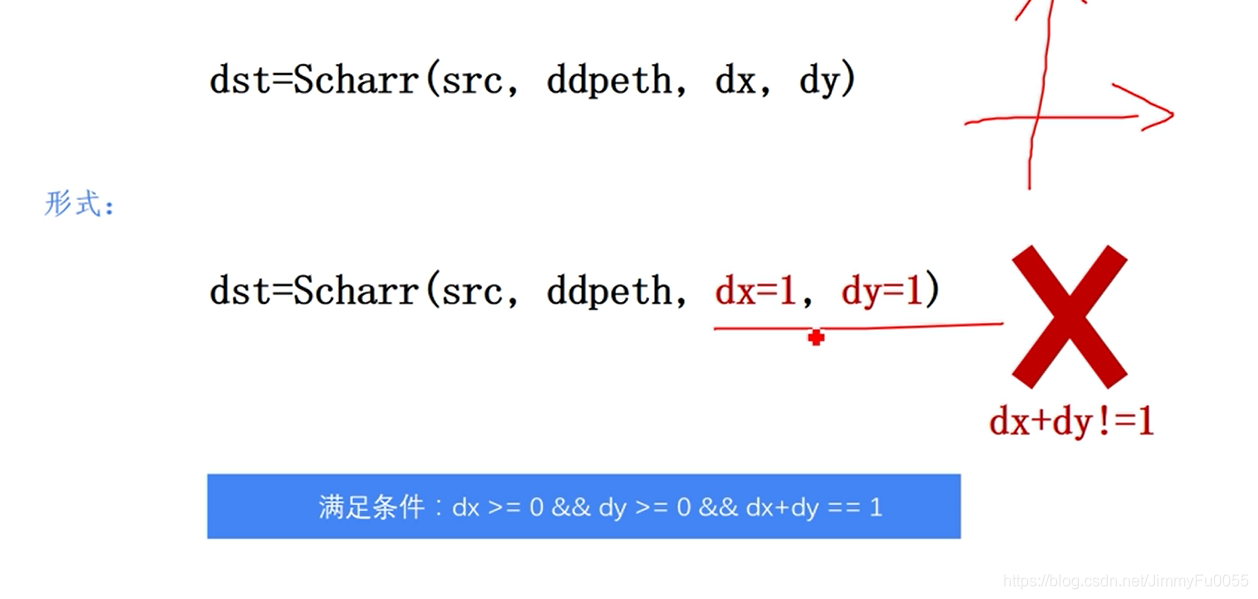

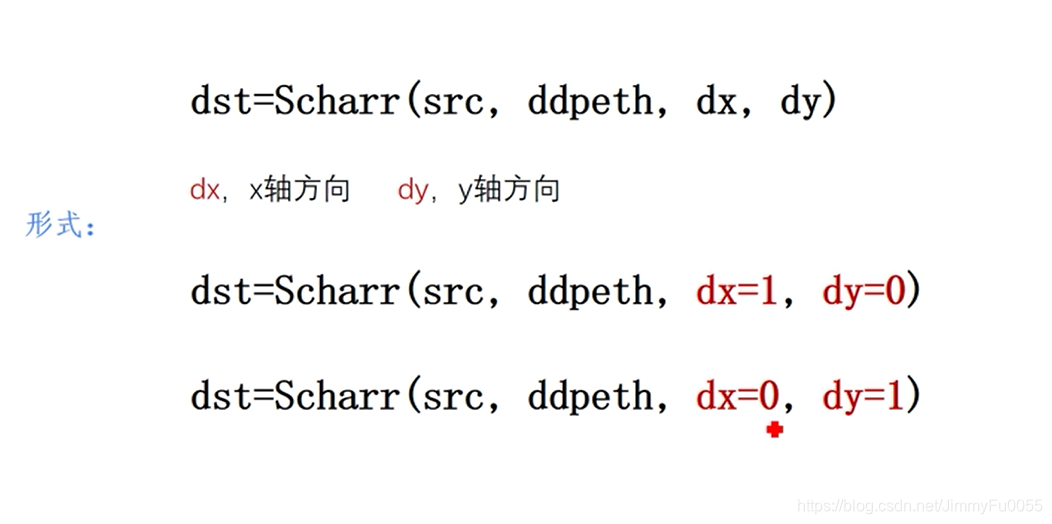

scharrx=cv2.Scharr(o,cv2.CV_64F,1,0)
scharry=cv2.Scharr(o,cv2.CV_64F,0,1)
scharrx=cv2.convertScaleAbs(scharrx)
scharry=cv2.convertScaleAbs(scharry)

scharrxy=cv2.addWeighted(scharrx,0.5,scharry,0.5,0)

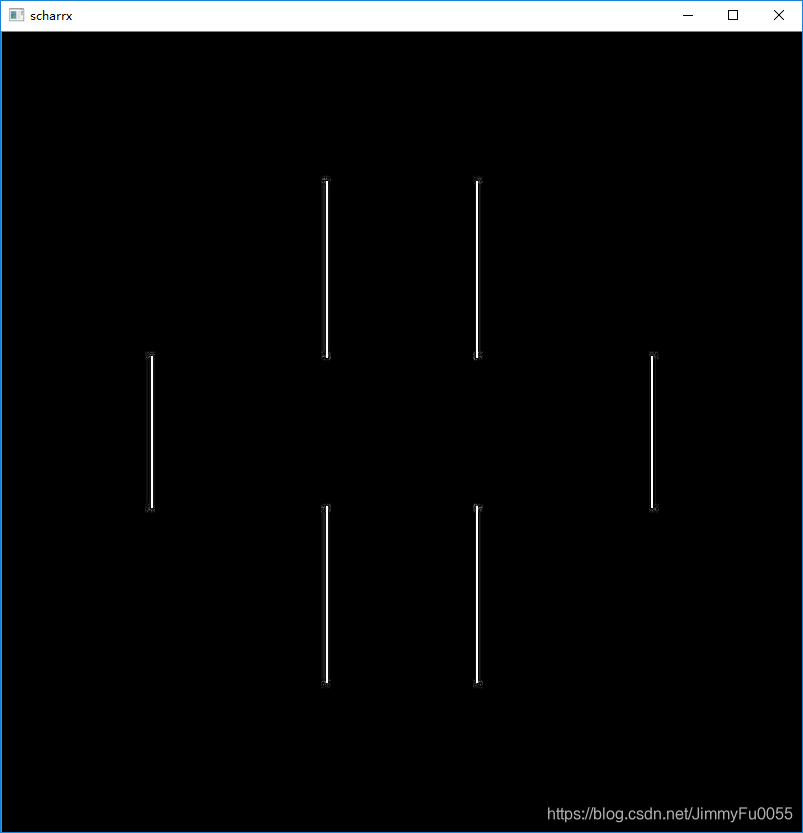

cv2.imshow("scharrx",scharrx)

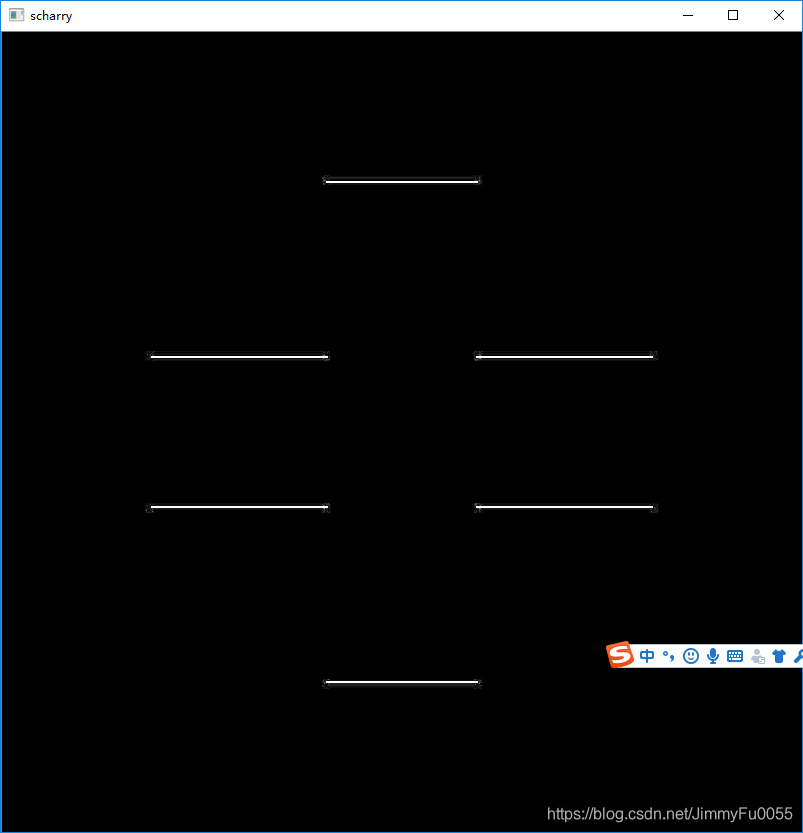

cv2.imshow("scharry",scharry)

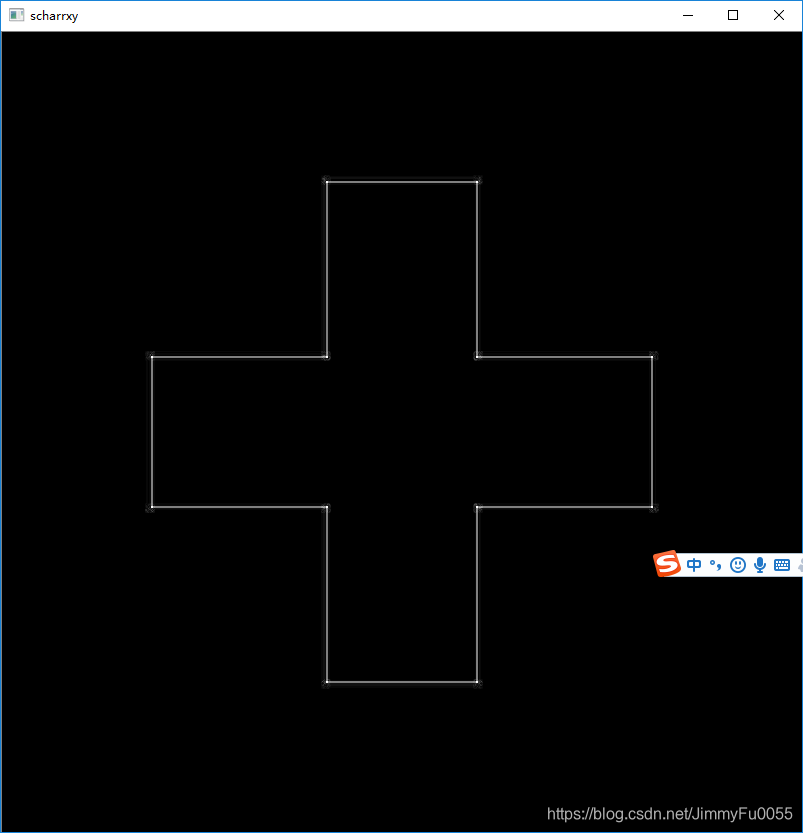

cv2.imshow("scharrxy",scharrxy)
