日志审计

安恒日志审计为例

很多单位都需日志审计功能，因此Linux系统要配置syslg功能，Windows要配置agent，实现对操作系统的日志审计。

Linux配置syslog进行日志审计
配置路径：/etc/rsyslog.conf
在配置文件最后一行增加一条命令：* . *@IP地址：514
配置完成后需要重启rsyslog服务们就可以在日志审计页面查看到对应的系统。

[root@localhost ~]# vim /etc/rsyslog.conf

  1 # rsyslog configuration file
  2
  3 # For more information see /usr/share/doc/rsyslog-*/rsyslog_conf.html
  4 # If you experience problems, see http://www.rsyslog.com/doc/troubleshoot.html
  5
  6 #### MODULES ####
  7
  8 # The imjournal module bellow is now used as a message source instead of imuxsock.
  9 $ModLoad imuxsock # provides support for local system logging (e.g. via logger command)
 10 $ModLoad imjournal # provides access to the systemd journal
 11 #$ModLoad imklog # reads kernel messages (the same are read from journald)
 12 #$ModLoad immark  # provides --MARK-- message capability
 13
 14 # Provides UDP syslog reception
 15 #$ModLoad imudp
 16 #$UDPServerRun 514
 17
 18 # Provides TCP syslog reception
 19 #$ModLoad imtcp
 20 #$InputTCPServerRun 514
 21
 22
 23 #### GLOBAL DIRECTIVES ####
 24
 25 # Where to place auxiliary files
 26 $WorkDirectory /var/lib/rsyslog
 27
 28 # Use default timestamp format
 29 $ActionFileDefaultTemplate RSYSLOG_TraditionalFileFormat
 30
 31 # File syncing capability is disabled by default. This feature is usually not required,
 32 # not useful and an extreme performance hit
 33 #$ActionFileEnableSync on
 34
 35 # Include all config files in /etc/rsyslog.d/
 36 $IncludeConfig /etc/rsyslog.d/*.conf
 37
 38 # Turn off message reception via local log socket;
 39 # local messages are retrieved through imjournal now.
 40 $OmitLocalLogging on
 41
 42 # File to store the position in the journal
 43 $IMJournalStateFile imjournal.state
 44
 45
 46 #### RULES ####
 47
 48 # Log all kernel messages to the console.
 49 # Logging much else clutters up the screen.
 50 #kern.*                                                 /dev/console
 51
 52 # Log anything (except mail) of level info or higher.
 53 # Don't log private authentication messages!
 54 *.info;mail.none;authpriv.none;cron.none                /var/log/messages
 55
 56 # The authpriv file has restricted access.
 57 authpriv.*                                              /var/log/secure
 58
 59 # Log all the mail messages in one place.
 60 mail.*                                                  -/var/log/maillog
 61
 62
 63 # Log cron stuff
 64 cron.*                                                  /var/log/cron
 65
 66 # Everybody gets emergency messages
 67 *.emerg                                                 :omusrmsg:*
 68
 69 # Save news errors of level crit and higher in a special file.
 70 uucp,news.crit                                          /var/log/spooler
 71
 72 # Save boot messages also to boot.log
 73 local7.*                                                /var/log/boot.log
 74
 75
 76 # ### begin forwarding rule ###
 77 # The statement between the begin ... end define a SINGLE forwarding
 78 # rule. They belong together, do NOT split them. If you create multiple
 79 # forwarding rules, duplicate the whole block!
 80 # Remote Logging (we use TCP for reliable delivery)
 81 #
 82 # An on-disk queue is created for this action. If the remote host is
 83 # down, messages are spooled to disk and sent when it is up again.
 84 #$ActionQueueFileName fwdRule1 # unique name prefix for spool files
 85 #$ActionQueueMaxDiskSpace 1g   # 1gb space limit (use as much as possible)
 86 #$ActionQueueSaveOnShutdown on # save messages to disk on shutdown
 87 #$ActionQueueType LinkedList   # run asynchronously
 88 #$ActionResumeRetryCount -1    # infinite retries if host is down
 89 # remote host is: name/ip:port, e.g. 192.168.0.1:514, port optional
 90 #*.* @@remote-host:514
 91 # ### end of the forwarding rule ###
 92 *.*@IP：514  #这里IP填写你日志审计的地址

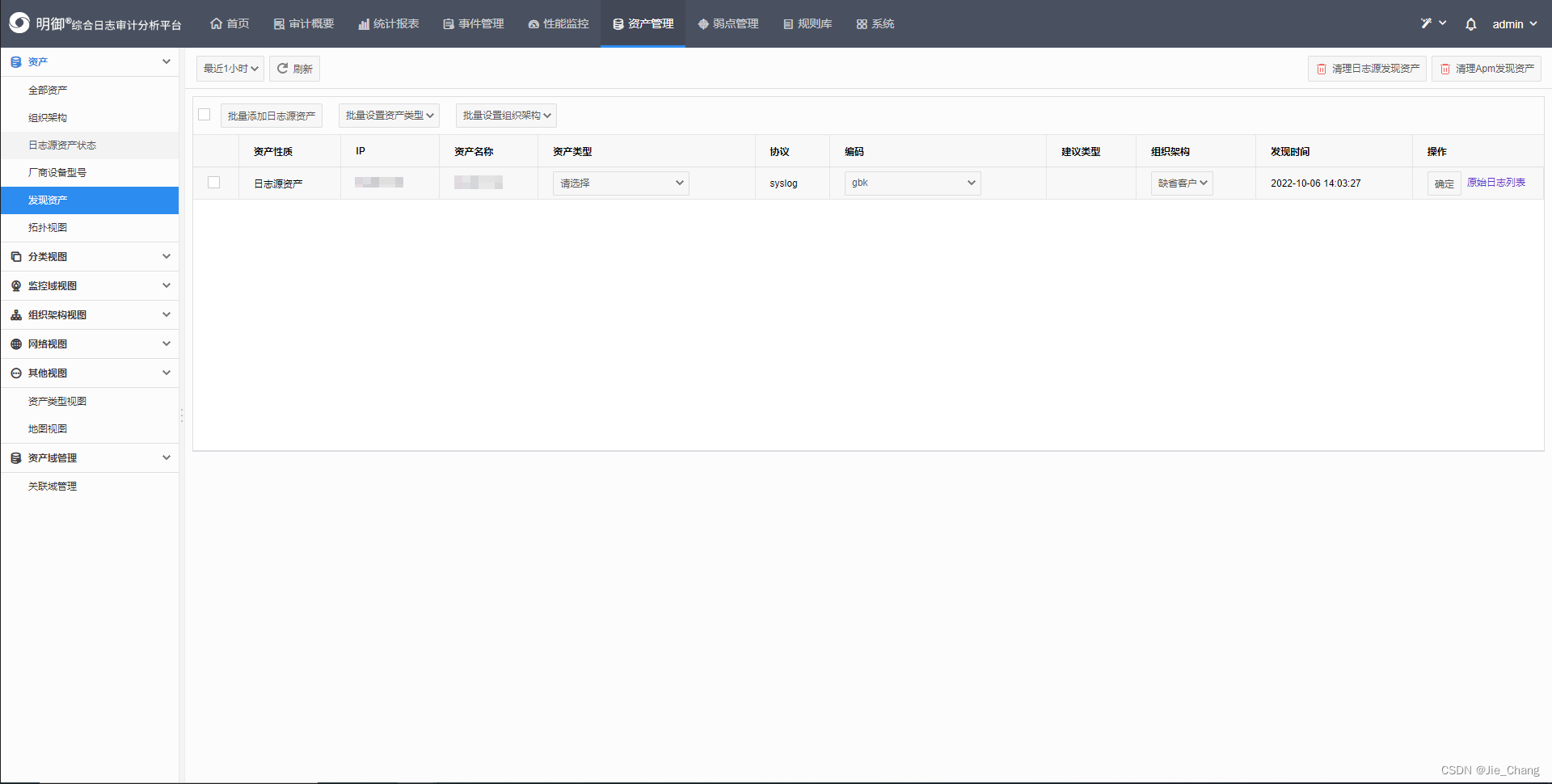

在这里插入图片描述

Windows需要安装agent
安装包解压后有两个文件分别nxlog.conf和nxlog-ce-2.10.2150.msi。
执行*.msi后按照默认安装，安装完成后需要。
替换文件路径是C:\Program Files (x86)\nxlog\conf 。
修改刚刚替换的conf文件。在 < Output out > 中的内容更改为日志审计服务器地址
修改完成后要nxlog-ce程序服务重启在控制面板-＞管理工具–＞服务中，找到nxlog服
务，点击右键启动nxlog服务注意：若修改过nxlog.conf，需要在重启nxlog服务使配置生效

## This is a sample configuration file. See the nxlog reference manual about the
## configuration options. It should be installed locally and is also available
## online at http://nxlog.org/docs/

## Please set the ROOT to the folder your nxlog was installed into,
## otherwise it will not start.

#define ROOT C:\Program Files\nxlog
define ROOT C:\Program Files (x86)\nxlog

Moduledir %ROOT%\modules
CacheDir %ROOT%\data
Pidfile %ROOT%\data\nxlog.pid
SpoolDir %ROOT%\data
LogFile %ROOT%\data\nxlog.log

<Extension syslog>
    Module      xm_syslog
</Extension>
<Extension json>
	Module xm_json
</Extension>

#define LOGFILE C:\Program Files (x86)\nxlog\data\nxlog.log
#<Extension fileop>
#Module xm_fileop
## Check the size of our log file every hour and rotate if it is larger than 1Mb
#<Schedule>
#Every 1 hour
#Exec if (file_size('%LOGFILE%') >= 1M) file_cycle('%LOGFILE%', 2);
#</Schedule>
## Rotate our log file every week on sunday at midnight
#<Schedule>
#When @weekly
#Exec file_cycle('%LOGFILE%', 2);
#</Schedule>
#</Extension>

<Input eventlog>
    Module      im_msvistalog
	ReadFromLast TRUE
	<QueryXML>
		<QueryList>
			<Query Id="0">
				<Select Path="System">*</Select>
			</Query>
			<Query Id="1">
				<Select Path="Security">*</Select>
			</Query>
			<Query Id="2">
				<Select Path="Application">*</Select>
			</Query>
		</QueryList>
	</QueryXML>
	<Exec>
		$raw_event = "0|EventlogType=" +$Channel    +
					  "|DetectTime="   +$EventTime  +
					  "|EventSource="  +$SourceName +
					  "|EventID="      +$EventID    +
					  "|EventType="    +$EventType  +
					  "|EventCategory="+$Task       +
					  "|User="         +$AccountName+
					  "|ComputerName=" +$Hostname   +
					  "|Description="  +$Message;
	</Exec>
#	Exec	log_info("raw event is: " + $raw_event);
</Input>

<Input in2>
Module im_file
File 'C:\Program Files (x86)\Tencent\RTXServer\Logs\Security\*'
SavePos TRUE
ReadFromLast TRUE
#Exec $raw_event = 'DbAppSOCAgent get log from "abc" ' + $raw_event;
#Exec log_info("raw event 2 is: " + $raw_event);
</Input>

#<Input in3>
#Module im_file
#File 'C:\Program Files\Microsoft SQL Server\110\Setup Bootstrap\Log\20151217_130836\\*.log'
#SavePos TRUE
#ReadFromLast TRUE
#Exec $raw_event = 'DbAppSOCAgent get log from "sqlserver" ' + $raw_event;
#Exec log_info("raw event 3 is: " + $raw_event);
#</Input>


<Output out>
    Module      om_udp
    Host        172.16.100.20 #这里填写日志审计的地址
    Port        514
</Output>

<Route udp1>
#    Path	eventlog,in2,in3 => out
	Path	eventlog,in2 => out
</Route>
