ZeroMQ从入门到掌握

一、ZeroMQ简述

ZeroMQ是一种基于消息队列的多线程网络库，其对套接字类型、连接处理、帧、甚至路由的底层细节进行抽象，提供跨越多种传输协议的套接字。常用的通讯模式有三类：

请求回应模型

由请求端发起请求，并等待回应端回应请求。从请求端来看一定是一对对收发配对的；反之，在回应端一定是发收对。请求端和回应端都可以是 1:N 的模型。通常把 1 认为是 server ，N 认为是 Client 。ZeroMQ 可以很好的支持路由功能（实现路由功能的组件叫作 Device），把 1:N 扩展为 N:M （只需要加入若干路由节点）。从这个模型看，更底层的端点地址是对上层隐藏的。每个请求都隐含有回应地址，而应用则不关心它。

发布订阅模型

这个模型里，发布端是单向只发送数据的，且不关心是否把全部的信息都发送给订阅端。如果发布端开始发布信息的时候，订阅端尚未连接上来，这些信息直接丢弃。不过一旦订阅端连接上来，中间会保证没有信息丢失。同样，订阅端则只负责接收，而不能反馈。如果发布端和订阅端需要交互（比如要确认订阅者是否已经连接上），则使用额外的 socket 采用请求回应模型满足这个需求。

管道模型

这个模型里，管道是单向的，从 PUSH 端单向的向 PULL 端单向的推送数据流。

二、流程步骤

1、请求回应模型

服务端实现：

（1）zmq_ctx_new()

//返回ctx_t对象
void *zmq_ctx_new (void)
{
    //  We do this before the ctx constructor since its embedded mailbox_t
    //  object needs the network to be up and running (at least on Windows).
    if (!zmq::initialize_network ()) {
        return NULL;
    }


    //  Create 0MQ context.
    zmq::ctx_t *ctx = new (std::nothrow) zmq::ctx_t;
    if (ctx) {
        if (!ctx->valid ()) {
            delete ctx;
            return NULL;
        }
    }
    return ctx;
}

函数返回context（上下文），其实调用的是ctx_t对象（实例化），

zmq::ctx_t::ctx_t () :
    _tag (ZMQ_CTX_TAG_VALUE_GOOD),
    _starting (true),
    _terminating (false),
    _reaper (NULL),
    _max_sockets (clipped_maxsocket (ZMQ_MAX_SOCKETS_DFLT)),
    _max_msgsz (INT_MAX),
    _io_thread_count (ZMQ_IO_THREADS_DFLT),
    _blocky (true),
    _ipv6 (false),
    _zero_copy (true)
{
#ifdef HAVE_FORK
    _pid = getpid ();
#endif
#ifdef ZMQ_HAVE_VMCI
    _vmci_fd = -1;
    _vmci_family = -1;
#endif
    //  Initialise crypto library, if needed.
    zmq::random_open ();

#ifdef ZMQ_USE_NSS
    NSS_NoDB_Init (NULL);
#endif

#ifdef ZMQ_USE_GNUTLS
    gnutls_global_init ();
#endif
}

主要就是设置初始化的参数；如;_max_sockets = 1024;_io_thread_count = 1;当然还有一些状态设置等等；

（2）zmq_socket()

void *zmq_socket (void *ctx_, int type_)
{
//对象为NULL，则返回
    if (!ctx_ || !(static_cast<zmq::ctx_t *> (ctx_))->check_tag ()) {
        errno = EFAULT;
        return NULL;
    }
//强转
    zmq::ctx_t *ctx = static_cast<zmq::ctx_t *> (ctx_);
    zmq::socket_base_t *s = ctx->create_socket (type_);
    return (void *) s;
}

参数：

void *ctx_；zmq_ctx_new返回的上下文参数；

int type_:Socket types.

Socket types：

ZMQ_PAIR 0

ZMQ_PUB 1

ZMQ_SUB 2

ZMQ_REQ 3

ZMQ_REP 4

ZMQ_DEALER 5

ZMQ_ROUTER 6

ZMQ_PULL 7

ZMQ_PUSH 8

ZMQ_XPUB 9

ZMQ_XSUB 10

ZMQ_STREAM 11

 返回值：创建生成的socket，调用create_socket()。

zmq::socket_base_t *zmq::ctx_t::create_socket (int type_)
{
    scoped_lock_t locker (_slot_sync);
//初始化邮箱数组,增加两个插槽(slots),
//zmq_ctx_term thread 和 reaper thread
    if (unlikely (_starting)) {
        if (!start ())
            return NULL;
    }


    //  Once zmq_ctx_term() was called, we can't create new sockets.
    if (_terminating) {
        errno = ETERM;
        return NULL;
    }


    //  If max_sockets limit was reached, return error.
    if (_empty_slots.empty ()) {
        errno = EMFILE;
        return NULL;
    }


    //  Choose a slot for the socket.
    uint32_t slot = _empty_slots.back ();
    _empty_slots.pop_back ();


    //  Generate new unique socket ID.
//生成新的唯一的套接字ID。
    int sid = (static_cast<int> (max_socket_id.add (1))) + 1;


    //  Create the socket and register its mailbox.
//创建socket并且注册邮箱
    socket_base_t *s = socket_base_t::create (type_, this, slot, sid);
    if (!s) {
        _empty_slots.push_back (slot);
        return NULL;
    }
    _sockets.push_back (s);
    _slots[slot] = s->get_mailbox ();


    return s;
}

调用start ()函数：

bool zmq::ctx_t::start ()
{
    //  Initialise the array of mailboxes. Additional two slots are for
    //  zmq_ctx_term thread and reaper thread.
    _opt_sync.lock ();
    const int term_and_reaper_threads_count = 2;
    const int mazmq = _max_sockets; //1023
    const int ios = _io_thread_count;//1
    _opt_sync.unlock ();
    int slot_count = mazmq + ios + term_and_reaper_threads_count;//1026
    try {
//增加容量,不创建对象
        _slots.reserve (slot_count);
        _empty_slots.reserve (slot_count - term_and_reaper_threads_count);
    }
    catch (const std::bad_alloc &) {
        errno = ENOMEM;
        return false;
    }
//改变了容器的大小，且创建了容器中的对象
    _slots.resize (term_and_reaper_threads_count);


    //  Initialise the infrastructure for zmq_ctx_term thread.
    _slots[term_tid] = &_term_mailbox;


//创建线程
    _reaper = new (std::nothrow) reaper_t (this, reaper_tid);
    if (!_reaper) {
        errno = ENOMEM;
        goto fail_cleanup_slots;
    }
    if (!_reaper->get_mailbox ()->valid ())
        goto fail_cleanup_reaper;
    _slots[reaper_tid] = _reaper->get_mailbox ();
    _reaper->start ();


    //  Create I/O thread objects and launch them.
    _slots.resize (slot_count, NULL);
//创建IO线程并启动
    for (int i = term_and_reaper_threads_count;
         i != ios + term_and_reaper_threads_count; i++) {
        io_thread_t *io_thread = new (std::nothrow) io_thread_t (this, i);
        if (!io_thread) {
            errno = ENOMEM;
            goto fail_cleanup_reaper;
        }
        if (!io_thread->get_mailbox ()->valid ()) {
            delete io_thread;
            goto fail_cleanup_reaper;
        }
        _io_threads.push_back (io_thread);
        _slots[i] = io_thread->get_mailbox ();
        io_thread->start ();
    }


    //  In the unused part of the slot array, create a list of empty slots.
    for (int32_t i = static_cast<int32_t> (_slots.size ()) - 1;
         i >= static_cast<int32_t> (ios) + term_and_reaper_threads_count; i--) {
        _empty_slots.push_back (i);
    }


    _starting = false;
    return true;


fail_cleanup_reaper:
    _reaper->stop ();
    delete _reaper;
    _reaper = NULL;


fail_cleanup_slots:
    _slots.clear ();
    return false;
}

（3）zmq_bind()

（4）zmq_recv()

（5）zmq_send()

#include <unistd.h>
#include <stdio.h>
#include <string.h>
#include <assert.h>
#include <zmq.h>

int main(int argc, char* argv[])
{
    void* context=zmq_ctx_new();
    void* socket=zmq_socket(context,ZMQ_REP);
    zmq_bind(socket,"tcp://192.168.207.129:9999");

    while(true)
    {
        char buf[10];
        int bytes=zmq_recv(socket,buf,10,0);
        buf[bytes]='\0';
        printf("[Server] Received Request Message:%d bytes,content:\"%s\"\n",bytes,buf);

        sleep(1);

        const char* replyMsg="World";
        bytes=zmq_send(socket,replyMsg,strlen(replyMsg),0);
        printf("[Server] Sended Reply Message:%d bytes,content:\"%s\"\n",bytes,replyMsg);
    }

    zmq_close(socket);
    zmq_ctx_destroy(context);
    return 0;
}

客户端实现：

（1）zmq_ctx_new()

（2）zmq_socket()

（3）zmq_bind()

（4）zmq_send()

（5）zmq_recv()

#include <unistd.h>
#include <stdio.h>
#include <string.h>
#include <zmq.h>

int main(int argc, char* argv[])
{
    printf("Connect to server...\n");

    void* context=zmq_ctx_new();
    void* socket=zmq_socket(context,ZMQ_REQ);
    zmq_connect(socket,"tcp://192.168.207.129:9999");

    int k=0;
    while(true)
    {
        char buf[10];
        const char* requestMsg="Hello";
        int bytes=zmq_send(socket,requestMsg,strlen(requestMsg),0);
        printf("[Client] [%d] Send request Message: %d bytes,content:\"%s\"\n",k,bytes,requestMsg);

        bytes=zmq_recv(socket,buf,10,0);
        buf[bytes]='\0';
        printf("[Client] [%d] Received Reply Message: %d bytes,content:\"%s\"\n",k,bytes,buf);

        k++;
    }

    zmq_close(socket);
    zmq_ctx_destroy(context);
    return 0;
}

 MakeFile

all:client server

client:client.cpp
	g++ -std=c++11 client.cpp -o client -lzmq -lpthread -g

server:server.cpp
	g++ -std=c++11 server.cpp -o server -lzmq -lpthread -g

clean:
	rm -f server client

make是运行操作，make clean清除server，client

2、订阅-发布模式：

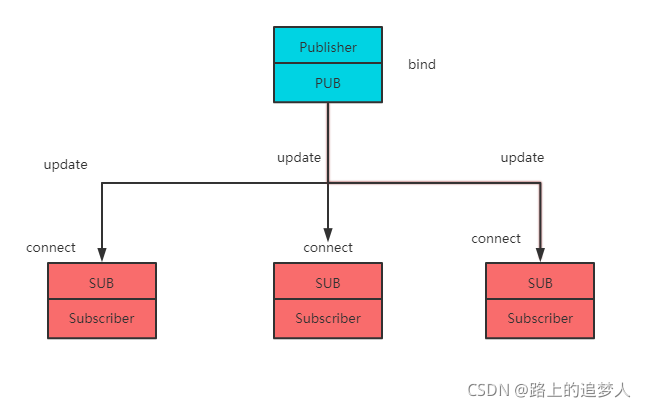

ZeroMQ的订阅发布模式是一种单向的数据发布，当客户端向服务端订阅消息之后，服务端便会将产生的消息源源不断的推送给订阅者。

特点：

• 一个发布者，多个订阅者，即1：n；
• 当发布者数据变化时发布数据，所有订阅者均能够接收到数据并处理。这就是发布/订阅模式。
• 注意：使用SUB设置一个订阅时，必须使用zmq_setsockopt( )对消息进行过滤；

发布者使用PUB套接字将消息发送到队列中，订阅者使用SUB套接字从队列中源源不断的iesho9u消息。新的订阅者可以随时加入，但之前的消息是无法接收到的；已有的订阅者可以随时退出；订阅者还可以添加“过滤器”用来有选择性的接收信息。



#include <unistd.h>
#include <stdio.h>
#include <stdlib.h>
#include <string.h>
#include <assert.h>
#include <zmq.h>

int main(int arg,char* argv[])
{
    void* context=zmq_ctx_new();
    assert(context!=NULL);

    void* socket=zmq_socket(context,ZMQ_PUB);//socket发布者模式
    assert(socket!=NULL);

    int ret=zmq_bind(socket,"tcp://192.168.207.129:9999");
    assert(ret==0);

    int k=0;
    while(true)
    {
        char buf[1024];
        memset(buf,0,sizeof(buf));
        snprintf(buf,sizeof(buf),"server i=%d",k);
        ret=zmq_send(socket,buf,strlen(buf)+1,0);
        k++;
    }

    zmq_close(socket);
    zmq_ctx_destroy(context);

    return 0;
}

#include <unistd.h>
#include <stdio.h>
#include <stdlib.h>
#include <string.h>
#include <assert.h>
#include <zmq.h>
#include <thread>

#define TRUE 1

void Recv(void* arg)
{
    while(TRUE)
    {
        void* socket=arg;
        printf("into while\n");
        char buf[1024];
        memset(buf,0,sizeof(buf));
        int ret=zmq_recv(socket,buf,sizeof(buf)-1,0);
        if(ret>0)
        {
            printf("Recv:%s\n",buf);
        }
    }
}

int main(int argc, char** argv)
{
    printf("Hello,world!\n");

    void* context=zmq_ctx_new();
    assert(context!=NULL);

    void* socket=zmq_socket(context,ZMQ_SUB);//订阅者模式
    assert(socket!=NULL);

    int ret=zmq_connect(socket,"tcp://192.168.207.129:9999");
    assert(ret==0);

    ret=zmq_setsockopt(socket,ZMQ_SUBSCRIBE,"",0);
    assert(ret==0);

    std::thread t1(Recv,socket);
    std::thread t2(Recv,socket);

    t1.join();
    t2.join();

    zmq_close(socket);
    zmq_ctx_destroy(context);

    return 0;
}

makefile：

all:pub sub

CXX=g++
CXXFLAGS=-fPIC  -std=c++11 -o
LDFLAGS=-lzmq -lpthread

pub:pub.cpp
	$(CXX) pub.cpp $(CXXFLAGS) pub $(LDFLAGS)

sub:sub.cpp
	$(CXX) sub.cpp $(CXXFLAGS) sub $(LDFLAGS)

clean:
	rm -f sub pub

3、推拉模式

推拉模式，PUSH发送，send。PULL方接收，recv。PUSH可以和多个PULL建立连接，PUSH发送的数据被顺序发送给PULL方。比如你PUSH和三个PULL建立连接，分别是A,B,C。PUSH发送的第一数据会给A,第二数据会给B，第三个数据给C，第四个数据给A。一直这么循环。

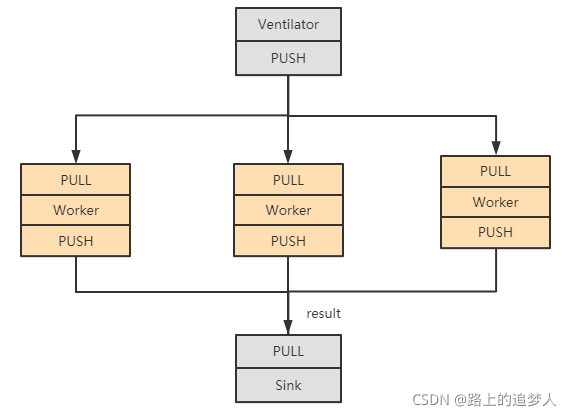

• 最上面是产生任务的 分发者 ventilator
• 中间是执行者 worker
• 下面是收集结果的接收者 sink

 分发者 ventilator

#include <stdio.h>
#include <unistd.h>
#include <string.h>
#include <assert.h>
#include <stdlib.h>
#include <stdio.h>
#include <string.h>
#include <zmq.h>


int main(int argc,char **argv)
{
    void * context=zmq_ctx_new();
    void * sender=zmq_socket(context, ZMQ_PUSH);
    zmq_bind(sender, "tcp://*:6666");
    printf("Press Enter when the workers are ready: ");
    getchar();
    printf("Sending tasks to workers...\n");
    while(true)
    {
        const char * replyMsg="World";
        zmq_send(sender, replyMsg, strlen(replyMsg), 0);
        printf("[Server] Sended Reply Message content == \"%s\"\n", replyMsg);
    }


    zmq_close(sender);
    zmq_ctx_destroy(context);

    return 0;
}

执行者 worker

#include <stdio.h>
#include <unistd.h>
#include <string.h>
#include <assert.h>
#include <zmq.h>

int main(int argc, char **argv)
{
    void * context=zmq_ctx_new();
    void * recviver=zmq_socket(context, ZMQ_PULL);
    zmq_connect(recviver, "tcp://localhost:6666");
    void * sender=zmq_socket(context, ZMQ_PUSH);
    zmq_connect(sender, "tcp://localhost:5555");


    while(1)
    {
        char buffer [256];
        int size=zmq_recv (recviver, buffer, 255, 0);
        if(size < 0)
        {
            break;
        }
        printf("buffer:%s\n",buffer);
        const char * replyMsg="World";
        zmq_send(sender, replyMsg, strlen(replyMsg), 0);
        printf("[Server] Sended Reply Message content=\"%s\"\n", replyMsg);
    }

    zmq_close(recviver);
    zmq_close(sender);
    zmq_ctx_destroy(context);

    return 0;
}

接收者 sink

#include <zmq.h>
#include <stdio.h>
#include <unistd.h>
#include <string.h>
#include <assert.h>


int main(int argc, char **argv)
{
    void * context=zmq_ctx_new();
    void * socket=zmq_socket(context,ZMQ_PULL);
    zmq_bind(socket, "tcp://*:5555");


    while(true)
    {
       char buffer [256];
       int size=zmq_recv(socket,buffer,255,0);
       if(size<0)
       {
           break;
       }
        printf("buffer:%s\n",buffer);
    }


    zmq_close(socket);
    zmq_ctx_destroy(context);

    return 0;
}
