使用idea搭建一个ssm框架（spring、springmvc、mybatis）

前言
创建项目
配置项目
- 工具类说明
编写测试项目代码

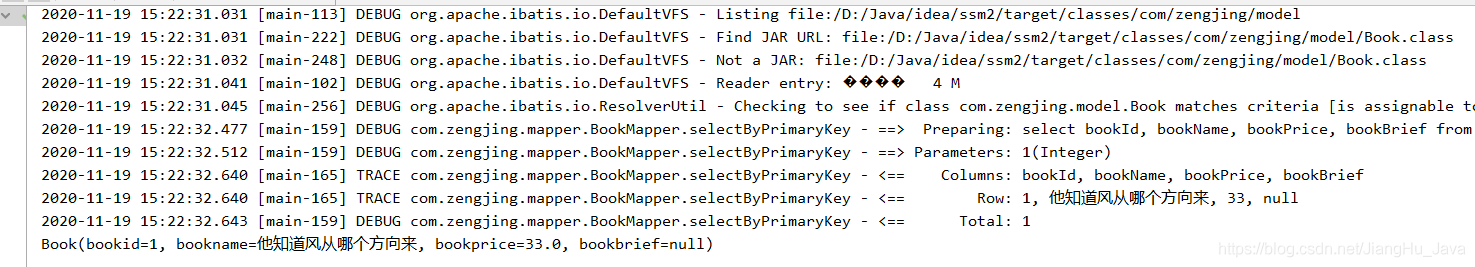

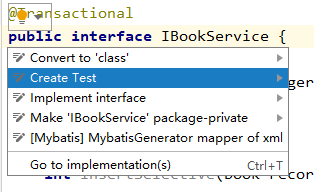

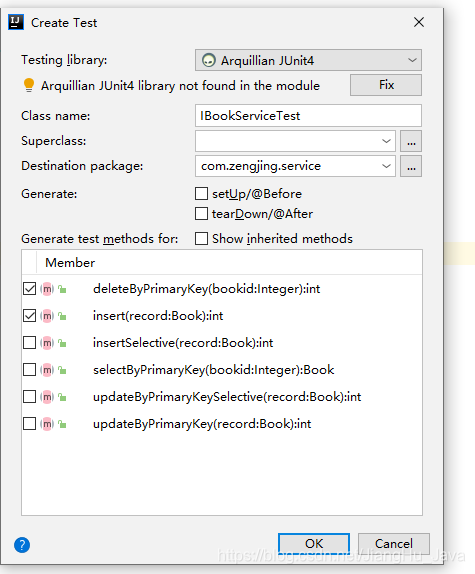

创建测试类进行测试
控制器层

前言

此篇博客用于记录博主自己搭建一个ssm框架的所有过程，由于配置文件都放置其中，博客较长，配置文件比较少做修改，可以略过，修改了的都做了说明。

创建项目

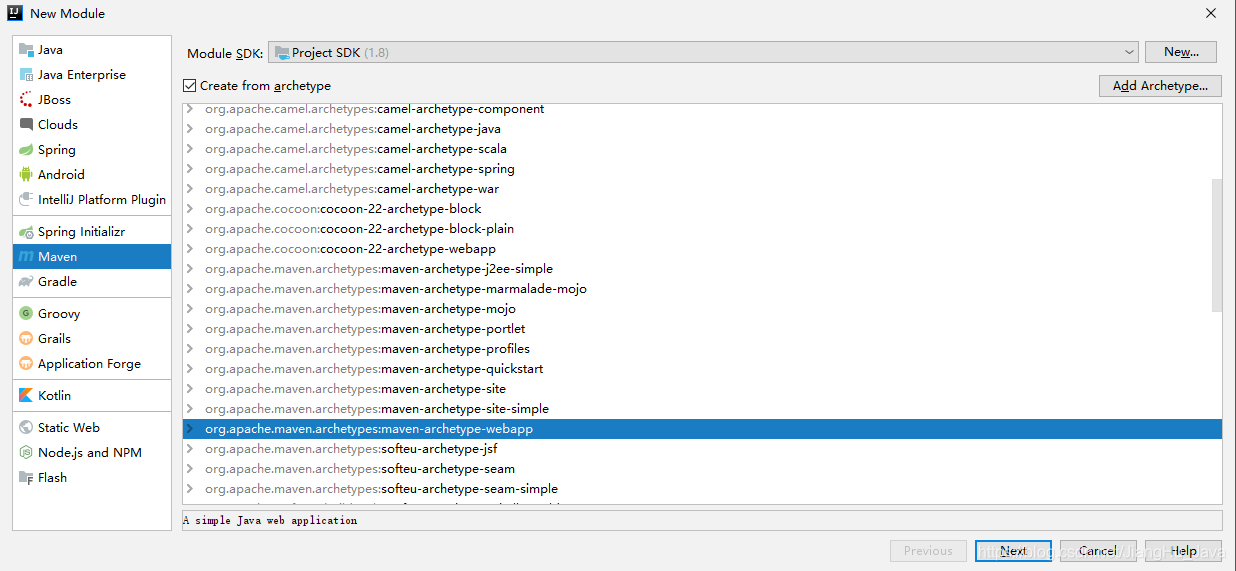

Maven=》选中Create from archetype=》选中在这里插入图片描述

在这里插入图片描述

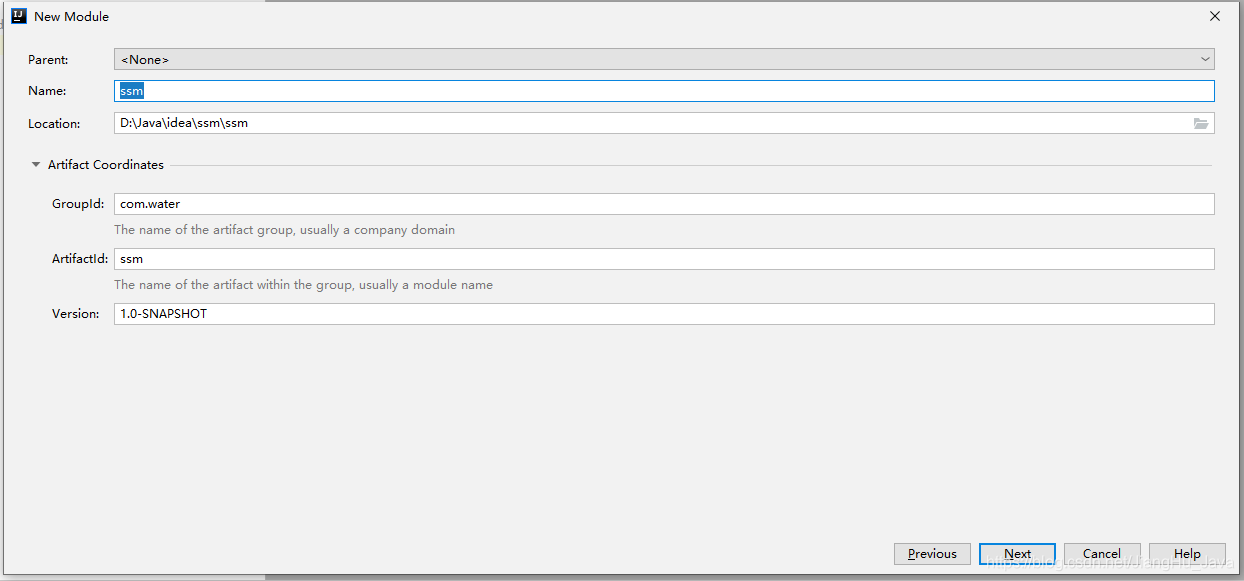

第一个不用选，第二个项目名，第三个是项目路径，第四个域名反写，第五个和项目名一致，第六个版本号

在这里插入图片描述

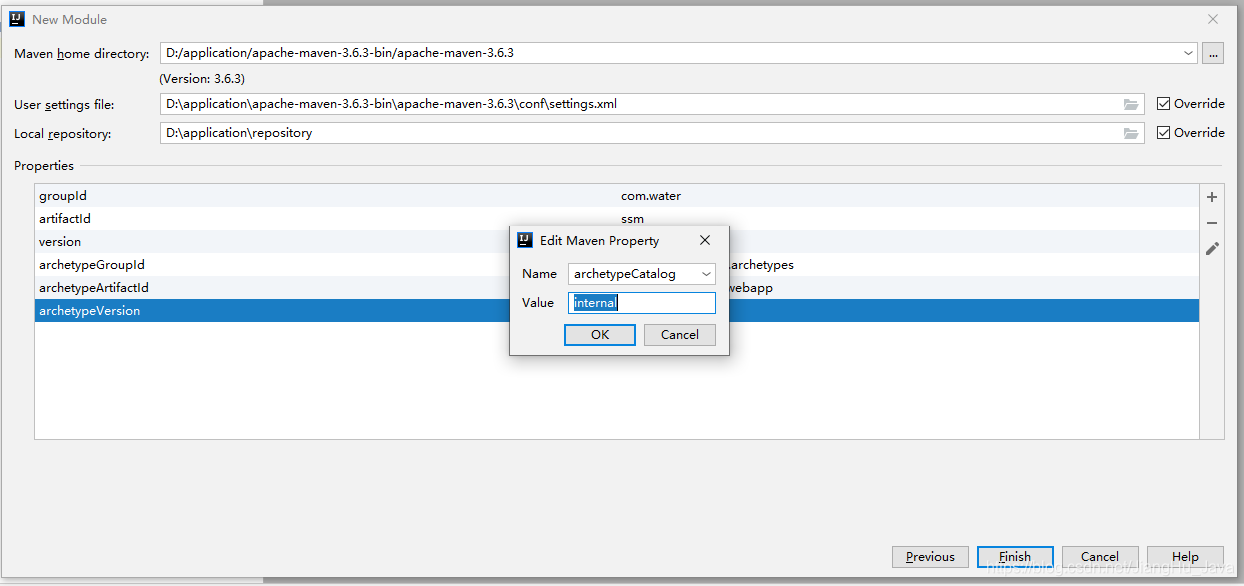

第一个maven路径，第二个maven的setting.xml路径，第三个本地仓库路径，再把原本的archeVersion改成以下
在这里插入图片描述
然后Finish即可

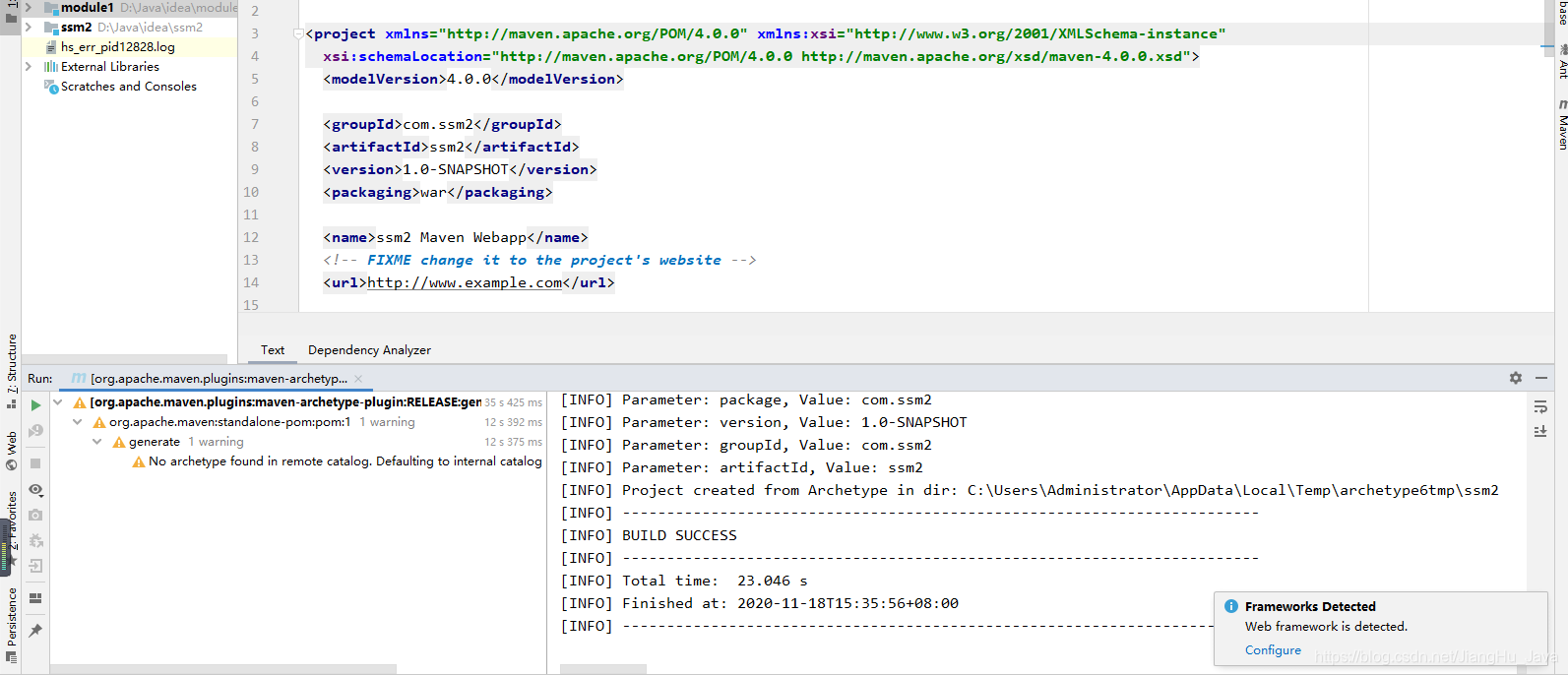

等待片刻

在这里插入图片描述

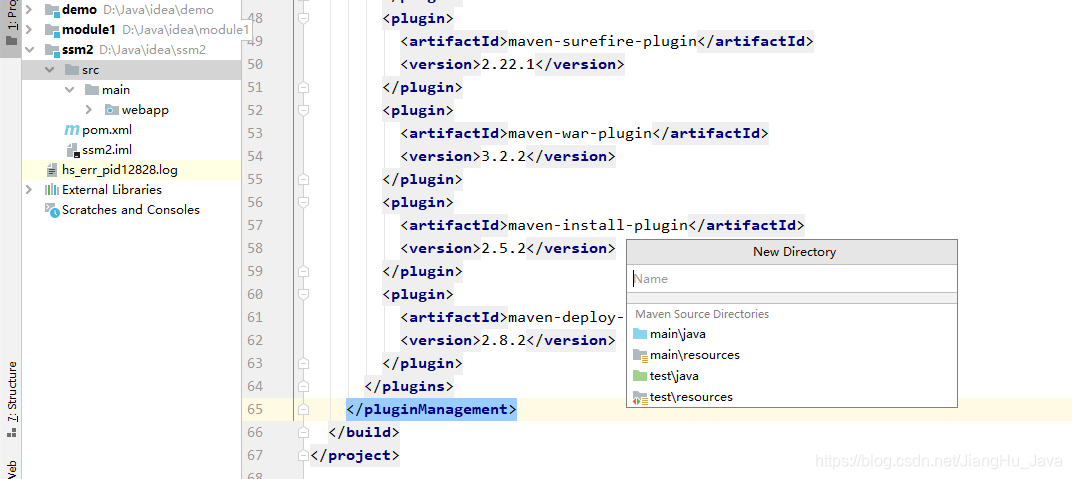

右击src新建项目文件夹（Directory）,他会自动出现需要的文件夹，将其全新建

在这里插入图片描述
如下图：

配置项目

准备好的配置文件：

pom.xml:

<?xml version="1.0" encoding="UTF-8"?>

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
  xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
  <modelVersion>4.0.0</modelVersion>

  <groupId>com.ssm2</groupId>
  <artifactId>ssm2</artifactId>
  <version>1.0-SNAPSHOT</version>
  <packaging>war</packaging>

  <name>ssm2 Maven Webapp</name>
  <!-- FIXME change it to the project's website -->
  <url>http://www.example.com</url>

  <properties>
    <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
    <maven.compiler.source>1.8</maven.compiler.source>
    <maven.compiler.target>1.8</maven.compiler.target>

    <junit.version>4.12</junit.version>
    <servlet.version>4.0.0</servlet.version>
    <mybatis.version>3.4.5</mybatis.version>
    <mybatis-spring.version>1.3.2</mybatis-spring.version>
    <mybatis-ehcache.version>1.1.0</mybatis-ehcache.version>
    <mysql.driver.version>5.1.44</mysql.driver.version>

    <pagehelper.version>5.1.2</pagehelper.version>
    <spring.version>5.0.2.RELEASE</spring.version>
    <jackson.version>2.9.3</jackson.version>
    <commons-dbcp2.version>2.1.1</commons-dbcp2.version>
    <commons-pool2.version>2.4.3</commons-pool2.version>

    <slf4j.version>1.7.7</slf4j.version>
    <jcl-over-slf4j.version>1.7.7</jcl-over-slf4j.version>
    <log4j2.version>2.9.1</log4j2.version>
    <log4j2.disruptor.version>3.2.0</log4j2.disruptor.version>

    <ehcache.version>2.10.0</ehcache.version>

    <jedis.version>2.9.0</jedis.version>
    <spring-data-redis.version>1.7.1.RELEASE</spring-data-redis.version>

    <pinyin4j.version>2.5.1</pinyin4j.version>
    <lombok.version>1.18.8</lombok.version>

    <jstl.version>1.2</jstl.version>
    <standard.version>1.1.2</standard.version>
    <tomcat-jsp-api.version>8.0.47</tomcat-jsp-api.version>
    <jackson>2.5.1</jackson>
    <shiro.version>1.2.5</shiro.version>

  </properties>
  <dependencies>
    <!-- **********************  shiro配置  ********************** -->
    <dependency>
      <groupId>org.apache.shiro</groupId>
      <artifactId>shiro-core</artifactId>
      <version>${shiro.version}</version>
      <exclusions>
        <exclusion>
          <artifactId>slf4j-api</artifactId>
          <groupId>org.slf4j</groupId>
        </exclusion>
      </exclusions>
    </dependency>
    <dependency>
      <groupId>org.apache.shiro</groupId>
      <artifactId>shiro-web</artifactId>
      <version>${shiro.version}</version>
    </dependency>
    <dependency>
      <groupId>org.apache.shiro</groupId>
      <artifactId>shiro-ehcache</artifactId>
      <version>${shiro.version}</version>
      <exclusions>
        <exclusion>
          <artifactId>ehcache-core</artifactId>
          <groupId>net.sf.ehcache</groupId>
        </exclusion>
      </exclusions>
    </dependency>
    <dependency>
      <groupId>org.apache.shiro</groupId>
      <artifactId>shiro-spring</artifactId>
      <version>${shiro.version}</version>
    </dependency>
    <!--shiro end-->

    <!-- springmvc默认的转json配置 https://mvnrepository.com/artifact/com.fasterxml.jackson.core/jackson-databind -->
    <dependency>
      <groupId>com.fasterxml.jackson.core</groupId>
      <artifactId>jackson-databind</artifactId>
      <version>${jackson}</version>
    </dependency>

    <!-- https://mvnrepository.com/artifact/com.fasterxml.jackson.core/jackson-core -->
    <dependency>
      <groupId>com.fasterxml.jackson.core</groupId>
      <artifactId>jackson-core</artifactId>
      <version>${jackson}</version>
    </dependency>

    <!-- https://mvnrepository.com/artifact/com.fasterxml.jackson.core/jackson-annotations -->

    <dependency>
      <groupId>com.fasterxml.jackson.core</groupId>
      <artifactId>jackson-annotations</artifactId>
      <version>${jackson}</version>
    </dependency>



    <dependency>
      <groupId>com.thetransactioncompany</groupId>
      <artifactId>cors-filter</artifactId>
      <version>2.5</version>
    </dependency>

    <!-- 5.3、jstl、standard -->
    <dependency>
      <groupId>jstl</groupId>
      <artifactId>jstl</artifactId>
      <version>${jstl.version}</version>
    </dependency>
    <dependency>
      <groupId>taglibs</groupId>
      <artifactId>standard</artifactId>
      <version>${standard.version}</version>
    </dependency>

    <!-- 5.4、tomcat-jsp-api -->
    <dependency>
      <groupId>org.apache.tomcat</groupId>
      <artifactId>tomcat-jsp-api</artifactId>
      <version>${tomcat-jsp-api.version}</version>
    </dependency>

    <!-- ********************** junit单元测试依赖 ********************** -->
    <dependency>
      <groupId>junit</groupId>
      <artifactId>junit</artifactId>
      <version>${junit.version}</version>
      <scope>test</scope>
    </dependency>

    <!-- ********************** Java Servlet API  ********************** -->
    <dependency>
      <groupId>javax.servlet</groupId>
      <artifactId>javax.servlet-api</artifactId>
      <version>${servlet.version}</version>
      <scope>provided</scope>
    </dependency>

    <!-- ********************** Mybatis依赖 ********************** -->
    <dependency>
      <groupId>org.mybatis</groupId>
      <artifactId>mybatis</artifactId>
      <version>${mybatis.version}</version>
    </dependency>

    <!--spring整合mybatis-->
    <dependency>
      <groupId>org.mybatis</groupId>
      <artifactId>mybatis-spring</artifactId>
      <version>${mybatis-spring.version}</version>
    </dependency>

    <!-- mybatis分页插件 -->
    <dependency>
      <groupId>com.github.pagehelper</groupId>
      <artifactId>pagehelper</artifactId>
      <version>${pagehelper.version}</version>
    </dependency>

    <!--4) mybatis与ehcache整合 -->
    <dependency>
      <groupId>org.mybatis.caches</groupId>
      <artifactId>mybatis-ehcache</artifactId>
      <version>${mybatis-ehcache.version}</version>
      <exclusions>
        <exclusion>
          <artifactId>slf4j-api</artifactId>
          <groupId>org.slf4j</groupId>
        </exclusion>
      </exclusions>
    </dependency>

    <!-- ********************** Mysql JDBC驱动 ********************** -->
    <dependency>
      <groupId>mysql</groupId>
      <artifactId>mysql-connector-java</artifactId>
      <version>${mysql.driver.version}</version>
    </dependency>

    <!--添加dbcp2连接池依赖-->
    <dependency>
      <groupId>org.apache.commons</groupId>
      <artifactId>commons-dbcp2</artifactId>
      <version>${commons-dbcp2.version}</version>
      <exclusions>
        <exclusion>
          <artifactId>commons-pool2</artifactId>
          <groupId>org.apache.commons</groupId>
        </exclusion>
      </exclusions>
    </dependency>
    <dependency>
      <groupId>org.apache.commons</groupId>
      <artifactId>commons-pool2</artifactId>
      <version>${commons-pool2.version}</version>
    </dependency>


    <!-- ********************** spring依赖 ********************** -->
    <!--1)spring核心依赖-->
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-core</artifactId>
      <version>${spring.version}</version>
    </dependency>
    <!--spring ioc依赖 -->
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-beans</artifactId>
      <version>${spring.version}</version>
    </dependency>
    <!--spring 扩展依赖 -->
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-context</artifactId>
      <version>${spring.version}</version>
    </dependency>
    <!--2)spring dao层依赖-->
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-orm</artifactId>
      <version>${spring.version}</version>
    </dependency>
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-tx</artifactId>
      <version>${spring.version}</version>
    </dependency>
    <!--3)aop相关依赖 -->
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-aspects</artifactId>
      <version>${spring.version}</version>
    </dependency>
    <!--4)spring web相关依赖 -->
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-web</artifactId>
      <version>${spring.version}</version>
    </dependency>
    <!--5) spring test相关依赖 -->
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-test</artifactId>
      <version>${spring.version}</version>
    </dependency>
    <!--6)springMVC框架目前用不着，下门课程-->
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-webmvc</artifactId>
      <version>${spring.version}</version>
    </dependency>
    <!--7)spring对ehcache的相关支持-->
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-context-support</artifactId>
      <version>${spring.version}</version>
    </dependency>
    <!--8)jackson相关依赖-->
    <dependency>
      <groupId>com.fasterxml.jackson.core</groupId>
      <artifactId>jackson-databind</artifactId>
      <version>${jackson.version}</version>
      <exclusions>
        <exclusion>
          <artifactId>jackson-annotations</artifactId>
          <groupId>com.fasterxml.jackson.core</groupId>
        </exclusion>
      </exclusions>
    </dependency>
    <dependency>
      <groupId>com.fasterxml.jackson.core</groupId>
      <artifactId>jackson-core</artifactId>
      <version>${jackson.version}</version>
    </dependency>
    <dependency>
      <groupId>com.fasterxml.jackson.core</groupId>
      <artifactId>jackson-annotations</artifactId>
      <version>${jackson.version}</version>
    </dependency>


    <!-- ********************** 日志配置Slf4j + Log4j2 ********************** -->
    <!-- slf4j核心包 -->
    <dependency>
      <groupId>org.slf4j</groupId>
      <artifactId>slf4j-api</artifactId>
      <version>${slf4j.version}</version>
    </dependency>
    <dependency>
      <groupId>org.slf4j</groupId>
      <artifactId>jcl-over-slf4j</artifactId>
      <version>${jcl-over-slf4j.version}</version>
      <scope>runtime</scope>
    </dependency>

    <!--用于与slf4j保持桥接 -->
    <dependency>
      <groupId>org.apache.logging.log4j</groupId>
      <artifactId>log4j-slf4j-impl</artifactId>
      <version>${log4j2.version}</version>
      <exclusions>
        <exclusion>
          <artifactId>slf4j-api</artifactId>
          <groupId>org.slf4j</groupId>
        </exclusion>
      </exclusions>
    </dependency>

    <!--核心log4j2jar包 -->
    <dependency>
      <groupId>org.apache.logging.log4j</groupId>
      <artifactId>log4j-api</artifactId>
      <version>${log4j2.version}</version>
    </dependency>
    <dependency>
      <groupId>org.apache.logging.log4j</groupId>
      <artifactId>log4j-core</artifactId>
      <version>${log4j2.version}</version>
    </dependency>

    <!--web工程需要包含log4j-web，非web工程不需要 -->
    <dependency>
      <groupId>org.apache.logging.log4j</groupId>
      <artifactId>log4j-web</artifactId>
      <version>${log4j2.version}</version>
      <scope>runtime</scope>
    </dependency>
    <!--需要使用log4j2的AsyncLogger需要包含disruptor -->
    <dependency>
      <groupId>com.lmax</groupId>
      <artifactId>disruptor</artifactId>
      <version>${log4j2.disruptor.version}</version>
    </dependency>

    <!-- ********************** ehcache缓存 ********************** -->
    <dependency>
      <groupId>net.sf.ehcache</groupId>
      <artifactId>ehcache</artifactId>
      <version>${ehcache.version}</version>
    </dependency>


    <!-- ********************** redis相关依赖 ********************** -->
    <dependency>
      <groupId>redis.clients</groupId>
      <artifactId>jedis</artifactId>
      <version>${jedis.version}</version>
      <exclusions>
        <exclusion>
          <artifactId>commons-pool2</artifactId>
          <groupId>org.apache.commons</groupId>
        </exclusion>
      </exclusions>
    </dependency>
    <!-- spring-data-redis 依赖-->
    <dependency>
      <groupId>org.springframework.data</groupId>
      <artifactId>spring-data-redis</artifactId>
      <version>${spring-data-redis.version}</version>
    </dependency>

    <dependency>
      <groupId>com.belerweb</groupId>
      <artifactId>pinyin4j</artifactId>
      <version>${pinyin4j.version}</version>
    </dependency>

    <dependency>
      <groupId>org.projectlombok</groupId>
      <artifactId>lombok</artifactId>
      <version>${lombok.version}</version>
      <scope>provided</scope>
    </dependency>

    <!--分页需要的-->
    <dependency>
      <groupId>com.github.pagehelper</groupId>
      <artifactId>pagehelper</artifactId>
      <version>5.1.2</version>
    </dependency>



  </dependencies>

  <build>

    <resources>
      <!--解决mybatis-generator-maven-plugin运行时没有将XxxMapper.xml文件放入target文件夹的问题-->
      <resource>
        <directory>src/main/java</directory>
        <includes>
          <include>**/*.xml</include>
        </includes>
      </resource>
      <!--解决mybatis-generator-maven-plugin运行时没有将jdbc.properites文件放入target文件夹的问题-->
      <resource>
        <directory>src/main/resources</directory>
        <includes>
          <include>jdbc.properties</include>
          <include>*.xml</include>
        </includes>
      </resource>
    </resources>

    <finalName>mybatis01</finalName>
    <pluginManagement><!-- lock down plugins versions to avoid using Maven defaults (may be moved to parent pom) -->
      <plugins>
        <plugin>
          <artifactId>maven-clean-plugin</artifactId>
          <version>3.1.0</version>
        </plugin>
        <!-- see http://maven.apache.org/ref/current/maven-core/default-bindings.html#Plugin_bindings_for_war_packaging -->
        <plugin>
          <artifactId>maven-resources-plugin</artifactId>
          <version>3.0.2</version>
        </plugin>
        <plugin>
          <artifactId>maven-compiler-plugin</artifactId>
          <version>3.8.0</version>
        </plugin>
        <plugin>
          <artifactId>maven-surefire-plugin</artifactId>
          <version>2.22.1</version>
        </plugin>
        <plugin>
          <artifactId>maven-war-plugin</artifactId>
          <version>3.2.2</version>
        </plugin>
        <plugin>
          <artifactId>maven-install-plugin</artifactId>
          <version>2.5.2</version>
        </plugin>
        <plugin>
          <artifactId>maven-deploy-plugin</artifactId>
          <version>2.8.2</version>
        </plugin>

        <plugin>
          <groupId>org.mybatis.generator</groupId>
          <artifactId>mybatis-generator-maven-plugin</artifactId>
          <version>1.3.2</version>
          <dependencies>
            <!--使用Mybatis-generator插件不能使用太高版本的mysql驱动 -->
            <dependency>
              <groupId>mysql</groupId>
              <artifactId>mysql-connector-java</artifactId>
              <version>${mysql.driver.version}</version>
            </dependency>
          </dependencies>
          <configuration>
            <overwrite>true</overwrite>
          </configuration>
        </plugin>
      </plugins>
    </pluginManagement>
  </build>
</project>

applicationContext.xml（用于集成）：

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd">

    <!--整合mybatis框架-->
    <import resource="spring-mybatis.xml"></import>
</beans>

generatorConfig.xml（用于逆向生成）：

其中指定数据库jdbc驱动jar包的位置需要改动成你自己的maven本地仓库的mysql驱动jar包的位置，还有指定javaBean生成的位置以及XxxMapper.xml指定sql映射文件生成的位置、生成XxxMapper接口根据需求自行修改

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE generatorConfiguration PUBLIC "-//mybatis.org//DTD MyBatis Generator Configuration 1.0//EN"
        "http://mybatis.org/dtd/mybatis-generator-config_1_0.dtd" >
<generatorConfiguration>
    <!-- 引入配置文件 -->
    <properties resource="jdbc.properties"/>

    <!--指定数据库jdbc驱动jar包的位置-->
    <classPathEntry location="D:\\application\\repository\\mysql\\mysql-connector-java\\5.1.44\\mysql-connector-java-5.1.44.jar"/>

    <!-- 一个数据库一个context -->
    <context id="infoGuardian">
        <!-- 注释 -->
        <commentGenerator>
            <property name="suppressAllComments" value="true"/><!-- 是否取消注释 -->
            <property name="suppressDate" value="true"/> <!-- 是否生成注释代时间戳 -->
        </commentGenerator>

        <!-- jdbc连接 -->
        <jdbcConnection driverClass="${jdbc.driver}"
                        connectionURL="${jdbc.url}" userId="${jdbc.username}" password="${jdbc.password}"/>

        <!-- 类型转换 -->
        <javaTypeResolver>
            <!-- 是否使用bigDecimal， false可自动转化以下类型（Long, Integer, Short, etc.） -->
            <property name="forceBigDecimals" value="false"/>
        </javaTypeResolver>

        <!-- 01 指定javaBean生成的位置 -->
        <!-- targetPackage：指定生成的model生成所在的包名 -->
        <!-- targetProject：指定在该项目下所在的路径  -->
        <javaModelGenerator targetPackage="com.zengjing.model"
                            targetProject="src/main/java">
            <!-- 是否允许子包，即targetPackage.schemaName.tableName -->
            <property name="enableSubPackages" value="false"/>
            <!-- 是否对model添加构造函数 -->
            <property name="constructorBased" value="true"/>
            <!-- 是否针对string类型的字段在set的时候进行trim调用 -->
            <property name="trimStrings" value="false"/>
            <!-- 建立的Model对象是否 不可改变  即生成的Model对象不会有 setter方法，只有构造方法 -->
            <property name="immutable" value="false"/>
        </javaModelGenerator>

        <!-- 02 XxxMapper.xml指定sql映射文件生成的位置 -->
        <sqlMapGenerator targetPackage="com.zengjing.mapper"
                         targetProject="src/main/java">
            <!-- 是否允许子包，即targetPackage.schemaName.tableName -->
            <property name="enableSubPackages" value="true"/>
        </sqlMapGenerator>

        <!-- 03 生成XxxMapper接口 -->
        <!-- type="ANNOTATEDMAPPER",生成Java Model 和基于注解的Mapper对象 -->
        <!-- type="MIXEDMAPPER",生成基于注解的Java Model 和相应的Mapper对象 -->
        <!-- type="XMLMAPPER",生成SQLMap XML文件和独立的Mapper接口 -->
        <javaClientGenerator targetPackage="com.zengjing.mapper"
                             targetProject="src/main/java" type="XMLMAPPER">
            <!-- 是否在当前路径下新加一层schema,false路径com.oop.eksp.user.model， true:com.oop.eksp.user.model.[schemaName] -->
            <property name="enableSubPackages" value="true"/>
        </javaClientGenerator>

        <!--要生成的表 tableName是数据库中的表名或视图名 domainObject是实体类名-->

        <!--<table tableName="t_book" domainObjectName="Book"
                 enableCountByExample="false" enableDeleteByExample="false"
               enableSelectByExample="false" enableUpdateByExample="false"></table>-->



        <!-- 配置表信息 -->
        <!-- schema即为数据库名 -->
        <!-- tableName为对应的数据库表 -->
        <!-- domainObjectName是要生成的实体类 -->
        <!-- enable*ByExample是否生成 example类 -->
        <!--<table schema="" tableName="t_student" domainObjectName="Student"-->
        <!--enableCountByExample="false" enableDeleteByExample="false"-->
        <!--enableSelectByExample="false" enableUpdateByExample="false">-->
        <!--&lt;!&ndash; 忽略列，不生成bean 字段 &ndash;&gt;-->
        <!--&lt;!&ndash; <ignoreColumn column="FRED" /> &ndash;&gt;-->
        <!--&lt;!&ndash; 指定列的java数据类型 &ndash;&gt;-->
        <!--&lt;!&ndash; <columnOverride column="LONG_VARCHAR_FIELD" jdbcType="VARCHAR" /> &ndash;&gt;-->
        <!--</table>-->
    </context>
</generatorConfiguration>

jdbc.properties（数据库连接配置文件）：

jdbc.driver=com.mysql.jdbc.Driver
jdbc.url=jdbc:mysql://localhost:3306/cmd?useUnicode=true&characterEncoding=UTF-8
jdbc.username=root
jdbc.password=

log4j2.xml（日志）：

<?xml version="1.0" encoding="UTF-8"?>

<!-- status : 指定log4j本身的打印日志的级别.ALL< Trace < DEBUG < INFO < WARN < ERROR
	< FATAL < OFF。 monitorInterval : 用于指定log4j自动重新配置的监测间隔时间，单位是s,最小是5s. -->
<Configuration status="WARN" monitorInterval="30">
	<Properties>
		<!-- 配置日志文件输出目录 ${sys:user.home} -->
		<Property name="LOG_HOME">/root/workspace/lucenedemo/logs</Property>
		<property name="ERROR_LOG_FILE_NAME">/root/workspace/lucenedemo/logs/error</property>
		<property name="WARN_LOG_FILE_NAME">/root/workspace/lucenedemo/logs/warn</property>
		<property name="PATTERN">%d{yyyy-MM-dd HH:mm:ss.SSS} [%t-%L] %-5level %logger{36} - %msg%n</property>
	</Properties>

	<Appenders>
		<!--这个输出控制台的配置 -->
		<Console name="Console" target="SYSTEM_OUT">
			<!-- 控制台只输出level及以上级别的信息(onMatch),其他的直接拒绝(onMismatch) -->
			<ThresholdFilter level="trace" onMatch="ACCEPT"
				onMismatch="DENY" />
			<!-- 输出日志的格式 -->
			<!-- %d{yyyy-MM-dd HH:mm:ss, SSS} : 日志生产时间 %p : 日志输出格式 %c : logger的名称
				%m : 日志内容，即 logger.info("message") %n : 换行符 %C : Java类名 %L : 日志输出所在行数 %M
				: 日志输出所在方法名 hostName : 本地机器名 hostAddress : 本地ip地址 -->
			<PatternLayout pattern="${PATTERN}" />
		</Console>

		<!--文件会打印出所有信息，这个log每次运行程序会自动清空，由append属性决定，这个也挺有用的，适合临时测试用 -->
		<!--append为TRUE表示消息增加到指定文件中，false表示消息覆盖指定的文件内容，默认值是true -->
		<File name="log" fileName="logs/test.log" append="false">
			<PatternLayout
				pattern="%d{yyyy-MM-dd HH:mm:ss.SSS} [%t] %-5level %logger{36} - %msg%n" />
		</File>
		<!-- 这个会打印出所有的info及以下级别的信息，每次大小超过size， 则这size大小的日志会自动存入按年份-月份建立的文件夹下面并进行压缩，作为存档 -->
		<RollingFile name="RollingFileInfo" fileName="${LOG_HOME}/info.log"
			filePattern="${LOG_HOME}/$${date:yyyy-MM}/info-%d{yyyy-MM-dd}-%i.log">
			<!--控制台只输出level及以上级别的信息（onMatch），其他的直接拒绝（onMismatch） -->
			<ThresholdFilter level="info" onMatch="ACCEPT"
				onMismatch="DENY" />
			<PatternLayout
				pattern="%d{yyyy-MM-dd HH:mm:ss.SSS} [%t] %-5level %logger{36} - %msg%n" />
			<Policies>
				<!-- 基于时间的滚动策略，interval属性用来指定多久滚动一次，默认是1 hour。 modulate=true用来调整时间：比如现在是早上3am，interval是4，那么第一次滚动是在4am，接着是8am，12am...而不是7am. -->
				<!-- 关键点在于 filePattern后的日期格式，以及TimeBasedTriggeringPolicy的interval， 日期格式精确到哪一位，interval也精确到哪一个单位 -->
				<!-- log4j2的按天分日志文件 : info-%d{yyyy-MM-dd}-%i.log -->
				<TimeBasedTriggeringPolicy interval="1"
					modulate="true" />
				<!-- SizeBasedTriggeringPolicy:Policies子节点， 基于指定文件大小的滚动策略，size属性用来定义每个日志文件的大小. -->
				<!-- <SizeBasedTriggeringPolicy size="2 kB" /> -->
			</Policies>
		</RollingFile>

		<RollingFile name="RollingFileWarn" fileName="${WARN_LOG_FILE_NAME}/warn.log"
			filePattern="${WARN_LOG_FILE_NAME}/$${date:yyyy-MM}/warn-%d{yyyy-MM-dd}-%i.log">
			<ThresholdFilter level="warn" onMatch="ACCEPT"
				onMismatch="DENY" />
			<PatternLayout
				pattern="%d{yyyy-MM-dd HH:mm:ss.SSS} [%t] %-5level %logger{36} - %msg%n" />
			<Policies>
				<TimeBasedTriggeringPolicy />
				<SizeBasedTriggeringPolicy size="2 kB" />
			</Policies>
			<!-- DefaultRolloverStrategy属性如不设置，则默认为最多同一文件夹下7个文件，这里设置了20 -->
			<DefaultRolloverStrategy max="20" />
		</RollingFile>

		<RollingFile name="RollingFileError" fileName="${ERROR_LOG_FILE_NAME}/error.log"
			filePattern="${ERROR_LOG_FILE_NAME}/$${date:yyyy-MM}/error-%d{yyyy-MM-dd-HH-mm}-%i.log">
			<ThresholdFilter level="error" onMatch="ACCEPT"
				onMismatch="DENY" />
			<PatternLayout
				pattern="%d{yyyy-MM-dd HH:mm:ss.SSS} [%t] %-5level %logger{36} - %msg%n" />
			<Policies>
				<!-- log4j2的按分钟 分日志文件 : warn-%d{yyyy-MM-dd-HH-mm}-%i.log -->
				<TimeBasedTriggeringPolicy interval="1"
					modulate="true" />
				<!-- <SizeBasedTriggeringPolicy size="10 MB" /> -->
			</Policies>
		</RollingFile>

	</Appenders>

	<!--然后定义logger，只有定义了logger并引入的appender，appender才会生效 -->
	<Loggers>
		<!--过滤掉spring和mybatis的一些无用的DEBUG信息 -->
		<logger name="org.springframework" level="INFO"></logger>
		<logger name="org.mybatis" level="INFO"></logger>

		<!-- 第三方日志系统 -->
		<logger name="org.springframework" level="ERROR" />
		<logger name="org.hibernate" level="ERROR" />
		<logger name="org.apache.struts2" level="ERROR" />
		<logger name="com.opensymphony.xwork2" level="ERROR" />
		<logger name="org.jboss" level="ERROR" />


		<!-- 配置日志的根节点 -->
		<root level="all">
			<appender-ref ref="Console" />
			<appender-ref ref="RollingFileInfo" />
			<appender-ref ref="RollingFileWarn" />
			<appender-ref ref="RollingFileError" />
		</root>

	</Loggers>

</Configuration>

spring-mybatis.xml：

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:context="http://www.springframework.org/schema/context" xmlns:tx="http://www.springframework.org/schema/tx"
       xmlns:aop="http://www.springframework.org/schema/aop"
       xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context.xsd http://www.springframework.org/schema/tx http://www.springframework.org/schema/tx/spring-tx.xsd http://www.springframework.org/schema/aop http://www.springframework.org/schema/aop/spring-aop.xsd">

    <!--1. 注解式开发 -->
    <!--1) 注解驱动 -->
    <context:annotation-config/>
    <!--2) 用注解方式注入bean，并指定查找范围：com.zking.oa及子子孙孙包-->
    <context:component-scan base-package="com.zengjing" use-default-filters="true">
            <!--所有的东西都扫描，排除了Controller，专门交给了springmvc处理-->
            <context:exclude-filter type="annotation" expression="org.springframework.stereotype.Controller"/>
    </context:component-scan>

    <context:property-placeholder location="classpath:jdbc.properties"/>

    <!-- 已在spring.xml中配置，只能引入一次 -->
    <!--2. 引入外置jdbc配置文件 -->
    <!--<bean id="propertyConfigurer" class="org.springframework.beans.factory.config.PropertyPlaceholderConfigurer">-->
    <!--<property name="location" value="classpath:jdbc.properties"/>-->
    <!--</bean>-->

    <!--3. dbcp2数据库连接池配置-->
    <bean id="dataSource" class="org.apache.commons.dbcp2.BasicDataSource"
          destroy-method="close">
        <property name="driverClassName" value="${jdbc.driver}"/>
        <property name="url" value="${jdbc.url}"/>
        <property name="username" value="${jdbc.username}"/>
        <property name="password" value="${jdbc.password}"/>
        <!--初始连接数-->
        <property name="initialSize" value="10"/>
        <!--最大活动连接数-->
        <property name="maxTotal" value="100"/>
        <!--最大空闲连接数-->
        <property name="maxIdle" value="50"/>
        <!--最小空闲连接数-->
        <property name="minIdle" value="10"/>
        <!--设置为-1时，如果没有可用连接，连接池会一直无限期等待，直到获取到连接为止。-->
        <!--如果设置为N（毫秒），则连接池会等待N毫秒，等待不到，则抛出异常-->
        <property name="maxWaitMillis" value="-1"/>
    </bean>


    <!--4. spring和MyBatis整合 -->
    <!--1) 创建sqlSessionFactory-->
    <bean id="sqlSessionFactory" class="org.mybatis.spring.SqlSessionFactoryBean">
        <!-- 指定数据源 -->
        <property name="dataSource" ref="dataSource"/>
        <!-- 指定mybatis核心配置文件 -->
        <!--<property name="configLocation" value="classpath:mybatis.cfg.xml"/>-->
        <!-- 自动扫描XxxMapping.xml文件，**任意路径 -->
        <property name="mapperLocations" value="classpath:com/zengjing/mapper/*.xml"/>
        <!-- 指定别名 -->
        <property name="typeAliasesPackage" value="com.zengjing.model"/>
        <!--setting设置：日志、二级缓存-->
        <property name="configuration">
            <bean class="org.apache.ibatis.session.Configuration">
                <property name="logImpl">
                    <value>org.apache.ibatis.logging.slf4j.Slf4jImpl</value>
                </property>
                <property name="cacheEnabled">
                    <value>true</value>
                </property>
            </bean>
        </property>
        <!--插件配置-->
        <property name="plugins">
            <list>
                <!--分页插件-->
                <bean class="com.github.pagehelper.PageInterceptor">
                    <property name="properties">
                        <props>
                            <!--分页合理化-->
                            <prop key="reasonable">true</prop>
                            <!--当设置为true的时候，如果pagesize设置为0-->
                            <prop key="pageSizeZero">true</prop>
                            <!--是否支持接口参数来传递分页参数，默认false-->
                            <prop key="supportMethodsArguments">true</prop>
                            <!--指定数据库-->
                            <prop key="helperDialect">mysql</prop>
                        </props>
                    </property>
                </bean>
            </list>
        </property>
    </bean>
    <!--2) 自动扫描com/zking/oa/**/mapper下的所有XxxMapper接口(其实就是DAO接口)，并实现这些接口，-->
    <!--   即可直接在程序中使用dao接口，不用再获取sqlsession对象-->
    <bean class="org.mybatis.spring.mapper.MapperScannerConfigurer">
        <!--basePackage 属性是映射器接口文件的包路径。-->
        <!--你可以使用分号或逗号 作为分隔符设置多于一个的包路径-->
        <property name="basePackage" value="com/zengjing/**/mapper"/>
        <property name="sqlSessionFactoryBeanName" value="sqlSessionFactory"/>
    </bean>

    <!--5. 注解式事务配置开始 -->
    <!--1) 事务管理器 -->
    <bean id="transactionManager"
          class="org.springframework.jdbc.datasource.DataSourceTransactionManager">
        <property name="dataSource" ref="dataSource"/>
    </bean>
    <!--2) 开启事务注解 -->
    <tx:annotation-driven transaction-manager="transactionManager"/>
    <!-- 注解式事务配置结束 -->

    <!--6) 开启自动代理 -->
    <aop:aspectj-autoproxy/>
</beans>

这五个配置文件放于src/main/resources下，复制到下面后，我们看到下面这个通知，就还需要将其加入项目里

在这里插入图片描述

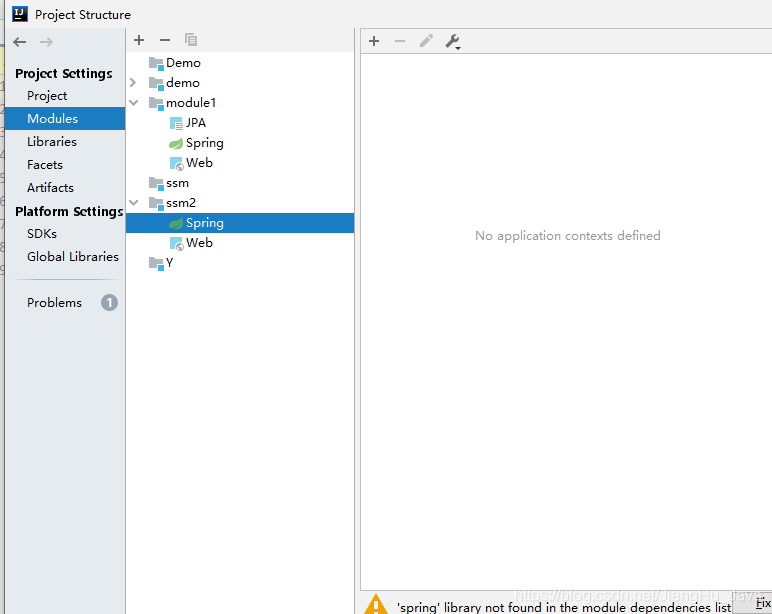

点击蓝色字体

在这里插入图片描述

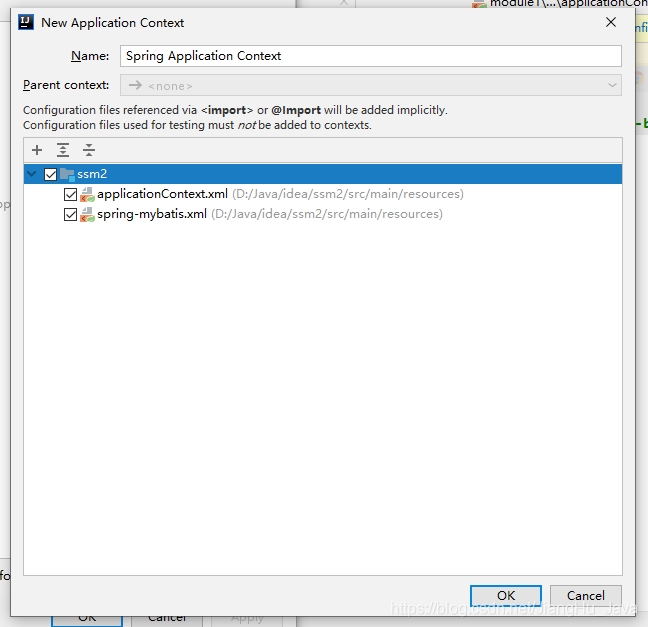

点击加号：
选中两个配置文件

点击ok即可

然后我们回到src/main/webapp下
web.xml:

<web-app xmlns="http://xmlns.jcp.org/xml/ns/javaee"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://xmlns.jcp.org/xml/ns/javaee http://xmlns.jcp.org/xml/ns/javaee/web-app_3_1.xsd"
         version="3.1">




    <!-- Vue之axios跨域调用过滤器 -->
    <!-- 跨域请求 -->
    <filter>
        <filter-name>SimpleCORSFilter</filter-name>
        <filter-class>com.zengjing.util.CorsFilter</filter-class>
        <init-param>
            <param-name>IsCross</param-name>
            <param-value>true</param-value>
        </init-param>
    </filter>
    <filter-mapping>
        <filter-name>SimpleCORSFilter</filter-name>
        <url-pattern>/*</url-pattern>
    </filter-mapping>


    <display-name>Archetype Created Web Application</display-name>





    <!-- 读取Spring上下文的监听器 -->
    <listener>
        <listener-class>org.springframework.web.context.ContextLoaderListener</listener-class>
    </listener>

    <!-- 防止Spring内存溢出监听器 -->
    <listener>
        <listener-class>org.springframework.web.util.IntrospectorCleanupListener</listener-class>
    </listener>

    <!-- 中文乱码处理 -->
    <filter>
        <filter-name>encodingFilter</filter-name>
        <filter-class>org.springframework.web.filter.CharacterEncodingFilter</filter-class>
        <!--web.xml 3.0的新特性，是否支持异步-->
        <async-supported>true</async-supported>
        <init-param>
            <param-name>encoding</param-name>
            <param-value>UTF-8</param-value>
        </init-param>
    </filter>
    <filter-mapping>
        <filter-name>encodingFilter</filter-name>
        <url-pattern>/*</url-pattern>
    </filter-mapping>

    <!--SpringMVC-->
    <servlet>
        <servlet-name>SpringMVC</servlet-name>
        <servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
        <!--此参数可以不配置，默认值为：/WEB-INF/springmvc-servlet.xml-->
        <init-param>
            <param-name>contextConfigLocation</param-name>
            <param-value>/WEB-INF/springmvc-servlet.xml</param-value>
        </init-param>
        <load-on-startup>1</load-on-startup>
        <!--web.xml 3.0的新特性，是否支持异步-->
        <async-supported>true</async-supported>
    </servlet>
    <servlet-mapping>
        <servlet-name>SpringMVC</servlet-name>
        <url-pattern>/</url-pattern>
    </servlet-mapping>

    <context-param>
        <param-name>contextConfigLocation</param-name>
        <param-value>classpath:applicationContext.xml</param-value>
    </context-param>


</web-app>

src/main/webapp/WEB-INF下面springmvc-servlet.xml:

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:context="http://www.springframework.org/schema/context"
       xmlns:mvc="http://www.springframework.org/schema/mvc"
       xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd
		http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context-4.3.xsd http://www.springframework.org/schema/mvc http://www.springframework.org/schema/mvc/spring-mvc.xsd">
    <!-- 通过context:component-scan元素扫描指定包下的控制器-->
    <!--1) 扫描com.zking.zf及子子孙孙包下的控制器(扫描范围过大，耗时)-->
    <!--<context:component-scan base-package="com.zengjing"/>-->

    <!--1) use-dafault-filters="false"的情况下，根据表达式包含(include-filter)或排除(exclude-filter)指定包-->
    <context:component-scan base-package="com.zengjing" use-default-filters="false">
        <context:include-filter type="regex" expression=".+\.controller\..*"/>
        <!--<context:exclude-filter type="regex" expression=".+\.controller2\..*"/>-->
    </context:component-scan>

    <!-- 接口跨域配置 -->
   <mvc:cors>
        <mvc:mapping path="/**"
                     allowed-origins="*"
                     allowed-methods="POST, GET, OPTIONS, DELETE, PUT"
                     allowed-headers="Content-Type, Access-Control-Allow-Headers, Authorization, X-Requested-With"
                     allow-credentials="true" />
    </mvc:cors>

    <!--2) 此标签默认注册DefaultAnnotationHandlerMapping和AnnotationMethodHandlerAdapter -->
	<!--两个bean，这两个bean是spring MVC为@Controllers分发请求所必须的。并提供了数据绑定支持，-->
    <!--@NumberFormatannotation支持，@DateTimeFormat支持，@Valid支持，读写XML的支持（JAXB），读写JSON的支持（Jackson）-->
    <mvc:annotation-driven></mvc:annotation-driven>

    <!--3) ViewResolver -->
    <bean class="org.springframework.web.servlet.view.InternalResourceViewResolver">
        <!-- viewClass需要在pom中引入两个包：standard.jar and jstl.jar -->
        <property name="viewClass"
                  value="org.springframework.web.servlet.view.JstlView"></property>
        <property name="prefix" value="/WEB-INF/jsp/"/>
        <property name="suffix" value=".jsp"/>
    </bean>

    <!--4) 单独处理图片、样式、js等资源 -->
   <!-- <mvc:resources location="/css/" mapping="/css/**"/>
    <mvc:resources location="/images/" mapping="/images/**"/>-->
   <!-- <mvc:resources location="/static/" mapping="/static/**"/>-->
</beans>

在generatorConfig.xml当中配置好需要生成的表（这个表是数据库需要的）

  <table tableName="t_book" domainObjectName="Book"
                 enableCountByExample="false" enableDeleteByExample="false"
               enableSelectByExample="false" enableUpdateByExample="false"></table>

工具类说明

CorsFilter（用于跨域）：

package com.zengjing.util;

import javax.servlet.*;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import java.io.IOException;

/**
 * 閰嶇疆tomcat鍏佽璺ㄥ煙璁块棶
 *
 * @author Administrator
 *
 */
public class CorsFilter implements Filter {
	private boolean isCross = false;

	@Override
	public void destroy() {
		isCross = false;
	}

	@Override
	public void doFilter(ServletRequest request, ServletResponse response, FilterChain chain)
			throws IOException, ServletException {
		if (isCross) {
			HttpServletRequest httpServletRequest = (HttpServletRequest) request;
			HttpServletResponse httpServletResponse = (HttpServletResponse) response;
			System.out.println("拦截请求: " + httpServletRequest.getServletPath());
			httpServletResponse.setHeader("Access-Control-Allow-Origin", "*");
			httpServletResponse.setHeader("Access-Control-Allow-Methods", "POST, GET, OPTIONS, DELETE");
			httpServletResponse.setHeader("Access-Control-Max-Age", "0");
			httpServletResponse.setHeader("Access-Control-Allow-Headers",
					"Origin, No-Cache, X-Requested-With, If-Modified-Since, Pragma, Last-Modified, Cache-Control, Expires, Content-Type, X-E4M-With,userId,token");
			httpServletResponse.setHeader("Access-Control-Allow-Credentials", "true");
			httpServletResponse.setHeader("XDomainRequestAllowed", "1");
		}
		chain.doFilter(request, response);
	}

	@Override
	public void init(FilterConfig filterConfig) throws ServletException {
		String isCrossStr = filterConfig.getInitParameter("IsCross");
		isCross = isCrossStr.equals("true") ? true : false;
		System.out.println(isCrossStr);
	}
}

PageAspect（用作分页）：

package com.zengjing.util;

import com.github.pagehelper.PageHelper;
import com.github.pagehelper.PageInfo;
import org.aspectj.lang.ProceedingJoinPoint;
import org.aspectj.lang.annotation.Around;
import org.aspectj.lang.annotation.Aspect;
import org.springframework.stereotype.Component;

import java.util.List;

/**
 * @author zengjing
 * @site https://blog.youkuaiyun.com/JiangHu_Java
 * @create  2020-10-28 11:20
 * 处理* *..*Service.*Pager(..)这个方法，只要调用这个方法，就能够达到分页的效果
 *
 * pageHelper.start();
 * 调用目标方法之前
 * 处理结果集
 */
@Component
@Aspect
public class PageAspect {
    @Around("execution(* *..*Service.*Pager(..))")
    public Object invoke(ProceedingJoinPoint args) throws  Throwable{

//        判断符合条件的方法中是否包含pagebean参数
//        符合* *..*Service.*Pager(..)这个方法，调用时所携带的参数
        Object[] params = args.getArgs();
        PageBean pageBean=null;
        for (Object param :params){
            if(param instanceof PageBean){
                pageBean = (PageBean) param;
                break;
            }
        }
//      开始分页
        if(pageBean !=null && pageBean.isPagination()){
            PageHelper.startPage(pageBean.getPage(),pageBean.getRows());

        }
        // System.out.println(params);
//      执行方法
        Object list = args.proceed(params);
//        System.out.println(list);
//       获取总记录数
        if(pageBean !=null && pageBean.isPagination()){
            PageInfo pageInfo=new PageInfo((List) list);
            pageBean.setTotal(pageInfo.getTotal()+"");
        }
        System.err.println(list.toString());
        return list;
    };

}

PageBean：

package com.zengjing.util;

import javax.servlet.http.HttpServletRequest;
import java.io.Serializable;
import java.util.Map;

/**
 * @author zengjing
 * @site https://blog.youkuaiyun.com/JiangHu_Java
 * @create  2020-10-28 11:17
 */
public class PageBean implements Serializable {


        private static final long serialVersionUID = 2422581023658455731L;

        //页码
        private int page=1;
        //每页显示记录数
        private int rows=5;
        //总记录数
        private int total=0;
        //是否分页
        private boolean isPagination=true;
        //上一次的请求路径
        private String url;
        //获取所有的请求参数
        private Map<String,String[]> map;

        public PageBean() {

        }

        //设置请求参数
        public void setRequest(HttpServletRequest req) {
            String page=req.getParameter("page");
            String rows=req.getParameter("rows");
            String pagination=req.getParameter("pagination");
            this.setPage(page);
            this.setRows(rows);
            this.setPagination(pagination);
            this.url=req.getContextPath()+req.getServletPath();
            this.map=req.getParameterMap();
        }
        public String getUrl() {
            return url;
        }

        public void setUrl(String url) {
            this.url = url;
        }

        public Map<String, String[]> getMap() {
            return map;
        }

        public void setMap(Map<String, String[]> map) {
            this.map = map;
        }

        public int getPage() {
            return page;
        }

        public void setPage(int page) {
            this.page = page;
        }

        public void setPage(String page) {
            if(null!=page&&!"".equals(page.trim()))
                this.page = Integer.parseInt(page);
        }

        public int getRows() {
            return rows;
        }

        public void setRows(int rows) {
            this.rows = rows;
        }

        public void setRows(String rows) {
            if(null!=rows&&!"".equals(rows.trim()))
                this.rows = Integer.parseInt(rows);
        }

        public int getTotal() {
            return total;
        }

        public void setTotal(int total) {
            this.total = total;
        }

        public void setTotal(String total) {
            this.total = Integer.parseInt(total);
        }

        public boolean isPagination() {
            return isPagination;
        }

        public void setPagination(boolean isPagination) {
            this.isPagination = isPagination;
        }

        public void setPagination(String isPagination) {
            if(null!=isPagination&&!"".equals(isPagination.trim()))
                this.isPagination = Boolean.parseBoolean(isPagination);
        }

        /**
         * 获取分页起始标记位置
         * @return
         */
        public int getStartIndex() {
            //(当前页码-1)*显示记录数
            return (this.getPage()-1)*this.rows;
        }

        /**
         * 末页
         * @return
         */
        public int getMaxPage() {
            int totalpage=this.total/this.rows;
            if(this.total%this.rows!=0)
                totalpage++;
            return totalpage;
        }

        /**
         * 下一页
         * @return
         */
        public int getNextPage() {
            int nextPage=this.page+1;
            if(this.page>=this.getMaxPage())
                nextPage=this.getMaxPage();
            return nextPage;
        }

        /**
         * 上一页
         * @return
         */
        public int getPreivousPage() {
            int previousPage=this.page-1;
            if(previousPage<1)
                previousPage=1;
            return previousPage;
        }

        @Override
        public String toString() {
            return "PageBean [page=" + page + ", rows=" + rows + ", total=" + total + ", isPagination=" + isPagination
                    + "]";
        }
    }

编写测试项目代码

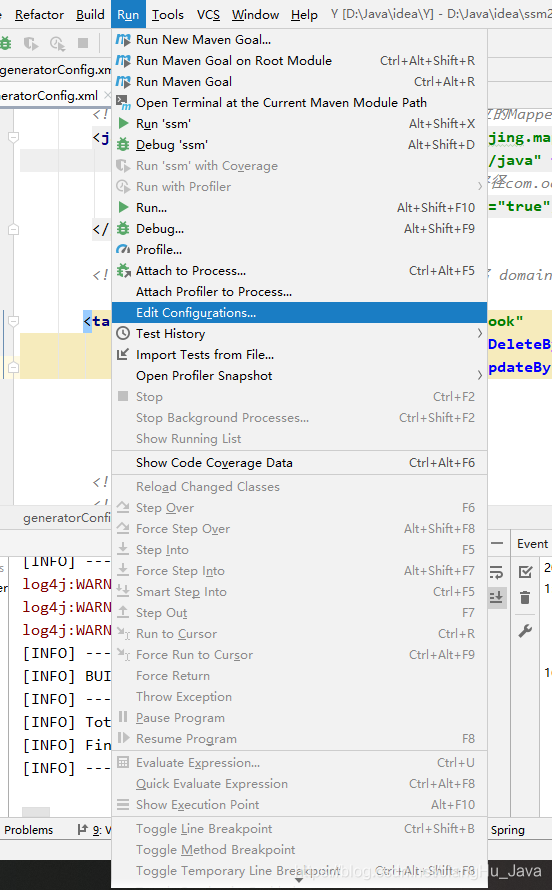

配置maven逆向工程Run==》Edit ConfigUrations

在这里插入图片描述

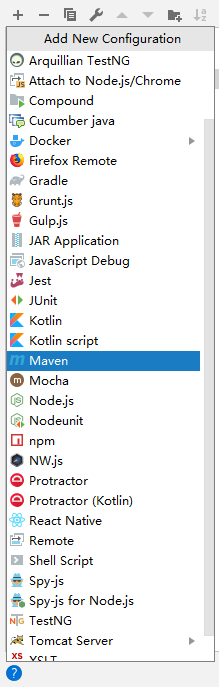

点击加号选择maven

在这里插入图片描述

mybatis-generator:generate -e

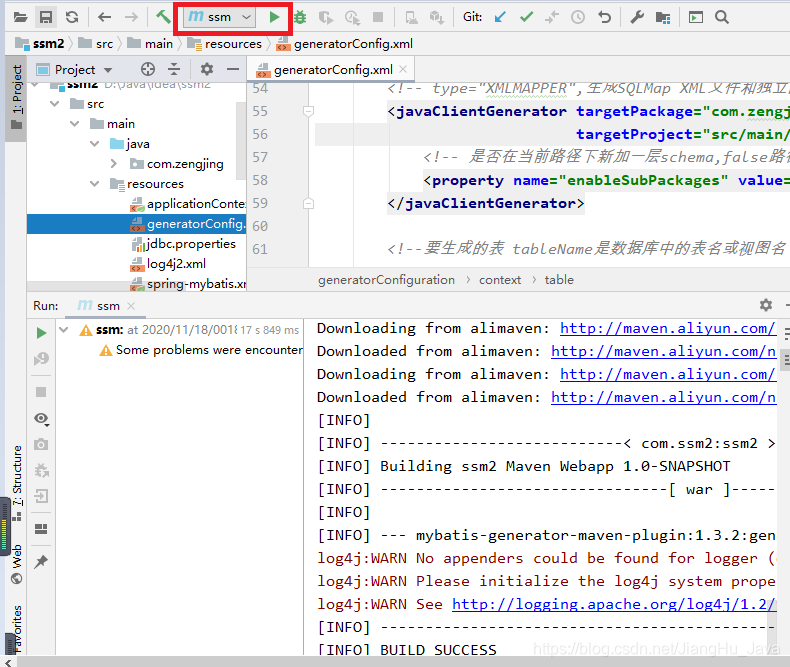

点击ok即可，选中刚配置的maven点击运行即可创建需要的实体类以及mapper.java、mapper.xml文件

在这里插入图片描述
建立完整项目包结构：

新建service：

BookMapper.java加上注解：

package com.zengjing.mapper;

import com.zengjing.model.Book;
import org.springframework.stereotype.Repository;

@Repository
public interface BookMapper {
    int deleteByPrimaryKey(Integer bookid);

    int insert(Book record);

    int insertSelective(Book record);

    Book selectByPrimaryKey(Integer bookid);

    int updateByPrimaryKeySelective(Book record);

    int updateByPrimaryKey(Book record);
}

IBookService：

package com.zengjing.service;

import com.zengjing.model.Book;
import org.springframework.transaction.annotation.Transactional;

/**
 * @author zengjing
 * @site https://blog.youkuaiyun.com/JiangHu_Java
 * @create  2020-11-18 16:20
 */

@Transactional
public interface IBookService {

    int deleteByPrimaryKey(Integer bookid);

    int insert(Book record);

    int insertSelective(Book record);

    Book selectByPrimaryKey(Integer bookid);

    int updateByPrimaryKeySelective(Book record);

    int updateByPrimaryKey(Book record);
}

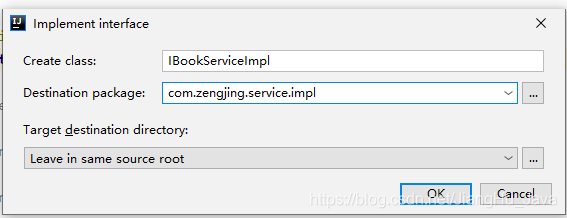

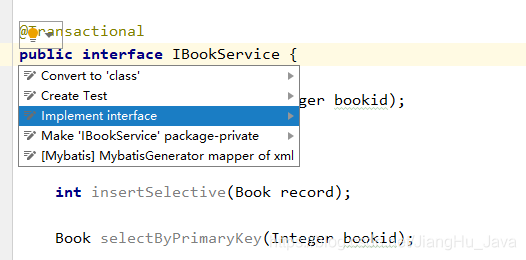

为IBookService新建实现类：

在这里插入图片描述

IBookServiceImpl：

package com.zengjing.service.impl;

import com.zengjing.mapper.BookMapper;
import com.zengjing.model.Book;
import com.zengjing.service.IBookService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;

/**
 * @author zengjing
 * @site https://blog.youkuaiyun.com/JiangHu_Java
 * @create  2020-11-18 16:24
 */

@Service("BookService")
public class IBookServiceImpl implements IBookService {

    @Autowired
    private BookMapper bookMapper;

    @Override
    public int deleteByPrimaryKey(Integer bookid) {
        return bookMapper.deleteByPrimaryKey(bookid);
    }

    @Override
    public int insert(Book record) {
        return bookMapper.insert(record);
    }

    @Override
    public int insertSelective(Book record) {
        return bookMapper.insertSelective(record);
    }

    @Override
    public Book selectByPrimaryKey(Integer bookid) {
        return bookMapper.selectByPrimaryKey(bookid);
    }

    @Override
    public int updateByPrimaryKeySelective(Book record) {
        return bookMapper.updateByPrimaryKeySelective(record);
    }

    @Override
    public int updateByPrimaryKey(Book record) {
        return bookMapper.updateByPrimaryKey(record);
    }
}

创建测试类进行测试

在这里插入图片描述

勾选需要测试的方法在这里插入图片描述

IBookServiceTest:

package com.zengjing.service;

import com.zengjing.model.Book;
import org.junit.Test;
import org.springframework.beans.factory.annotation.Autowired;

/**
 * @author zengjing
 * @site https://blog.youkuaiyun.com/JiangHu_Java
 * @create  2020-11-18 16:38
 */
public class IBookServiceTest extends SpringBaseTest{


    @Autowired
    private IBookService bookService;



    @Test
    public void selectByPrimaryKey() {
        Book book=this.bookService.selectByPrimaryKey(1);
        System.out.println(book);
    }

}

在这里插入图片描述
测试完成！

控制器层

package com.zengjing.controller;

import com.zengjing.model.Book;
import com.zengjing.service.IBookService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.ResponseBody;

import java.util.HashMap;
import java.util.Map;

/**
 * @author zengjing
 * @site https://blog.youkuaiyun.com/JiangHu_Java
 * @create  2020-11-18 19:26
 */
@Controller
@RequestMapping("/book")
public class BookController {

    @Autowired
    private IBookService bookService;

    @ResponseBody
    @RequestMapping("/list")
    public Map list(){
        Map<String,Object> map=new HashMap<>();
        Book book = new Book();
        book=bookService.selectByPrimaryKey(1);
        map.put("book",book);
        return map;
    }


}
