肖哥弹架构 跟大家“弹弹” Spring JDBCTemplate设计与实战应用，需要代码关注

欢迎点赞，点赞，点赞。

关注公号Solomon肖哥弹架构获取更多精彩内容

历史热点文章

📌 突破单机瓶颈！ 本文深入讲解 Spring JDBCTemplate 的高级用法，涵盖 数据库分片路由、多数据源操作、动态方言支持、性能监控、全链路追踪 等企业级场景，助你轻松应对高并发、大数据量挑战！

✨ 核心亮点：

🔧 分库分表实战：手把手实现订单数据分片存储与查询，解决单机性能瓶颈。
🌐 多数据源管理：配置主从数据源，实现数据双向同步与事务隔离。

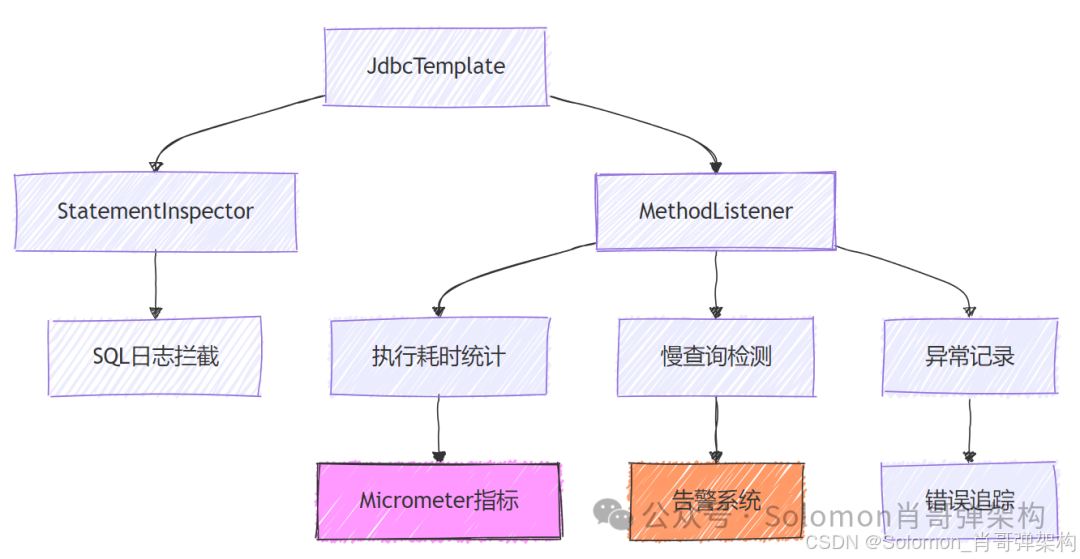

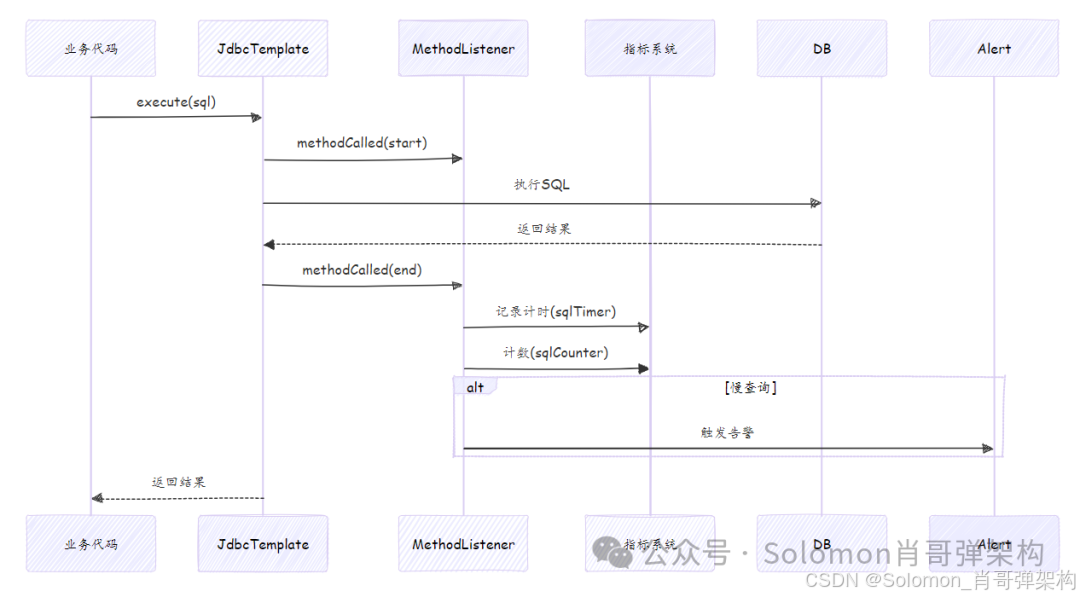

📊 性能监控与优化：集成 Micrometer 实时统计 SQL 执行指标，自动捕获慢查询并告警。

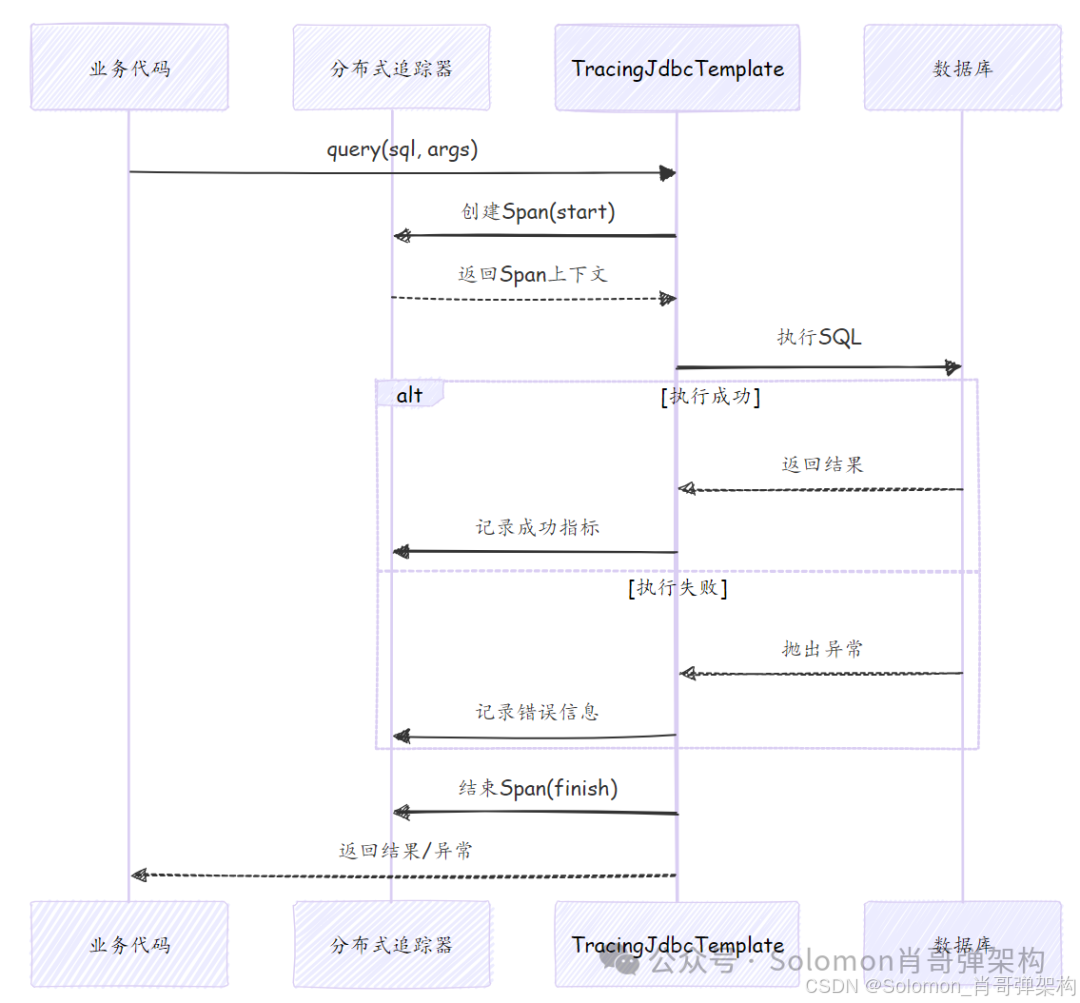

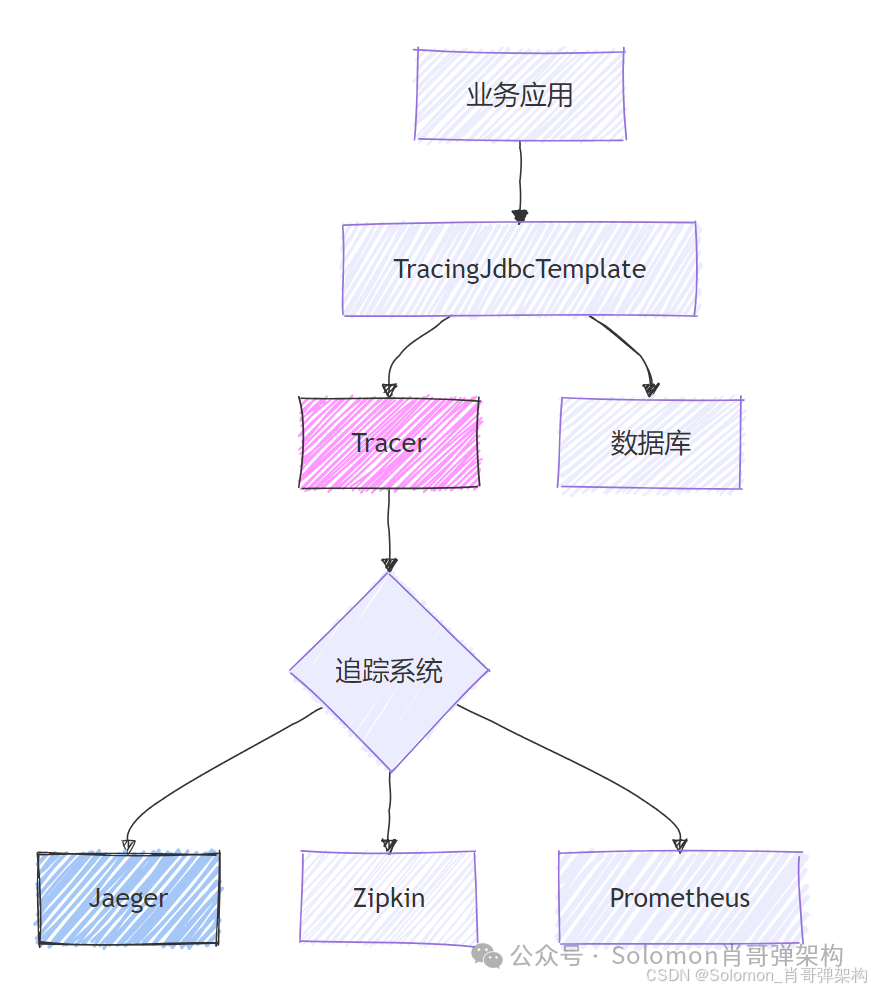

🔍 全链路追踪：结合 OpenTelemetry 追踪数据库操作，快速定位性能瓶颈。
🛠 动态方言支持：一套代码兼容 MySQL、Oracle、PostgreSQL 等多种数据库分页语法。

六高级使用案例

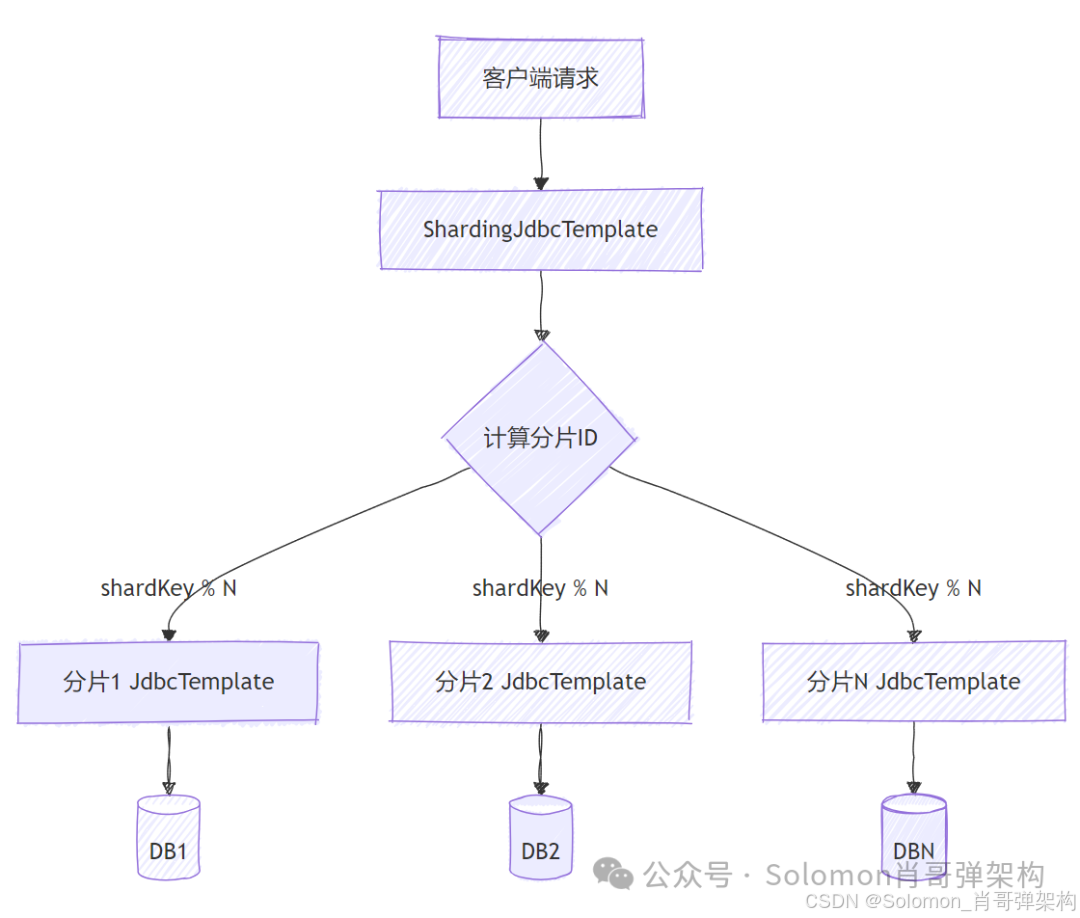

1. 数据库分片路由

Spring JDBCTemplate 实战大全：从 CRUD 到高级技巧，一篇搞定！(应用篇二)_Spring JDBCTemplate_02

数据库分片(Sharding)主要是为了解决以下几个问题：

性能瓶颈：单机数据库在数据量达到TB级别时性能急剧下降
存储限制：单机存储容量有限
高并发：单一数据库无法承受极高的并发请求
可用性：避免单点故障

1.1. 首先定义分片核心代码

public class ShardingJdbcTemplate {
    private final Map<Integer, JdbcTemplate> shards;

    public ShardingJdbcTemplate(Map<Integer, DataSource> shardDataSources) {
        this.shards = shardDataSources.entrySet().stream()
            .collect(Collectors.toMap(
                Map.Entry::getKey,
                e -> new JdbcTemplate(e.getValue())
            ));
    }

    public <T> T queryByShardKey(int shardKey, String sql,
            PreparedStatementSetter pss, ResultSetExtractor<T> rse) {
        int shardId = shardKey % shards.size();
        return shards.get(shardId).query(sql, pss, rse);
    }

    public int updateByShardKey(int shardKey, String sql, Object... args) {
        int shardId = shardKey % shards.size();
        return shards.get(shardId).update(sql, args);
    }
}

1.2. 定义分片键和分片规则

/**
 * 订单分片工具类
 */
public class OrderShardingUtil {

    // 分片数量(通常与数据库实例数相同)
    private static final int SHARD_COUNT = 4;

    /**
     * 根据订单ID计算分片ID
     */
    public static int getShardIdByOrderId(long orderId) {
        return (int) (orderId % SHARD_COUNT);
    }

    /**
     * 根据用户ID计算分片ID(适合用户数据均匀分布的场景)
     */
    public static int getShardIdByUserId(long userId) {
        return (int) (userId % SHARD_COUNT);
    }
}

1.3. 实现分片数据源配置

/**
 * 分片数据源配置
 */
@Configuration
public class ShardingDataSourceConfig {

    // 配置4个分片数据源(实际项目中从配置中心或环境变量获取)
    @Bean
    public Map<Integer, DataSource> shardDataSources() {
        Map<Integer, DataSource> dataSources = new HashMap<>();

        dataSources.put(0, createDataSource("jdbc:mysql://db-host-1:3306/order_db"));
        dataSources.put(1, createDataSource("jdbc:mysql://db-host-2:3306/order_db"));
        dataSources.put(2, createDataSource("jdbc:mysql://db-host-3:3306/order_db"));
        dataSources.put(3, createDataSource("jdbc:mysql://db-host-4:3306/order_db"));

        return dataSources;
    }

    private DataSource createDataSource(String url) {
        HikariDataSource ds = new HikariDataSource();
        ds.setJdbcUrl(url);
        ds.setUsername("db_user");
        ds.setPassword("db_password");
        ds.setMaximumPoolSize(20);
        return ds;
    }

    @Bean
    public ShardingJdbcTemplate shardingJdbcTemplate(
            Map<Integer, DataSource> shardDataSources) {
        return new ShardingJdbcTemplate(shardDataSources);
    }
}

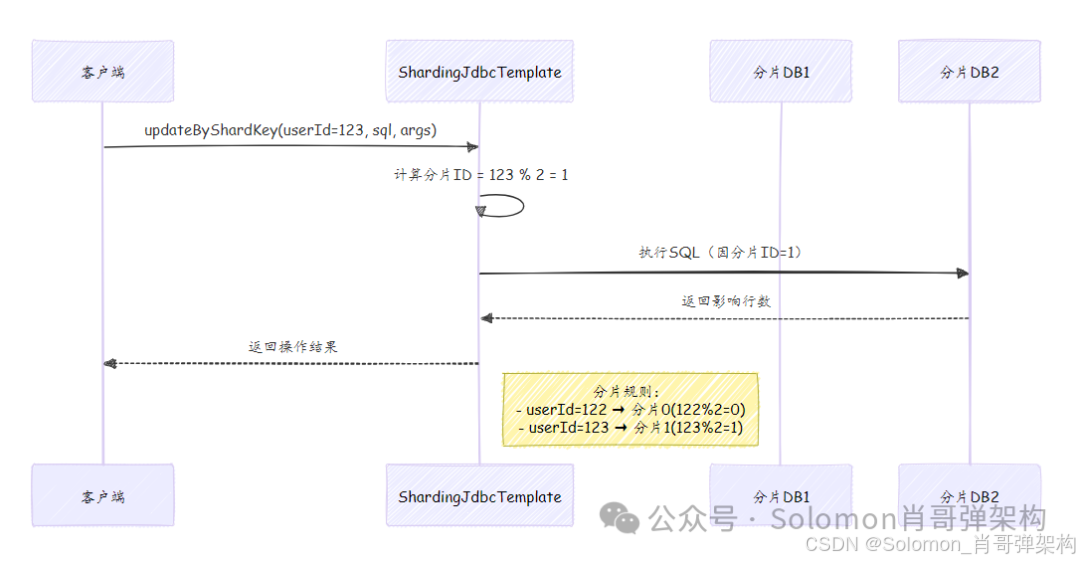

1.4. 增强版的分片JdbcTemplate

Spring JDBCTemplate 实战大全：从 CRUD 到高级技巧，一篇搞定！(应用篇二)_Spring JDBCTemplate_03

/**
 * 增强版分片JdbcTemplate(带实际业务方法)
 */
public class ShardingOrderRepository {

    private final ShardingJdbcTemplate shardingTemplate;

    public ShardingOrderRepository(ShardingJdbcTemplate shardingTemplate) {
        this.shardingTemplate = shardingTemplate;
    }

    /**
     * 插入订单(自动路由到对应分片)
     */
    public void insertOrder(Order order) {
        int shardId = OrderShardingUtil.getShardIdByOrderId(order.getOrderId());
        String sql = "INSERT INTO orders(order_id, user_id, amount, create_time) VALUES(?, ?, ?, ?)";

        shardingTemplate.updateByShardKey(
            shardId,
            sql,
            order.getOrderId(),
            order.getUserId(),
            order.getAmount(),
            order.getCreateTime()
        );

        System.out.printf("订单 %d 被路由到分片 %d 存储%n", order.getOrderId(), shardId);
    }

    /**
     * 查询订单(自动路由到对应分片)
     */
    public Order findOrderById(long orderId) {
        int shardId = OrderShardingUtil.getShardIdByOrderId(orderId);
        String sql = "SELECT * FROM orders WHERE order_id = ?";

        return shardingTemplate.queryByShardKey(
            shardId,
            sql,
            ps -> ps.setLong(1, orderId),
            rs -> {
                if (rs.next()) {
                    Order order = new Order();
                    order.setOrderId(rs.getLong("order_id"));
                    order.setUserId(rs.getLong("user_id"));
                    order.setAmount(rs.getBigDecimal("amount"));
                    order.setCreateTime(rs.getTimestamp("create_time"));
                    return order;
                }
                return null;
            }
        );
    }

    /**
     * 查询用户的所有订单(需要查询所有分片)
     */
    public List<Order> findOrdersByUserId(long userId) {
        List<Order> allOrders = new ArrayList<>();

        // 并行查询所有分片
        IntStream.range(0, shardingTemplate.getShardCount()).parallel().forEach(shardId -> {
            String sql = "SELECT * FROM orders WHERE user_id = ?";

            List<Order> shardOrders = shardingTemplate.queryByShardKey(
                shardId,
                sql,
                ps -> ps.setLong(1, userId),
                rs -> {
                    List<Order> orders = new ArrayList<>();
                    while (rs.next()) {
                        Order order = new Order();
                        order.setOrderId(rs.getLong("order_id"));
                        order.setUserId(rs.getLong("user_id"));
                        order.setAmount(rs.getBigDecimal("amount"));
                        order.setCreateTime(rs.getTimestamp("create_time"));
                        orders.add(order);
                    }
                    return orders;
                }
            );

            synchronized (allOrders) {
                allOrders.addAll(shardOrders);
            }
        });

        return allOrders;
    }
}

1.5. 实际使用

public class OrderService {

    private final ShardingOrderRepository orderRepo;

    // 模拟生成订单ID(实际项目中使用分布式ID生成器)
    private final AtomicLong idGenerator = new AtomicLong(10000);

    public OrderService(ShardingOrderRepository orderRepo) {
        this.orderRepo = orderRepo;
    }

    public void processOrders() {
        // 创建10个测试订单
        for (int i = 0; i < 10; i++) {
            Order order = new Order();
            order.setOrderId(idGenerator.incrementAndGet()); // 生成订单ID
            order.setUserId(ThreadLocalRandom.current().nextLong(1000));
            order.setAmount(new BigDecimal("99.99"));
            order.setCreateTime(new Timestamp(System.currentTimeMillis()));

            orderRepo.insertOrder(order);
        }

        // 查询特定订单
        long sampleOrderId = 10003L;
        Order foundOrder = orderRepo.findOrderById(sampleOrderId);
        System.out.println("查询到的订单: " + foundOrder);

        // 查询用户的所有订单
        long sampleUserId = 123L;
        List<Order> userOrders = orderRepo.findOrdersByUserId(sampleUserId);
        System.out.println("用户" + sampleUserId + "的所有订单: " + userOrders.size());
    }
}

2. 数据库方言抽象层(多数据库方言支持)

/**
 * 支持多数据库方言的JdbcTemplate扩展
 * 主要解决不同数据库SQL语法差异问题，特别是分页查询语法
 */
public class DialectAwareJdbcTemplate extends JdbcTemplate {

    private final DatabaseDialect dialect;

    /**
     * 构造函数
     * @param dataSource 数据源
     * @param dialect 数据库方言实现
     */
    public DialectAwareJdbcTemplate(DataSource dataSource, DatabaseDialect dialect) {
        super(dataSource);
        this.dialect = dialect;
    }

    /**
     * 获取当前数据库的分页子句
     * @param limit 每页记录数
     * @param offset 偏移量(从0开始)
     * @return 数据库特定的分页子句
     */
    public String getLimitClause(int limit, int offset) {
        return dialect.getLimitClause(limit, offset);
    }

    /**
     * 执行分页查询
     * @param sql 基础SQL语句(不包含分页部分)
     * @param args 查询参数
     * @param rowMapper 行映射器
     * @param page 页码(从1开始)
     * @param size 每页大小
     * @return 当前页的数据列表
     */
    public <T> List<T> queryWithPagination(String sql,
            Object[] args, RowMapper<T> rowMapper, int page, int size) {
        // 计算实际偏移量
        int offset = (page - 1) * size;
        // 构建带分页的完整SQL
        String paginatedSql = sql + " " + getLimitClause(size, offset);
        return super.query(paginatedSql, args, rowMapper);
    }
}

/**
 * 数据库方言接口
 * 定义不同数据库需要实现的特定语法
 */
public interface DatabaseDialect {

    /**
     * 生成分页限制子句
     * @param limit 要返回的记录数
     * @param offset 跳过的记录数
     * @return 数据库特定的分页语法
     */
    String getLimitClause(int limit, int offset);

    /**
     * 获取当前方言名称
     * @return 方言名称(如MySQL、Oracle等)
     */
    String getDialectName();
}

// ====================== 具体数据库方言实现 ======================

/**
 * MySQL数据库方言实现
 * MySQL使用 LIMIT offset, limit 语法
 */
public class MySQLDialect implements DatabaseDialect {

    @Override
    public String getLimitClause(int limit, int offset) {
        return "LIMIT " + offset + "," + limit;
    }

    @Override
    public String getDialectName() {
        return "MySQL";
    }
}

/**
 * Oracle 12c及以上版本数据库方言实现
 * Oracle 12c+ 使用 OFFSET-FETCH 语法
 */
public class OracleDialect implements DatabaseDialect {

    @Override
    public String getLimitClause(int limit, int offset) {
        return "OFFSET " + offset + " ROWS FETCH NEXT " + limit + " ROWS ONLY";
    }

    @Override
    public String getDialectName() {
        return "Oracle";
    }
}

/**
 * PostgreSQL数据库方言实现
 * PostgreSQL使用 LIMIT-OFFSET 语法
 */
public class PostgreSQLDialect implements DatabaseDialect {

    @Override
    public String getLimitClause(int limit, int offset) {
        return "LIMIT " + limit + " OFFSET " + offset;
    }

    @Override
    public String getDialectName() {
        return "PostgreSQL";
    }
}

/**
 * SQL Server数据库方言实现
 * SQL Server 2012+ 使用 OFFSET-FETCH 语法
 */
public class SQLServerDialect implements DatabaseDialect {

    @Override
    public String getLimitClause(int limit, int offset) {
        return "OFFSET " + offset + " ROWS FETCH NEXT " + limit + " ROWS ONLY";
    }

    @Override
    public String getDialectName() {
        return "SQLServer";
    }
}

1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
17.
18.
19.
20.
21.
22.
23.
24.
25.
26.
27.
28.
29.
30.
31.
32.
33.
34.
35.
36.
37.
38.
39.
40.
41.
42.
43.
44.
45.
46.
47.
48.
49.
50.
51.
52.
53.
54.
55.
56.
57.
58.
59.
60.
61.
62.
63.
64.
65.
66.
67.
68.
69.
70.
71.
72.
73.
74.
75.
76.
77.
78.
79.
80.
81.
82.
83.
84.
85.
86.
87.
88.
89.
90.
91.
92.
93.
94.
95.
96.
97.
98.
99.
100.
101.
102.
103.
104.
105.
106.
107.
108.
109.
110.
111.
112.
113.
114.
115.
116.
117.
118.
119.
120.
121.
122.
123.
124.
125.
126.
127.
128.
129.
130.
131.
132.
133.
134.
135.
136.
137.

2.1 使用示例

// 1. 配置数据源和方言
DataSource mysqlDataSource = createMySQLDataSource();
DatabaseDialect dialect = new MySQLDialect();

// 2. 创建方言感知的JdbcTemplate
DialectAwareJdbcTemplate jdbcTemplate =
    new DialectAwareJdbcTemplate(mysqlDataSource, dialect);

// 3. 执行分页查询(第2页，每页10条)
List<User> users = jdbcTemplate.queryWithPagination(
    "SELECT * FROM users ORDER BY create_time DESC",
    new Object[]{},
    new BeanPropertyRowMapper<>(User.class),
    2,  // 页码
    10  // 每页大小
);

// 生成的SQL将是：
// SELECT * FROM users ORDER BY create_time DESC LIMIT 10,10

3. 多数据源操作

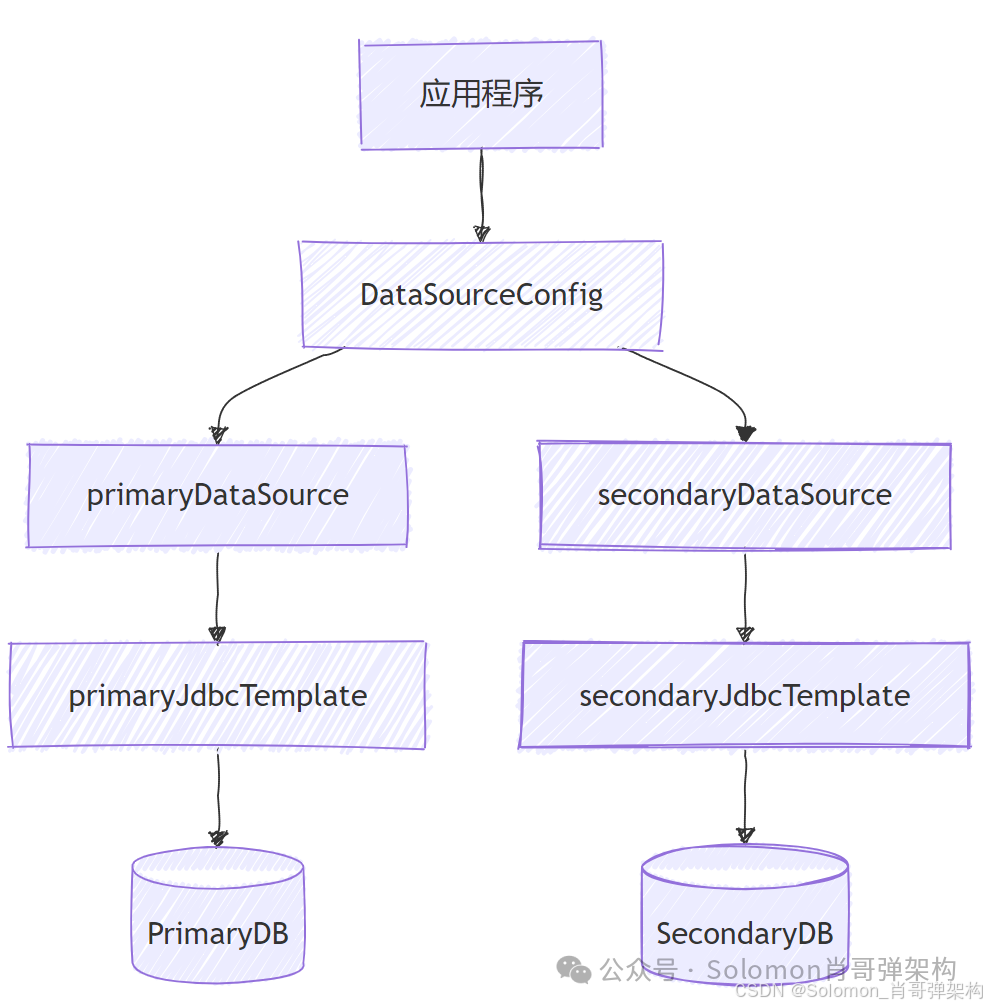

3.1. 数据源配置类

Spring JDBCTemplate 实战大全：从 CRUD 到高级技巧，一篇搞定！(应用篇二)_Spring JDBCTemplate_04

首先创建数据源配置类，配置多个数据源和对应的JdbcTemplate：

@Configuration
public class DataSourceConfig {

    // 主数据源配置
    @Bean(name = "primaryDataSource")
    @ConfigurationProperties(prefix = "spring.datasource.primary")
    @Primary // 标记为主数据源
    public DataSource primaryDataSource() {
        return DataSourceBuilder.create().build();
    }

    // 从数据源配置
    @Bean(name = "secondaryDataSource")
    @ConfigurationProperties(prefix = "spring.datasource.secondary")
    public DataSource secondaryDataSource() {
        return DataSourceBuilder.create().build();
    }

    // 主数据源JdbcTemplate
    @Bean(name = "primaryJdbcTemplate")
    public JdbcTemplate primaryJdbcTemplate(
            @Qualifier("primaryDataSource") DataSource dataSource) {
        return new JdbcTemplate(dataSource);
    }

    // 从数据源JdbcTemplate
    @Bean(name = "secondaryJdbcTemplate")
    public JdbcTemplate secondaryJdbcTemplate(
            @Qualifier("secondaryDataSource") DataSource dataSource) {
        return new JdbcTemplate(dataSource);
    }
}

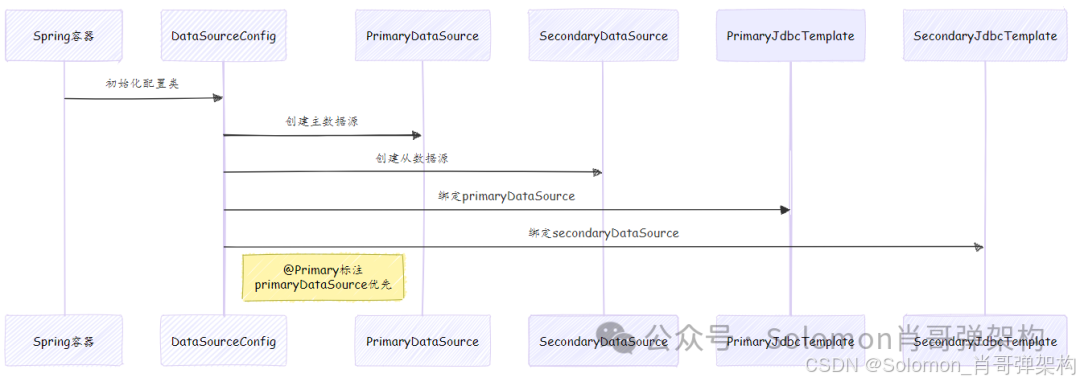

配置加载序列图：

Spring JDBCTemplate 实战大全：从 CRUD 到高级技巧，一篇搞定！(应用篇二)_Spring JDBCTemplate_05

3.2. application.yml配置

spring:
  datasource:
    primary:
      jdbc-url: jdbc:mysql://primary-db-host:3306/primary_db
      username: primary_user
      password: primary_pass
      driver-class-name: com.mysql.cj.jdbc.Driver
      hikari:
        maximum-pool-size: 10
        connection-timeout: 30000

    secondary:
      jdbc-url: jdbc:mysql://secondary-db-host:3306/secondary_db
      username: secondary_user
      password: secondary_pass
      driver-class-name: com.mysql.cj.jdbc.Driver
      hikari:
        maximum-pool-size: 5
        connection-timeout: 30000

3.3. 数据同步服务实现

@Service
public class DataSyncService {

    private static final Logger logger = LoggerFactory.getLogger(DataSyncService.class);

    private final JdbcTemplate primaryJdbcTemplate;
    private final JdbcTemplate secondaryJdbcTemplate;

    @Autowired
    public DataSyncService(
            @Qualifier("primaryJdbcTemplate") JdbcTemplate primaryJdbcTemplate,
            @Qualifier("secondaryJdbcTemplate") JdbcTemplate secondaryJdbcTemplate) {
        this.primaryJdbcTemplate = primaryJdbcTemplate;
        this.secondaryJdbcTemplate = secondaryJdbcTemplate;
    }

    /**
     * 同步用户数据从secondary到primary
     */
    @Transactional(transactionManager = "primaryTransactionManager")
    public void syncUsers() {
        // 1. 从secondary数据源查询数据
        List<User> users = secondaryJdbcTemplate.query(
            "SELECT id, username, email, created_at FROM users",
            new BeanPropertyRowMapper<>(User.class));

        logger.info("从secondary数据库查询到{}条用户记录", users.size());

        // 2. 批量插入到primary数据源
        int[] results = primaryJdbcTemplate.batchUpdate(
            "INSERT INTO users(id, username, email, created_at) VALUES(?, ?, ?, ?) " +
            "ON DUPLICATE KEY UPDATE username=VALUES(username), email=VALUES(email)",
            users.stream()
                .map(user -> new Object[]{
                    user.getId(),
                    user.getUsername(),
                    user.getEmail(),
                    user.getCreatedAt()
                })
                .collect(Collectors.toList()));

        int totalAffected = Arrays.stream(results).sum();
        logger.info("成功同步{}条用户记录到primary数据库", totalAffected);
    }

    /**
     * 双向同步确保数据一致性
     */
    @Transactional
    public void bidirectionalSync() {
        syncFromPrimaryToSecondary();
        syncFromSecondaryToPrimary();
    }

    /**
     * 从primary同步到secondary
     */
    private void syncFromPrimaryToSecondary() {
        // 实现类似的同步逻辑
    }

    // 用户实体类
    public static class User {
        private Long id;
        private String username;
        private String email;
        private Date createdAt;

        // getters and setters
    }
}

3.4. 事务管理配置

对于多数据源，需要单独配置每个数据源的事务管理器：
Spring的事务管理是基于PlatformTransactionManager接口实现的，每个事务管理器通常绑定到一个特定的数据源：

public interface PlatformTransactionManager {
    TransactionStatus getTransaction(@Nullable TransactionDefinition definition)
        throws TransactionException;

    void commit(TransactionStatus status) throws TransactionException;

    void rollback(TransactionStatus status) throws TransactionException;
}

不能共享事务管理器的原因:

事务资源绑定
- 每个事务管理器内部会维护自己的事务资源(通常是数据库连接)：
  - 事务资源与特定数据源绑定
  - 无法跨数据源共享同一连接
  - 不同数据库可能有不同的事务特性

@Configuration
@EnableTransactionManagement
public class TransactionConfig {

    @Bean(name = "primaryTransactionManager")
    @Primary
    public PlatformTransactionManager primaryTransactionManager(
            @Qualifier("primaryDataSource") DataSource dataSource) {
        return new DataSourceTransactionManager(dataSource);
    }

    @Bean(name = "secondaryTransactionManager")
    public PlatformTransactionManager secondaryTransactionManager(
            @Qualifier("secondaryDataSource") DataSource dataSource) {
        return new DataSourceTransactionManager(dataSource);
    }
}

3.5. 使用示例

@SpringBootApplication
public class MultiDataSourceApplication implements CommandLineRunner {

    @Autowired
    private DataSyncService dataSyncService;

    public static void main(String[] args) {
        SpringApplication.run(MultiDataSourceApplication.class, args);
    }

    @Override
    public void run(String... args) throws Exception {
        // 执行数据同步
        dataSyncService.syncUsers();

        // 更复杂的多数据源操作示例
        complexMultiDataSourceOperation();
    }

    private void complexMultiDataSourceOperation() {
        // 1. 从数据源A查询
        List<DataSyncService.User> sourceUsers = dataSyncService.secondaryJdbcTemplate.query(
            "SELECT * FROM users WHERE updated_at > ?",
            new BeanPropertyRowMapper<>(DataSyncService.User.class),
            Timestamp.valueOf(LocalDateTime.now().minusDays(1)));

        // 2. 转换数据
        List<Object[]> batchArgs = sourceUsers.stream()
            .map(user -> new Object[]{
                user.getId(),
                user.getUsername(),
                user.getEmail()
            })
            .collect(Collectors.toList());

        // 3. 批量插入到数据源B
        dataSyncService.primaryJdbcTemplate.batchUpdate(
            "INSERT INTO users(id, username, email) VALUES(?, ?, ?) " +
            "ON DUPLICATE KEY UPDATE username=VALUES(username), email=VALUES(email)",
            batchArgs);

        // 4. 记录同步日志到两个数据库
        String syncLog = "用户数据同步完成，共同步 " + sourceUsers.size() + " 条记录";
        dataSyncService.primaryJdbcTemplate.update(
            "INSERT INTO sync_logs(message) VALUES(?)", syncLog);
        dataSyncService.secondaryJdbcTemplate.update(
            "INSERT INTO sync_logs(message) VALUES(?)", syncLog);
    }
}

七、监控\性能\追踪\审计\事务

1. 监控和性能统计

Spring JDBCTemplate 实战大全：从 CRUD 到高级技巧，一篇搞定！(应用篇二)_Spring JDBCTemplate_06

1.1. 监控配置类

@Configuration
@Slf4j
public class JdbcMonitoringConfig {

    // 监控统计指标
    private final Counter sqlCounter = Metrics.counter("jdbc.sql.count");
    private final Timer sqlTimer = Metrics.timer("jdbc.sql.time");
    private final DistributionSummary sqlSizeSummary = Metrics.summary("jdbc.sql.size");

    // 慢查询阈值(毫秒)
    @Value("${jdbc.slow-query.threshold:500}")
    private long slowQueryThreshold;

    @Bean
    public JdbcTemplate monitoredJdbcTemplate(DataSource dataSource) {
        JdbcTemplate jdbcTemplate = new JdbcTemplate(dataSource);

        // 基本配置
        jdbcTemplate.setFetchSize(100);
        jdbcTemplate.setQueryTimeout(30);
        jdbcTemplate.setMaxRows(10000);

        // 设置监控拦截器
        jdbcTemplate.setStatementInspector(sql -> {
            // 记录原始SQL用于调试
            log.debug("Preparing SQL: {}", abbreviateSql(sql));
            return sql;
        });

        // 添加执行监听器
        jdbcTemplate.setMethodListener(new JdbcTemplate.MethodListener() {
            @Override
            public void methodCalled(String methodName, String sql, Object[] args, long startTime, long endTime, Throwable ex) {
                long duration = endTime - startTime;

                // 指标统计
                sqlCounter.increment();
                sqlTimer.record(duration, TimeUnit.MILLISECONDS);
                if (sql != null) {
                    sqlSizeSummary.record(sql.length());
                }

                // 慢查询日志
                if (duration > slowQueryThreshold) {
                    log.warn("Slow SQL detected - Execution time: {}ms\nSQL: {}\nParameters: {}",
                            duration, abbreviateSql(sql), formatArgs(args));
                }

                // 普通日志
                if (log.isDebugEnabled()) {
                    log.debug("Executed SQL [{}ms]: {} - Parameters: {}",
                            duration, abbreviateSql(sql), formatArgs(args));
                }

                // 错误日志
                if (ex != null) {
                    log.error("SQL execution failed: " + sql, ex);
                }
            }
        });

        return jdbcTemplate;
    }

    private String abbreviateSql(String sql) {
        if (sql == null) return null;
        return sql.length() > 200 ? sql.substring(0, 200) + "..." : sql;
    }

    private String formatArgs(Object[] args) {
        if (args == null || args.length == 0) return "[]";
        return Arrays.stream(args)
                .map(arg -> arg != null ? arg.toString() : "NULL")
                .collect(Collectors.joining(", ", "[", "]"));
    }
}

1.2. 监控指标暴露端点

@RestController
@RequiredArgsConstructor
public class JdbcMetricsEndpoint {

    private final MeterRegistry meterRegistry;

    @GetMapping("/metrics/jdbc")
    public Map<String, Object> getJdbcMetrics() {
        Map<String, Object> metrics = new LinkedHashMap<>();

        // SQL执行次数
        metrics.put("sqlCount", meterRegistry.counter("jdbc.sql.count").count());

        // SQL执行时间百分位
        Timer timer = meterRegistry.timer("jdbc.sql.time");
        metrics.put("sqlTimeAvg", timer.mean(TimeUnit.MILLISECONDS));
        metrics.put("sqlTimeMax", timer.max(TimeUnit.MILLISECONDS));
        metrics.put("sqlTimeP95", timer.percentile(0.95, TimeUnit.MILLISECONDS));

        // SQL语句长度
        DistributionSummary sizeSummary = meterRegistry.summary("jdbc.sql.size");
        metrics.put("sqlSizeAvg", sizeSummary.mean());
        metrics.put("sqlSizeMax", sizeSummary.max());

        return metrics;
    }
}

1.3. 慢查询告警服务

@Service
@Slf4j
public class SlowQueryAlertService {

    @Value("${jdbc.slow-query.threshold:500}")
    private long slowQueryThreshold;

    @Value("${jdbc.slow-query.notification.enabled:false}")
    private boolean notificationEnabled;

    private final List<String> slowQueryCache = new ArrayList<>();
    private final AtomicLong slowQueryCount = new AtomicLong();

    @Scheduled(fixedDelay = 60000) // 每分钟检查一次
    public void checkSlowQueries() {
        if (slowQueryCount.get() > 0) {
            String message = String.format("Detected %d slow queries in last minute (threshold: %dms)",
                    slowQueryCount.get(), slowQueryThreshold);

            log.warn(message);
            if (notificationEnabled) {
                sendAlertNotification(message);
            }

            slowQueryCount.set(0);
            slowQueryCache.clear();
        }
    }

    public void recordSlowQuery(String sql, long duration) {
        slowQueryCount.incrementAndGet();
        if (slowQueryCache.size() < 10) { // 最多缓存10条慢查询
            slowQueryCache.add(String.format("[%dms] %s", duration, sql));
        }
    }

    private void sendAlertNotification(String message) {
        // 实现邮件、短信等告警通知
    }

    public List<String> getRecentSlowQueries() {
        return new ArrayList<>(slowQueryCache);
    }
}

1.4. 性能优化建议配置

@Configuration
public class JdbcPerformanceConfig {

    @Bean
    public DataSource dataSource(
            @Value("${spring.datasource.url}") String url,
            @Value("${spring.datasource.username}") String username,
            @Value("${spring.datasource.password}") String password) {

        HikariConfig config = new HikariConfig();
        config.setJdbcUrl(url);
        config.setUsername(username);
        config.setPassword(password);

        // 性能优化配置
        config.setMaximumPoolSize(20);
        config.setMinimumIdle(5);
        config.setConnectionTimeout(30000);
        config.setIdleTimeout(600000);
        config.setMaxLifetime(1800000);
        config.setLeakDetectionThreshold(30000);

        // 监控相关配置
        config.setMetricRegistry(Metrics.globalRegistry);
        config.setHealthCheckRegistry(new HealthCheckRegistry());

        return new HikariDataSource(config);
    }
}

监控流程序列图：

Spring JDBCTemplate 实战大全：从 CRUD 到高级技巧，一篇搞定！(应用篇二)_Spring JDBCTemplate_07

2. 数据库操作性能全链路性能追踪

Spring JDBCTemplate 实战大全：从 CRUD 到高级技巧，一篇搞定！(应用篇二)_Spring JDBCTemplate_08

2.1. 追踪实现类

/**
 * 支持分布式追踪的JdbcTemplate扩展
 * 集成OpenTracing/OpenTelemetry实现全链路SQL监控
 */
public class TracingJdbcTemplate extends JdbcTemplate {
    private static final String DB_TYPE = "jdbc";
    private final Tracer tracer;
    private final boolean captureParameters;
    private final int maxQueryLength;

    /**
     * @param dataSource 数据源
     * @param tracer 分布式追踪器(OpenTracing/OpenTelemetry)
     * @param captureParameters 是否捕获SQL参数
     * @param maxQueryLength 记录SQL的最大长度
     */
    public TracingJdbcTemplate(DataSource dataSource,
                             Tracer tracer,
                             boolean captureParameters,
                             int maxQueryLength) {
        super(dataSource);
        this.tracer = tracer;
        this.captureParameters = captureParameters;
        this.maxQueryLength = maxQueryLength;

        // 性能优化配置
        this.setFetchSize(100);
        this.setQueryTimeout(30);
    }

    @Override
    public <T> T execute(PreparedStatementCreator psc, PreparedStatementCallback<T> action) {
        // 1. 创建Span
        Span span = buildSpan(psc);

        try (Scope scope = tracer.activateSpan(span)) {
            // 2. 记录开始时间
            long startTime = System.currentTimeMillis();

            // 3. 执行数据库操作
            T result = super.execute(psc, action);

            // 4. 记录成功指标
            recordSuccess(span, startTime);

            return result;
        } catch (Exception e) {
            // 5. 记录失败信息
            recordError(span, e);
            throw e;
        } finally {
            // 6. 结束Span
            span.finish();
        }
    }

    private Span buildSpan(PreparedStatementCreator psc) {
        Span span = tracer.buildSpan("jdbc.execute")
            .withTag(Tags.SPAN_KIND.getKey(), Tags.SPAN_KIND_CLIENT)
            .withTag(Tags.DB_TYPE.getKey(), DB_TYPE)
            .start();

        // 记录SQL语句
        if (psc instanceof ParameterizedPreparedStatementCreator) {
            String sql = ((ParameterizedPreparedStatementCreator) psc).getSql();
            span.setTag(Tags.DB_STATEMENT.getKey(),
                abbreviate(sql, maxQueryLength));
        }

        // 记录数据源信息
        if (getDataSource() != null) {
            try {
                span.setTag("db.url", abbreviate(getDataSource().getConnection().getMetaData().getURL(), 200));
            } catch (SQLException ignored) {
                // 忽略获取元数据失败
            }
        }

        return span;
    }

    private void recordSuccess(Span span, long startTime) {
        long duration = System.currentTimeMillis() - startTime;

        // 记录执行时间
        span.setTag("duration.ms", duration);

        // 记录为成功状态
        Tags.HTTP_STATUS.set(span, 200);

        // 记录自定义指标
        span.log(ImmutableMap.of(
            "event", "query_completed",
            "status", "success",
            "duration", duration
        ));
    }

    private void recordError(Span span, Exception e) {
        // 标记为错误状态
        Tags.ERROR.set(span, true);

        // 记录异常详情
        span.log(ImmutableMap.of(
            "event", "error",
            "error.object", e.getClass().getName(),
            "message", e.getMessage(),
            "stack", ExceptionUtils.getStackTrace(e)
        ));

        // 特殊处理SQL异常
        if (e instanceof SQLException) {
            SQLException sqlEx = (SQLException) e;
            span.setTag("db.error_code", sqlEx.getErrorCode());
            span.setTag("db.sql_state", sqlEx.getSQLState());
        }
    }

    @Override
    public <T> T query(String sql, ResultSetExtractor<T> rse, Object... args) {
        Span span = buildSpan(sql, args);

        try (Scope scope = tracer.activateSpan(span)) {
            T result = super.query(sql, rse, args);
            recordSuccess(span, System.currentTimeMillis());
            return result;
        } catch (Exception e) {
            recordError(span, e);
            throw e;
        } finally {
            span.finish();
        }
    }

    private Span buildSpan(String sql, Object[] args) {
        Span span = tracer.buildSpan("jdbc.query")
            .withTag(Tags.SPAN_KIND.getKey(), Tags.SPAN_KIND_CLIENT)
            .withTag(Tags.DB_TYPE.getKey(), DB_TYPE)
            .start();

        // 记录SQL和参数
        span.setTag(Tags.DB_STATEMENT.getKey(), abbreviate(sql, maxQueryLength));

        if (captureParameters && args != null && args.length > 0) {
            span.setTag("db.parameters", formatParameters(args));
        }

        return span;
    }

    private String abbreviate(String str, int maxLength) {
        if (str == null) return null;
        return str.length() > maxLength ? str.substring(0, maxLength) + "..." : str;
    }

    private String formatParameters(Object[] args) {
        return Arrays.stream(args)
            .map(arg -> {
                if (arg == null) return "NULL";
                String str = arg.toString();
                return str.length() > 100 ? str.substring(0, 100) + "..." : str;
            })
            .collect(Collectors.joining(", ", "[", "]"));
    }
}

1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
17.
18.
19.
20.
21.
22.
23.
24.
25.
26.
27.
28.
29.
30.
31.
32.
33.
34.
35.
36.
37.
38.
39.
40.
41.
42.
43.
44.
45.
46.
47.
48.
49.
50.
51.
52.
53.
54.
55.
56.
57.
58.
59.
60.
61.
62.
63.
64.
65.
66.
67.
68.
69.
70.
71.
72.
73.
74.
75.
76.
77.
78.
79.
80.
81.
82.
83.
84.
85.
86.
87.
88.
89.
90.
91.
92.
93.
94.
95.
96.
97.
98.
99.
100.
101.
102.
103.
104.
105.
106.
107.
108.
109.
110.
111.
112.
113.
114.
115.
116.
117.
118.
119.
120.
121.
122.
123.
124.
125.
126.
127.
128.
129.
130.
131.
132.
133.
134.
135.
136.
137.
138.
139.
140.
141.
142.
143.
144.
145.
146.
147.
148.
149.
150.
151.
152.
153.
154.
155.
156.
157.
158.
159.
160.
161.
162.
163.
164.
165.

2.2. 配置类

@Configuration
public class TracingJdbcConfig {

    @Bean
    public JdbcTemplate jdbcTemplate(
            DataSource dataSource,
            Tracer tracer,
            @Value("${jdbc.tracing.capture-parameters:false}") boolean captureParameters,
            @Value("${jdbc.tracing.max-query-length:500}") int maxQueryLength) {

        return new TracingJdbcTemplate(
            dataSource,
            tracer,
            captureParameters,
            maxQueryLength
        );
    }

    @Bean
    public Tracer tracer() {
        // 实际项目中应配置真实的Tracer实现
        // 例如使用Jaeger或Zipkin的Tracer
        return new NoopTracerFactory().create();
    }
}

2.3. 应用配置

application.yml配置示例：

jdbc:
  tracing:
    enabled: true
    capture-parameters: false  # 是否捕获参数(注意隐私和安全)
    max-query-length: 500      # 记录SQL的最大长度

tracing:
  exporter:
    jaeger:
      enabled: true
      endpoint: http://jaeger-collector:14268/api/traces

追踪流程序列图：

Spring JDBCTemplate 实战大全：从 CRUD 到高级技巧，一篇搞定！(应用篇二)_Spring JDBCTemplate_09

4. SQL 执行拦截器(SQL 审计日志)

public class AuditingJdbcTemplate extends JdbcTemplate {
    private final List<JdbcExecutionListener> listeners = new ArrayList<>();

    public void addListener(JdbcExecutionListener listener) {
        listeners.add(listener);
    }

    @Override
    public <T> T execute(PreparedStatementCreator psc, PreparedStatementCallback<T> action) {
        long startTime = System.currentTimeMillis();
        String sql = null;

        try {
            if (psc instanceof ParameterizedPreparedStatementCreator) {
                sql = ((ParameterizedPreparedStatementCreator) psc).getSql();
            }

            T result = super.execute(psc, action);

            long duration = System.currentTimeMillis() - startTime;
            notifySuccess(sql, duration);

            return result;
        } catch (DataAccessException ex) {
            long duration = System.currentTimeMillis() - startTime;
            notifyFailure(sql, ex, duration);
            throw ex;
        }
    }

    private void notifySuccess(String sql, long duration) {
        for (JdbcExecutionListener listener : listeners) {
            listener.onSuccess(sql, duration);
        }
    }

    private void notifyFailure(String sql, DataAccessException ex, long duration) {
        for (JdbcExecutionListener listener : listeners) {
            listener.onFailure(sql, ex, duration);
        }
    }
}

public interface JdbcExecutionListener {
    void onSuccess(String sql, long durationMs);
    void onFailure(String sql, DataAccessException ex, long durationMs);
}

5. 事务操作

与 Spring 事务集成

@Transactional
public void transferMoney(Long fromId, Long toId, BigDecimal amount) {
    jdbcTemplate.update("UPDATE accounts SET balance = balance - ? WHERE id = ?",
        amount, fromId);
    jdbcTemplate.update("UPDATE accounts SET balance = balance + ? WHERE id = ?",
        amount, toId);
}

6. 分布式事务支持(Seata)

@GlobalTransactional
public void distributedOperation() {
    // 操作本地数据库
    jdbcTemplate.update("UPDATE account SET balance = balance - 100 WHERE user_id = 1");

    // 通过 REST 调用远程服务
    restTemplate.postForEntity("http://inventory-service/deduct", ...);

    // 操作另一个数据库
    anotherJdbcTemplate.update("UPDATE inventory SET stock = stock - 1 WHERE product_id = 100");
}
