一、替换PhotoPicker中显示的图片/视频

应用可获得用户从Picker选择的图片、视频的访问权限，读取图片、视频后进行编辑、修改。完成编辑修改后的图片/视频缓存到应用沙箱后，可调用本API，将编辑结果文件发送给PhotoPicker，并指定替换显示的原图。Picker根据指定将接收的编辑结果文件替换原图片进行显示。

效果如图所示

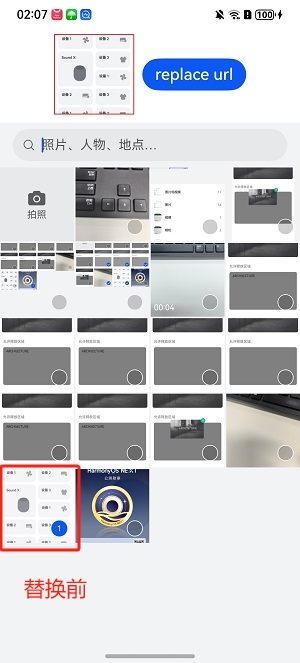

替换前

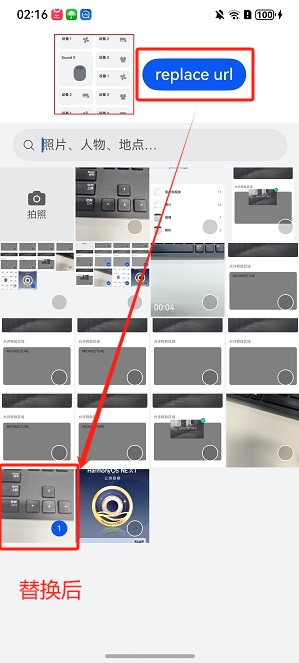

替换后

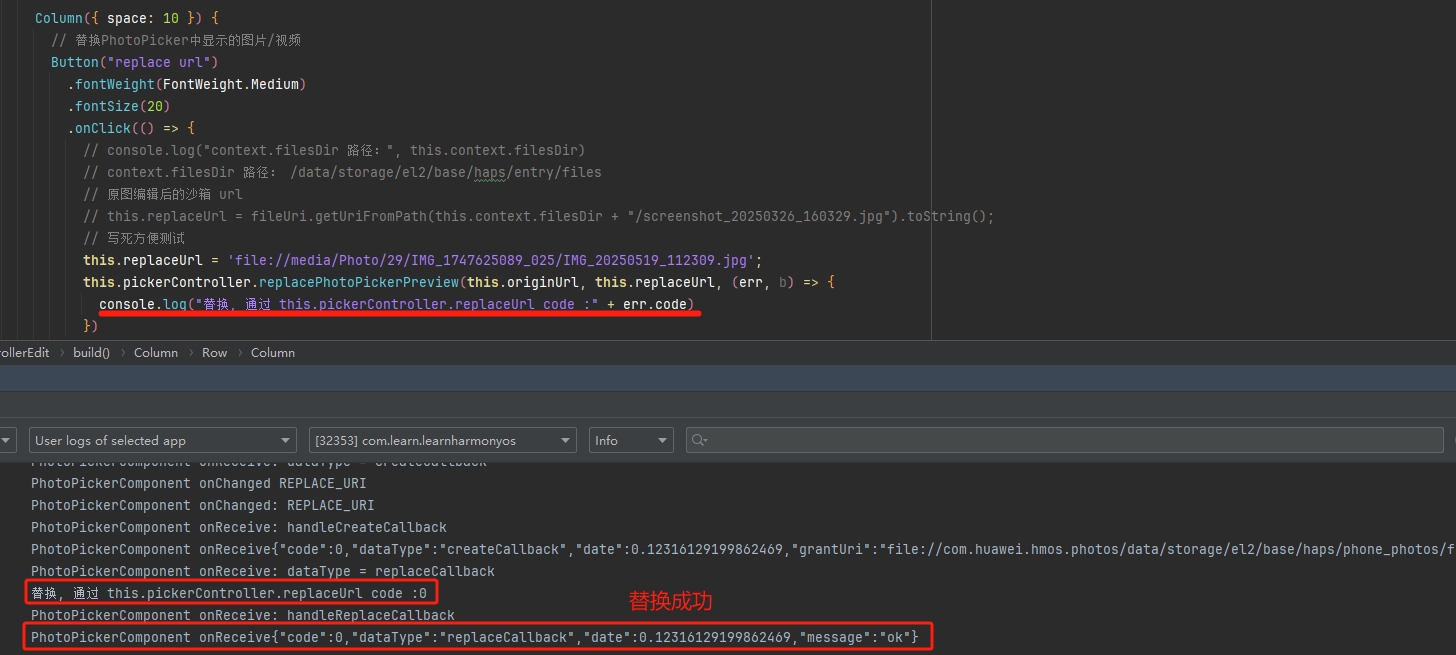

日志图

1.1 开发步骤

1.1.1 导入选择器模块和文件管理模块

import { PickerController } from '@ohos.file.PhotoPickerComponent';
import { fileUri } from '@kit.CoreFileKit';

1.1.2 创建参数列表

@State pickerController: PickerController = new PickerController();
@State originUrl: string = ''; // 原图URI
@State replaceUrl: string = ''; // 原图编辑后的沙箱URI

1.1.3 调用replacePhotoPickerPreview()替换图片/视频

replacePhotoPickerPreview
replacePhotoPickerPreview(originalUri: string, newUri: string, callback: AsyncCallback): void
应用可通过该接口，将photoPicker中用户勾选的图片替换为应用后期编辑修改后的图片。
元服务API：从API version 15开始，该接口支持在元服务中使用。
系统能力：SystemCapability.FileManagement.PhotoAccessHelper.Core

参数：

参数名	类型	必填	说明
originalUri	string	是	原uri，将会被替换掉的uri。
newUri	boolean	是	新uri，即替换后的uri。基于originalUri修改后期望在photoPicker上替换originalUri显示的，暂存在应用沙箱的图片/视频uri。
callback	AsyncCallback\	是	调用接口完成替换后的回调。

调用示例

this.pickerController.replacePhotoPickerPreview(this.originUrl, this.replaceUrl, (a, b) => {
  console.log("hello this.pickerController.replaceUrl code :" +  err.code)
})

1.2 完整示例

import {
  ClickType,
  ItemInfo,
  ItemType,
  PhotoPickerComponent,
  PickerController,
  PickerOptions,
  ReminderMode,
  SelectMode
} from '@ohos.file.PhotoPickerComponent';
import { fileUri } from '@kit.CoreFileKit';
import { common } from '@kit.AbilityKit';
import { photoAccessHelper } from '@kit.MediaLibraryKit';



@Entry
@Component
struct TestPickerControllerEdit {
  @State pickerController: PickerController = new PickerController();
  @State originUrl: string = '';// 原图
  @State replaceUrl: string = '';// 原图编辑后的沙箱 url
  // 组件初始化时设置参数信息
  pickerOptions: PickerOptions = new PickerOptions();
  // 组件初始化完成后，可控制组件部分行为

  // 已选择的图片
  @State selectUris: Array<string> = new Array<string>();
  //目前选择的图片
  @State currentUri: string = '';

  context: Context = this.getUIContext().getHostContext() as common.UIAbilityContext;


  // 资源被选中回调，返回资源的信息，以及选中方式
  private onItemClicked(itemInfo: ItemInfo, clickType: ClickType): boolean {
    if (!itemInfo) {
      return false;
    }
    let type: ItemType | undefined = itemInfo.itemType;
    let uri: string | undefined = itemInfo.uri;
    if (type === ItemType.CAMERA) {
      // 点击相机item
      return true; // 返回true则拉起系统相机，若应用需要自行处理则返回false。
    } else {
      if (clickType === ClickType.SELECTED) {
        // 应用做自己的业务处理
        if (uri) {
          this.originUrl = uri.toString()
          this.selectUris.push(uri);
          this.pickerOptions.preselectedUris = [...this.selectUris];
        }
        return true; // 返回true则勾选，否则则不响应勾选。
      } else {
        if (uri) {
          this.originUrl = ''
          this.selectUris = this.selectUris.filter((item: string) => {
            return item != uri;
          });
          this.pickerOptions.preselectedUris = [...this.selectUris];
        }
      }
      return true;
    }
  }

  aboutToDisappear(): void {
    // 设置picker宫格页数据类型
    this.pickerOptions.MIMEType = photoAccessHelper.PhotoViewMIMETypes.IMAGE_VIDEO_TYPE // 图片和照片都显示;
    // 最大选择数量
    this.pickerOptions.maxSelectNumber = 1;
    // 超出最大选择数量时
    this.pickerOptions.maxSelectedReminderMode = ReminderMode.TOAST;
    // 是否展示搜索框，默认false
    this.pickerOptions.isSearchSupported = true;
    // 是否支持拍照，默认false
    this.pickerOptions.isPhotoTakingSupported = true;

    // 选择模式, SINGLE_SELECT	0	单选模式; MULTI_SELECT	1	多选模式
    this.pickerOptions.selectMode = SelectMode.SINGLE_SELECT
  }

  build() {
    Column({ space: 10 }) {
      Row({ space: 10 }) {
        if (this.originUrl) {
          Image(this.originUrl)
            .height(100)
            .width(100)
            .onClick(() => {

            })
            .borderWidth(1)
            .borderColor('red')
        }
        Button("replace url")
          .fontWeight(FontWeight.Medium)
          .fontSize(20)
          .onClick(() => {
            // console.log("context.filesDir 路径：", this.context.filesDir)
            // context.filesDir 路径： /data/storage/el2/base/haps/entry/files
            // 原图编辑后的沙箱 url
            // this.replaceUrl = fileUri.getUriFromPath(this.context.filesDir + "/screenshot_20250326_160329.jpg").toString();
            // 写死方便测试
            this.replaceUrl = 'file://media/Photo/29/IMG_1747625089_025/IMG_20250519_112309.jpg';
            this.pickerController.replacePhotoPickerPreview(this.originUrl, this.replaceUrl, (err, b) => {
              console.log("替换, 通过 this.pickerController.replaceUrl code :" +  err.code)
            })
          })
      }.margin({ top: 10 })

      PhotoPickerComponent({
        pickerOptions: this.pickerOptions,
        onItemClicked: (itemInfo: ItemInfo, clickType: ClickType): boolean => this.onItemClicked(itemInfo, clickType),
        pickerController: this.pickerController,
      })
    }
    .width('100%')
    .height('100%')
  }
}

1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
17.
18.
19.
20.
21.
22.
23.
24.
25.
26.
27.
28.
29.
30.
31.
32.
33.
34.
35.
36.
37.
38.
39.
40.
41.
42.
43.
44.
45.
46.
47.
48.
49.
50.
51.
52.
53.
54.
55.
56.
57.
58.
59.
60.
61.
62.
63.
64.
65.
66.
67.
68.
69.
70.
71.
72.
73.
74.
75.
76.
77.
78.
79.
80.
81.
82.
83.
84.
85.
86.
87.
88.
89.
90.
91.
92.
93.
94.
95.
96.
97.
98.
99.
100.
101.
102.
103.
104.
105.
106.
107.
108.
109.
110.
111.
112.
113.
114.
115.
116.
117.
118.
119.
120.
121.

二、将Picker上替换显示的图片/视频保存到图库

应用指定保存的文件，需在替换显示的范围内。应用调用API后，PhotoPicker将在Picker上成功替换显示的图片、视频保存到图库。确保保存的内容与替换显示的图片、视频一致。

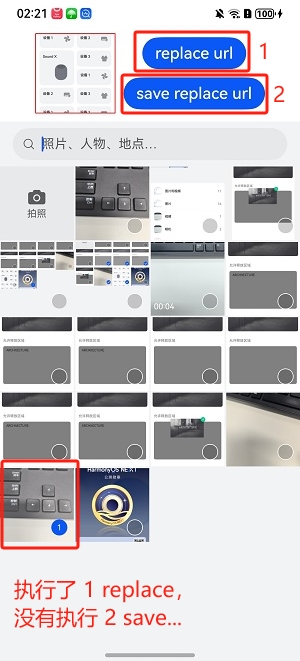

效果如图所示保存前

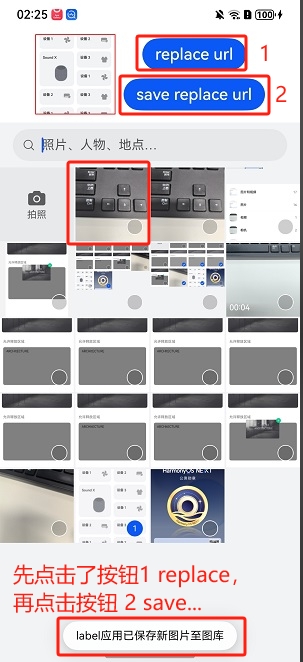

保存后

日志图

2.1 开发步骤

2.1.1 导入选择器模块和文件管理模块

import photoAccessHelper from '@ohos.file.photoAccessHelper';
import { PickerController, PickerOptions, SaveMode } from '@ohos.file.PhotoPickerComponent';
import { fileUri } from '@kit.CoreFileKit';

2.1.2 创建参数列表

@State pickerController: PickerController = new PickerController();
@State originUrl: string = ''; // 原图URI
@State replaceUrl: string = ''; // 原图编辑后的沙箱URI

2.1.3 调用saveTrustedPhotoAssets()保存图片/视频到图库

this.pickerController.saveTrustedPhotoAssets(this.replaceUris, (a, b) => {
  console.log("hello this.pickerController.save as new code a.code:" + a.code + ",a.message:" + a.message + ",res:" + b)
}, photoCreationConfigs, SaveMode.SAVE_AS); // SaveMode: SAVE_AS = 0(另存为)，OVERWRITE = 1 (覆盖保存)

该接口使用依赖pickerController.replacePhotoPickerPreview，需要先执行pickerController.replacePhotoPickerPreview后才能执行pickerController.saveTrustedPhotoAssets。

2.2 完整示例

import {
  ClickType,
  ItemInfo,
  ItemType,
  PhotoPickerComponent,
  PickerController,
  PickerOptions,
  ReminderMode,
  SaveMode,
  SelectMode
} from '@ohos.file.PhotoPickerComponent';
import { fileUri } from '@kit.CoreFileKit';
import { common } from '@kit.AbilityKit';
import { photoAccessHelper } from '@kit.MediaLibraryKit';


@Entry
@Component
struct TestPickerControllerEdit {
  @State pickerController: PickerController = new PickerController();
  @State originUrl: string = ''; // 原图
  @State replaceUrl: string = ''; // 原图编辑后的沙箱 url
  // 组件初始化时设置参数信息
  pickerOptions: PickerOptions = new PickerOptions();
  // 组件初始化完成后，可控制组件部分行为

  // 已选择的图片
  @State selectUris: Array<string> = new Array<string>();
  //目前选择的图片
  @State currentUri: string = '';
  context: Context = this.getUIContext().getHostContext() as common.UIAbilityContext;

  // 资源被选中回调，返回资源的信息，以及选中方式
  private onItemClicked(itemInfo: ItemInfo, clickType: ClickType): boolean {
    if (!itemInfo) {
      return false;
    }
    let type: ItemType | undefined = itemInfo.itemType;
    let uri: string | undefined = itemInfo.uri;
    if (type === ItemType.CAMERA) {
      // 点击相机item
      return true; // 返回true则拉起系统相机，若应用需要自行处理则返回false。
    } else {
      if (clickType === ClickType.SELECTED) {
        // 应用做自己的业务处理
        if (uri) {
          this.originUrl = uri.toString()
          this.selectUris.push(uri);
          this.pickerOptions.preselectedUris = [...this.selectUris];
        }
        return true; // 返回true则勾选，否则则不响应勾选。
      } else {
        if (uri) {
          this.originUrl = ''
          this.selectUris = this.selectUris.filter((item: string) => {
            return item != uri;
          });
          this.pickerOptions.preselectedUris = [...this.selectUris];
        }
      }
      return true;
    }
  }

  aboutToDisappear(): void {
    // 设置picker宫格页数据类型
    this.pickerOptions.MIMEType = photoAccessHelper.PhotoViewMIMETypes.IMAGE_VIDEO_TYPE // 图片和照片都显示;
    // 最大选择数量
    this.pickerOptions.maxSelectNumber = 1;
    // 超出最大选择数量时
    this.pickerOptions.maxSelectedReminderMode = ReminderMode.TOAST;
    // 是否展示搜索框，默认false
    this.pickerOptions.isSearchSupported = true;
    // 是否支持拍照，默认false
    this.pickerOptions.isPhotoTakingSupported = true;

    // 选择模式, SINGLE_SELECT	0	单选模式; MULTI_SELECT	1	多选模式
    this.pickerOptions.selectMode = SelectMode.SINGLE_SELECT
  }

  build() {
    Column({ space: 10 }) {
      Row({ space: 10 }) {
        if (this.originUrl) {
          Image(this.originUrl)
            .height(100)
            .width(100)
            .onClick(() => {

            })
            .borderWidth(1)
            .borderColor('red')
        }

        Column({ space: 10 }) {
          // 替换PhotoPicker中显示的图片/视频
          Button("replace url")
            .fontWeight(FontWeight.Medium)
            .fontSize(20)
            .onClick(() => {
              // console.log("context.filesDir 路径：", this.context.filesDir)
              // context.filesDir 路径： /data/storage/el2/base/haps/entry/files
              // 原图编辑后的沙箱 url
              // this.replaceUrl = fileUri.getUriFromPath(this.context.filesDir + "/screenshot_20250326_160329.jpg").toString();
              // 写死方便测试
              this.replaceUrl = 'file://media/Photo/29/IMG_1747625089_025/IMG_20250519_112309.jpg';
              this.pickerController.replacePhotoPickerPreview(this.originUrl, this.replaceUrl, (err, b) => {
                console.log("替换, 通过 this.pickerController.replaceUrl code :" + err.code)
              })
            })

          Button("save replace url")
            .fontWeight(FontWeight.Medium)
            .fontSize(20)
            .onClick(() => {
              // console.log("context.filesDir 路径：", this.context.filesDir)
              // context.filesDir 路径： /data/storage/el2/base/haps/entry/files
              // 原图编辑后的沙箱 url
              // this.replaceUrl = fileUri.getUriFromPath(this.context.filesDir + "/screenshot_20250326_160329.jpg").toString();
              // 写死方便测试
              this.replaceUrl = 'file://media/Photo/29/IMG_1747625089_025/IMG_20250519_112309.jpg';
              let photoCreationConfig: photoAccessHelper.PhotoCreationConfig = {
                title: 'test',
                fileNameExtension: 'jpg',
                photoType: photoAccessHelper.PhotoType.IMAGE,
                subtype: photoAccessHelper.PhotoSubtype.DEFAULT,
              };
              this.pickerController.saveTrustedPhotoAssets([this.replaceUrl], (err, arr) => {
                console.log("执行了 saveTrustedPhotoAssets  this.pickerController.save code res:" + err.code);
              }, [photoCreationConfig], SaveMode.SAVE_AS);
            })
        }
      }.margin({ top: 10 })

      PhotoPickerComponent({
        pickerOptions: this.pickerOptions,
        onItemClicked: (itemInfo: ItemInfo, clickType: ClickType): boolean => this.onItemClicked(itemInfo, clickType),
        pickerController: this.pickerController,
      })
    }
    .width('100%')
    .height('100%')
  }
}
