SpringMVC源码浅析(SpringMVC执行流程)

关注

原创 2023-02-08 15:59:52 252 阅读 AI 写同款· GEO 优化 ›

SpringMVC DispatcherServlet执行流程及源码分析你要知道的SpringMVC DispatcherServlet执行流程及源码分析都在这里转载请注明出处 http://www.jianshu.com/p/0f981efdfbbd本系列文章主要根据源码讲解SpringMVC的启动过程，以及相关重要组件的源码分析。阅读此系列文章需要具备Spring以及SpringMVC相关知识。本文将分以下几篇文章进行讲解，读者可按需查阅。 SpringMVC 启动阅读详情

一. DispatchServlet源码结构

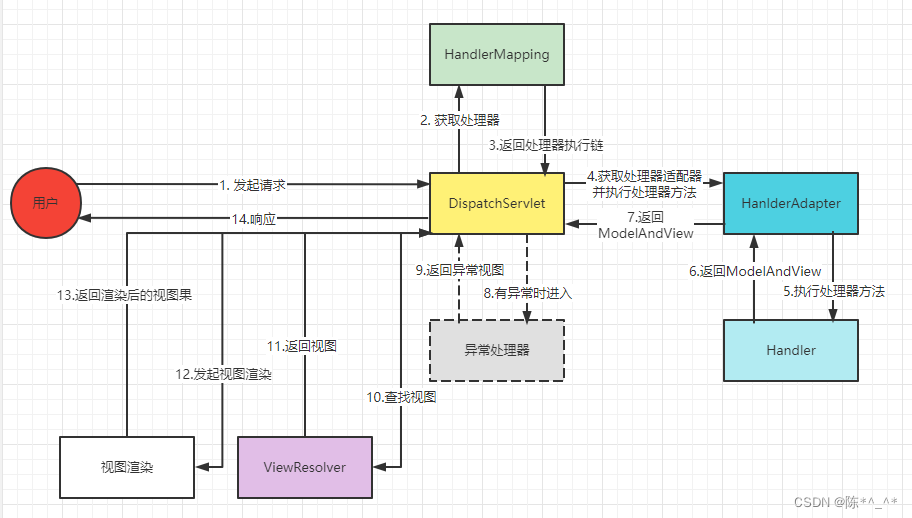

二. SpringMVC执行流程

三. 走入源码

1. DispatchServlet初始化

创建bean对象: 传统mvc项目通过xml添加DispatchServlet的bean, SpringBoot中通过DispatcherServletAutoConfiguration添加DispatchServlet的bean.

初始化: 项目没有设置loadOnStartup则待第一次到来时才开始初始化, 设置了loadOnStartup值则随容器启动时完成初始化. 初始化核心代码入口 onRefresh()

1.1 onRefresh()

	protected void onRefresh(ApplicationContext context) {
		initStrategies(context);
	}

	/**
	 * Initialize the strategy objects that this servlet uses.
	 * <p>May be overridden in subclasses in order to initialize further strategy objects.
	 */
	protected void initStrategies(ApplicationContext context) {
		initMultipartResolver(context);
		initLocaleResolver(context);
		initThemeResolver(context);
        // 初始化处理器映射器
		initHandlerMappings(context);
        // 处理华处理器适配器
		initHandlerAdapters(context);
        // 初始化异常处理器
		initHandlerExceptionResolvers(context);
		initRequestToViewNameTranslator(context);
        // 初始化视图解析器
		initViewResolvers(context);
		initFlashMapManager(context);
	}

其他处理器不是核心处理器, 不展开讲, 下面以初始化处理器适配器看下初始化做了什么, 其他处理器初始化大同小异

1.2 initHandlerMappings()

    private void initHandlerMappings(ApplicationContext context) {
		this.handlerMappings = null;
        // 是否查找出所有的处理器映射器, 默认值为true
		if (this.detectAllHandlerMappings) {
            // 递归查找出所有处理器映射器
			Map<String, HandlerMapping> matchingBeans =
					BeanFactoryUtils.beansOfTypeIncludingAncestors(context, HandlerMapping.class, true, false);
			if (!matchingBeans.isEmpty()) {
				this.handlerMappings = new ArrayList<>(matchingBeans.values());
				AnnotationAwareOrderComparator.sort(this.handlerMappings);
			}
		}else {
			try {
                // 获取指定beanName的处理器映射器
				HandlerMapping hm = context.getBean(HANDLER_MAPPING_BEAN_NAME, HandlerMapping.class);
				this.handlerMappings = Collections.singletonList(hm);
			}
			catch (NoSuchBeanDefinitionException ex) {}
		}
		if (this.handlerMappings == null) {
            // 获取默认值
			this.handlerMappings = getDefaultStrategies(context, HandlerMapping.class);
			if (logger.isTraceEnabled()) {
				logger.trace("No HandlerMappings declared for servlet '" + getServletName() +
						"': using default strategies from DispatcherServlet.properties");
			}
		}
        // 设置parseRequestPath的值
		for (HandlerMapping mapping : this.handlerMappings) {
			if (mapping.usesPathPatterns()) {
				this.parseRequestPath = true;
				break;
			}
		}
	}

这里通过getDefaultStrategies() 或 getDefaultStrategy() 方法获取多个或一个默认的处理器

1.2.1 getDefaultStrategies()

	protected <T> List<T> getDefaultStrategies(ApplicationContext context, Class<T> strategyInterface) {
		if (defaultStrategies == null) {
			try {
				ClassPathResource resource = new ClassPathResource(DEFAULT_STRATEGIES_PATH, DispatcherServlet.class);
                // 加载sping-webmvc下的 DispatcherServlet.properties文件
				defaultStrategies = PropertiesLoaderUtils.loadProperties(resource);
			}
			catch (IOException ex) {
				throw new IllegalStateException("Could not load '" + DEFAULT_STRATEGIES_PATH + "': " + ex.getMessage());
			}
		}

		String key = strategyInterface.getName();
		String value = defaultStrategies.getProperty(key);
		if (value != null) {
			String[] classNames = StringUtils.commaDelimitedListToStringArray(value);
			List<T> strategies = new ArrayList<>(classNames.length);
			for (String className : classNames) {
				try {
					Class<?> clazz = ClassUtils.forName(className, DispatcherServlet.class.getClassLoader());
                    // 创建出bean对象加到列表中返回
					Object strategy = createDefaultStrategy(context, clazz);
					strategies.add((T) strategy);
				}
				catch (ClassNotFoundException ex) {
					throw new BeanInitializationException(
							"Could not find DispatcherServlet's default strategy class [" + className +
							"] for interface [" + key + "]", ex);
				}
				catch (LinkageError err) {
					throw new BeanInitializationException(
							"Unresolvable class definition for DispatcherServlet's default strategy class [" +
							className + "] for interface [" + key + "]", err);
				}
			}
			return strategies;
		}
		else {
			return Collections.emptyList();
		}
	}

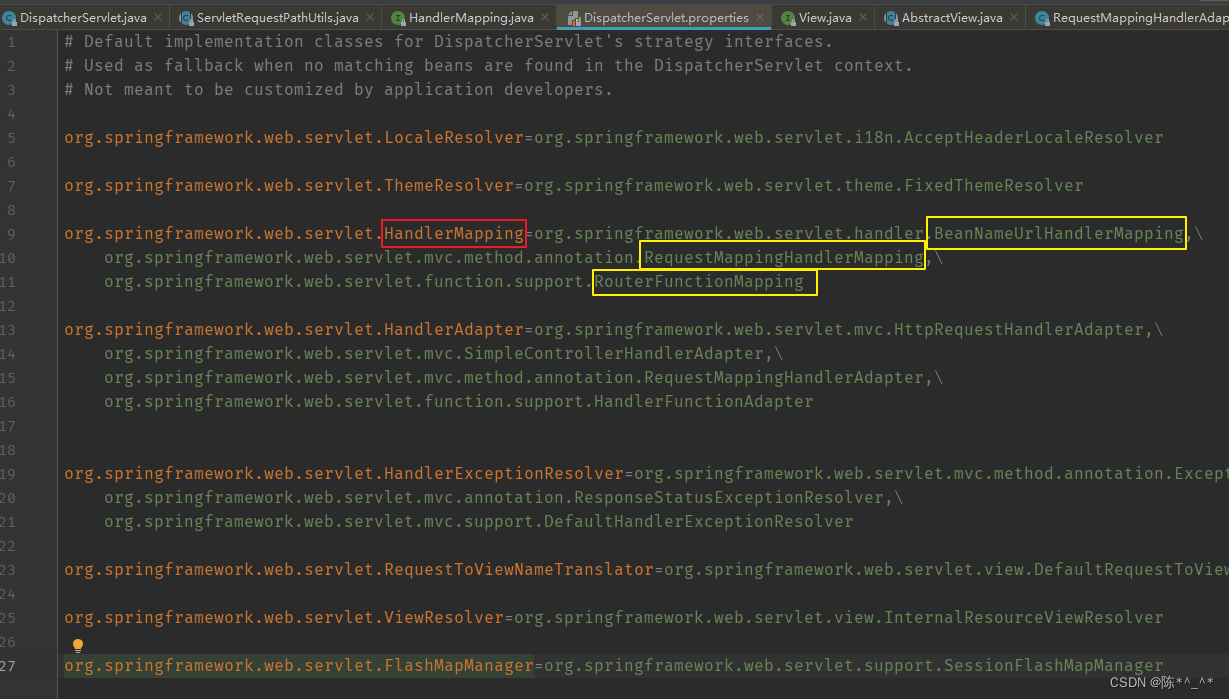

DispatcherServlet.properties文件如下

2. SpringMVC执行流程

核心代码入口doDispatch()

	protected void doDispatch(HttpServletRequest request, HttpServletResponse response) throws Exception {
		HttpServletRequest processedRequest = request;
		HandlerExecutionChain mappedHandler = null;
		boolean multipartRequestParsed = false;

		WebAsyncManager asyncManager = WebAsyncUtils.getAsyncManager(request);

		try {
			ModelAndView mv = null;
			Exception dispatchException = null;

			try {
                // 1. 检测是否为多媒体文件, 是则解析多媒体文件
				processedRequest = checkMultipart(request);
				multipartRequestParsed = (processedRequest != request);

				// Determine handler for the current request.
                // 2. 获取处理器, 返回处理器执行链(包含处理器和拦截器列表)
				mappedHandler = getHandler(processedRequest);
				if (mappedHandler == null) {
					noHandlerFound(processedRequest, response);
					return;
				}

				// 3. 获取处理器适配器
				HandlerAdapter ha = getHandlerAdapter(mappedHandler.getHandler());

				String method = request.getMethod();
				boolean isGet = HttpMethod.GET.matches(method);
				if (isGet || HttpMethod.HEAD.matches(method)) {
					long lastModified = ha.getLastModified(request, mappedHandler.getHandler());
					if (new ServletWebRequest(request, response).checkNotModified(lastModified) && isGet) {
						return;
					}
				}

                // 执行拦截器前置处理
				if (!mappedHandler.applyPreHandle(processedRequest, response)) {
					return;
				}

				// 4. 执行处理器方法
				mv = ha.handle(processedRequest, response, mappedHandler.getHandler());

				if (asyncManager.isConcurrentHandlingStarted()) {
					return;
				}

                // 设置视图名
				applyDefaultViewName(processedRequest, mv);
                // 执行拦截器后置处理
				mappedHandler.applyPostHandle(processedRequest, response, mv);
			}
			catch (Exception ex) {
				dispatchException = ex;
			}
			catch (Throwable err) {scenarios.
				dispatchException = new NestedServletException("Handler dispatch failed", err);
			}
            // 5. 结果处理(进行异常处理 和 视图渲染)
			processDispatchResult(processedRequest, response, mappedHandler, mv, dispatchException);
		}
		catch (Exception ex) {
			triggerAfterCompletion(processedRequest, response, mappedHandler, ex);
		}
		catch (Throwable err) {
			triggerAfterCompletion(processedRequest, response, mappedHandler,
					new NestedServletException("Handler processing failed", err));
		}
		finally {
			if (asyncManager.isConcurrentHandlingStarted()) {
				if (mappedHandler != null) {
					mappedHandler.applyAfterConcurrentHandlingStarted(processedRequest, response);
				}
			}
			else {
				if (multipartRequestParsed) {
					cleanupMultipart(processedRequest);
				}
			}
		}
	}

2.1 getHandler()

	protected HandlerExecutionChain getHandler(HttpServletRequest request) throws Exception {
		if (this.handlerMappings != null) {
			for (HandlerMapping mapping : this.handlerMappings) {
				HandlerExecutionChain handler = mapping.getHandler(request);
				if (handler != null) {
					return handler;
				}
			}
		}
		return null;
	}

2.1.1 getHandler() AbstractHandlerMapping内的方法

	public final HandlerExecutionChain getHandler(HttpServletRequest request) throws Exception {
        // 每个实现类实际获取处理器的方法
		Object handler = getHandlerInternal(request);
		if (handler == null) {
			handler = getDefaultHandler();
		}
		if (handler == null) {
			return null;
		}
		// Bean name or resolved handler?
		if (handler instanceof String) {
			String handlerName = (String) handler;
			handler = obtainApplicationContext().getBean(handlerName);
		}

		// Ensure presence of cached lookupPath for interceptors and others
		if (!ServletRequestPathUtils.hasCachedPath(request)) {
			initLookupPath(request);
		}

        // 获取拦截器列表, 包装成处理器执行链返回
		HandlerExecutionChain executionChain = getHandlerExecutionChain(handler, request);

		if (logger.isTraceEnabled()) {
			logger.trace("Mapped to " + handler);
		}
		else if (logger.isDebugEnabled() && !DispatcherType.ASYNC.equals(request.getDispatcherType())) {
			logger.debug("Mapped to " + executionChain.getHandler());
		}

		if (hasCorsConfigurationSource(handler) || CorsUtils.isPreFlightRequest(request)) {
			CorsConfiguration config = getCorsConfiguration(handler, request);
			if (getCorsConfigurationSource() != null) {
				CorsConfiguration globalConfig = getCorsConfigurationSource().getCorsConfiguration(request);
				config = (globalConfig != null ? globalConfig.combine(config) : config);
			}
			if (config != null) {
				config.validateAllowCredentials();
			}
			executionChain = getCorsHandlerExecutionChain(request, executionChain, config);
		}

		return executionChain;
	}

getHandlerInternal(request)为各个HandlerMapping实现类的方法, 通过请求路径/@RequestMapping注解等匹配, 找到匹配的处理器方法返回

2.2 getHandlerAdapter()

	protected HandlerAdapter getHandlerAdapter(Object handler) throws ServletException {
		if (this.handlerAdapters != null) {
			for (HandlerAdapter adapter : this.handlerAdapters) {
				if (adapter.supports(handler)) {
					return adapter;
				}
			}
		}
		throw new ServletException("No adapter for handler [" + handler +
				"]: The DispatcherServlet configuration needs to include a HandlerAdapter that supports this handler");
	}

2.3 handle()

该方法为具体的处理器适配的的代码, 下面举例两个常见适配器的实现源码

SimpleControllerHandlerAdapter的实现

	public ModelAndView handle(HttpServletRequest request, HttpServletResponse response, Object handler)
			throws Exception {

		return ((Controller) handler).handleRequest(request, response);
	}

RequestMappingHandlerAdapter的实现

	// 父类AbstractHandlerMethodAdapter内的方法
    public final ModelAndView handle(HttpServletRequest request, HttpServletResponse response, Object handler)
			throws Exception {

		return handleInternal(request, response, (HandlerMethod) handler);
	}

	// HttpRequestHandlerAdapter内代码
    protected ModelAndView handleInternal(HttpServletRequest request,
			HttpServletResponse response, HandlerMethod handlerMethod) throws Exception {

		ModelAndView mav;
		checkRequest(request);

		// Execute invokeHandlerMethod in synchronized block if required.
		if (this.synchronizeOnSession) {
			HttpSession session = request.getSession(false);
			if (session != null) {
				Object mutex = WebUtils.getSessionMutex(session);
				synchronized (mutex) {
					mav = invokeHandlerMethod(request, response, handlerMethod);
				}
			}
			else {
				// 执行处理器方法
				mav = invokeHandlerMethod(request, response, handlerMethod);
			}
		}
		else {
			// 执行处理器方法
			mav = invokeHandlerMethod(request, response, handlerMethod);
		}

		if (!response.containsHeader(HEADER_CACHE_CONTROL)) {
			if (getSessionAttributesHandler(handlerMethod).hasSessionAttributes()) {
				applyCacheSeconds(response, this.cacheSecondsForSessionAttributeHandlers);
			}
			else {
				prepareResponse(response);
			}
		}

		return mav;
	}

	protected ModelAndView invokeHandlerMethod(HttpServletRequest request,
			HttpServletResponse response, HandlerMethod handlerMethod) throws Exception {
        // 1. 构建web请求对象
		ServletWebRequest webRequest = new ServletWebRequest(request, response);
		try {
            // 2. 获取数据绑定工厂
			WebDataBinderFactory binderFactory = getDataBinderFactory(handlerMethod);
			ModelFactory modelFactory = getModelFactory(handlerMethod, binderFactory);
            // 3. 包装成可执行的处理器方法对象
			ServletInvocableHandlerMethod invocableMethod = createInvocableHandlerMethod(handlerMethod);
            // 4. 设置参数解析器
			if (this.argumentResolvers != null) {
				invocableMethod.setHandlerMethodArgumentResolvers(this.argumentResolvers);
			}
            // 5. 设置返回值处理器
			if (this.returnValueHandlers != null) {
				invocableMethod.setHandlerMethodReturnValueHandlers(this.returnValueHandlers);
			}
			invocableMethod.setDataBinderFactory(binderFactory);
            // 6. 设置参数名解析器
			invocableMethod.setParameterNameDiscoverer(this.parameterNameDiscoverer);
            // 7. 创建ModelAndView容器
			ModelAndViewContainer mavContainer = new ModelAndViewContainer();
			mavContainer.addAllAttributes(RequestContextUtils.getInputFlashMap(request));
			modelFactory.initModel(webRequest, mavContainer, invocableMethod);
			mavContainer.setIgnoreDefaultModelOnRedirect(this.ignoreDefaultModelOnRedirect);

			AsyncWebRequest asyncWebRequest = WebAsyncUtils.createAsyncWebRequest(request, response);
			asyncWebRequest.setTimeout(this.asyncRequestTimeout);

			WebAsyncManager asyncManager = WebAsyncUtils.getAsyncManager(request);
			asyncManager.setTaskExecutor(this.taskExecutor);
			asyncManager.setAsyncWebRequest(asyncWebRequest);
			asyncManager.registerCallableInterceptors(this.callableInterceptors);
			asyncManager.registerDeferredResultInterceptors(this.deferredResultInterceptors);

			if (asyncManager.hasConcurrentResult()) {
				Object result = asyncManager.getConcurrentResult();
				mavContainer = (ModelAndViewContainer) asyncManager.getConcurrentResultContext()[0];
				asyncManager.clearConcurrentResult();
				LogFormatUtils.traceDebug(logger, traceOn -> {
					String formatted = LogFormatUtils.formatValue(result, !traceOn);
					return "Resume with async result [" + formatted + "]";
				});
				invocableMethod = invocableMethod.wrapConcurrentResult(result);
			}

            // 8. 执行处理器方法调用 (核心代码)
			invocableMethod.invokeAndHandle(webRequest, mavContainer);
			if (asyncManager.isConcurrentHandlingStarted()) {
				return null;
			}

            // 9. 包装ModelAndView对象返回
			return getModelAndView(mavContainer, modelFactory, webRequest);
		}
		finally {
			webRequest.requestCompleted();
		}
	}

RequestMappingHandlerAdapter的核心代码在invocableMethod.invokeAndHandle(webRequest, mavContainer); 该方法会完成参数解析并绑定, 执行处理器方法, 返回值解析等操作, 这里不展开讲, 之后再写一篇RequestMappingHandlerAdapter源码解析的文章

2.4 processDispatchResult()

DispatcherServlet内代码

	private void processDispatchResult(HttpServletRequest request, HttpServletResponse response,
			@Nullable HandlerExecutionChain mappedHandler, @Nullable ModelAndView mv,
			@Nullable Exception exception) throws Exception {

		boolean errorView = false;

		if (exception != null) {
			if (exception instanceof ModelAndViewDefiningException) {
				logger.debug("ModelAndViewDefiningException encountered", exception);
				mv = ((ModelAndViewDefiningException) exception).getModelAndView();
			}
			else {
				Object handler = (mappedHandler != null ? mappedHandler.getHandler() : null);
                // 1. 异常处理
				mv = processHandlerException(request, response, handler, exception);
				errorView = (mv != null);
			}
		}

		// Did the handler return a view to render?
		if (mv != null && !mv.wasCleared()) {
            // 2. 获取视图对象并完成渲染
			render(mv, request, response);
			if (errorView) {
				WebUtils.clearErrorRequestAttributes(request);
			}
		}
		else {
			if (logger.isTraceEnabled()) {
				logger.trace("No view rendering, null ModelAndView returned.");
			}
		}

		if (WebAsyncUtils.getAsyncManager(request).isConcurrentHandlingStarted()) {
			// Concurrent handling started during a forward
			return;
		}

		if (mappedHandler != null) {
			// Exception (if any) is already handled..
			mappedHandler.triggerAfterCompletion(request, response, null);
		}
	}

拓展: 需要了解更加具体的流程, 推荐阅读 Spring MVC源码分析

收录于
