总结安卓中常用的TextView的样式（SuperTextView）

原创于 2022-09-09 18:27:19 发布 · 1.6k 阅读

1 ·

CC 4.0 BY-SA版权

文章标签：

#android

开发技术积累专栏收录该内容

101 篇文章

订阅专栏

本文介绍了如何在Android开发中利用SuperTextView实现服务条款跳转、HTML格式展示、图文混排和特殊UI样式，通过实例展示了如何使用ClickableSpan、ImageSpan和自定义View来创建丰富的文本体验。

引言：TextView在平时的开发中一般是显示文案，但是在实际开发中文字经常要显示一些特殊的样式，为了满足不同场景下的需求，特此总结常用的TextView,命名为：SuperTextView

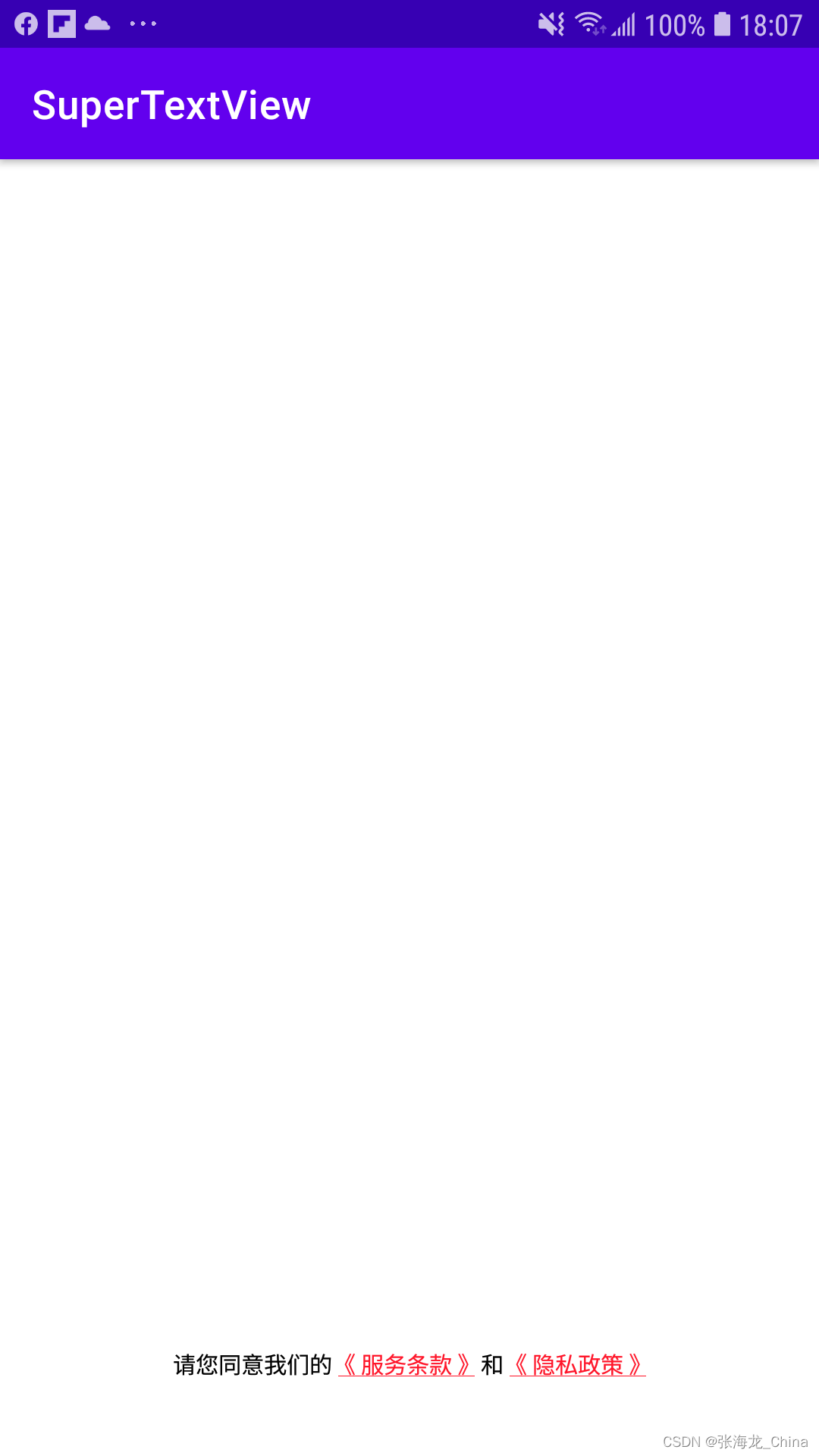

场景一：使用TextView显示服务条款和隐私协议，并实现点击跳转H5。

核心代码：

public class PrivacyPolicyTextActivity extends AppCompatActivity {

    private TextView mPrivacyPolicyView;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_privacy_policy);
        mPrivacyPolicyView = findViewById(R.id.privacyPolicy);
        initPrivacyPolicy();
    }

    private void initPrivacyPolicy() {
        String contentString = getString(R.string.login_des_privacy_desc, getString(R.string.terms_of_service_desc), getString(R.string.privacy_policy_desc));
        String termsOfService = getString(R.string.terms_of_service_desc);
        SpannableString spannableString = new SpannableString(contentString);
        int termsOfIndex = contentString.indexOf(termsOfService);
        ClickableSpan termsOfClick = new ClickableSpan() {
            @Override
            public void onClick(@NonNull View widget) {
                Intent intent = new Intent(PrivacyPolicyTextActivity.this, WebViewActivity.class);
                intent.putExtra("url", "https://www.baidu.com/");
                intent.putExtra("title", termsOfService);
                startActivity(intent);
            }

            @Override
            public void updateDrawState(@NonNull TextPaint ds) {
                super.updateDrawState(ds);
                ds.setColor(ResourceUtil.getColor(R.color.red_common_pure));
                ds.setUnderlineText(true);
            }
        };
        spannableString.setSpan(termsOfClick, termsOfIndex, termsOfIndex + termsOfService.length(), Spannable.SPAN_EXCLUSIVE_INCLUSIVE);
        String privacyPolicy = ResourceUtil.getString(R.string.privacy_policy_desc);
        int privacyIndex = contentString.indexOf(privacyPolicy);
        ClickableSpan privacyClick = new ClickableSpan() {
            @Override
            public void onClick(@NonNull View widget) {
                Intent intent = new Intent(PrivacyPolicyTextActivity.this, WebViewActivity.class);
                intent.putExtra("url", "https://www.baidu.com/");
                intent.putExtra("title", privacyPolicy);
                startActivity(intent);
            }

            @Override
            public void updateDrawState(@NonNull TextPaint ds) {
                super.updateDrawState(ds);
                ds.setColor(ResourceUtil.getColor(R.color.red_common_pure));
                ds.setUnderlineText(true);
            }
        };
        spannableString.setSpan(privacyClick, privacyIndex, privacyIndex + privacyPolicy.length(), Spannable.SPAN_EXCLUSIVE_INCLUSIVE);
        ForegroundColorSpan colorSpan = new ForegroundColorSpan(ContextCompat.getColor(this, R.color.red_common_pure));
        spannableString.setSpan(colorSpan, termsOfIndex, termsOfIndex + termsOfService.length(), Spannable.SPAN_EXCLUSIVE_INCLUSIVE);
        ForegroundColorSpan colorSpan2 = new ForegroundColorSpan(ContextCompat.getColor(this, R.color.red_common_pure));
        spannableString.setSpan(colorSpan2, privacyIndex, privacyIndex + privacyPolicy.length(), Spannable.SPAN_EXCLUSIVE_INCLUSIVE);
        mPrivacyPolicyView.setText(spannableString);
        mPrivacyPolicyView.setMovementMethod(LinkMovementMethod.getInstance());
    }
}

场景二：平时开发中设计经常要求在一段话中一些文字要加粗，显示不同的颜色等，这个时候有不同的做法，常用也是最简单的就是借助HTML:

核心代码：

public class HTMLTextActivity extends AppCompatActivity {

    private TextView mHtmlTextView;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_htmltext);
        mHtmlTextView = findViewById(R.id.html_text);
        String str1 = "<font color='#FFF258'><b>" + "程序猿" + "</b> </font>";
        String str2 = "<font color='#03DAC5'><b>" + "北京" + "</b> </font>";
        if (Build.VERSION.SDK_INT >= Build.VERSION_CODES.N) {
            mHtmlTextView.setText(Html.fromHtml(ResourceUtil.getString(R.string.html_message, str1, str2), Html.FROM_HTML_MODE_LEGACY));
        } else {
            mHtmlTextView.setText(Html.fromHtml(ResourceUtil.getString(R.string.html_message, str1, str2)));
        }
    }
}

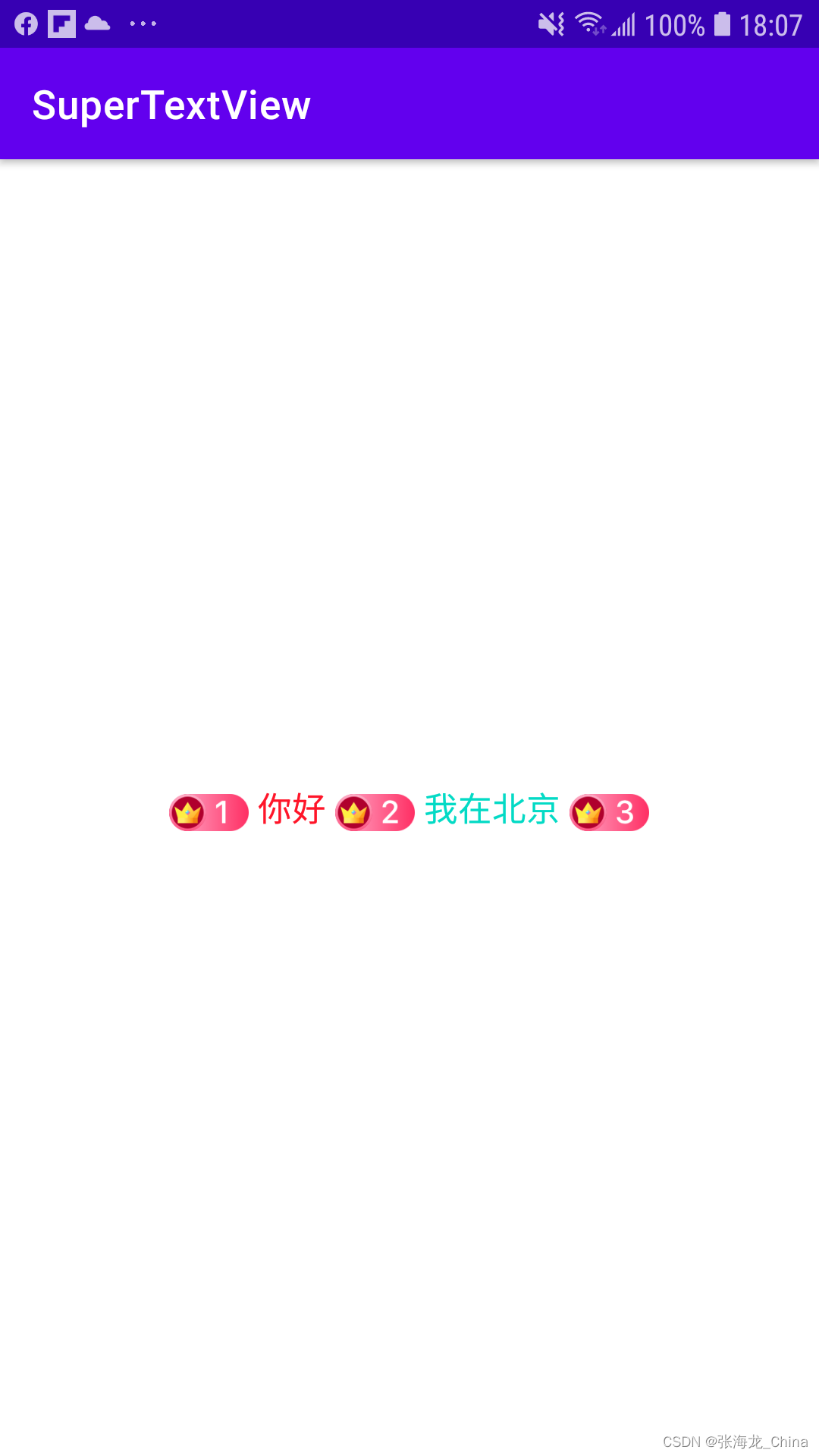

场景三：文字中经常要穿插一些图片，就是文字加图片的样式：

代码：

public class ImageTextViewActivity extends AppCompatActivity {

    private TextView mTitleTextView;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_image_text_view);
        mTitleTextView = findViewById(R.id.tv_title);
        String texValue01 = " 你好 ";
        String texValue02 = " 我在北京 ";
        String allTexValue = "A" + texValue01 + "B" + texValue02 + "C";
        int tex01ValueIndex = allTexValue.indexOf(texValue01);
        int tex01ValueEndIndex = tex01ValueIndex + texValue01.length();
        int tex02ValueIndex = allTexValue.indexOf(texValue02);
        int tex02ValueEndIndex = tex02ValueIndex + texValue02.length();
        SpannableString spannableString = new SpannableString(allTexValue);
        ForegroundColorSpan colorSpan = new ForegroundColorSpan(ResourceUtil.getColor(R.color.red_common_pure));
        spannableString.setSpan(colorSpan, tex01ValueIndex, tex01ValueEndIndex, Spanned.SPAN_INCLUSIVE_EXCLUSIVE);
        ForegroundColorSpan colorSpan2 = new ForegroundColorSpan(ResourceUtil.getColor(R.color.teal_200));
        spannableString.setSpan(colorSpan2, tex02ValueIndex, tex02ValueEndIndex, Spanned.SPAN_INCLUSIVE_EXCLUSIVE);
        ImageSpan imgSpan = new ImageSpan(this, R.drawable.e_1);
        spannableString.setSpan(imgSpan, 0, 1, Spannable.SPAN_EXCLUSIVE_EXCLUSIVE);
        ImageSpan imgSpan2 = new ImageSpan(this, R.drawable.e_2);
        spannableString.setSpan(imgSpan2, tex01ValueEndIndex, tex01ValueEndIndex + 1, Spannable.SPAN_EXCLUSIVE_EXCLUSIVE);
        ImageSpan imgSpan3 = new ImageSpan(this, R.drawable.e_3);
        spannableString.setSpan(imgSpan3, tex02ValueEndIndex, tex02ValueEndIndex + 1, Spannable.SPAN_EXCLUSIVE_EXCLUSIVE);
        mTitleTextView.setText(spannableString);
    }
}

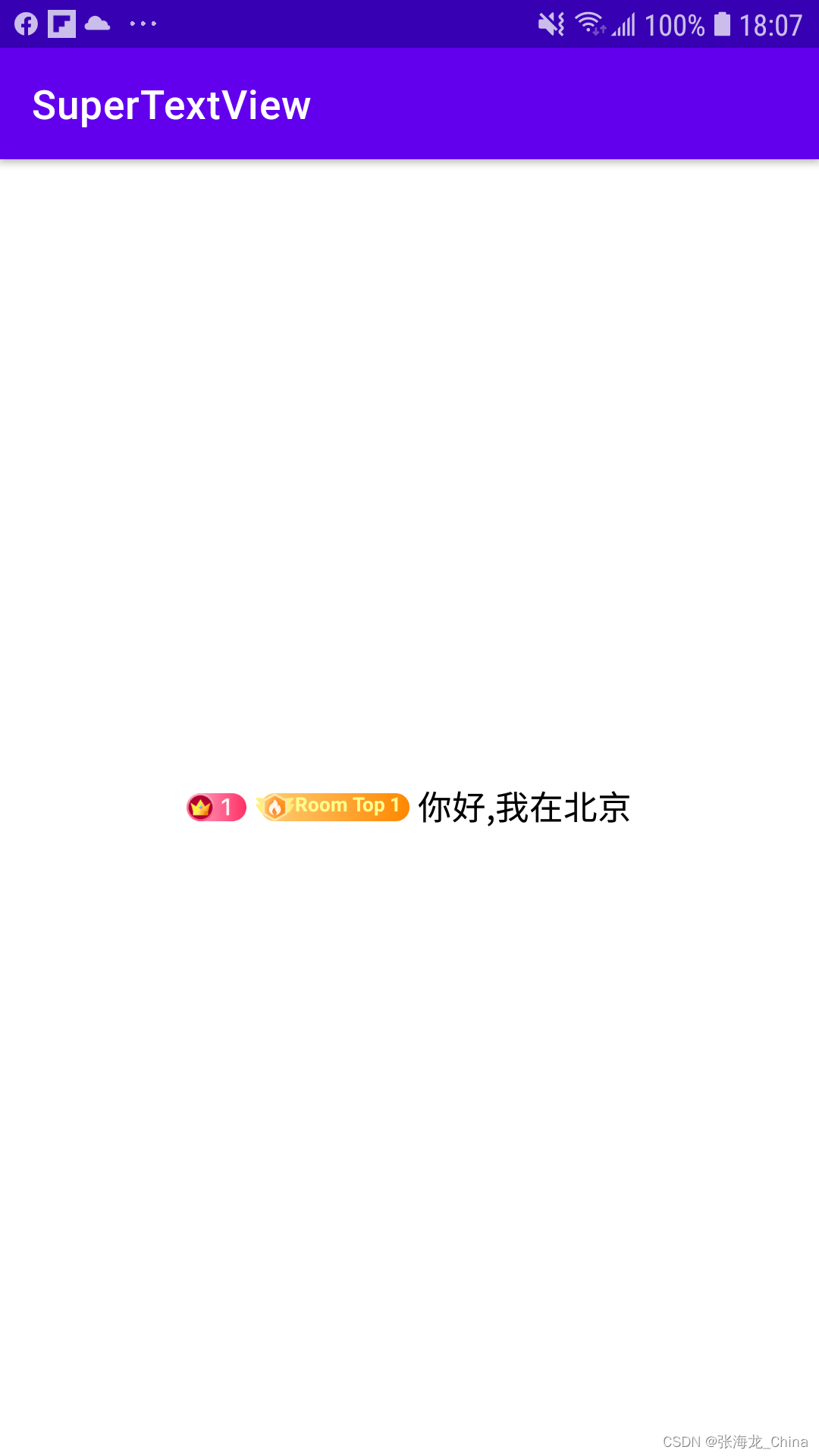

场景四：文字中要求加特殊的UI样式，这个时候可以在TextView中加一个View

public class TagTextViewActivity extends AppCompatActivity {

    private TextView mTitleTextView;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_tag_text_view);
        mTitleTextView = findViewById(R.id.tv_title);
        View markerView = LayoutInflater.from(this).inflate(R.layout.item_marker_fore_title, null);
        SpannableStringBuilder builder = new SpannableStringBuilder();
        final String REPLACE_TEXT = "A";
        builder.append(REPLACE_TEXT);
        builder.setSpan(new MarkerViewSpan(markerView), 0, REPLACE_TEXT.length(), Spanned.SPAN_EXCLUSIVE_EXCLUSIVE);
        String oriText = "你好,我在北京";
        builder.append(oriText);
        mTitleTextView.setText(builder);
    }
}
