根据元素前后关系，找出每条数据线，支持自定义起始和结束位置查找数据线

1.应用场景

适用于Camunda和Activiti5工作流程图初期图形设计，也可以用作项目自带流程图设计，也可以用作工作流程图跨多个流程图中数据线的查找。只适用于无交叉线流程图，有交叉线流程图不在此次代码实现。

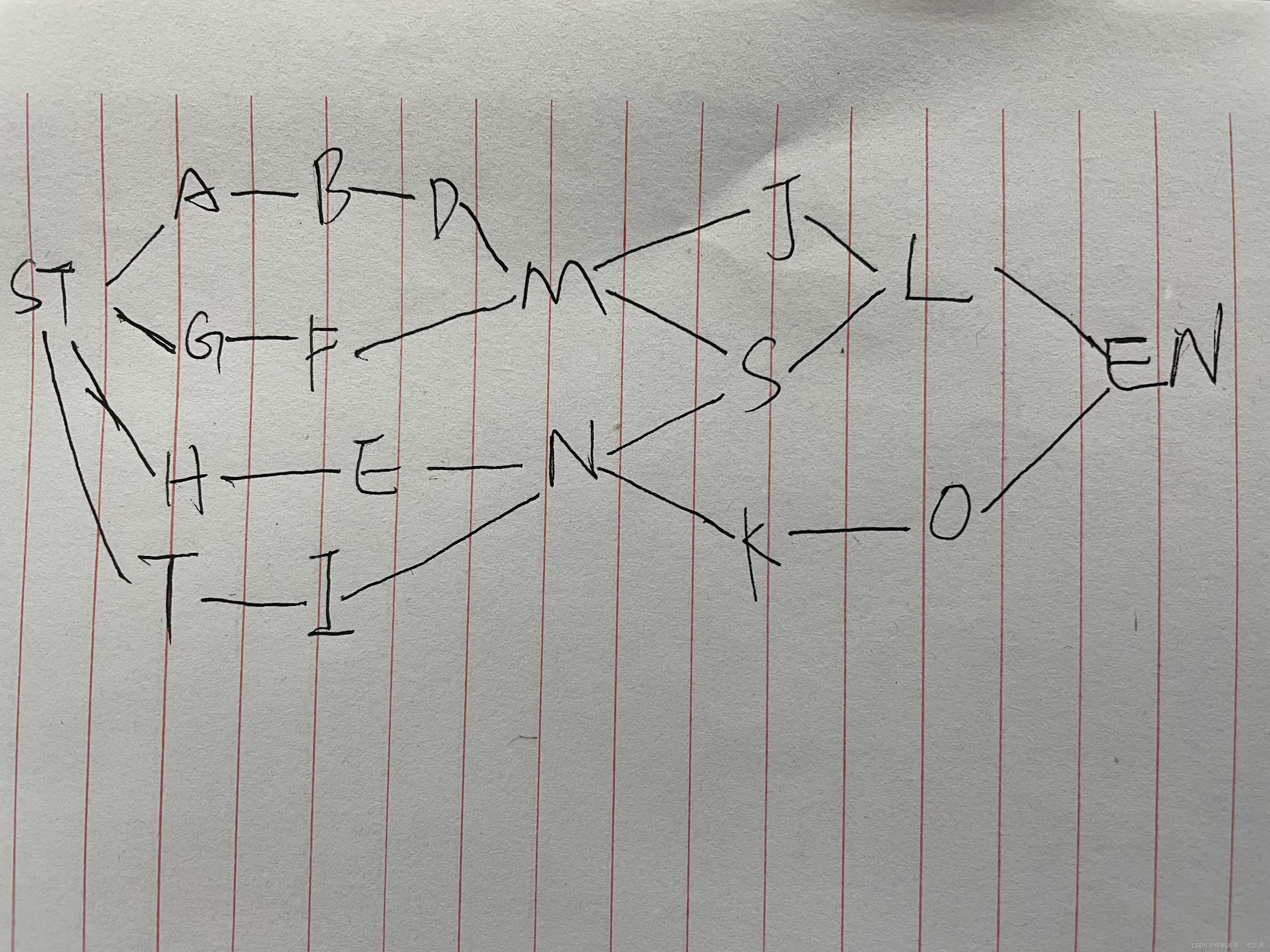

2.原型图（手绘）

3.代码实现

    public static void main(String[] args) {
        List<Map<String, String>> apiList = new ArrayList<>();
        Map<String, String> put1 = new HashMap<>();
        put1.put("ST", "A");
        apiList.add(put1);
        Map<String, String> put2 = new HashMap<>();
        put2.put("ST", "G");
        apiList.add(put2);
        Map<String, String> put3 = new HashMap<>();
        put3.put("ST", "H");
        apiList.add(put3);
        Map<String, String> put4 = new HashMap<>();
        put4.put("ST", "T");
        apiList.add(put4);
        Map<String, String> put5 = new HashMap<>();
        put5.put("A", "B");
        apiList.add(put5);
        Map<String, String> put6 = new HashMap<>();
        put6.put("G", "F");
        apiList.add(put6);
        Map<String, String> put7 = new HashMap<>();
        put7.put("H", "E");
        apiList.add(put7);
        Map<String, String> put8 = new HashMap<>();
        put8.put("T", "I");
        apiList.add(put8);
        Map<String, String> put9 = new HashMap<>();
        put9.put("B", "D");
        apiList.add(put9);
        Map<String, String> put10 = new HashMap<>();
        put10.put("D", "M");
        apiList.add(put10);
        Map<String, String> put11 = new HashMap<>();
        put11.put("F", "M");
        apiList.add(put11);
        Map<String, String> put12 = new HashMap<>();
        put12.put("E", "N");
        apiList.add(put12);
        Map<String, String> put13 = new HashMap<>();
        put13.put("I", "N");
        apiList.add(put13);
        Map<String, String> put14 = new HashMap<>();
        put14.put("M", "J");
        apiList.add(put14);
        Map<String, String> put15 = new HashMap<>();
        put15.put("M", "S");
        apiList.add(put15);
        Map<String, String> put16 = new HashMap<>();
        put16.put("N", "S");
        apiList.add(put16);
        Map<String, String> put17 = new HashMap<>();
        put17.put("N", "K");
        apiList.add(put17);
        Map<String, String> put18= new HashMap<>();
        put18.put("J", "L");
        apiList.add(put18);
        Map<String, String> put19 = new HashMap<>();
        put19.put("S", "L");
        apiList.add(put19);
        Map<String, String> put20 = new HashMap<>();
        put20.put("K", "O");
        apiList.add(put20);
        Map<String, String> put21 = new HashMap<>();
        put21.put("L", "EN");
        apiList.add(put21);
        Map<String, String> put22 = new HashMap<>();
        put22.put("O", "EN");
        apiList.add(put22);
        // 匹配到结束节点
        System.out.println("全部节点：" + JSON.toJSONString(apiList));

        // 开始结束所在的线的集合
        List<List<String>> list = new ArrayList<>();
        // 一条线
        List<String> oneLine = new ArrayList<>();
        getApiExeLineList("ST", "EN", apiList, list, oneLine);
        // 匹配到结束节点
        System.out.println("从后往前显示顺序:");
        for(List<String> stringList : list){
            Collections.reverse(stringList);
            System.out.println(JSON.toJSONString(stringList));        }
    }

    public static void getApiExeLineList(String start, String end, List<Map<String, String>> apiList, List<List<String>> list, List<String> oneLine) {
        // 先加入开始节点
        oneLine.add(start);
        // 定义一个当前节点后的节点集合
        List<String> nextNode = new ArrayList<>();
        for (Map<String, String> map : apiList) {
            String s = map.get(start);
            if (!StringUtils.isEmpty(s)) {
                nextNode.add(s);
            }
        }
        // 获取到当前节点后的集合，遍历每一个下个节点
        if (nextNode.size() > 0 && !start.equals(end)) {
            for (String str : nextNode) {
                List<String> list1 = new ArrayList<>(oneLine);
                getApiExeLineList(str, end, apiList, list, list1);
            }
        } else {
            if (oneLine.contains(end)) {
                list.add(oneLine);
            }
        }
    }

4.感谢查看

本着互相帮助，互相提高的目标，如有疑问请在评论区向我提问。
