本文介绍了如何使用ArcGIS Pro绘制常见的分析图中的扇形箭头。通过组合半圆形、矩形和三角形，利用‘合并形状’功能创建箭头，并通过调整颜色和透明度来实现所需效果。
小伙伴们，
在各种分析图、空间结构图中，
是不是经常看到这种“扇形”的箭头，
同时伴随着一些“引绿入城”等分析语言。
于是，你有没有好奇，
这种箭头是怎么做出来的？
强大的GIS是否可以绘制出这种箭头？
还是那句话——
别问，问就是能！
其实ArcMap 和 ArcGIS Pro都可以实现，
用ArcGIS Pro会更方便一些，
本文就用Pro来演示一下，
ArcMap的方法类似。
第一步—制作箭头的尾部
对于这种特殊的图形，可以将其想象为由多个不同的图形组成的。
要绘制这个箭头，你就可以线绘制出两个半圆形，一个矩形，还有一个三角形。

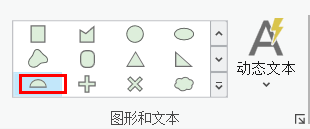

在ArcGIS Pro中，首先新建好一个布局视图，单击菜单栏的“插入”，在“图形和文本”选项中选择两个半圆形，并将其旋转镜像放置，你可以自由调整半圆形大小、圆弧大小、以及这两个半圆形的距离，这些将最终决定箭头“扇尾”的姿态。
