SpringBoot - Spring缓存默认配置与运行流程

【1】CacheAutoConfiguration

在SpringBoot中，Cache的自动配置类，源码如下。

/**
 * {@link EnableAutoConfiguration Auto-configuration} for the cache abstraction. Creates a
 * {@link CacheManager} if necessary when caching is enabled via {@link EnableCaching}.
 * <p>
 * Cache store can be auto-detected or specified explicitly via configuration.
 *
 * @author Stephane Nicoll
 * @since 1.3.0
 * @see EnableCaching
 */
@Configuration
@ConditionalOnClass(CacheManager.class)
@ConditionalOnBean(CacheAspectSupport.class)
@ConditionalOnMissingBean(value = CacheManager.class, name = "cacheResolver")
@EnableConfigurationProperties(CacheProperties.class)
@AutoConfigureBefore(HibernateJpaAutoConfiguration.class)
@AutoConfigureAfter({ CouchbaseAutoConfiguration.class, HazelcastAutoConfiguration.class,
		RedisAutoConfiguration.class })
@Import(CacheConfigurationImportSelector.class)
public class CacheAutoConfiguration {

	static final String VALIDATOR_BEAN_NAME = "cacheAutoConfigurationValidator";

	@Bean
	@ConditionalOnMissingBean
	public CacheManagerCustomizers cacheManagerCustomizers(
			ObjectProvider<List<CacheManagerCustomizer<?>>> customizers) {
		return new CacheManagerCustomizers(customizers.getIfAvailable());
	}

	@Bean
	@Role(BeanDefinition.ROLE_INFRASTRUCTURE)
	public static CacheManagerValidatorPostProcessor cacheAutoConfigurationValidatorPostProcessor() {
		return new CacheManagerValidatorPostProcessor();
	}

	@Bean(name = VALIDATOR_BEAN_NAME)
	public CacheManagerValidator cacheAutoConfigurationValidator() {
		return new CacheManagerValidator();
	}

	@Configuration
	@ConditionalOnClass(LocalContainerEntityManagerFactoryBean.class)
	@ConditionalOnBean(AbstractEntityManagerFactoryBean.class)
	protected static class CacheManagerJpaDependencyConfiguration
			extends EntityManagerFactoryDependsOnPostProcessor {

		public CacheManagerJpaDependencyConfiguration() {
			super("cacheManager");
		}

	}

	/**
	 * {@link BeanFactoryPostProcessor} to ensure that the {@link CacheManagerValidator}
	 * is triggered before {@link CacheAspectSupport} but without causing early
	 * instantiation.
	 */
	static class CacheManagerValidatorPostProcessor implements BeanFactoryPostProcessor {

		@Override
		public void postProcessBeanFactory(ConfigurableListableBeanFactory beanFactory)
				throws BeansException {
			for (String name : beanFactory.getBeanNamesForType(CacheAspectSupport.class,
					false, false)) {
				BeanDefinition definition = beanFactory.getBeanDefinition(name);
				definition.setDependsOn(
						append(definition.getDependsOn(), VALIDATOR_BEAN_NAME));
			}
		}

		private String[] append(String[] array, String value) {
			String[] result = new String[array == null ? 1 : array.length + 1];
			if (array != null) {
				System.arraycopy(array, 0, result, 0, array.length);
			}
			result[result.length - 1] = value;
			return result;
		}

	}

	/**
	 * Bean used to validate that a CacheManager exists and provide a more meaningful
	 * exception.
	 */
	static class CacheManagerValidator {

		@Autowired
		private CacheProperties cacheProperties;

		@Autowired(required = false)
		private CacheManager cacheManager;

		@PostConstruct
		public void checkHasCacheManager() {
			Assert.notNull(this.cacheManager,
					"No cache manager could "
							+ "be auto-configured, check your configuration (caching "
							+ "type is '" + this.cacheProperties.getType() + "')");
		}

	}

	/**
	 * {@link ImportSelector} to add {@link CacheType} configuration classes.
	 */
	static class CacheConfigurationImportSelector implements ImportSelector {
//拿到系统中的所有缓存配置类
		@Override
		public String[] selectImports(AnnotationMetadata importingClassMetadata) {
			CacheType[] types = CacheType.values();
			String[] imports = new String[types.length];
			for (int i = 0; i < types.length; i++) {
				imports[i] = CacheConfigurations.getConfigurationClass(types[i]);
			}
			return imports;
		}

	}

}

---

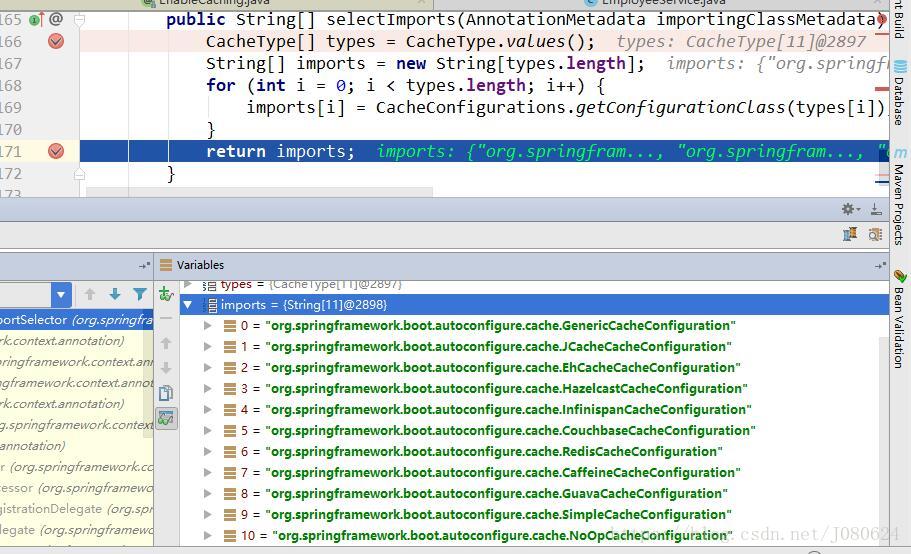

如下所示，添加了11个缓存配置类：

0 = "org.springframework.boot.autoconfigure.cache.GenericCacheConfiguration"
1 = "org.springframework.boot.autoconfigure.cache.JCacheCacheConfiguration"
2 = "org.springframework.boot.autoconfigure.cache.EhCacheCacheConfiguration"
3 = "org.springframework.boot.autoconfigure.cache.HazelcastCacheConfiguration"
4 = "org.springframework.boot.autoconfigure.cache.InfinispanCacheConfiguration"
5 = "org.springframework.boot.autoconfigure.cache.CouchbaseCacheConfiguration"
6 = "org.springframework.boot.autoconfigure.cache.RedisCacheConfiguration"
7 = "org.springframework.boot.autoconfigure.cache.CaffeineCacheConfiguration"
8 = "org.springframework.boot.autoconfigure.cache.GuavaCacheConfiguration"
9 = "org.springframework.boot.autoconfigure.cache.SimpleCacheConfiguration"
10 = "org.springframework.boot.autoconfigure.cache.NoOpCacheConfiguration"

也就是说，CacheManager产品有：

• Generic
• JCache(JSR107)(EhCache3 Hazelcast Infinispan .etc)
• EhCache 2.X
• Hazelcast
• Infinispan
• Couchbase
• Redis
• Caffeine
• Guava
• Simple

---

【2】默认缓存配置

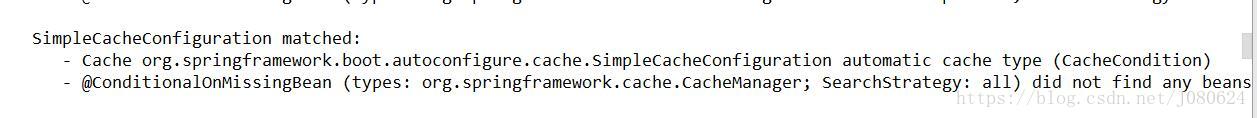

在application.properties中开启debug:debug=true。在控制台即可打印自动配置报告：

默认使用的是SimpleCacheConfiguration！

其源码如下：

@Configuration
@ConditionalOnMissingBean(CacheManager.class)
@Conditional(CacheCondition.class)
class SimpleCacheConfiguration {

	private final CacheProperties cacheProperties;

	private final CacheManagerCustomizers customizerInvoker;

	SimpleCacheConfiguration(CacheProperties cacheProperties,
			CacheManagerCustomizers customizerInvoker) {
		this.cacheProperties = cacheProperties;
		this.customizerInvoker = customizerInvoker;
	}

// 注册了ConcurrentMapCacheManager
	@Bean
	public ConcurrentMapCacheManager cacheManager() {
		ConcurrentMapCacheManager cacheManager = new ConcurrentMapCacheManager();
		List<String> cacheNames = this.cacheProperties.getCacheNames();
		if (!cacheNames.isEmpty()) {
			cacheManager.setCacheNames(cacheNames);
		}
		return this.customizerInvoker.customize(cacheManager);
	}

}

---

ConcurrentMapCacheManager (可以获取和创建ConcurrentMapCache)源码如下：

/**
 * {@link CacheManager} implementation that lazily builds {@link ConcurrentMapCache}
 * instances for each {@link #getCache} request. Also supports a 'static' mode where
 * the set of cache names is pre-defined through {@link #setCacheNames}, with no
 * dynamic creation of further cache regions at runtime.
 *
 * <p>Note: This is by no means a sophisticated CacheManager; it comes with no
 * cache configuration options. However, it may be useful for testing or simple
 * caching scenarios. For advanced local caching needs, consider
 * {@link org.springframework.cache.jcache.JCacheCacheManager},
 * {@link org.springframework.cache.ehcache.EhCacheCacheManager},
 * {@link org.springframework.cache.caffeine.CaffeineCacheManager} or
 * {@link org.springframework.cache.guava.GuavaCacheManager}.
 *
 * @author Juergen Hoeller
 * @since 3.1
 * @see ConcurrentMapCache
 */
public class ConcurrentMapCacheManager implements CacheManager, BeanClassLoaderAware {

	private final ConcurrentMap<String, Cache> cacheMap = new ConcurrentHashMap<String, Cache>(16);

	private boolean dynamic = true;

	private boolean allowNullValues = true;

	private boolean storeByValue = false;

	private SerializationDelegate serialization;


	/**
	 * Construct a dynamic ConcurrentMapCacheManager,
	 * lazily creating cache instances as they are being requested.
	 */
	public ConcurrentMapCacheManager() {
	}

	/**
	 * Construct a static ConcurrentMapCacheManager,
	 * managing caches for the specified cache names only.
	 */
	public ConcurrentMapCacheManager(String... cacheNames) {
		setCacheNames(Arrays.asList(cacheNames));
	}


	/**
	 * Specify the set of cache names for this CacheManager's 'static' mode.
	 * <p>The number of caches and their names will be fixed after a call to this method,
	 * with no creation of further cache regions at runtime.
	 * <p>Calling this with a {@code null} collection argument resets the
	 * mode to 'dynamic', allowing for further creation of caches again.
	 */
	public void setCacheNames(Collection<String> cacheNames) {
		if (cacheNames != null) {
			for (String name : cacheNames) {
				this.cacheMap.put(name, createConcurrentMapCache(name));
			}
			this.dynamic = false;
		}
		else {
			this.dynamic = true;
		}
	}

	/**
	 * Specify whether to accept and convert {@code null} values for all caches
	 * in this cache manager.
	 * <p>Default is "true", despite ConcurrentHashMap itself not supporting {@code null}
	 * values. An internal holder object will be used to store user-level {@code null}s.
	 * <p>Note: A change of the null-value setting will reset all existing caches,
	 * if any, to reconfigure them with the new null-value requirement.
	 */
	public void setAllowNullValues(boolean allowNullValues) {
		if (allowNullValues != this.allowNullValues) {
			this.allowNullValues = allowNullValues;
			// Need to recreate all Cache instances with the new null-value configuration...
			recreateCaches();
		}
	}

	/**
	 * Return whether this cache manager accepts and converts {@code null} values
	 * for all of its caches.
	 */
	public boolean isAllowNullValues() {
		return this.allowNullValues;
	}

	/**
	 * Specify whether this cache manager stores a copy of each entry ({@code true}
	 * or the reference ({@code false} for all of its caches.
	 * <p>Default is "false" so that the value itself is stored and no serializable
	 * contract is required on cached values.
	 * <p>Note: A change of the store-by-value setting will reset all existing caches,
	 * if any, to reconfigure them with the new store-by-value requirement.
	 * @since 4.3
	 */
	public void setStoreByValue(boolean storeByValue) {
		if (storeByValue != this.storeByValue) {
			this.storeByValue = storeByValue;
			// Need to recreate all Cache instances with the new store-by-value configuration...
			recreateCaches();
		}
	}

	/**
	 * Return whether this cache manager stores a copy of each entry or
	 * a reference for all its caches. If store by value is enabled, any
	 * cache entry must be serializable.
	 * @since 4.3
	 */
	public boolean isStoreByValue() {
		return this.storeByValue;
	}

	@Override
	public void setBeanClassLoader(ClassLoader classLoader) {
		this.serialization = new SerializationDelegate(classLoader);
		// Need to recreate all Cache instances with new ClassLoader in store-by-value mode...
		if (isStoreByValue()) {
			recreateCaches();
		}
	}


	@Override
	public Collection<String> getCacheNames() {
		return Collections.unmodifiableSet(this.cacheMap.keySet());
	}

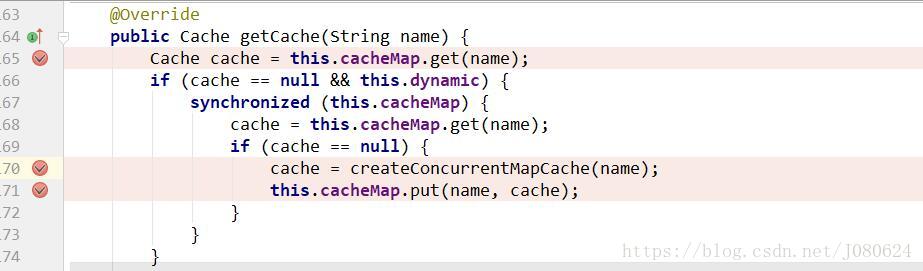

//根据名字获取Cache组件
	@Override
	public Cache getCache(String name) {
		Cache cache = this.cacheMap.get(name);
		if (cache == null && this.dynamic) {
			synchronized (this.cacheMap) {
				cache = this.cacheMap.get(name);
				if (cache == null) {
					cache = createConcurrentMapCache(name);
					this.cacheMap.put(name, cache);
				}
			}
		}
		return cache;
	}

	private void recreateCaches() {
		for (Map.Entry<String, Cache> entry : this.cacheMap.entrySet()) {
			entry.setValue(createConcurrentMapCache(entry.getKey()));
		}
	}

	/**
	 * Create a new ConcurrentMapCache instance for the specified cache name.
	 * @param name the name of the cache
	 * @return the ConcurrentMapCache (or a decorator thereof)
	 */
	protected Cache createConcurrentMapCache(String name) {
		SerializationDelegate actualSerialization = (isStoreByValue() ? this.serialization : null);
		return new ConcurrentMapCache(name, new ConcurrentHashMap<Object, Object>(256),
				isAllowNullValues(), actualSerialization);
	}
}

ConcurrentMapCache作用：将数据保存在ConcurrentMap中，并进行获取。

【3】运行流程

这里以注解@Cacheable为例，过程如下。

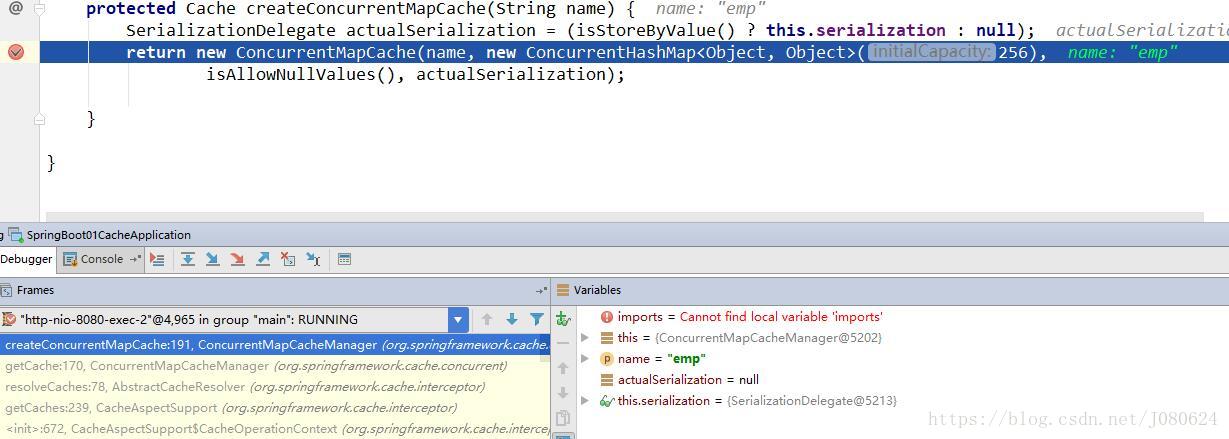

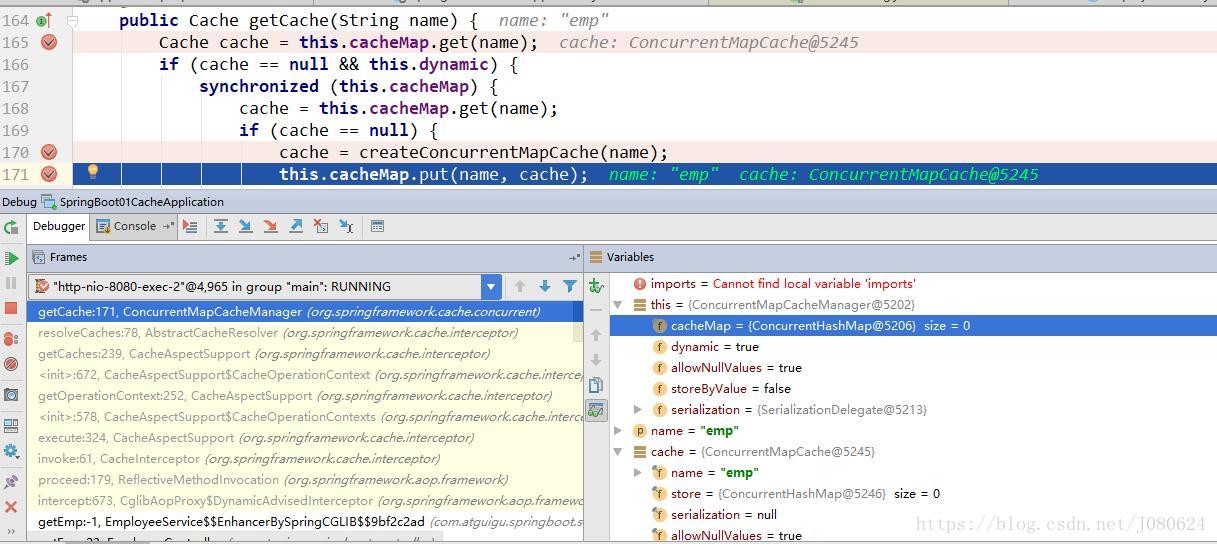

① 方法运行之前，先去Cache组件中进行查询。Cache组件是CacheManager根据cacheNames获取，如果没有则自动创建。

---

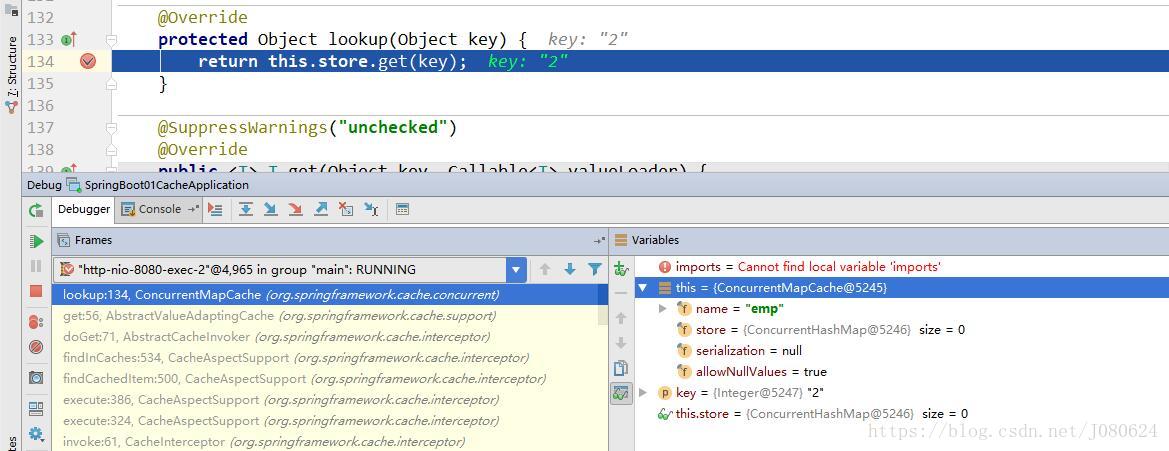

② 根据key 从Cache中查询缓存的内容，默认key为使用keyGenerator(默认为SimpleKeyGenerator)生成的。

---

SimpleKeyGenerator的生成key的策略：

• 如果没有参数，则key = new SimpleKey();
• 如果有一个参数，key = 参数值；
• 如果有多个参数，key = new SimpleKey(params)。

---

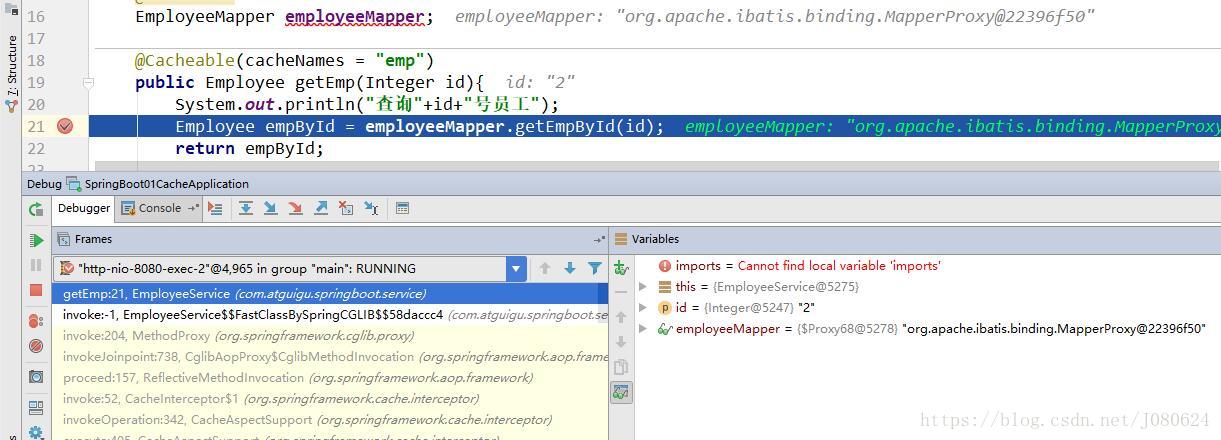

③ 如果没有查到缓存就调用目标方法

---

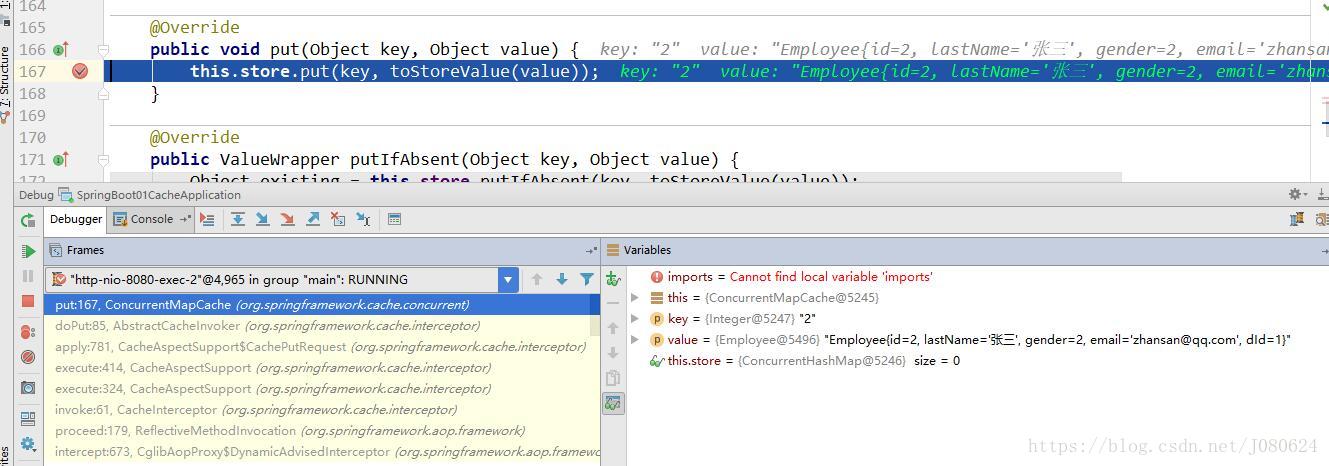

④ 将目标方法的返回结果放入缓存中

---

⑤ 如果从缓存中查到了就不调用目标方法，直接从缓存中获取然后返回

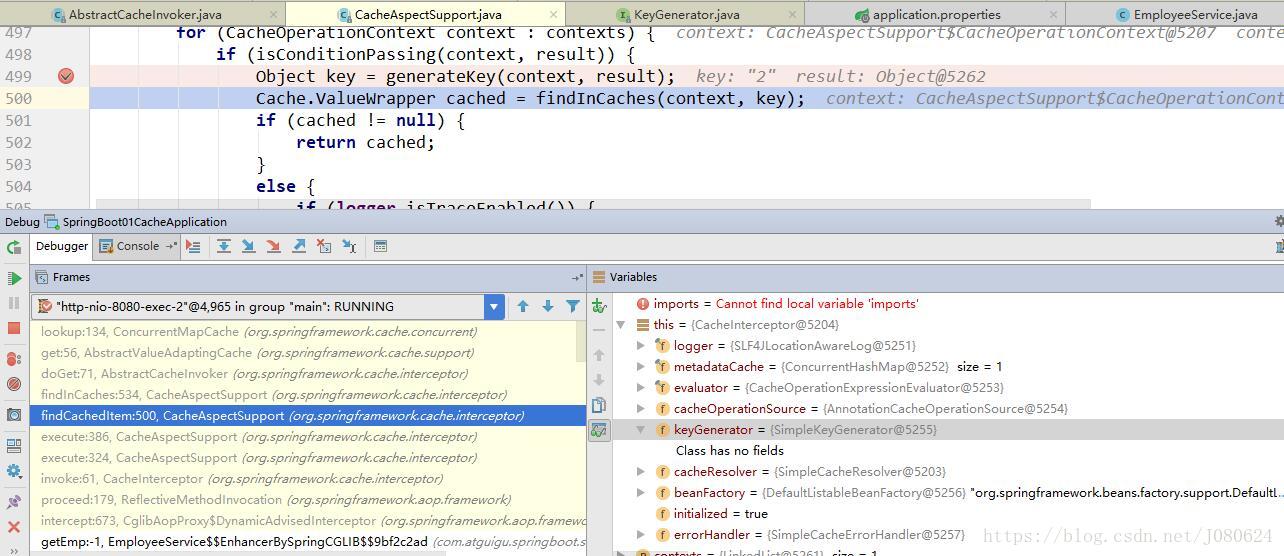

CacheAspectSupport中源码示例如下：

private Cache.ValueWrapper findCachedItem(Collection<CacheOperationContext> contexts) {
		Object result = CacheOperationExpressionEvaluator.NO_RESULT;
		for (CacheOperationContext context : contexts) {
			if (isConditionPassing(context, result)) {
				Object key = generateKey(context, result);
				Cache.ValueWrapper cached = findInCaches(context, key);
				if (cached != null) {
					return cached;
				}
				else {
					if (logger.isTraceEnabled()) {
						logger.trace("No cache entry for key '" + key + "' in cache(s) " + context.getCacheNames());
					}
				}
			}
		}
		return null;
	}
