在Bean实例化过程中，会分别遍历BeanPostProcessor执行其postProcessBeforeInitialization和postProcessAfterInitialization方法。

AbstractAutowireCapableBeanFactory的initializeBean方法如下所示。

protected Object initializeBean(final String beanName, final Object bean, @Nullable RootBeanDefinition mbd) {
	if (System.getSecurityManager() != null) {
		AccessController.doPrivileged((PrivilegedAction<Object>) () -> {
			invokeAwareMethods(beanName, bean);
			return null;
		}, getAccessControlContext());
	}
	else {
	// BeanNameAware BeanClassLoaderAware BeanFactoryAware
		invokeAwareMethods(beanName, bean);
	}

	Object wrappedBean = bean;
	// Synthetic默认为false
	if (mbd == null || !mbd.isSynthetic()) {
	// 执行前置处理
		wrappedBean = applyBeanPostProcessorsBeforeInitialization(wrappedBean, beanName);
	}

	try {
	// 执行初始化方法或者((InitializingBean) bean).afterPropertiesSet();
		invokeInitMethods(beanName, wrappedBean, mbd);
	}
	catch (Throwable ex) {
		throw new BeanCreationException(
				(mbd != null ? mbd.getResourceDescription() : null),
				beanName, "Invocation of init method failed", ex);
	}
	if (mbd == null || !mbd.isSynthetic()) {
	// 执行后置处理
		wrappedBean = applyBeanPostProcessorsAfterInitialization(wrappedBean, beanName);
	}

	return wrappedBean;
}

那么BeanPostProcessor有哪些？分别又起了什么作用呢？我们下面看一下。

0 = {ApplicationContextAwareProcessor@3701}
1 = {WebApplicationContextServletContextAwareProcessor@7061}
2 = {ConfigurationClassPostProcessor$ImportAwareBeanPostProcessor@7062}
3 = {PostProcessorRegistrationDelegate$BeanPostProcessorChecker@7063}
4 = {ConfigurationPropertiesBindingPostProcessor@7064}
5 = {AnnotationAwareAspectJAutoProxyCreator@5252} "proxyTargetClass=true; optimize=false; opaque=false; exposeProxy=false; frozen=false"
6 = {DataSourceInitializerPostProcessor@7065}
7 = {MethodValidationPostProcessor@7066} "proxyTargetClass=true; optimize=false; opaque=false; exposeProxy=false; frozen=false"
8 = {PersistenceExceptionTranslationPostProcessor@7067} "proxyTargetClass=true; optimize=false; opaque=false; exposeProxy=false; frozen=false"
9 = {WebServerFactoryCustomizerBeanPostProcessor@7068}
10 = {ErrorPageRegistrarBeanPostProcessor@7069}
11 = {ProjectingArgumentResolverRegistrar$ProjectingArgumentResolverBeanPostProcessor@7070}
12 = {WebMvcObjectMapperConfigurer@7071}
13 = {CommonAnnotationBeanPostProcessor@7014}
14 = {AutowiredAnnotationBeanPostProcessor@6935}
15 = {ApplicationListenerDetector@7072}
BeanPostProcessorbefore方法after方法
ApplicationContextAwareProcessor为EnvironmentAware、EmbeddedValueResolverAware、ResourceLoaderAware、ApplicationEventPublisherAware、MessageSourceAware及ApplicationContextAware设置信息没有实现，默认返回bean
WebApplicationContextServletContextAwareProcessor父类ServletContextAwareProcessor，为ServletContextAware设置ServletContext；为ServletConfigAware设置ServletConfig直接返回bean
ImportAwareBeanPostProcessorConfigurationClassPostProcessor的内部类，为ImportAware设置ImportMetadata直接返回bean
BeanPostProcessorChecker直接返回beanPostProcessorRegistrationDelegate的内部类，打印日志
ConfigurationPropertiesBindingPostProcessor使用ConfigurationPropertiesBinder将ProterySource与配置@ConfigurationProperties Bean进行绑定直接返回bean
AnnotationAwareAspectJAutoProxyCreator父类AbstractAutoProxyCreator，直接返回bean父类AbstractAutoProxyCreator方法，对bean尝试进程代理
DataSourceInitializerPostProcessor直接返回bean当实例化DataSourceh时，启动DataSourceInitializerInvoker的实例化
MethodValidationPostProcessor父类AbstractAdvisingBeanPostProcessor，直接返回bean父类AbstractAdvisingBeanPostProcessor，尝试将当前advisor添加到当前bean的Advisor链上
PersistenceExceptionTranslationPostProcessor父类AbstractAdvisingBeanPostProcessor，直接返回bean父类AbstractAdvisingBeanPostProcessor，尝试将当前advisor添加到当前bean的Advisor链上
WebServerFactoryCustomizerBeanPostProcessor如果当前bean是WebServerFactory，则寻找WebServerFactoryCustomizer反射调用customize方法直接返回bean
ErrorPageRegistrarBeanPostProcessor如果当前bean是ErrorPageRegistry，则为其注册错误页面配置直接返回bean
ProjectingArgumentResolverBeanPostProcessorProjectingArgumentResolverRegistrar的内部类，直接返回bean如果bean是RequestMappingHandlerAdapter，则为其参数解析器添加ProxyingHandlerMethodArgumentResolver
WebMvcObjectMapperConfigurer如果bean是RequestMappingHandlerAdapter，为其配置MessageConverters，主要检测配置MappingJackson2HttpMessageConverter并发布事件直接返回Bean
CommonAnnotationBeanPostProcessor父类InitDestroyAnnotationBeanPostProcessor，反射调用初始化方法，如加了注解@PostConstruct的方法直接返回Bean
AutowiredAnnotationBeanPostProcessor父类InstantiationAwareBeanPostProcessorAdapter直接返回bean父类InstantiationAwareBeanPostProcessorAdapter直接返回bean
ApplicationListenerDetector返回bean如果当前bean是ApplicationListener且是单例的，尝试注册到applicationContext中

(1) ApplicationContextAwareProcessor

该后置处理器只有postProcessBeforeInitialization方法，主要是为EnvironmentAware、EmbeddedValueResolverAware、ResourceLoaderAware、ApplicationEventPublisherAware、MessageSourceAware及ApplicationContextAware设置信息。

class ApplicationContextAwareProcessor implements BeanPostProcessor {

	private final ConfigurableApplicationContext applicationContext;

	private final StringValueResolver embeddedValueResolver;


	/**
	 * Create a new ApplicationContextAwareProcessor for the given context.
	 */
	public ApplicationContextAwareProcessor(ConfigurableApplicationContext applicationContext) {
		this.applicationContext = applicationContext;
		this.embeddedValueResolver = new EmbeddedValueResolver(applicationContext.getBeanFactory());
	}


	@Override
	@Nullable
	public Object postProcessBeforeInitialization(Object bean, String beanName) throws BeansException {
	// 如果非这些类型，直接返回
		if (!(bean instanceof EnvironmentAware || bean instanceof EmbeddedValueResolverAware ||
				bean instanceof ResourceLoaderAware || bean instanceof ApplicationEventPublisherAware ||
				bean instanceof MessageSourceAware || bean instanceof ApplicationContextAware)){
			return bean;
		}

		AccessControlContext acc = null;

		if (System.getSecurityManager() != null) {
			acc = this.applicationContext.getBeanFactory().getAccessControlContext();
		}
		// 获取到acc ，调用invokeAwareInterfaces、
		if (acc != null) {
			AccessController.doPrivileged((PrivilegedAction<Object>) () -> {
				invokeAwareInterfaces(bean);
				return null;
			}, acc);
		}
		else {
			invokeAwareInterfaces(bean);
		}

		return bean;
	}

// 判断是哪种类型，然后分别设置对应信息
	private void invokeAwareInterfaces(Object bean) {
		if (bean instanceof EnvironmentAware) {
			((EnvironmentAware) bean).setEnvironment(this.applicationContext.getEnvironment());
		}
		if (bean instanceof EmbeddedValueResolverAware) {
			((EmbeddedValueResolverAware) bean).setEmbeddedValueResolver(this.embeddedValueResolver);
		}
		if (bean instanceof ResourceLoaderAware) {
			((ResourceLoaderAware) bean).setResourceLoader(this.applicationContext);
		}
		if (bean instanceof ApplicationEventPublisherAware) {
			((ApplicationEventPublisherAware) bean).setApplicationEventPublisher(this.applicationContext);
		}
		if (bean instanceof MessageSourceAware) {
			((MessageSourceAware) bean).setMessageSource(this.applicationContext);
		}
		if (bean instanceof ApplicationContextAware) {
			((ApplicationContextAware) bean).setApplicationContext(this.applicationContext);
		}
	}

}

before方法则是BeanPostProcessor默认实现的直接返回bean。

(2) WebApplicationContextServletContextAwareProcessor

其是ServletContextAwareProcessor一个变异，可以在初始化ServletContext或ServletConfig之前注册处理器时使用。内部维护了一个ConfigurableWebApplicationContext，用来获取ServletContext或ServletConfig。

其自身没有postProcessBeforeInitialization或者方法，继承自父类ServletContextAwareProcessor实现了BeanPostProcessor接口。其after方法直接返回了bean。

ServletContextAwareProcessor的Bean后置处理如下所示

// 设置ServletContext 和 ServletConfig
@Override
public Object postProcessBeforeInitialization(Object bean, String beanName) throws BeansException {
	if (getServletContext() != null && bean instanceof ServletContextAware) {
		((ServletContextAware) bean).setServletContext(getServletContext());
	}
	if (getServletConfig() != null && bean instanceof ServletConfigAware) {
		((ServletConfigAware) bean).setServletConfig(getServletConfig());
	}
	return bean;
}

// 直接返回bean
@Override
public Object postProcessAfterInitialization(Object bean, String beanName) {
	return bean;
}

(3) ImportAwareBeanPostProcessor

也就是说ConfigurationClassPostProcessor的内部类ImportAwareBeanPostProcessor。

private static class ImportAwareBeanPostProcessor extends InstantiationAwareBeanPostProcessorAdapter {

	private final BeanFactory beanFactory;

	public ImportAwareBeanPostProcessor(BeanFactory beanFactory) {
		this.beanFactory = beanFactory;
	}

	@Override
	public PropertyValues postProcessProperties(@Nullable PropertyValues pvs, Object bean, String beanName) {
		// Inject the BeanFactory before AutowiredAnnotationBeanPostProcessor's
		// postProcessProperties method attempts to autowire other configuration beans.
		if (bean instanceof EnhancedConfiguration) {
			((EnhancedConfiguration) bean).setBeanFactory(this.beanFactory);
		}
		return pvs;
	}

	@Override
	public Object postProcessBeforeInitialization(Object bean, String beanName) {
		if (bean instanceof ImportAware) {
			ImportRegistry ir = this.beanFactory.getBean(IMPORT_REGISTRY_BEAN_NAME, ImportRegistry.class);
			AnnotationMetadata importingClass = ir.getImportingClassFor(ClassUtils.getUserClass(bean).getName());
			if (importingClass != null) {
				((ImportAware) bean).setImportMetadata(importingClass);
			}
		}
		return bean;
	}
}

其父类InstantiationAwareBeanPostProcessorAdapter关于Bean的后置处理before/after方法如下所示。

// 直接返回
@Override
public Object postProcessBeforeInitialization(Object bean, String beanName) throws BeansException {
	return bean;
}
// 直接返回
@Override
public Object postProcessAfterInitialization(Object bean, String beanName) throws BeansException {
	return bean;
}

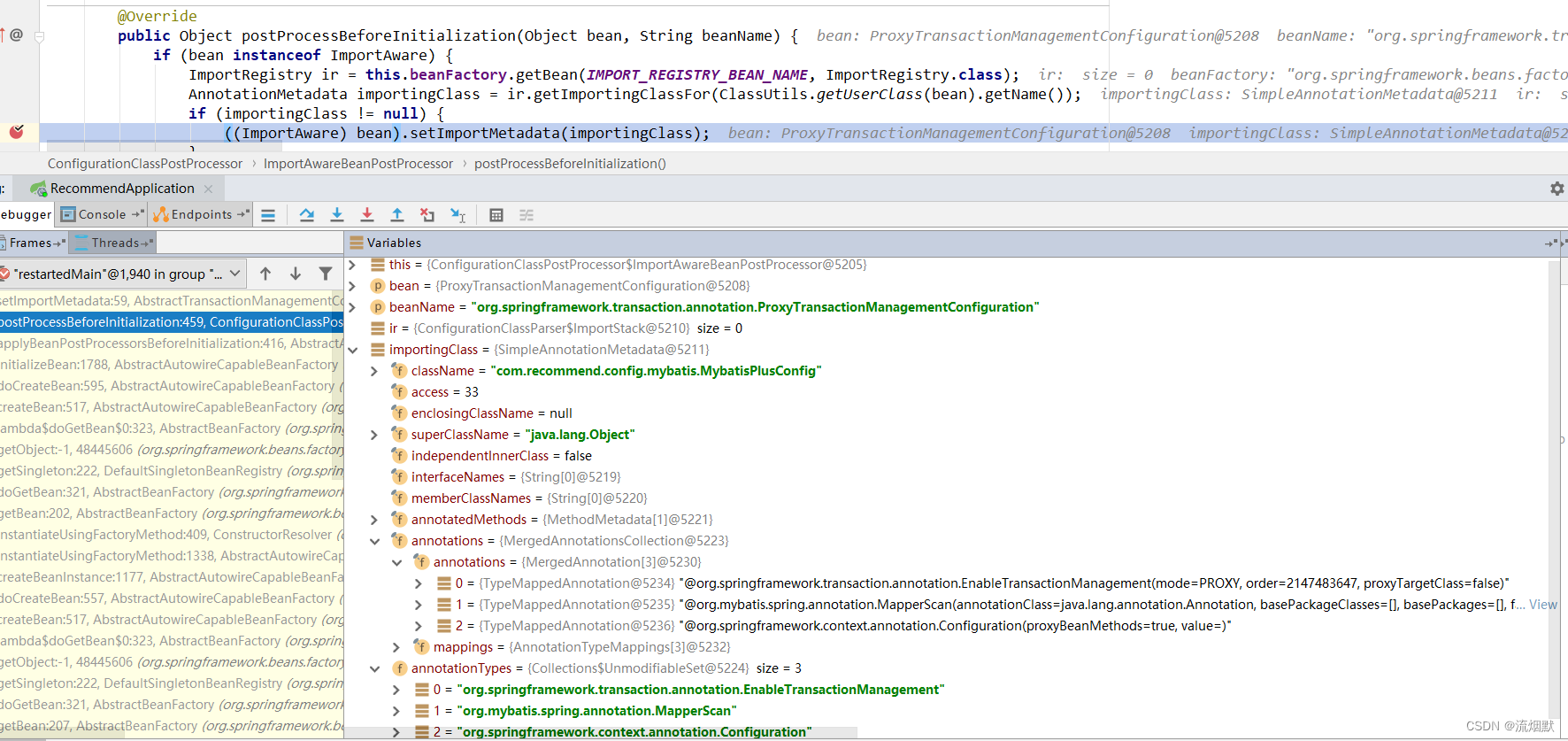

那么ImportAwareBeanPostProcessor 重写的postProcessBeforeInitialization是个什么作用呢？我们看下图，为当前bean（ProxyTransactionManagementConfiguration）找到com.recommend.config.mybatis.MybatisPlusConfig。
在这里插入图片描述
在执行setImportMetadata方法时为其设置配置类MybatisPlusConfig上面的注解元信息。

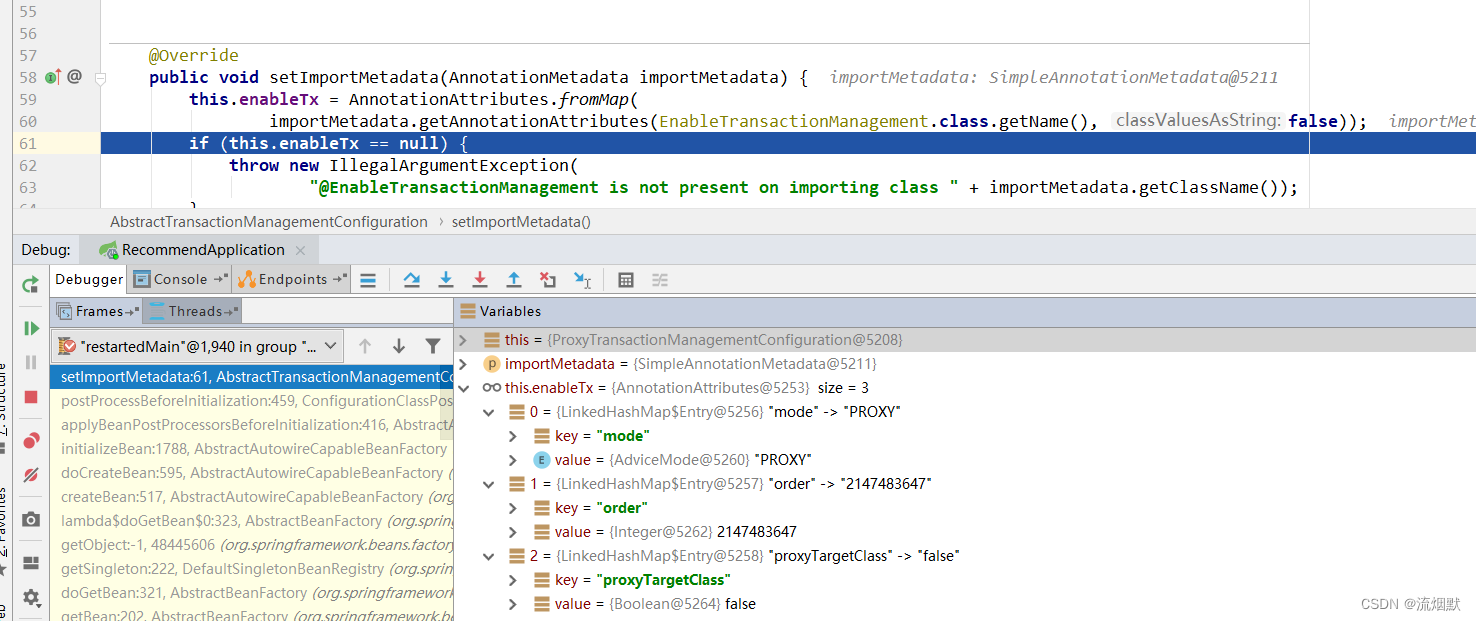

（ProxyTransactionManagementConfiguration 继承自AbstractTransactionManagementConfiguration，父类实现了setImportMetadata方法）。

在这里插入图片描述

(4) BeanPostProcessorChecker

BeanPostProcessorChecker 是 PostProcessorRegistrationDelegate的内部类。其before方法直接返回了bean，after方法只是打印了一个log info。

private static final class BeanPostProcessorChecker implements BeanPostProcessor {

		private static final Log logger = LogFactory.getLog(BeanPostProcessorChecker.class);

		private final ConfigurableListableBeanFactory beanFactory;

		private final int beanPostProcessorTargetCount;

		public BeanPostProcessorChecker(ConfigurableListableBeanFactory beanFactory, int beanPostProcessorTargetCount) {
			this.beanFactory = beanFactory;
			this.beanPostProcessorTargetCount = beanPostProcessorTargetCount;
		}

		// 直接返回
		@Override
		public Object postProcessBeforeInitialization(Object bean, String beanName) {
			return bean;
		}

		// 如方法所示，只是打印了一个log info
		@Override
		public Object postProcessAfterInitialization(Object bean, String beanName) {
			if (!(bean instanceof BeanPostProcessor) && !isInfrastructureBean(beanName) &&
					this.beanFactory.getBeanPostProcessorCount() < this.beanPostProcessorTargetCount) {
				if (logger.isInfoEnabled()) {
					logger.info("Bean '" + beanName + "' of type [" + bean.getClass().getName() +
							"] is not eligible for getting processed by all BeanPostProcessors " +
							"(for example: not eligible for auto-proxying)");
				}
			}
			return bean;
		}

		private boolean isInfrastructureBean(@Nullable String beanName) {
			if (beanName != null && this.beanFactory.containsBeanDefinition(beanName)) {
				BeanDefinition bd = this.beanFactory.getBeanDefinition(beanName);
				return (bd.getRole() == RootBeanDefinition.ROLE_INFRASTRUCTURE);
			}
			return false;
		}
	}

(5) ConfigurationPropertiesBindingPostProcessor

该处理器的作用从名字上也可以直接看出来，将标注了@ConfigurationProperties注解的bean与PropertySources绑定起来。PropertySources是什么呢？

在SpringBoot中yml与properties配置文件及bean取值赋值一文中我们讲过@ConfigurationProperties注解告诉SpringBoot将本类中的所有属性和配置文件中相关的配置进行绑定。PropertySources就是我们在各个配置文件中的属性-值配置。

如下所示其只覆盖了postProcessBeforeInitialization方法，将bean与PropertySources进行了绑定。

@Override
public Object postProcessBeforeInitialization(Object bean, String beanName) throws BeansException {
	bind(ConfigurationPropertiesBean.get(this.applicationContext, bean, beanName));
	return bean;
}

(6) AnnotationAwareAspectJAutoProxyCreator

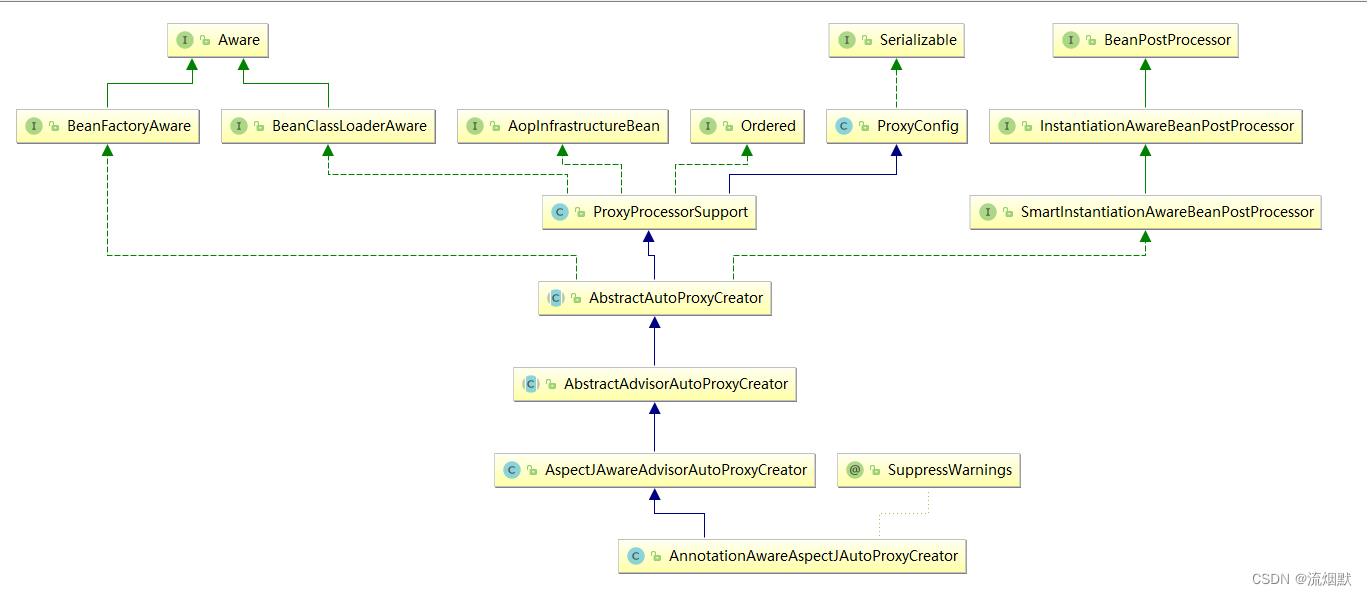

这个类或者说这个类家族是我们值得关注的，其在Spring AOP的执行流程中起到了不可磨灭的作用。
在这里插入图片描述
该类自身并没有重写before or after方法，但是其祖父类AbstractAutoProxyCreator对其进行了实现。

// 直接返回
@Override
public Object postProcessBeforeInitialization(Object bean, String beanName) {
	return bean;
}

 // 使用配置的拦截器（advice）创建一个代理
@Override
public Object postProcessAfterInitialization(@Nullable Object bean, String beanName) {
	if (bean != null) {
		Object cacheKey = getCacheKey(bean.getClass(), beanName);
		if (this.earlyProxyReferences.remove(cacheKey) != bean) {
			return wrapIfNecessary(bean, beanName, cacheKey);
		}
	}
	return bean;
}

这个方法是spring aop的核心。在Bean实例化过程中如果应用配置了切面，且切面的advice拦截了该bean的某个方法那么wrapIfNecessary方法就会使用切面的advice为该bean创建一个代理。

protected Object wrapIfNecessary(Object bean, String beanName, Object cacheKey) {
	if (StringUtils.hasLength(beanName) && this.targetSourcedBeans.contains(beanName)) {
		return bean;
	}
	// 是否需要代理 不需要直接返回
	if (Boolean.FALSE.equals(this.advisedBeans.get(cacheKey))) {
		return bean;
	}
	if (isInfrastructureClass(bean.getClass()) || shouldSkip(bean.getClass(), beanName)) {
		this.advisedBeans.put(cacheKey, Boolean.FALSE);
		return bean;
	}

	// Create proxy if we have advice. 这一步很重要
	Object[] specificInterceptors = getAdvicesAndAdvisorsForBean(bean.getClass(), beanName, null);
	if (specificInterceptors != DO_NOT_PROXY) {
	// 说明需要代理
		this.advisedBeans.put(cacheKey, Boolean.TRUE);
		Object proxy = createProxy(
				bean.getClass(), beanName, specificInterceptors, new SingletonTargetSource(bean));

		// 放入代理缓存
		this.proxyTypes.put(cacheKey, proxy.getClass());
		return proxy;
	}

	// 放入advisedBeans 也就是说当前bean是否为一个advisor
	this.advisedBeans.put(cacheKey, Boolean.FALSE);
	return bean;
}

那么如何创建代理呢？这里我们不展开分析，简单描述是Spring会拿到一个代理工厂（默认是DefaultAopProxyFactory）然后使用策略模式创建ObjenesisCglibAopProxy或者JdkDynamicAopProxy。

(7) DataSourceInitializerPostProcessor

该后置处理器的作用十分简明，当DataSource bean创建后触发该方法，会立即创建DataSourceInitializerInvoker。其before方法直接返回了bean，after方法实现了DataSourceInitializerInvoker实例化功能。

class DataSourceInitializerPostProcessor implements BeanPostProcessor, Ordered {

	@Override
	public int getOrder() {
		return Ordered.HIGHEST_PRECEDENCE + 1;
	}

	@Autowired
	private BeanFactory beanFactory;

	@Override
	public Object postProcessBeforeInitialization(Object bean, String beanName) throws BeansException {
		return bean;
	}

	@Override
	public Object postProcessAfterInitialization(Object bean, String beanName) throws BeansException {
		if (bean instanceof DataSource) {
			// force initialization of this bean as soon as we see a DataSource
			this.beanFactory.getBean(DataSourceInitializerInvoker.class);
		}
		return bean;
	}

}

(8) MethodValidationPostProcessor

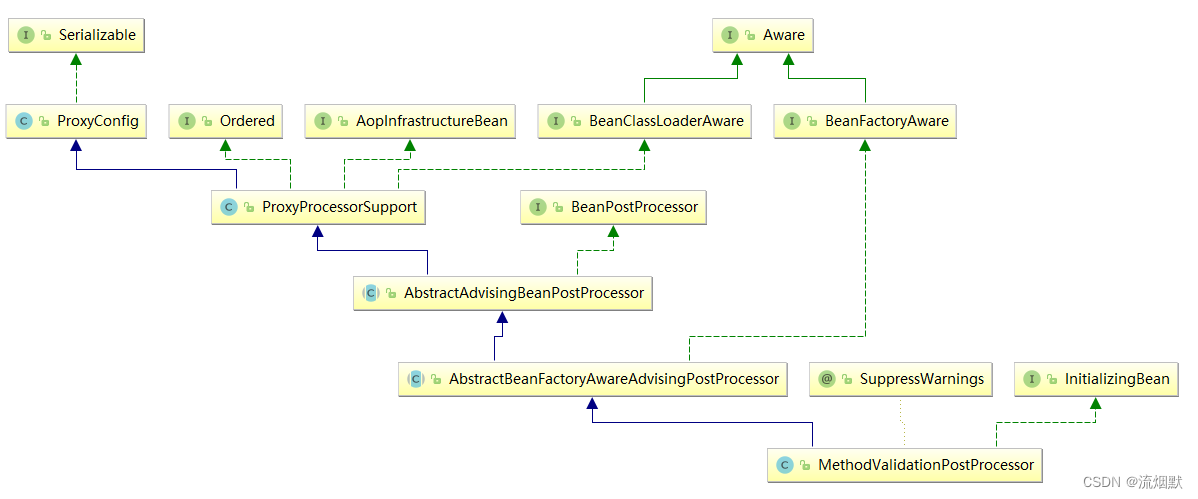

该类自身并没有重写before or after方法，其祖父类AbstractAdvisingBeanPostProcessor重写了这两个方法。
在这里插入图片描述

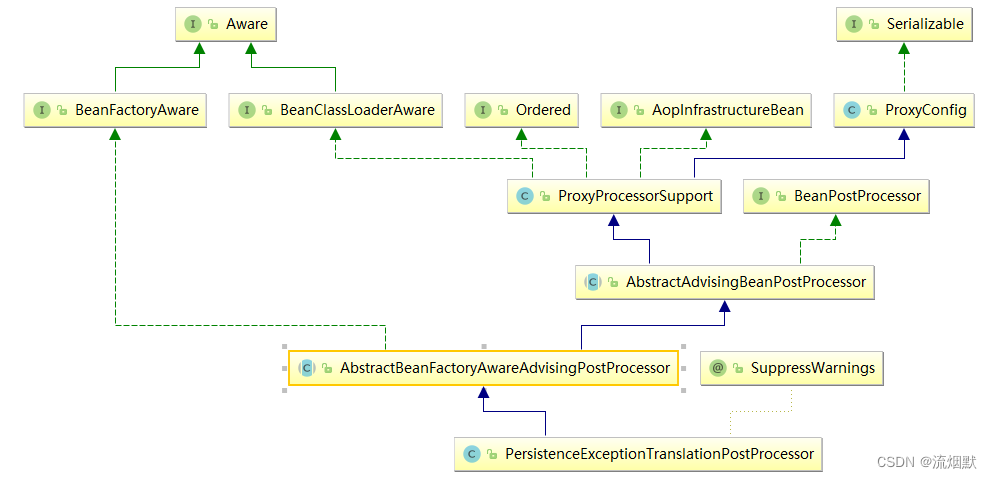

PersistenceExceptionTranslationPostProcessor和MethodValidationPostProcessor一样，也是继承自AbstractAdvisingBeanPostProcessor。
在这里插入图片描述

//直接返回
@Override
public Object postProcessBeforeInitialization(Object bean, String beanName) {
	return bean;
}

//  Add our local Advisor to the existing proxy's Advisor chain...
// 如果当前advised没有被冷冻（默认就是false）且当前将advisor适合bean
// 则将advisor加入到已经存在的代理的Advisor链
@Override
public Object postProcessAfterInitialization(Object bean, String beanName) {
	if (this.advisor == null || bean instanceof AopInfrastructureBean) {
		// Ignore AOP infrastructure such as scoped proxies.
		return bean;
	}

	if (bean instanceof Advised) {
		Advised advised = (Advised) bean;
		if (!advised.isFrozen() && isEligible(AopUtils.getTargetClass(bean))) {
			// Add our local Advisor to the existing proxy's Advisor chain...
			if (this.beforeExistingAdvisors) {
				advised.addAdvisor(0, this.advisor);
			}
			else {
				advised.addAdvisor(this.advisor);
			}
			return bean;
		}
	}

	if (isEligible(bean, beanName)) {
		ProxyFactory proxyFactory = prepareProxyFactory(bean, beanName);
		if (!proxyFactory.isProxyTargetClass()) {
			evaluateProxyInterfaces(bean.getClass(), proxyFactory);
		}
		proxyFactory.addAdvisor(this.advisor);
		customizeProxyFactory(proxyFactory);
		return proxyFactory.getProxy(getProxyClassLoader());
	}

	// No proxy needed.
	return bean;
}

(9) WebServerFactoryCustomizerBeanPostProcessor

WebServerFactoryCustomizer是一个策略接口，其方法void customize(T factory);用来自定义WebServerFactory。WebServerFactoryCustomizerBeanPostProcessor就是针对所有WebServerFactory应用的。

如果当前bean是webServerFactory，则寻找WebServerFactoryCustomizer并反射调用customize方法。

@Override
public Object postProcessBeforeInitialization(Object bean, String beanName) throws BeansException {
	if (bean instanceof WebServerFactory) {
		postProcessBeforeInitialization((WebServerFactory) bean);
	}
	return bean;
}
// 调用所有WebServerFactoryCustomizer的customize方法
@SuppressWarnings("unchecked")
private void postProcessBeforeInitialization(WebServerFactory webServerFactory) {
	LambdaSafe.callbacks(WebServerFactoryCustomizer.class, getCustomizers(), webServerFactory)
			.withLogger(WebServerFactoryCustomizerBeanPostProcessor.class)
			.invoke((customizer) -> customizer.customize(webServerFactory));
}

// 直接返回
@Override
public Object postProcessAfterInitialization(Object bean, String beanName) throws BeansException {
	return bean;
}

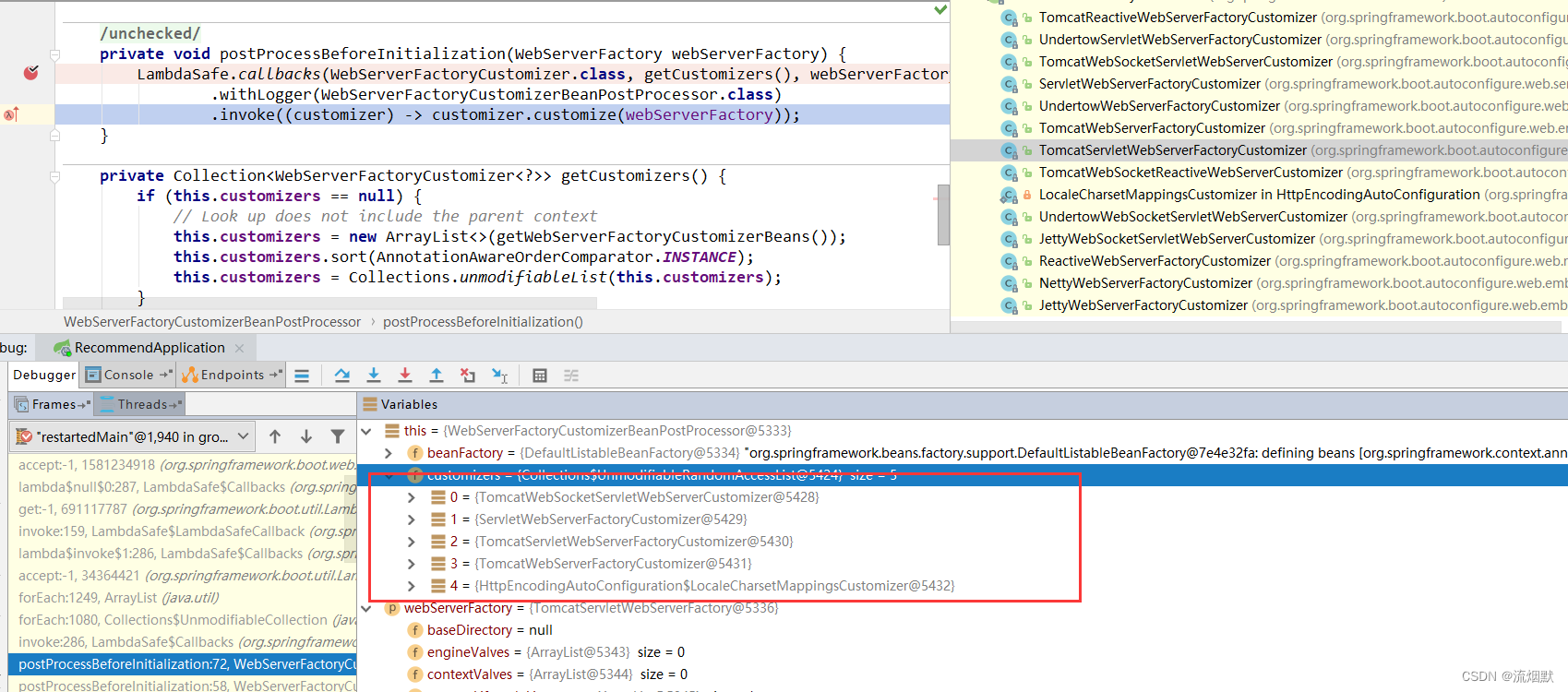

如下图所示，这里会循环调用这些XXXCustomizer的customize方法。

0 = {TomcatWebSocketServletWebServerCustomizer@5428}
1 = {ServletWebServerFactoryCustomizer@5429}
2 = {TomcatServletWebServerFactoryCustomizer@5430}
3 = {TomcatWebServerFactoryCustomizer@5431}
4 = {HttpEncodingAutoConfiguration$LocaleCharsetMappingsCustomizer@5432}

在这里插入图片描述

(10) ErrorPageRegistrarBeanPostProcessor

如下代码所示，其postProcessBeforeInitialization方法将会扫描得到所有的ErrorPageRegistrar 然后调用其registerErrorPages方法进行注册。即为ErrorPageRegistry注册错误页面配置。

@Override
public Object postProcessBeforeInitialization(Object bean, String beanName) throws BeansException {
	if (bean instanceof ErrorPageRegistry) {
		postProcessBeforeInitialization((ErrorPageRegistry) bean);
	}
	return bean;
}

// 直接返回Bean
@Override
public Object postProcessAfterInitialization(Object bean, String beanName) throws BeansException {
	return bean;
}

private void postProcessBeforeInitialization(ErrorPageRegistry registry) {
	for (ErrorPageRegistrar registrar : getRegistrars()) {
		registrar.registerErrorPages(registry);
	}
}

错误页面配置如下所示，我们自定义ErrorPageConfig 实现了ErrorPageRegistrar 重写了registerErrorPages方法。

@Component
public class ErrorPageConfig implements ErrorPageRegistrar {
    @Override
    public void registerErrorPages(ErrorPageRegistry registry) {
        ErrorPage error400Page = new ErrorPage(HttpStatus.BAD_REQUEST, "/error/404");
        ErrorPage error404Page = new ErrorPage(HttpStatus.NOT_FOUND, "/error/404");
        ErrorPage error500Page = new ErrorPage(HttpStatus.INTERNAL_SERVER_ERROR, "/error/500");
        registry.addErrorPages(error400Page,error404Page,error500Page);
    }
}

(11) ProjectingArgumentResolverBeanPostProcessor

其是ProjectingArgumentResolverRegistrar的内部类，主要用来修改RequestMappingHandlerAdapter。其将会添加ProxyingHandlerMethodArgumentResolver作为RequestMappingHandlerAdapter的第一个HandlerMethodArgumentResolver

@Nullable
@Override
public Object postProcessBeforeInitialization(Object bean, String beanName) throws BeansException {
	return bean;
}

/*
 * (non-Javadoc)
 * @see org.springframework.beans.factory.config.BeanPostProcessor#postProcessAfterInitialization(java.lang.Object, java.lang.String)
 */
@Nullable
@Override
public Object postProcessAfterInitialization(Object bean, String beanName) throws BeansException {

	if (!RequestMappingHandlerAdapter.class.isInstance(bean)) {
		return bean;
	}

	RequestMappingHandlerAdapter adapter = (RequestMappingHandlerAdapter) bean;
	List<HandlerMethodArgumentResolver> currentResolvers = adapter.getArgumentResolvers();

	if (currentResolvers == null) {
		throw new IllegalStateException(
				String.format("No HandlerMethodArgumentResolvers found in RequestMappingHandlerAdapter %s!", beanName));
	}

	List<HandlerMethodArgumentResolver> newResolvers = new ArrayList<HandlerMethodArgumentResolver>(
			currentResolvers.size() + 1);
	newResolvers.add(resolver);
	newResolvers.addAll(currentResolvers);

	adapter.setArgumentResolvers(newResolvers);

	return adapter;
}

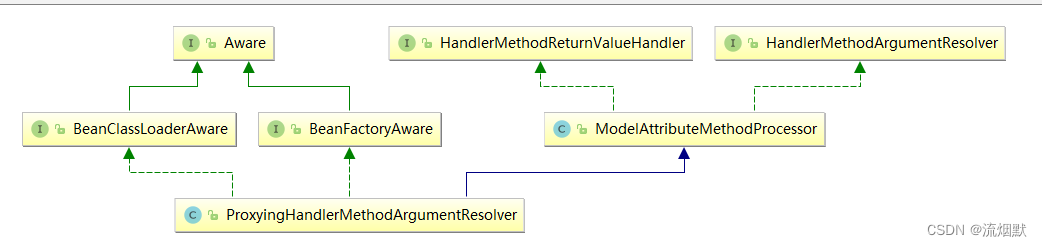

ProxyingHandlerMethodArgumentResolver继承树示意图如下所示
在这里插入图片描述

(12) WebMvcObjectMapperConfigurer

其postProcessAfterInitialization毫无作用直接返回当前Bean。postProcessBeforeInitialization对RequestMappingHandlerAdapter进行了配置。如果bean是RequestMappingHandlerAdapter，则为其设置MessageConverters。

@Override
public Object postProcessBeforeInitialization(
    Object bean,
    String beanName) throws BeansException {

  if (bean instanceof RequestMappingHandlerAdapter) {
    RequestMappingHandlerAdapter adapter = (RequestMappingHandlerAdapter) bean;
    adapter.setMessageConverters(configureMessageConverters(adapter.getMessageConverters()));
  }
  return bean;
}
private List<HttpMessageConverter<?>> configureMessageConverters(
     List<HttpMessageConverter<?>> converters) {

// 获取到converters里面的MappingJackson2HttpMessageConverter进行遍历
   Iterable<MappingJackson2HttpMessageConverter> jackson2Converters = jackson2Converters(converters);
   if (StreamSupport.stream(jackson2Converters.spliterator(), false).count() > 0) {
     for (MappingJackson2HttpMessageConverter each : jackson2Converters) {
       fireObjectMapperConfiguredEvent(each.getObjectMapper());
     }
   } else {
   // 配置MappingJackson2HttpMessageConverter 并发布事件
     converters.add(configuredMessageConverter());
   }
   return new ArrayList<>(converters);
 }

// 直接返回bean
@Override
public Object postProcessAfterInitialization(
    Object bean,
    String beanName) throws BeansException {
  return bean;
}

这里我们继续看一下其fireObjectMapperConfiguredEvent(each.getObjectMapper());做了什么。

如下代码所示，其调用事件发布器发布了一个事件new ObjectMapperConfigured(this, objectMapper)。

private void fireObjectMapperConfiguredEvent(ObjectMapper objectMapper) {
 applicationEventPublisher.publishEvent(new ObjectMapperConfigured(this, objectMapper));
}

configuredMessageConverter方法

private MappingJackson2HttpMessageConverter configuredMessageConverter() {
// 新建一个MappingJackson2HttpMessageConverter
   MappingJackson2HttpMessageConverter messageConverter = new MappingJackson2HttpMessageConverter();
   ObjectMapper objectMapper = new ObjectMapper();
   // 为messageConverter设置objectMapper
   messageConverter.setObjectMapper(objectMapper);
   // 发布事件
   fireObjectMapperConfiguredEvent(objectMapper);
   return messageConverter;
 }

(13) CommonAnnotationBeanPostProcessor

其before方法这里会反射调用bean的初始化方法，比如我们加了注解的 @PostConstruct方法。而after方法则直接返回bean。

@Override
public Object postProcessBeforeInitialization(Object bean, String beanName) throws BeansException {
	LifecycleMetadata metadata = findLifecycleMetadata(bean.getClass());
	try {
		metadata.invokeInitMethods(bean, beanName);
	}
	catch (InvocationTargetException ex) {
		throw new BeanCreationException(beanName, "Invocation of init method failed", ex.getTargetException());
	}
	catch (Throwable ex) {
		throw new BeanCreationException(beanName, "Failed to invoke init method", ex);
	}
	return bean;
}

//直接返回bean
@Override
public Object postProcessAfterInitialization(Object bean, String beanName) throws BeansException {
	return bean;
}

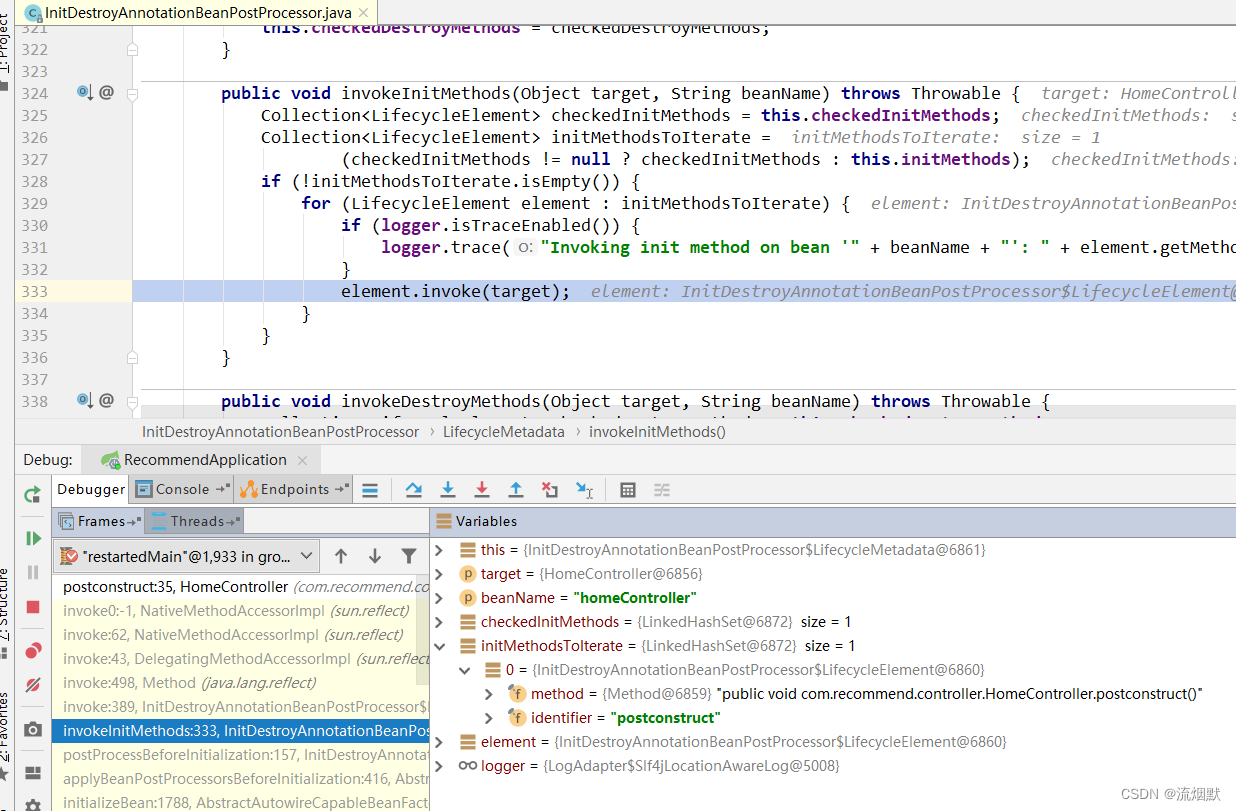

如下图所示在实例化HomeController时会反射调用我们加了注解的@PostConstruct方法。

在这里插入图片描述

关于CommonAnnotationBeanPostProcessor我们需要多了解一下。在一起技术体系中，该后置处理器是被context:annotation-config或者context:component-scan自动注入的。其对JSR-250中常见注解提供了支持，比如@PostConstruct、@PreDestroy以及@Resource。

如下所示其继承自InitDestroyAnnotationBeanPostProcessor实现了InstantiationAwareBeanPostProcessor接口。

public class CommonAnnotationBeanPostProcessor extends InitDestroyAnnotationBeanPostProcessor
		implements InstantiationAwareBeanPostProcessor, BeanFactoryAware, Serializable {
}

关于PreDestroy和PostConstruct注解的实现，InitDestroyAnnotationBeanPostProcessor在postProcessBeforeInitialization对PostConstruct进行了支持，在postProcessBeforeDestruction对@PostConstruct进行了支持。

(14) AutowiredAnnotationBeanPostProcessor

其继承自InstantiationAwareBeanPostProcessorAdapter，而该类并未有任何额外动作，只是直接返回bean。

@Override
public Object postProcessBeforeInitialization(Object bean, String beanName) throws BeansException {
	return bean;
}

@Override
public Object postProcessAfterInitialization(Object bean, String beanName) throws BeansException {
	return bean;
}

(15) ApplicationListenerDetector

其before方法直接返回bean，其postProcessAfterInitialization方法会判断当前bean是否为ApplicationListener，如果是该类型且是单例则将当前bean注册到applicationContext中。

// 直接返回
@Override
public Object postProcessBeforeInitialization(Object bean, String beanName) {
	return bean;
}

@Override
public Object postProcessAfterInitialization(Object bean, String beanName) {
	if (bean instanceof ApplicationListener) {
		// potentially not detected as a listener by getBeanNamesForType retrieval
		Boolean flag = this.singletonNames.get(beanName);
		if (Boolean.TRUE.equals(flag)) {
			// singleton bean (top-level or inner): register on the fly
			this.applicationContext.addApplicationListener((ApplicationListener<?>) bean);
		}
		else if (Boolean.FALSE.equals(flag)) {
			if (logger.isWarnEnabled() && !this.applicationContext.containsBean(beanName)) {
				// inner bean with other scope - can't reliably process events
				logger.warn("Inner bean '" + beanName + "' implements ApplicationListener interface " +
						"but is not reachable for event multicasting by its containing ApplicationContext " +
						"because it does not have singleton scope. Only top-level listener beans are allowed " +
						"to be of non-singleton scope.");
			}
			this.singletonNames.remove(beanName);
		}
	}
	return bean;
}

其addApplicationListener如下所示，一方面放到private final Set<ApplicationListener<?>> applicationListeners = new LinkedHashSet<>();中，一方面放到AbstractApplicationEventMulticaster的内部类ListenerRetriever的public final Set<ApplicationListener<?>> applicationListeners = new LinkedHashSet<>();中。

@Override
public void addApplicationListener(ApplicationListener<?> listener) {
	Assert.notNull(listener, "ApplicationListener must not be null");
	if (this.applicationEventMulticaster != null) {
		this.applicationEventMulticaster.addApplicationListener(listener);
	}
	this.applicationListeners.add(listener);
}
评论
添加红包

请填写红包祝福语或标题

个

红包个数最小为10个

元

红包金额最低5元

当前余额3.43元 前往充值 >
需支付：10.00元
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包

打赏作者

流烟默

你的鼓励将是我创作的最大动力

¥1 ¥2 ¥4 ¥6 ¥10 ¥20
扫码支付：¥1
获取中
扫码支付

您的余额不足，请更换扫码支付或充值

打赏作者

实付元
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明：

1.余额是钱包充值的虚拟货币，按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载，可以购买VIP、付费专栏及课程。

余额充值
