学生信息管理系统实训第一天项目

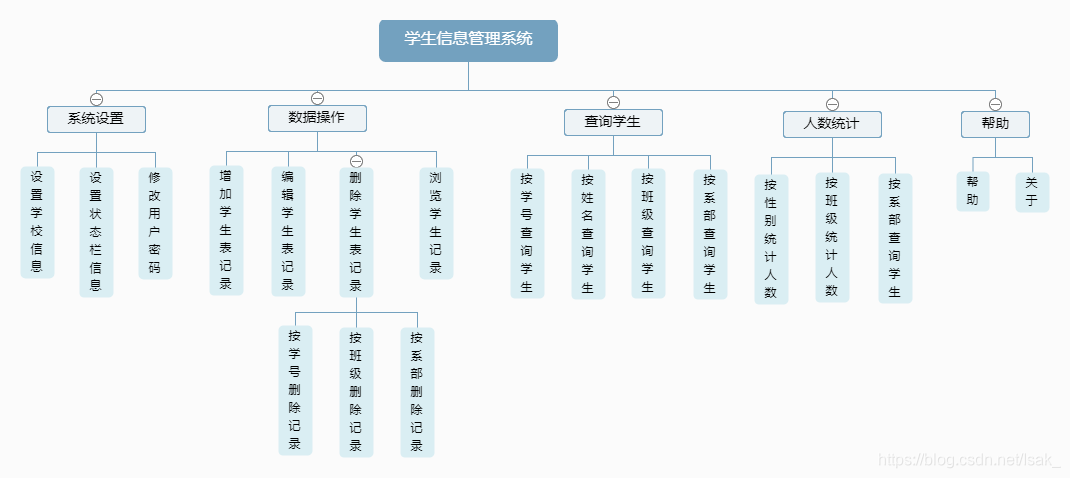

1.先将学生信息管理系统的思维导图用百度脑图绘制出来
2.创建MySQL数据库以及表

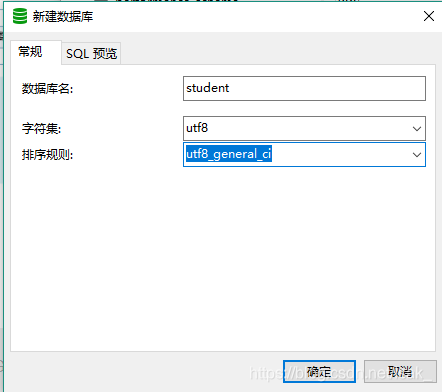

（1）创建student数据库

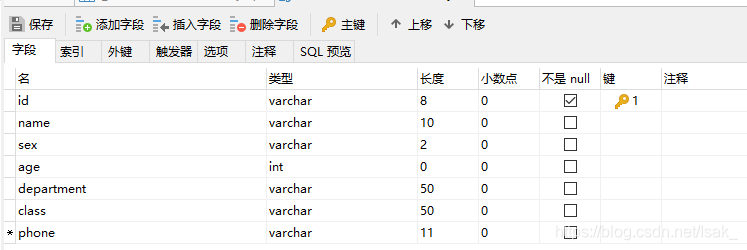

（2）创建student表

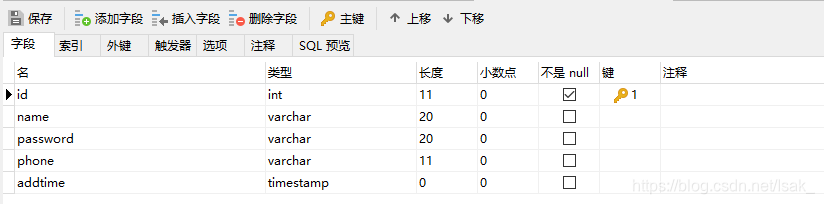

（3）创建user表

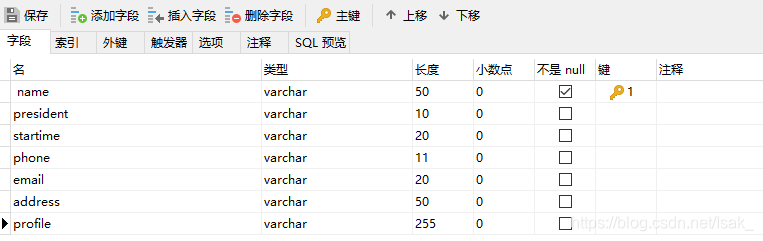

（4）创建college表

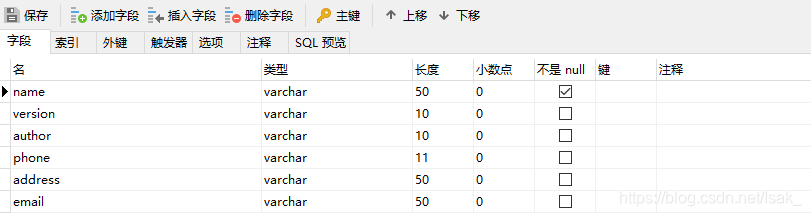

（5）创建status表

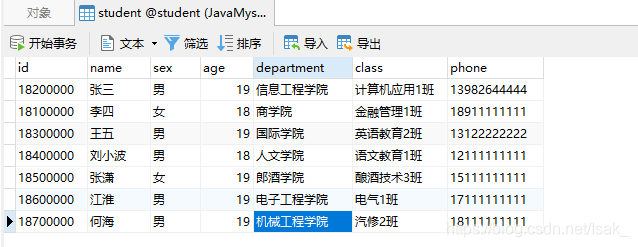

（6）向student表中插入数据

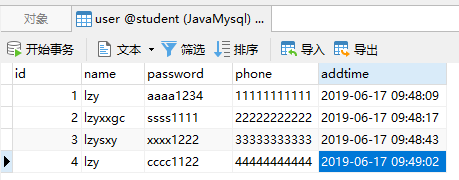

（7）向user表中插入数据

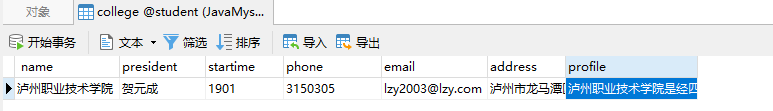

（8）向college表中插入数据

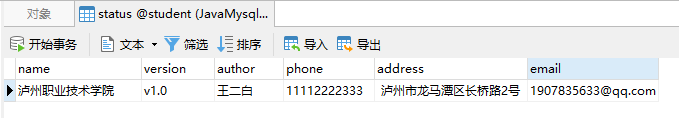

（9）向status表中插入数据

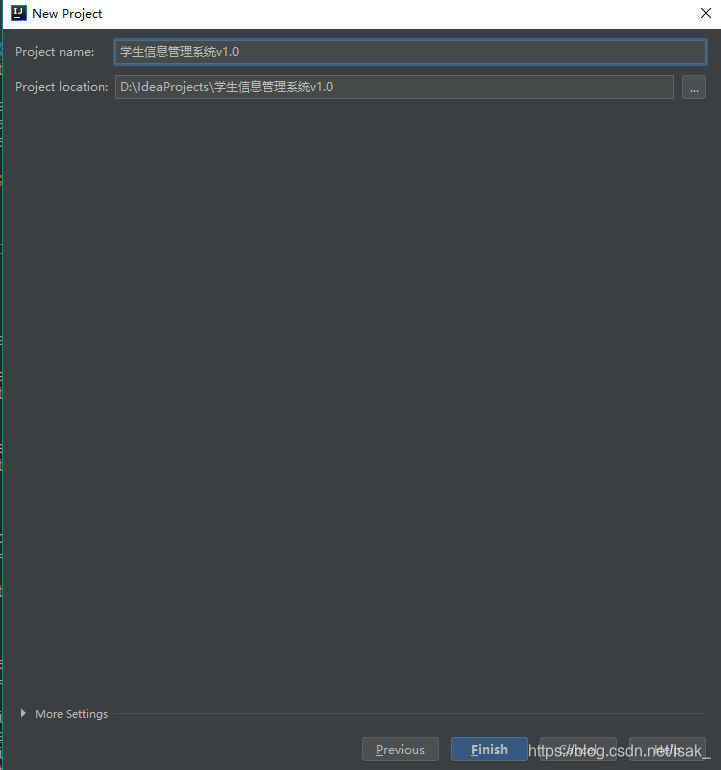

3.新创建IntelliJ IDEA项目

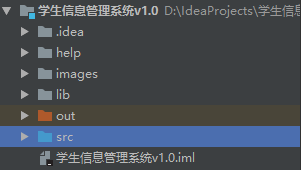

4.新建项目中创建包

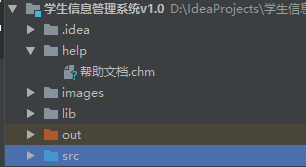

（1）向help包中加入帮助文档

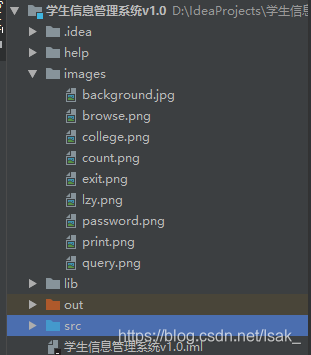

（2）向images包中导入图片

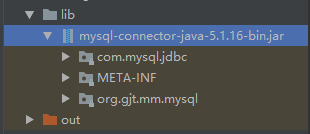

（3）向lib包添加连接MySQL数据库的jar包

并作为库添加到项目里（Add as Library…）

5.创建实体类

（1）学校实体类College

package net.wj.student.bean;
import java.util.Date;
/**
 * 功能：学校实体
 * 作者：王洁
 * 日期：2019年6月17日
 */
public class College {
    /**
     * 学校标识符
     */
    private int id;

    /**
     * 学校名称
     */
    private String name;

    /**
     * 校长
     */
    private String president;

    /**
     * 建校时间
     */
    private Date starttime;

    /**
     * 联系方式
     */
    private String phone;

    /**
     * 电子邮件
     */
    private String email;

    /**
     * 通信地址
     */
    private String address;

    /**
     * 学校简介
     */
    private String profile;

    public int getId() {
        return id;
    }

    public void setId(int id) {
        this.id = id;
    }

    public String getName() {
        return name;
    }

    public void setName(String name) {
        this.name = name;
    }

    public String getPresident() {
        return president;
    }

    public void setPresident(String president) {
        this.president = president;
    }

    public Date getStarttime() {
        return starttime;
    }

    public void setStarttime(Date starttime) {
        this.starttime = starttime;
    }

    public String getPhone() {
        return phone;
    }

    public void setPhone(String phone) {
        this.phone = phone;
    }

    public String getEmail() {
        return email;
    }

    public void setEmail(String email) {
        this.email = email;
    }

    public String getAddress() {
        return address;
    }

    public void setAddress(String address) {
        this.address = address;
    }

    public String getProfile() {
        return profile;
    }

    public void setProfile(String profile) {
        this.profile = profile;
    }

    @Override
    public String toString() {
        return "College{" +
                "id=" + id +
                ", name='" + name + '\'' +
                ", president='" + president + '\'' +
                ", starttime=" + starttime +
                ", phone='" + phone + '\'' +
                ", email='" + email + '\'' +
                ", address='" + address + '\'' +
                ", profile='" + profile + '\'' +
                '}';
    }
}

（2）状态实体类Status

package net.wj.student.bean;

/**
 * 功能：状态实体
 * 作者：王洁
 * 日期：2019年6月17日
 */
public class Status {
    private int id;
    private String college;
    private String version;
    private String author;
    private String telephone;
    private String email;

    public int getId() {
        return id;
    }

    public void setId(int id) {
        this.id = id;
    }

    public String getCollege() {
        return college;
    }

    public void setCollege(String college) {
        this.college = college;
    }

    public String getVersion() {
        return version;
    }

    public void setVersion(String version) {
        this.version = version;
    }

    public String getAuthor() {
        return author;
    }

    public void setAuthor(String author) {
        this.author = author;
    }

    public String getTelephone() {
        return telephone;
    }

    public void setTelephone(String telephone) {
        this.telephone = telephone;
    }

    public String getEmail() {
        return email;
    }

    public void setEmail(String email) {
        this.email = email;
    }

    @Override
    public String toString() {
        return "Status{" +
                "id=" + id +
                ", college='" + college + '\'' +
                ", version='" + version + '\'' +
                ", author='" + author + '\'' +
                ", telephone='" + telephone + '\'' +
                ", email='" + email + '\'' +
                '}';
    }
}

（3）学生实体类Student

package net.wj.student.bean;

/**
 * 功能：学生实体
 * 作者：王洁
 * 日期：2019年6月17日
 */

public class Student {
    private String id;
    private String name;
    private String sex;
    private int age;
    private String department;
    private String clazz;
    private String telephone;

    public String getId() {
        return id;
    }

    public void setId(String id) {
        this.id = id;
    }

    public String getName() {
        return name;
    }

    public void setName(String name) {
        this.name = name;
    }

    public String getSex() {
        return sex;
    }

    public void setSex(String sex) {
        this.sex = sex;
    }

    public int getAge() {
        return age;
    }

    public void setAge(int age) {
        this.age = age;
    }

    public String getDepartment() {
        return department;
    }

    public void setDepartment(String department) {
        this.department = department;
    }

    public String getClazz() {
        return clazz;
    }

    public void setClazz(String clazz) {
        this.clazz = clazz;
    }

    public String getTelephone() {
        return telephone;
    }

    public void setTelephone(String telephone) {
        this.telephone = telephone;
    }

    @Override
    public String toString() {
        return "Student{" +
                "id='" + id + '\'' +
                ", name='" + name + '\'' +
                ", sex='" + sex + '\'' +
                ", age=" + age +
                ", department='" + department + '\'' +
                ", clazz='" + clazz + '\'' +
                ", telephone='" + telephone + '\'' +
                '}';
    }
}

（4）用户实体类User

package net.wj.student.bean;

/**
 * 功能：用户实体
 * 作者：王洁
 * 日期：2019年6月17日
 */

public class User {
    private int id;
    private String username;
    private String password;
    private String telephone;
    private String registerTime;

    public int getId() {
        return id;
    }

    public void setId(int id) {
        this.id = id;
    }

    public String getUsername() {
        return username;
    }

    public void setUsername(String username) {
        this.username = username;
    }

    public String getPassword() {
        return password;
    }

    public void setPassword(String password) {
        this.password = password;
    }

    public String getTelephone() {
        return telephone;
    }

    public void setTelephone(String telephone) {
        this.telephone = telephone;
    }

    public String getRegisterTime() {
        return registerTime;
    }

    public void setRegisterTime(String registerTime) {
        this.registerTime = registerTime;
    }

    @Override
    public String toString() {
        return "User{" +
                "id=" + id +
                ", username='" + username + '\'' +
                ", password='" + password + '\'' +
                ", telephone='" + telephone + '\'' +
                ", registerTime='" + registerTime + '\'' +
                '}';
    }
}

6.创建包dbutil并创建数据库连接管理类ConnectionManager

package net.wj.student.dbutil;

import javax.swing.*;
import java.sql.Connection;
import java.sql.DriverManager;
import java.sql.SQLException;

/**
 * 功能：数据库连接管理类
 * 作者：王洁
 * 日期：2019年6月17日
 */

public class ConnectionManger {
    private static final String DRIVER = "com.mysql.jdbc.Driver";
    private static final String URL = "jdbc:mysql://localhost:3306/student";
    private static final String USERNAME = "root";
    private static final String PASSWORD = "1";

    private ConnectionManger(){
    }
    /**
     * 获得数据库连接
     *
     * @return  数据库连接对象
     */

    public static Connection getConnection(){
        //定义数据库连接
        Connection conn = null;

        try {
            Class.forName(DRIVER);
            conn = DriverManager.getConnection(URL +
                    "?useUnicode=true&characterEncoding=UTF8",USERNAME,PASSWORD);
        } catch (ClassNotFoundException e) {
            e.printStackTrace();
        } catch (SQLException e) {
            e.printStackTrace();
        }
        return conn;

    }
    /**
     * 关闭数据库
     *
     * @param conn
     */
    public static void closeConnection(Connection conn){
        //判断数据库连接是否为空
        if(conn != null){
            //判断数据库连接是否关闭
            try {
                if (!conn.isClosed()){
                    conn.close();
                }
            } catch (SQLException e) {
                e.printStackTrace();
            }
        }
    }
    /**
     * 测试数据库连接是否成功
     *
     * @param args
     */
    public static void main(String[] args) {
        //获得数据库连接
        Connection conn = getConnection();
        //判断是否连接成功
        if(conn != null){
            JOptionPane.showMessageDialog(null,"恭喜，连接数据库成功！");
        } else {
            JOptionPane.showMessageDialog(null,"遗憾，数据库连接失败!");
        }

        //关闭数据库连接
        closeConnection(conn);
    }
}

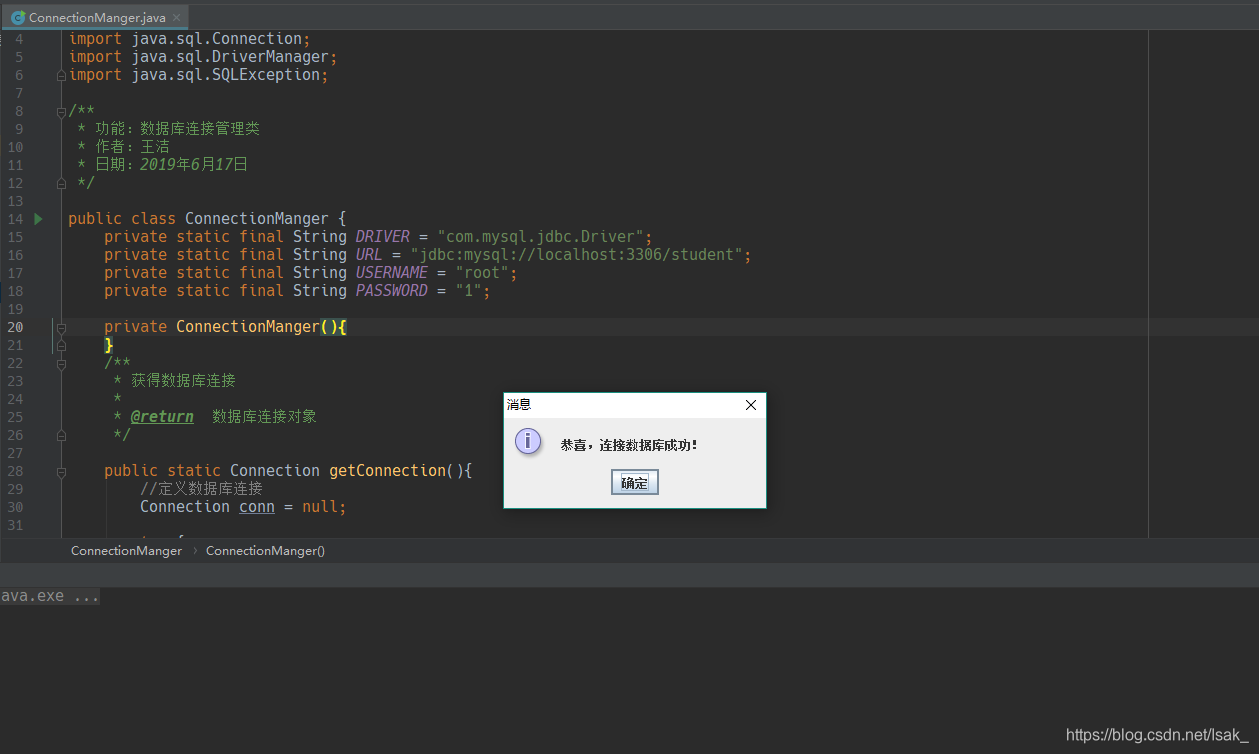

运行程序，测试数据库连接是否成功：

7.新建包dao并创建数据访问接口

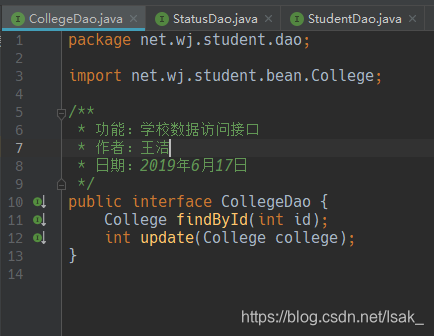

（1）学校数据访问接口CollegeDao

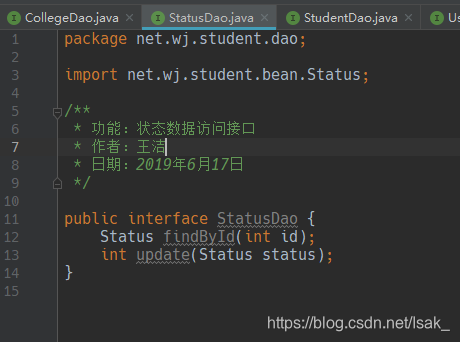

（2）状态数据访问接口StatusDao

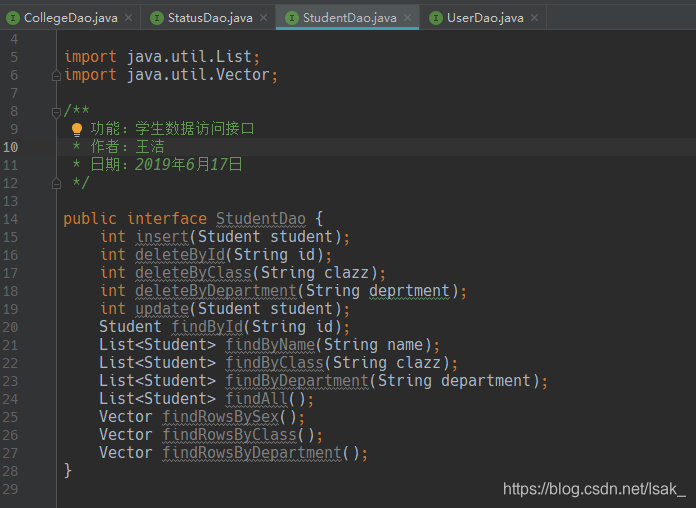

（3）学生数据访问接口StudentDao

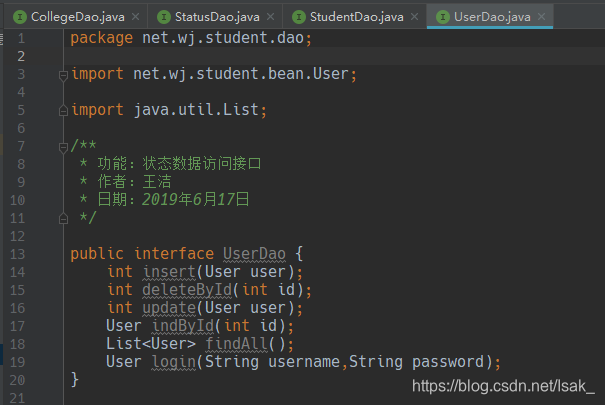

（4）用户数据访问接口UserDao
