同一Tomcat 多个端口部署不同的项目

• server.xml详细配置

  <?xml version='1.0' encoding='utf-8'?>
        <!--
            Licensed to the Apache Software Foundation
      (ASF) under one or more
            contributor license agreements. See the
               NOTICE file distributed with
            this work for additional information regarding copyright ownership.
            The ASF licenses this file to You under the Apache License, Version
            2.0 (the "License"); you may not use this file except in compliance
            with the License. You may obtain a copy of the License at
            http://www.apache.org/licenses/LICENSE-2.0 Unless required by
            applicable law or agreed to in writing, software distributed under the
            License is distributed on an "AS IS" BASIS, WITHOUT WARRANTIES OR
            CONDITIONS OF ANY KIND, either express or implied. See the License for
            the specific language governing permissions and limitations under the
            License.
        -->
        <!--
            Note: A "Server" is not itself a "Container", so you may not define
            subcomponents such as "Valves" at this level. Documentation at
            /docs/config/server.html
        -->
    <Server port="8005" shutdown="SHUTDOWN">
        <!--APR library loader. Documentation at /docs/apr.html -->
        <Listener className="org.apache.catalina.core.AprLifecycleListener"
            SSLEngine="on" />
        <!--
            Initialize Jasper prior to webapps are loaded. Documentation at
            /docs/jasper-howto.html
        -->
        <Listener className="org.apache.catalina.core.JasperListener" />
        <!-- Prevent memory leaks due to use of particular java/javax APIs-->
        <Listener className="org.apache.catalina.core.JreMemoryLeakPreventionListener" />
        <!--
            JMX Support for the Tomcat server. Documentation at
            /docs/non-existent.html
        -->
        <Listener className="org.apache.catalina.mbeans.ServerLifecycleListener" />
        <Listener className="org.apache.catalina.mbeans.GlobalResourcesLifecycleListener" />
        <!--
            Global JNDI resources Documentation at /docs/jndi-resources-howto.html
        -->
   <GlobalNamingResources>
    <!--
        Editable user database that can also be used by UserDatabaseRealm to
        authenticate users
    -->
    <Resource name="UserDatabase" auth="Container"
        type="org.apache.catalina.UserDatabase" description="User database that can be updated and saved"
        factory="org.apache.catalina.users.MemoryUserDatabaseFactory"
        pathname="conf/tomcat-users.xml" />
   </GlobalNamingResources>

<!--
    A "Service" is a collection of one or more "Connectors" that share a
    single "Container" Note: A "Service" is not itself a "Container", so
    you may not define subcomponents such as "Valves" at this level.
    Documentation at /docs/config/service.html
-->
<Service name="Catalina">

    <!--
        The connectors can use a shared executor, you can define one or more
        named thread pools
    -->
    <!--
        <Executor name="tomcatThreadPool" namePrefix="catalina-exec-"
        maxThreads="150" minSpareThreads="4"/>
    -->


    <!--
        A "Connector" represents an endpoint by which requests are received
        and responses are returned. Documentation at : Java HTTP Connector:
        /docs/config/http.html (blocking & non-blocking) Java AJP Connector:
        /docs/config/ajp.html APR (HTTP/AJP) Connector: /docs/apr.html Define
        a non-SSL HTTP/1.1 Connector on port 8080
    -->
    <Connector port="80" protocol="HTTP/1.1" connectionTimeout="20000"
        redirectPort="8443" />
    <!-- A "Connector" using the shared thread pool-->

    <Connector executor="tomcatThreadPool" port="8080" protocol="HTTP/1.1"
        connectionTimeout="20000" redirectPort="8443" />

    <!--
        Define a SSL HTTP/1.1 Connector on port 8443 This connector uses the
        JSSE configuration, when using APR, the connector should be using the
        OpenSSL style configuration described in the APR documentation
    -->


    <!-- Define an AJP 1.3 Connector on port 8009 -->
    <Connector port="8009" protocol="AJP/1.3" redirectPort="8443" />


    <!--
        An Engine represents the entry point (within Catalina) that processes
        every request. The Engine implementation for Tomcat stand alone
        analyzes the HTTP headers included with the request, and passes them
        on to the appropriate Host (virtual host). Documentation at
        /docs/config/engine.html
    -->

    <!--
        You should set jvmRoute to support load-balancing via AJP ie :
        <Engine name="Catalina" defaultHost="localhost" jvmRoute="jvm1">
    -->
    <Engine name="Catalina" defaultHost="union.wayboo.net.cn">

        <!--
            For clustering, please take a look at documentation at:
            /docs/cluster-howto.html (simple how to) /docs/config/cluster.html
            (reference documentation)
        -->
        <!--
            <Cluster className="org.apache.catalina.ha.tcp.SimpleTcpCluster"/>
        -->

        <!--
            The request dumper valve dumps useful debugging information about
            the request and response data received and sent by Tomcat.
            Documentation at: /docs/config/valve.html
        -->
        <!--
            <Valve className="org.apache.catalina.valves.RequestDumperValve"/>
        -->

        <!--
            This Realm uses the UserDatabase configured in the global JNDI
            resources under the key "UserDatabase". Any edits that are performed
            against this UserDatabase are immediately available for use by the
            Realm.
        -->
        <Realm className="org.apache.catalina.realm.UserDatabaseRealm"
            resourceName="UserDatabase" />

        <!--
            Define the default virtual host Note: XML Schema validation will not
            work with Xerces 2.2.
        -->
        <Host name="localhost" appBase="webapps" unpackWARs="true"
            autoDeploy="true" xmlValidation="false" xmlNamespaceAware="false">

            <!--
                SingleSignOn valve, share authentication between web applications
                Documentation at: /docs/config/valve.html
            -->
            <!--
                <Valve className="org.apache.catalina.authenticator.SingleSignOn"
                />
            -->

            <!--
                Access log processes all example. Documentation at:
                /docs/config/valve.html
            -->
            <!--
                <Valve className="org.apache.catalina.valves.AccessLogValve"
                directory="logs" prefix="localhost_access_log." suffix=".txt"
                pattern="common" resolveHosts="false"/>
            -->

        </Host>

    </Engine>
</Service>

<Service name="Catalinaapp1">

    <Connector port="443" protocol="HTTP/1.1" connectionTimeout="20000"
        redirectPort="8443" />

    <Engine name="Catalinaapp1" defaultHost="bbq">

        <Host name="bbq" appBase="webapps2" unpackWARs="true"
            autoDeploy="true" xmlValidation="false" xmlNamespaceAware="false">

            <!--
                SingleSignOn valve, share authentication between web applications
                Documentation at: /docs/config/valve.html
            -->
            <!--
                <Valve className="org.apache.catalina.authenticator.SingleSignOn"
                />
            -->

            <!--
                Access log processes all example. Documentation at:
                /docs/config/valve.html
            -->
            <!--
                <Valve className="org.apache.catalina.valves.AccessLogValve"
                directory="logs" prefix="localhost_access_log." suffix=".txt"
                pattern="common" resolveHosts="false"/>
            -->

        </Host>
    </Engine>
</Service>
</Server>

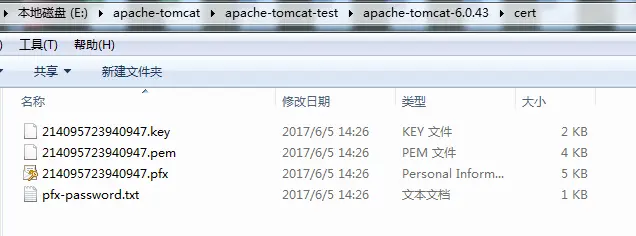

• https:443端口要装证书

    <Connector port="443" protocol="HTTP/1.1" SSLEnabled="true"
             maxThreads="150" scheme="https" secure="true"
             clientAuth="false" sslProtocol="TLS"
              keystoreFile="cert/214095723940947.pfx"
              keystoreType="PKCS12"
              keystorePass="214095723940947"
           />


---

• 邮箱：ithelei@sina.cn
• GoodLuck
