项目集成Spring-Security

1.引入依赖：

<?xml version="1.0" encoding="UTF-8"?>

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
  xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
  <modelVersion>4.0.0</modelVersion>

  <groupId>cn.ld</groupId>
  <artifactId>TourManage</artifactId>
  <version>1.0-SNAPSHOT</version>
  <packaging>war</packaging>
  <properties>
    <spring.version>5.0.2.RELEASE</spring.version>
    <spring.security.version>5.0.2.RELEASE</spring.security.version>
  </properties>


  <dependencies>
    <!-- spring相关的jar包 -->
    <!-- 容器 -->
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-context</artifactId>
      <version>${spring.version}</version>
    </dependency>
    <!-- 事务 -->
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-tx</artifactId>
      <version>${spring.version}</version>
    </dependency>
    <!-- JDBC -->
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-jdbc</artifactId>
      <version>${spring.version}</version>
    </dependency>
    <!-- 测试 -->
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-test</artifactId>
      <version>${spring.version}</version>
    </dependency>
    <!-- springMVC -->
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-webmvc</artifactId>
      <version>${spring.version}</version>
    </dependency>
    <!-- mybatis -->
    <dependency>
      <groupId>org.mybatis</groupId>
      <artifactId>mybatis</artifactId>
      <version>3.4.5</version>
    </dependency>
    <!-- mybatis与Spring整合 -->
    <dependency>
      <groupId>org.mybatis</groupId>
      <artifactId>mybatis-spring</artifactId>
      <version>1.3.1</version>
    </dependency>
    <!-- AOP切面 -->
    <dependency>
      <groupId>org.aspectj</groupId>
      <artifactId>aspectjweaver</artifactId>
      <version>1.8.7</version>
    </dependency>
    <!-- 数据源 -->
    <dependency>
      <groupId>com.alibaba</groupId>
      <artifactId>druid</artifactId>
      <version>1.1.9</version>
    </dependency>
    <!-- 单元测试 -->
    <dependency>
      <groupId>junit</groupId>
      <artifactId>junit</artifactId>
      <version>4.12</version>
      <scope>test</scope>
    </dependency>

    <!-- servletAPI -->
    <!-- JSP应用 -->
    <dependency>
      <groupId>javax.servlet</groupId>
      <artifactId>jsp-api</artifactId>
      <version>2.0</version>
      <scope>provided</scope>
    </dependency>
    <!-- servlet应用 -->
    <dependency>
      <groupId>javax.servlet</groupId>
      <artifactId>servlet-api</artifactId>
      <version>2.5</version>
      <scope>provided</scope>
    </dependency>

    <!--日志开始-->
    <!-- 日志工具包 -->
    <dependency>
      <groupId>org.apache.logging.log4j</groupId>
      <artifactId>log4j-api</artifactId>
      <version>2.7</version>
    </dependency>
    <!--日志核心包-->
    <dependency>
      <groupId>org.apache.logging.log4j</groupId>
      <artifactId>log4j-core</artifactId>
      <version>2.7</version>
    </dependency>
    <!--web相关的功能包-->
    <dependency>
      <groupId>org.apache.logging.log4j</groupId>
      <artifactId>log4j-web</artifactId>
      <version>2.7</version>
    </dependency>
    <!--为java做简单的日志记录-->
    <dependency>
      <groupId>org.slf4j</groupId>
      <artifactId>slf4j-api</artifactId>
      <version>1.7.25</version>
    </dependency>
    <!--slf4j的log4j实现类-->
    <dependency>
      <groupId>org.apache.logging.log4j</groupId>
      <artifactId>log4j-slf4j-impl</artifactId>
      <version>2.9.1</version>
    </dependency>
    <!--程序运行的时候检测用了哪种日志实现类-->
    <dependency>
      <groupId>org.apache.logging.log4j</groupId>
      <artifactId>log4j-jcl</artifactId>
      <version>2.9.1</version>
    </dependency>

    <!--日志结束-->




    <!-- mysql -->
    <dependency>
      <groupId>mysql</groupId>
      <artifactId>mysql-connector-java</artifactId>
      <version>5.1.6</version>
    </dependency>
    <!--oracle的jar包-->

    <!-- JSTL -->
    <dependency>
      <groupId>jstl</groupId>
      <artifactId>jstl</artifactId>
      <version>1.2</version>
    </dependency>
    <dependency>
      <groupId>taglibs</groupId>
      <artifactId>standard</artifactId>
      <version>1.1.1</version>
    </dependency>
    <!-- 文件上传 -->
    <dependency>
      <groupId>commons-fileupload</groupId>
      <artifactId>commons-fileupload</artifactId>
      <version>1.3.1</version>
    </dependency>
    <dependency>
      <groupId>commons-io</groupId>
      <artifactId>commons-io</artifactId>
      <version>2.5</version>
    </dependency>
    <dependency>
      <groupId>c3p0</groupId>
      <artifactId>c3p0</artifactId>
      <version>0.9.1.2</version>
    </dependency>


    <!-- mybatis提供的分页助手 -->
    <dependency>
      <groupId>com.github.pagehelper</groupId>
      <artifactId>pagehelper</artifactId>
      <version>5.1.2</version>
    </dependency>


    <!-- 安全框架 -->
    <dependency>
      <groupId>org.springframework.security</groupId>
      <artifactId>spring-security-web</artifactId>
      <version>${spring.security.version}</version>
    </dependency>
    <dependency>
      <groupId>org.springframework.security</groupId>
      <artifactId>spring-security-config</artifactId>
      <version>${spring.security.version}</version>
    </dependency>
    <dependency>
      <groupId>org.springframework.security</groupId>
      <artifactId>spring-security-core</artifactId>
      <version>${spring.security.version}</version>
    </dependency>
    <dependency>
      <groupId>org.springframework.security</groupId>
      <artifactId>spring-security-taglibs</artifactId>
      <version>${spring.security.version}</version>
    </dependency>
  </dependencies>




  <build>
    <pluginManagement>
      <plugins>
        <plugin>
          <!-- 配置插件tomcat7 -->
          <groupId>org.apache.tomcat.maven</groupId>
          <artifactId>tomcat7-maven-plugin</artifactId>
          <version>2.2</version>
          <configuration>
            <port>90</port>
            <path>/</path>
            <uriEncoding>UTF-8</uriEncoding>

          </configuration>
        </plugin>
        <plugin>
          <groupId>org.apache.maven.plugins</groupId>
          <artifactId>maven-compiler-plugin</artifactId>
          <configuration>
            <source>1.8</source>
            <target>1.8</target>
            <encoding>UTF-8</encoding>
          </configuration>
        </plugin>
      </plugins>
    </pluginManagement>

    <plugins>
      <plugin>
        <groupId>org.apache.tomcat.maven</groupId>
        <artifactId>tomcat7-maven-plugin</artifactId>
        <version>2.2</version>
        <configuration>
          <path>/TourManage</path>
        </configuration>
      </plugin>
    </plugins>

    <!-- 如果不添加此节点mybatis的mapper.xml文件都会被漏掉。 -->
    <resources>
      <resource>
        <directory>src/main/java</directory>
        <includes>
          <include>**/*.properties</include>
          <include>**/*.xml</include>
        </includes>
        <filtering>false</filtering>
      </resource>
      <resource>
        <directory>src/main/resources</directory>
        <includes>
          <include>**/*.properties</include>
          <include>**/*.xml</include>
        </includes>
        <filtering>false</filtering>
      </resource>
    </resources>
  </build>
</project>

2.添加Spring-Security.xml：

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:security="http://www.springframework.org/schema/security"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xsi:schemaLocation="http://www.springframework.org/schema/beans
          http://www.springframework.org/schema/beans/spring-beans.xsd
          http://www.springframework.org/schema/security
          http://www.springframework.org/schema/security/spring-security.xsd">
    <!-- 登录页面和错误页面不拦截-->
    <security:http pattern="/login.jsp" security="none"></security:http>
    <security:http pattern="/css/**" security="none"></security:http>
    <security:http pattern="/img/**" security="none"></security:http>
    <security:http pattern="/plugins/**" security="none"></security:http>

    <!-- 配置拦截的规则
    auto-config="使用自带的页面"
    use-expressions="是否使用spel表达式"，如果使用表达式：hasRole('ROLE_USER')
    -->
    <security:http auto-config="true" use-expressions="false">
        <!-- 配置拦截的请求地址，任何请求地址都必须有ROLE_USER的权限-->
        <security:intercept-url pattern="/**" access="ROLE_USER"/>
        <!--
        指定安全框架使用的页面
        login-page:指定登录页面
        login-processing-url:登录的请求路径:登陆时必须使用的路径
        default-target-url:登录成功后进入的页面
        authentication-failure-url:认证失败后要进入的页面
        -->
        <security:form-login login-page="/login.jsp"
                             login-processing-url="/login"
                             default-target-url="/index.jsp"
                             authentication-failure-url="/login.jsp"
        ></security:form-login>
        <!-- 关闭跨站请求伪造-->
        <security:csrf disabled="true"/>
        <!-- 退出 -->
        <security:logout invalidate-session="true" logout-url="/logout" logout-success-url="/login.jsp"/>
    </security:http>
    <!-- 配置认证信息:认证管理器-->
    <security:authentication-manager>
        <!-- 认证信息的提供者:关联用户服务对象,提供账号和密码-->
        <security:authentication-provider user-service-ref="userService">
            <!-- 用户的服务对象-->
            <!-- <security:user-service> -->
            <!--
            用户信息:临时账号和密码
            {noop}:不使用加密
            authorities:指定用户的认证角色
            -->
            <!-- <security:user name="admin" password="{noop}admin" authorities="ROLE_USER"/> -->
            <!-- </security:user-service> -->
        </security:authentication-provider>
    </security:authentication-manager>
</beans>

3.修改web.xml文件：

<!-- 配置全局参数 -->
 <context-param>
 <param-name>contextConfigLocation</param-name>
 <param-value>classpath:applicationContext.xml,classpath:spring-security.xml</param-value>
 </context-param>
 <!-- 监听器 -->
 <listener>
 <listener-class>org.springframework.web.context.ContextLoaderListener</listener-class>
 </listener>

 <!-- 配置编码过滤器 -->
 <filter>
 <filter-name>CharacterEncoding</filter-name>
 <filter-class>org.springframework.web.filter.CharacterEncodingFilter</filter-class>
 <init-param>
 <param-name>encoding</param-name>
 <param-value>UTF-8</param-value>
 </init-param>
 </filter>
 <filter-mapping>
 <filter-name>CharacterEncoding</filter-name>
 <url-pattern>/*</url-pattern>
 </filter-mapping>

 <!-- 配置委派代理过滤器链 -->
 <filter>
 <filter-name>springSecurityFilterChain</filter-name>
 <filter-class>org.springframework.web.filter.DelegatingFilterProxy</filter-class>
 </filter>
 <filter-mapping>
 <filter-name>springSecurityFilterChain</filter-name>
 <url-pattern>/*</url-pattern>
 </filter-mapping>

 <!-- 配置前端控制器 -->
 <servlet>
 <servlet-name>DispatcherServlet</servlet-name>
 <servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
 <init-param>
 <param-name>contextConfigLocation</param-name>
 <param-value>classpath:spring-mvc.xml</param-value>
 </init-param>
 </servlet>
 <servlet-mapping>
 <servlet-name>DispatcherServlet</servlet-name>
 <url-pattern>/</url-pattern>
 </servlet-mapping>

4.创建sys_user表和SysUser实体类：

表：
create table sys_user(
id int primary key auto_increment,
username varchar(30) unique,
password varchar(100),
email varchar(20),
phoneNum varchar(20),
status int
);
实体类：
public class SysUser {
private Integer id;
private String username;
private String password;
private String email;
private String phoneNum;
private Integer status;
}

5.创建用户业务层：

//UserDetailsService:接口中提供了一个方法LoadUserByUsername
public interface UserService extends UserDetailsService{
}

/**
 * @Service("userService")必须和spring-security.xml里面的
 * <security:authentication-provider user-service-ref="userService">保持一致
 */
@Service("userService")
public class UserServiceImpl implements UserService {
    @Autowired
    UserDao userDao;
    @Override
    public UserDetails loadUserByUsername(String username) throws UsernameNotFoundException {
        System.out.println(username);
        //根据用户名获取用户（SysUser）对象
        SysUser sysUser=userDao.findByUsername(username);
        if (sysUser!=null){
            //创建角色集合对象
            Collection<GrantedAuthority> authorities=new ArrayList<>();
            //创建角色对象
            GrantedAuthority grantedAuthority = new SimpleGrantedAuthority("ROLE_USER");
            authorities.add(grantedAuthority);
            /**
             * 参数1：用户名；参数2：密码（二者来源于数据库）
             * 参数3：角色集合对象
             */
            User user = new User(sysUser.getUsername(),"{noop}"+sysUser.getPassword(),authorities);
            return user;
        }
        return null;
    }

6.创建用户DAO层：

public interface UserDao {
    /**
     * 根据用户名查询一个SysUser对象
     * @param username
     * @return
     */
    SysUser findByUsername(String username);
    }

<!--根据用户名查询一个SysUser对象-->
    <select id="findByUsername" parameterType="String" resultType="SysUser">
        select * from sys_user where username=#{username}
    </select>

服务端获取用户名：

/**
 * 使用安全框架登录成功后，将用户名显示到页面
 */
@Controller
public class ShowUsernameController {
    /**
     * 获取用户名
     * 不使用安全框架：自行将用户对象存入session，并在需要的地方取出
     * 使用安全框架：存入session的操作已经被spring-security完成，只需要取出就行
     * @param request
     */
    @RequestMapping("showUsername")
    public void showUsername(HttpServletRequest request){
        //获取session对象
        HttpSession session = request.getSession();
        //从session域中获取所有的属性名
        Enumeration attributeNames = session.getAttributeNames();
        //遍历枚举类型
        while (attributeNames.hasMoreElements()){
            Object o = attributeNames.nextElement();
            System.out.println(o);
        }
        //SPRING_SECURITY_CONTEXT：表示存储用户登录信息的session中的名称
        //安全框架的上下文对象
        SecurityContext securityContext = (SecurityContext) session.getAttribute("SPRING_SECURITY_CONTEXT");
        //获取认证信息
        Authentication authentication = securityContext.getAuthentication();
        //获取重要信息（用户信息）
        User user = (User) authentication.getPrincipal();
        //获取用户名
        String username = user.getUsername();
        System.out.println(username);
        //获取上下文的对象的另一种方式：
        SecurityContext context = SecurityContextHolder.getContext();

    }
}

前台显示用户名：

方式一:el表达式获取用户名
${sessionScope.SPRING_SECURITY_CONTEXT.authentication.principal.username}

方式二:SpringSecurity标签获取用户名

<%@taglib prefix="security" uri="http://www.springframework.org/security/tags"%>
<security:authentication property="principal.username"/>

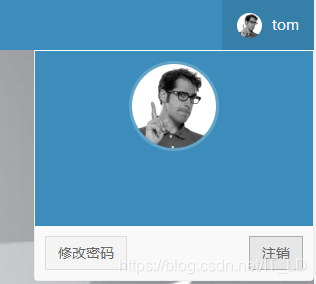

用户退出功能：

class="btn btn-default btn-flat">注销</a>
<a href="${pageContext.request.contextPath}/logout"
<div class="pull-right">
</div>

<!-- 退出 -->
<security:logout invalidate-session="true" logout-url="/logout" logout-success-url="/login.jsp"/>

login.jsp：

<%@ page language="java" isELIgnored="false" contentType="text/html; charset=UTF-8"
	pageEncoding="UTF-8"%>
<!DOCTYPE html PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN" "http://www.w3.org/TR/html4/loose.dtd">
<html>
<head>
<meta charset="utf-8">
<meta http-equiv="X-UA-Compatible" content="IE=edge">

<title>数据 - AdminLTE2定制版 | Log in</title>

<meta
	content="width=device-width,initial-scale=1,maximum-scale=1,user-scalable=no"
	name="viewport">

<link rel="stylesheet"
	href="${pageContext.request.contextPath}/plugins/bootstrap/css/bootstrap.min.css">
<link rel="stylesheet"
	href="${pageContext.request.contextPath}/plugins/font-awesome/css/font-awesome.min.css">
<link rel="stylesheet"
	href="${pageContext.request.contextPath}/plugins/ionicons/css/ionicons.min.css">
<link rel="stylesheet"
	href="${pageContext.request.contextPath}/plugins/adminLTE/css/AdminLTE.css">
<link rel="stylesheet"
	href="${pageContext.request.contextPath}/plugins/iCheck/square/blue.css">
</head>

<body class="hold-transition login-page">
	<div class="login-box">
		<div class="login-logo">
			<a href="all-admin-index.html"><b></b>权限管理系统</a>
		</div>
		<!-- /.login-logo -->
		<div class="login-box-body">
			<p class="login-box-msg">登录系统</p>

			<form action="login"
				method="post">
				<div class="form-group has-feedback">
					<input type="text" name="username" class="form-control"
						placeholder="用户名"> <span
						class="glyphicon glyphicon-envelope form-control-feedback"></span>
				</div>
				<div class="form-group has-feedback">
					<input type="password" name="password" class="form-control"
						placeholder="密码"> <span
						class="glyphicon glyphicon-lock form-control-feedback"></span>
				</div>
				<div class="row">
					<div class="col-xs-8">
						<div class="checkbox icheck">
							<label><input type="checkbox"> 记住 下次自动登录</label>
						</div>
					</div>
					<!-- /.col -->
					<div class="col-xs-4">
						<button type="submit" class="btn btn-primary btn-block btn-flat">登录</button>
					</div>
					<!-- /.col -->
				</div>
			</form>

			<a href="#">忘记密码</a><br>


		</div>
		<!-- /.login-box-body -->
	</div>
	<!-- /.login-box -->

	<!-- jQuery 2.2.3 -->
	<!-- Bootstrap 3.3.6 -->
	<!-- iCheck -->
	<script
		src="${pageContext.request.contextPath}/plugins/jQuery/jquery-2.2.3.min.js"></script>
	<script
		src="${pageContext.request.contextPath}/plugins/bootstrap/js/bootstrap.min.js"></script>
	<script
		src="${pageContext.request.contextPath}/plugins/iCheck/icheck.min.js"></script>
	<script>
		$(function() {
			$('input').iCheck({
				checkboxClass : 'icheckbox_square-blue',
				radioClass : 'iradio_square-blue',
				increaseArea : '20%' // optional
			});
		});
	</script>
</body>

</html>

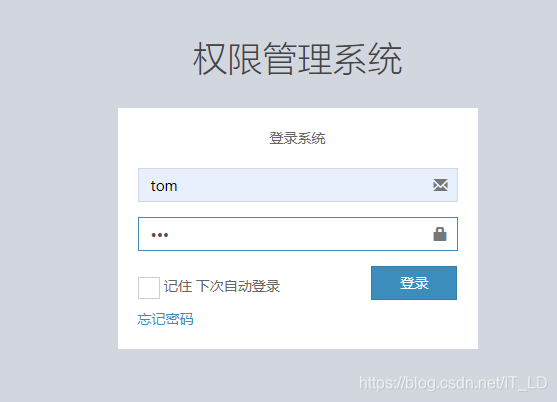

效果：
