Spring5.0.2
准备
package cn.example;
public class Blue {
public Blue() {
System.out.println("Blue---Constructor");
}
}
package cn.example.ext;
public class MyBeanFactoryPostProcessor implements BeanFactoryPostProcessor {
@Override
public void postProcessBeanFactory(ConfigurableListableBeanFactory beanFactory) throws BeansException {
String[] beanDefinitionNames = beanFactory.getBeanDefinitionNames();
for (String beanDefinitionName : beanDefinitionNames) {
System.out.println(beanDefinitionName);
}
System.out.println("一共声明了" + beanFactory.getBeanDefinitionCount() + "个组件");
System.out.println("MyBeanFactoryPostProcessor---postProcessBeanFactory");
}
}
package cn.example.ext;
@Configuration
public class ExtConfig {
@Bean
public MyBeanFactoryPostProcessor myBeanFactoryPostProcessor() {
return new MyBeanFactoryPostProcessor();
}
@Bean
public Blue blue() {
return new Blue();
}
}
package cn.example.ext;
public class Test01 {
@Test
public void test01() {
AnnotationConfigApplicationContext applicationContext = new AnnotationConfigApplicationContext(ExtConfig.class);
}
}
执行结果：
org.springframework.context.annotation.internalConfigurationAnnotationProcessor
org.springframework.context.annotation.internalAutowiredAnnotationProcessor
org.springframework.context.annotation.internalRequiredAnnotationProcessor
org.springframework.context.annotation.internalCommonAnnotationProcessor
org.springframework.context.event.internalEventListenerProcessor
org.springframework.context.event.internalEventListenerFactory
extConfig
myBeanFactoryPostProcessor
blue
一共声明了9个组件
MyBeanFactoryPostProcessor---postProcessBeanFactory
Blue---Constructor
源码-BeanFactoryPostProcessor
BeanFactoryPostProcessor接口的源码：
@FunctionalInterface
public interface BeanFactoryPostProcessor {
/**
* Modify the application context's internal bean factory after its standard
* initialization. All bean definitions will have been loaded, but no beans
* will have been instantiated yet. This allows for overriding or adding
* properties even to eager-initializing beans.
* @param beanFactory the bean factory used by the application context
* @throws org.springframework.beans.BeansException in case of errors
*/
void postProcessBeanFactory(ConfigurableListableBeanFactory beanFactory) throws BeansException;
}
注释的大致意思是：BeanFactoryPostProcessor 的作用是在标准初始化之后修改应用程序上下文的BeanFactory。调用时机————也就是在所有Bean定义已经加载到BeanFactory中，但是Bean的实例还未创建时调用它的方法。
所以上面示例中，能在postProcessBeanFactory()中统计BeanFactory中所有Bean的个数并打印Bean的名称，而且是先打印了MyBeanFactoryPostProcessor---postProcessBeanFactory再打印了Blue---Constructor。
小知识：PostProcessor原本意思就是后置处理器，所以BeanFactoryPostProcessor本意就是BeanFactory的后置处理器，能在BeanFactory创建过程中进行拦截去做些其他事情。
调试分析

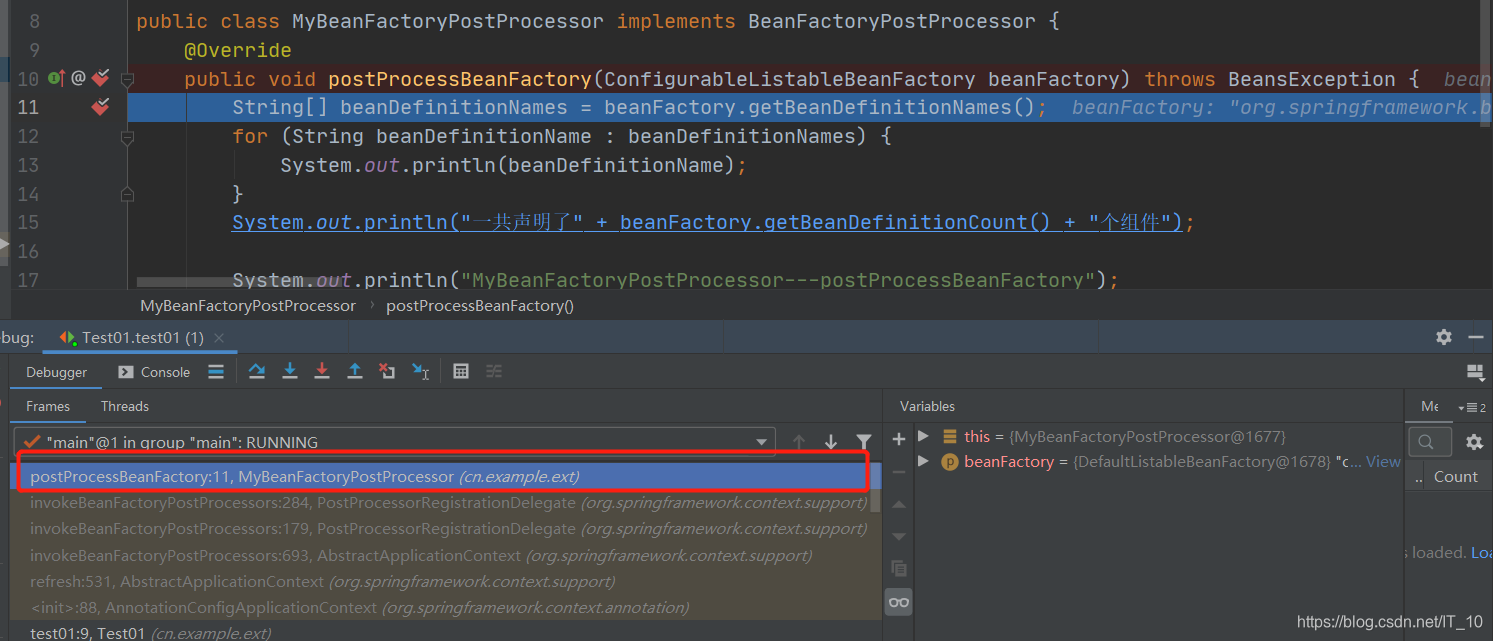

在postProcessBeanFactory()入口打上断点，查看方法调用链：

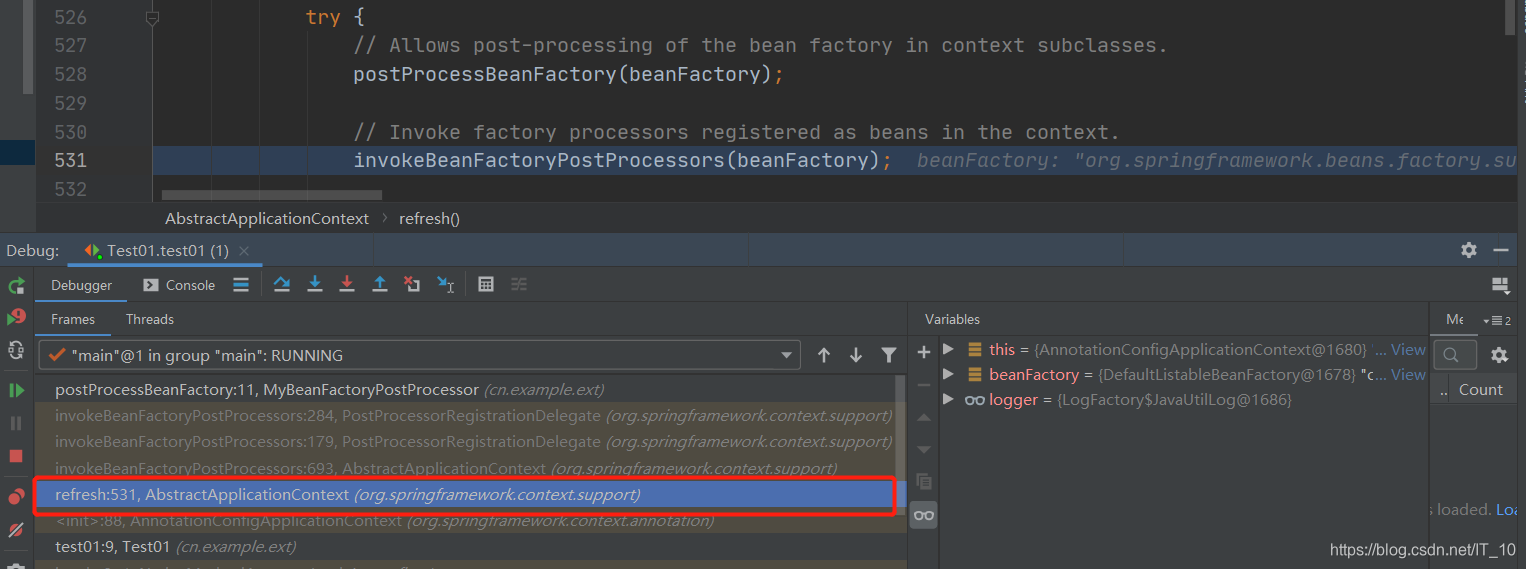

步骤1、IOC容器的创建
步骤2、invokeBeanFactoryPostProcessors(beanFactory);的执行
这个方法就是要将BeanFactory的后置处理器注册到容器中
部分源码：
try {
// Allows post-processing of the bean factory in context subclasses.
postProcessBeanFactory(beanFactory);
// Invoke factory processors registered as beans in the context.
// 这个地方。。。。。。。。。。。。。
invokeBeanFactoryPostProcessors(beanFactory);
// Register bean processors that intercept bean creation.
registerBeanPostProcessors(beanFactory);
// Initialize message source for this context.
initMessageSource();
// Initialize event multicaster for this context.
initApplicationEventMulticaster();
// Initialize other special beans in specific context subclasses.
onRefresh();
// Check for listener beans and register them.
registerListeners();
// Instantiate all remaining (non-lazy-init) singletons.
// 这个地方才开始Bean的初始化。。。。。。。。。。。。。
finishBeanFactoryInitialization(beanFactory);
// Last step: publish corresponding event.
finishRefresh();
}
步骤2.1、注册过程
先执行实现了PriorityOrdered接口类的BeanFactoryPostProcessors，再执行实现了Ordered接口类的BeanFactoryPostProcessors，最后才执行其他类的BeanFactoryPostProcessors，我们自定义的MyBeanFactoryPostProcessors类就属于这种
步骤2.2 、注册过程
在下面这个for循环中，找去实现了BeanFactoryPostProcessors接口的Bean的名字，然后加入到nonOrderedPostProcessors集合中
class PostProcessorRegistrationDelegate {
public static void invokeBeanFactoryPostProcessors(
//................省略其他源码
// Do not initialize FactoryBeans here: We need to leave all regular beans
// uninitialized to let the bean factory post-processors apply to them!
// 1. 通过类型BeanFactoryPostProcessor找Bean的名称，此时Bean是还没有
// 被初始化的，Bean初始化之前，要先去执行BeanFactoryPostProcessor的程序，
// 所以要先找到那些类实现了BeanFactoryPostProcessor接口
String[] postProcessorNames =
beanFactory.getBeanNamesForType(BeanFactoryPostProcessor.class, true, false);
// Separate between BeanFactoryPostProcessors that implement PriorityOrdered,
// Ordered, and the rest.
List<BeanFactoryPostProcessor> priorityOrderedPostProcessors = new ArrayList<>();
List<String> orderedPostProcessorNames = new ArrayList<>();
List<String> nonOrderedPostProcessorNames = new ArrayList<>();
for (String ppName : postProcessorNames) {
if (processedBeans.contains(ppName)) {
// skip - already processed in first phase above
}
else if (beanFactory.isTypeMatch(ppName, PriorityOrdered.class)) {
priorityOrderedPostProcessors.add(beanFactory.getBean(ppName, BeanFactoryPostProcessor.class));
}
else if (beanFactory.isTypeMatch(ppName, Ordered.class)) {
orderedPostProcessorNames.add(ppName);
}
else {
//2. 把没有实现优先级接口但实现了
// BeanFactoryPostProcessors接口的Bean的名称
// 加入到nonOrderedPostProcessorNames集合中
nonOrderedPostProcessorNames.add(ppName);
}
}
// First, invoke the BeanFactoryPostProcessors that implement PriorityOrdered.
sortPostProcessors(priorityOrderedPostProcessors, beanFactory);
invokeBeanFactoryPostProcessors(priorityOrderedPostProcessors, beanFactory);
// Next, invoke the BeanFactoryPostProcessors that implement Ordered.
List<BeanFactoryPostProcessor> orderedPostProcessors = new ArrayList<>();
for (String postProcessorName : orderedPostProcessorNames) {
orderedPostProcessors.add(beanFactory.getBean(postProcessorName, BeanFactoryPostProcessor.class));
}
sortPostProcessors(orderedPostProcessors, beanFactory);
invokeBeanFactoryPostProcessors(orderedPostProcessors, beanFactory);
//4. 根据nonOrderedPostProcessorNames集合中Bean的名称，
// 到Bean工厂中获取对类的信息加入到
// nonOrderedPostProcessors集合中
// Finally, invoke all other BeanFactoryPostProcessors.
List<BeanFactoryPostProcessor> nonOrderedPostProcessors = new ArrayList<>();
for (String postProcessorName : nonOrderedPostProcessorNames) {
nonOrderedPostProcessors.add(beanFactory.getBean(postProcessorName, BeanFactoryPostProcessor.class));
}
// 这个方法就是下图调试到的地方
// 5. 执行nonOrderedPostProcessors集合中Bean的postProcessBeanFactory
invokeBeanFactoryPostProcessors(nonOrderedPostProcessors, beanFactory);
// Clear cached merged bean definitions since the post-processors might have
// modified the original metadata, e.g. replacing placeholders in values...
beanFactory.clearMetadataCache();
}
//................省略其他源码
}

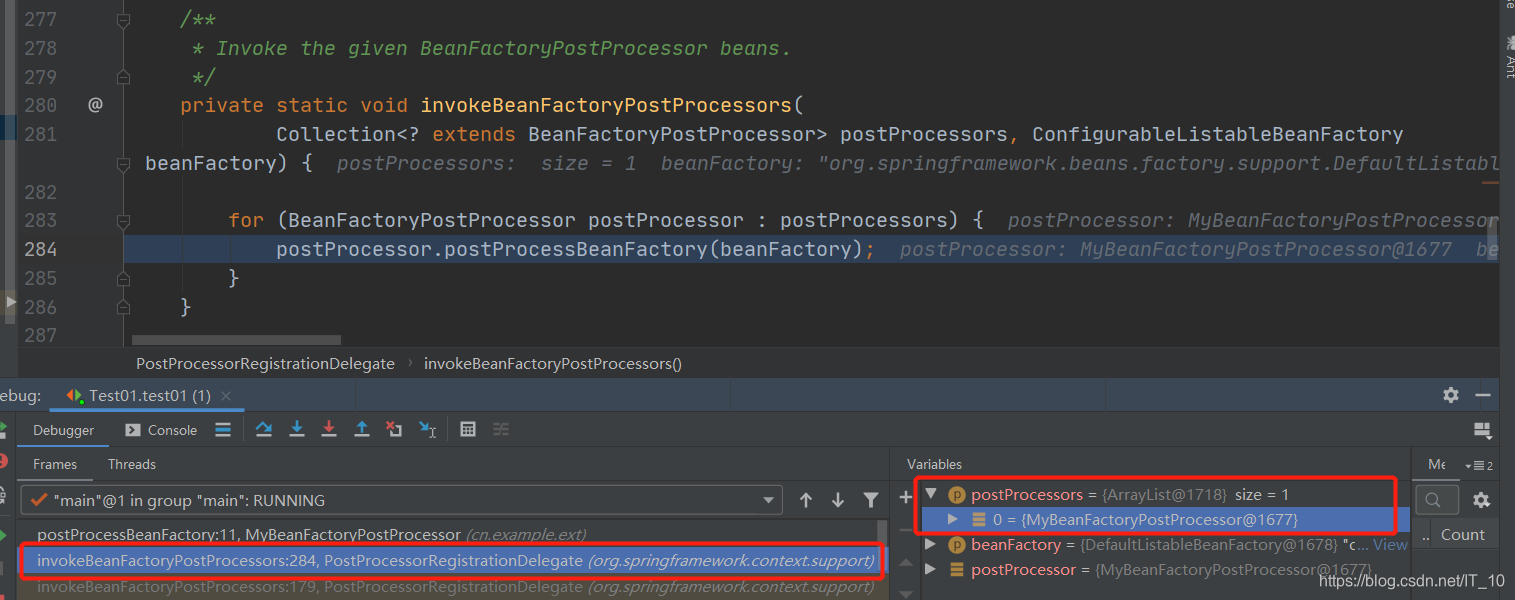

可以看到此时nonOrderedPostProcessors集合中就只记录了一个Bean，就是我们自定义的类

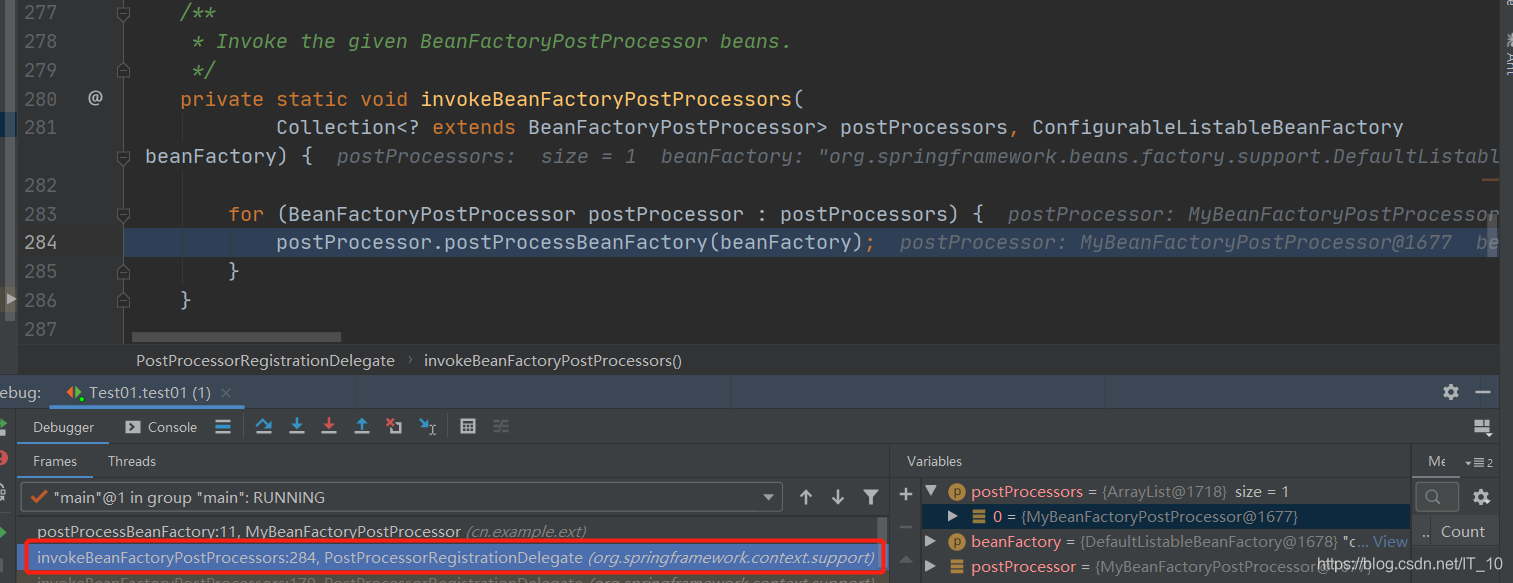

步骤3 、执行postProcessBeanFactory()方法
现在程序就执行到我们打断点的地方，这就是执行到这个地方时的函数调用链
BeanDefinitionRegistryPostProcessor
自定义MyBeanDefinitionRegistryPostProcessor：
public class MyBeanDefinitionRegistryPostProcessor implements BeanDefinitionRegistryPostProcessor {
/**
* @param registry Bean定义信息的保存中心，
* 以后BeanFactory就是按照BeanDefinitionRegistry
* 里边保存的每一个bean的定义信息创建实例,
* 比如Bean的id、类型、多例的还是单例的
*
* @throws BeansException
*/
@Override
public void postProcessBeanDefinitionRegistry(BeanDefinitionRegistry registry) throws BeansException {
System.out.println("START-MyBeanDefinitionRegistryPostProcessor-postProcessBeanDefinitionRegistry");
String[] beanDefinitionNames = registry.getBeanDefinitionNames();
for (String beanDefinitionName : beanDefinitionNames) {
System.out.println(beanDefinitionName);
}
System.out.println("Bean的数量" + registry.getBeanDefinitionCount());
RootBeanDefinition rootBeanDefinition = new RootBeanDefinition(Blue.class);
registry.registerBeanDefinition("blue",rootBeanDefinition);
System.out.println("END-MyBeanDefinitionRegistryPostProcessor-postProcessBeanDefinitionRegistry");
}
@Override
public void postProcessBeanFactory(ConfigurableListableBeanFactory beanFactory) throws BeansException {
System.out.println("MyBeanDefinitionRegistryPostProcessor-postProcessBeanFactory");
System.out.println("Bean的数量" + beanFactory.getBeanDefinitionCount());
}
}
@ComponentScan("cn.example.ext")
@Configuration
public class ExtConfig {
// @Bean
// public MyBeanFactoryPostProcessor myBeanFactoryPostProcessor() {
// return new MyBeanFactoryPostProcessor();
// }
@Bean
public MyBeanDefinitionRegistryPostProcessor myBeanDefinitionRegistryPostProcessor() {
return new MyBeanDefinitionRegistryPostProcessor();
}
}
执行Test01.test01()方法：
START-MyBeanDefinitionRegistryPostProcessor-postProcessBeanDefinitionRegistry
org.springframework.context.annotation.internalConfigurationAnnotationProcessor
org.springframework.context.annotation.internalAutowiredAnnotationProcessor
org.springframework.context.annotation.internalRequiredAnnotationProcessor
org.springframework.context.annotation.internalCommonAnnotationProcessor
org.springframework.context.event.internalEventListenerProcessor
org.springframework.context.event.internalEventListenerFactory
extConfig
myBeanDefinitionRegistryPostProcessor
Bean的数量8
END-MyBeanDefinitionRegistryPostProcessor-postProcessBeanDefinitionRegistry
MyBeanDefinitionRegistryPostProcessor-postProcessBeanFactory
Bean的数量9
Blue---Constructor
BeanDefinitionRegistryPostProcessor是优先于BeanFactoryPostProcessor执行的，在BeanFactoryPostProcessor中说过，它是在所有Bean定义已经加载到BeanFactory中才开始执行的，那么，这个Bean定义信息就是保存在BeanDefinitionRegistry 中，在BeanDefinitionRegistryPostProcessor的postProcessBeanDefinitionRegistry方法中可以获取Bean的定义信息，还可以给容器中额外增加一些组件。
