1. 光照基本模型

在OpenGL ES 2.X中采用的光照模型（通道）分3种：环境光、散射光和镜面光。

1.1 环境光

环境光(Ambient)指的是从四面八方照射到物体上，全方位360°都均匀的光。

在这里插入图片描述

数学模型公式：

$环境光照射结果 = 材质的反射系数 * 环境光强度$

环境光下顶点着色器和片元着色器完整代码：

vertex.sh


uniform mat4 uMVPMatrix;//总变换矩阵
attribute vec3 aPosition;//顶点位置
varying vec3 vPosition;//传递给片元着色器的的顶点位置
varying vec4 vAmbient;//传递给片元着色器的环境光分量

void main(){
    gl_Position = uMVPMatrix * vec4(aPosition,1);
    vPosition = aPosition;
    vAmbient = vec4(0.15,0.15,0.15,1.0);
}

frag.sh

precision mediump float;
uniform float uR;//球半径
varying vec3 vPosition;//顶点着色器传递过来的
varying vec4 vAmbient;//顶点着色器传递过来的环境光强度
void main(){
  vec3 color;
  float n = 8.0;
  float span = 2.0*uR/n;
  int i = int((vPosition.x + uR)/span);
  int j = int((vPosition.y + uR)/span);
  int k = int((vPosition.z + uR)/span);

  int whichColor = int(mod(float(i+j+k),2.0));
  if(whichColor==1){
      color = vec3(0.678,0.231,0.129);
    }else{
      color = vec3(1.0,1.0,1.0);
    }
    vec4 finalColor = vec4(color,0);
    gl_FragColor = finalColor * vAmbient;
}

【环境光说明】

环境光没有方向性；

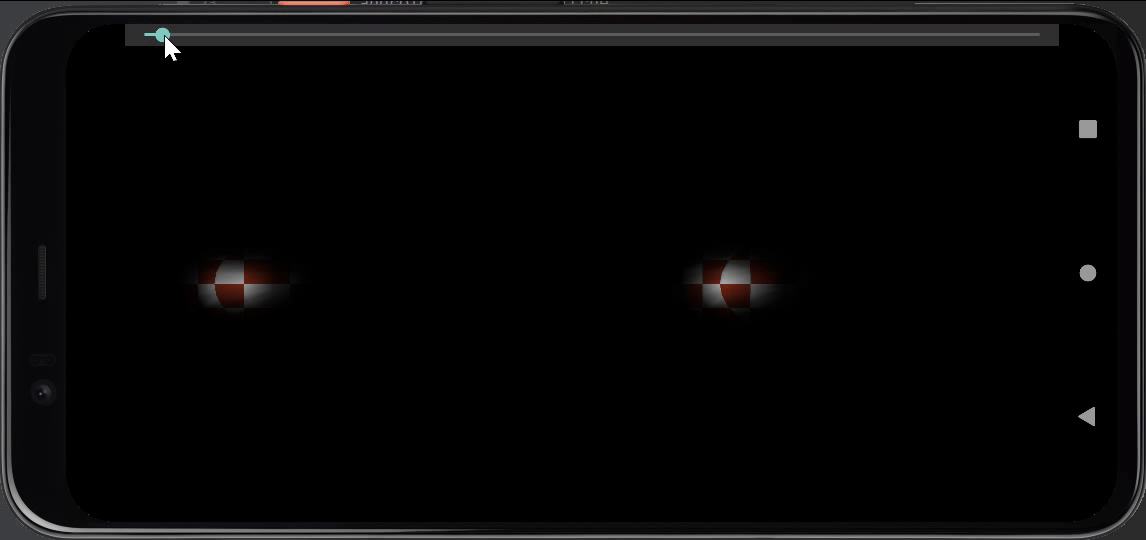

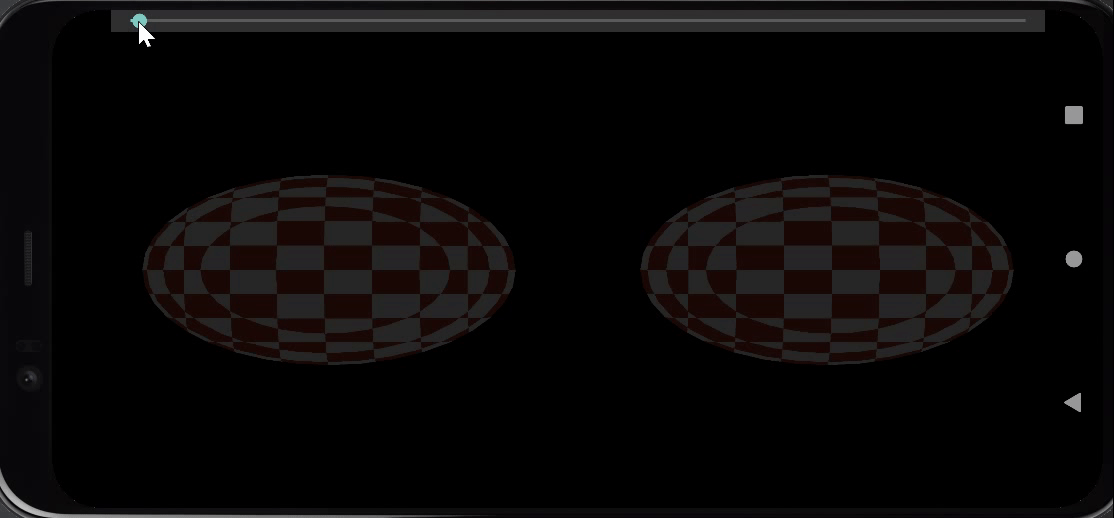

环境光的照射效果与光源位置无关（看下面的GIF图）；
实际开发中环境光强度一般设置较弱；

在这里插入图片描述

1.2 散射光

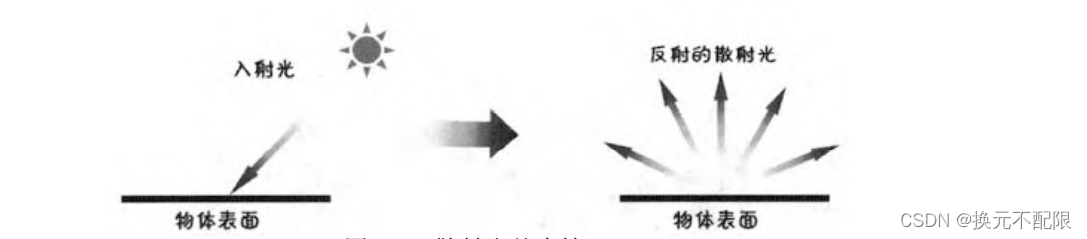

散射光(Diffuse),指的是从物体表面向全方位360°均匀反射的光。

在这里插入图片描述

数学模型公式：

$散射光最终强度=散射光强度*max(cos(入射角)，0)\\ 散射光照射结果= 材质的反射系数*散射光最终强度$

材质的反射系数：物体被照射处颜色；
散射光强度：散射光中RGB3色彩通道强度

散射光下顶点着色器和片元着色器完整代码：

vertex.sh

uniform mat4 uMVPMatrix;
uniform mat4 uMMatrix;
uniform vec3 uLightLocation;
attribute vec3 aPosition;
attribute vec3 aNormal;
varying vec3 vPosition;
varying vec4 vDiffuse;//用于传递给片元着色器的散射光分量

void pointLight(in vec3 normal,inout vec4 diffuse,in vec3 lightLocation,in vec4 lightDiffuse){
  vec3 normalTarget = aPosition + normal;
  vec3 newNormal = (uMMatrix*vec4(normalTarget,1)).xyz - (uMMatrix*vec4(aPosition,1)).xyz;
  newNormal = normalize(newNormal);

  vec3 vp = normalize(lightLocation-(uMMatrix*vec4(aPosition,1)).xyz);
  vp = normalize(vp);
  float nDotViewPosition=max(0.0,dot(newNormal,vp));

  diffuse = lightDiffuse * nDotViewPosition;
}

void main(){
    gl_Position = uMVPMatrix * vec4(aPosition,1);
    vec4 diffuseTemp = vec4(0.0,0.0,0.0,0.0);
    pointLight(normalize(aNormal),diffuseTemp,uLightLocation,vec4(0.8,0.8,0.8,1.0));
    vDiffuse = diffuseTemp;
    vPosition = aPosition;
}

frag.sh

precision mediump float;
uniform float uR;
varying vec3 vPosition;
varying vec4 vDiffuse;//接收从顶点传递过来的散射光最终强度
void main(){
  vec3 color;
  float n = 8.0;
  float span = 2.0*uR/n;
  int i = int((vPosition.x + uR)/span);
  int j = int((vPosition.y + uR)/span);
  int k = int((vPosition.z + uR)/span);

  int whichColor = int(mod(float(i+j+k),2.0));
  if(whichColor==1){
      color = vec3(0.678,0.231,0.129);
    }else{
      color = vec3(1.0,1.0,1.0);
    }
    vec4 finalColor = vec4(color,0);
    gl_FragColor = finalColor * vDiffuse;
}

【散射光说明】

散射光，也可称为漫反射；
反射后散射光在各个方向均匀；

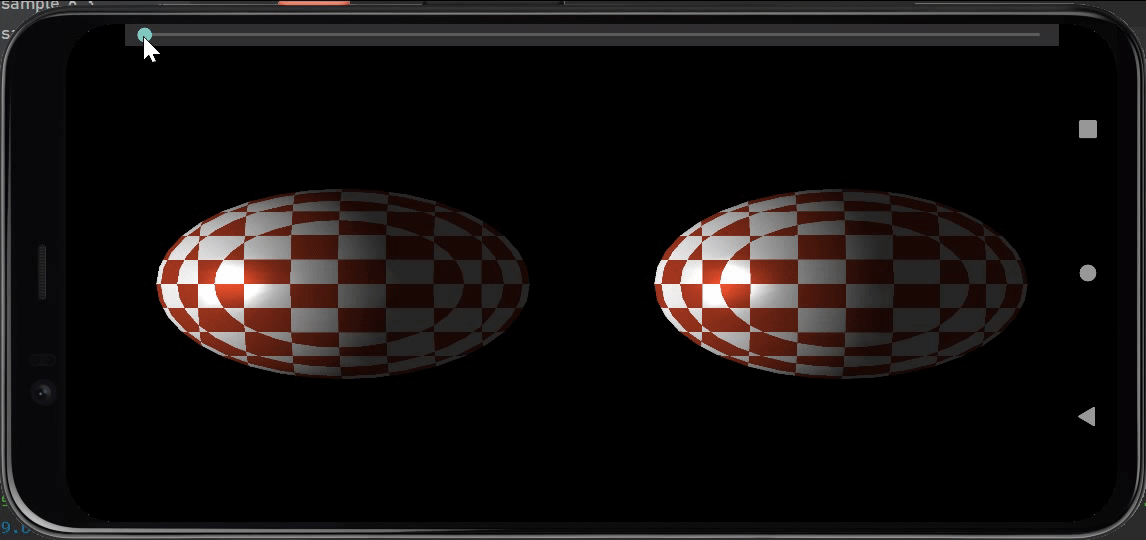

散射光反射的强度与入射光的强度及入射角度密切相关，入射角越大，反射强度越弱(看下方GIF图)；

在这里插入图片描述

1.3 镜面光

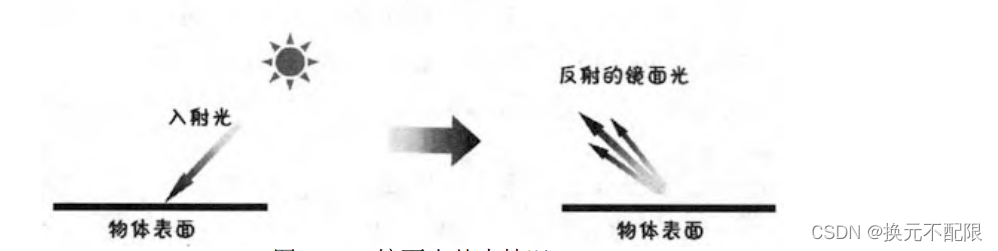

镜面光(Specular)，光滑表面被照射时方向集中的反射光。

在这里插入图片描述

数学模型公式：
$镜面光最终强度=镜面光强度*max(0,(cos(半向量与法向量夹角))粗糙度)\\ 镜面光照射结果=材质的反射系数*镜面光最终强度$

镜面光下顶点着色器和片元着色器完整代码：

vertex.sh

uniform mat4 uMVPMatrix;
uniform mat4 uMMatrix;
uniform vec3 uLightLocation;
uniform vec3 uCamera;
attribute vec3 aPosition;
attribute vec3 aNormal;
varying vec3 vPosition;
varying vec4 vSpecular;

void pointLight(in vec3 normal,inout vec4 specular,in vec3 lightLocation,in vec4 lightSpecular){
  vec3 normalTarget = aPosition + normal;
  vec3 newNormal = (uMMatrix*vec4(normalTarget,1)).xyz - (uMMatrix*vec4(aPosition,1)).xyz;
  newNormal = normalize(newNormal);

  vec3 eye = normalize(uCamera-(uMMatrix*vec4(aPosition,1)).xyz);
  vec3 vp = normalize(lightLocation-(uMMatrix*vec4(aPosition,1)).xyz);
  vp = normalize(vp);
  vec3 halfVector = normalize(vp+eye);
  float shininess = 50.0;
  float nDotViewHalfVector=dot(newNormal,halfVector);
  float powerFactor = max(0.0,pow(nDotViewHalfVector,shininess));
  specular = lightSpecular*powerFactor;
}

void main(){
    gl_Position = uMVPMatrix * vec4(aPosition,1);
    vec4 specularTemp = vec4(0.0,0.0,0.0,0.0);
    pointLight(normalize(aNormal),specularTemp,uLightLocation,vec4(0.7,0.7,0.7,1.0));
    vSpecular = specularTemp;
    vPosition = aPosition;
}

frag.sh

precision mediump float;
uniform float uR;
varying vec3 vPosition;
varying vec4 vSpecular;
void main(){
  vec3 color;
  float n = 8.0;
  float span = 2.0*uR/n;
  int i = int((vPosition.x + uR)/span);
  int j = int((vPosition.y + uR)/span);
  int k = int((vPosition.z + uR)/span);

  int whichColor = int(mod(float(i+j+k),2.0));
  if(whichColor==1){
      color = vec3(0.678,0.231,0.129);
    }else{
      color = vec3(1.0,1.0,1.0);
    }
    vec4 finalColor = vec4(color,0);
    gl_FragColor = finalColor * vSpecular;
}
