FreeSWITCH Source-Code Reading Chapter One

1 Structure
Reference

1 Structure

Source Code Download

# select version v1.8 download
https://freeswitch.org/stash/scm/fs/freeswitch.git

windows10下安装source insight 4.0(破解版)
https://www.cnblogs.com/dakewei/p/7993613.html

1.1 main()

main()

cd /src/switch.c
/* the main application entry point */
int main(int argc, char *argv[])
{
	/* attempt to initialize freeswitch and load modules */
	if (switch_core_init_and_modload(flags, nc ? SWITCH_FALSE : SWITCH_TRUE, &err) != SWITCH_STATUS_SUCCESS)
	{
		fprintf(stderr, "Cannot Initialize [%s]\n", err);
		return 255;
	}
}
#
# load modules depend on the conf-file which path is in /conf/autoload_configs/modules.conf

Module Database

mod_callcenter.c

Add Agent

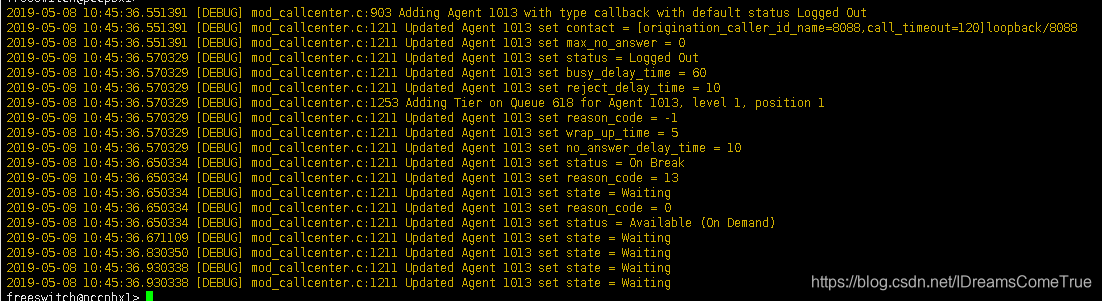

FS DEBUG

在这里插入图片描述

FS DEBUG

mod_callcenter.c:903 Adding Agent 1013 with type callback with default status Logged Out
mod_callcenter.c:1211 Updated Agent 1013 set contact = [origination_caller_id_name=8088.call__time=120]  loopback / 8088

mod_callcenter.c

//callcenter_agent_add
cc_status_t cc_agent_add(const char *agent, const char *type)
{
    cc_execute_sql(NULL, sql, NULL);
}


static switch_status_t cc_execute_sql(cc_queue_t *queue, char *sql, switch_mutex_t *mutex)
{
	switch_cache_db_handle_t *dbh = NULL;
	switch_status_t status = SWITCH_STATUS_FALSE;

	if (globals.global_database_lock) {
		if (mutex) {
			switch_mutex_lock(mutex);
		} else {
			switch_mutex_lock(globals.mutex);
		}
	}

	if (!(dbh = cc_get_db_handle())) {
		switch_log_printf(SWITCH_CHANNEL_LOG, SWITCH_LOG_ERROR, "Error Opening DB\n");
		goto end;
	}

	status = switch_cache_db_execute_sql(dbh, sql, NULL);

end:

	switch_cache_db_release_db_handle(&dbh);

	if (globals.global_database_lock) {
		if (mutex) {
			switch_mutex_unlock(mutex);
		} else {
			switch_mutex_unlock(globals.mutex);
		}
	}

	return status;
}
