文章介绍了JetpackCompose中用于用户交互的关键功能，如Modifier.clickable用于点击检测，Modifier.pointerInput用于更复杂的手势识别，包括点击、拖动和滚动。同时，文中展示了如何实现滚动效果，如垂直和水平滚动，以及嵌套滚动的行为。此外，还提到了拖动（draggable）和滑动（swipeable）功能，以及多点触控的transformable特性。
一、点按
1.1 简单点击 clickable()
允许应用检测对该元素的点击。
| 单击 | fun Modifier.clickable( 简单使用。 |
| .clickable( 将 indication = null, 并将 val interactionSource = remember { MutableInteractionSource() } 传入可去除涟漪效果。通过 val isPressed by interactionSource.collectIsPressedAsState() 可以拿到按压/释放状态。 | |
| 长按、双击 | fun Modifier.combinedClickable( 单击的回调是必须的。 |
@Composable
fun ClickableSample() {
val count = remember { mutableStateOf(0) }
Text(
text = count.value.toString(),
modifier = Modifier.clickable { count.value += 1 }
)
}1.1.1 去除点击涟漪（封装）
fun Modifier.clickableNoRipple(onClick: () -> Unit) = composed {
this.then(
Modifier.clickable(
onClick = onClick,
interactionSource = remember { MutableInteractionSource() },
indication = null
)
)
}1.1.2 双击防抖（封装）
fun Modifier.clickableSafety(
duration: Long = 1000L,
onClick: () -> Unit
) = composed {
var lastClick by remember { mutableLongStateOf(0L) }
this.then(
Modifier.clickable(
onClick = {
val currentTime = System.currentTimeMillis()
if (currentTime - lastClick >= duration) {
onClick()
lastClick = currentTime
}
},
interactionSource = remember { MutableInteractionSource() },
indication = null
)
)
}1.1.3 双击&长按防抖（封装）
提供单击回调是必须的。
fun Modifier.clickableWithDoubleClick(
onSingleClick: () -> Unit,
onDoubleClick: () -> Unit
) = then(
Modifier.combinedClickable(
onClick = onSingleClick,
onDoubleClick = onDoubleClick
)
)
fun Modifier.clickableWithLongClick(
onSingleClick: () -> Unit,
onLongClick: () -> Unit
) = then(
Modifier.combinedClickable(
onClick = onSingleClick,
onLongClick = onLongClick
)
)1.1.4 自带点击回调组件的双击防抖（封装）
针对 Button 这种自带点击回调的可组合项。
@Composable
inline fun onClickSafety (
duration: Long = 1000L,
crossinline onClick: () -> Unit
): () -> Unit {
var lastClick by remember { mutableLongStateOf(0L) }
val currentTime = System.currentTimeMillis()
return if (currentTime - lastClick >= duration) {
lastClick = currentTime
{ onClick() }
} else {
{}
}
}1.1.5 拿到 按压/释放 状态
val interactionSource = remember { MutableInteractionSource() }
val isPressed by interactionSource.collectIsPressedAsState()
Box(
modifier = Modifier.clickable {
interactionSource = interactionSource,
indication = null
}
) {}二、滚动
FlingBehavior 定义释放后的惯性滑动。
2.1 偏移滚动 verticalScroll()、horizontalScroll()
类似与 ScrollView，可以让内容大于尺寸时滑动里面的内容。借助 ScrollState 还可以更改滚动位置或获取当前状态。
| verticalScroll() 纵向滚动 | fun Modifier.verticalScroll( state: ScrollState, //滚动状态 enabled: Boolean = true, //是否启用 flingBehavior: FlingBehavior? = null, reverseScrolling: Boolean = false, //翻转滚动 ) |
| horizontalScroll() 横向滚动 | fun Modifier.horizontalScroll( state: ScrollState, //滚动状态 enabled: Boolean = true, //是否启用 flingBehavior: FlingBehavior? = null, reverseScrolling: Boolean = false, //翻转滚动 ) |
@Composable
fun ScrollBoxes() {
val scrollState = rememberScrollState()
//一显示就会自动滚动100px
LaunchedEffect(Unit) { scrollState.animateScrollTo(100) }
Column(
modifier = Modifier
.background(Color.LightGray)
.size(100.dp)
.verticalScroll(scrollState)
) {
repeat(10) {
Text("Item $it", modifier = Modifier.padding(2.dp))
}
}
}2.2 线性可滚动（一维） scrollable()
只检测手势不偏移内容。构造时需要提供一个 consumeScrollDelta() 函数，该函数在每个滚动步骤都会调用，以像素为单位，必须返回所消耗的距离来确保在嵌套滚动时可以正确传播事件。
| fun Modifier.scrollable( state: ScrollableState, orientation: Orientation, enabled: Boolean = true, reverseDirection: Boolean = false, flingBehavior: FlingBehavior? = null, interactionSource: MutableInteractionSource? = null, ): Modifier |
var offset by remember { mutableStateOf(0f) }
val scrollableState = rememberScrollableState { delta ->
//拿到每次滑动的偏移量delta
offset += delta
delta //必须返回所消耗的距离
}
Box(
Modifier
.size(150.dp)
.background(Color.LightGray)
.scrollable(
orientation = Orientation.Vertical,
state =scrollableState
),
contentAlignment = Alignment.Center
) {
Text(offset.toString())
}2.3 平面可滚动（二维）scrollable2D()
| fun Modifier.scrollable2D( state: Scrollable2DState, enabled: Boolean = true, overscrollEffect: OverscrollEffect? = null, flingBehavior: FlingBehavior? = null, interactionSource: MutableInteractionSource? = null, ) |
var offset by remember { mutableStateOf(Offset.Zero) }
val scrollableState = rememberScrollable2DState { delta ->
offset = delta
delta
}
Box(
modifier = Modifier
.size(150.dp)
.background(Color.LightGray)
.scrollable2D(scrollableState)
) {
Text(offset.toString())
}2.4 嵌套滚动
2.4.1 自动嵌套滚动
对于可滚动组件（如 verticalScroll()、horizontalScroll()、scrollable()、Lazy API、TextField），简单的嵌套滚动无需额外操作，当子元素无法进一步滚动时手势会由父元素处理，滚动增量会自动从子元素传播到父容器。
//父Box嵌套10个子Box，子Box滚动到边界会滚动父Box
@Composable
fun ScrollableSample() {
//设置渐变色方便观察子Box滚动(蓝→黄1000级)
val gradient = Brush.verticalGradient(0f to Color.Blue, 1000f to Color.Yellow)
Box(
modifier = Modifier
.background(Color.LightGray)
.verticalScroll(rememberScrollState())
.padding(32.dp)
) {
Column {
repeat(10) {
Box(
modifier = Modifier
.height(128.dp)
.verticalScroll(rememberScrollState())
) {
Text(
text = "Scroll here",
color = Color.Red,
modifier = Modifier
.border(12.dp, Color.DarkGray)
.background(brush = gradient)
.padding(24.dp)
.height(150.dp)
)
}
}
}
}
}2.4.2 nestedScroll()
对于不可滚动组件（如 Box 或自定义组件），滚动增量不会在嵌套滚动中传播，可使用该修饰符向其它组件提供支持。
2.4.3 嵌套滚动互操作性
三、拖拽
只检测手势不偏移内容（需要自行将检测值设置到需要偏移的内容上），以像素为单位。

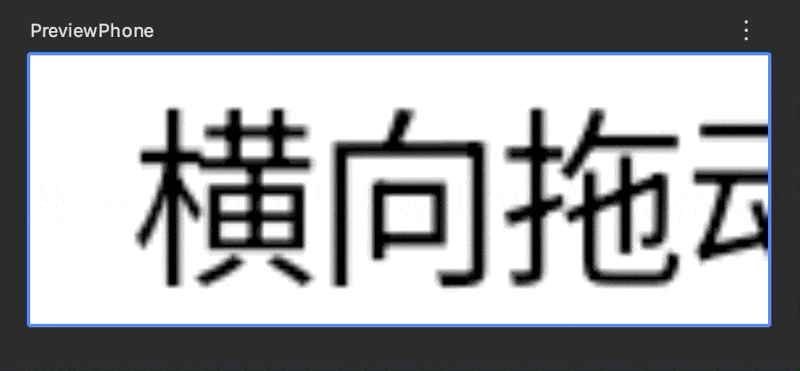

3.1 线性拖拽（一维）draggable()
| fun Modifier..draggable( |
//文字横向拖动
var offsetX by remember { mutableFloatStateOf(0f) }
val dragState = rememberDraggableState { delta ->
offsetX += delta
}
Text(
modifier = Modifier
.background(Color.White)
.offset { x = IntOffset(offsetX.roundToInt(), y = 0) }
.draggable(
orientation = Orientation.Horizontal,
state = dragState
),
text = "横向拖动"

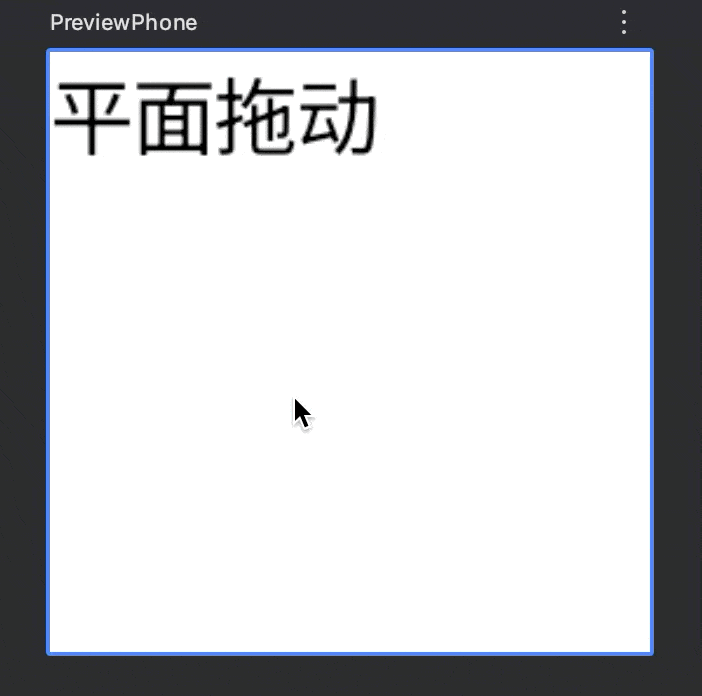

)3.2 平面拖拽（二维）draggable2D()
| fun Modifier.draggable2D( state: Draggable2DState, enabled: Boolean = true, //是否启用 interactionSource: MutableInteractionSource? = null, startDragImmediately: Boolean = false, onDragStarted: (startedPosition: Offset) -> Unit = NoOpOnDragStart, //拖拽开始时的回调 onDragStopped: (velocity: Velocity) -> Unit = NoOpOnDragStop, //拖拽结束时的回调 reverseDirection: Boolean = false, //反转方向 ): Modifier |
var offset by remember { mutableStateOf(Offset.Zero) }
val dragState = rememberDraggable2DState { delta ->
//delta可以分别拿到xy轴偏移
offset = delta
}
Text(
modifier = Modifier
.size(100.dp)
.background(Color.White)
.offset { IntOffset(x = offset.x.roundToInt(), y = offset.y.roundToInt()) }
.draggable2D(
state = dragState
),
text = "平面拖动"
)四、拖拽（锚点吸附）
4.1 swipeable() 已过时
是一个 Material API，在 Compose v1.6-alpha01 中已被 Foundation 的 anchoreDraggable() 取代。
只检测手势不偏移内容（需要自行将检测值设置到需要偏移的内容上）。具有惯性，释放后会朝着锚点呈现动画效果，常见用途是滑动关闭。
@OptIn(ExperimentalMaterialApi::class)
@Composable
fun SwipeableSample() {
val swipeableState = rememberSwipeableState(0)
val sizePx = with(LocalDensity.current) { squareSize.toPx() } //DP转PX
//设置锚点（key是像素，value是索引）
val anchors = mapOf(0f to 0, sizePx to 1)
Box(
modifier = Modifier
.width(96.dp)
.swipeable(
state = swipeableState,
anchors = anchors,
//阈值（超过就会自己滑到底，达不到就会滑回来）
thresholds = { _, _ -> FractionalThreshold(0.3f) },
orientation = Orientation.Horizontal
)
.background(Color.LightGray)
) {
Box(
Modifier
.offset { IntOffset(swipeableState.offset.value.roundToInt(), 0) }
.size(48.dp)
.background(Color.DarkGray)
)
}
}4.2 anchoredDraggable()
五、多点触控 transformable()
只检测手势不转换元素。平移、缩放、旋转。
@Composable
fun TransformableSample() {
var scale by remember { mutableStateOf(1f) } //缩放
var rotation by remember { mutableStateOf(0f) } //旋转
var offset by remember { mutableStateOf(Offset.Zero) } //平移
val state = rememberTransformableState { zoomChange, offsetChange, rotationChange ->
scale *= zoomChange
rotation += rotationChange
offset += offsetChange
}
Box(
Modifier
.graphicsLayer(
scaleX = scale, //等比缩放
scaleY = scale, //等比缩放
rotationZ = rotation,
translationX = offset.x,
translationY = offset.y
)
.transformable(state = state)
.background(Color.Blue)
.fillMaxSize()
)
}六、下拉刷新 pullRefresh()
详见：修饰符 pullRefresh() 可组合项 PullToRefreshBox()
七、手势监听 pointerInput()
手势检测会挂起协程，因此在 .pointerInput() 中只能使用一个手势检测，第二个是无法执行到的。如果要使用两个，再添加一个 .pointerInput()。
| .pointerInput( key1: Any?, //kay变化会中断处理(不需要就传Unit)。 block: suspend PointerInputScope.() -> Unit //手势处理都发生在协程中 ) |
//错误示范
modifier = Modifier
.pointerInput(Unit) {
detectTapGestures {}
//后面代码永远不会执行到
detectDragGestures {}
}
//正确使用
modifier = Modifier
.pointerInput(Unit) {
detectTapGestures {}
}.pointerInput(Unit) {
detectDragGestures {}
}7.1 点击检测
| detectTapGestures() 单击、双击、长按 | suspend fun PointerInputScope.detectTapGestures( |
Box(
modifier = Modifier.size(200.dp).background(Color.Blue)
.pointerInput(Unit) {
detectTapGestures(
onTap = {},
onDoubleTap = {},
onPress = {},
onLongPress = {}
)
}
)7.2 变换检测
| detectTransformGestures() 平移、旋转、缩放 | suspend fun PointerInputScope.detectTransformGestures( 参数 panZoomLock ：为true时触发阈值才开始旋转，为false更灵敏。 参数 onGesture：手势回调，参数值均为当前手势与上一次回调之间的差值变化量。centroid：所有按下触点的质心坐标。pan：平移，单位像素。zoom：缩放，单位比例因子。rotation：旋转，单位度。 |
var offset by remember { mutableStateOf(Offset.Zero) }
var rotate by remember { mutableFloatStateOf(0f) }
var scale by remember { mutableFloatStateOf(1f) }
Box(
modifier = Modifier.size(300.dp).background(Color.White),
contentAlignment = Alignment.Center
) {
Box(
modifier = Modifier.size(100.dp).background(Color.Blue)
.rotate(rotate)
.scale(scale)
.offset { IntOffset(offset.x.roundToInt(), offset.y.roundToInt()) }
.pointerInput(Unit) {
detectTransformGestures(false) { centroid, pan, zoom, rotation ->
offset += pan
scale *= zoom
rotate += rotation
}
}
)
}7.3 拖拽检测
参数onDragCancel：触发时机多发生于滑动冲突的场景，子组件可能最开始是可以获取到拖动事件的，当拖动手势事件达到莫个指定条件时可能会被父组件劫持消费，这种场景下便会执行该回调。
| detectDragGestures() 拖动 | suspend fun PointerInputScope.detectDragGestures( |
| detectHorizontalDragGestures() 水平拖动 | suspend fun PointerInputScope.detectHorizontalDragGestures( onDragStart: (Offset) -> Unit = {}, onDragEnd: () -> Unit = {}, onDragCancel: () -> Unit = {}, onHorizontalDrag: (change: PointerInputChange, dragAmount: Float) -> Unit ) |
| detectVerticalDragGestures 垂直拖动 | suspend fun PointerInputScope.detectVerticalDragGestures( onDragStart: (Offset) -> Unit = {}, onDragEnd: () -> Unit = {}, onDragCancel: () -> Unit = {}, onVerticalDrag: (change: PointerInputChange, dragAmount: Float) -> Unit ) |
| detectDragGesturesAfterLongPress 长按后拖动 | suspend fun PointerInputScope.detectDragGesturesAfterLongPress( onDragStart: (Offset) -> Unit = {}, onDragEnd: () -> Unit = {}, onDragCancel: () -> Unit = {}, onDrag: (change: PointerInputChange, dragAmount: Offset) -> Unit, ) |
//父Box中拖动蓝色子Box
Box(
modifier = Modifier.fillMaxSize(),
contentAlignment = Alignment.Center
) {
var offset by remember { mutableStateOf(Offset.Zero) }
Box(Modifier
.offset { IntOffset(offset.x.roundToInt(), offset.y.roundToInt()) }
.background(Color.Blue)
.size(50.dp)
.pointerInput(Unit) {
detectDragGestures { change, dragAmount ->
offset += dragAmount
}
}
)
}7.4 awaitEachGesture()
| suspend fun PointerInputScope.awaitEachGesture( block: suspend AwaitPointerEventScope.() -> Unit ) 持续处理点击事件，确保不同手势周期之间的事件传递不会丢失。 |
八、手势作用域
写法过于底层，基本没有太多场景我们需要使用。
| awaitPointerEventScope() | suspend fun <R> awaitPointerEventScope( block: suspend AwaitPointerEventScope.() -> R ): R 创建协程作用域，用于等待点击事件。 |
| awaitPointerEvent() | suspend fun awaitPointerEvent( ): PointerEvent 会挂起协程，等待发生下一次点击事件。 |
| awaitFirstDown() 第一次按下 | suspend fun AwaitPointerEventScope.awaitFirstDown( |
| 拖拽事件 | suspend fun AwaitPointerEventScope.drag( pointerId: PointerId, onDrag: (PointerInputChange) -> Unit, ): Boolean |
| suspend fun AwaitPointerEventScope.horizontalDrag( 水平 | |
| suspend fun AwaitPointerEventScope.verticalDrag( 垂直 | |
| 单次拖拽事件 | suspend fun AwaitPointerEventScope.awaitDragOrCancellation( pointerId: PointerId ): PointerInputChange? |
| suspend fun AwaitPointerEventScope.awaitHorizontalDragOrCancellation( 水平 | |
| suspend fun AwaitPointerEventScope.awaitVerticalDragOrCancellation( 垂直 | |
| 有效拖拽事件 | suspend fun AwaitPointerEventScope.awaitTouchSlopOrCancellation( pointerId: PointerId, onTouchSlopReached: (change: PointerInputChange, overSlop: Offset) -> Unit, ): PointerInputChange? |
| suspend fun AwaitPointerEventScope.awaitHorizontalTouchSlopOrCancellation( 水平 | |
| suspend fun AwaitPointerEventScope.awaitVerticalTouchSlopOrCancellation( 垂直 |
