MPAndroidChart3使用详解9：RadarChart（雷达图）顶角显示圆点——重写RadarChart控件添加顶角圆点绘制方案

目录



1 思路：

2 实现：

3 效果：

---

1 思路：

查看RadarChart控件源码，找到绘制网线的相关源码，获取到各个顶点的坐标后，便可以在各个顶点绘制圆。

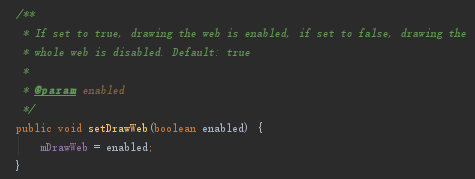

Step 1：既然圆点是在网线各个顶点，那便跟绘制网线相关联，我们可以从绘制网线的公开方法入手去查找，最先想到就是setDrawWeb方法，直接影响网线的绘制，这个方法也很简单只设置了mDrawWeb的值。

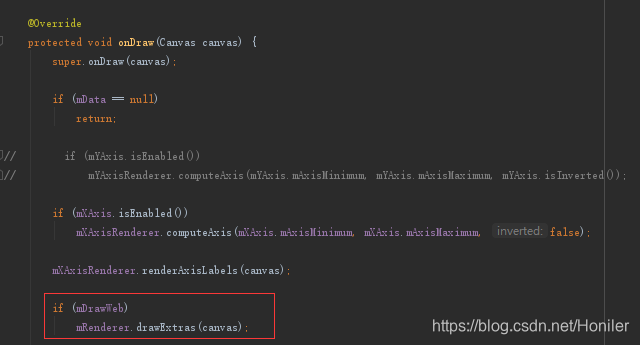

Step 2：接下来我们要查找变量mDrawWeb在绘制中的实际已应用，绘制便跟onDraw方法有关。可以看出绘制网线时，调用了mRenderer变量的drawExtras(canvas)。

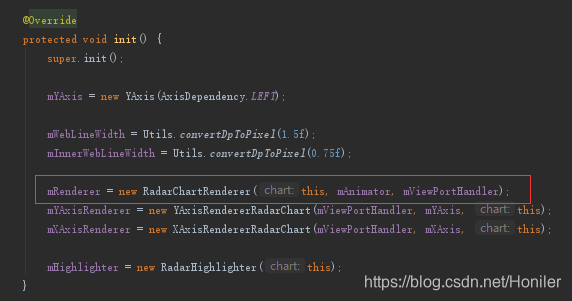

Step 3：查找mRenderer变量的具体对象。

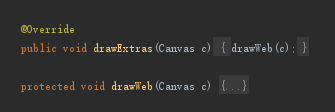

Step 4：查找RadarChartRenderer对象中drawExtras(canvas)方法到底做了什么事情。

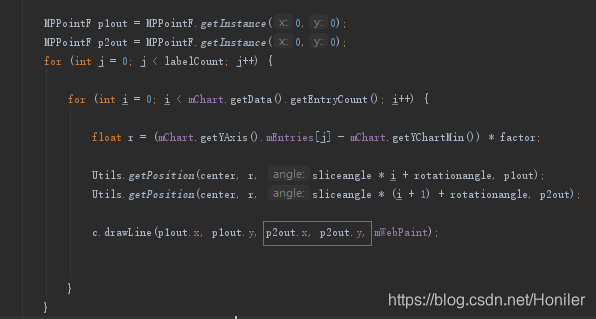

Step 5：drawExtras(canvas)方法中如下这段代码是绘制每段网线的，从中可以获取到各个顶点的坐标。

Step 6：通过该坐标在里面进行圆点的绘制，由于我们无法直接编辑源码，我们还需要重写RadarChart和RadarChartRenderer这两个类。

2 实现：

Step 1：新建我们自己的RadarChartRenderer类继承RadarChartRenderer，重写drawWeb(Canvas c)方法，里面内容直接拷贝原方法代码后在指定加上如下这段代码。

for (int j = 0; j < labelCount; j++) {
    for (int i = 0; i < mChart.getData().getEntryCount(); i++) {
        float r = (mChart.getYAxis().mEntries[j] - mChart.getYChartMin()) * factor;
        Utils.getPosition(center, r, sliceangle * i + rotationangle, p1out);
        Utils.getPosition(center, r, sliceangle * (i + 1) + rotationangle, p2out);
        c.drawLine(p1out.x, p1out.y, p2out.x, p2out.y, mWebPaint);
        // start（加上下面这几行代码，用于绘制每个顶角上的圆）
        if (mDrawAngleCircle && j == labelCount - 1) {
            mAngleCirclePaint.setColor(mAngleCircleColors == null || mAngleCircleColors.length == 0 ? Color.BLACK : this.mAngleCircleColors[i % mAngleCircleColors.length]);
            c.drawCircle(p2out.x, p2out.y, mAngleCircleRadius, mAngleCirclePaint);
        }
        // end
    }
}

完整代码：

import android.graphics.Canvas;
import android.graphics.Color;
import android.graphics.Paint;

import com.github.mikephil.charting.animation.ChartAnimator;
import com.github.mikephil.charting.charts.RadarChart;
import com.github.mikephil.charting.utils.MPPointF;
import com.github.mikephil.charting.utils.Utils;
import com.github.mikephil.charting.utils.ViewPortHandler;

public class RadarChartRenderer extends com.github.mikephil.charting.renderer.RadarChartRenderer {

    private Paint mAngleCirclePaint;
    private float mAngleCircleRadius = Utils.convertDpToPixel(5f);
    private int[] mAngleCircleColors;
    private boolean mDrawAngleCircle = false;

    public RadarChartRenderer(RadarChart chart, ChartAnimator animator, ViewPortHandler viewPortHandler) {
        super(chart, animator, viewPortHandler);
        mAngleCirclePaint = new Paint();
    }

    @Override
    protected void drawWeb(Canvas c) {
        float sliceangle = mChart.getSliceAngle();

        // calculate the factor that is needed for transforming the value to
        // pixels
        float factor = mChart.getFactor();
        float rotationangle = mChart.getRotationAngle();

        MPPointF center = mChart.getCenterOffsets();

        // draw the web lines that come from the center
        mWebPaint.setStrokeWidth(mChart.getWebLineWidth());
        mWebPaint.setColor(mChart.getWebColor());
        mWebPaint.setAlpha(mChart.getWebAlpha());

        final int xIncrements = 1 + mChart.getSkipWebLineCount();
        int maxEntryCount = mChart.getData().getMaxEntryCountSet().getEntryCount();

        MPPointF p = MPPointF.getInstance(0,0);
        for (int i = 0; i < maxEntryCount; i += xIncrements) {

            Utils.getPosition(
                    center,
                    mChart.getYRange() * factor,
                    sliceangle * i + rotationangle,
                    p);

            c.drawLine(center.x, center.y, p.x, p.y, mWebPaint);
        }
        MPPointF.recycleInstance(p);

        // draw the inner-web
        mWebPaint.setStrokeWidth(mChart.getWebLineWidthInner());
        mWebPaint.setColor(mChart.getWebColorInner());
        mWebPaint.setAlpha(mChart.getWebAlpha());

        int labelCount = mChart.getYAxis().mEntryCount;

        MPPointF p1out = MPPointF.getInstance(0,0);
        MPPointF p2out = MPPointF.getInstance(0,0);
        for (int j = 0; j < labelCount; j++) {

            for (int i = 0; i < mChart.getData().getEntryCount(); i++) {

                float r = (mChart.getYAxis().mEntries[j] - mChart.getYChartMin()) * factor;

                Utils.getPosition(center, r, sliceangle * i + rotationangle, p1out);
                Utils.getPosition(center, r, sliceangle * (i + 1) + rotationangle, p2out);

                c.drawLine(p1out.x, p1out.y, p2out.x, p2out.y, mWebPaint);
                // start（加上下面这几行代码，用于绘制每个顶角上的圆）
                if (mDrawAngleCircle && j == labelCount - 1) {
                    mAngleCirclePaint.setColor(mAngleCircleColors == null || mAngleCircleColors.length == 0 ? Color.BLACK : this.mAngleCircleColors[i % mAngleCircleColors.length]);
                    c.drawCircle(p2out.x, p2out.y, mAngleCircleRadius, mAngleCirclePaint);
                }
                // end
            }
        }
        MPPointF.recycleInstance(p1out);
        MPPointF.recycleInstance(p2out);
    }

    /**
     * 顶角圆点颜色
     * @param colors 颜色
     */
    public void setAngleCircleColor(int[] colors) {
        this.mAngleCircleColors = colors;
    }

    /**
     * 顶角圆点半径
     * @param radius 半径
     */
    public void setAngleCircleRadius(float radius) {
        this.mAngleCircleRadius = Utils.convertDpToPixel(radius);
    }

    /**
     * 是否绘制顶角圆点
     * @param draw
     */
    public void setDrawAngleCircle(boolean draw) {
        this.mDrawAngleCircle = draw;
    }

}

 Step 2：新建我们自己的RadarChart类继承RadarChart，重写init()方法。

@Override
protected void init() {
    super.init();
    this.mRenderer = new RadarChartRenderer(this, mAnimator, mViewPortHandler);
}

完整代码：

import android.content.Context;
import android.util.AttributeSet;

public class RadarChart extends com.github.mikephil.charting.charts.RadarChart {

    public RadarChart(Context context) {
        super(context);
    }

    public RadarChart(Context context, AttributeSet attrs) {
        super(context, attrs);
    }

    public RadarChart(Context context, AttributeSet attrs, int defStyle) {
        super(context, attrs, defStyle);
    }

    @Override
    protected void init() {
        super.init();
        this.mRenderer = new RadarChartRenderer(this, mAnimator, mViewPortHandler);
    }

    /**
     * 是否绘制顶角圆点
     * @param draw
     */
    public void setDrawAngleCircle(boolean draw) {
        ((RadarChartRenderer) this.mRenderer).setDrawAngleCircle(draw);
    }

    /**
     * 顶角圆点颜色
     * @param colors 颜色
     */
    public void setAngleCircleColor(int[] colors) {
        ((RadarChartRenderer) this.mRenderer).setAngleCircleColor(colors);
    }

    /**
     * 顶角圆点半径
     * @param radius 半径
     */
    public void setAngleCircleRadius(float radius) {
        ((RadarChartRenderer) this.mRenderer).setAngleCircleRadius(radius);
    }

}

  Step 3：在界面中，使用我们自己RadarChart，再开启绘制顶点圆点，设置颜色。

rc.setDrawAngleCircle(true);
rc.setAngleCircleColor(new int[] {
    Color.parseColor("#36a9ce"),
    Color.parseColor("#33ff66"),
    Color.parseColor("#ef5aa1"),
    Color.parseColor("#ff0000"),
    Color.parseColor("#6600ff")
});

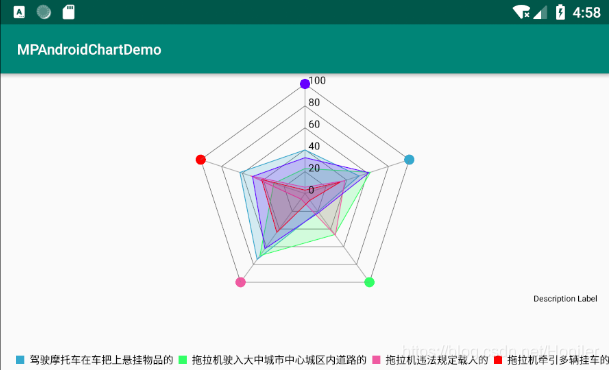

3 效果：

雷达图的使用教程：https://blog.youkuaiyun.com/Honiler/article/details/90407390
