"SSM项目"创建步骤

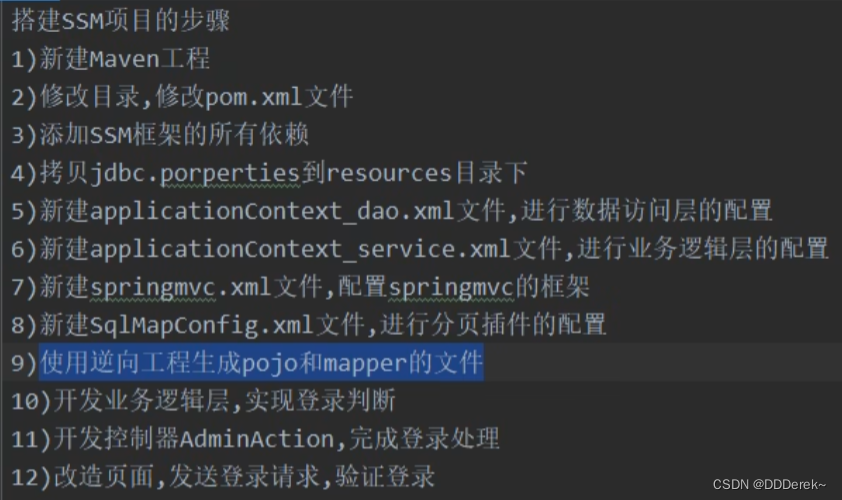

在这里插入图片描述

1. 创建 mevan 项目

2. Add Framework Support

3.导入依赖

    <properties>
        <maven.compiler.source>1.8</maven.compiler.source>
        <maven.compiler.target>1.8</maven.compiler.target>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
        <spring.version>4.3.19.RELEASE</spring.version>
        <jackson-databind-version>2.10.1</jackson-databind-version>
    </properties>


    <dependencies>

<!--        lombok 注解-->
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <version>1.16.22</version>
        </dependency>

        <!-- 添加sevlet支持 -->
        <dependency>
            <groupId>javax.servlet</groupId>
            <artifactId>javax.servlet-api</artifactId>
            <version>3.1.0</version>
            <scope>provided</scope>
        </dependency>

        <!-- 添加jsp支持 -->
        <dependency>
            <groupId>javax.servlet.jsp</groupId>
            <artifactId>javax.servlet.jsp-api</artifactId>
            <version>2.3.1</version>
        </dependency>
        <!-- 添加jstl支持 -->
        <!--（JavaServer Pages Standard Tag Library，JSP标准标签库)
        是一个JSP标签集合，它封装了JSP应用的通用核心功能，可以简化java代码的书写。-->
        <dependency>
            <groupId>javax.servlet</groupId>
            <artifactId>jstl</artifactId>
            <version>1.1.2</version>
        </dependency>
        <dependency>
            <groupId>taglibs</groupId>
            <artifactId>standard</artifactId>
            <version>1.1.2</version>
        </dependency>
        <!-- 添加spring支持 -->
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-core</artifactId>
            <version>${spring.version}</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-beans</artifactId>
            <version>${spring.version}</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-context</artifactId>
            <version>${spring.version}</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-context-support</artifactId>
            <version>${spring.version}</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-web</artifactId>
            <version>${spring.version}</version>
        </dependency>
        <!--spring test支持-->
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-test</artifactId>
            <version>${spring.version}</version>
        </dependency>
        <!--spring mvc支持-->
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-webmvc</artifactId>
            <version>${spring.version}</version>
        </dependency>

        <!--spring 事务管理支持-->
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-tx</artifactId>
            <version>${spring.version}</version>
        </dependency>
        <!--spring jdbc操作支持-->
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-jdbc</artifactId>
            <version>${spring.version}</version>
        </dependency>
        <!--spring aop编程支持-->
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-aop</artifactId>
            <version>${spring.version}</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-aspects</artifactId>
            <version>${spring.version}</version>
        </dependency>
        <!-- 添加mybatis支持 -->
        <dependency>
            <groupId>org.mybatis</groupId>
            <artifactId>mybatis</artifactId>
            <version>3.4.0</version>
        </dependency>
        <dependency>
            <groupId>org.mybatis</groupId>
            <artifactId>mybatis-spring</artifactId>
            <version>1.3.0</version>
        </dependency>
        <!--  jdbc驱动包 -->
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
            <version>8.0.11</version>
        </dependency>
        <!-- 添加阿里巴巴连接池Druid支持 -->
<!--        -->
        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>druid</artifactId>
            <version>1.0.16</version>
        </dependency>
        <!-- 添加logback日志 -->
        <dependency>
            <groupId>ch.qos.logback</groupId>
            <artifactId>logback-classic</artifactId>
            <version>1.1.2</version>
        </dependency>
        <dependency>
            <groupId>ch.qos.logback</groupId>
            <artifactId>logback-core</artifactId>
            <version>1.1.2</version>
        </dependency>
        <dependency>
            <groupId>org.logback-extensions</groupId>
            <artifactId>logback-ext-spring</artifactId>
            <version>0.1.1</version>
        </dependency>

        <!-- 添加junit支持 -->
        <dependency>
            <groupId>junit</groupId>
            <artifactId>junit</artifactId>
            <version>4.12</version>
            <scope>test</scope>
        </dependency>

<!--异步传输-->
        <dependency>
            <groupId>commons-fileupload</groupId>
            <artifactId>commons-fileupload</artifactId>
            <version>1.3.3</version>
        </dependency>
        <dependency>
            <groupId>commons-io</groupId>
            <artifactId>commons-io</artifactId>
            <version>2.4</version>
        </dependency>

        <!-- jackson -->
        <!-- json 数据转换-->
        <dependency>
            <groupId>com.fasterxml.jackson.core</groupId>
            <artifactId>jackson-databind</artifactId>
            <version>2.5.0</version>
        </dependency>
        <dependency>
            <groupId>com.fasterxml.jackson.core</groupId>
            <artifactId>jackson-core</artifactId>
            <version>2.5.0</version>
        </dependency>
        <dependency>
            <groupId>com.fasterxml.jackson.core</groupId>
            <artifactId>jackson-annotations</artifactId>
            <version>2.5.0</version>
        </dependency>

        <dependency>
            <groupId>org.json</groupId>
            <artifactId>json</artifactId>
            <version>20170516</version>
        </dependency>
        <dependency>
            <groupId>com.googlecode.rapid-framework</groupId>
            <artifactId>rapid-core</artifactId>
            <version>4.0.5</version>
        </dependency>

        <dependency>
            <groupId>com.google.guava</groupId>
            <artifactId>guava</artifactId>
            <version>26.0-jre</version>
        </dependency>

        <dependency>
            <groupId>com.github.pagehelper</groupId>
            <artifactId>pagehelper</artifactId>
            <version>4.2.1</version>
        </dependency>
        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>fastjson</artifactId>
            <version>1.2.72</version>
        </dependency>

        <!-- hutool工具包 -->
        <dependency>
            <groupId>cn.hutool</groupId>
            <artifactId>hutool-all</artifactId>
            <version>4.1.13</version>
        </dependency>

        <dependency>
            <groupId>com.fasterxml.jackson.core</groupId>
            <artifactId>jackson-databind</artifactId>
            <version>${jackson-databind-version}</version>
        </dependency>
        <dependency>
            <groupId>com.fasterxml.jackson.core</groupId>
            <artifactId>jackson-core</artifactId>
            <version>${jackson-databind-version}</version>
        </dependency>
        <dependency>
            <groupId>com.fasterxml.jackson.core</groupId>
            <artifactId>jackson-annotations</artifactId>
            <version>${jackson-databind-version}</version>
        </dependency>

    </dependencies>

<!--静态资源过滤-->
    <build>
        <resources>
            <!-- 编译之后包含xml -->
            <resource>
                <directory>src/main/java</directory>
                <includes>
                    <include>**/*.xml</include>
                </includes>
                <filtering>true</filtering>
            </resource>
            <!-- 编译之后包含xml和properties -->
            <resource>
                <directory>src/main/resources</directory>
                <includes>
                    <include>**/*</include>
                </includes>
                <filtering>true</filtering>
            </resource>
        </resources>
    </build>

4. jdbc.properties

  1. jdbc.driver
  2. jdbc.username
  3. jdbc.password
  4. jdbc.url

5.spring-dao.xml

5.1 导入properties并创建数据源（使用druid）

	<context:property-placeholder location="classpath:db.properties"/>

    <bean id = "dataSource" class="com.alibaba.druid.pool.DruidDataSource" init-method="init" destroy-method="close">
        <!-- 基本属性 url、user、password -->
        <property name="driverClassName" value="${mysql.driver}" />
        <property name="url" value="${mysql.url}" />
        <property name="username" value="${mysql.username}" />
        <property name="password" value="${mysql.password}" />

        <!-- 配置初始化大小、最小、最大 -->
        <property name="initialSize" value="1" />
        <property name="minIdle" value="1" />
        <property name="maxActive" value="20" />

        <!-- 配置获取连接等待超时的时间 -->
        <property name="maxWait" value="60000" />

        <!-- 配置间隔多久才进行一次检测，检测需要关闭的空闲连接，单位是毫秒 -->
        <property name="timeBetweenEvictionRunsMillis" value="60000" />

        <!-- 配置一个连接在池中最小生存的时间，单位是毫秒 -->
        <property name="minEvictableIdleTimeMillis" value="300000" />

        <property name="validationQuery" value="SELECT 'x'" />
        <property name="testWhileIdle" value="true" />
        <property name="testOnBorrow" value="false" />
        <property name="testOnReturn" value="false" />

        <!-- 打开PSCache，并且指定每个连接上PSCache的大小 -->
        <property name="poolPreparedStatements" value="true" />
        <property name="maxPoolPreparedStatementPerConnectionSize" value="20" />

        <!-- 配置监控统计拦截的filters，去掉后监控界面sql无法统计 -->
        <property name="filters" value="stat" />
    </bean>

5.2 SqlSessionFactory

    <!--  mybatis核心配置  -->
    <bean id="sqlSessionFactory" class="org.mybatis.spring.SqlSessionFactoryBean">
        <!--数据库连接池-->
        <property name="dataSource" ref="dataSource"/>
        <!--加载mybatis全局配置文件-->
        <property name="configLocation" value="classpath:mybatis/mybatis-config.xml"/>
        <!--mapper.xml所在位置-->
        <property name="mapperLocations" value="classpath*:dao/*Mapper.xml" />
        <!--指定需要使用别名的PO类所在的包-->
        <property name="typeAliasesPackage" value="com.xiaocheng.pojo" />
    </bean>

6. spring-service.xml

6.1 事务管理器（TransactionManager）

   <!-- 对mybatis操作数据事务控制，spring使用jdbc的事务控制类 -->
    <bean id="transactionManager" class="org.springframework.jdbc.datasource.DataSourceTransactionManager">
        <!-- 数据源dataSource在spring-mybatis.xml中配置了 -->
        <property name="dataSource" ref="dataSource"/>
    </bean>

6.2 创建事务的切面

<!--    添加事务的切面-->
    <tx:advice id="txAdvice" transaction-manager="transactionManager">
        <tx:attributes>
        // 所有 save 开头的方法中，添加 REQUIRED 通知
            <tx:method name="save*" propagation="REQUIRED"/>
            <tx:method name="delete*" propagation="REQUIRED"/>
            <tx:method name="update*" propagation="REQUIRED"/>
            <tx:method name="insert*" propagation="REQUIRED"/>
        // read-only = "true" == 只读模式，无法修改数据
            <tx:method name="find*" propagation="SUPPORTS" read-only="true"/>
            <tx:method name="get*" propagation="SUPPORTS" read-only="true"/>
            <tx:method name="select*" propagation="SUPPORTS" read-only="true"/>
        </tx:attributes>
    </tx:advice>

6.3 切入点的创建

<!--    切入点-->
    <aop:config>
        <aop:advisor advice-ref="txAdvice" pointcut="execution(* com.liuyanzhao.ssm.blog.service.impl.*.*(..))"/>
    </aop:config>

7. SpringMvc.xml

7.1 自动扫描包

<context:component-scan base-package="com.ssm.blog"/>

7.2 一个配置解决映射器和适配器的配置注解配置

<mvc:annotation-driven></mvc:annotation-driven>

7.3 配置视图解析器

<!-- 配置视图解析器
        进行jsp解析，默认使用jstl标签，classpath下得有jstl的包
    -->
    <bean class="org.springframework.web.servlet.view.InternalResourceViewResolver">
        <!--配置前缀和后缀，也可以不指定-->
        <property name="prefix" value="/WEB-INF/view/"/>
        <property name="suffix" value=".jsp"/>
    </bean>

7.4 设置文件上传

<!--&lt;!&ndash;文件上传&ndash;&gt;-->
    <bean id="multipartResolver" class="org.springframework.web.multipart.commons.CommonsMultipartResolver">
        <!--设置上传最大尺寸为50MB-->
        <property name="maxUploadSizePerFile" value="52428800"/>
        <property name="defaultEncoding" value="UTF-8"/>
        <property name="resolveLazily" value="true"/>
    </bean>

7.5 静态资源映射

    <mvc:resources mapping="/css/**" location="/resource/assets/css/"></mvc:resources>
    <mvc:resources mapping="/js/**" location="/resource/assets/js/"></mvc:resources>
    <mvc:resources mapping="/img/**" location="/resource/assets/img/"></mvc:resources>
    <mvc:resources mapping="/plugin/**" location="/resource/assets/plugin/"></mvc:resources>

8. web.xml

8.1 编码过滤器

   <!-- 配置springMVC编码过滤器 -->
    <filter>
        <filter-name>CharacterEncodingFilter</filter-name>
        <filter-class>org.springframework.web.filter.CharacterEncodingFilter</filter-class>
        <!-- 设置过滤器中的属性值 -->
        <init-param>
            <param-name>encoding</param-name>
            <param-value>UTF-8</param-value>
        </init-param>
        <!-- 启动过滤器 -->
        <init-param>
            <param-name>forceEncoding</param-name>
            <param-value>true</param-value>
        </init-param>
    </filter>
        <!-- 过滤所有请求 -->
    <filter-mapping>
        <filter-name>CharacterEncodingFilter</filter-name>
        <url-pattern>/*</url-pattern>
    </filter-mapping>

8.2 加载Spring容器

    <!--加载spring容器-->
    <context-param>
        <param-name>contextConfigLocation</param-name>
        <param-value>
            classpath:spring/spring-*.xml,
        </param-value>
    </context-param>

    <!--配置监听器，来加载spring容器-->
    <listener>
        <listener-class>
            org.springframework.web.context.ContextLoaderListener
        </listener-class>
    </listener>

8.3 前端控制器

    <!--springmvc前端控制器 -->
    <servlet>
        <servlet-name>ForestBlog</servlet-name>
        <servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
        <init-param>
            <param-name>contextConfigLocation</param-name>
            <!-- 加载总配置文件 -->
            <param-value>classpath:spring/spring-mvc.xml</param-value>
        </init-param>
    </servlet>
    <servlet-mapping>
        <servlet-name>ForestBlog</servlet-name>
        <url-pattern>/</url-pattern>
    </servlet-mapping>

9. 编写实体类Pojo

DDDerek~
关注
评论
添加红包

请填写红包祝福语或标题

个

红包个数最小为10个

元

红包金额最低5元

当前余额3.43元 前往充值 >
需支付：10.00元
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包
实付元
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明：

1.余额是钱包充值的虚拟货币，按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载，可以购买VIP、付费专栏及课程。

余额充值
