【Java】SPI在Shardingsphere中的使用总结

前言

　　Shardingsphere大量使用了SPI技术，提供良好的可扩展性

　　参考：https://shardingsphere.apache.org/document/legacy/4.x/document/en/features/spi/

　　SPI基本概念：https://www.cnblogs.com/jy107600/p/11464985.html



本文以ShardingKeyGenerator接口为例说明SPI在Shardingsphere中的使用

　　本文的代码都可以在项目源码中找到：https://github.com/apache/shardingsphere/tree/4.1.1

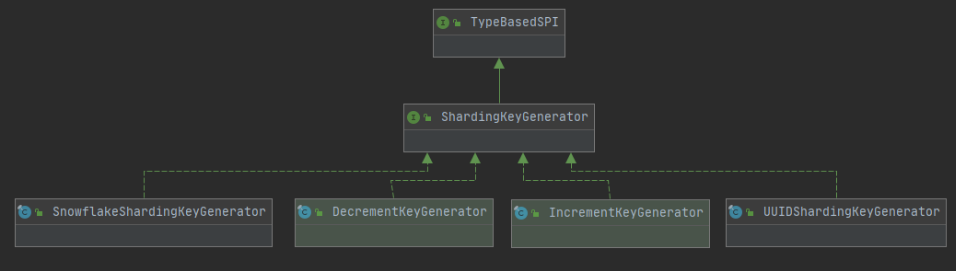

1. ShardingKeyGenerator接口及其子类

org.apache.shardingsphere.spi.keygen.ShardingKeyGenerator
{
    Comparable<?> generateKey();
}

ShardingKeyGenerator默认实现了四种生成主键的方式，分别是自增、自减、UUID、SnowFlake方式

org.apache.shardingsphere.shardingjdbc.orchestration.spring.fixture.IncrementKeyGenerator
org.apache.shardingsphere.shardingjdbc.orchestration.spring.fixture.DecrementKeyGenerator
org.apache.shardingsphere.core.strategy.keygen.UUIDShardingKeyGenerator
org.apache.shardingsphere.core.strategy.keygen.SnowflakeShardingKeyGenerator

2. ShardingKeyGenerator SPI的初始化

package org.apache.shardingsphere.spi.algorithm.keygen;

public final class ShardingKeyGeneratorServiceLoader extends TypeBasedSPIServiceLoader<ShardingKeyGenerator> {

    // 静态代码块注册ShardingKeyGenerator所有实现类
    static {
        NewInstanceServiceLoader.register(ShardingKeyGenerator.class);
    }

    public ShardingKeyGeneratorServiceLoader() {
        super(ShardingKeyGenerator.class);
    }
}

NewInstanceServiceLoader.register方法实现

• NewInstanceServiceLoader 初始化接口和子类关系的集合，缓存了所有SPI接口和子类的关系
• 集合类型为：Map<Class, Collection<Class<?>>> SERVICE_MAP

package org.apache.shardingsphere.spi;

public final class NewInstanceServiceLoader {

    private static final Map<Class, Collection<Class<?>>> SERVICE_MAP = new HashMap<>();

    public static <T> void register(final Class<T> service) {
        // 循环时注册子类及建立接口和子类关系，放在map中
        for (T each : ServiceLoader.load(service)) {
            registerServiceClass(service, each);
        }
    }

    @SuppressWarnings("unchecked")
    private static <T> void registerServiceClass(final Class<T> service, final T instance) {
        Collection<Class<?>> serviceClasses = SERVICE_MAP.get(service);
        if (null == serviceClasses) {
            serviceClasses = new LinkedHashSet<>();
        }
        serviceClasses.add(instance.getClass());
        SERVICE_MAP.put(service, serviceClasses);
    }

    @SneakyThrows
    @SuppressWarnings("unchecked")
    public static <T> Collection<T> newServiceInstances(final Class<T> service) {
        Collection<T> result = new LinkedList<>();
        if (null == SERVICE_MAP.get(service)) {
            return result;
        }
        for (Class<?> each : SERVICE_MAP.get(service)) {
            result.add((T) each.newInstance());
        }
        return result;
    }
}

3. 使用IncrementKeyGenerator作为ShardingKeyGenerator的默认实现

package org.apache.shardingsphere.shardingjdbc.spring;
public class GenerateKeyJUnitTest extends AbstractSpringJUnitTest {

@Test
public void assertGenerateKeyColumn() {

    // ShardingRuntimeContext 默认实现：org.apache.shardingsphere.shardingjdbc.spring.datasource.SpringShardingDataSource
     ShardingRuntimeContext runtimeContext = shardingDataSource.getRuntimeContext();
     ShardingRule shardingRule = runtimeContext.getRule();

    // ShardingKeyGenerator默认实现：org.apache.shardingsphere.shardingjdbc.spring.fixture.IncrementKeyGenerator
    ShardingKeyGenerator defaultKeyGenerator = shardingRule.getDefaultShardingKeyGenerator();
                                              }
}

上述代码中：ShardingKeyGenerator初始化为IncrementKeyGenerator类的原因

　　配置信息：classpath:META-INF/rdb/shardingNamespace.xml

// 这里指定了初始化的默认实现
<sharding:key-generator id="defaultKeyGenerator" type="INCREMENT" column="id" />

<sharding:data-source id="shardingDataSource">
    <sharding:sharding-rule data-source-names="dbtbl_0,dbtbl_1" default-data-source-name="dbtbl_0" default-key-generator-ref="defaultKeyGenerator">

    </sharding:sharding-rule>
</sharding:data-source>

• 通过配置（default-key-generator-ref="defaultKeyGenerator"）指定了shardingDataSource数据源默认的主键生成规则
• <sharding:key-generator id="defaultKeyGenerator" type="INCREMENT" column="id" />
• type="INCREMENT" 对应的是IncrementShardingKeyGenerator类的type属性值

package org.apache.shardingsphere.shardingjdbc.orchestration.api.yaml.fixture;

public final class IncrementShardingKeyGenerator implements ShardingKeyGenerator {

    private static final AtomicInteger SEQUENCE = new AtomicInteger(100);

    @Getter
    private final String type = "INCREMENT";

    @Getter
    @Setter
    private Properties properties = new Properties();

    @Override
    public Comparable<?> generateKey() {
        return SEQUENCE.incrementAndGet();
    }
}

• 使用其它的主键生成规则

<sharding:key-generator id="defaultKeyGenerator" type="SNOWFLAKE" column="id" />

ShardingRule的初始化（ShardingRule包含了ShardingKeyGenerator的默认实现）

package org.apache.shardingsphere.shardingjdbc.spring.datasource;

public final class SpringShardingDataSource extends ShardingDataSource {

    public SpringShardingDataSource(final Map<String, DataSource> dataSourceMap, final ShardingRuleConfiguration shardingRuleConfiguration, final Properties props) throws SQLException {
        super(dataSourceMap, new ShardingRule(shardingRuleConfiguration, dataSourceMap.keySet()), props);
    }
}

　 初始化defaultShardingKeyGenerator 的代码

package org.apache.shardingsphere.core.rule;

public class ShardingRule implements BaseRule {

public ShardingRule(final ShardingRuleConfiguration shardingRuleConfig, final Collection<String> dataSourceNames) {

    // 初始化defaultShardingKeyGenerator
    defaultShardingKeyGenerator = createDefaultKeyGenerator(shardingRuleConfig.getDefaultKeyGeneratorConfig());
}

private ShardingKeyGenerator createDefaultKeyGenerator(final KeyGeneratorConfiguration keyGeneratorConfiguration) {
    ShardingKeyGeneratorServiceLoader serviceLoader = new ShardingKeyGeneratorServiceLoader();
    return containsKeyGeneratorConfiguration(keyGeneratorConfiguration)
            ? serviceLoader.newService(keyGeneratorConfiguration.getType(), keyGeneratorConfiguration.getProperties()) : serviceLoader.newService();
    }
}

       获取指定的主键实现类（loadTypeBasedServices方法）

　　　　1. NewInstanceServiceLoader.newServiceInstances(classType)：获取ShardingKeyGenerator接口的所有已实现类缓存集合

　　　　2. Collections2.filter(NewInstanceServiceLoader.newServiceInstances(classType), input -> type.equalsIgnoreCase(input.getType()))：根据参数type从缓存集合获取具体的实现，这里是IncrementShardingKeyGenerator

package org.apache.shardingsphere.spi;


@RequiredArgsConstructor
public abstract class TypeBasedSPIServiceLoader<T extends TypeBasedSPI> {

    private final Class<T> classType;

    public final T newService(final String type, final Properties props) {
        Collection<T> typeBasedServices = loadTypeBasedServices(type);
        if (typeBasedServices.isEmpty()) {
            throw new RuntimeException(String.format("Invalid `%s` SPI type `%s`.", classType.getName(), type));
        }
        T result = typeBasedServices.iterator().next();
        result.setProperties(props);
        return result;
    }

    public final T newService() {
        T result = loadFirstTypeBasedService();
        result.setProperties(new Properties());
        return result;
    }

    private Collection<T> loadTypeBasedServices(final String type) {

        return Collections2.filter(NewInstanceServiceLoader.newServiceInstances(classType), input -> type.equalsIgnoreCase(input.getType()));
    }
}
