hadoop 完全分布式部署(linux) 超详细版

概述：

利用多台Linux主机来进行部署Hadoop，对Linux机器集群进行规划，使得Hadoop各个模块分别部署在不同的多台机器上。

新建一个虚拟机hadoop1为主站，分别克隆两个名为hadoop2和hadoop3的从站。

centOS 7 安装 ：https://blog.youkuaiyun.com/Henry_Lin_Wind/article/details/80876494

Hostname	IP
hadoop1	192.168.100.10
hadoop2	192.168.100.11
hadoop3	192.168.100.12

服务器功能规划：分别在3台主机上安装不同的功能

hadoop1	hadoop2	hadoop3
NameNode	ResourceManage
DataNode	DataNode	DataNode
NodeManager	NodeManager	NodeManager
HistoryServer		SecondaryNameNode

 安装步骤：1、安装虚拟机，设置网络

                   2、在主站上安装好java和hadoop，

                   3、关闭防火墙 systemctl stop firewalld

                   4、配置core-site.xml、hdfs-site.xml、slaves、yarn-site.xml、mapred-site.xml

                   5、分别在三台主机上设置SSH无密码登录

                   6、分发主站的hadoop和java到两个从站上

                   7：启动集群，查看三台主机的进程。

验证：在hadoop1上运行namenode，在hadoop2上运行yarn，在hadoop3上运行SecondaryNameNode。通过测试一个例子，分别在三个主机上查看

完全分布式安装

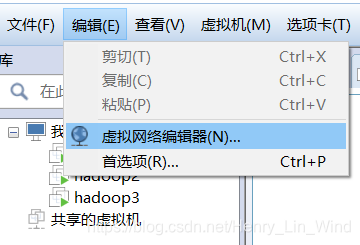

1、设置虚拟机网络

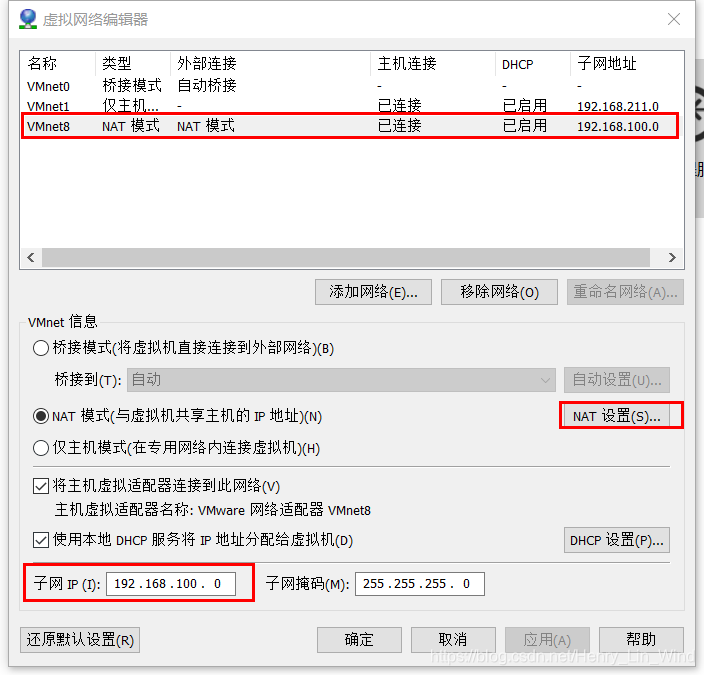

 新增NAT模式，修改子网IP为192.168.100.0

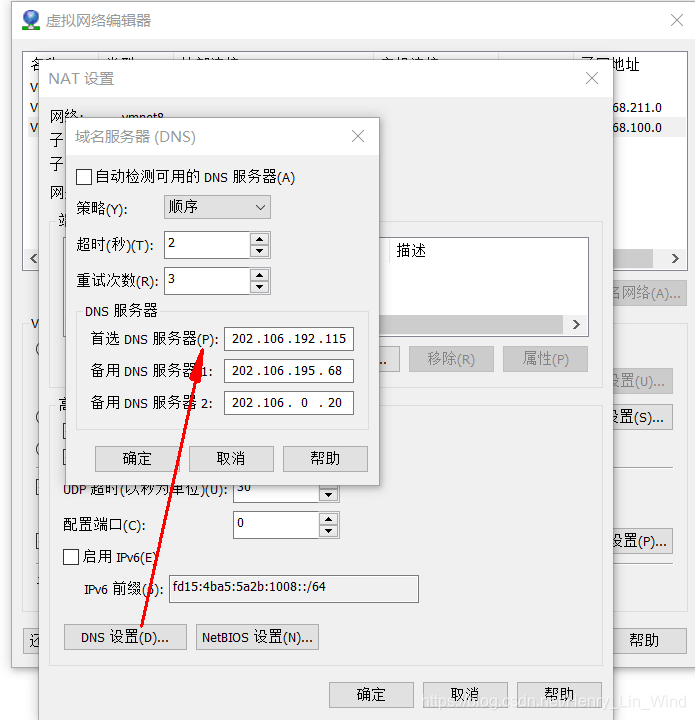

修改NAT设置

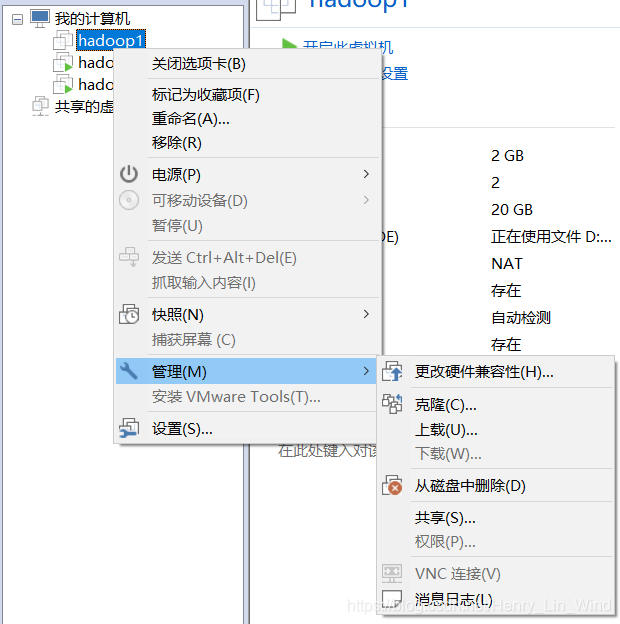

2、安装Linux系统 hadoop1，安装完成后右击克隆两个作为从站的主机

分别修改主站和两个从站的IP和hostname,具体参考概述的表格。即主站为hadoop1，两个从站分别为hadoop2及hadoop3

sudo vim /etc/hostname

配置hosts：

sudo vim /etc/hosts

三台机器hosts都配置为： 设置完成后可以ping一下来测试三个主机之间是否可以连接。

192.168.100.10 hadoop1
192.168.100.11 hadoop2
192.168.100.12 hadoop3

 3、在主站安装Java 和 Hadoop （主站配置好后，通过分发复制到其他从站）

安装步骤可以参考我的其他篇博客，配置如下。

JAVA_HOME=/usr/local/jdk1.8.0_171
CLASSPATH=.:$JAVA_HOME/lib.tools.jar
HADOOP_HOME=/usr/local/hadoop-2.9.2
PATH=$JAVA_HOME/bin:$PATH/bin:$HADOOP_HOME/bin
export JAVA_HOME  CLASSPATH PATH HADOOP_HOME

 验证验证是否成功：

[root@hadoop1 hadoop-2.9.2]# java -version
java version "1.8.0_171"
Java(TM) SE Runtime Environment (build 1.8.0_171-b11)
Java HotSpot(TM) 64-Bit Server VM (build 25.171-b11, mixed mode)
[root@hadoop1 hadoop-2.9.2]# hadoop version
Hadoop 2.9.2
Subversion https://git-wip-us.apache.org/repos/asf/hadoop.git -r 826afbeae31ca687bc2f8471dc841b66ed2c6704
Compiled by ajisaka on 2018-11-13T12:42Z
Compiled with protoc 2.5.0
From source with checksum 3a9939967262218aa556c684d107985
This command was run using /usr/local/hadoop-2.9.2/share/hadoop/common/hadoop-common-2.9.2.jar

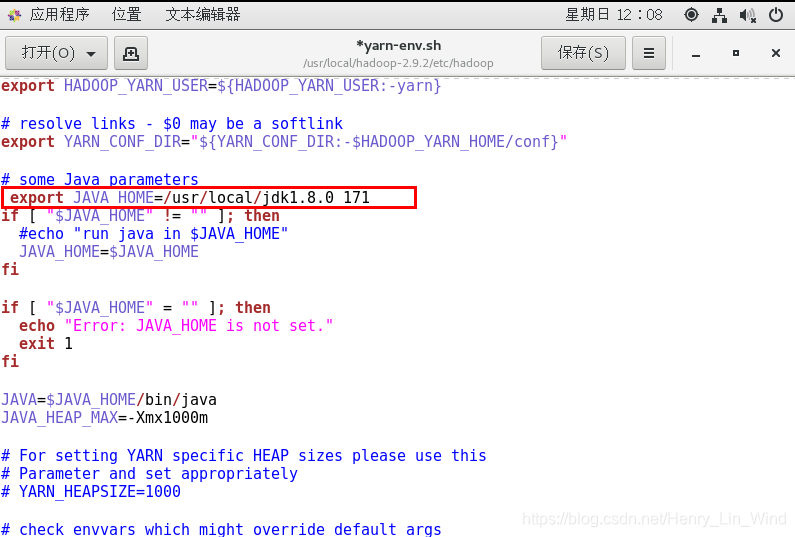

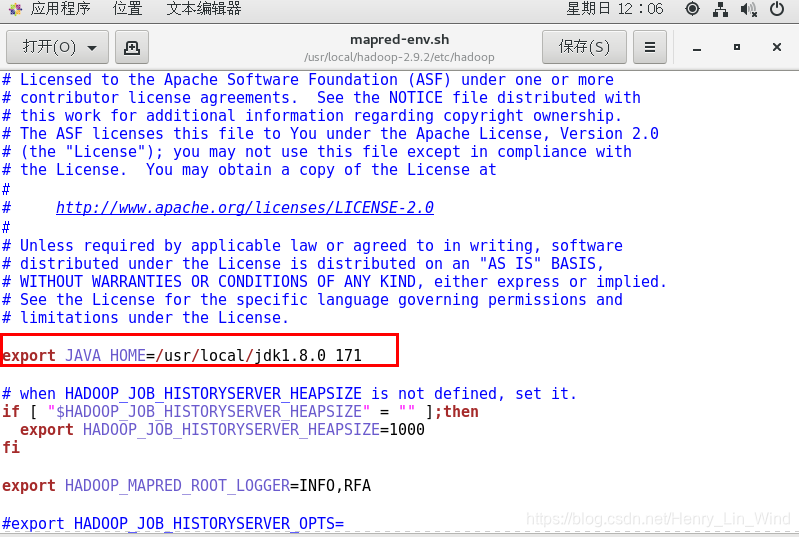

 4、配置Hadoop JDK路径修改hadoop-env.sh、mapred-env.sh、yarn-env.sh文件中的JDK路径：





5、配置core-site.xml

      vim core-site.xml

<configuration>
  <property>
     <name>fs.defaultFS</name>
     <value>hdfs://hadoop1:8020</value>
  </property>
  <property>
     <name>hadoop.tmp.dir</name>
     <value>/usr/local/hadoop-tmp</value>
  </property>
  <property>
     <name>dfs.namenode.name.dir</name>
     <value>file://${hadoop.tmp.dir}/dfs/name</value>
  </property>
  <property>
     <name>dfs.datanode.data.dir</name>
     <value>file://${hadoop.tmp.dir}/dfs/data</value>
  </property>
</configuration>

fs.defaultFS为NameNode的地址。

hadoop.tmp.dir为hadoop临时目录的地址，默认情况下，NameNode和DataNode的数据文件都会存在这个目录下的对应子目录下。应该保证此目录是存在的，如果不存在，先创建。

6、配置hdfs-site.xml

   vim hdfs-site.xml

 <property>
   <name>dfs.namenode.secondary.http-address</name>
   <value>hadoop3:50090</value>
 </property>

dfs.namenode.secondary.http-address是指定secondaryNameNode的http访问地址和端口号，因为在规划中，我们将hadoop3规划为SecondaryNameNode服务器。

7、配置slaves

vim etc/hadoop/slaves

hadoop1
hadoop2
hadoop3

8、配置yarn-site.xml

     vim yarn-site.xml

   <property>
        <name>yarn.nodemanager.aux-services</name>
        <value>mapreduce_shuffle</value>
    </property>
    <property>
        <name>yarn.resourcemanager.hostname</name>
        <value>hadoop2</value>
    </property>
    <property>
        <name>yarn.log-aggregation-enable</name>
        <value>true</value>
    </property>
    <property>
        <name>yarn.log-aggregation.retain-seconds</name>
        <value>106800</value>
    </property>

根据规划yarn.resourcemanager.hostname这个指定resourcemanager服务器指向hadoop2。

yarn.log-aggregation-enable是配置是否启用日志聚集功能。

yarn.log-aggregation.retain-seconds是配置聚集的日志在HDFS上最多保存多长时间。

9、配置mapred-site.xml

从mapred-site.xml.template复制一个mapred-site.xml文件。

    <property>
        <name>mapreduce.framework.name</name>
        <value>yarn</value>
    </property>
    <property>
        <name>mapreduce.jobhistory.address</name>
        <value>hadoop1:10020</value>
    </property>
    <property>
        <name>mapreduce.jobhistory.webapp.address</name>
        <value>hadoop1:19888</value>
    </property>

10、设置SSH无密码登录

在hadoop1上生成公钥，不断回车即可。

[root@hadoop1 hadoop-2.9.2]# ssh-keygen -t rsa
Generating public/private rsa key pair.
Enter file in which to save the key (/root/.ssh/id_rsa):
Created directory '/root/.ssh'.
Enter passphrase (empty for no passphrase):
Enter same passphrase again:
Your identification has been saved in /root/.ssh/id_rsa.
Your public key has been saved in /root/.ssh/id_rsa.pub.
The key fingerprint is:
SHA256:j3UJ6KS7FajeLVCd3/KS62GjA9ANPDWZDRftgcn6RSo root@hadoop1
The key's randomart image is:
+---[RSA 2048]----+
|     . .+*o=     |
|      + o+= +    |
|     . =oo.+ .   |
|    . o=E ..o.   |
|     oo S+.oo    |
|    .... =+..    |
|    ....o =+     |
|   . ..+.ooo.    |
|    . o.oooo     |
+----[SHA256]-----+

在hadoop1分发公钥，分别分发给三台主机。（如下，操作中需要回复yes确认以及登录密码）

[root@hadoop1 hadoop-2.9.2]# ssh-copy-id hadoop1
The authenticity of host 'hadoop1 (192.168.100.10)' can't be established.
ECDSA key fingerprint is SHA256:D/yWgW1PoFwxoBex4pbN4LqUAUfheZ2CRJ8ejEeregk.
ECDSA key fingerprint is MD5:79:25:23:98:0c:c2:6d:a1:6d:56:1b:5f:ce:32:62:4e.
Are you sure you want to continue connecting (yes/no)? yes
/usr/bin/ssh-copy-id: INFO: attempting to log in with the new key(s), to filter out any that are already installed
/usr/bin/ssh-copy-id: INFO: 1 key(s) remain to be installed -- if you are prompted now it is to install the new keys
root@hadoop1's password:

Number of key(s) added: 1

Now try logging into the machine, with:   "ssh 'hadoop1'"
and check to make sure that only the key(s) you wanted were added.

[root@hadoop1 hadoop-2.9.2]# ssh-copy-id hadoop2
The authenticity of host 'hadoop2 (192.168.100.11)' can't be established.
ECDSA key fingerprint is SHA256:D/yWgW1PoFwxoBex4pbN4LqUAUfheZ2CRJ8ejEeregk.
ECDSA key fingerprint is MD5:79:25:23:98:0c:c2:6d:a1:6d:56:1b:5f:ce:32:62:4e.
Are you sure you want to continue connecting (yes/no)? yes
/usr/bin/ssh-copy-id: INFO: attempting to log in with the new key(s), to filter out any that are already installed
/usr/bin/ssh-copy-id: INFO: 1 key(s) remain to be installed -- if you are prompted now it is to install the new keys
root@hadoop2's password:

Number of key(s) added: 1

Now try logging into the machine, with:   "ssh 'hadoop2'"
and check to make sure that only the key(s) you wanted were added.

[root@hadoop1 hadoop-2.9.2]# ssh-copy-id hadoop3
The authenticity of host 'hadoop3 (192.168.100.12)' can't be established.
ECDSA key fingerprint is SHA256:D/yWgW1PoFwxoBex4pbN4LqUAUfheZ2CRJ8ejEeregk.
ECDSA key fingerprint is MD5:79:25:23:98:0c:c2:6d:a1:6d:56:1b:5f:ce:32:62:4e.
Are you sure you want to continue connecting (yes/no)? yes
/usr/bin/ssh-copy-id: INFO: attempting to log in with the new key(s), to filter out any that are already installed
/usr/bin/ssh-copy-id: INFO: 1 key(s) remain to be installed -- if you are prompted now it is to install the new keys
root@hadoop3's password:

Number of key(s) added: 1

Now try logging into the machine, with:   "ssh 'hadoop3'"
and check to make sure that only the key(s) you wanted were added.

同样的在hadoop2、hadoop3上生成公钥和私钥后，将公钥分发到三台机器上。

11、分发Hadoop文件

通过Scp分发hadoop安装包到两个从站。

scp -r /usr/local/hadoop-2.9.2 hadoop2:/usr/local/

scp -r /usr/local/hadoop-2.9.2 hadoop3:/usr/local/

12、关闭防火墙 ：CentOS系统默认开启了防火墙，在开启 Hadoop 集群之前，需要关闭集群中每个节点的防火墙。有防火墙会导致 ping 得通但 telnet 端口不通，从而导致 DataNode 启动了，但 Live datanodes 为 0 的情况。

systemctl stop firewalld.service     # 关闭firewall

systemctl disable firewalld.service  # 禁止firewall开机启动

启动集群

1、在主站格式化NameNode

${HADOOP_HOME}/bin/hdfs namenode –format

注意：

如果需要重新格式化NameNode,需要先将原来NameNode和DataNode下的文件全部删除，不然会报错，NameNode和DataNode所在目录是在core-site.xml中hadoop.tmp.dir、dfs.namenode.name.dir、dfs.datanode.data.dir属性配置的。

2、在hadoop1上启动HDFS

${HADOOP_HOME}/sbin/start-dfs.sh

[root@hadoop1 hadoop-2.9.2]# ${HADOOP_HOME}/sbin/start-dfs.sh
Starting namenodes on [hadoop1]
hadoop1: starting namenode, logging to /usr/local/hadoop-2.9.2/logs/hadoop-root-namenode-hadoop1.out
hadoop1: starting datanode, logging to /usr/local/hadoop-2.9.2/logs/hadoop-root-datanode-hadoop1.out
hadoop2: starting datanode, logging to /usr/local/hadoop-2.9.2/logs/hadoop-root-datanode-hadoop2.out
hadoop3: starting datanode, logging to /usr/local/hadoop-2.9.2/logs/hadoop-root-datanode-hadooop3.out
Starting secondary namenodes [hadoop3]
hadoop3: starting secondarynamenode, logging to /usr/local/hadoop-2.9.2/logs/hadoop-root-secondarynamenode-hadooop3.out

查看进程启动情况：

[root@hadoop1 hadoop-2.9.2]# jps
7030 DataNode
6888 NameNode
7276 Jps

[root@hadoop2 hadoop-2.9.2]# jps
3385 DataNode
3434 Jps

[root@hadooop3 hadoop-2.9.2]# jps
3668 DataNode
3764 SecondaryNameNode
3807 Jps

3、在hadoop2 启动YARN

${HADOOP_HOME}/sbin/start-yarn.sh

[root@hadoop2 hadoop-2.9.2]# ${HADOOP_HOME}/sbin/start-yarn.sh
starting yarn daemons
starting resourcemanager, logging to /usr/local/hadoop-2.9.2/logs/yarn-root-resourcemanager-hadoop2.out
hadoop3: starting nodemanager, logging to /usr/local/hadoop-2.9.2/logs/yarn-root-nodemanager-hadooop3.out
hadoop1: starting nodemanager, logging to /usr/local/hadoop-2.9.2/logs/yarn-root-nodemanager-hadoop1.out
hadoop2: starting nodemanager, logging to /usr/local/hadoop-2.9.2/logs/yarn-root-nodemanager-hadoop2.out

 查看进程启动情况：

[root@hadoop1 hadoop-2.9.2]# jps
7347 NodeManager
7030 DataNode
6888 NameNode
7469 Jps

[root@hadoop2 hadoop-2.9.2]# jps
3652 NodeManager
3974 Jps
3385 DataNode
3551 ResourceManager

[root@hadooop3 hadoop-2.9.2]# jps
3668 DataNode
3764 SecondaryNameNode
4021 Jps
3896 NodeManager

4、 在hadoop1上启动日志服务器

${HADOOP_HOME}/sbin/mr-jobhistory-daemon.sh start historyserver

 查看进程：

[root@hadooop1 hadoop-2.9.2]# jps
4115 Jps
3668 DataNode
3764 SecondaryNameNode
3896 NodeManager
4074 JobHistoryServer

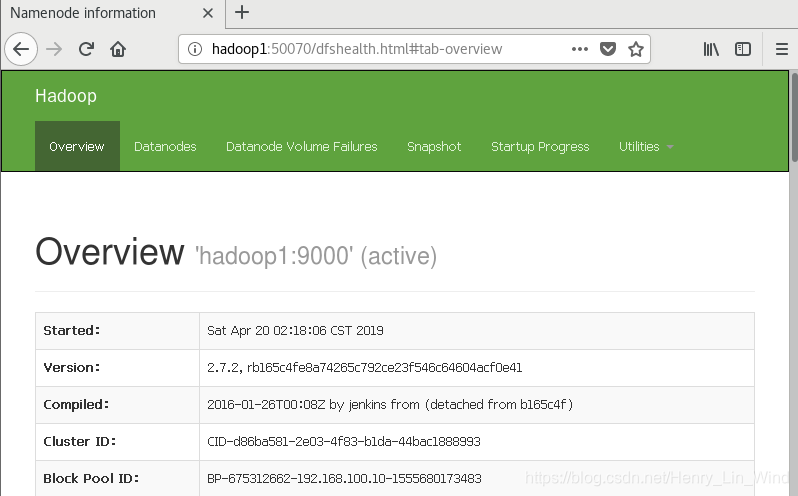

5、 查看HDFS Web页面

根据规划，我们部署在主站，所以访问路径为  //hadoop1:50070

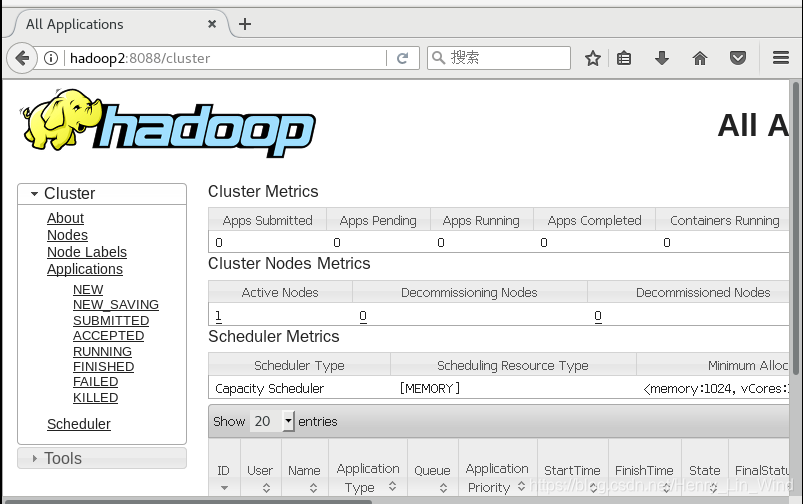

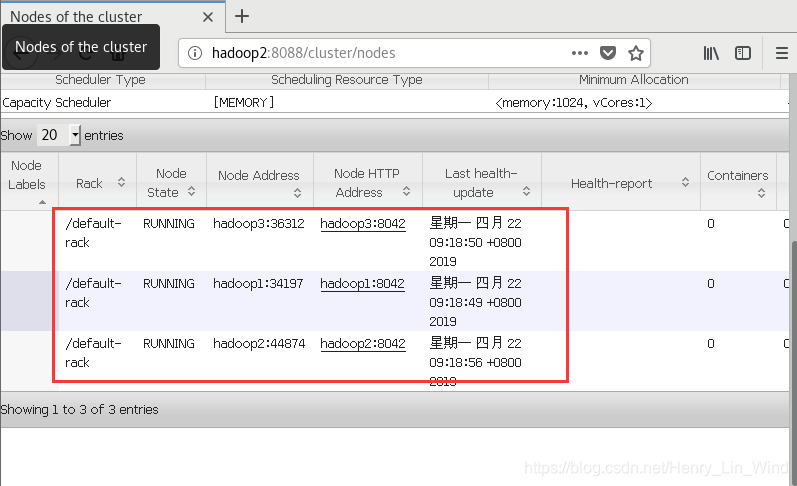

6、 查看YARN Web 页面

根据规划，我们部署在从站 hadoop2，所以访问路径为  //hadoop2:8088

7、查看日志历史服务  Web页面

测试

接下来运行自带的 wordcounter 来验证

1、 创建测试用的Input文件

 ${HADOOP_HOME}/bin/hdfs dfs -mkdir -p /wordcountdemo/input

如果出现：Unable to load native-hadoop library for your platform... using builtin-java classes where applicable 参考解决链接 https://www.cnblogs.com/zlslch/p/6418248.html

2、上传一个测试文件到input文件夹

${HADOOP_HOME}/bin/hdfs dfs -put ${HADOOP_HOME}/etc/hadoop/core-site.xml /wordcountdemo/input

 3、运行WordCount MapReduce Job

${HADOOP_HOME}/bin/yarn jar share/hadoop/mapreduce/hadoop-mapreduce-examples-2.7.2.jar wordcount /wordcountdemo/input /wordcountdemo/output

4、查看结果

http://hadoop1:50070/explorer.html#/wordcountdemo/output

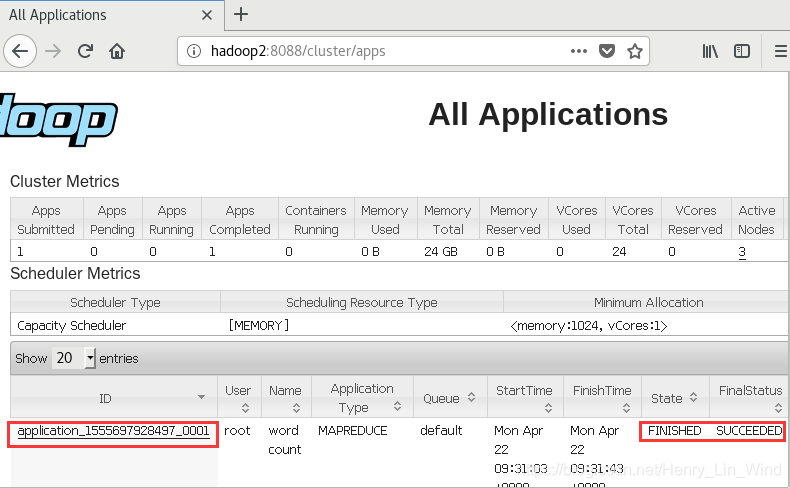

 http://hadoop2:8088/cluster/apps

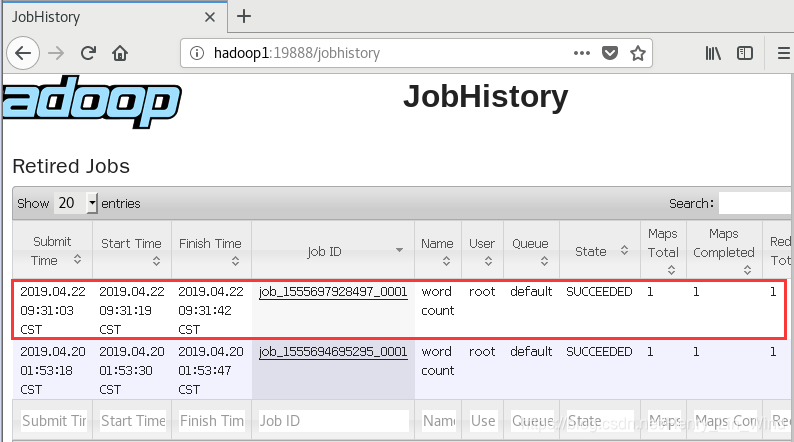

http://hadoop1:19888/jobhistory
