heatmap可视化相似矩阵

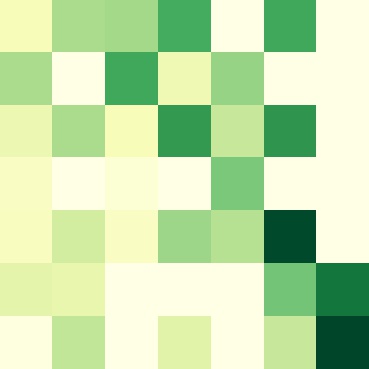

可视化相似矩阵 $S\in {\mathbb{R}}^{n\times n}$ 用来画图，效果：

• 正方形格仔
• 去除纵、横轴 label
• 去除 color bar
• 去除白边

Code

import numpy as np
import seaborn as sns
import matplotlib
matplotlib.use("Agg")
import matplotlib.pyplot as plt


S = np.array([[0.8, 2.4, 2.5, 3.9, 0.0, 4.0, 0.0],
              [2.4, 0.0, 4.0, 1.0, 2.7, 0.0, 0.0],
              [1.1, 2.4, 0.8, 4.3, 1.9, 4.4, 0.0],
              [0.6, 0.0, 0.3, 0.0, 3.1, 0.0, 0.0],
              [0.7, 1.7, 0.6, 2.6, 2.2, 6.2, 0.0],
              [1.3, 1.2, 0.0, 0.0, 0.0, 3.2, 5.1],
              [0.1, 2.0, 0.0, 1.4, 0.0, 1.9, 6.3]])

ax = sns.heatmap(S, cmap="YlGn",
                 square=True,  # 正方形格仔
                 cbar=False,  # 去除 color bar
                 xticklabels=False, yticklabels=False)  # 去除纵、横轴 label
fig = ax.get_figure()
fig.savefig('class_sim_sub.jpg', bbox_inches='tight',
            pad_inches=0.0)  # 去白边

References

1. Creating annotated heatmaps
2. seaborn.heatmap
3. 【画图】Python绘制热力图方法以及保存不全问题（seaborn.heatmap）
4. 去除plt.savefig()的白边 Removing white space around a saved image in matplotlib
