hcip实验四

实验拓扑及需求

配置

[R1]int g 0/0/0

[R1-GigabitEthernet0/0/0]ip address 100.1.1.1 24

[R1-GigabitEthernet0/0/0]int l0

[R1-LoopBack0]ip address 192.168.0.1 32

[R1-LoopBack0]int l1

[R1-LoopBack1]ip address 192.168.1.1 32

[R2]int g0/0/0

[R2-GigabitEthernet0/0/0]ip address 100.1.1.2 24

[R2-GigabitEthernet0/0/0]int g0/0/1

[R2-GigabitEthernet0/0/1]ip address 100.2.2.2 24

[R3]int g0/0/0

[R3-GigabitEthernet0/0/0]ip address 100.2.2.3 24

[R3]int g0/0/1

[R3-GigabitEthernet0/0/1]ip address 100.3.3.3 24

[R3]int l0

[R3-LoopBack0]ip address 192.168.2.1 32

[R3-LoopBack0]int l1

[R3-LoopBack1]ip address 192.168.3.1 32

[R4]int g0/0/0

[R4-GigabitEthernet0/0/0]ip address 100.3.3.4 24

[R4-GigabitEthernet0/0/0]int l0

[R4-LoopBack0]ip address 192.168.4.1 32

[R4-LoopBack0]int l1

[R4-LoopBack1]ip address 192.168.5.1 32

[R1]rip 1

[R1-rip-1]v 2

[R1-rip-1]undo summary

[R1-rip-1]network 100.0.0.0

[R1-rip-1]network 192.168.1.0

[R1-rip-1]network 192.168.0.0

[R2]rip 1

[R2-rip-1]v 2

[R2-rip-1]undo summary

[R2-rip-1]network 100.0.0.0

[R2]ospf 1 router-id 2.2.2.2

[R2-ospf-1]a 0

[R2-ospf-1-area-0.0.0.0]network 100.2.2.2 0.0.0.0

[R3]ospf 1 router-id 3.3.3.3

[R3-ospf-1]a 0

[R3-ospf-1-area-0.0.0.0]network 100.2.2.3 0.0.0.0

[R3-ospf-1-area-0.0.0.0]network 192.168.2.1 0.0.0.0

[R3-ospf-1]a 1

[R3-ospf-1-area-0.0.0.1]network 100.3.3.3 0.0.0.0

[R3-ospf-1-area-0.0.0.1]network 192.168.3.1 0.0.0.0

[R4]ospf 1 router-id 4.4.4.4

[R4-ospf-1]a 1

[R4-ospf-1-area-0.0.0.1]network 100.3.3.4 0.0.0.0

[R4-ospf-1-area-0.0.0.1]network 192.168.4.1 0.0.0.0

[R4-ospf-1-area-0.0.0.1]network 192.168.5.1 0.0.0.0

[R2ip ip-prefix aa permit 192.168.4.1 32

[R2]ip ip-prefix aa permit 192.168.5.1 32

[R2]route-policy aa deny node 10

[R2-route-policy]if-match ip-prefix aa

[R2-route-policy]route-policy aa permit node 20

[R2]rip 1

[R2-rip-1]import-route ospf 1 route-policy aa

[R2-ospf-1]import-route rip 1

[R4]ip ip-prefix aa index 10 deny 192.168.1.1 32

[R4]ip ip-prefix aa index 20 deny 192.168.0.1 32

[R4]ip ip-prefix aa index 30 permit 0.0.0.0 0 less-equal 32

[R4-ospf-1]filter-policy ip-prefix aa import

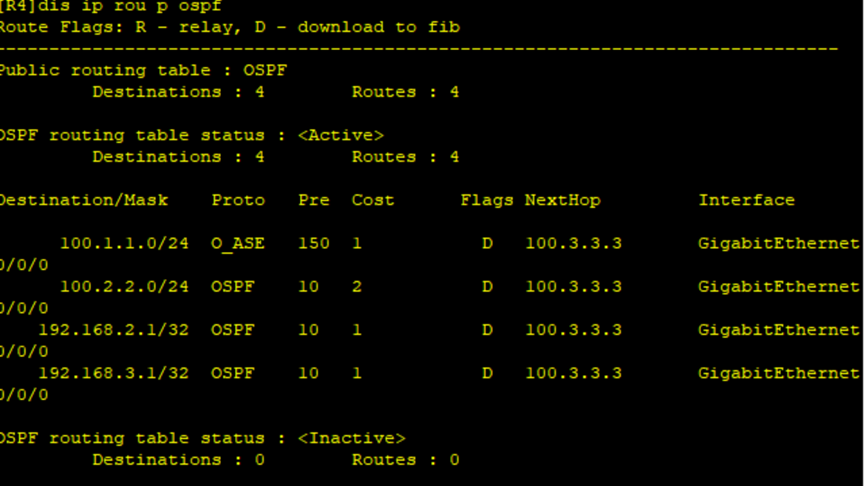

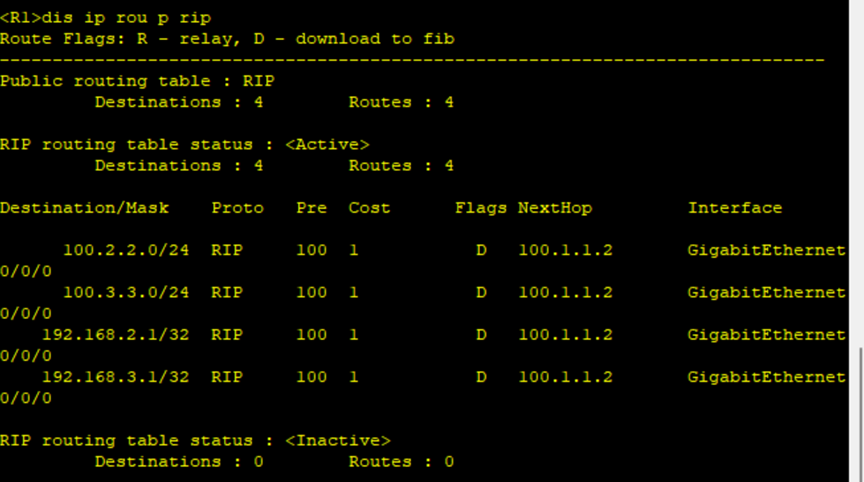

验证
