一 view
视图容器。
属性名 | 类型 | 默认值 | 说明 | 最低版本 |
---|---|---|---|---|
hover-class | String | none | 指定按下去的样式类。当 hover-class="none" 时,没有点击态效果 | |
hover-stop-propagation | Boolean | false | 指定是否阻止本节点的祖先节点出现点击态 | 1.5.0 |
hover-start-time | Number | 50 | 按住后多久出现点击态,单位毫秒 | |
hover-stay-time | Number | 400 | 手指松开后点击态保留时间,单位毫秒 | |
aria-role | String | 无障碍访问,(角色)标识元素的作用 | 2.5.0 | |
aria-label | String | 无障碍访问,(属性)元素的额外描述 | 2.5.0 |
示例:
<view class="section">
<view class="section__title">flex-direction: row</view>
<view class="flex-wrp" style="flex-direction:row;">
<view class="flex-item bc_green">1</view>
<view class="flex-item bc_red">2</view>
<view class="flex-item bc_blue">3</view>
</view>
</view>
<view class="section">
<view class="section__title">flex-direction: column</view>
<view class="flex-wrp" style="height: 300px;flex-direction:column;">
<view class="flex-item bc_green">1</view>
<view class="flex-item bc_red">2</view>
<view class="flex-item bc_blue">3</view>
</view>
</view>
Bug & Tip
tip
: 如果需要使用滚动视图,请使用 scroll-view
这个view视图和普通的view用法相识, 在这就不多多阐述了,
二 scroll-view
可滚动视图区域。
属性名 | 类型 | 默认值 | 说明 |
---|---|---|---|
scroll-x | Boolean | false | 允许横向滚动 |
scroll-y | Boolean | false | 允许纵向滚动 |
upper-threshold | Number / String | 50 | 距顶部/左边多远时(单位px,2.4.0起支持rpx),触发 scrolltoupper 事件 |
lower-threshold | Number / String | 50 | 距底部/右边多远时(单位px,2.4.0起支持rpx),触发 scrolltolower 事件 |
scroll-top | Number / String | 设置竖向滚动条位置(单位px,2.4.0起支持rpx) | |
scroll-left | Number / String | 设置横向滚动条位置(单位px,2.4.0起支持rpx) | |
scroll-into-view | String | 值应为某子元素id(id不能以数字开头)。设置哪个方向可滚动,则在哪个方向滚动到该元素 | |
scroll-with-animation | Boolean | false | 在设置滚动条位置时使用动画过渡 |
enable-back-to-top | Boolean | false | iOS点击顶部状态栏、安卓双击标题栏时,滚动条返回顶部,只支持竖向 |
bindscrolltoupper | EventHandle | 滚动到顶部/左边,会触发 scrolltoupper 事件 | |
bindscrolltolower | EventHandle | 滚动到底部/右边,会触发 scrolltolower 事件 | |
bindscroll | EventHandle | 滚动时触发,event.detail = {scrollLeft, scrollTop, scrollHeight, scrollWidth, deltaX, deltaY} | |
aria-label | String | 无障碍访问,(属性)元素的额外描述 2.5.0 |
使用竖向滚动时,需要给<scroll-view>
一个固定高度,通过 WXSS 设置 height。
示例代码:
<view class="section">
<view class="section__title">vertical scroll</view>
<scroll-view
scroll-y
style="height: 200px;"
bindscrolltoupper="upper"
bindscrolltolower="lower"
bindscroll="scroll"
scroll-into-view="{{toView}}"
scroll-top="{{scrollTop}}"
>
<view id="green" class="scroll-view-item bc_green"></view>
<view id="red" class="scroll-view-item bc_red"></view>
<view id="yellow" class="scroll-view-item bc_yellow"></view>
<view id="blue" class="scroll-view-item bc_blue"></view>
</scroll-view>
<view class="btn-area">
<button size="mini" bindtap="tap">click me to scroll into view</button>
<button size="mini" bindtap="tapMove">click me to scroll</button>
</view>
</view>
<view class="section section_gap">
<view class="section__title">horizontal scroll</view>
<scroll-view class="scroll-view_H" scroll-x style="width: 100%">
<view id="green" class="scroll-view-item_H bc_green"></view>
<view id="red" class="scroll-view-item_H bc_red"></view>
<view id="yellow" class="scroll-view-item_H bc_yellow"></view>
<view id="blue" class="scroll-view-item_H bc_blue"></view>
</scroll-view>
</view>
const order = ['red', 'yellow', 'blue', 'green', 'red']
Page({
data: {
toView: 'red',
scrollTop: 100
},
upper(e) {
console.log(e)
},
lower(e) {
console.log(e)
},
scroll(e) {
console.log(e)
},
tap(e) {
for (let i = 0; i < order.length; ++i) {
if (order[i] === this.data.toView) {
this.setData({
toView: order[i + 1]
})
break
}
}
},
tapMove(e) {
this.setData({
scrollTop: this.data.scrollTop + 10
})
}
})
Bug & Tip
tip
: 请勿在scroll-view
中使用textarea
、map
、canvas
、video
组件tip
:scroll-into-view
的优先级高于scroll-top
tip
: 在滚动scroll-view
时会阻止页面回弹,所以在scroll-view
中滚动,是无法触发onPullDownRefresh
tip
: 若要使用下拉刷新,请使用页面的滚动,而不是scroll-view
,这样也能通过点击顶部状态栏回到页面顶部
我们先实现竖向滑动效果
首先我们定义一个scroll-view标签, 并且开启竖向滑动
<scroll-view class = "scroll" scroll-y = "true" > </scroll-view>
然后我们让一个红色框框和一个绿色框放在scroll-view标签里面
<scroll-view class = "scroll" scroll-y = "true" >
<view class = "image1"></view>
<view class = "image2"></view>
</scroll-view>
接下来我们设置样式
.scroll{
height: 150px
}
.image1{
height: 100px;
background: red
}
.image2{
height: 100px;
background: green
}
我们运行一下:
可以用鼠标左右滑动了
这里做几点说明:
1. 当设置竖向滑动时一定要设置scroll-view标签的高度, 并且在scroll-view里面标签的总高度要超过scroll-view标签的高度, 试着想一下, 如果里面的总高度比scroll-view标签的高度还低, 那怎么能达到滑动效果?
2. 要滑动的元素一定是在scroll-view标签里面, 一开始我傻了, 放在外面, 怎么也达不到效果。
3. 标签里面的各个标签一定要有区别, 不然很难发现是否滑动了, 比如里面的标签都是白色, 那怎么能看出效果
scroll-view标签我们讲到这, 至于其他功能, 去尝试一下, 我在这就不做演示了。
三 swiper
滑块视图容器。
属性名 | 类型 | 默认值 | 说明 | 最低版本 |
---|---|---|---|---|
indicator-dots | Boolean | false | 是否显示面板指示点 | |
indicator-color | Color | rgba(0, 0, 0, .3) | 指示点颜色 | 1.1.0 |
indicator-active-color | Color | #000000 | 当前选中的指示点颜色 | 1.1.0 |
autoplay | Boolean | false | 是否自动切换 | |
current | Number | 0 | 当前所在滑块的 index | |
current-item-id | String | "" | 当前所在滑块的 item-id ,不能与 current 被同时指定 | 1.9.0 |
interval | Number | 5000 | 自动切换时间间隔 | |
duration | Number | 500 | 滑动动画时长 | |
circular | Boolean | false | 是否采用衔接滑动 | |
vertical | Boolean | false | 滑动方向是否为纵向 | |
previous-margin | String | "0px" | 前边距,可用于露出前一项的一小部分,接受 px 和 rpx 值 | 1.9.0 |
next-margin | String | "0px" | 后边距,可用于露出后一项的一小部分,接受 px 和 rpx 值 | 1.9.0 |
display-multiple-items | Number | 1 | 同时显示的滑块数量 | 1.9.0 |
skip-hidden-item-layout | Boolean | false | 是否跳过未显示的滑块布局,设为 true 可优化复杂情况下的滑动性能,但会丢失隐藏状态滑块的布局信息 | 1.9.0 |
bindchange | EventHandle | current 改变时会触发 change 事件,event.detail = {current: current, source: source} | ||
bindtransition | EventHandle | swiper-item 的位置发生改变时会触发 transition 事件,event.detail = {dx: dx, dy: dy} | 2.4.3 | |
bindanimationfinish | EventHandle | 动画结束时会触发 animationfinish 事件,event.detail 同上 | 1.9.0 |
从 1.4.0 开始,change
事件返回detail
中包含一个source
字段,表示导致变更的原因,可能值如下:
autoplay
自动播放导致swiper变化;touch
用户划动引起swiper变化;- 其他原因将用空字符串表示。
注意:其中只可放置<swiper-item/>
组件,否则会导致未定义的行为。
swiper-item
仅可放置在<swiper>
组件中,宽高自动设置为100%。
属性名 | 类型 | 默认值 | 说明 | 最低版本 |
---|---|---|---|---|
item-id | String | "" | 该 swiper-item 的标识符 | 1.9.0 |
示例代码:
<swiper
indicator-dots="{{indicatorDots}}"
autoplay="{{autoplay}}"
interval="{{interval}}"
duration="{{duration}}"
>
<block wx:for="{{imgUrls}}">
<swiper-item>
<image src="{{item}}" class="slide-image" width="355" height="150" />
</swiper-item>
</block>
</swiper>
<button bindtap="changeIndicatorDots">indicator-dots</button>
<button bindtap="changeAutoplay">autoplay</button>
<slider bindchange="intervalChange" show-value min="500" max="2000" />
interval
<slider bindchange="durationChange" show-value min="1000" max="10000" />
duration
Page({
data: {
imgUrls: [
'http://img02.tooopen.com/images/20150928/tooopen_sy_143912755726.jpg',
'http://img06.tooopen.com/images/20160818/tooopen_sy_175866434296.jpg',
'http://img06.tooopen.com/images/20160818/tooopen_sy_175833047715.jpg'
],
indicatorDots: false,
autoplay: false,
interval: 5000,
duration: 1000
},
changeIndicatorDots(e) {
this.setData({
indicatorDots: !this.data.indicatorDots
})
},
changeAutoplay(e) {
this.setData({
autoplay: !this.data.autoplay
})
},
intervalChange(e) {
this.setData({
interval: e.detail.value
})
},
durationChange(e) {
this.setData({
duration: e.detail.value
})
}
})
Bug & Tip
tip
: 如果在bindchange
的事件回调函数中使用setData
改变current
值,则有可能导致setData
被不停地调用,因而通常情况下请在改变current
值前检测source
字段来判断是否是由于用户触摸引起。
这一节由我设置的一个轮播图, 代码如下:
index.wxml
<swiper indicator-dots="true" indicator-active-color="red" autoplay="{{autoplay}}" interval="{{interval}}" duration="{{duration}}">
<block wx:for="{{imgUrls}}" >
<swiper-item>
<image src="{{item}}"></image>
</swiper-item>
</block>
</swiper>
<switch bindchange="bindchange">自动播放</switch>
<slider max="10000" class="slider1" color="#FFE1FF" selected-color="#FF1493" block-color=" #FFD700" show-value="true" bindchanging="bindchanging1">切换速度</slider>
<slider max="50000" class="slider2" color="#FFE1FF" selected-color="#FF1493" block-color=" #FFD700" show-value="true" bindchanging="bindchanging2">图片滚动时间</slider>
index.js
Page({
data: {
imgUrls: [
'http://img02.tooopen.com/images/20150928/tooopen_sy_143912755726.jpg',
'http://img06.tooopen.com/images/20160818/tooopen_sy_175866434296.jpg',
'http://img06.tooopen.com/images/20160818/tooopen_sy_175833047715.jpg'
],
autoplay: false,
interval:1000,
duration: 500
},
// 按键触发时间
bindchange:function(){
// 按键状态更改时改变轮播图的状态
this.setData({
//设置是否开启自动播放
autoplay: !this.data.autoplay
})
},
//切换速度滑块触发事件
bindchanging1:function(e){
this.setData({
//设置切换速度时间
interval: e.detail.value
})
},
//图片滚动时间触发事件
bindchanging2: function (e) {
this.setData({
//设置图片滚动时间
duration: e.detail.value
})
}
})

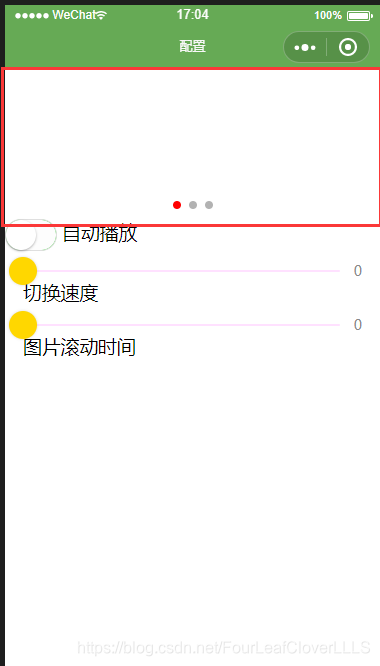

效果:
注意: 在本地调试的时候加载图片的时候报了403错误, 而在真机调试的时候图片加载正常, 我是用手机调试的。
四 movable-view
基础库 1.2.0 开始支持,低版本需做兼容处理。
可移动的视图容器,在页面中可以拖拽滑动
属性名 | 类型 | 默认值 | 说明 | 最低版本 |
---|---|---|---|---|
direction | String | none | movable-view的移动方向,属性值有all、vertical、horizontal、none | |
inertia | Boolean | false | movable-view是否带有惯性 | |
out-of-bounds | Boolean | false | 超过可移动区域后,movable-view是否还可以移动 | |
x | Number / String | 定义x轴方向的偏移,如果x的值不在可移动范围内,会自动移动到可移动范围;改变x的值会触发动画 | ||
y | Number / String | 定义y轴方向的偏移,如果y的值不在可移动范围内,会自动移动到可移动范围;改变y的值会触发动画 | ||
damping | Number | 20 | 阻尼系数,用于控制x或y改变时的动画和过界回弹的动画,值越大移动越快 | |
friction | Number | 2 | 摩擦系数,用于控制惯性滑动的动画,值越大摩擦力越大,滑动越快停止;必须大于0,否则会被设置成默认值 | |
disabled | Boolean | false | 是否禁用 | 1.9.90 |
scale | Boolean | false | 是否支持双指缩放,默认缩放手势生效区域是在movable-view内 | 1.9.90 |
scale-min | Number | 0.5 | 定义缩放倍数最小值 | 1.9.90 |
scale-max | Number | 10 | 定义缩放倍数最大值 | 1.9.90 |
scale-value | Number | 1 | 定义缩放倍数,取值范围为 0.5 - 10 | 1.9.90 |
animation | Boolean | true | 是否使用动画 | 2.1.0 |
bindchange | EventHandle | 拖动过程中触发的事件,event.detail = {x: x, y: y, source: source},其中source表示产生移动的原因,值可为touch(拖动)、touch-out-of-bounds(超出移动范围)、out-of-bounds(超出移动范围后的回弹)、friction(惯性)和空字符串(setData) | 1.9.90 | |
bindscale | EventHandle | 缩放过程中触发的事件,event.detail = {x: x, y: y, scale: scale},其中x和y字段在2.1.0之后开始支持返回 | 1.9.90 |
除了基本事件外,movable-view提供了两个特殊事件
类型 | 触发条件 | 最低版本 |
---|---|---|
htouchmove | 初次手指触摸后移动为横向的移动,如果catch此事件,则意味着touchmove事件也被catch | 1.9.90 |
vtouchmove | 初次手指触摸后移动为纵向的移动,如果catch此事件,则意味着touchmove事件也被catch | 1.9.90 |
movable-view 必须设置width和height属性,不设置默认为10px
movable-view 默认为绝对定位,top和left属性为0px
注意:movable-view必须在<movable-area/>
组件中,并且必须是直接子节点,否则不能移动。
movable-area
基础库 1.2.0 开始支持,低版本需做兼容处理。
movable-view
的可移动区域
属性名 | 类型 | 默认值 | 说明 | 最低版本 |
---|---|---|---|---|
scale-area | Boolean | false | 当里面的movable-view设置为支持双指缩放时,设置此值可将缩放手势生效区域修改为整个movable-area | 1.9.90 |
注意:movable-area 必须设置width和height属性,不设置默认为10px
当movable-view小于movable-area时,movable-view的移动范围是在movable-area内;
当movable-view大于movable-area时,movable-view的移动范围必须包含movable-area(x轴方向和y轴方向分开考虑)
示例代码:
<view class="section">
<view class="section__title">movable-view区域小于movable-area</view>
<movable-area style="height: 200px; width: 200px; background: red;">
<movable-view
style="height: 50px; width: 50px; background: blue;"
x="{{x}}"
y="{{y}}"
direction="all"
></movable-view>
</movable-area>
<view class="btn-area">
<button size="mini" bindtap="tap">click me to move to (30px, 30px)</button>
</view>
<view class="section__title">movable-view区域大于movable-area</view>
<movable-area style="height: 100px; width: 100px; background: red;">
<movable-view
style="height: 200px; width: 200px; background: blue;"
direction="all"
></movable-view>
</movable-area>
<view class="section__title">可放缩</view>
<movable-area
style="height: 200px; width: 200px; background: red;"
scale-area
>
<movable-view
style="height: 50px; width: 50px; background: blue;"
direction="all"
bindchange="onChange"
bindscale="onScale"
scale
scale-min="0.5"
scale-max="4"
scale-value="2"
></movable-view>
</movable-area>
</view>
Page({
data: {
x: 0,
y: 0
},
tap(e) {
this.setData({
x: 30,
y: 30
})
},
onChange(e) {
console.log(e.detail)
},
onScale(e) {
console.log(e.detail)
}
})
这一部分内容自己试验吧, 不做很多的讲解。
五 cover-view
基础库 1.4.0 开始支持,低版本需做兼容处理。
覆盖在原生组件之上的文本视图,可覆盖的原生组件包括map
、video
、canvas
、camera
、live-player
、live-pusher
,只支持嵌套cover-view
、cover-image
,可在cover-view
中使用button
。
属性名 | 类型 | 默认值 | 说明 | 最低版本 |
---|---|---|---|---|
scroll-top | Number / String | 设置顶部滚动偏移量,仅在设置了 overflow-y: scroll 成为滚动元素后生效(单位px,2.4.0起支持rpx) | 2.1.0 | |
aria-role | String | 无障碍访问,(角色)标识元素的作用 | 2.5.0 | |
aria-label | String | 无障碍访问,(属性)元素的额外描述 | 2.5.0 |
六 cover-image
基础库 1.4.0 开始支持,低版本需做兼容处理。
覆盖在原生组件之上的图片视图,可覆盖的原生组件同cover-view
,支持嵌套在cover-view里。
属性名 | 类型 | 默认值 | 说明 | 最低版本 |
---|---|---|---|---|
src | String | 图标路径,支持临时路径、网络地址(1.6.0起支持)、云文件ID(2.2.3起支持)。暂不支持base64格式。 | ||
bindload | EventHandle | 图片加载成功时触发 | 2.1.0 | |
binderror | EventHandle | 图片加载失败时触发 | 2.1.0 | |
aria-role | String | 无障碍访问,(角色)标识元素的作用 | 2.5.0 | |
aria-label | String | 无障碍访问,(属性)元素的额外描述 | 2.5.0 |
Bug & Tips
tip
:<cover-view>
和<cover-image>
的aria-role
仅可设置为button
,读屏模式下才可以点击,并朗读出“按钮”;为空时可以聚焦,但不可点击tip
: 基础库 2.2.4 起支持 touch 相关事件,也可使用 hover-class 设置点击态tip
: 基础库 2.1.0 起支持设置scale
rotate
的 css 样式,包括 transition 动画tip
: 基础库 1.9.90 起cover-view
支持overflow: scroll
,但不支持动态更新overflow
tip
: 基础库 1.9.90 起最外层cover-view
支持position: fixed
tip
: 基础库 1.9.0 起支持插在view
等标签下。在此之前只可嵌套在原生组件map
、video
、canvas
、camera
内,避免嵌套在其他组件内。tip
: 基础库 1.6.0 起支持css transition动画,transition-property
只支持transform (translateX, translateY)
与opacity
。tip
: 基础库 1.6.0 起支持css opacity。tip
: 事件模型遵循冒泡模型,但不会冒泡到原生组件。tip
: 文本建议都套上cover-view标签,避免排版错误。tip
: 只支持基本的定位、布局、文本样式。不支持设置单边的border
、background-image
、shadow
、overflow: visible
等。tip
: 建议子节点不要溢出父节点tip
: 默认设置的样式有:white-space: nowrap;
line-height: 1.2;
display: block;
bug
: 自定义组件嵌套cover-view
时,自定义组件的 slot 及其父节点暂不支持通过 wx:if 控制显隐,否则会导致cover-view
不显示
示例:
<video
id="myVideo"
src="http://wxsnsdy.tc.qq.com/105/20210/snsdyvideodownload?filekey=30280201010421301f0201690402534804102ca905ce620b1241b726bc41dcff44e00204012882540400&bizid=1023&hy=SH&fileparam=302c020101042530230204136ffd93020457e3c4ff02024ef202031e8d7f02030f42400204045a320a0201000400"
controls="{{false}}"
event-model="bubble"
>
<cover-view class="controls">
<cover-view class="play" bindtap="play">
<cover-image class="img" src="/path/to/icon_play" />
</cover-view>
<cover-view class="pause" bindtap="pause">
<cover-image class="img" src="/path/to/icon_pause" />
</cover-view>
<cover-view class="time">00:00</cover-view>
</cover-view>
</video>
.controls {
position: relative;
top: 50%;
height: 50px;
margin-top: -25px;
display: flex;
}
.play,
.pause,
.time {
flex: 1;
height: 100%;
}
.time {
text-align: center;
background-color: rgba(0, 0, 0, 0.5);
color: white;
line-height: 50px;
}
.img {
width: 40px;
height: 40px;
margin: 5px auto;
}
Page({
onReady() {
this.videoCtx = wx.createVideoContext('myVideo')
},
play() {
this.videoCtx.play()
},
pause() {
this.videoCtx.pause()
}
})
