ioc容器源码实现
Spring中ioc容器的实现方式可以分为两种：
- 实现
BeanFactory接口的简单容器：BeanFactory为其他类型容器的实现提供了最基本的功能规范 ApplicationContext应用上下文的高级容器：增加了面向框架的诸多特性，以及对于使用场景的适配，例如：- 支持不同的信息源
- 访问资源
- 支持应用事件
- 其他附加的服务
Spring通过BeanDefinition来管理基于Spring的应用中的各种对象以及它们之间的相互依赖关系。

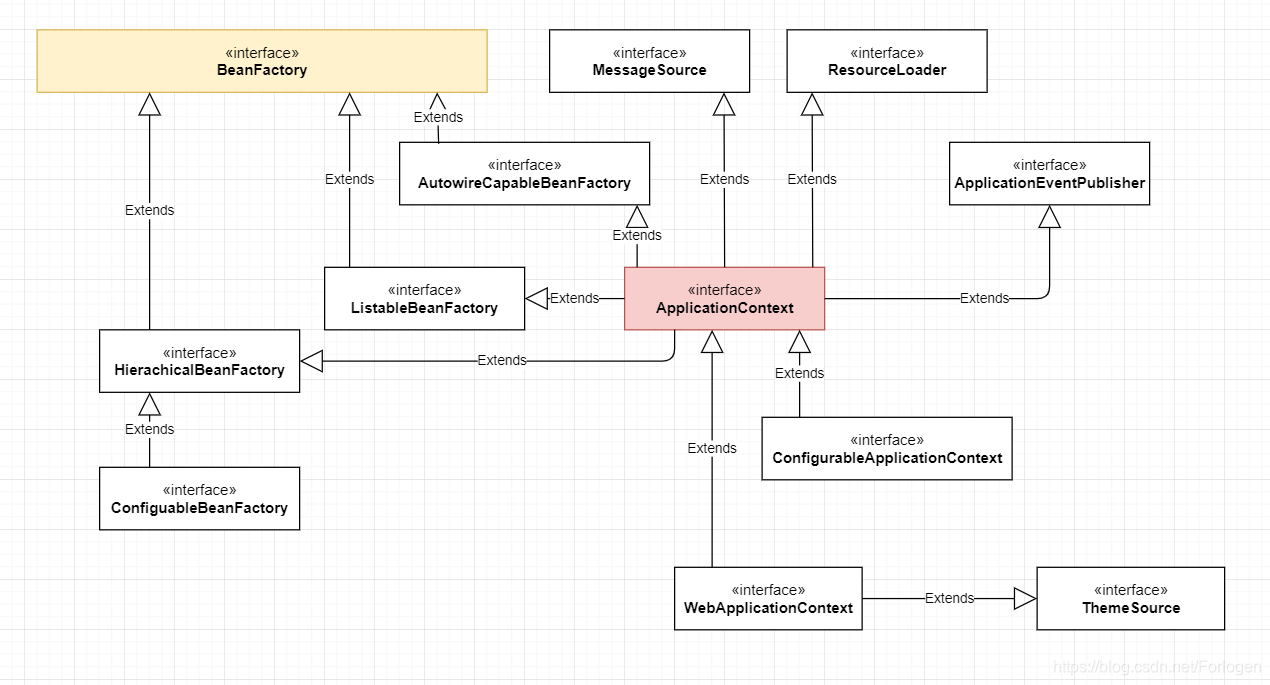

ioc容器所涉及的主要接口，以及它们之间的继承关系如下所示：
其中：
- BeanFactory：定义容器的基本规范
- HierarchicalBeanFactory：增加了
getParentBeanFactory方法，具备双亲容器的管理功能 - ConfigurableBeanFactory：定义对应
BeanFactory的管理功能，如addBeanPostProcessor等方法
BeanFactory

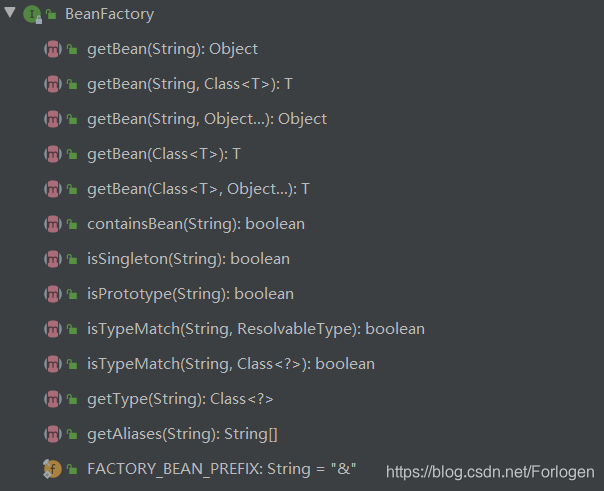

BeanFactory提供了最基本的ioc容器的功能，接口中定义的方法如下所示：
其中最重要的就是getBean方法，它可以根据给定的bean的名字和定义的Bean类型获取到容器中对应的bean。
Object getBean(String name) throws BeansException;
<T> T getBean(String name, @Nullable Class<T> requiredType) throws BeansException;
Object getBean(String name, Object... args) throws BeansException;
<T> T getBean(Class<T> requiredType) throws BeansException;
<T> T getBean(Class<T> requiredType, Object... args) throws BeansException;
使用容器时，使用 & 可以得到FactoryBean本身，用来区分通过容器来获取FactoryBean产生的对象和获取BeanFactory本身。
例如：
public class Client {
public static void main(String[] args) {
ApplicationContext context = new ClassPathXmlApplicationContext("bean.xml");
IAccountService as = (IAccountService) context.getBean("accountService");
IAccountDao dao = context.getBean("accountDao", IAccountDao.class);
System.out.println(as); // service.impl.AccountServiceImpl@26be92ad
System.out.println(dao); // dao.impl.AccountDaoImpl@4c70fda8
System.out.println(context.containsBean("accountDao")); // true
System.out.println(context.isSingleton("accountDao")); // true
System.out.println(context.getType("accountDao")); // class dao.impl.AccountDaoImpl
}
}
ioc容器的初始化
当直接使用例如ClassPathXmlApplicationContext这样的ioc容器时，对应的构造方法如下所示：
public ClassPathXmlApplicationContext(
String[] configLocations, boolean refresh, @Nullable ApplicationContext parent)
throws BeansException {
super(parent);
// 根据提供的路径，处理成配置文件数组(以分号、逗号、空格、tab、换行符分割)
setConfigLocations(configLocations);
if (refresh) {
refresh(); // 核心方法，重新初始化ApplicationContext
}
}
其中容器的初始化操作由最后的refresh方法完成 ，它标志着ioc容器的正式启动。启动的过程主要分为如下三个阶段：
- BeanDefinition的Resource定位：由
ResourceLoader完成，寻找所有Bean的定义信息 - BeanDefinition载入：将定义的Bean表示为ioc容器内部的数据结构，即
BeanDefinition - BeanDefinition注册：调用
BeanDefinitionRegistry接口实现BeanDefinition在ioc容器中的注册，内部通过一个HashMap管理BeanDefinition
下面通过ClassPathXmlApplicationContext的源码实现来看一下，上述三个过程的实现逻辑。
ClassPathXmlApplicationContext

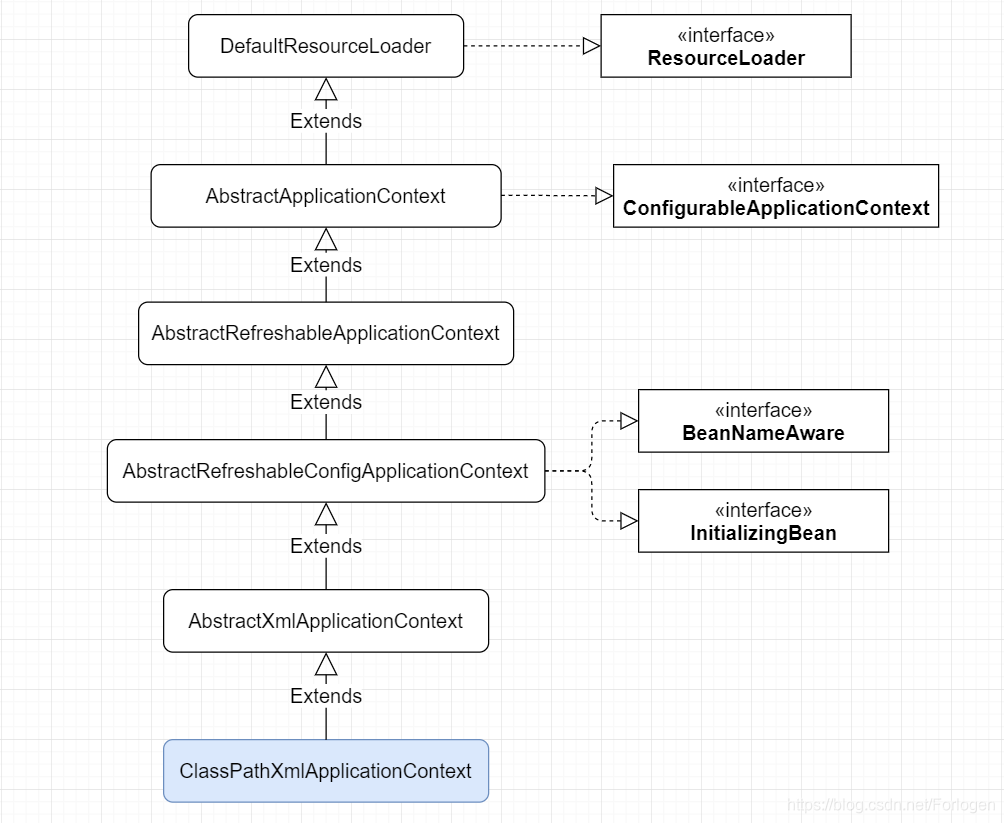

ClassPathXmlApplicationContext的继承体系如下所示：
上面核心的refresh方法源码实现如下：
@Override
public void refresh() throws BeansException, IllegalStateException {
// 加锁，保证ApplicationContext的线程同步
synchronized (this.startupShutdownMonitor) {
// 准备工作，记录下容器的启动时间、标记“已启动”状态、处理配置文件中的占位符
prepareRefresh();
// beanName -> BeanDefinition，注册到BeanFactory中
ConfigurableListableBeanFactory beanFactory = obtainFreshBeanFactory();
// 设置 BeanFactory 的类加载器，添加几个 BeanPostProcessor，手动注册几个特殊的 bean
prepareBeanFactory(beanFactory);
try {
// 这里是提供给子类的扩展点，到这里的时候，所有的 Bean 都加载、注册完成了，但是都还没有初始化
// 具体的子类可以在这步的时候添加一些特殊的 BeanFactoryPostProcessor 的实现类或做点什么事
postProcessBeanFactory(beanFactory);
// 调用 BeanFactoryPostProcessor 各个实现类的 postProcessBeanFactory(factory) 方法
invokeBeanFactoryPostProcessors(beanFactory);
// 注册 BeanPostProcessor 的实现类
// 此接口两个方法: postProcessBeforeInitialization 和 postProcessAfterInitialization
// 两个方法分别在 Bean 初始化之前和初始化之后得到执行。注意，到这里 Bean 还没初始化
registerBeanPostProcessors(beanFactory);
// 国际化
initMessageSource();
// 初始化事件广播器
initApplicationEventMulticaster();
// 具体的子类可以在这里初始化一些特殊的 Bean（在初始化 singleton beans 之前）
onRefresh();
// 注册事件监听器，监听器需要实现 ApplicationListener 接口
registerListeners();
// 初始化所有的 singleton beans（Lazy-init的除外）
finishBeanFactoryInitialization(beanFactory);
// 广播事件，ApplicationContext 初始化完成
finishRefresh();
}
catch (BeansException ex) {
if (logger.isWarnEnabled()) {
logger.warn("Exception encountered during context initialization - " +
"cancelling refresh attempt: " + ex);
}
// 销毁已经初始化的 singleton 的 Beans，以免有些 bean 会一直占用资源
destroyBeans();
// Reset 'active' flag.
cancelRefresh(ex);
// Propagate exception to caller.
throw ex;
}
finally {
// Reset common introspection caches in Spring's core, since we
// might not ever need metadata for singleton beans anymore...
resetCommonCaches();
}
}
}
prepareRefresh
下面来分别看一下源码中几个核心方法的实现，以及它们分别完成了什么事。首先是prepareRefresh方法，它的源码如下：
protected void prepareRefresh() {
// 记录启动时间，
// 将 active 属性设置为 true，closed 属性设置为 false，它们都是 AtomicBoolean 类型
this.startupDate = System.currentTimeMillis();
this.closed.set(false);
this.active.set(true);
if (logger.isInfoEnabled()) {
logger.info("Refreshing " + this);
}
// Initialize any placeholder property sources in the context environment
initPropertySources();
// Validate that all properties marked as required are resolvable
// see ConfigurablePropertyResolver#setRequiredProperties
getEnvironment().validateRequiredProperties();
// Allow for the collection of early ApplicationEvents,
// to be published once the multicaster is available...
this.earlyApplicationEvents = new LinkedHashSet<>();
}
它主要完成一些例如时间记录等ApplicationContext刷新前的准备工作。
obtainFreshBeanFactory
接下来。看一下第一个重要的obtainFreshBeanFactory方法，它完成BeanFactory的初始化、BeanDefinition的加载和BeanDefinition的注册工作，这些仍然是初始化之前的准备工作，源码如下：
protected ConfigurableListableBeanFactory obtainFreshBeanFactory() {
// 关闭旧的 BeanFactory (如果有)，创建新的 BeanFactory，加载 Bean 定义、注册 Bean 等等
refreshBeanFactory();
ConfigurableListableBeanFactory beanFactory = getBeanFactory();
if (logger.isDebugEnabled()) {
logger.debug("Bean factory for " + getDisplayName() + ": " + beanFactory);
}
return beanFactory;
}
其中refreshBeanFactory方法的实现如下：
// AbstractRefreshableApplicationContext
@Override
protected final void refreshBeanFactory() throws BeansException {
// 如果当前ApplicationContext已有BeanFactory，则销毁工厂中的bean，并关闭BeanFactory
if (hasBeanFactory()) {
destroyBeans();
closeBeanFactory();
}
try {
// 创建一个新的DefaultListableBeanFactory类型的BeanFactory
DefaultListableBeanFactory beanFactory = createBeanFactory();
// 设置序列化id
beanFactory.setSerializationId(getId());
// 设置 BeanFactory 的两个配置属性：是否允许 Bean 覆盖、是否允许循环引用
customizeBeanFactory(beanFactory);
// 加载BeanDefinition进工厂
loadBeanDefinitions(beanFactory);
synchronized (this.beanFactoryMonitor) {
this.beanFactory = beanFactory;
}
}
catch (IOException ex) {
throw new ApplicationContextException("I/O error parsing bean definition source for " + getDisplayName(), ex);
}
}
源码中的customizeBeanFactory源码如下：
protected void customizeBeanFactory(DefaultListableBeanFactory beanFactory) {
// 是否允许 Bean 覆盖
if (this.allowBeanDefinitionOverriding != null) {
beanFactory.setAllowBeanDefinitionOverriding(this.allowBeanDefinitionOverriding);
}
// 是否允许循环引用
if (this.allowCircularReferences != null) {
beanFactory.setAllowCircularReferences(this.allowCircularReferences);
}
}
接下来的loadBeanDefinitions方法就涉及到BeanDefinition的注册加载过程，比较重要，源码如下：
// AbstractXmlApplicationContext
@Override
protected void loadBeanDefinitions(DefaultListableBeanFactory beanFactory) throws BeansException, IOException {
// 实例化XmlBeanDefinitionReader，用于读取XML配置文件中定义的Bean
XmlBeanDefinitionReader beanDefinitionReader = new XmlBeanDefinitionReader(beanFactory);
// 设置BeanDefinitionReader的一些属性
beanDefinitionReader.setEnvironment(this.getEnvironment());
beanDefinitionReader.setResourceLoader(this);
beanDefinitionReader.setEntityResolver(new ResourceEntityResolver(this));
// 初始化BeanDefinitionReader
initBeanDefinitionReader(beanDefinitionReader);
// 真正的加载过程
loadBeanDefinitions(beanDefinitionReader);
}
对应的loadBeanDefinitions方法的实现如下：
protected void loadBeanDefinitions(XmlBeanDefinitionReader reader) throws BeansException, IOException {
Resource[] configResources = getConfigResources();
if (configResources != null) {
reader.loadBeanDefinitions(configResources);
}
String[] configLocations = getConfigLocations();
if (configLocations != null) {
reader.loadBeanDefinitions(configLocations);
}
// 往下看
}
@Override
public int loadBeanDefinitions(Resource... resources) throws BeanDefinitionStoreException {
Assert.notNull(resources, "Resource array must not be null");
int counter = 0;
// 循环遍历，加载每一个配置文件中的Bean
for (Resource resource : resources) {
counter += loadBeanDefinitions(resource);
}
// 最后返回 counter，表示总共加载了多少的 BeanDefinition
return counter;
}
// AbstractBeanDefinitionReader
@Override
public int loadBeanDefinitions(String location) throws BeanDefinitionStoreException {
return loadBeanDefinitions(location, null);
}
它会接着调用XmlBeanDefinitionReader中的loadBeanDefinitions方法，源码如下：
// XmlBeanDefinitionReader
private final ThreadLocal<Set<EncodedResource>> resourcesCurrentlyBeingLoaded =
new NamedThreadLocal<>("XML bean definition resources currently being loaded");
public int loadBeanDefinitions(EncodedResource encodedResource) throws BeanDefinitionStoreException {
Assert.notNull(encodedResource, "EncodedResource must not be null");
// 日志打印
if (logger.isInfoEnabled()) {
logger.info("Loading XML bean definitions from " + encodedResource.getResource());
}
// // 用一个 ThreadLocal 来存放配置文件资源
Set<EncodedResource> currentResources = this.resourcesCurrentlyBeingLoaded.get();
if (currentResources == null) {
currentResources = new HashSet<>(4);
// 将currentResources和当前的ThreadLocal对象绑定
this.resourcesCurrentlyBeingLoaded.set(currentResources);
}
// 如果绑定失败，则抛出异常
if (!currentResources.add(encodedResource)) {
throw new BeanDefinitionStoreException(
"Detected cyclic loading of " + encodedResource + " - check your import definitions!");
}
try {
// 获取输入流
InputStream inputStream = encodedResource.getResource().getInputStream();
try {
InputSource inputSource = new InputSource(inputStream);
if (encodedResource.getEncoding() != null) {
inputSource.setEncoding(encodedResource.getEncoding());
}
return doLoadBeanDefinitions(inputSource, encodedResource.getResource());
}
finally {
inputStream.close();
}
}
catch (IOException ex) {
throw new BeanDefinitionStoreException(
"IOException parsing XML document from " + encodedResource.getResource(), ex);
}
finally {
currentResources.remove(encodedResource);
if (currentResources.isEmpty()) {
this.resourcesCurrentlyBeingLoaded.remove();
}
}
}
上述源码中的doLoadBeanDefinitions方法的实现如下（真正开始干活的方法doxxx）：
protected int doLoadBeanDefinitions(InputSource inputSource, Resource resource)
throws BeanDefinitionStoreException {
try {
// 将 xml 文件转换为 Document 对象
Document doc = doLoadDocument(inputSource, resource);
return registerBeanDefinitions(doc, resource);
}
catch (BeanDefinitionStoreException ex) {
throw ex;
}
// 省略，捕捉一系列可能的异常
}
其中registerBeanDefinitions方法的实现如下：
public int registerBeanDefinitions(Document doc, Resource resource) throws BeanDefinitionStoreException {
BeanDefinitionDocumentReader documentReader = createBeanDefinitionDocumentReader();
int countBefore = getRegistry().getBeanDefinitionCount();
documentReader.registerBeanDefinitions(doc, createReaderContext(resource));
// 返回从当前配置文件加载了多少数量的 Bean
return getRegistry().getBeanDefinitionCount() - countBefore;
}
@Override
public void registerBeanDefinitions(Document doc, XmlReaderContext readerContext) {
this.readerContext = readerContext;
logger.debug("Loading bean definitions");
Element root = doc.getDocumentElement();
// 从 xml 根节点开始解析文件
doRegisterBeanDefinitions(root);
}
容器调用doRegisterBeanDefinitions方法，从XML根节点开始解析配置文件，实现如下，它负责解析XML文件中通过<bean>标签定义的各种bean：
protected void doRegisterBeanDefinitions(Element root) {
BeanDefinitionParserDelegate parent = this.delegate;
this.delegate = createDelegate(getReaderContext(), root, parent);
if (this.delegate.isDefaultNamespace(root)) {
// 根节点 <beans ... profile="dev" /> 中的profile是否是当前环境需要的，
// 如果当前环境配置的profile不包含此profile，那就直接return了，不对此<beans>解析
String profileSpec = root.getAttribute(PROFILE_ATTRIBUTE);
if (StringUtils.hasText(profileSpec)) {
String[] specifiedProfiles = StringUtils.tokenizeToStringArray(
profileSpec, BeanDefinitionParserDelegate.MULTI_VALUE_ATTRIBUTE_DELIMITERS);
if (!getReaderContext().getEnvironment().acceptsProfiles(specifiedProfiles)) {
if (logger.isInfoEnabled()) {
logger.info("Skipped XML bean definition file due to specified profiles [" + profileSpec +
"] not matching: " + getReaderContext().getResource());
}
return;
}
}
}
preProcessXml(root);
// 解析配置文件中的Bean
parseBeanDefinitions(root, this.delegate);
postProcessXml(root);
this.delegate = parent;
}
解析XML配置文件中的Bean需要调用parseBeanDefinitions方法，源码如下：
protected void parseBeanDefinitions(Element root, BeanDefinitionParserDelegate delegate) {
// default namespace 涉及到四个标签 <import />、<alias />、<bean /> 和 <beans />，
if (delegate.isDefaultNamespace(root)) {
NodeList nl = root.getChildNodes();
for (int i = 0; i < nl.getLength(); i++) {
Node node = nl.item(i);
if (node instanceof Element) {
Element ele = (Element) node;
if (delegate.isDefaultNamespace(ele)) {
parseDefaultElement(ele, delegate);
}
else {
delegate.parseCustomElement(ele);
}
}
}
}
else {
delegate.parseCustomElement(root);
}
}
private void parseDefaultElement(Element ele, BeanDefinitionParserDelegate delegate) {
// 处理<import>标签
if (delegate.nodeNameEquals(ele, IMPORT_ELEMENT)) {
importBeanDefinitionResource(ele);
}
// 处理<alias>标签
else if (delegate.nodeNameEquals(ele, ALIAS_ELEMENT)) {
processAliasRegistration(ele);
}
// 处理<bean>标签
else if (delegate.nodeNameEquals(ele, BEAN_ELEMENT)) {
processBeanDefinition(ele, delegate);
}
// 递归处理嵌套的beans标签
else if (delegate.nodeNameEquals(ele, NESTED_BEANS_ELEMENT)) {
// recurse
doRegisterBeanDefinitions(ele);
}
}
protected void processBeanDefinition(Element ele, BeanDefinitionParserDelegate delegate) {
BeanDefinitionHolder bdHolder = delegate.parseBeanDefinitionElement(ele);
if (bdHolder != null) {
bdHolder = delegate.decorateBeanDefinitionIfRequired(ele, bdHolder);
try {
// 注册bean
BeanDefinitionReaderUtils.registerBeanDefinition(bdHolder, getReaderContext().getRegistry());
}
catch (BeanDefinitionStoreException ex) {
getReaderContext().error("Failed to register bean definition with name '" +
bdHolder.getBeanName() + "'", ele, ex);
}
// Send registration event.
getReaderContext().fireComponentRegistered(new BeanComponentDefinition(bdHolder));
}
}
解析Bean的具体过程这里就不往下追了，总之通过parseDefaultElement方法和parseCustomElement方法就能够解析出XML文件中定义的各种Bean。
解析完所有的Bean之后，就需要将它们注册到BeanFactory中，对应的方法如下：
public static void registerBeanDefinition(
BeanDefinitionHolder definitionHolder, BeanDefinitionRegistry registry)
throws BeanDefinitionStoreException {
// 注册Bean
String beanName = definitionHolder.getBeanName();
registry.registerBeanDefinition(beanName, definitionHolder.getBeanDefinition());
// / 如果还有别名的话，也要根据别名全部注册一遍
String[] aliases = definitionHolder.getAliases();
if (aliases != null) {
for (String alias : aliases) {
registry.registerAlias(beanName, alias);
}
}
}
方法中的registerBeanDefinition源码定义如下：
@Override
public void registerBeanDefinition(String beanName, BeanDefinition beanDefinition)
throws BeanDefinitionStoreException {
Assert.hasText(beanName, "Bean name must not be empty");
Assert.notNull(beanDefinition, "BeanDefinition must not be null");
if (beanDefinition instanceof AbstractBeanDefinition) {
try {
((AbstractBeanDefinition) beanDefinition).validate();
}
catch (BeanDefinitionValidationException ex) {
throw new BeanDefinitionStoreException(beanDefinition.getResourceDescription(), beanName,
"Validation of bean definition failed", ex);
}
}
BeanDefinition oldBeanDefinition;
// 所有的 Bean 注册后会放入这个 beanDefinitionMap 中
oldBeanDefinition = this.beanDefinitionMap.get(beanName);
if (oldBeanDefinition != null) {
if (!isAllowBeanDefinitionOverriding()) {
throw new BeanDefinitionStoreException(beanDefinition.getResourceDescription(), beanName,
"Cannot register bean definition [" + beanDefinition + "] for bean '" + beanName +
"': There is already [" + oldBeanDefinition + "] bound.");
}
else if (oldBeanDefinition.getRole() < beanDefinition.getRole()) {
// e.g. was ROLE_APPLICATION, now overriding with ROLE_SUPPORT or ROLE_INFRASTRUCTURE
if (this.logger.isWarnEnabled()) {
this.logger.warn("Overriding user-defined bean definition for bean '" + beanName +
"' with a framework-generated bean definition: replacing [" +
oldBeanDefinition + "] with [" + beanDefinition + "]");
}
}
else if (!beanDefinition.equals(oldBeanDefinition)) {
if (this.logger.isInfoEnabled()) {
this.logger.info("Overriding bean definition for bean '" + beanName +
"' with a different definition: replacing [" + oldBeanDefinition +
"] with [" + beanDefinition + "]");
}
}
else {
if (this.logger.isDebugEnabled()) {
this.logger.debug("Overriding bean definition for bean '" + beanName +
"' with an equivalent definition: replacing [" + oldBeanDefinition +
"] with [" + beanDefinition + "]");
}
}
this.beanDefinitionMap.put(beanName, beanDefinition);
}
else {
if (hasBeanCreationStarted()) {
// Cannot modify startup-time collection elements anymore (for stable iteration)
synchronized (this.beanDefinitionMap) {
// 将 BeanDefinition 放到这个 map 中，这个 map 保存了所有的 BeanDefinition
this.beanDefinitionMap.put(beanName, beanDefinition);
// 这是个 ArrayList，所以会按照 bean 配置的顺序保存每一个注册的 Bean 的名字
List<String> updatedDefinitions = new ArrayList<>(this.beanDefinitionNames.size() + 1);
updatedDefinitions.addAll(this.beanDefinitionNames);
updatedDefinitions.add(beanName);
this.beanDefinitionNames = updatedDefinitions;
if (this.manualSingletonNames.contains(beanName)) {
// 这是个 LinkedHashSet，代表的是手动注册的 singleton bean，
Set<String> updatedSingletons = new LinkedHashSet<>(this.manualSingletonNames);
updatedSingletons.remove(beanName);
this.manualSingletonNames = updatedSingletons;
}
}
}
else {
// Still in startup registration phase
this.beanDefinitionMap.put(beanName, beanDefinition);
this.beanDefinitionNames.add(beanName);
this.manualSingletonNames.remove(beanName);
}
this.frozenBeanDefinitionNames = null;
}
if (oldBeanDefinition != null || containsSingleton(beanName)) {
resetBeanDefinition(beanName);
}
}
到此为止，我们已经成功的初始化了Bean容器，并且解析了所有配置文件中定义的Bean，将其转换为BeanDefinition后，注册到了BeanFactory中，而且发送了注册事件。接下来，有了BeanFactory之后，就可以进行Bean的实例化和初始化操作。
理解了上述的过程，我们也可以手动的读取bean.xml配置文件中定义的bean，创建XMLBeanDefinitionReader对象来读取XML文件中定义的bean，并创建DefaultListableBeanFactory来接收读取到的BeanDefinition。
@Test
public void test(){
ClassPathResource resource = new ClassPathResource("bean.xml");
DefaultListableBeanFactory beanFactory = new DefaultListableBeanFactory();
XmlBeanDefinitionReader definitionReader = new XmlBeanDefinitionReader(beanFactory);
int count = definitionReader.loadBeanDefinitions(resource);
System.out.println(count);
String[] names = beanFactory.getBeanDefinitionNames();
for (String s : names) {
System.out.println(s);
}
}
prepareBeanFactory
在获取到了·BeanFactory·，并且加载了XML文件中定义的BeanDefinition之后，接着执行prepareBeanFactory方法。它用于设置BeanFactory的类加载器，还可以手动的注册几个特殊的bean。源码实现如下：
protected void prepareBeanFactory(ConfigurableListableBeanFactory beanFactory) {
// 设置BeanFactory的类加载器，设置为当前ApplicationContext的类加载器
beanFactory.setBeanClassLoader(getClassLoader());
beanFactory.setBeanExpressionResolver(new StandardBeanExpressionResolver(beanFactory.getBeanClassLoader()));
beanFactory.addPropertyEditorRegistrar(new ResourceEditorRegistrar(this, getEnvironment()));
// 添加BeanPostProcessor，负责回调各种实现的xxxAware接口
beanFactory.addBeanPostProcessor(new ApplicationContextAwareProcessor(this));
// 如果某个 bean 依赖于以下几个接口的实现类，在自动装配的时候忽略它们
beanFactory.ignoreDependencyInterface(EnvironmentAware.class);
beanFactory.ignoreDependencyInterface(EmbeddedValueResolverAware.class);
beanFactory.ignoreDependencyInterface(ResourceLoaderAware.class);
beanFactory.ignoreDependencyInterface(ApplicationEventPublisherAware.class);
beanFactory.ignoreDependencyInterface(MessageSourceAware.class);
beanFactory.ignoreDependencyInterface(ApplicationContextAware.class);
/**
* 下面几行就是为特殊的几个 bean 赋值，如果有 bean 依赖了以下几个，会注入这边相应的值，
* 之前我们说过，"当前 ApplicationContext 持有一个 BeanFactory"，这里解释了第一行。
* ApplicationContext 还继承了 ResourceLoader、ApplicationEventPublisher、MessageSource
* 所以对于这几个依赖，可以赋值为 this，注意 this 是一个 ApplicationContext
* 那这里怎么没看到为 MessageSource 赋值呢？那是因为 MessageSource 被注册成为了一个普通的 bean
*/
beanFactory.registerResolvableDependency(BeanFactory.class, beanFactory);
beanFactory.registerResolvableDependency(ResourceLoader.class, this);
beanFactory.registerResolvableDependency(ApplicationEventPublisher.class, this);
beanFactory.registerResolvableDependency(ApplicationContext.class, this);
// 注册事件监听器
beanFactory.addBeanPostProcessor(new ApplicationListenerDetector(this));
// Detect a LoadTimeWeaver and prepare for weaving, if found.
if (beanFactory.containsBean(LOAD_TIME_WEAVER_BEAN_NAME)) {
beanFactory.addBeanPostProcessor(new LoadTimeWeaverAwareProcessor(beanFactory));
// Set a temporary ClassLoader for type matching.
beanFactory.setTempClassLoader(new ContextTypeMatchClassLoader(beanFactory.getBeanClassLoader()));
}
// Spring会默认注册如下的几个bean
if (!beanFactory.containsLocalBean(ENVIRONMENT_BEAN_NAME)) {
beanFactory.registerSingleton(ENVIRONMENT_BEAN_NAME, getEnvironment());
}
if (!beanFactory.containsLocalBean(SYSTEM_PROPERTIES_BEAN_NAME)) {
beanFactory.registerSingleton(SYSTEM_PROPERTIES_BEAN_NAME, getEnvironment().getSystemProperties());
}
if (!beanFactory.containsLocalBean(SYSTEM_ENVIRONMENT_BEAN_NAME)) {
beanFactory.registerSingleton(SYSTEM_ENVIRONMENT_BEAN_NAME, getEnvironment().getSystemEnvironment());
}
}
refresh中其他的一些方法不是特别重要，我们直接看
finishBeanFactoryInitialization这个有关Bean初始化的方法。
finishBeanFactoryInitialization
到目前为止，应该说 BeanFactory 已经创建完成，并且所有实现了 BeanFactoryPostProcessor接口的 Bean 都已经初始化并且其中的 postProcessBeanFactory(factory)方法已经得到回调执行了。而且 Spring 已经手动注册了一些特殊的 Bean，如 environment、systemProperties 等。接下来调用finishBeanFactoryInitialization初始化所有的singleton beans（没有设置lazy-init）。它的源码实现如下所示：
/**
* Finish the initialization of this context's bean factory,
* initializing all remaining singleton beans.
*/
protected void finishBeanFactoryInitialization(ConfigurableListableBeanFactory beanFactory) {
// 首先，初始化名字为 conversionService 的 Bean
if (beanFactory.containsBean(CONVERSION_SERVICE_BEAN_NAME) &&
beanFactory.isTypeMatch(CONVERSION_SERVICE_BEAN_NAME, ConversionService.class)) {
beanFactory.setConversionService(
beanFactory.getBean(CONVERSION_SERVICE_BEAN_NAME, ConversionService.class));
}
// Register a default embedded value resolver if no bean post-processor
// (such as a PropertyPlaceholderConfigurer bean) registered any before:
// at this point, primarily for resolution in annotation attribute values.
if (!beanFactory.hasEmbeddedValueResolver()) {
beanFactory.addEmbeddedValueResolver(strVal -> getEnvironment().resolvePlaceholders(strVal));
}
// Initialize LoadTimeWeaverAware beans early to allow for registering their transformers early.
String[] weaverAwareNames = beanFactory.getBeanNamesForType(LoadTimeWeaverAware.class, false, false);
for (String weaverAwareName : weaverAwareNames) {
getBean(weaverAwareName);
}
// Stop using the temporary ClassLoader for type matching.
beanFactory.setTempClassLoader(null);
// Allow for caching all bean definition metadata, not expecting further changes.
beanFactory.freezeConfiguration();
// Instantiate all remaining (non-lazy-init) singletons.
beanFactory.preInstantiateSingletons();
}
在方法内完成其他的一些工作后，调用preInstantiateSingletons方法进行bean初始化操作：
@Override
public void preInstantiateSingletons() throws BeansException {
if (this.logger.isDebugEnabled()) {
this.logger.debug("Pre-instantiating singletons in " + this);
}
// Iterate over a copy to allow for init methods which in turn register new bean definitions.
// While this may not be part of the regular factory bootstrap, it does otherwise work fine.
// this.beanDefinitionNames 保存了所有的 beanNames
List<String> beanNames = new ArrayList<>(this.beanDefinitionNames);
// 循环触发所有的非懒加载的 singleton beans 的初始化操作
for (String beanName : beanNames) {
RootBeanDefinition bd = getMergedLocalBeanDefinition(beanName);
// 非抽象、非懒加载的 singletons。如果配置了 'abstract = true'，那是不需要初始化的
if (!bd.isAbstract() && bd.isSingleton() && !bd.isLazyInit()) {
// 首先判断是不是FactoryBean
if (isFactoryBean(beanName)) {
// FactoryBean 的话，在 beanName 前面加上 ‘&’ 符号，再调用 getBean方法获取
// String FACTORY_BEAN_PREFIX = "&";
final FactoryBean<?> factory = (FactoryBean<?>) getBean(FACTORY_BEAN_PREFIX + beanName);
boolean isEagerInit;
if (System.getSecurityManager() != null && factory instanceof SmartFactoryBean) {
isEagerInit = AccessController.doPrivileged((PrivilegedAction<Boolean>) () ->
((SmartFactoryBean<?>) factory).isEagerInit(),
getAccessControlContext());
}
else {
isEagerInit = (factory instanceof SmartFactoryBean &&
((SmartFactoryBean<?>) factory).isEagerInit());
}
if (isEagerInit) {
getBean(beanName);
}
}
else {
// 对于普通的 Bean，只要调用 getBean(beanName) 这个方法就可以进行初始化了
getBean(beanName);
}
}
}
// 到此为止，所有非懒加载的singleton beans已经完成了初始化
// Trigger post-initialization callback for all applicable beans...
for (String beanName : beanNames) {
Object singletonInstance = getSingleton(beanName);
if (singletonInstance instanceof SmartInitializingSingleton) {
final SmartInitializingSingleton smartSingleton = (SmartInitializingSingleton) singletonInstance;
if (System.getSecurityManager() != null) {
AccessController.doPrivileged((PrivilegedAction<Object>) () -> {
smartSingleton.afterSingletonsInstantiated();
return null;
}, getAccessControlContext());
}
else {
smartSingleton.afterSingletonsInstantiated();
}
}
}
}
由上面的方法可知，普通的bean的初始化操作是在getBean方法调用时发生的，例如：
ApplicationContext context = new ClassPathXmlApplicationContext("bean.xml");
IAccountService as = (IAccountService) context.getBean("accountService");
它的源码如下：
@Override
public Object getBean(String name) throws BeansException {
return doGetBean(name, null, null, false);
}
doGetBean
它又调用了doGetBean，一看方法名就知道要干活了，源码如下：
protected <T> T doGetBean(final String name, @Nullable final Class<T> requiredType,
@Nullable final Object[] args, boolean typeCheckOnly) throws BeansException {
// 获取beanName，可能直接就是bean对应的name，也可能是别名转换来的name
final String beanName = transformedBeanName(name);
// 最终要返回的bean
Object bean;
// 检查当前的bean是否已经被创建
Object sharedInstance = getSingleton(beanName);
if (sharedInstance != null && args == null) {
if (logger.isDebugEnabled()) {
if (isSingletonCurrentlyInCreation(beanName)) {
logger.debug("Returning eagerly cached instance of singleton bean '" + beanName +
"' that is not fully initialized yet - a consequence of a circular reference");
}
else {
logger.debug("Returning cached instance of singleton bean '" + beanName + "'");
}
}
// 如果是普通 Bean 的话，直接返回 sharedInstance;如果是 FactoryBean 的话，返回它创建的那个实例对象
bean = getObjectForBeanInstance(sharedInstance, name, beanName, null);
}
else {
// Fail if we're already creating this bean instance:
// We're assumably within a circular reference.
if (isPrototypeCurrentlyInCreation(beanName)) {
throw new BeanCurrentlyInCreationException(beanName);
}
// // 检查一下这个 BeanDefinition 在容器中是否存在
BeanFactory parentBeanFactory = getParentBeanFactory();
if (parentBeanFactory != null && !containsBeanDefinition(beanName)) {
// 如果当前容器不存在这个 BeanDefinition，试试父容器中有没有
String nameToLookup = originalBeanName(name);
if (parentBeanFactory instanceof AbstractBeanFactory) {
return ((AbstractBeanFactory) parentBeanFactory).doGetBean(
nameToLookup, requiredType, args, typeCheckOnly);
}
else if (args != null) {
// Delegation to parent with explicit args.
return (T) parentBeanFactory.getBean(nameToLookup, args);
}
else {
// No args -> delegate to standard getBean method.
return parentBeanFactory.getBean(nameToLookup, requiredType);
}
}
if (!typeCheckOnly) {
markBeanAsCreated(beanName);
}
// 下面开始创建bean
try {
final RootBeanDefinition mbd = getMergedLocalBeanDefinition(beanName);
checkMergedBeanDefinition(mbd, beanName, args);
//初始化依赖的所有 Bean
String[] dependsOn = mbd.getDependsOn();
if (dependsOn != null) {
for (String dep : dependsOn) {
// 检查是不是有循环依赖
if (isDependent(beanName, dep)) {
throw new BeanCreationException(mbd.getResourceDescription(), beanName,
"Circular depends-on relationship between '" + beanName + "' and '" + dep + "'");
}
// 注册依赖关系
registerDependentBean(dep, beanName);
// 初始化被依赖项
getBean(dep);
}
}
//如果是 singleton scope 的，创建 singleton 的实例
if (mbd.isSingleton()) {
sharedInstance = getSingleton(beanName, () -> {
try {
// 创建bean
return createBean(beanName, mbd, args);
}
catch (BeansException ex) {
// Explicitly remove instance from singleton cache: It might have been put there
// eagerly by the creation process, to allow for circular reference resolution.
// Also remove any beans that received a temporary reference to the bean.
destroySingleton(beanName);
throw ex;
}
});
bean = getObjectForBeanInstance(sharedInstance, name, beanName, mbd);
}
// 如果是 prototype scope 的，创建 prototype 的实例
else if (mbd.isPrototype()) {
// It's a prototype -> create a new instance.
Object prototypeInstance = null;
try {
beforePrototypeCreation(beanName);
prototypeInstance = createBean(beanName, mbd, args);
}
finally {
afterPrototypeCreation(beanName);
}
bean = getObjectForBeanInstance(prototypeInstance, name, beanName, mbd);
}
// 如果不是 singleton 和 prototype 的话，需要委托给相应的实现类来处理
else {
String scopeName = mbd.getScope();
final Scope scope = this.scopes.get(scopeName);
if (scope == null) {
throw new IllegalStateException("No Scope registered for scope name '" + scopeName + "'");
}
try {
Object scopedInstance = scope.get(beanName, () -> {
beforePrototypeCreation(beanName);
try {
return createBean(beanName, mbd, args);
}
finally {
afterPrototypeCreation(beanName);
}
});
bean = getObjectForBeanInstance(scopedInstance, name, beanName, mbd);
}
catch (IllegalStateException ex) {
throw new BeanCreationException(beanName,
"Scope '" + scopeName + "' is not active for the current thread; consider " +
"defining a scoped proxy for this bean if you intend to refer to it from a singleton",
ex);
}
}
}
catch (BeansException ex) {
cleanupAfterBeanCreationFailure(beanName);
throw ex;
}
}
方法中最重要的就是调用createBean方法，源码如下：
/**
* Central method of this class: creates a bean instance,
* populates the bean instance, applies post-processors, etc.
* @see #doCreateBean
*/
@Override
protected Object createBean(String beanName, RootBeanDefinition mbd, @Nullable Object[] args)
throws BeanCreationException {
if (logger.isDebugEnabled()) {
logger.debug("Creating instance of bean '" + beanName + "'");
}
RootBeanDefinition mbdToUse = mbd;
// Make sure bean class is actually resolved at this point, and
// clone the bean definition in case of a dynamically resolved Class
// which cannot be stored in the shared merged bean definition.
// 确保 BeanDefinition 中的 Class 被加载
Class<?> resolvedClass = resolveBeanClass(mbd, beanName);
if (resolvedClass != null && !mbd.hasBeanClass() && mbd.getBeanClassName() != null) {
mbdToUse = new RootBeanDefinition(mbd);
mbdToUse.setBeanClass(resolvedClass);
}
// Prepare method overrides.
try {
mbdToUse.prepareMethodOverrides();
}
catch (BeanDefinitionValidationException ex) {
throw new BeanDefinitionStoreException(mbdToUse.getResourceDescription(),
beanName, "Validation of method overrides failed", ex);
}
try {
// Give BeanPostProcessors a chance to return a proxy instead of the target bean instance.
Object bean = resolveBeforeInstantiation(beanName, mbdToUse);
if (bean != null) {
return bean;
}
}
catch (Throwable ex) {
throw new BeanCreationException(mbdToUse.getResourceDescription(), beanName,
"BeanPostProcessor before instantiation of bean failed", ex);
}
try {
// 创建Bean
Object beanInstance = doCreateBean(beanName, mbdToUse, args);
if (logger.isDebugEnabled()) {
logger.debug("Finished creating instance of bean '" + beanName + "'");
}
return beanInstance;
}
// 抓异常，省略
}
doCreateBean方法的定义如下：
protected Object doCreateBean(final String beanName, final RootBeanDefinition mbd, final @Nullable Object[] args)
throws BeanCreationException {
// Instantiate the bean.
BeanWrapper instanceWrapper = null;
if (mbd.isSingleton()) {
instanceWrapper = this.factoryBeanInstanceCache.remove(beanName);
}
if (instanceWrapper == null) {
// 说明不是 FactoryBean，这里实例化 Bean
instanceWrapper = createBeanInstance(beanName, mbd, args);
}
final Object bean = instanceWrapper.getWrappedInstance();
Class<?> beanType = instanceWrapper.getWrappedClass();
if (beanType != NullBean.class) {
mbd.resolvedTargetType = beanType;
}
// 省略
// 循环依赖解决的核心逻辑
boolean earlySingletonExposure = (mbd.isSingleton() && this.allowCircularReferences &&
isSingletonCurrentlyInCreation(beanName));
if (earlySingletonExposure) {
if (logger.isDebugEnabled()) {
logger.debug("Eagerly caching bean '" + beanName +
"' to allow for resolving potential circular references");
}
addSingletonFactory(beanName, () -> getEarlyBeanReference(beanName, mbd, bean));
}
// Initialize the bean instance.
Object exposedObject = bean;
try {
// bean的属性装配
populateBean(beanName, mbd, instanceWrapper);
// 处理 bean 初始化完成后的各种回调，如init-method，InitializingBean接口和BeanPostProcessor接口等
exposedObject = initializeBean(beanName, exposedObject, mbd);
}
catch (Throwable ex) {
if (ex instanceof BeanCreationException && beanName.equals(((BeanCreationException) ex).getBeanName())) {
throw (BeanCreationException) ex;
}
else {
throw new BeanCreationException(
mbd.getResourceDescription(), beanName, "Initialization of bean failed", ex);
}
}
// 省略
return exposedObject;
}
到此为止，容器已经完成了Bean的初始化，其中涉及的三个重要方法是：
- createBeanInstance：实例化Bean，调用对象的构造方法实例化对象
- populateBean：属性装配，对bean的依赖属性进行注入
- initializeBean：回调各种初始化方法
createBeanInstance
它用于实例化Bean，调用对象的构造方法实例化对象，源码定义如下：
protected BeanWrapper createBeanInstance(String beanName, RootBeanDefinition mbd, @Nullable Object[] args) {
// Make sure bean class is actually resolved at this point.
Class<?> beanClass = resolveBeanClass(mbd, beanName);
if (beanClass != null && !Modifier.isPublic(beanClass.getModifiers()) && !mbd.isNonPublicAccessAllowed()) {
throw new BeanCreationException(mbd.getResourceDescription(), beanName,
"Bean class isn't public, and non-public access not allowed: " + beanClass.getName());
}
Supplier<?> instanceSupplier = mbd.getInstanceSupplier();
if (instanceSupplier != null) {
return obtainFromSupplier(instanceSupplier, beanName);
}
// 采用工厂方法实例化
if (mbd.getFactoryMethodName() != null) {
return instantiateUsingFactoryMethod(beanName, mbd, args);
}
// 如果不是第一次创建，比如第二次创建 prototype bean。
// 这种情况下，我们可以从第一次创建知道，采用无参构造函数，还是构造函数依赖注入 来完成实例化
boolean resolved = false;
boolean autowireNecessary = false;
if (args == null) {
synchronized (mbd.constructorArgumentLock) {
if (mbd.resolvedConstructorOrFactoryMethod != null) {
resolved = true;
autowireNecessary = mbd.constructorArgumentsResolved;
}
}
}
if (resolved) {
if (autowireNecessary) {
// 构造函数依赖注入
return autowireConstructor(beanName, mbd, null, null);
}
else {
// 无参构造函数
return instantiateBean(beanName, mbd);
}
}
// // 判断是否采用有参构造函数
Constructor<?>[] ctors = determineConstructorsFromBeanPostProcessors(beanClass, beanName);
if (ctors != null ||
mbd.getResolvedAutowireMode() == RootBeanDefinition.AUTOWIRE_CONSTRUCTOR ||
mbd.hasConstructorArgumentValues() || !ObjectUtils.isEmpty(args)) {
// 构造函数依赖注入
return autowireConstructor(beanName, mbd, ctors, args);
}
// 调用无参构造函数
return instantiateBean(beanName, mbd);
}
下面我们看一下instantiateBean方法的源码实现：
rotected BeanWrapper instantiateBean(final String beanName, final RootBeanDefinition mbd) {
try {
Object beanInstance;
final BeanFactory parent = this;
if (System.getSecurityManager() != null) {
beanInstance = AccessController.doPrivileged((PrivilegedAction<Object>) () ->
getInstantiationStrategy().instantiate(mbd, beanName, parent),
getAccessControlContext());
}
else {
// 重点部分
beanInstance = getInstantiationStrategy().instantiate(mbd, beanName, parent);
}
BeanWrapper bw = new BeanWrapperImpl(beanInstance);
initBeanWrapper(bw);
return bw;
}
catch (Throwable ex) {
throw new BeanCreationException(
mbd.getResourceDescription(), beanName, "Instantiation of bean failed", ex);
}
}
重点看instantiate方法的实现逻辑：
@Override
public Object instantiate(RootBeanDefinition bd, @Nullable String beanName, BeanFactory owner,
final Constructor<?> ctor, @Nullable Object... args) {
// 如果不存在方法覆写，那就使用java反射进行实例化，否则使用 CGLIB
if (!bd.hasMethodOverrides()) {
if (System.getSecurityManager() != null) {
// use own privileged to change accessibility (when security is on)
AccessController.doPrivileged((PrivilegedAction<Object>) () -> {
ReflectionUtils.makeAccessible(ctor);
return null;
});
}
return (args != null ? BeanUtils.instantiateClass(ctor, args) : BeanUtils.instantiateClass(ctor));
}
else {
return instantiateWithMethodInjection(bd, beanName, owner, ctor, args);
}
}
populateBean
它负责属性的装配，也是循环依赖可能发生的地方。源码如下：
protected void populateBean(String beanName, RootBeanDefinition mbd, @Nullable BeanWrapper bw) {
if (bw == null) {
if (mbd.hasPropertyValues()) {
throw new BeanCreationException(
mbd.getResourceDescription(), beanName, "Cannot apply property values to null instance");
}
else {
// Skip property population phase for null instance.
return;
}
}
// bean 实例化完成（通过工厂方法或构造方法），但是还没开始属性设值
boolean continueWithPropertyPopulation = true;
if (!mbd.isSynthetic() && hasInstantiationAwareBeanPostProcessors()) {
for (BeanPostProcessor bp : getBeanPostProcessors()) {
if (bp instanceof InstantiationAwareBeanPostProcessor) {、
// 如果返回 false，代表不需要进行后续的属性设值，也不需要再经过其他的 BeanPostProcessor 的处理
InstantiationAwareBeanPostProcessor ibp = (InstantiationAwareBeanPostProcessor) bp;
if (!ibp.postProcessAfterInstantiation(bw.getWrappedInstance(), beanName)) {
continueWithPropertyPopulation = false;
break;
}
}
}
}
if (!continueWithPropertyPopulation) {
return;
}
// 省略
}
上述完成了Bean实例化后属性的装配，如果存在Spring可以解决的循环依赖，Spring会在属性转配的过程中解决Bean之间存在的循环依赖问题。最后，只需要完成Bean的初始化，用户就可以从容器中获取Bean使用了。
initializeBean
这里就是调用各种有关初始化的方法进行初始化操作，源码如下：
protected Object initializeBean(final String beanName, final Object bean, @Nullable RootBeanDefinition mbd) {
if (System.getSecurityManager() != null) {
AccessController.doPrivileged((PrivilegedAction<Object>) () -> {
invokeAwareMethods(beanName, bean);
return null;
}, getAccessControlContext());
}
else {
invokeAwareMethods(beanName, bean);
}
Object wrappedBean = bean;
if (mbd == null || !mbd.isSynthetic()) {
wrappedBean = applyBeanPostProcessorsBeforeInitialization(wrappedBean, beanName);
}
try {
invokeInitMethods(beanName, wrappedBean, mbd);
}
catch (Throwable ex) {
throw new BeanCreationException(
(mbd != null ? mbd.getResourceDescription() : null),
beanName, "Invocation of init method failed", ex);
}
if (mbd == null || !mbd.isSynthetic()) {
wrappedBean = applyBeanPostProcessorsAfterInitialization(wrappedBean, beanName);
}
return wrappedBean;
}
比较重要就是applyBeanPostProcessorsBeforeInitialization和applyBeanPostProcessorsAfterInitialization，它会通过BeanPostProcessor中定义的先关方法，在Bean的初始化前后完成一些工作。
至此，从XML文件中Bean的定义，到BeanFactory的创建与获取、BeanDefinition的读取和注册，以及Bean的实例化、属性装配和初始化操作就完成了。之后，用于就可以正常的从ioc容器中获取Bean使用。
扫一扫
378
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
