How To Create Alternate Background In WPF?

  Creating alternate background in WPF is a frequently asked question on MSDN WPF forum, and most answers to this question are borrowed from the three solutions posted several months ago by my compatriots in ATC Avalon Team(unfortunately, they decided to shut down their awesome blog), to some extent those solutions require you to define the ItemContainerStyleSelector or ItemTemplateSelector or subclass the exisiting control to override its PrepareContainerForItemOverride() protected method, and although those solutions work pretty well, all of them need you to explicitly refresh the items when the source collection changes, and what's more, for every specific ItemsControl, i.e ListBox, ComboBox, MenuItem, or ListView, you have to create the appropriate selectors or subclass them to get expected result, in this post, I'm going to show another approach to the problem and presumably my solution can be treated as a one all solution.

  Actually implementing alternate background can be treated as an behavior extension to the existing controls, and the best practice to extend existing controls to add behaviors is to use attached property as much as possible, you may argue that we can add behaviors using inheritance, but can you respectively subclass the existing ItemsControls say ListBox, ComboBox, MenuItem, TreeView, and ListView etc to just merely add a simple behavior say alternate background? enter ItemsControlBehavior.

  The following code is the implementation for the ItemsControlBehavior:

public class ItemsControlBehavior
{
    public static readonly DependencyProperty AlternateItemContainerStyleProperty = DependencyProperty.RegisterAttached(
        "AlternateItemContainerStyle",
        typeof(Style),
        typeof(ItemsControlBehavior),
        new FrameworkPropertyMetadata(
            null,
            FrameworkPropertyMetadataOptions.Inherits,
            new PropertyChangedCallback(OnAlternateItemContainerStyleChanged)));

    public static void SetAlternateItemContainerStyle(DependencyObject element, Brush value)
    {
        element.SetValue(AlternateItemContainerStyleProperty, value);
    }

    public static Style GetAlternateItemContainerStyle(DependencyObject element)
    {
        return (Style)element.GetValue(AlternateItemContainerStyleProperty);
    }

    private static void OnAlternateItemContainerStyleChanged(DependencyObject sender, DependencyPropertyChangedEventArgs e)
    {
        ItemsControl control = sender as ItemsControl;
        if (e.NewValue != null && control != null)
        {
            if (control.ItemContainerGenerator.Status == GeneratorStatus.ContainersGenerated)
            {
                SetAlternateItemContainerStyle(control, (Style)e.NewValue);
            }
            else
            {
                control.ItemContainerGenerator.StatusChanged += delegate
               {
                   if (control.ItemContainerGenerator.Status == GeneratorStatus.ContainersGenerated)
                   {
                       SetAlternateItemContainerStyle(control, (Style)e.NewValue);
                   }
               };
            }
        }
    }

    private static void SetAlternateItemContainerStyle(ItemsControl control, Style alternateStyle)
    {
        if (control.Items != null && control.Items.Count > 0)
        {
            for (Int32 i = 0; i < control.Items.Count; i++)
            {
                if (i % 2 != 0)
                {
                    FrameworkElement container = control.ItemContainerGenerator.ContainerFromIndex(i) as FrameworkElement;
                    if (container != null) container.Style = alternateStyle;
                }
            }
        }
    }
}

  You can see from the above code I just create an AlternateItemContainerStyle attached dependency property, in the property changed callback, I just apply the AlternateItemContainerStyle to the container which has an odd numbered index, then how to use the behavior, the following code demonstrates:

<Window x:Class="ItemsControlBehaviorDemo.Window1"
   xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
   xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
   xmlns:sys="clr-namespace:System;assembly=mscorlib"
   xmlns:cc="clr-namespace:ItemsControlBehaviorDemo"
   Title="ItemsControlBehaviorDemo" SizeToContent="WidthAndHeight"
    >
  <Window.Resources>
    <x:Array Type="{x:Type sys:String}" x:Key="data">
      <sys:String>Paviel Dedved</sys:String>
      <sys:String>Andriy Shevchenko</sys:String>
      <sys:String>Paolo Maldini</sys:String>
      <sys:String>Robert Baggio</sys:String>
      <sys:String>Alessandro Del Piero</sys:String>
    </x:Array>

    <Style x:Key="itemStyle">
      <Setter Property="Control.Background" Value="Beige"/>
    </Style>
    <Style x:Key="alternateItemStyle">
      <Setter Property="Control.Background" Value="LightBlue"/>
    </Style>
  </Window.Resources>
  <StackPanel cc:ItemsControlBehavior.AlternateItemContainerStyle="{StaticResource alternateItemStyle}" Orientation="Horizontal">
    <ListBox
       ItemsSource="{StaticResource data}"
       Margin="10"
       ItemContainerStyle="{StaticResource itemStyle}"/>

    <Menu Margin="10" VerticalAlignment="Top">
      <MenuItem
         Header="Player Name"
         ItemsSource="{StaticResource data}"
         ItemContainerStyle="{StaticResource itemStyle}"/>
    </Menu>

    <ComboBox
       Height="20"
       Width="120"
       ItemsSource="{StaticResource data}"
       Margin="10"
       VerticalAlignment="Top"
       ItemContainerStyle="{StaticResource itemStyle}"/>

    <ListView
       ItemsSource="{StaticResource data}"
       Margin="10"
       ItemContainerStyle="{StaticResource itemStyle}">
      <ListView.View>
        <GridView>
          <GridViewColumn Header="Player Name"/>
        </GridView>
      </ListView.View>
    </ListView>
    </StackPanel>
</Window>   You can see that the AlternateItemContainerStyle attached DP is inheritable, so I just specify this property on the parent element aka StackPanel, and this property value will propagate to its containing children elements.

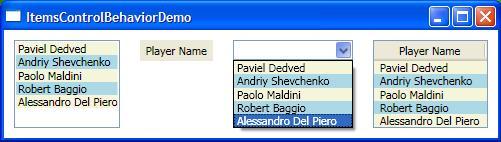

  Here is the screenshot for this demo app:
