本文介绍了Spring和MyBatis整合的相关内容。以往整合时采用硬编码方式连接数据库进行CRUD，对象多且不易维护。现在将对象以Bean方式配置在Spring配置文件中，建立关系后通过getBean执行CRUD。还给出了不使用注解实现的基本步骤，包括导入jar包、创建实体类等，并进行了测试。

摘要生成于 C知道，由 DeepSeek-R1 满血版支持，前往体验 >

以前Spring和Mybatis整合时,访问数据时是使用硬编码的方式连接数据里对数据进行CRUD,这样用到的对象较多,且不易维护,重复性代码也很多
SqlSessionBuileer ===> SqlSessionFactoty =====> SqlSession =====> CRUD(增删改查)

现在我们直接将这些对象以Bean的方式,配置在Spring配置文件中,并且将它们之间的关系建立好,最后只需通过getBean得到某个service的实现类便能执行CRUD,相当于将mybatis-config.xml中的配置转移至了applicationContext.xml配置文件中

基本步骤 (暂不使用注解实现)

1.导入jar包,以maven项目为例
2.建立开发目录结构，创建实体类
3.创建数据访问接口
4.配置sql映射文件
5.配置Mybatis文件(如果有映射类名等操作可放在Mybatis-config.xml中配置)
6.配置appplicationContext.xml文件
7.测试

1.pom.xml导入jar包,如果是普通web项目,从官网下载jar包导入即可,在spring导入的jar包之上再导入这些jar包,Spring的jar包未展示

<dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-jdbc</artifactId>
      <version>5.1.5.RELEASE</version>
    </dependency>
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-tx</artifactId>
      <version>5.1.5.RELEASE</version>
    </dependency>
    <dependency>
      <groupId>org.mybatis</groupId>
      <artifactId>mybatis-spring</artifactId>
      <version>1.2.2</version>
    </dependency>

    <dependency>
      <groupId>commons-pool</groupId>
      <artifactId>commons-pool</artifactId>
      <version>1.6</version>
    </dependency>
    <dependency>
      <groupId>commons-dbcp</groupId>
      <artifactId>commons-dbcp</artifactId>
      <version>1.4</version>
    </dependency>

2.建立开发目录结构，创建实体类

package cn.einblatt.ssm.entity;

import java.util.Date;
import java.util.List;

public class User {
	private Integer id; //id
	private String userCode; //用户编码
	private String userName; //用户名称
	private String userPassword; //用户密码
	private Integer gender;  //性别
	private Date birthday;  //出生日期
	private String phone;   //电话
	private String address; //地址
	private Integer userRole;    //用户角色
	private Integer createdBy;   //创建者
	private Date creationDate; //创建时间
	private Integer modifyBy;     //更新者
	private Date modifyDate;   //更新时间
	private Role role;
	private List<Address> addressList;

	public List<Address> getAddressList() {
		return addressList;
	}

	public void setAddressList(List<Address> addressList) {
		this.addressList = addressList;
	}

	public Role getRole() {
		return role;
	}

	public void setRole(Role role) {
		this.role = role;
	}

	public void setAge(Integer age) {
		this.age = age;
	}

	private Integer age;//年龄

	private String userRoleName;    //用户角色名称


	public String getUserRoleName() {
		return userRoleName;
	}
	public void setUserRoleName(String userRoleName) {
		this.userRoleName = userRoleName;
	}
	public Integer getAge() {
		/*long time = System.currentTimeMillis()-birthday.getTime();
		Integer age = Long.valueOf(time/365/24/60/60/1000).IntegerValue();*/
		Date date = new Date();
		Integer age = date.getYear()-birthday.getYear();
		return age;
	}
	public Integer getId() {
		return id;
	}
	public void setId(Integer id) {
		this.id = id;
	}
	public String getUserCode() {
		return userCode;
	}
	public void setUserCode(String userCode) {
		this.userCode = userCode;
	}
	public String getUserName() {
		return userName;
	}
	public void setUserName(String userName) {
		this.userName = userName;
	}
	public String getUserPassword() {
		return userPassword;
	}
	public void setUserPassword(String userPassword) {
		this.userPassword = userPassword;
	}
	public Integer getGender() {
		return gender;
	}
	public void setGender(Integer gender) {
		this.gender = gender;
	}
	public Date getBirthday() {
		return birthday;
	}
	public void setBirthday(Date birthday) {
		this.birthday = birthday;
	}
	public String getPhone() {
		return phone;
	}
	public void setPhone(String phone) {
		this.phone = phone;
	}
	public String getAddress() {
		return address;
	}
	public void setAddress(String address) {
		this.address = address;
	}
	public Integer getUserRole() {
		return userRole;
	}
	public void setUserRole(Integer userRole) {
		this.userRole = userRole;
	}
	public Integer getCreatedBy() {
		return createdBy;
	}
	public void setCreatedBy(Integer createdBy) {
		this.createdBy = createdBy;
	}
	public Date getCreationDate() {
		return creationDate;
	}
	public void setCreationDate(Date creationDate) {
		this.creationDate = creationDate;
	}
	public Integer getModifyBy() {
		return modifyBy;
	}
	public void setModifyBy(Integer modifyBy) {
		this.modifyBy = modifyBy;
	}
	public Date getModifyDate() {
		return modifyDate;
	}
	public void setModifyDate(Date modifyDate) {
		this.modifyDate = modifyDate;
	}
}

3.创建数据访问接口,UserMapper 为了结构清晰,便于浏览,接口中直写了一个方法用于演示

package cn.einblatt.ssm.dao;

import cn.einblatt.ssm.entity.Bill;
import cn.einblatt.ssm.entity.Provider;
import cn.einblatt.ssm.entity.User;
import org.apache.ibatis.annotations.Param;


import java.util.List;
import java.util.Map;

public interface UserMapper {

    //查询用户数量
    public int getCount();

}

接口实现类 UserMapperImpl

package cn.einblatt.ssm.dao;

import cn.einblatt.ssm.entity.Bill;
import cn.einblatt.ssm.entity.Provider;
import cn.einblatt.ssm.entity.User;
import cn.einblatt.ssm.util.CreateSqlSession;
import org.apache.ibatis.session.SqlSession;
import org.mybatis.spring.SqlSessionTemplate;

import java.util.List;
import java.util.Map;

public class UserMapperImpl implements UserMapper {

    private SqlSessionTemplate sqlSession;  //此类实现了SqlSession,功能类似于SqlSession


    @Override
    public int getCount() {

      return   sqlSession.getMapper(UserMapper.class).getCount();
    }

}

4.配置sql映射文件

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper
        PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
        "http://mybatis.org/dtd/mybatis-3-mapper.dtd">


<mapper namespace="cn.einblatt.ssm.dao.UserMapper">

    <!--查询所有用户的总数-->
    <select id="getCount" resultType="int">
        SELECT COUNT(*) FROM `smbms_user`
    </select>

</mapper>

5.配置Mybatis文件

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE configuration
        PUBLIC "-//mybatis.org//DTD Config 3.0//EN"
        "http://mybatis.org/dtd/mybatis-3-config.dtd">
<configuration>

     <!--映射实体类名-->
    <typeAliases>
        <package name="cn.einblatt.ssm.entity"></package>
    </typeAliases>

</configuration>

6.配置appplicationContext.xml文件

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:aop="http://www.springframework.org/schema/aop"
       xmlns:context="http://www.springframework.org/schema/context"
       xsi:schemaLocation="http://www.springframework.org/schema/beans
     	http://www.springframework.org/schema/beans/spring-beans-3.2.xsd http://www.springframework.org/schema/aop http://www.springframework.org/schema/aop/spring-aop.xsd http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context.xsd">



    <!--导入配置文件-->
    <!--<context:property-placeholder location="database.properties"/>-->

    <!--配置数据源方式一-->
    <!--<bean id="dataSource" class="org.apache.commons.dbcp.BasicDataSource">-->
        <!--<property name="driverClassName" value="${driver}"/>-->
        <!--<property name="url" value="${url}"/>-->
        <!--<property name="username" value="${username}"/>-->
        <!--<property name="password" value="${password}"/>-->
    <!--</bean>-->

    <!--配置数据源方式二-->
    <bean id="dataSource" class="org.apache.commons.dbcp.BasicDataSource">
        <property name="driverClassName" value="com.mysql.jdbc.Driver"/>
        <property name="url" value="jdbc:mysql://127.0.0.1:3306/smbms?useUnicode=true&amp;characterEncoding=utf-8"/>
        <property name="username" value="root"/>
        <property name="password" value="root"/>
    </bean>

    <!--配置SqlSessionFactoryBean-->
    <bean id="sqlSessionFactory" class="org.mybatis.spring.SqlSessionFactoryBean">

         <!--注入数据源-->
        <property name="dataSource" ref="dataSource"/>


        <!--引入mybatis-config.xml配置的内容-->
        <property name="configLocation" value="mybatis-conf.xml"/>


        <!--扫描Mapper文件--> //这里用于演示所以只扫描了一个Mapper文件
                               如果有多个Mapper文件,可将它们同一包下
                               然后扫描整个包
        <property name="mapperLocations">
            <list>
                <value>UserMapper.xml</value>
            </list>
        </property>
    </bean>


    <bean id="sqlSession" class="org.mybatis.spring.SqlSessionTemplate">
        <constructor-arg name="sqlSessionFactory" ref="sqlSessionFactory"/>
    </bean>

    <bean id="userMapper" class="cn.einblatt.ssm.dao.UserMapperImpl">
        <property name="sqlSession" ref="sqlSession"/>
    </bean>
</beans>

7.测试

import cn.einblatt.ssm.dao.UserMapper;
import cn.einblatt.ssm.dao.UserMapperImpl;
import cn.einblatt.ssm.entity.Game.Equip;
import cn.einblatt.ssm.entity.Game.Player;
import cn.einblatt.ssm.service.GameSeivice;
import cn.einblatt.ssm.service.Impl.GameServiceImpl;
import cn.einblatt.ssm.service.Impl.UserServiceImpl;
import cn.einblatt.ssm.service.UserService;
import org.junit.Test;
import org.springframework.context.ApplicationContext;
import org.springframework.context.support.ClassPathXmlApplicationContext;
import org.springframework.context.support.FileSystemXmlApplicationContext;
import spring.Bumblebee;

import java.lang.reflect.Proxy;
import java.util.ArrayList;
import java.util.List;

public class TestSpring {

    @Test
    public void getSpring(){

        //方式一
        ApplicationContext applicationContext= new
        ClassPathXmlApplicationContext("applicationContext.xml");

        UserMapper userMapper= (UserMapper) applicationContext.getBean("userMapper");
        System.out.println("用户总数:"+userMapper.getCount());


    };



}

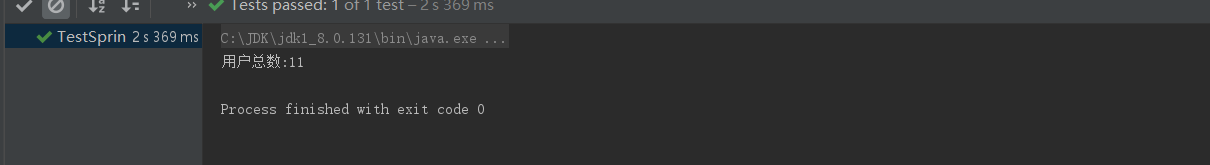

结果如下:
