seata1.8，2.0 linux 安装和配置 + nacos + springboot（已踩坑版）

1.下载包 https://github.com/apache/incubator-seata/releases/download/v1.8.0/seata-server-1.8.0.tar.gz
2.下载seata需要的mysql表文件  https://github.com/apache/incubator-seata/tree/1.8.0/script/server/db
3.在数据库创建名为seata的库，UTF8  ，执行下载的mysql.sql
4.linux解压seata-server-1.8.0.tar.gz
tar -zxvf  seata-server-1.8.0.tar.gz
5.编辑/seata/conf/application.yml配置文件

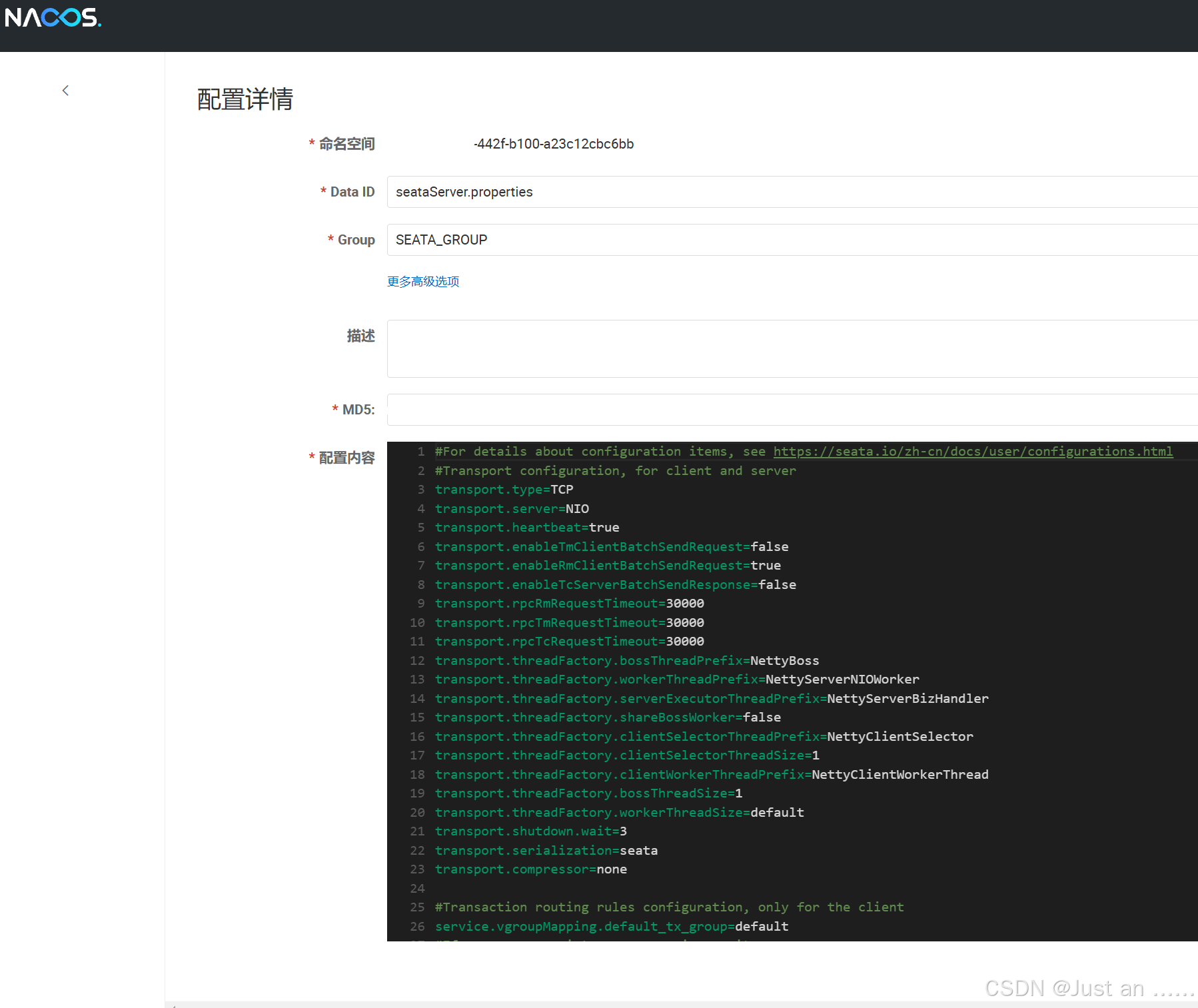

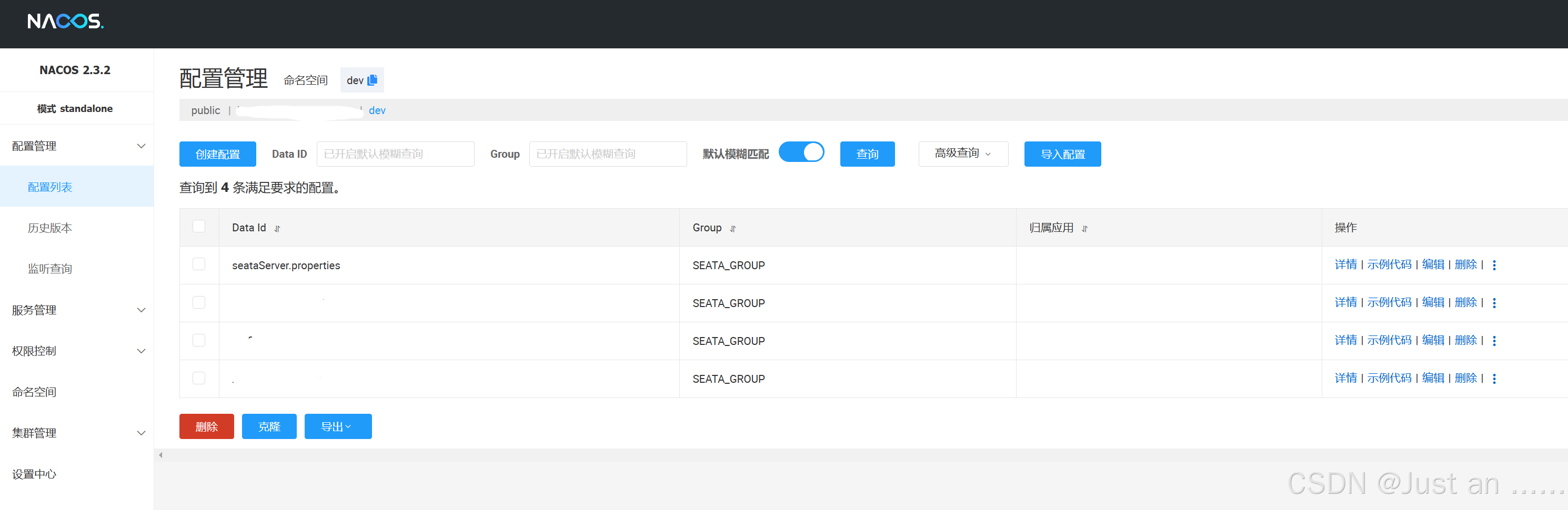

6.刚刚的yaml配置去nacos获取配置文件，所以我们需要在nacos创建一个配置文件

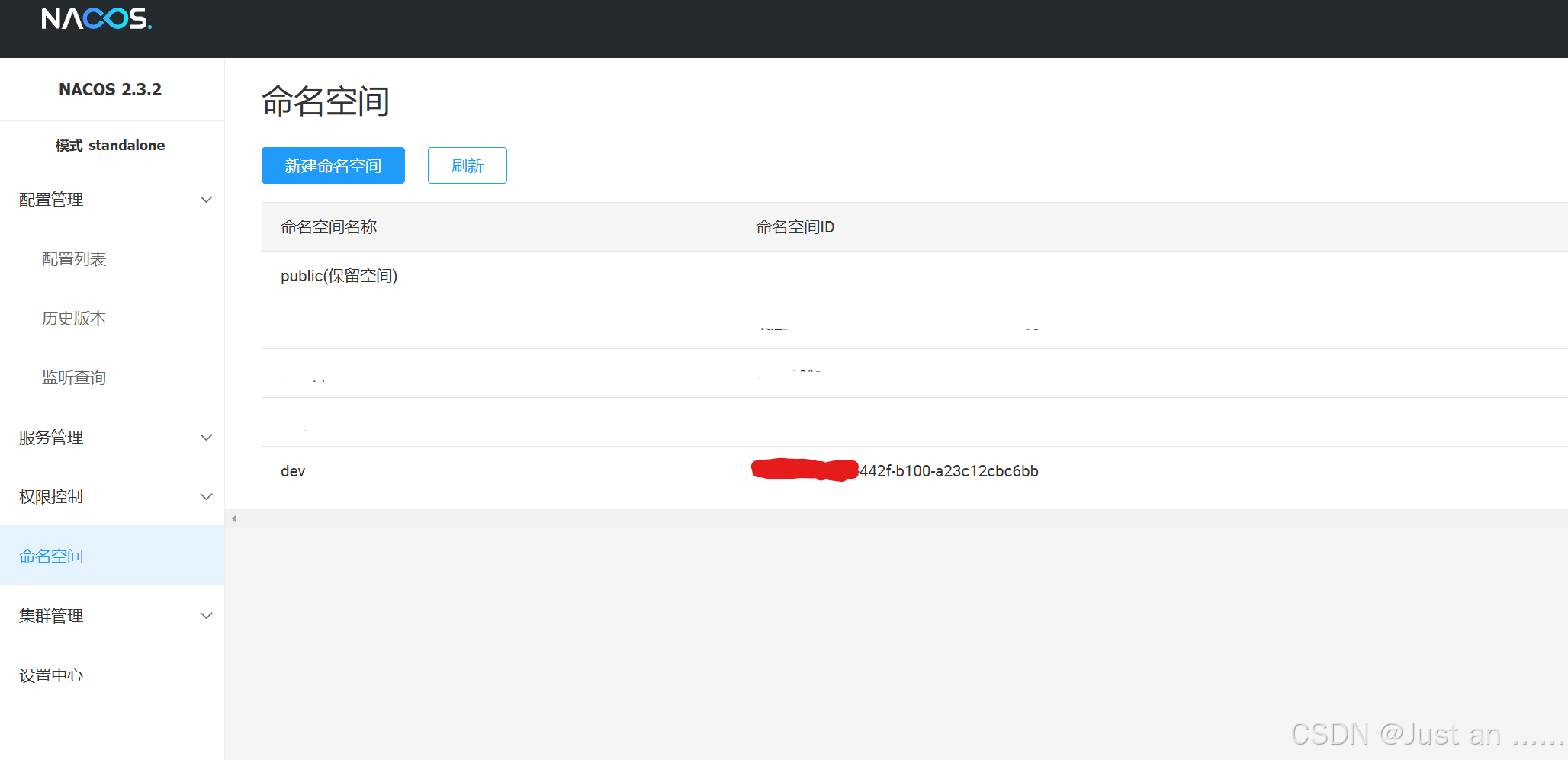

7.注意data-id和 namespace 要一致








#For details about configuration items, see https://seata.io/zh-cn/docs/user/configurations.html
#Transport configuration, for client and server
transport.type=TCP
transport.server=NIO
transport.heartbeat=true
transport.enableTmClientBatchSendRequest=false
transport.enableRmClientBatchSendRequest=true
transport.enableTcServerBatchSendResponse=false
transport.rpcRmRequestTimeout=30000
transport.rpcTmRequestTimeout=30000
transport.rpcTcRequestTimeout=30000
transport.threadFactory.bossThreadPrefix=NettyBoss
transport.threadFactory.workerThreadPrefix=NettyServerNIOWorker
transport.threadFactory.serverExecutorThreadPrefix=NettyServerBizHandler
transport.threadFactory.shareBossWorker=false
transport.threadFactory.clientSelectorThreadPrefix=NettyClientSelector
transport.threadFactory.clientSelectorThreadSize=1
transport.threadFactory.clientWorkerThreadPrefix=NettyClientWorkerThread
transport.threadFactory.bossThreadSize=1
transport.threadFactory.workerThreadSize=default
transport.shutdown.wait=3
transport.serialization=seata
transport.compressor=none

#Transaction routing rules configuration, only for the client
service.vgroupMapping.default_tx_group=default
#If you use a registry, you can ignore it
service.default.grouplist=127.0.0.1:8091
service.enableDegrade=false
service.disableGlobalTransaction=false

#Transaction rule configuration, only for the client
client.rm.asyncCommitBufferLimit=10000
client.rm.lock.retryInterval=10
client.rm.lock.retryTimes=30
client.rm.lock.retryPolicyBranchRollbackOnConflict=true
client.rm.reportRetryCount=5
client.rm.tableMetaCheckEnable=true
client.rm.tableMetaCheckerInterval=60000
client.rm.sqlParserType=druid
client.rm.reportSuccessEnable=false
client.rm.sagaBranchRegisterEnable=false
client.rm.sagaJsonParser=fastjson
client.rm.tccActionInterceptorOrder=-2147482648
client.tm.commitRetryCount=5
client.tm.rollbackRetryCount=5
client.tm.defaultGlobalTransactionTimeout=60000
client.tm.degradeCheck=false
client.tm.degradeCheckAllowTimes=10
client.tm.degradeCheckPeriod=2000
client.tm.interceptorOrder=-2147482648
client.undo.dataValidation=true
client.undo.logSerialization=jackson
client.undo.onlyCareUpdateColumns=true
server.undo.logSaveDays=7
server.undo.logDeletePeriod=86400000
client.undo.logTable=undo_log
client.undo.compress.enable=true
client.undo.compress.type=zip
client.undo.compress.threshold=64k
#For TCC transaction mode
tcc.fence.logTableName=tcc_fence_log
tcc.fence.cleanPeriod=1h

#Log rule configuration, for client and server
log.exceptionRate=100

#Transaction storage configuration, only for the server. The file, db, and redis configuration values are optional.
store.mode=db
store.lock.mode=db
store.session.mode=db
#Used for password encryption
store.publicKey=

#If `store.mode,store.lock.mode,store.session.mode` are not equal to `file`, you can remove the configuration block.
store.file.dir=file_store/data
store.file.maxBranchSessionSize=16384
store.file.maxGlobalSessionSize=512
store.file.fileWriteBufferCacheSize=16384
store.file.flushDiskMode=async
store.file.sessionReloadReadSize=100

#These configurations are required if the `store mode` is `db`. If `store.mode,store.lock.mode,store.session.mode` are not equal to `db`, you can remove the configuration block.
store.db.datasource=druid
store.db.dbType=mysql
#此处注意驱动版本mysql8后是需要加cj
store.db.driverClassName=com.mysql.cj.jdbc.Driver
store.db.url=jdbc:mysql://xx.xx.xx.95:3307/seata?useUnicode=true&rewriteBatchedStatements=true
store.db.user=root
store.db.password=^e9*
store.db.minConn=5
store.db.maxConn=30
store.db.globalTable=global_table
store.db.branchTable=branch_table
store.db.distributedLockTable=distributed_lock
store.db.queryLimit=100
store.db.lockTable=lock_table
store.db.maxWait=5000

#Transaction rule configuration, only for the server
server.recovery.committingRetryPeriod=1000
server.recovery.asynCommittingRetryPeriod=1000
server.recovery.rollbackingRetryPeriod=1000
server.recovery.timeoutRetryPeriod=1000
server.maxCommitRetryTimeout=-1
server.maxRollbackRetryTimeout=-1
server.rollbackRetryTimeoutUnlockEnable=false
server.distributedLockExpireTime=10000
server.xaerNotaRetryTimeout=60000
server.session.branchAsyncQueueSize=5000
server.session.enableBranchAsyncRemove=false
server.enableParallelRequestHandle=false

#Metrics configuration, only for the server
metrics.enabled=false
metrics.registryType=compact
metrics.exporterList=prometheus
metrics.exporterPrometheusPort=9898

8.到这里就可以启动linux的seata了
cd /aaa/seata/bin
./seata-server.sh -h xx.xx.xx.89 -p 8091
启动带ip地址,不然注册到nacos的时候是内网的ip, 我们的springboot服务在外网注册到seata，所以默认不写ip注册不上

9.启动时内存低于4G可能会报错内存不足，我的是2核2G 所以需要配置一下 /aaa/seata/bin/seata-setup.sh

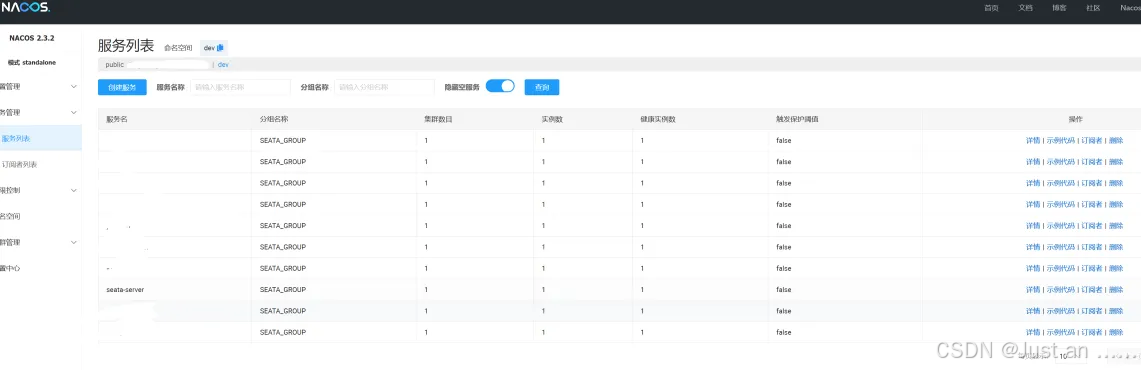

10。再重新启动，启动成功后在nacos注册中心会显示当前的seata的服务





11.最后在springboot项目引入依赖
        <!-- https://mvnrepository.com/artifact/io.seata/seata-spring-boot-starter -->
        <dependency>
            <groupId>io.seata</groupId>
            <artifactId>seata-spring-boot-starter</artifactId>
            <version>1.8.0</version>
        </dependency>

12.在yml里配置请求的路径

seata:
  enabled: true
  application-id: seata-server
  enable-auto-data-source-proxy: false
  # 事务组的名称，对应service.vgroupMapping.default_tx_group=xxx中配置的default_tx_group
  tx-service-group: default_tx_group
  service:
    vgroup-mapping:
      default_tx_group: default
    group-list:
      default: xx.xx.xx.89:8091  # 你的 Seata TC 服务器地址
    disable-global-transaction: false
  config:
    type: nacos
    nacos:
      namespace: xxxxxx-f4e7-442f-b100-a23c12cbc6bb
      server-addr: xx.xx.xx.90:8848
      username: nacos
      password: ^e9*
      group: SEATA_GROUP
      data-id: seataServer.properties
  registry:
    type: nacos
    nacos:
      application: seata-server # tc服务在nacos中的服务名称
      cluster: default
      server-addr: xx.xx.xx.90:8848
      group: SEATA_GROUP
      namespace: xxxxx-f4e7-442f-b100-a23c12cbc6bb
      username: nacos
      password: ^e9*
