1、分析

还是上次那个OLED，想要在ESP8266上跑起来，首先要有IIC的驱动，然后有OLED的写数据、写命令、设置坐标基本函数，就可以进行OLED的初始化函数，根据坐标位置显示数字和字符串；

2、添加IIC驱动

2.1、复制SDK里的IIC驱动

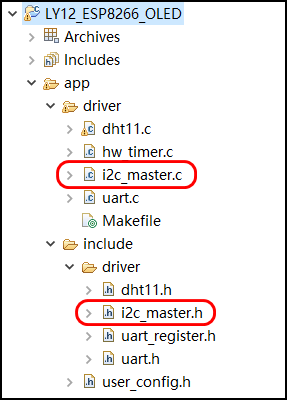

ESP8266的SDK里自带有IIC驱动代码的，把i2c_master的头文件和源文件复制（如下图）；

2.2、粘贴到新建工程的相应目录，从IDE里refresh就能看到了

3、代码

3.1、oled.h

#ifndef APP_INCLUDE_DRIVER_OLED_H_
#define APP_INCLUDE_DRIVER_OLED_H_

#include "driver/i2c_master.h"

#include "os_type.h"				//os
#include "osapi.h"					//os_xxx系列接口
#include "c_types.h"				//变量类型，比如下面的u8
#include "user_interface.h"			//含system_xxx系列接口
//#include "eagle_soc.h"
//#include "gpio.h"

#define OLED_ADDRESS	0x78	//前7位是从机地址，最后一位是读写标志，写为0读为1
#define OLED_CMD_CMD	0x00	//OLED命令:主机要发送命令
#define OLED_CMD_DATA	0x40	//OLED命令:主机要发送数据

#define FONT_6x8 		0
#define FONT_8x16		1

void ICACHE_FLASH_ATTR oled_clear();
void ICACHE_FLASH_ATTR oled_init();
void ICACHE_FLASH_ATTR oled_show_string(uint8_t x, uint8_t y, uint8_t ch[], uint8_t TextSize);
void ICACHE_FLASH_ATTR oled_show_num(uint8_t x, uint8_t y, uint16_t num, uint8_t TextSize);

#endif /* APP_INCLUDE_DRIVER_OLED_H_ */

3.2、oledfont.h

#ifndef __OLEDFONT_H
#define __OLEDFONT_H

/****************************************6*8的点阵*************************************/
const unsigned char F6x8[][6] =
{
    0x00, 0x00, 0x00, 0x00, 0x00, 0x00,//
    0x00, 0x00, 0x00, 0x2f, 0x00, 0x00,// !
    0x00, 0x00, 0x07, 0x00, 0x07, 0x00,// "
    0x00, 0x14, 0x7f, 0x14, 0x7f, 0x14,// #
    0x00, 0x24, 0x2a, 0x7f, 0x2a, 0x12,// $
    0x00, 0x62, 0x64, 0x08, 0x13, 0x23,// %
    0x00, 0x36, 0x49, 0x55, 0x22, 0x50,// &
    0x00, 0x00, 0x05, 0x03, 0x00, 0x00,// '
    0x00, 0x00, 0x1c, 0x22, 0x41, 0x00,// (
    0x00, 0x00, 0x41, 0x22, 0x1c, 0x00,// )
    0x00, 0x14, 0x08, 0x3E, 0x08, 0x14,// *
    0x00, 0x08, 0x08, 0x3E, 0x08, 0x08,// +
    0x00, 0x00, 0x00, 0xA0, 0x60, 0x00,// ,
    0x00, 0x08, 0x08, 0x08, 0x08, 0x08,// -
    0x00, 0x00, 0x60, 0x60, 0x00, 0x00,// .
    0x00, 0x20, 0x10, 0x08, 0x04, 0x02,// /
    0x00, 0x3E, 0x51, 0x49, 0x45, 0x3E,// 0
    0x00, 0x00, 0x42, 0x7F, 0x40, 0x00,// 1
    0x00, 0x42, 0x61, 0x51, 0x49, 0x46,// 2
    0x00, 0x21, 0x41, 0x45, 0x4B, 0x31,// 3
    0x00, 0x18, 0x14, 0x12, 0x7F, 0x10,// 4
    0x00, 0x27, 0x45, 0x45, 0x45, 0x39,// 5
    0x00, 0x3C, 0x4A, 0x49, 0x49, 0x30,// 6
    0x00, 0x01, 0x71, 0x09, 0x05, 0x03,// 7
    0x00, 0x36, 0x49, 0x49, 0x49, 0x36,// 8
    0x00, 0x06, 0x49, 0x49, 0x29, 0x1E,// 9
    0x00, 0x00, 0x36, 0x36, 0x00, 0x00,// :
    0x00, 0x00, 0x56, 0x36, 0x00, 0x00,// ;
    0x00, 0x08, 0x14, 0x22, 0x41, 0x00,// <
    0x00, 0x14, 0x14, 0x14, 0x14, 0x14,// =
    0x00, 0x00, 0x41, 0x22, 0x14, 0x08,// >
    0x00, 0x02, 0x01, 0x51, 0x09, 0x06,// ?
    0x00, 0x32, 0x49, 0x59, 0x51, 0x3E,// @
    0x00, 0x7C, 0x12, 0x11, 0x12, 0x7C,// A
    0x00, 0x7F, 0x49, 0x49, 0x49, 0x36,// B
    0x00, 0x3E, 0x41, 0x41, 0x41, 0x22,// C
    0x00, 0x7F, 0x41, 0x41, 0x22, 0x1C,// D
    0x00, 0x7F, 0x49, 0x49, 0x49, 0x41,// E
    0x00, 0x7F, 0x09, 0x09, 0x09, 0x01,// F
    0x00, 0x3E, 0x41, 0x49, 0x49, 0x7A,// G
    0x00, 0x7F, 0x08, 0x08, 0x08, 0x7F,// H
    0x00, 0x00, 0x41, 0x7F, 0x41, 0x00,// I
    0x00, 0x20, 0x40, 0x41, 0x3F, 0x01,// J
    0x00, 0x7F, 0x08, 0x14, 0x22, 0x41,// K
    0x00, 0x7F, 0x40, 0x40, 0x40, 0x40,// L
    0x00, 0x7F, 0x02, 0x0C, 0x02, 0x7F,// M
    0x00, 0x7F, 0x04, 0x08, 0x10, 0x7F,// N
    0x00, 0x3E, 0x41, 0x41, 0x41, 0x3E,// O
    0x00, 0x7F, 0x09, 0x09, 0x09, 0x06,// P
    0x00, 0x3E, 0x41, 0x51, 0x21, 0x5E,// Q
    0x00, 0x7F, 0x09, 0x19, 0x29, 0x46,// R
    0x00, 0x46, 0x49, 0x49, 0x49, 0x31,// S
    0x00, 0x01, 0x01, 0x7F, 0x01, 0x01,// T
    0x00, 0x3F, 0x40, 0x40, 0x40, 0x3F,// U
    0x00, 0x1F, 0x20, 0x40, 0x20, 0x1F,// V
    0x00, 0x3F, 0x40, 0x38, 0x40, 0x3F,// W
    0x00, 0x63, 0x14, 0x08, 0x14, 0x63,// X
    0x00, 0x07, 0x08, 0x70, 0x08, 0x07,// Y
    0x00, 0x61, 0x51, 0x49, 0x45, 0x43,// Z
    0x00, 0x00, 0x7F, 0x41, 0x41, 0x00,// [
    0x00, 0x55, 0x2A, 0x55, 0x2A, 0x55,// 55
    0x00, 0x00, 0x41, 0x41, 0x7F, 0x00,// ]
    0x00, 0x04, 0x02, 0x01, 0x02, 0x04,// ^
    0x00, 0x40, 0x40, 0x40, 0x40, 0x40,// _
    0x00, 0x00, 0x01, 0x02, 0x04, 0x00,// '
    0x00, 0x20, 0x54, 0x54, 0x54, 0x78,// a
    0x00, 0x7F, 0x48, 0x44, 0x44, 0x38,// b
    0x00, 0x38, 0x44, 0x44, 0x44, 0x20,// c
    0x00, 0x38, 0x44, 0x44, 0x48, 0x7F,// d
    0x00, 0x38, 0x54, 0x54, 0x54, 0x18,// e
    0x00, 0x08, 0x7E, 0x09, 0x01, 0x02,// f
    0x00, 0x18, 0xA4, 0xA4, 0xA4, 0x7C,// g
    0x00, 0x7F, 0x08, 0x04, 0x04, 0x78,// h
    0x00, 0x00, 0x44, 0x7D, 0x40, 0x00,// i
    0x00, 0x40, 0x80, 0x84, 0x7D, 0x00,// j
    0x00, 0x7F, 0x10, 0x28, 0x44, 0x00,// k
    0x00, 0x00, 0x41, 0x7F, 0x40, 0x00,// l
    0x00, 0x7C, 0x04, 0x18, 0x04, 0x78,// m
    0x00, 0x7C, 0x08, 0x04, 0x04, 0x78,// n
    0x00, 0x38, 0x44, 0x44, 0x44, 0x38,// o
    0x00, 0xFC, 0x24, 0x24, 0x24, 0x18,// p
    0x00, 0x18, 0x24, 0x24, 0x18, 0xFC,// q
    0x00, 0x7C, 0x08, 0x04, 0x04, 0x08,// r
    0x00, 0x48, 0x54, 0x54, 0x54, 0x20,// s
    0x00, 0x04, 0x3F, 0x44, 0x40, 0x20,// t
    0x00, 0x3C, 0x40, 0x40, 0x20, 0x7C,// u
    0x00, 0x1C, 0x20, 0x40, 0x20, 0x1C,// v
    0x00, 0x3C, 0x40, 0x30, 0x40, 0x3C,// w
    0x00, 0x44, 0x28, 0x10, 0x28, 0x44,// x
    0x00, 0x1C, 0xA0, 0xA0, 0xA0, 0x7C,// y
    0x00, 0x44, 0x64, 0x54, 0x4C, 0x44,// z
    0x14, 0x14, 0x14, 0x14, 0x14, 0x14,// horiz lines
};
