该文介绍了线性卷积神经网络模型，包括LeNet、AlexNet和VGG的结构构建，以及如何在FashonMNIST数据集上进行训练。文章详细展示了模型的每一层结构，并提供了训练过程中的精度和损失计算方法。
引入包
import torch
from torch import nn
from torchvision import datasets
from torchvision import transforms
from torch.utils.data import DataLoader
from tqdm import tqdm
LeNet
LeNet是一个较为简单的线性卷积模型，最早是应用于手写数字识别，提到手写数字识别就不得不提到mnist数据集，而为了与后续其他较强的模型进行对比，我们采用fashion_mnist数据集为例。
模型结构

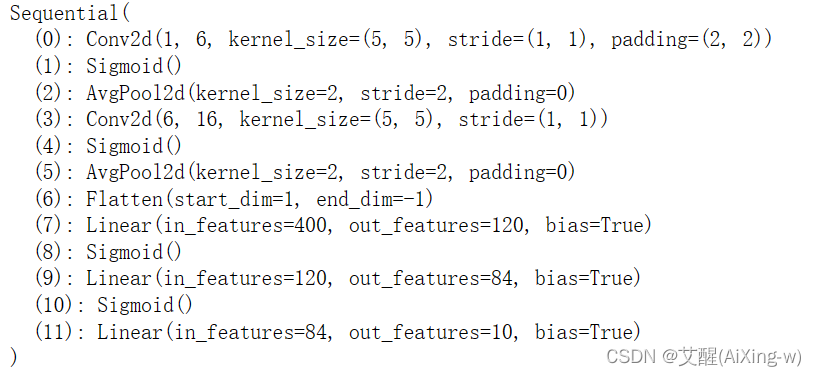

模型结构如下
模型构建
因为LeNet是线性模型，所以我们直接使用torch.nn.Sequential构建模型
net = nn.Sequential(nn.Conv2d(1, 6, kernel_size=5, padding=2), nn.Sigmoid(), # (1, 28, 28)->(6, 28, 28)
nn.AvgPool2d(kernel_size=2, stride=2), # (6, 28, 28)->(6, 14, 14)
nn.Conv2d(6, 16, kernel_size=5), nn.Sigmoid(), # (6, 14, 14)->(16, 10, 10)
nn.AvgPool2d(kernel_size=2, stride=2), # (16, 10, 10)->(16, 5, 5)
nn.Flatten(),
nn.Linear(16 * 5 * 5, 120), nn.Sigmoid(), # (16 * 5 * 5, 120)
nn.Linear(120, 84), nn.Sigmoid(), # (120, 84)
nn.Linear(84, 10)
)

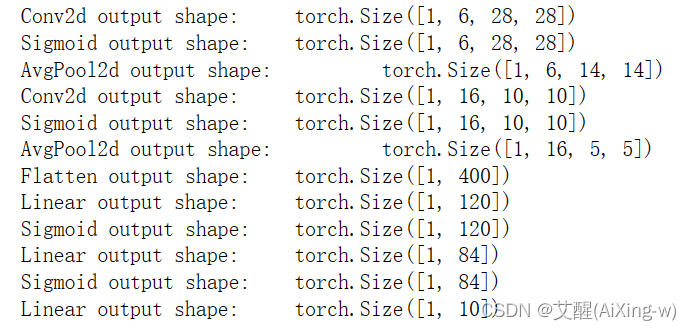

我们先构建一个伪数据输入模型，来观察它的每一层的结构
X= torch.randn((1, 1, 28, 28))
for layer in net:
X = layer(X)
print(layer.__class__.__name__,'output shape: \t',X.shape)
AlexNet
模型结构

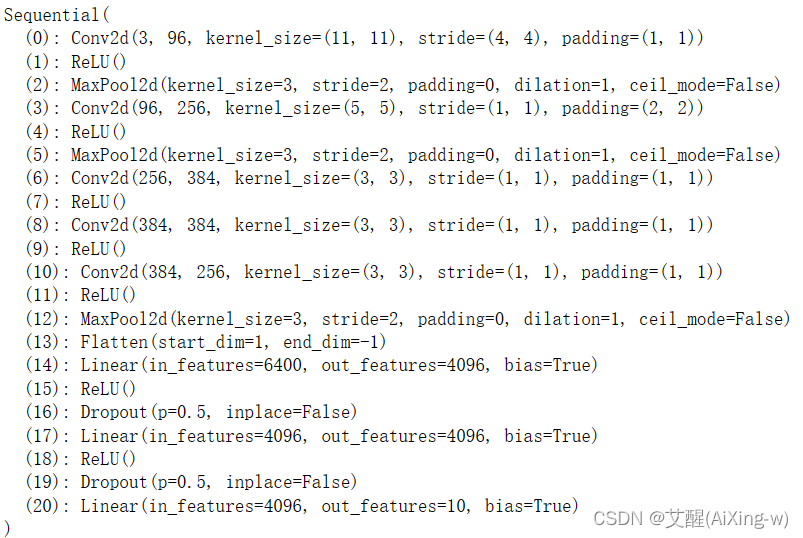

AlexNet也是一个线性模型，相当于算是LeNet的加强版，模型结构如下
模型构建
net = nn.Sequential(nn.Conv2d(3, 96, kernel_size=11, stride=4, padding=1),nn.ReLU(), # (3, 224, 224)->(96, 54， 54)
nn.MaxPool2d(kernel_size=3, stride=2), # (96, 26, 26)
nn.Conv2d(96, 256, kernel_size=5, padding=2), nn.ReLU(), # (256, 26, 26)
nn.MaxPool2d(kernel_size=3, stride=2), # (256, 12, 12)
nn.Conv2d(256, 384, kernel_size=3, padding=1), nn.ReLU(), # (384, 12, 12)
nn.Conv2d(384, 384, kernel_size=3, padding=1), nn.ReLU(), # (384, 12, 12)
nn.Conv2d(384, 256, kernel_size=3, padding=1), nn.ReLU(), # (256, 12, 12)
nn.MaxPool2d(kernel_size=3, stride=2), # (256, 5, 5)
nn.Flatten(), # 256 * 5 * 5
nn.Linear(6400, 4096), nn.ReLU(),
nn.Dropout(0.5),
nn.Linear(4096, 4096), nn.ReLU(),
nn.Dropout(0.5),
nn.Linear(4096, 10)
)

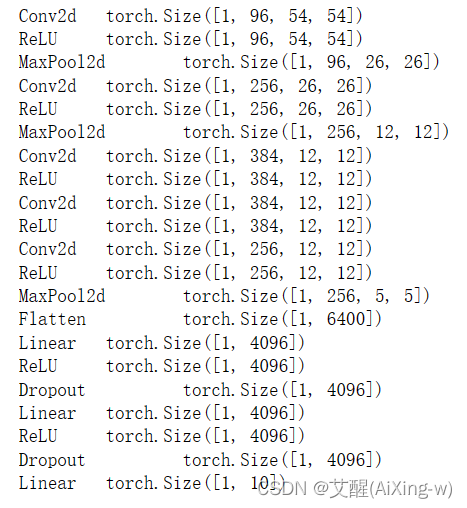

观察
X = torch.randn((1, 3, 224, 224))
for layer in net:
X = layer(X)
print(layer.__class__.__name__, '\t', X.shape)
VGG
模型结构
VGG虽然仍然是线性模型，但是他引入了块的结构，模型结构依然是线性，只不过构建的方式更为简便，即不用一层层的去构建，直接通过构建块来构建
模型构建
vgg块
def vgg_block(num_conv, in_channels, out_channels):
layers = []
for _ in range(num_conv):
layers.append(nn.Conv2d(in_channels, out_channels, kernel_size=3, padding=1))
layers.append(nn.ReLU())
in_channels = out_channels
layers.append(nn.MaxPool2d(kernel_size=2, stride=2))
return nn.Sequential(*layers)
构建vgg11模型
def vgg11(in_channel):
conv_archs = ((1, 64), (1, 128), (2, 256), (2, 512), (2, 512))
conv_blks = []
for (num_conv, out_channel) in conv_archs:
conv_blks.append(vgg_block(num_conv, in_channel, out_channel))
in_channel = out_channel
return nn.Sequential(*conv_blks, nn.Flatten(),
nn.Linear(out_channel*7*7, 4096), nn.ReLU(),
nn.Dropout(0.5),
nn.Linear(4096, 4096), nn.ReLU(),
nn.Linear(4096, 10)
)
net = vgg11(1)
加载数据集
可以直接使用torchvision.datasets中的FashionMNIST直接加载数据集，其中需要注意的是读入是图像的数据一定要使用transforms.ToTensor将数据转换成torch模型支持的数据类型，即tensor类型
def load_fashion_mnist(batch_size, resize=None):
tran = [transforms.ToTensor()]
if resize:
tran.insert(0, transforms.Resize(resize))
tran = transforms.Compose(tran)
mnist_train = datasets.FashionMNIST(root='./data', train=True, transform=tran, download=True)
mnist_test = datasets.FashionMNIST(root='./data', train=False, transform=tran, download=True)
return (DataLoader(mnist_train, batch_size, shuffle=True),
DataLoader(mnist_test, batch_size, shuffle=False)
)
batch_size = 256
train_iter, test_iter = load_fashion_mnist(batch_size)
累加器
定义一个累加器，用来累积，在后边训练的时候用于统计精度和损失，这个是参照的李沐的动手学深度学习，刚开始的时候我也是按照这个这样写的，但是后边根据个人的使用习惯已经被替换掉了，暂时这个还是跟李沐老师的符合一下。
class Accumulator:
def __init__(self, n):
self.data = [0.0] * n
def add(self, *args):
self.data = [a + float(b) for a, b in zip(self.data, args)]
def reset(self):
self.data = [0.0] * len(self.data)
def __getitem__(self, idx):
return self.data[idx]
精度
def accuracy(y_hat, y):
if len(y_hat.shape) > 1 and y_hat.shape[1] > 1:
y_hat = torch.argmax(y_hat, axis=1)
cmp = y_hat.type(y.dtype)==y
return float(cmp.type(y.dtype).sum())
其中y_hat是预测标签，y是真实标签。
这里需要强调的是，y作为真实标签，每个标签是一个数字，而y_hat既可以是一个数字，也可以是神经网络输出的不同类别的概率，为了统一形式，当输入的y_hat不为数字时，我们使用torch.argmax获取类别概率最大的索引，即最大的值。
训练
def train(net, name, train_ter, test_iter, num_epochs, lr, device):
def init_weights(m):
if isinstance(m, nn.Linear) or isinstance(m, nn.Conv2d):
nn.init.xavier_uniform_(m.weight)
net.apply(init_weights)
print("device in : ", device)
net = net.to(device)
optimizer = torch.optim.SGD(net.parameters(), lr=lr)
loss = nn.CrossEntropyLoss()
for epoch in range(num_epochs):
print("epoch {}/{}".format(epoch+1, num_epochs))
metric = Accumulator(3)
net.train()
print('training...')
for X, y in tqdm(train_iter, ncols=50, postfix="{}".format(name)):
optimizer.zero_grad()
X, y = X.to(device), y.to(device)
y_hat = net(X)
l = loss(y_hat, y)
l.backward()
optimizer.step()
with torch.no_grad():
metric.add(l * X.shape[0], accuracy(y_hat, y), X.shape[0])
train_l = metric[0] / metric[2]
train_acc = metric[1] / metric[2]
tqdm.write('train loss:{} , train acc:{}'.format(train_l, train_acc))
metric.reset()
net.eval()
print('validating...')
for X, y in (test_iter):
X, y = X.to(device), y.to(device)
y_hat = net(X)
with torch.no_grad():
l = loss(y_hat, y)
metric.add(l * X.shape[0], accuracy(y_hat, y), X.shape[0])
test_l = metric[0] / metric[2]
test_acc = metric[1] / metric[2]
metric.reset()
tqdm.write('test loss:{} , test acc:{}'.format(test_l, test_acc))

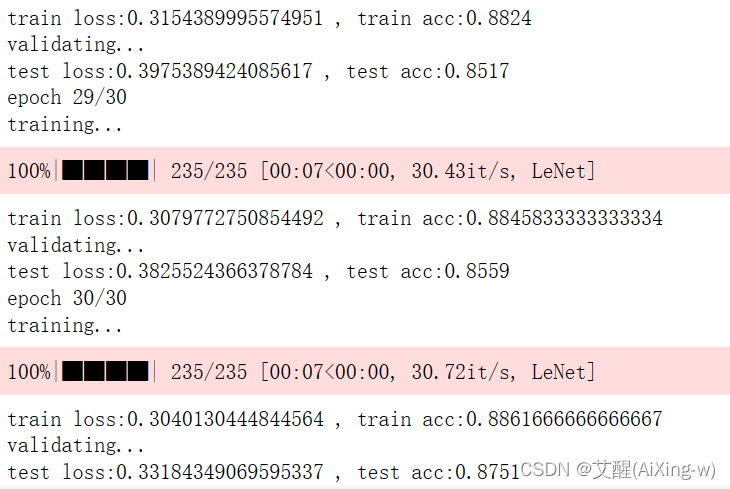

train(net, 'LeNet', train_iter, test_iter, 30, 0.95, 'cuda')
