ARO Robot Kinematics

1. Kinematic Tree, Kinematic Chain, and Forward Geometry and Backward Geometry in Robotics

1.1. Demo Case Study: Robotic Arm for Assembly Line Tasks

• Super Domain: Kinematics in Robotics
• Type of Method: Kinematic Analysis and Control

1.2. Kinematic Tree and Kinematic Chain

• Objective: To model the structure and movement of a robotic arm.
• Kinematic Tree:
  • Represents the hierarchical structure of a robot.
  • Includes all possible movements and connections between different components.
• Kinematic Chain:
  • A sequence of links and joints from the base to the end effector.
  • Typically, a subset of the full kinematic tree, focusing on a specific task.

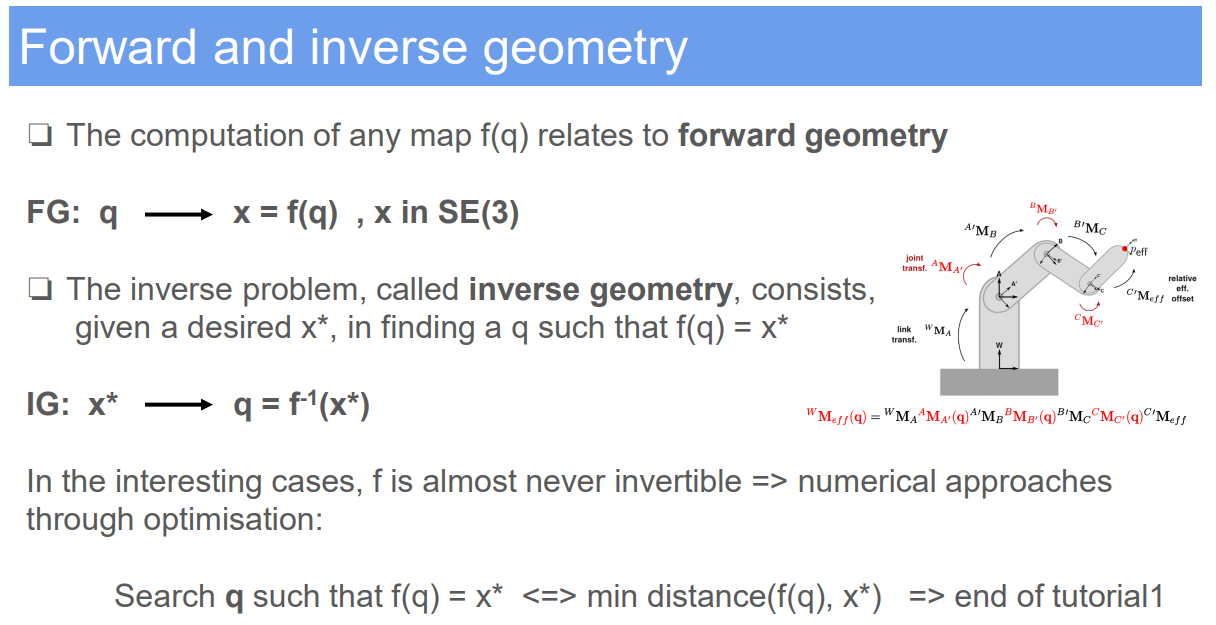

1.3. Forward Geometry

• Objective: To determine the position and orientation of the robot’s end effector, given its joint parameters.
• Variables:
  • $\mathbf{q}$: Vector of joint parameters (angles for revolute joints, displacements for prismatic joints).
  • $\mathbf{T}$: Homogeneous transformation matrix representing end effector position and orientation.
• Method:
  • Utilize the kinematic chain to calculate $\mathbf{T}$ as a function of $\mathbf{q}$.

1.4. Inverse Geometry

• Objective: To compute the joint parameters that achieve a desired position and orientation of the end effector.
• Method:
  • More complex than forward kinematics, often requiring numerical methods (find inverse of forward kinematics) or iterative algorithms (check inverse kinematics).

1.5. Jacobian Matrix

• Objective: To relate the velocities in the joint space to velocities in the Cartesian space.
• Variables:
  • $\mathbf{J}$: Jacobian matrix.
• Method:
  • Construct $\mathbf{J}$ such that $\dot{\mathbf{x}}=\mathbf{J}\dot{\mathbf{q}}$, where $\dot{\mathbf{x}}$ is the velocity in Cartesian space and $\dot{\mathbf{q}}$ is the velocity in joint space.

1.6. Strengths and Limitations

• Strengths:
  • Provides a systematic approach to model and control robotic mechanisms.
  • Facilitates the understanding of complex robotic systems and their motion capabilities.
  • Essential for the design and control of robotic systems in various applications.
• Limitations:
  • Inverse kinematics can be computationally intensive and may not have a unique solution.
  • Jacobian matrices can become singular, leading to control difficulties.

1.7. Common Problems in Application

• Singularities in the kinematic chain, leading to loss of control or undefined behavior.
• Accuracy issues in forward and inverse kinematics due to mechanical tolerances and sensor errors.
• Computational complexity, especially for robots with a high degree of freedom.

1.8. Improvement Recommendations

• Implement redundancy management strategies to handle singularities.
• Use advanced algorithms like pseudo-inverse or optimization-based methods for inverse kinematics.
• Integrate real-time feedback and adaptive control mechanisms to compensate for inaccuracies.

---

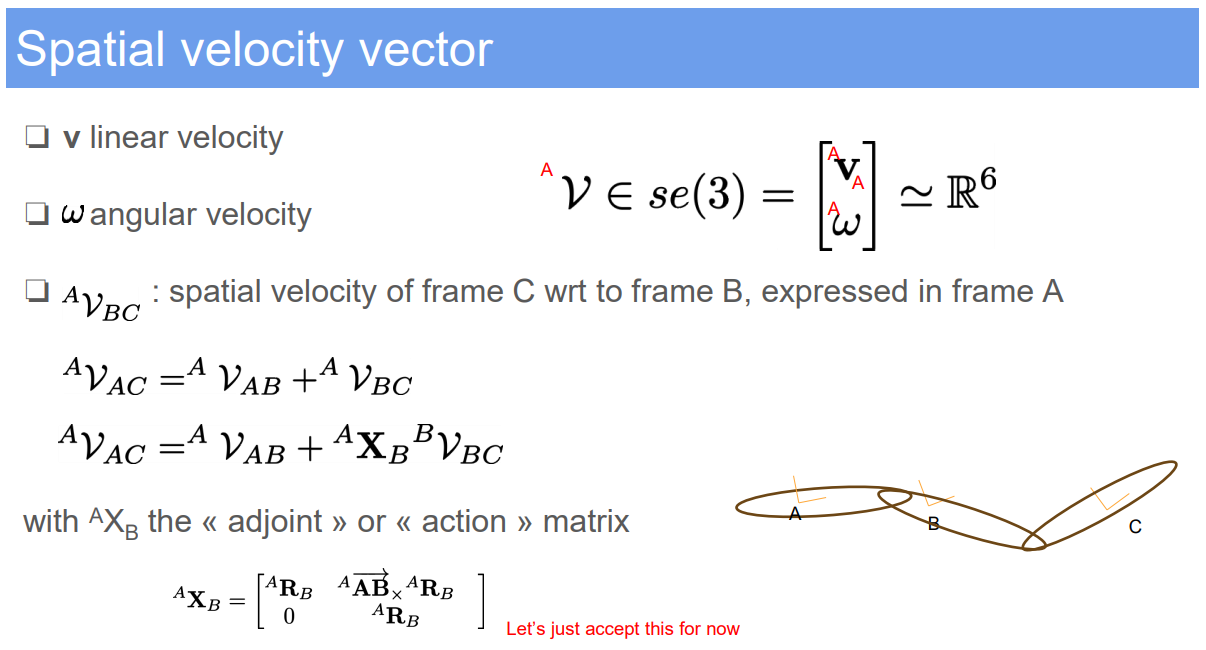

2. Spatial Velocity Vector in Robotics

2.1. Demo Case Study: Calculating the Movement of a Robotic Arm’s End Effector

• Super Domain: Kinematics and Dynamics
• Type of Method: Vector Analysis

2.2. Problem Definition and Variables

• Objective: To represent and compute the motion of a robotic arm’s end effector through its spatial velocity, which includes both linear and angular components.
• Variables:
  • $\mathbf{v}$: Linear velocity component of the spatial velocity vector.
  • $\omega$: Angular velocity component of the spatial velocity vector.
  • ${}^A{\mathbf{v}}_{BC}$: Spatial velocity of frame C with respect to frame B, expressed in frame A.

2.3. Assumptions

• The frames of reference are rigid, with no deformation under motion.
• The motion can be captured within the Euclidean space $se(3)$ framework.

2.4. Method Specification and Workflow

1. Spatial Velocity Representation: Use the $se(3)$ group to describe the spatial velocity as a six-dimensional vector combining linear and angular velocity.
   • Representation: $\mathbf{v}\in se(3)=\left[\begin{array}{c}{\mathbf{v}}^A\\ {\omega }^A\end{array}\right]$.
2. Velocity Composition: Determine the overall spatial velocity of the end effector (frame C) with respect to the base (frame A) by summing up individual velocities along the kinematic chain.
   • Composition formulas:
     $$\begin{gathered} {}^A{\mathbf{v}}_{AC}={}^A{\mathbf{v}}_{AB}+{}^A{\mathbf{v}}_{BC} \\ {}^A{\mathbf{v}}_{AC}={}^A{\mathbf{v}}_{AB}+{}^A{X}_B{}^B{\mathbf{v}}_{BC} \end{gathered}$$
3. Transformation Matrix Utilization: Apply the appropriate transformation matrices to express all velocities in a common frame of reference, typically the base frame.

2.5. Strengths and Limitations

• Strengths:
  • Provides a complete description of motion, essential for control and analysis.
  • Can be used to compute velocities for any point along a robotic arm or system.
• Limitations:
  • Requires precise knowledge of the kinematic chain and transformations.
  • The computation can become complex, especially for systems with multiple moving parts.

2.6. Common Problems in Application

• Errors in calculating transformation matrices can lead to incorrect velocity composition.
• The intricacy of multi-body systems can introduce challenges in real-time applications.

2.7. Improvement Recommendations

• Implement software frameworks that can automatically handle spatial transformations and velocity computations.
• Use state estimation techniques to accurately measure and update velocities, reducing errors from model inaccuracies.
• Integrate sensor feedback for real-time correction of spatial velocities.

---

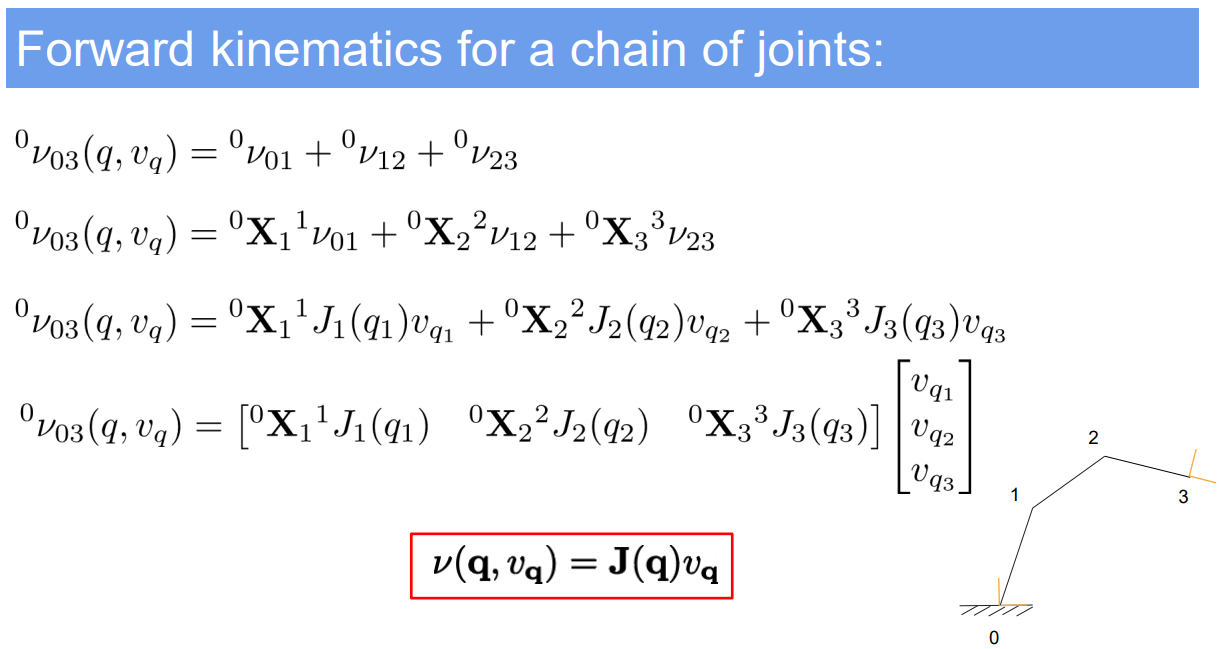

3. Forward Kinematics for a Chain of Joints

3.1. Demo Case Study: Movement Analysis of a Robotic Arm

• Super Domain: Kinematics in Robotics
• Type of Method: Analytical Modeling

3.2. Problem Definition and Variables

• Objective: To determine the position and orientation of a robotic arm’s end effector based on joint configurations.
• Variables:
  • $q$: Vector of joint parameters (e.g., angles for revolute joints, displacements for prismatic joints).
  • $J(q)$: Jacobian matrix at configuration $q$.
  • $v(q,\dot{q})$: Velocity of the end effector in Cartesian space.
  • $\dot{q}$: Vector of joint velocities.

3.3. Assumptions

• The robotic arm is composed of a series of rigid bodies connected by joints, forming a kinematic chain.
• The kinematic model of the robot is known and can be described by a set of parameters $q$.

3.4. Method Specification and Workflow

1. Jacobian Computation: Calculate the Jacobian matrix $J(q)$, which relates joint velocities to end effector velocities in Cartesian space.
2. Velocity Mapping: Use the Jacobian to map joint velocities $\dot{q}$ to the velocity of the end effector $v$ in Cartesian space using the formula:
   • $v(q,\dot{q})=J(q)\dot{q}$.
3. Local Validity: Understand that the Jacobian is only valid locally, meaning it accurately describes the relationship between joint velocities and end effector velocities only in the vicinity of the configuration $q$.

3.5. Strengths and Limitations

• Strengths:
  • Provides a direct and efficient way to calculate the end effector’s position and orientation.
  • Essential for real-time control and path planning of robotic manipulators.
• Limitations:
  • The Jacobian does not provide global information about the robot’s workspace.
  • Singularities in the Jacobian matrix can lead to issues in control algorithms.

3.6. Common Problems in Application

• Computational complexity for robots with a high degree of freedom.
• Inaccuracies in the Jacobian matrix due to modeling errors or physical changes in the robot’s structure.

3.7. Improvement Recommendations

• Implement real-time Jacobian updates to accommodate changes in the robot’s configuration and avoid singularities.
• Utilize redundancy in robotic design to handle singularities and increase the robustness of the kinematic model.
• Integrate advanced sensors and feedback systems to refine the accuracy of the Jacobian matrix continually.

---

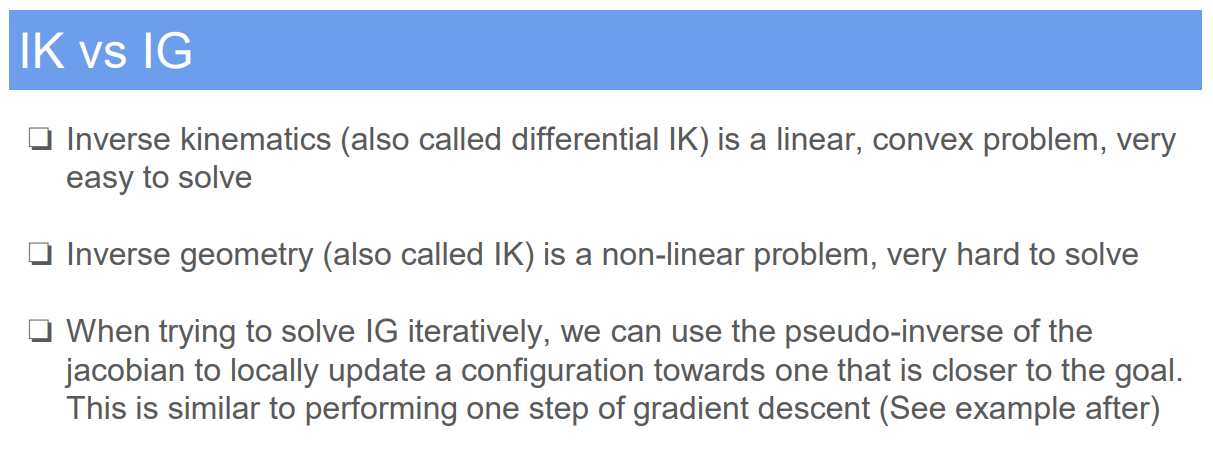

4. Inverse Kinematics (IK) and Inverse Geometry (IG) in Robotics

4.1. Demo Case Study: Configuring a Robotic Arm to Reach a Target Position

• Super Domain: Kinematics and Numerical Optimization
• Type of Method: Mathematical Problem-Solving

4.2. Problem Definition and Variables

• Objective: To determine the joint parameters that will position a robotic arm’s end effector at a desired location and orientation.
• Variables:
  • IK: Inverse Kinematics, focusing on finding joint velocities $\dot{q}$ to achieve a desired end-effector velocity ${\nu }^{\ast }$.
  • IG: Inverse Geometry, solving for joint positions $q$ that reach a specific end-effector pose.
  • $J(q)$: Jacobian matrix at joint configuration $q$, relating joint velocities to end-effector velocities.

4.3. Assumptions

• The kinematic structure of the robotic arm is well-defined and the Jacobian matrix can be computed.

4.4. Method Specification and Workflow

1. IK Formulation:
   • Solve ${\min }_{\dot{q}}\Vert \nu (q,\dot{q})-{\nu }^{\ast }{\Vert }^2$, where $\nu (q,\dot{q})=J(q)\dot{q}$.
   • Utilize the Moore-Penrose pseudo-inverse $J^{+}$ when the Jacobian is not invertible.
2. IG Formulation:
   • Solve ${\min }_q\text{dist}{(}^0{M}_e(q){,}^0{M}_{\ast })$ for pose and ${\min }_{\dot{q}}\text{dist}{(}^0{M}_e(q_0\oplus \dot{q}){,}^0{M}_{\ast })$ for velocity, with ${}^0{M}_e$ denoting the end-effector pose in the base frame and ${}^0{M}_{\ast }$ being the target pose.
3. IK with Constraints:
   • Consider velocity bounds ${\dot{q}}^{-}\le \dot{q}\le {\dot{q}}^{+}$ and joint limits $q^{-}\le q+\Delta t\dot{q}\le q^{+}$ to the optimization problem.
   • Solve using a Quadratic Program (QP) solver like ‘quadprog’.

4.5. Strengths and Limitations

• Strengths:
  • IK is a linear problem and generally easier to solve, providing a precise control mechanism for robotic motion.
  • IG offers a more direct approach to reaching a specific target pose.
• Limitations:
  • The Jacobian matrix may not always be invertible, necessitating pseudo-inverse solutions.
  • IG is a nonlinear problem and can be computationally challenging, often requiring iterative methods.

4.6. Common Problems in Application

• Jacobian singularities can lead to control problems and undefined velocities.
• High computational cost for iterative solutions in IG.
• Difficulty in ensuring convergence to the global minimum for IG problems.

4.7. Improvement Recommendations

• Apply redundancy in the robotic design to mitigate the effects of singularities.
• Use optimization libraries that are robust to numerical issues and can handle constraints effectively.
• For IG, consider gradient descent methods and initialization strategies to improve convergence.

---

Reference: The University of Edinburgh, Advanced Robotics, course link
Author: YangSier (discover304.top)
