OSPF 实验2

最新推荐文章于 2025-07-13 12:37:51 发布

原创最新推荐文章于 2025-07-13 12:37:51 发布 · 160 阅读

0 ·

CC 4.0 BY-SA版权

本文介绍了一种OSPF网络配置方案，包括配置stub区域、nssa区域、静默接口及路由汇总等关键技术点，实现了全网互通的目标。

在这里插入图片描述

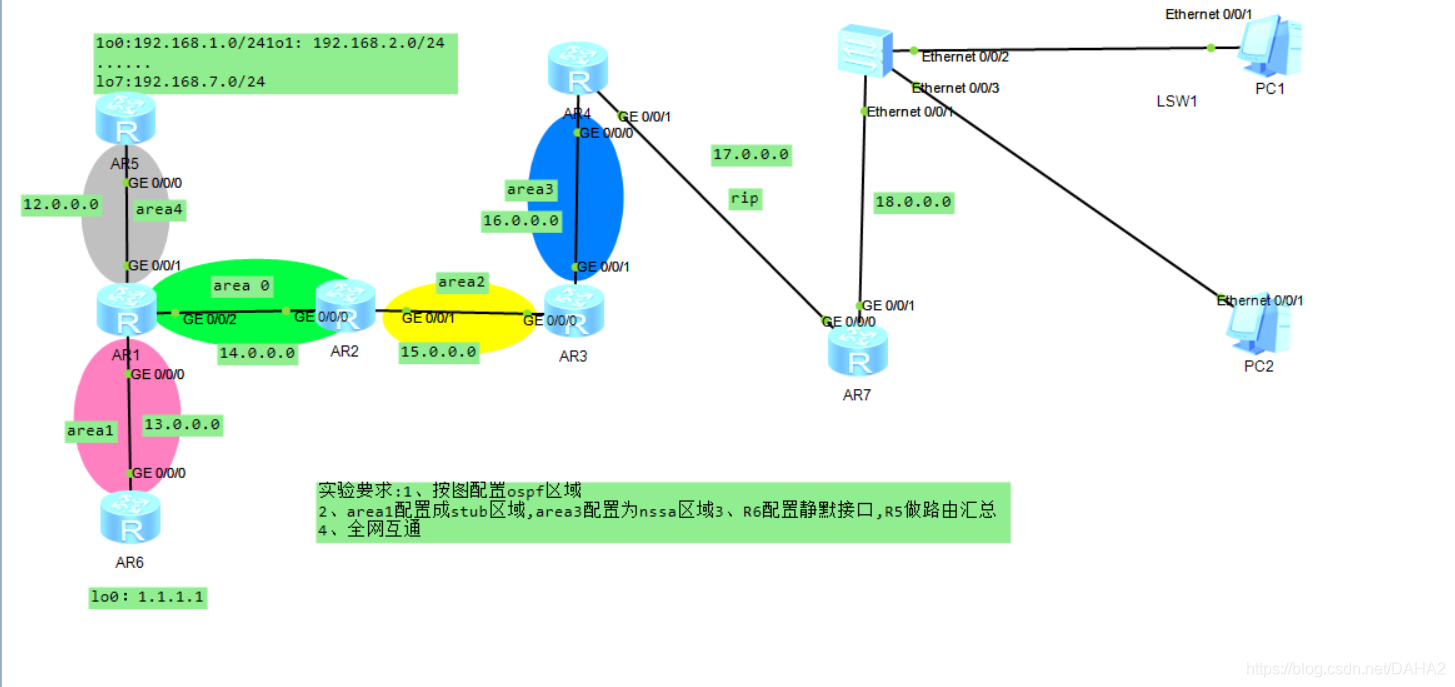

实验要求:1、按图配置ospf区域
2、area1配置成stub区域,area3配置为nssa区域3、R6配置静默接口,R5做路由汇总
4、全网互通

路由器R5的配置

#
 sysname R5
#
interface GigabitEthernet0/0/0
 ip address 12.0.0.1 255.255.255.0
#
interface LoopBack0
 ip address 192.168.1.1 255.255.255.0
#
interface LoopBack1
 ip address 192.168.2.1 255.255.255.0
#
interface LoopBack2
 ip address 192.168.3.1 255.255.255.0
#
interface LoopBack3
 ip address 192.168.4.1 255.255.255.0
#
interface LoopBack4
 ip address 192.168.5.1 255.255.255.0
#
interface LoopBack5
 ip address 192.168.6.1 255.255.255.0
#
interface LoopBack6
 ip address 192.168.8.1 255.255.255.0
#
interface LoopBack7
 ip address 192.168.7.1 255.255.255.0
#
ospf 1 router-id 2.2.2.2
 area 0.0.0.4
  abr-summary 192.168.0.0 255.255.0.0
  network 12.0.0.0 0.0.0.255
  network 192.168.0.0 0.0.255.255

路由器R1的配置

#
 sysname R1
#
interface GigabitEthernet0/0/0
 ip address 13.0.0.1 255.255.255.0
#
interface GigabitEthernet0/0/1
 ip address 12.0.0.2 255.255.255.0
#
interface GigabitEthernet0/0/2
 ip address 14.0.0.1 255.255.255.0
#
ospf 1 router-id 3.3.3.3
 area 0.0.0.0
  network 14.0.0.0 0.0.0.255
 area 0.0.0.1
  network 13.0.0.0 0.0.0.255
  stub
 area 0.0.0.4
  network 12.0.0.0 0.0.0.255

路由器R6的配置

#
 sysname R6
#
interface GigabitEthernet0/0/0
 ip address 13.0.0.2 255.255.255.0
#
interface GigabitEthernet0/0/1
#
interface GigabitEthernet0/0/2
#
interface NULL0
#
interface LoopBack0
 ip address 1.1.1.1 255.255.255.255
#
ospf 1 router-id 4.4.4.4
 area 0.0.0.1
  network 1.1.1.1 0.0.0.0
  network 13.0.0.0 0.0.0.255
  stub

路由器R2的配置

#
 sysname R2
#
interface GigabitEthernet0/0/0
 ip address 14.0.0.2 255.255.255.0
#
interface GigabitEthernet0/0/1
 ip address 15.0.0.1 255.255.255.0
#
interface GigabitEthernet0/0/2
#
interface NULL0
#
ospf 1 router-id 5.5.5.5
 area 0.0.0.0
  network 14.0.0.0 0.0.0.255
 area 0.0.0.2
  network 15.0.0.0 0.0.0.255
  vlink-peer 6.6.6.6

路由器R3的配置

#
 sysname R3
 #
interface GigabitEthernet0/0/0
 ip address 15.0.0.2 255.255.255.0
#
interface GigabitEthernet0/0/1
 ip address 16.0.0.1 255.255.255.0
 #
interface GigabitEthernet0/0/0
 ip address 15.0.0.2 255.255.255.0
#
interface GigabitEthernet0/0/1
 ip address 16.0.0.1 255.255.255.0

路由器R4的配置

#
 sysname R4
#
interface GigabitEthernet0/0/0
 ip address 16.0.0.2 255.255.255.0
#
interface GigabitEthernet0/0/1
 ip address 17.0.0.1 255.255.255.0
#
ospf 1 router-id 7.7.7.7
 import-route rip 1
 area 0.0.0.3
  network 16.0.0.0 0.0.0.255
  nssa
#
rip 1
 version 2
 network 17.0.0.0
 import-route ospf 1

路由器R7的配置

#
 sysname R7
#
interface GigabitEthernet0/0/0
 ip address 17.0.0.2 255.255.255.0
#
interface GigabitEthernet0/0/1
 ip address 18.0.0.254 255.255.255.0
#
rip 1
 version 2
 network 17.0.0.0
 network 18.0.0.0
 silent-interface GigabitEthernet0/0/1

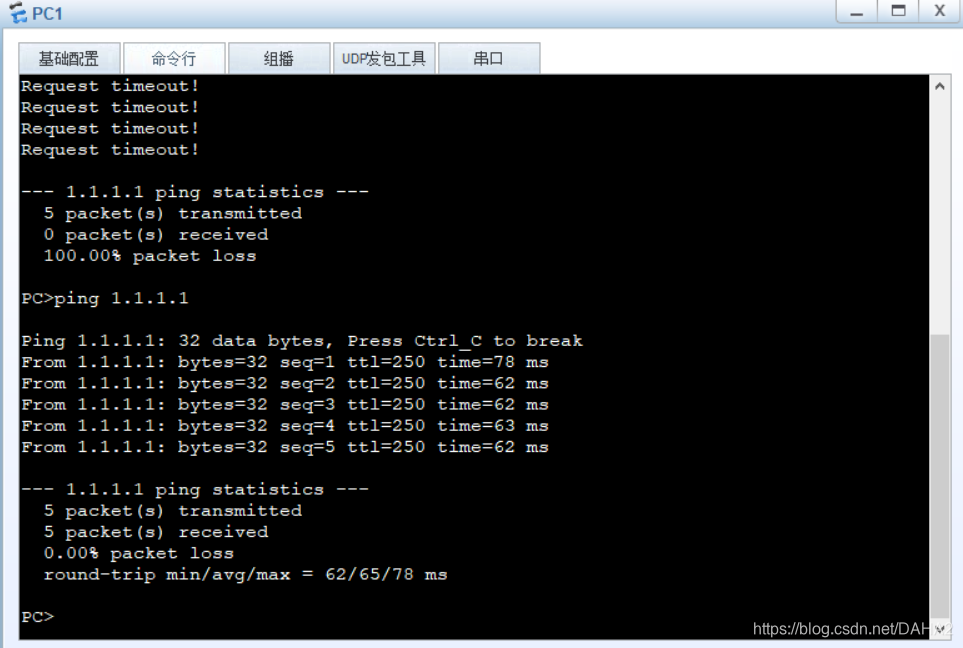

实验结果
在这里插入图片描述
