配置R1和R2的VRRP（虚拟路由冗余协议），创建VLAN 10和20，分配IP地址，并设置虚拟IP，以实现即使R1和SW1间线路故障，PC1和PC2仍能通过R2和R3保持与3.3.3.3的ping通。R3作为核心路由器，配置静态路由和Loopback接口，提供目标地址为3.3.3.3的可达性。

摘要生成于 C知道，由 DeepSeek-R1 满血版支持，前往体验 >

R1和R2上的g0/0/0配置接口

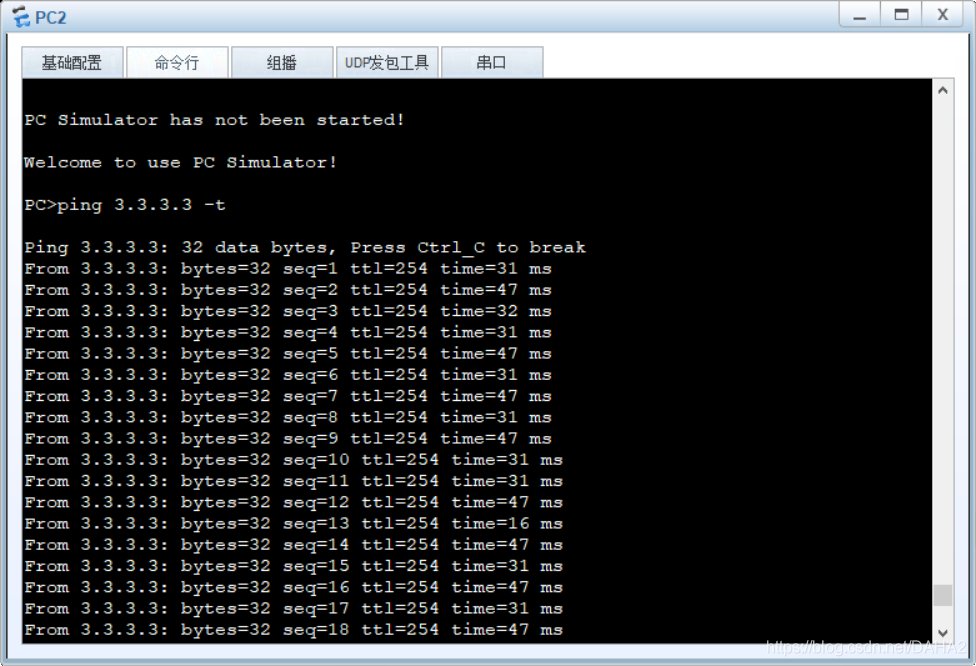

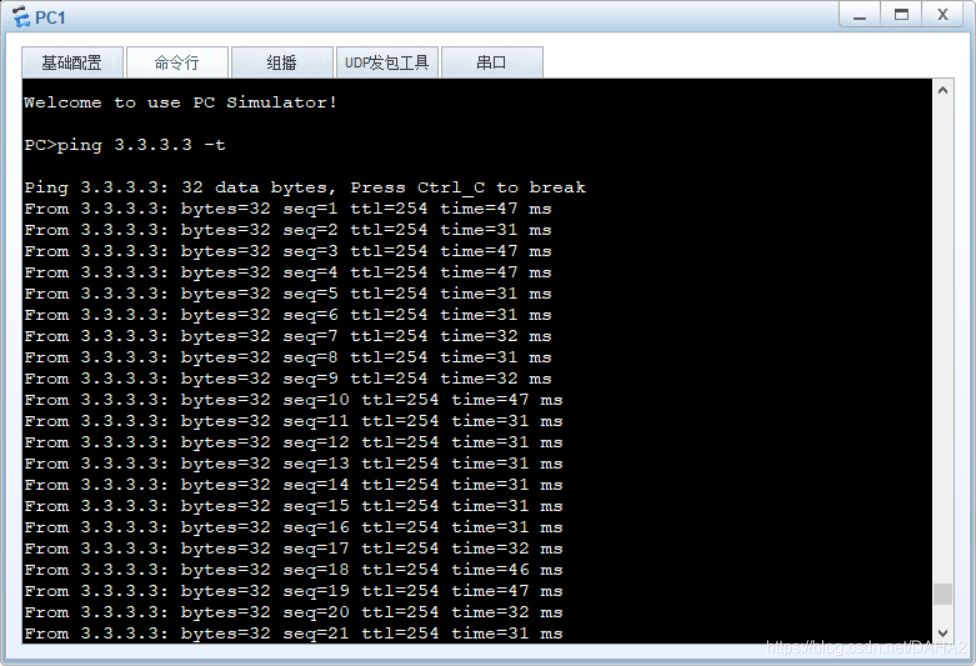

使得pc1和pc2能ping通3.3.3.3

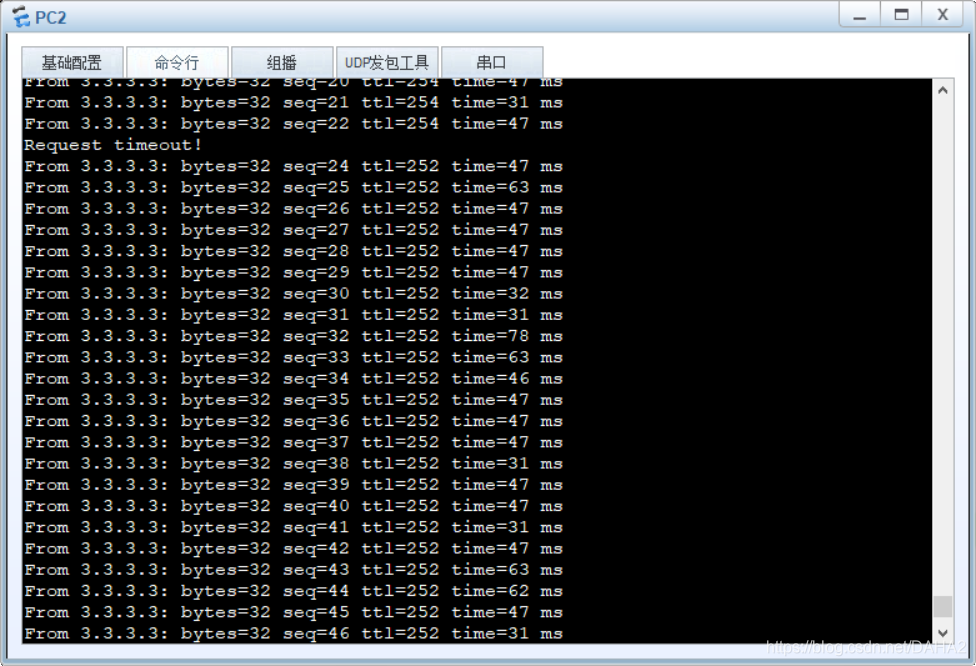

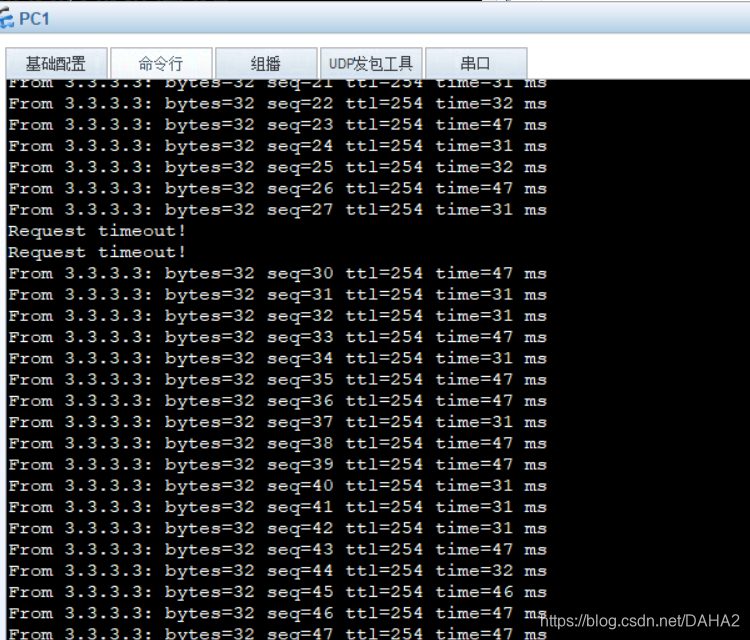

是R1和SW1中间的线路故障，依然可以ping通3.3.3.3

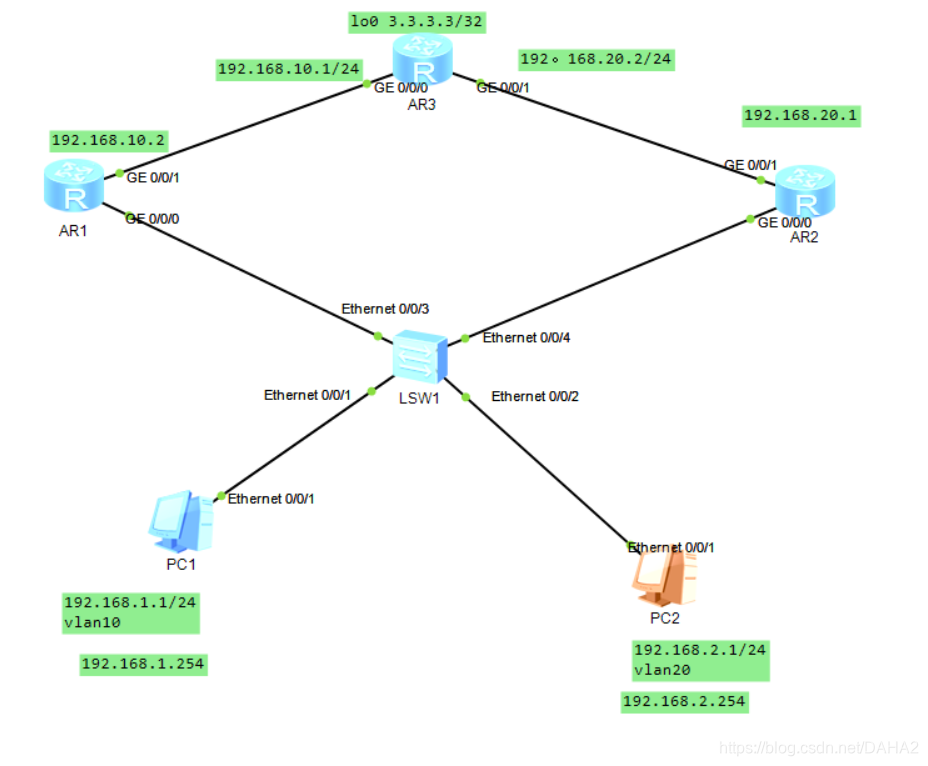

在这里插入图片描述

路由器R1的配置

vlan batch 10 20

interface GigabitEthernet0/0/0.1
 dot1q termination vid 10
 ip address 192.168.1.252 255.255.255.0
 vrrp vrid 1 virtual-ip 192.168.1.254
 vrrp vrid 1 priority 110
 arp broadcast enable


interface GigabitEthernet0/0/0.2
 dot1q termination vid 20
 ip address 192.168.2.253 255.255.255.0
 vrrp vrid 2 virtual-ip 192.168.2.254
 arp broadcast enable


interface GigabitEthernet0/0/1
 ip address 192.168.10.2 255.255.255.0

ip route-static 0.0.0.0 0.0.0.0 192.168.10.1

路由器R2的配置

vlan batch 10 20

interface GigabitEthernet0/0/0.1
 dot1q termination vid 10
 ip address 192.168.1.253 255.255.255.0
 vrrp vrid 1 virtual-ip 192.168.1.254
 arp broadcast enable

interface GigabitEthernet0/0/0.2
 dot1q termination vid 20
 ip address 192.168.2.252 255.255.255.0
 vrrp vrid 2 virtual-ip 192.168.2.254
 vrrp vrid 2 priority 110
 arp broadcast enable

interface GigabitEthernet0/0/1
 ip address 192.168.20.1 255.255.255.0

ip route-static 0.0.0.0 0.0.0.0 192.168.20.2

路由器R3的配置

vlan batch 10 20

interface GigabitEthernet0/0/0
 ip address 192.168.10.1 255.255.255.0

interface GigabitEthernet0/0/1
 ip address 192.168.20.2 255.255.255.0


interface LoopBack0
 ip address 3.3.3.3 255.255.255.255

ip route-static 192.168.1.0 255.255.255.0 192.168.10.2
ip route-static 192.168.1.0 255.255.255.0 192.168.20.1
ip route-static 192.168.2.0 255.255.255.0 192.168.10.2
ip route-static 192.168.2.0 255.255.255.0 192.168.20.1

交换机SW1的配置

vlan batch 10 20
interface Ethernet0/0/1
 port link-type access
 port default vlan 10
#
interface Ethernet0/0/2
 port link-type access
 port default vlan 20
#
interface Ethernet0/0/3
 port link-type trunk
 port trunk allow-pass vlan 2 to 4094
#
interface Ethernet0/0/4
 port link-type trunk
 port trunk allow-pass vlan 2 to 4094
